Description
The Mishimoto Performance Front-Mount Intercooler Kit (MMINT-WRX-22SLBK) is a purpose-built forced induction upgrade engineered specifically for the 2022+ Subaru WRX. Featuring a massive bar-and-plate core, CFD-optimized cast end tanks, and ID-matched high-flow pipes, this kit is rated to deliver gains of 12 hp and 11.8 lb-ft of torque, even on a stock tune.
As a dedicated forced induction system component, this intercooler replaces the factory unit’s heat-soak-prone design with a true front-mount configuration positioned in the lower bumper grille for maximum airflow through the core. In dyno testing, Mishimoto’s engineers found this induction system brought outlet temperatures to within 10 degrees of ambient air temperature, helping protect against detonation and power loss run after run. The 4 inch-thick bar-and-plate core, combined with CFD-optimized end tanks and ID-matched piping, results in just a 1.5 PSI pressure drop, meaning less of the boost your turbo generates goes to waste — a critical advantage for any performance induction build, whether it’s headed to the street, the strip, or the track.
Vehicle Applications
This Mishimoto intercooler kit is a specific-fit part engineered for the Subaru WRX (chassis code VB) equipped with the 2.4L FA24F engine. Coverage includes the WRX Base for model years 2022–2024, along with the WRX GT, Limited, Premium, Sport, and Sport-tech trims from 2022–2026. It also fits the WRX High, Series.Yellow, Sportwagon, TS, and tS Performance trims for the 2026 model year.
Features
- Max power gains of 12 hp and 11.8 lb-ft of torque on stock tune
- Lowers outlet temperatures to within 10 degrees of ambient air temp
- 4-inch thick core protects against heat soak and detonation

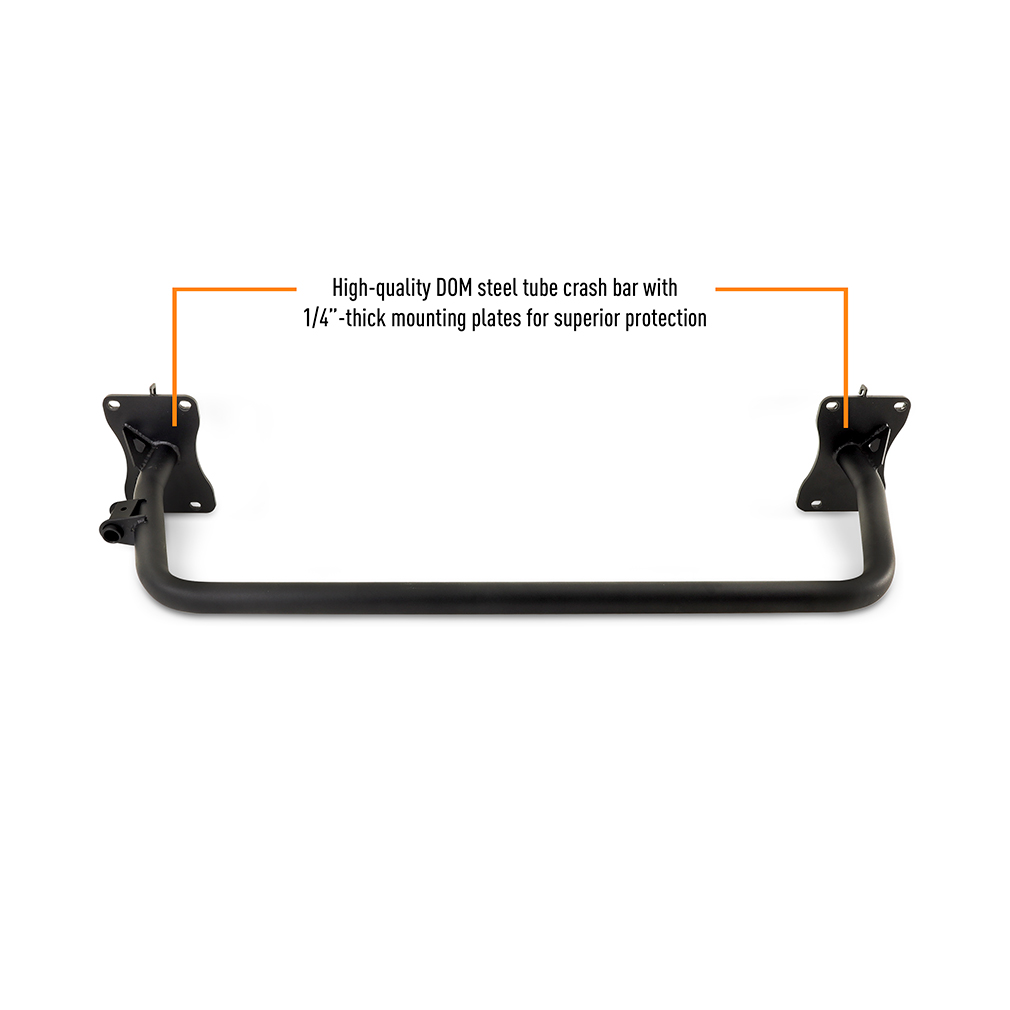

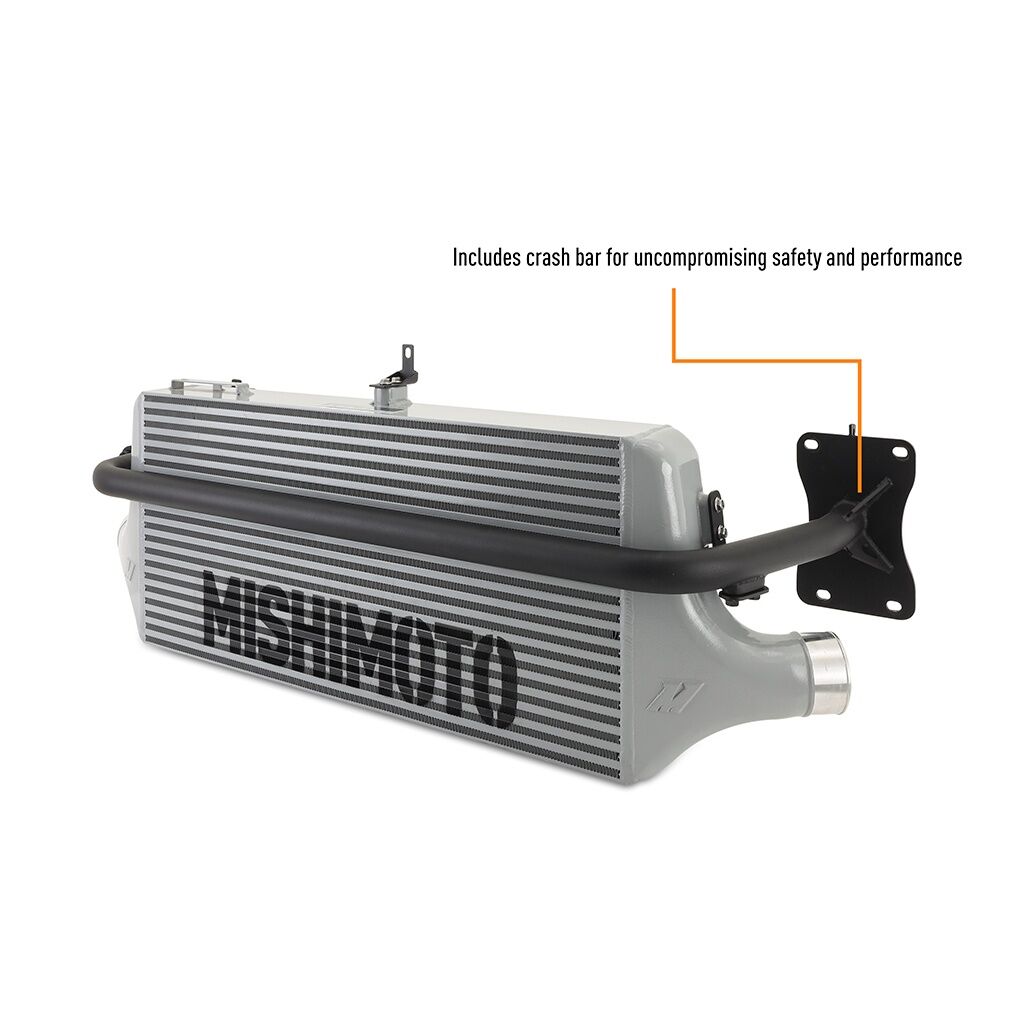

- Includes bumper support bar with tow hook location to keep your WRX track-ready
- Comprehensive kit includes everything needed for installation
- Safe for use with stock tuning

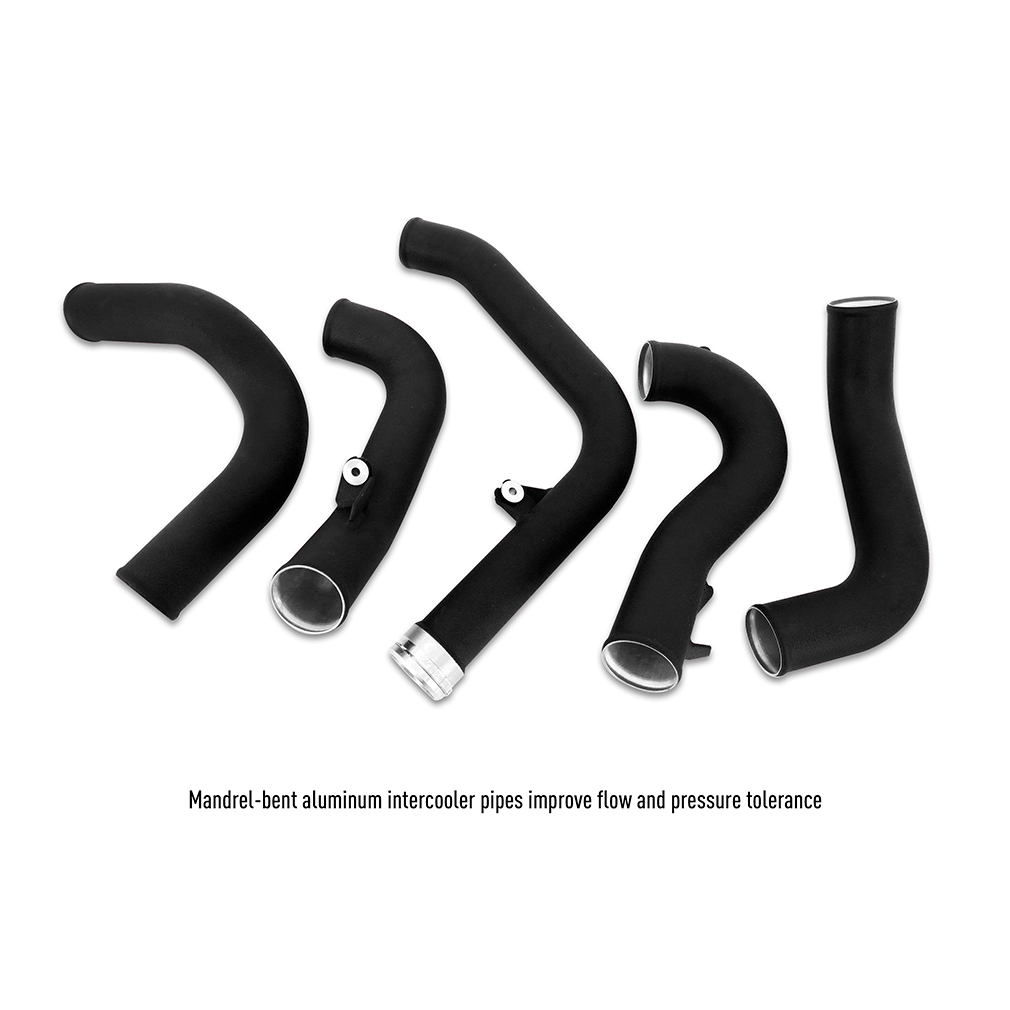

- ID-matched pipes and intercooler ensure unrestricted airflow and low pressure drop

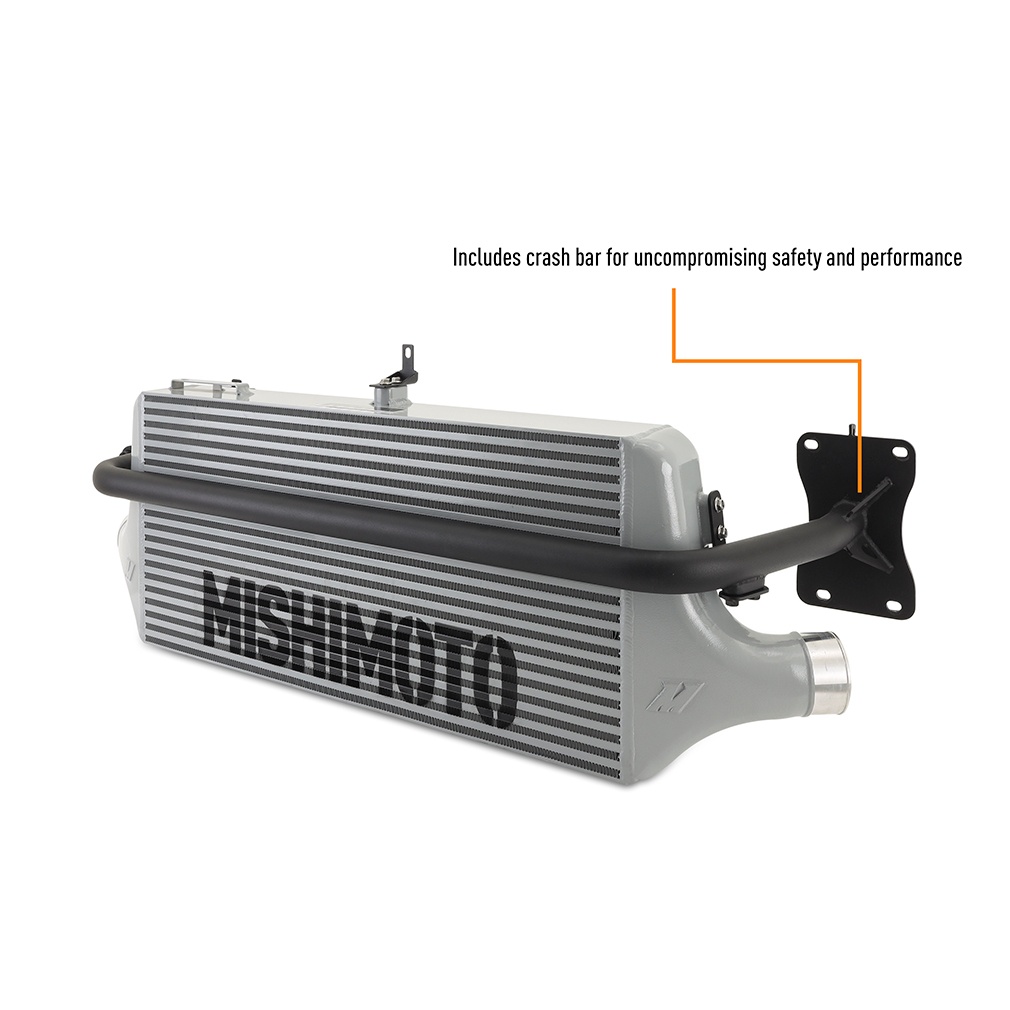

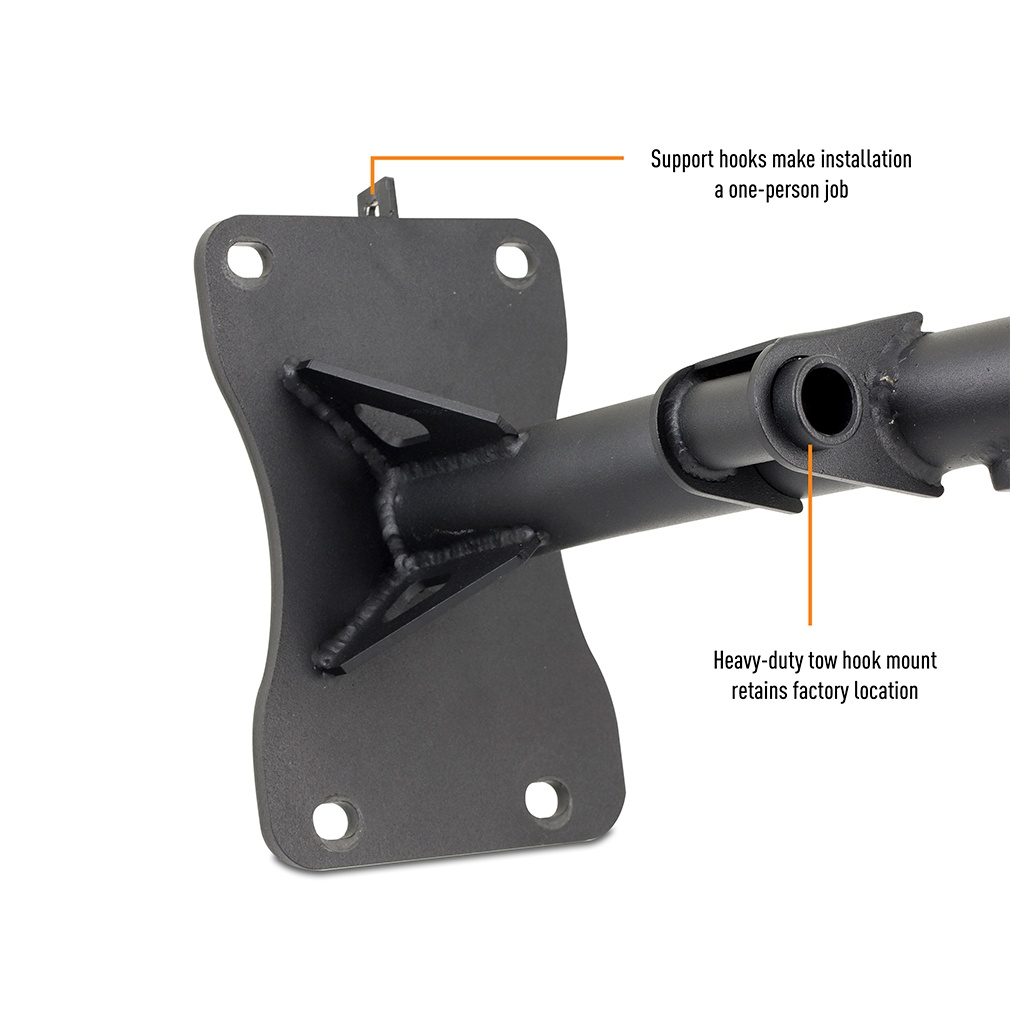

- Built-in crash bar hooks make installation a one-person job
- Cast end tanks withstand massive boost pressures

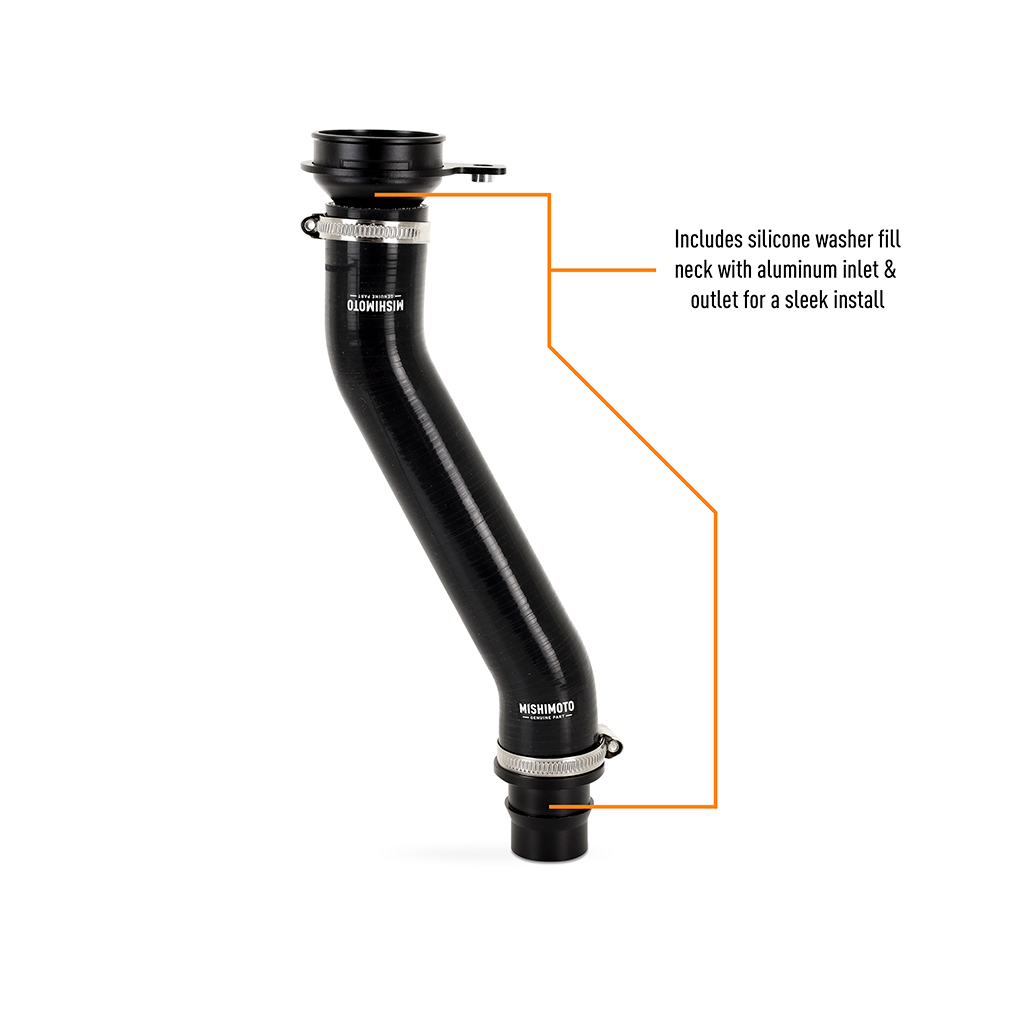

- Includes washer fill neck relocation for easy maintenance
- No bending of A/C lines required
- Fits with most popular strut bars
- Fits with Mishimoto radiator and oil cooler
- Retains factory side impact bars; no cutting of the bumper or body required
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum

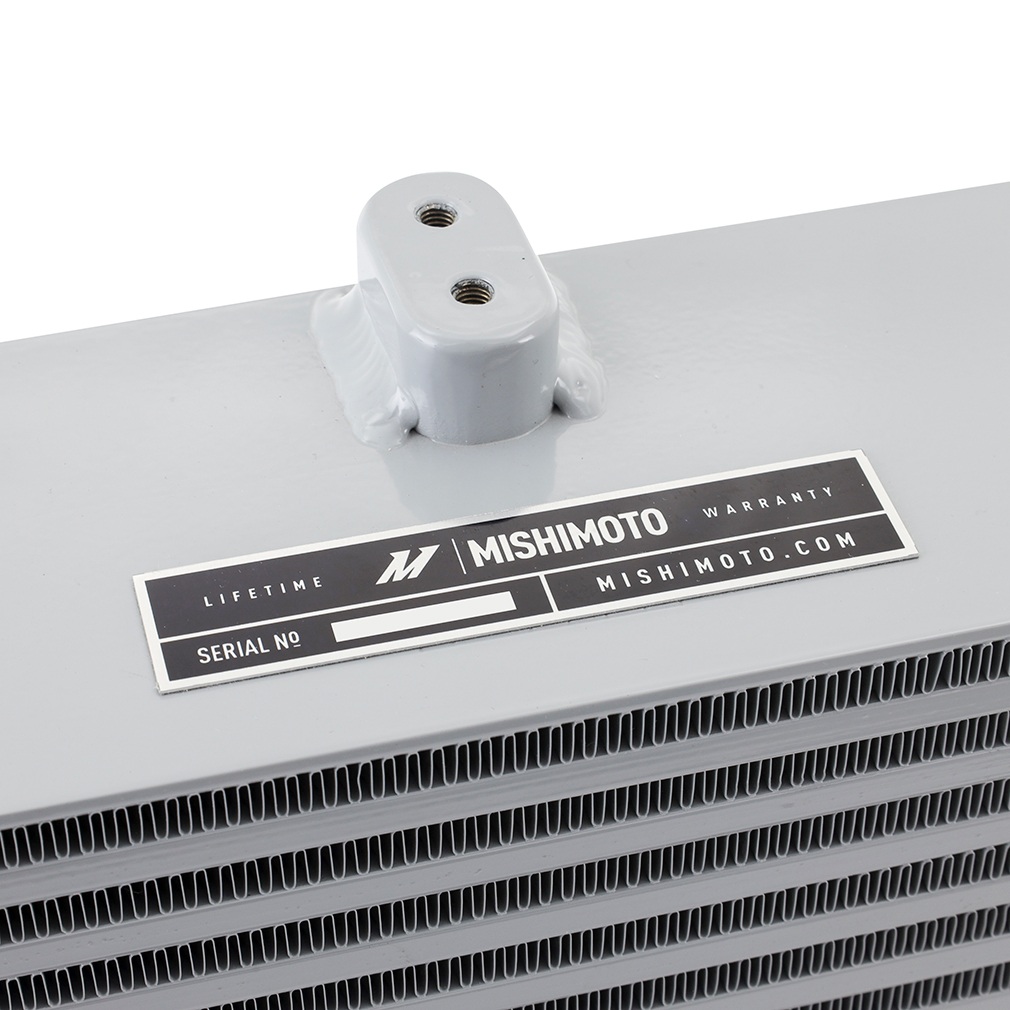

- Core Construction: Bar-and-Plate
- Core Height: 12.14 in
- Core Thickness: 3.93 in
- Core Length: 26.57 in
- Core Color: Silver
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Inlet Diameter: 2.4 in
- Outlet Diameter: 2.4 in
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Maximum Boost Pressure: 60 PSI
- Maximum Horsepower: 1000 HP
- Overall Width (intercooler): 6 in
- Overall Height (intercooler): 12.89 in
- Overall Length (intercooler): 40.22 in
- Engine Code: FA24F
- Chassis Code: VB

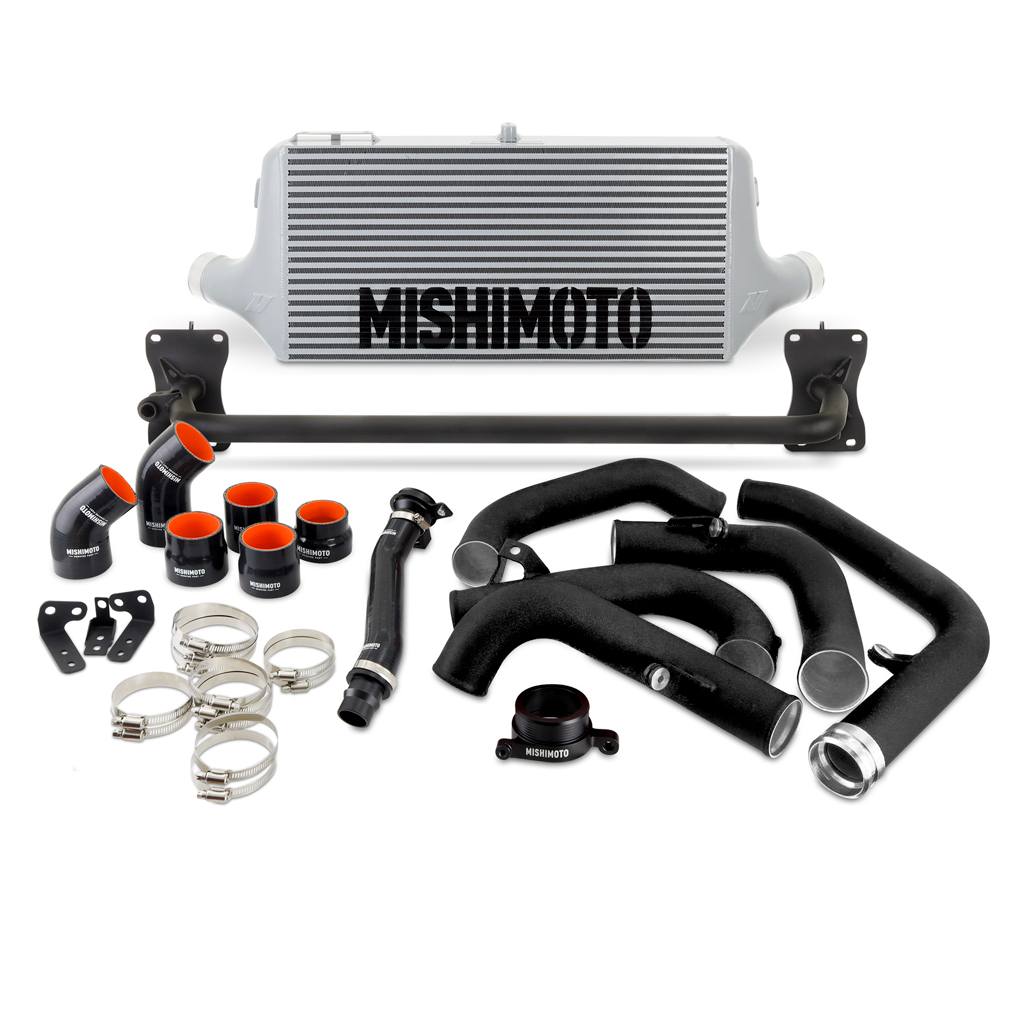

- Kit Includes: (1) Front Mount Intercooler, (1) Pipe and Boot Kit with Adaptors, (1) Bumper Support Bar, (1) Washer Fluid Fill Neck Relocation, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-WRX-22SLBK intercooler kit fit?
This kit is a specific fit for the Subaru WRX (chassis code VB, FA24F engine): WRX Base for 2022–2024, WRX GT/Limited/Premium/Sport/Sport-tech for 2022–2026, and WRX High/Series.Yellow/Sportwagon/TS/tS Performance for 2026.
How much power does this intercooler add?
Mishimoto reports max power gains of 12 hp and 11.8 lb-ft of torque on a stock tune.
Does installation require cutting the bumper or body?
No, the kit contains everything needed for installation with no cutting of the bumper or body required, and it retains the factory side impact bars.
What is the core construction and material?
The intercooler features a bar-and-plate aluminum core measuring 12.14 in tall, 3.93 in thick, and 26.57 in long, with cast aluminum end tanks.
What is the maximum boost and horsepower rating?
The intercooler is rated for a maximum boost pressure of 60 PSI and a maximum recommended horsepower of 1000 HP.
What is included in the kit?
The kit includes (1) Front Mount Intercooler, (1) Pipe and Boot Kit with Adaptors, (1) Bumper Support Bar, (1) Washer Fluid Fill Neck Relocation, and is backed by the Mishimoto Lifetime Warranty.
