Description
The Mishimoto Performance Front-Mount Intercooler Kit (MMINT-WRX-22AISLRD) is a purpose-built forced induction upgrade engineered specifically for the 2022+ Subaru WRX and its FA24F 2.4L engine. Featuring a massive 4-inch thick bar-and-plate core, CFD-optimized cast end tanks, and ID-matched piping, this front-mount intercooler kit was dyno-tested to bring outlet temperatures to within 10 degrees of ambient air temperature while adding up to 12 hp and 11.8 lb-ft of torque on the stock tune.
As a dedicated forced induction component, this induction system replaces the factory unit’s heat-soak-prone design with a high-flow, low-pressure-drop layout built for real performance gains. Relocating the intercooler to the lower bumper grille maximizes airflow through the core, making this forced induction system an ideal foundation for track builds, dragstrip runs, or spirited street driving. The 2.4-inch inlet and outlet piping is matched to the core for unrestricted airflow, resulting in just a 1.5 PSI pressure drop so less of the boost your turbo generates goes to waste. Rated to 60 PSI maximum boost pressure and up to 1000 horsepower, this performance induction kit is built to keep pace as your WRX’s power grows, while remaining completely safe for use with stock tuning. The kit even includes Mishimoto’s Performance Intake to maximize airflow and simplify installation.
Vehicle Applications
This intercooler kit is a specific-fit forced induction upgrade engineered for the 2022–2024 Subaru WRX Base, along with the 2022–2026 Subaru WRX GT, Limited, Premium, Sport, and Sport-tech trims. It also covers the 2026 Subaru WRX High, Series.Yellow, Sportwagon, TS, and tS Performance trims. All covered applications share the FA24F 2.4L engine and VB chassis code.
Features
- Max power gains of 12 hp and 11.8 lb-ft of torque on stock tune
- Lowers outlet temperatures to within 10 degrees of ambient air temp
- 4-inch thick core protects against heat soak and detonation

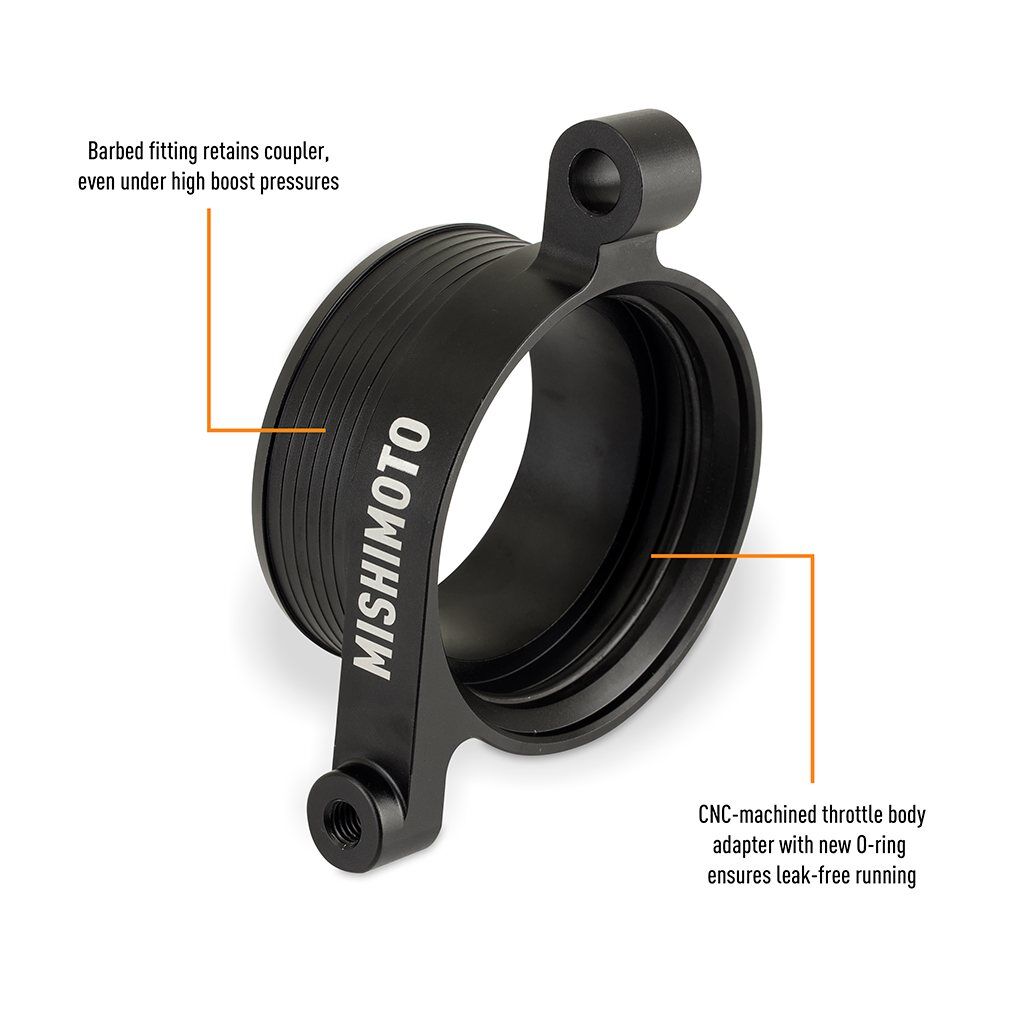

- Includes Mishimoto Performance Intake for maximum flow and easy install

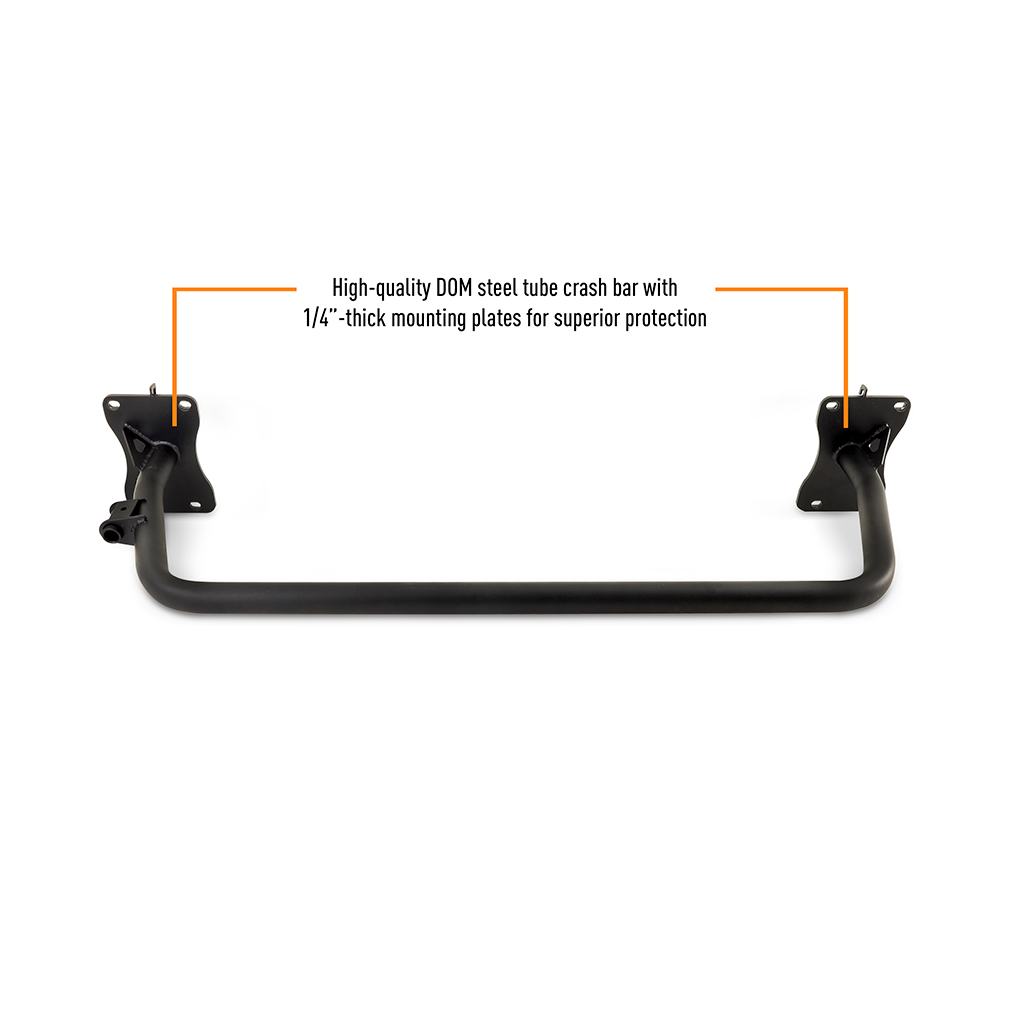

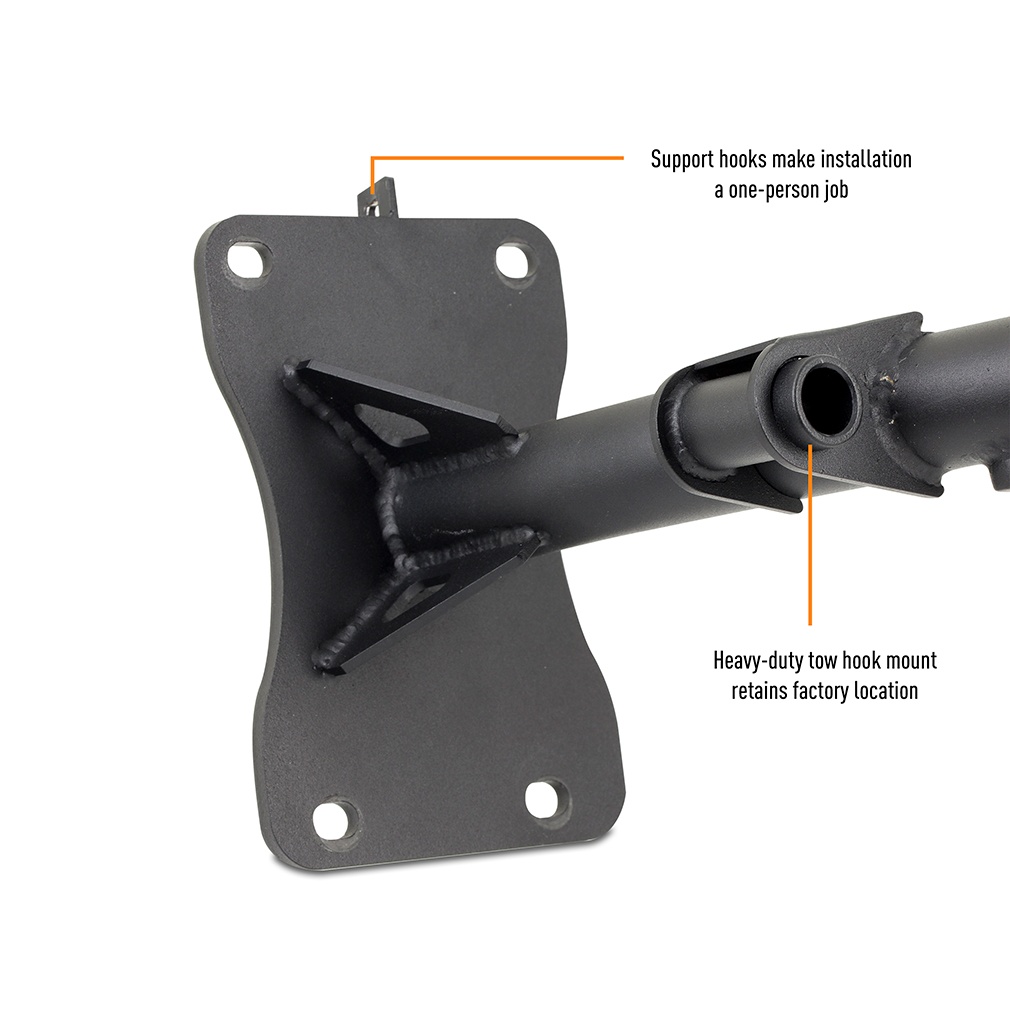

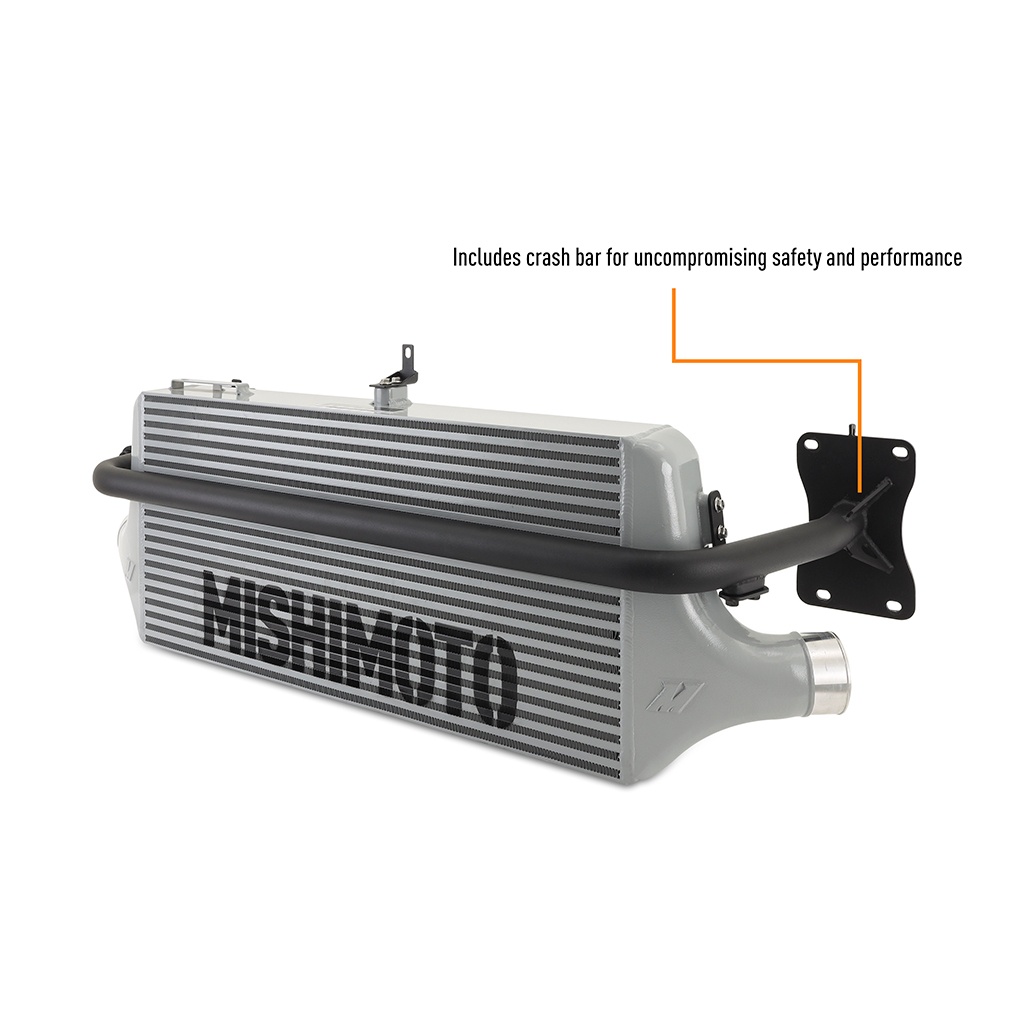

- Includes bumper support bar with factory tow hook mounting
- Comprehensive kit includes everything needed for installation, with no cutting of the bumper or body required
- Retains factory side impact bars

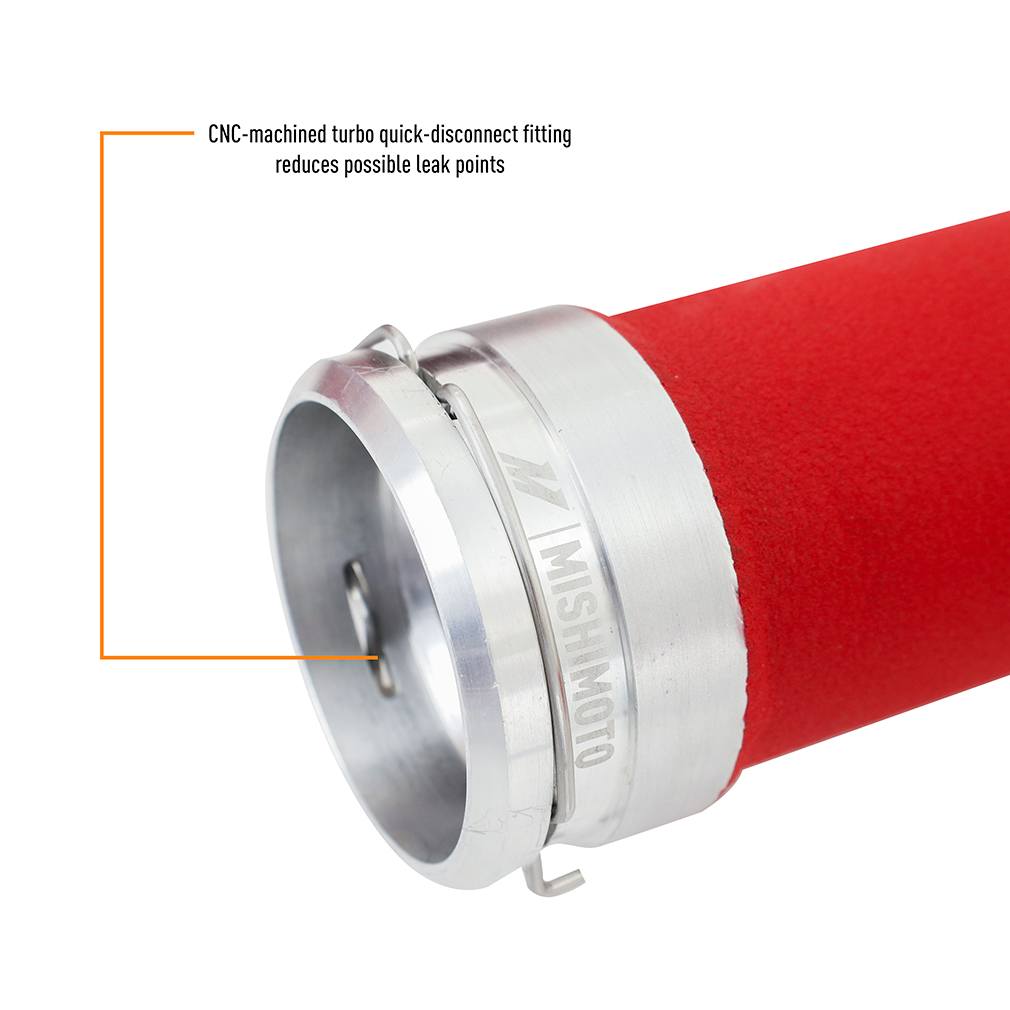

- ID-matched pipes and intercooler ensure unrestricted airflow and low pressure drop

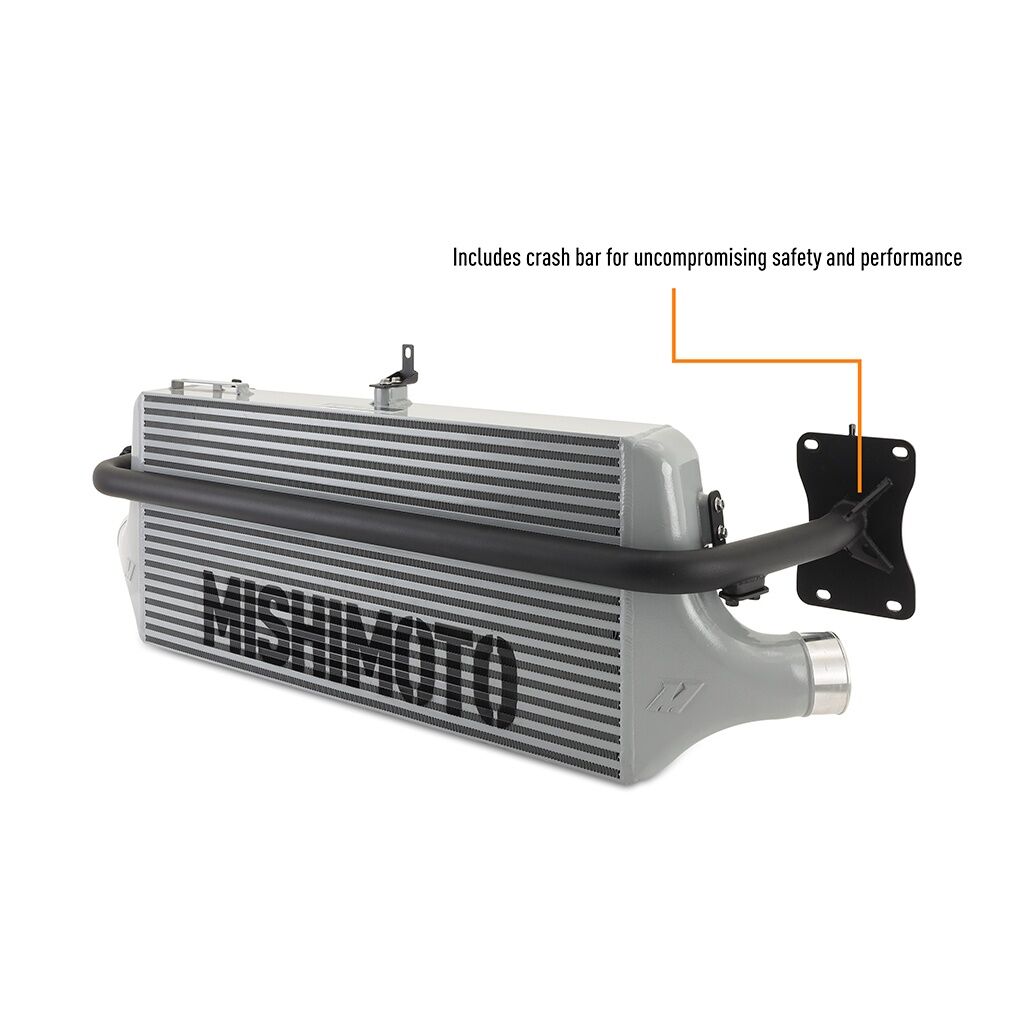

- Built-in crash bar hooks make installation a one-person job
- Cast end tanks withstand massive boost pressures

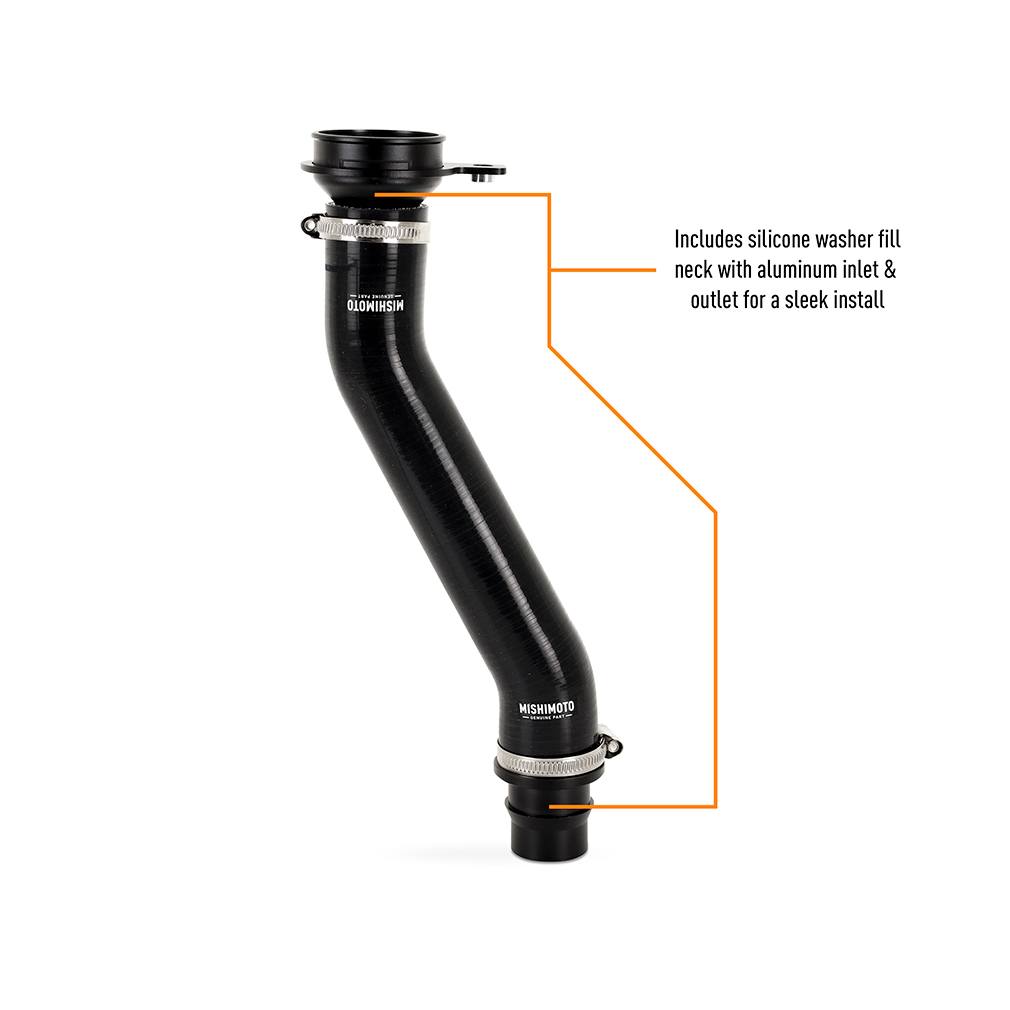

- Includes washer fill neck relocation kit for easy maintenance
- No bending of A/C lines required
- Fits with most popular strut bars
- Patent Pending design
- Backed by Mishimoto’s Lifetime Warranty
Specifications
- Core Height: 12.14 in
- Core Thickness: 3.93 in
- Core Length: 26.57 in
- Core Material: Aluminum
- Core Color: Silver

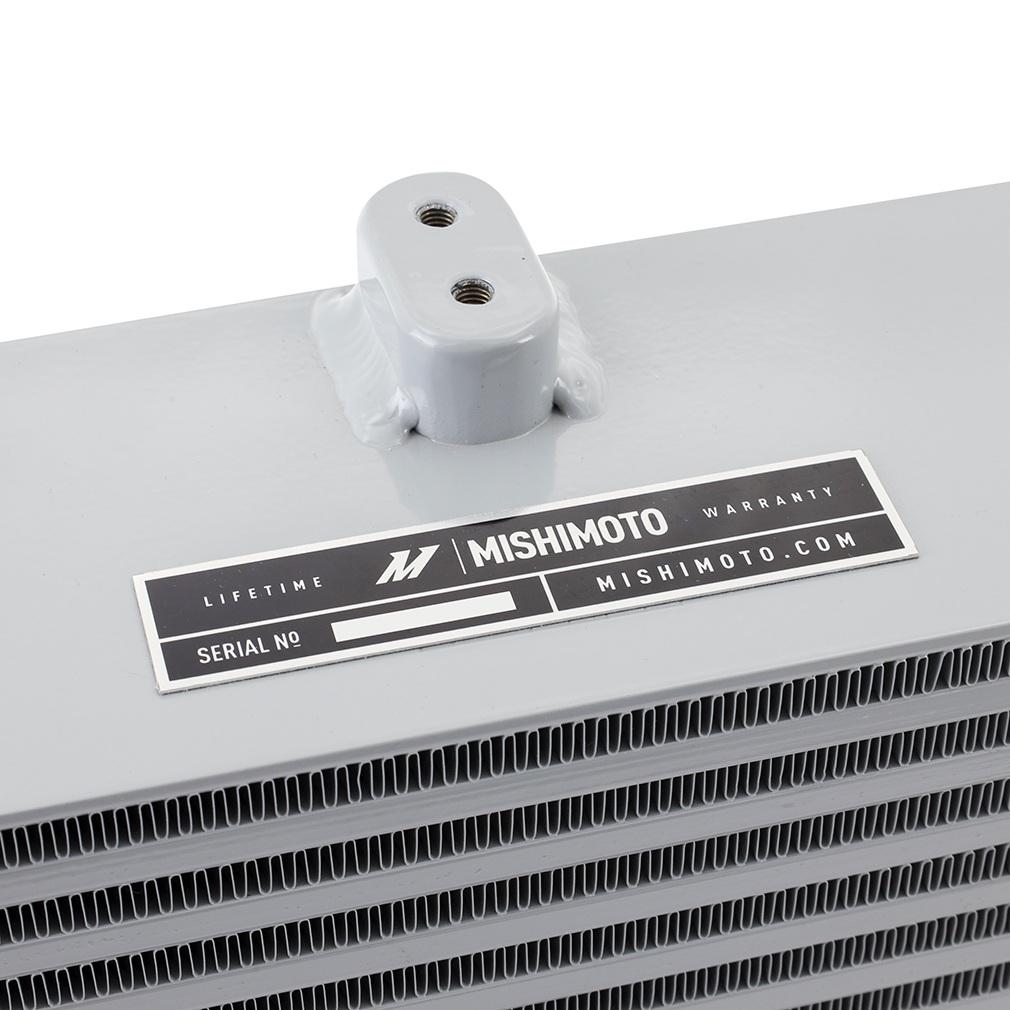

- Core Construction: Bar-and-Plate
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum
- End Tank Construction: Cast

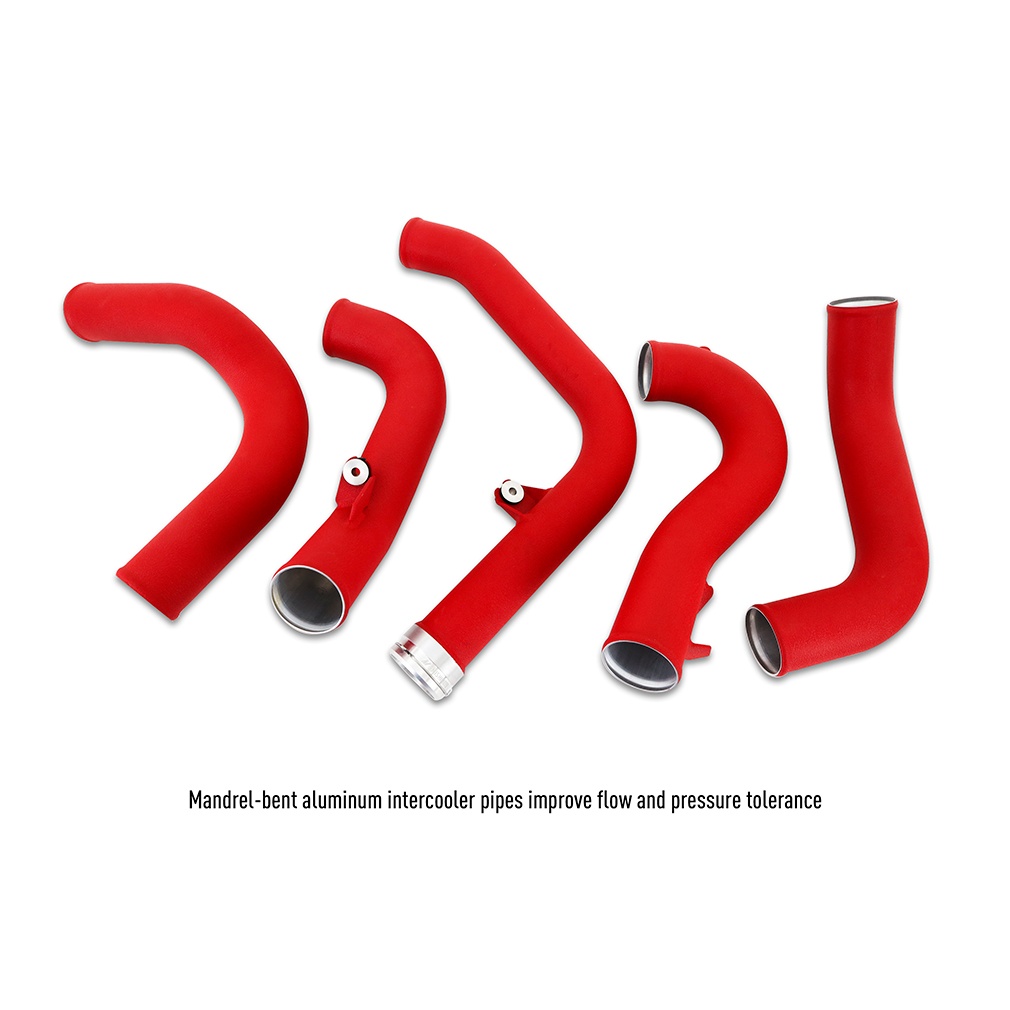

- Pipe Material: Aluminum
- Pipe Color: Red
- Pipe Finish: Powder Coated
- Pipe Diameter: 2.5 in
- Inlet Diameter: 2.4 in
- Outlet Diameter: 2.4 in
- Hot Side Pipe Inside Diameter: 2.4 in
- Cold Side Pipe Inside Diameter: 2.4 in
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Overall Width (intercooler): 6 in
- Overall Height (intercooler): 12.89 in
- Overall Length (intercooler): 40.22 in
- Maximum Boost Pressure: 60 PSI
- Maximum Horsepower: 1000 hp
- Grade Type: Performance
- Universal Or Specific Fit: Specific
- Engine Code: FA24F
- Chassis Code: VB

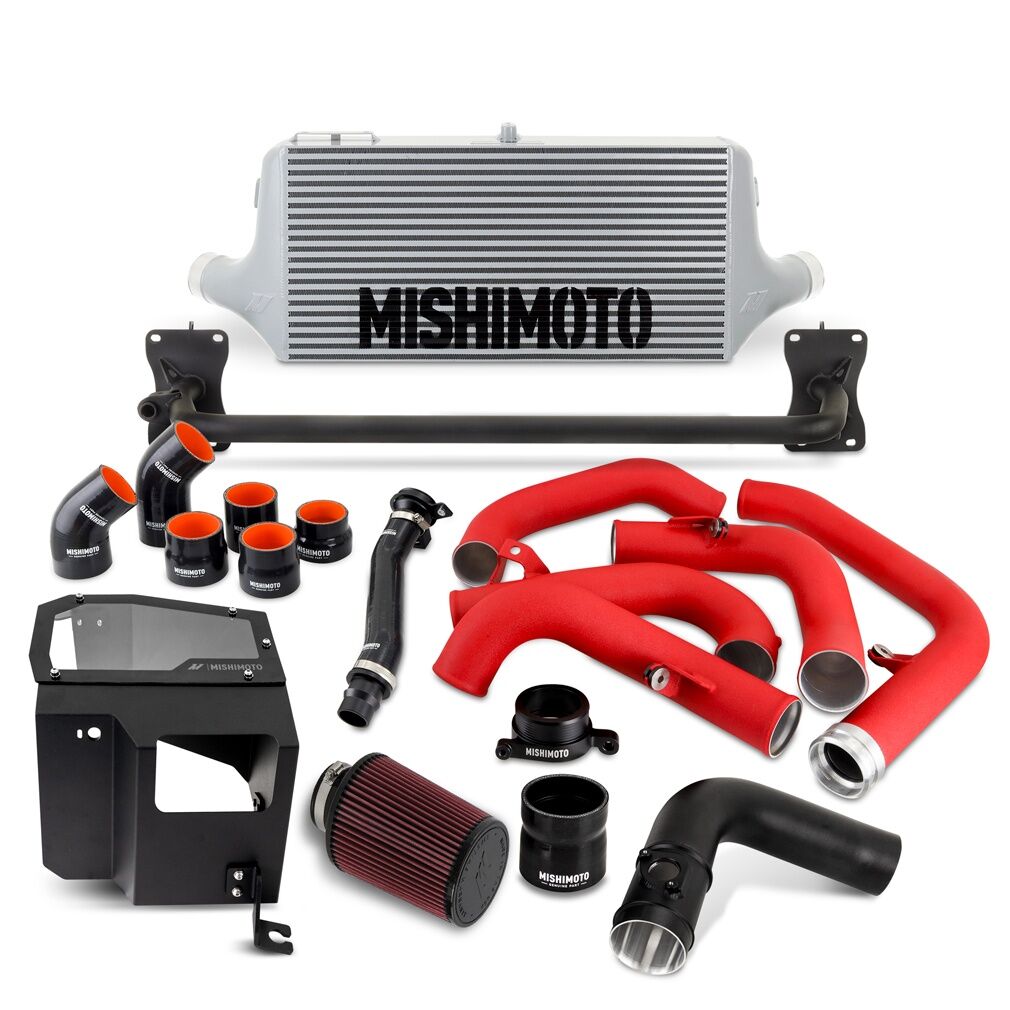

- Kit Includes: (1) Front Mount Intercooler, (1) Pipe and Boot Kit with Adaptors, (1) Performance Intake Kit, (1) Bumper Support Bar, (1) Washer Fluid Fill Neck Relocation, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-WRX-22AISLRD intercooler kit fit?
It is a specific fit for the 2022–2024 Subaru WRX Base, the 2022–2026 WRX GT, Limited, Premium, Sport, and Sport-tech trims, and the 2026 WRX High, Series.Yellow, Sportwagon, TS, and tS Performance trims, all equipped with the FA24F 2.4L engine and VB chassis code.
How much power does this intercooler kit add?
In testing on the stock tune, it produced gains of up to 12 hp and 11.8 lb-ft of torque.
What is the maximum boost pressure and horsepower rating for this kit?
The kit is rated to a maximum boost pressure of 60 PSI and a maximum recommended horsepower of 1000 hp.
Does installation require cutting the bumper or body?
No, the kit includes everything needed for installation with no cutting of the bumper or body required, and it retains the factory side impact bars.
What is included with the Mishimoto Performance Front-Mount Intercooler Kit?
The kit includes one front mount intercooler, one pipe and boot kit with adaptors, one Mishimoto Performance Intake Kit, one bumper support bar, one washer fluid fill neck relocation kit, and Mishimoto’s Lifetime Warranty.
What core size and materials does the intercooler use?
The core measures 12.14 inches in height, 26.57 inches in length, and 3.93 inches thick, built from aluminum in a bar-and-plate construction with cast aluminum end tanks.
