Description

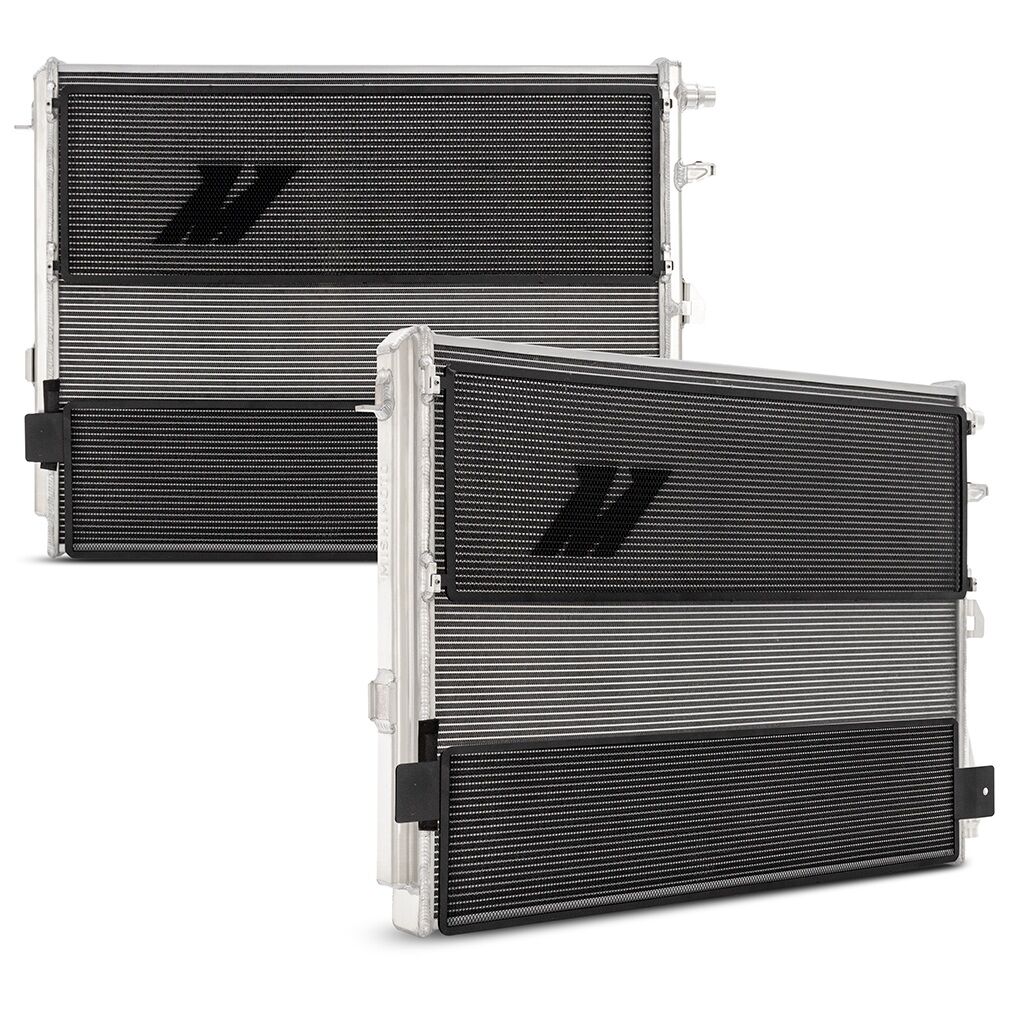

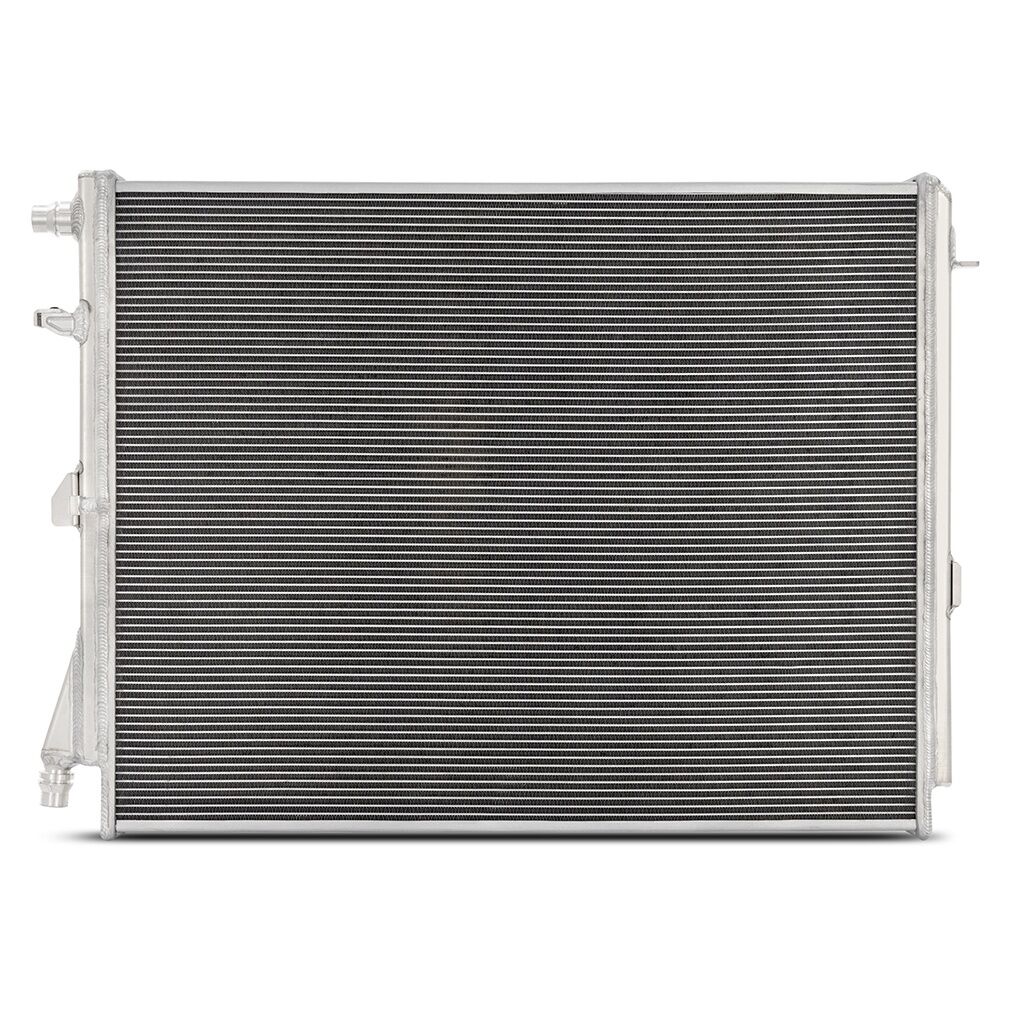

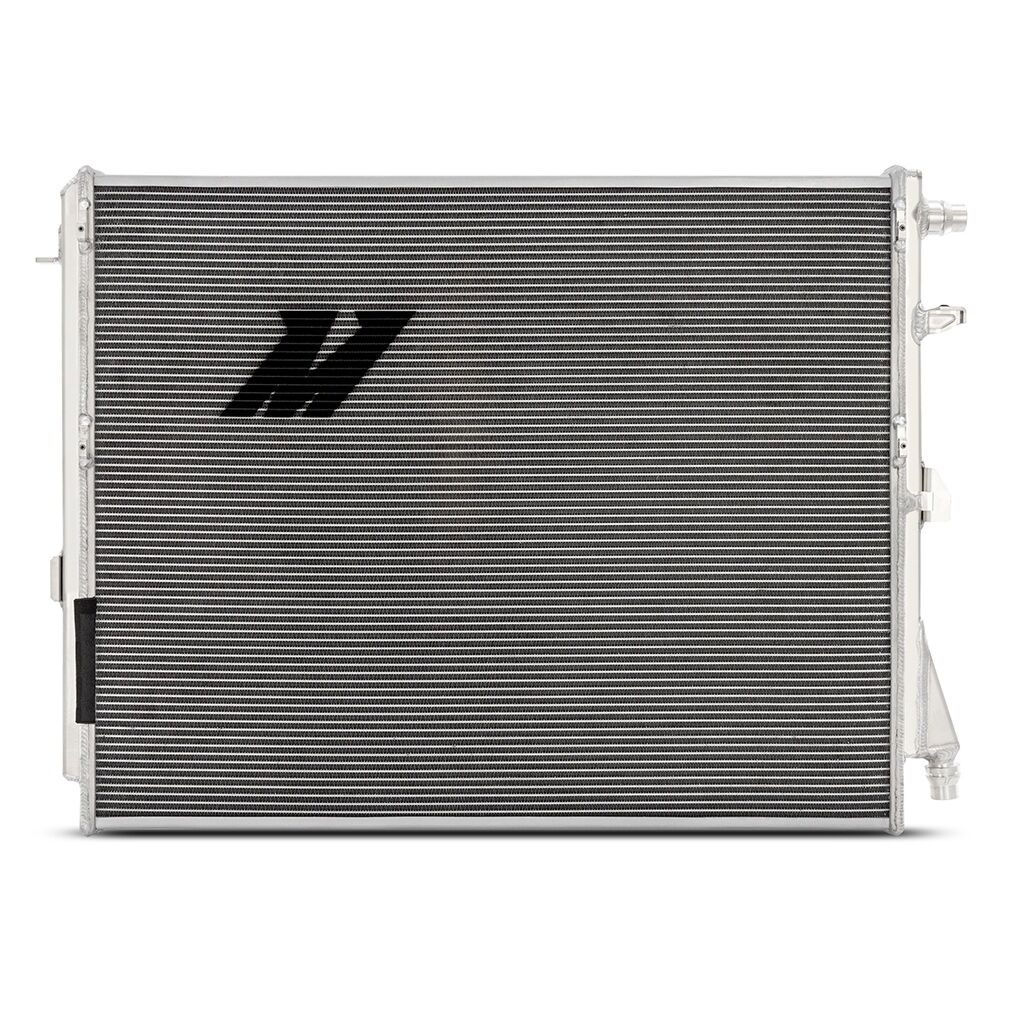

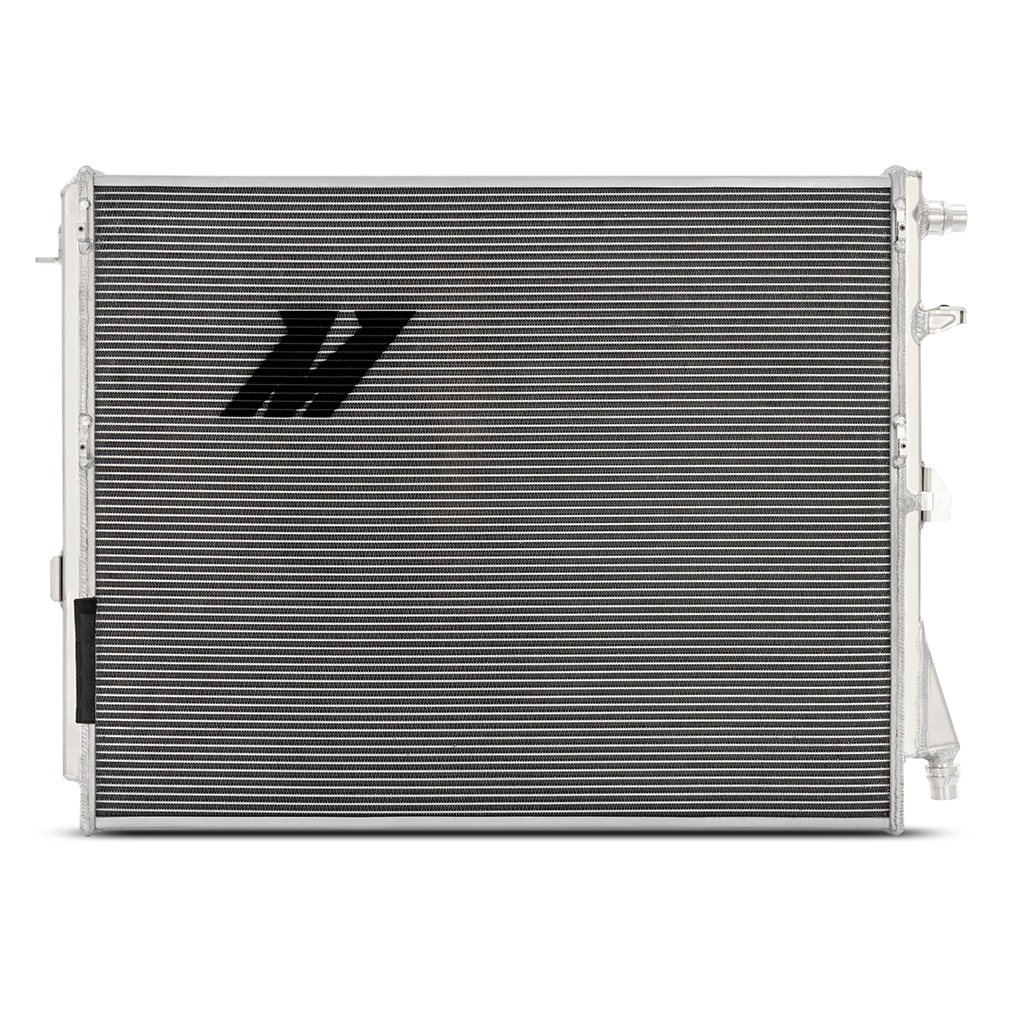

The Mishimoto Performance Heat Exchanger, part number MMHE-G80-21MT, is purpose-built for the 2021+ BMW G8X M2, M3, and M4 lineup, replacing the factory unit with an all-aluminum design that eliminates plastic components entirely. Constructed with TIG-welded aluminum end tanks, core, and CNC-machined ports, this heat exchanger was engineered from the ground up to handle the demands of the S58B30 twin-turbo inline-six across G80, G82, G83, and G87 chassis codes without compromise.
As part of Mishimoto’s Cooling product line, this performance heat exchanger increases core volume by 23 percent and expands external fin surface area by 44 percent versus stock, working alongside a dual-pass flow configuration and louvered fin design to vastly improve charge-air cooling capacity and support consistent performance under demanding conditions. Strutted tubes are incorporated within the core to resist bowing and flexing during aggressive cornering, while the CNC-machined inlet and outlet are engineered for leak-free running. Included steel rock guards add another layer of protection, shielding the core from road debris to help prevent punctured tubes or crushed fins. The unit is designed to fit perfectly with all other factory components for seamless integration, and it’s backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This Mishimoto heat exchanger is application-specific to the BMW G8X platform and fits both automatic and manual transmission cars. Coverage spans the BMW M2 Base (2023–2026), M2 Coupe (2023–2024, 2026), and M2 CS (2026); the M3 Base (2021–2024, 2026), M3 Competition (2021–2026), M3 Competition xDrive (2022–2026), and M3 CS (2024); and the M4 Base (2021–2026), M4 Competition (2021–2023, 2025–2026), M4 Competition Heritage (2023), M4 Competition xDrive (2022–2026), M4 CS (2025–2026), and M4 CSL (2023). Listed technical applications include the BMW M2 I6 3.0L Twin-Turbo (2023), BMW M3 I6 3.0L Twin-Turbo and M3 Competition I6 3.0L Twin-Turbo (2021+), and BMW M4 I6 3.0L Twin-Turbo and M4 Competition I6 3.0L Twin-Turbo (2021+), all powered by the S58B30 engine. Installation on manual-transmission vehicles requires removal of the passenger side stock rock guard tab, as detailed in step 11 of the installation guide.
Features
- Fits 2021+ BMW G8X M2/M3/M4, both automatic and manual transmission
- All-aluminum construction eliminates plastic end tanks, core, and ports
- TIG-welded for strength and longevity
- 23 percent increase in core volume improves cooling capacity
- 44 percent increase in external fin surface area for greater heat transfer
- Dual-pass flow design combined with louvered fins for maximum cooling
- Strutted tubes incorporated in the core for maximum durability against bowing and flexing

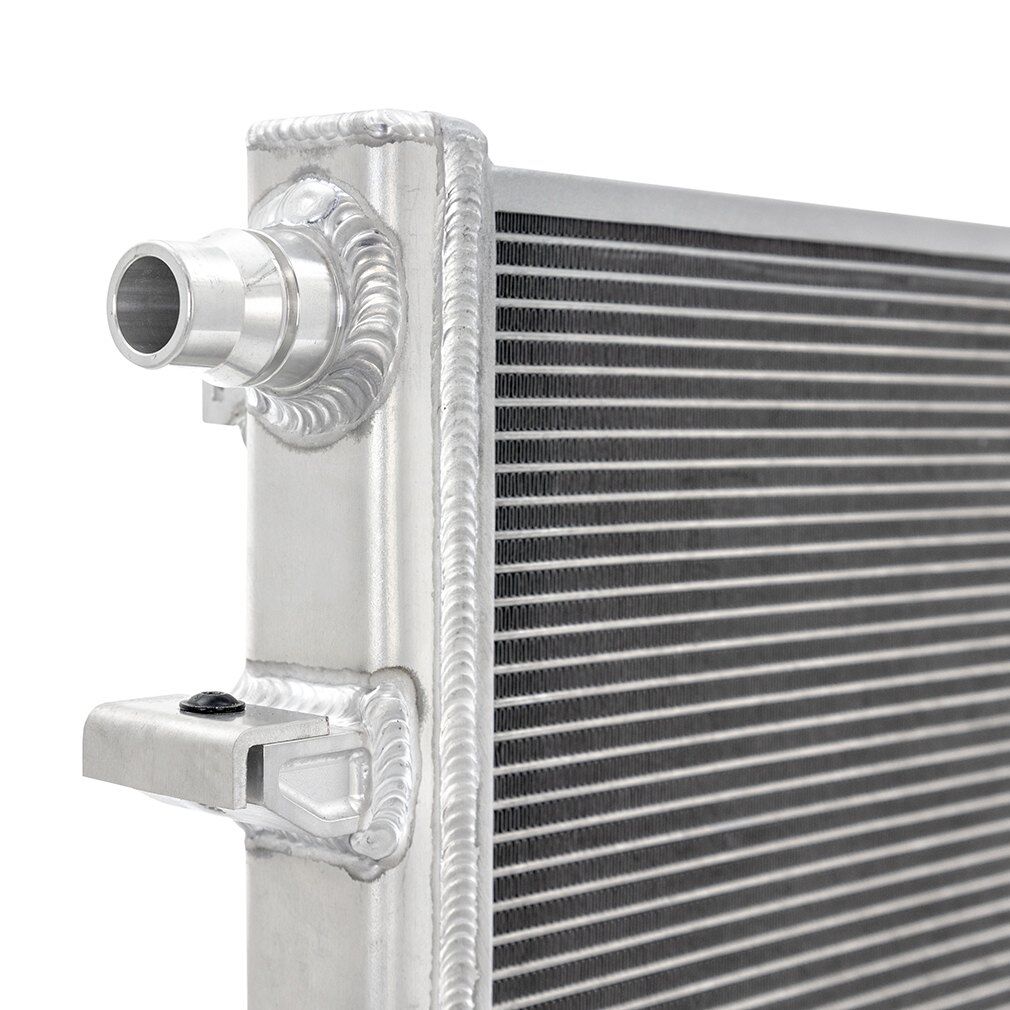

- CNC-machined inlet and outlet for leak-free running

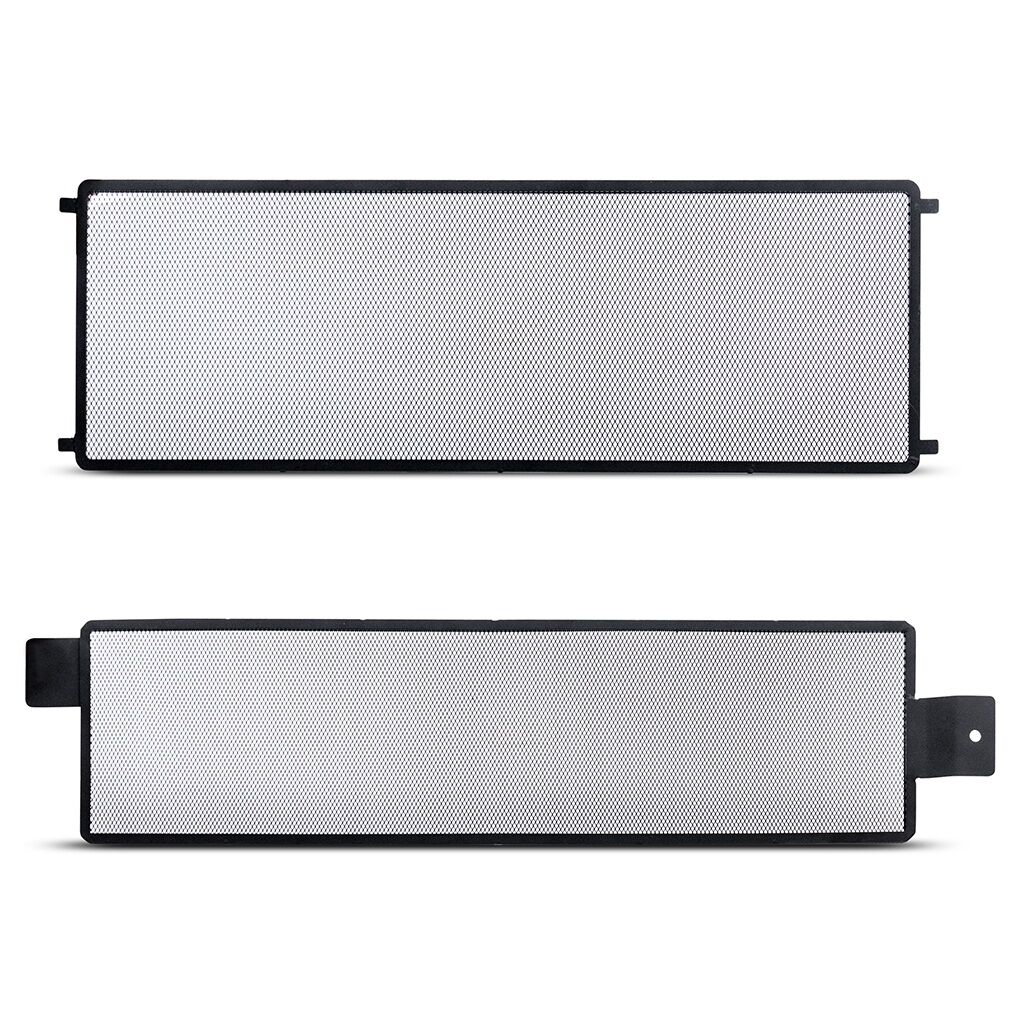

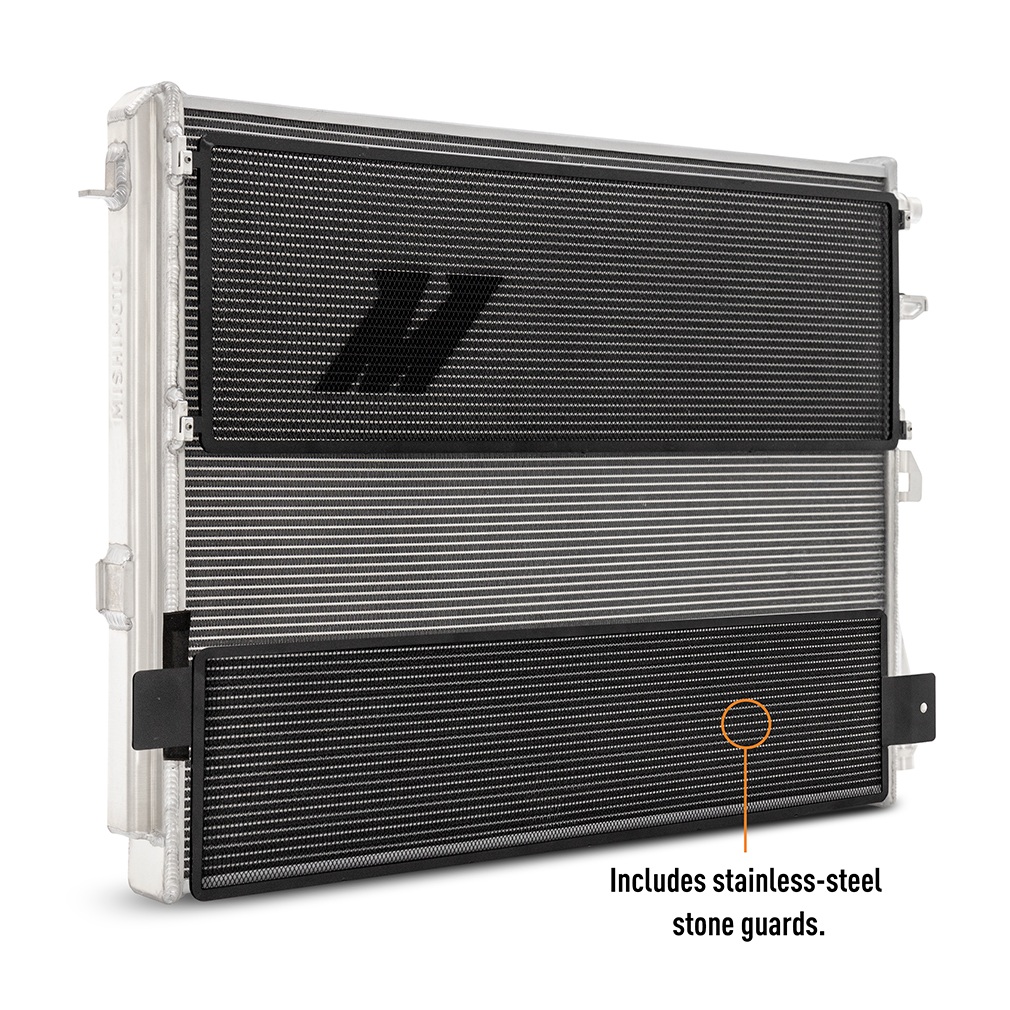

- Includes removable steel rock guards (upper guard, plus lower guard for manual transmission) for additional durability
- Designed for seamless integration with factory components

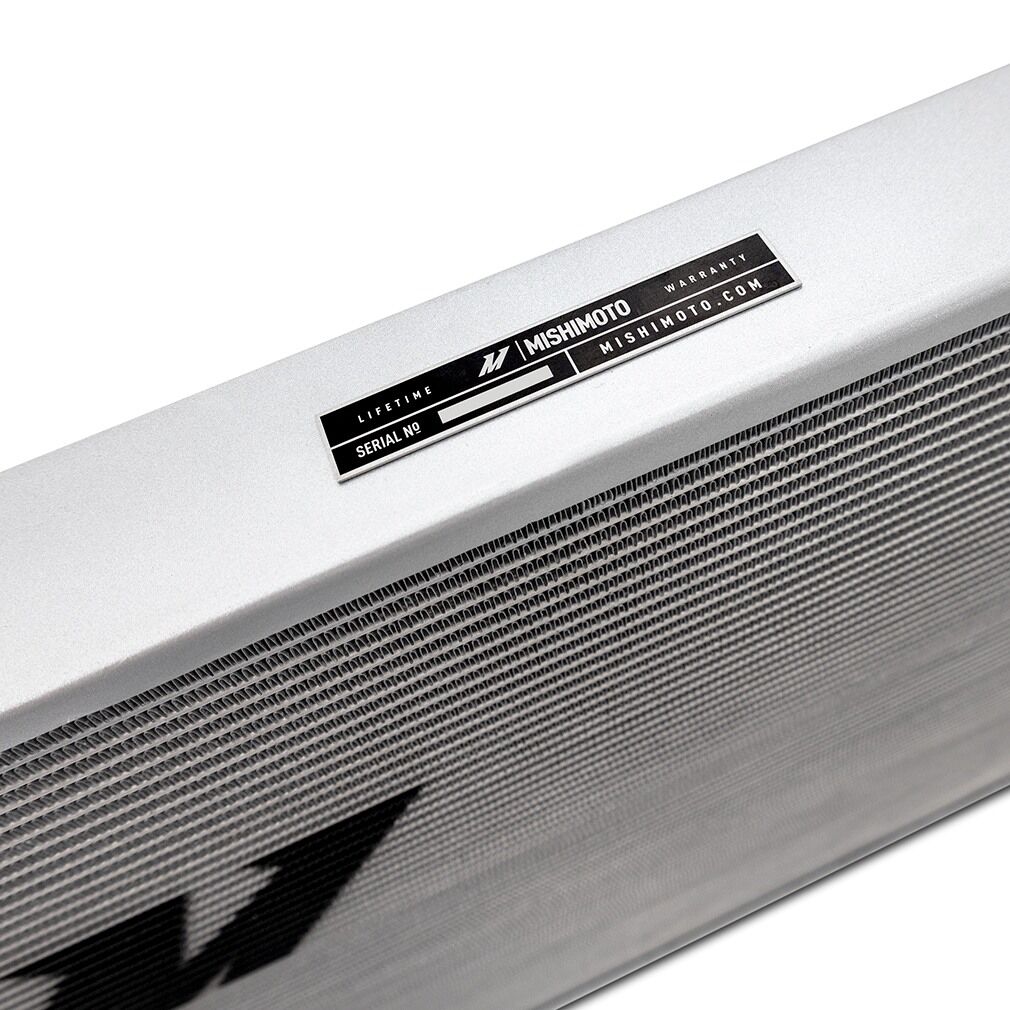

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMHE-G80-21MT
- Grade Type: Performance

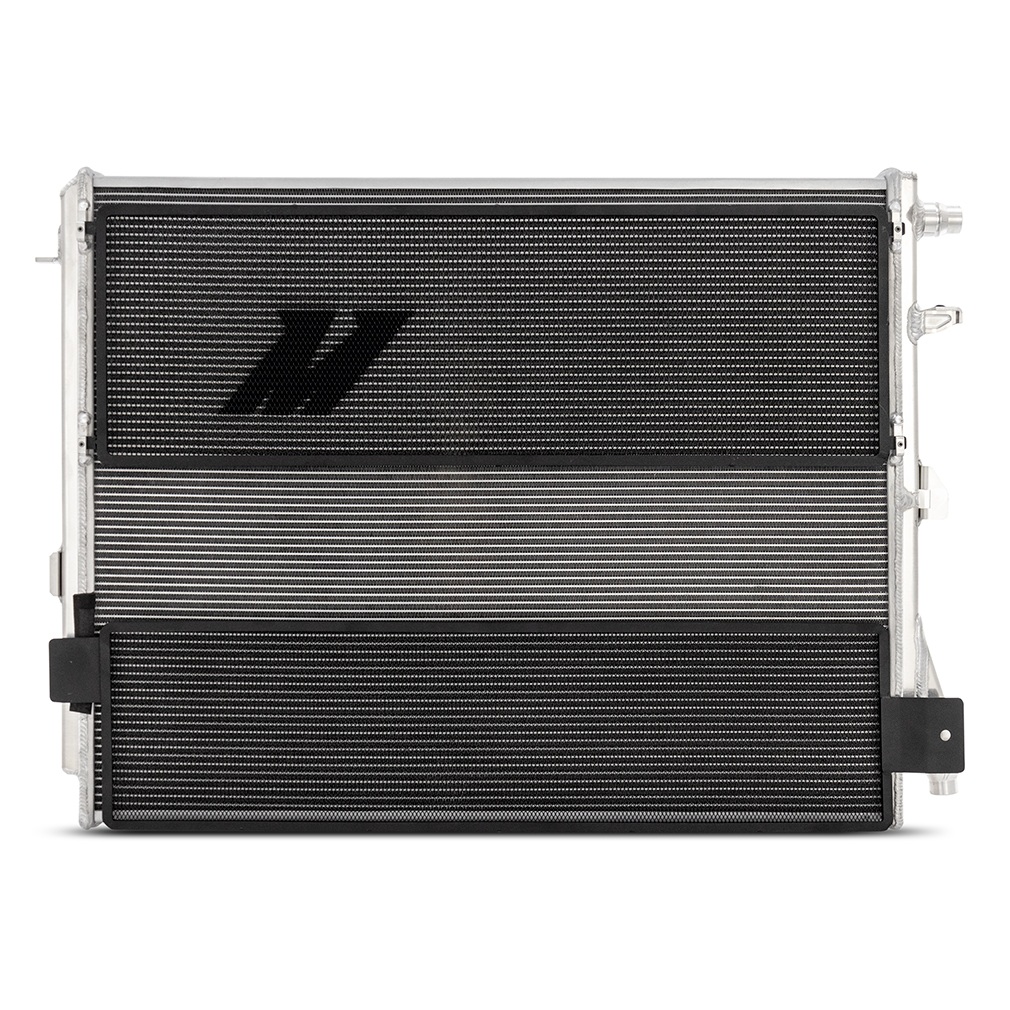

- Material: 6061-Aluminum
- Engine Code: S58B30
- Chassis Codes: G80, G82, G83, G87
- Core Height: 19.52 in
- Core Length: 24.21 in
- Core Thickness: 1.65 in
- Overall Height: 20.17 in
- Overall Length: 28.66 in
- Overall Width: 2.78 in
- Fluid Capacity: 0.51 gal
- Includes: (1) Performance Aluminum Heat Exchanger, (1) Upper Rock Guard, (1) Lower Rock Guard (Manual Transmission Only), (1) Hardware Pack, Mishimoto Lifetime Warranty
- Installation Note: Requires removal of passenger side stock rock guard tab; refer to step 11 of the installation guide
Frequently Asked Questions
What vehicles does the Mishimoto MMHE-G80-21MT heat exchanger fit?
It fits the BMW M2 Base (2023–2026), M2 Coupe (2023–2024, 2026), M2 CS (2026), M3 Base (2021–2024, 2026), M3 Competition (2021–2026), M3 Competition xDrive (2022–2026), M3 CS (2024), M4 Base (2021–2026), M4 Competition (2021–2023, 2025–2026), M4 Competition Heritage (2023), M4 Competition xDrive (2022–2026), M4 CS (2025–2026), and M4 CSL (2023), covering chassis codes G80, G82, G83, and G87 with the S58B30 engine.
Does this heat exchanger work with both automatic and manual transmission BMW G8X models?
Yes, the Mishimoto G8X M2/M3/M4 performance heat exchanger fits both automatic and manual transmissions.
What is the heat exchanger made of?
It is constructed from 6061-aluminum, including the end tanks, core, and CNC-machined ports, and is TIG-welded for strength and longevity.
How much does this heat exchanger improve cooling capacity over stock?
The core volume is increased by 23 percent and the external fin surface area is expanded by 44 percent compared to stock, combined with a dual-pass flow configuration and louvered fin design to improve cooling capacity.
What is included in the box?
The kit includes (1) Performance Aluminum Heat Exchanger, (1) Upper Rock Guard, (1) Lower Rock Guard (manual transmission only), (1) Hardware Pack, and the Mishimoto Lifetime Warranty.
Is any additional modification needed for installation?
Yes, installation requires removal of the passenger side stock rock guard tab; refer to step 11 of the installation guide for details.
