Description

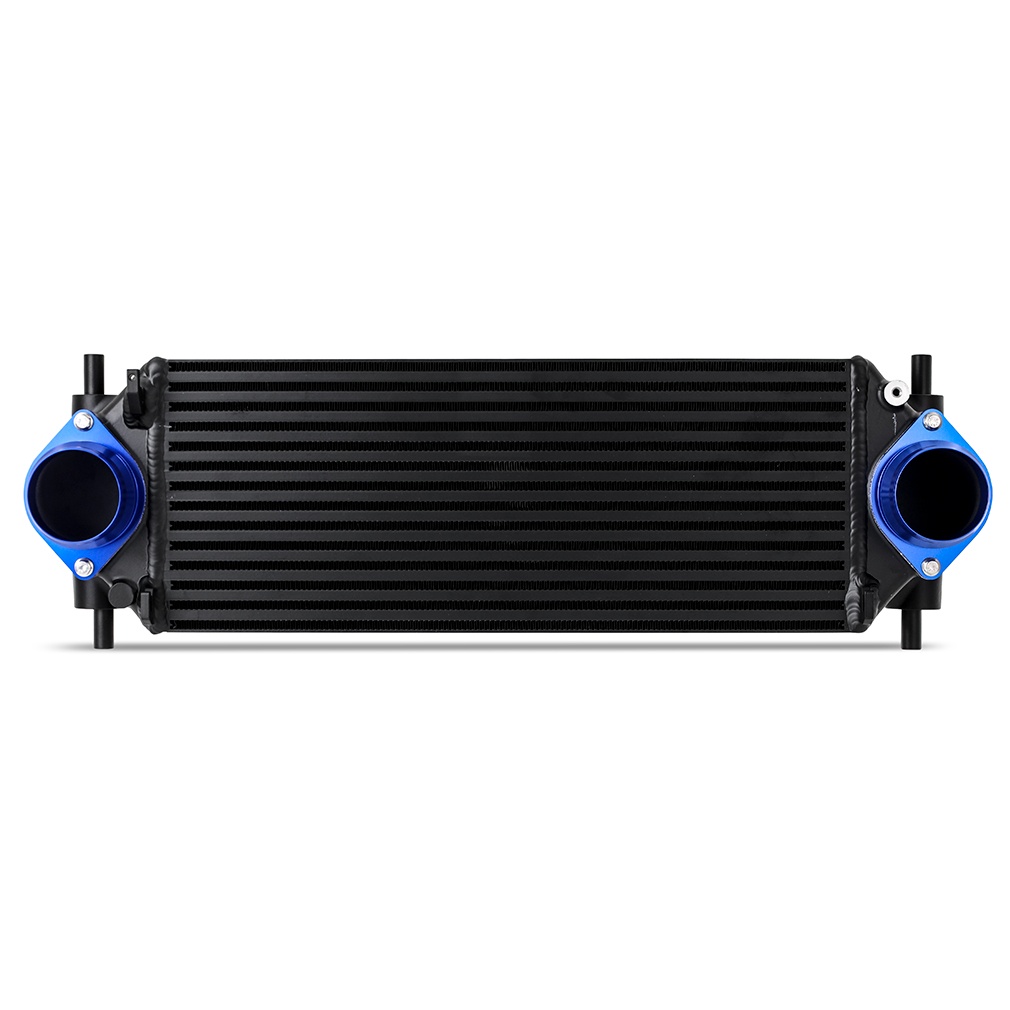

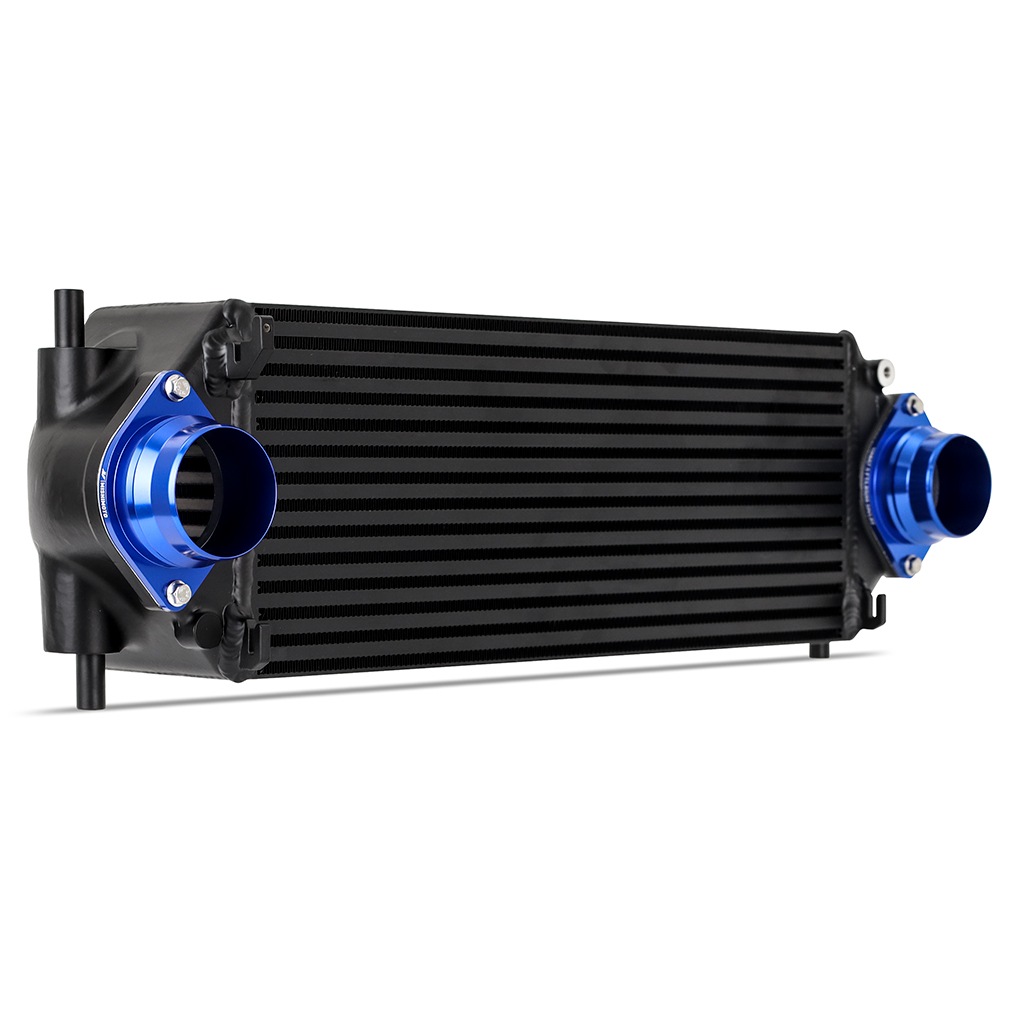

The Mishimoto Performance Intercooler (MMINT-BR-21BK) is a direct-fit, forced induction upgrade engineered specifically for the 2021+ Ford Bronco’s 2.3L and 2.7L EcoBoost engines. Built around a 4.7-inch thick bar-and-plate core with CNC-machined 6061 aluminum flanges and precision TIG-welded cast aluminum end tanks, this black-finished intercooler is designed to outlast the factory tube-and-fin unit and its plastic end tanks. Backed by a US design patent and the Mishimoto Lifetime Warranty, it’s built to shrug off heat, pressure, and trail debris.
As a forced induction system upgrade, this intercooler delivers a 77-percent increase in core volume and a 175-percent increase in fin surface area over the stock intercooler, letting your EcoBoost engine breathe cooler, denser air. Mishimoto’s dyno testing on the 2.3L EcoBoost showed the induction system to be 7-percent less restrictive than stock, with a 21.2-degree reduction in outlet temperature and gains of up to 5.7 whp and 5.3 lb-ft of torque; the 2.7L EcoBoost saw a 15.8-degree outlet temperature reduction with gains of up to 6.5 whp and 6.5 lb-ft of torque. In trail-simulation heat-soak testing, outlet temperatures remained 20 degrees cooler than stock even after six back-to-back dyno runs, proving this performance induction upgrade holds up whether you’re crawling rocks or stuck in traffic. Despite the added capability, the design retains full functionality of adaptive cruise control and 360-degree cameras.
Vehicle Applications
This is a specific-fit intercooler engineered for the 2.3L and 2.7L EcoBoost-equipped Ford Bronco lineup. Coverage includes the Badlands, Big Bend, and Outer Banks trims from 2021 through 2026, the Base trim from 2021-2023, the Black Diamond and Wildtrak trims from 2021-2024, the Everglades trim from 2022-2024, the 2021 First Edition, the Heritage Edition from 2023-2026, and the Heritage Limited Edition from 2023-2024. It does not fit the Bronco Raptor equipped with the 3.0L EcoBoost engine.
Features
- Direct fit for 2021+ Ford Bronco 2.3L and 2.7L EcoBoost models
- 4.7-inch thick bar-and-plate core for maximum heat transfer
- 77-percent increase in core volume and 175-percent increase in fin surface area over stock
- Optimized core design for maximum cooling efficiency with minimal pressure drop

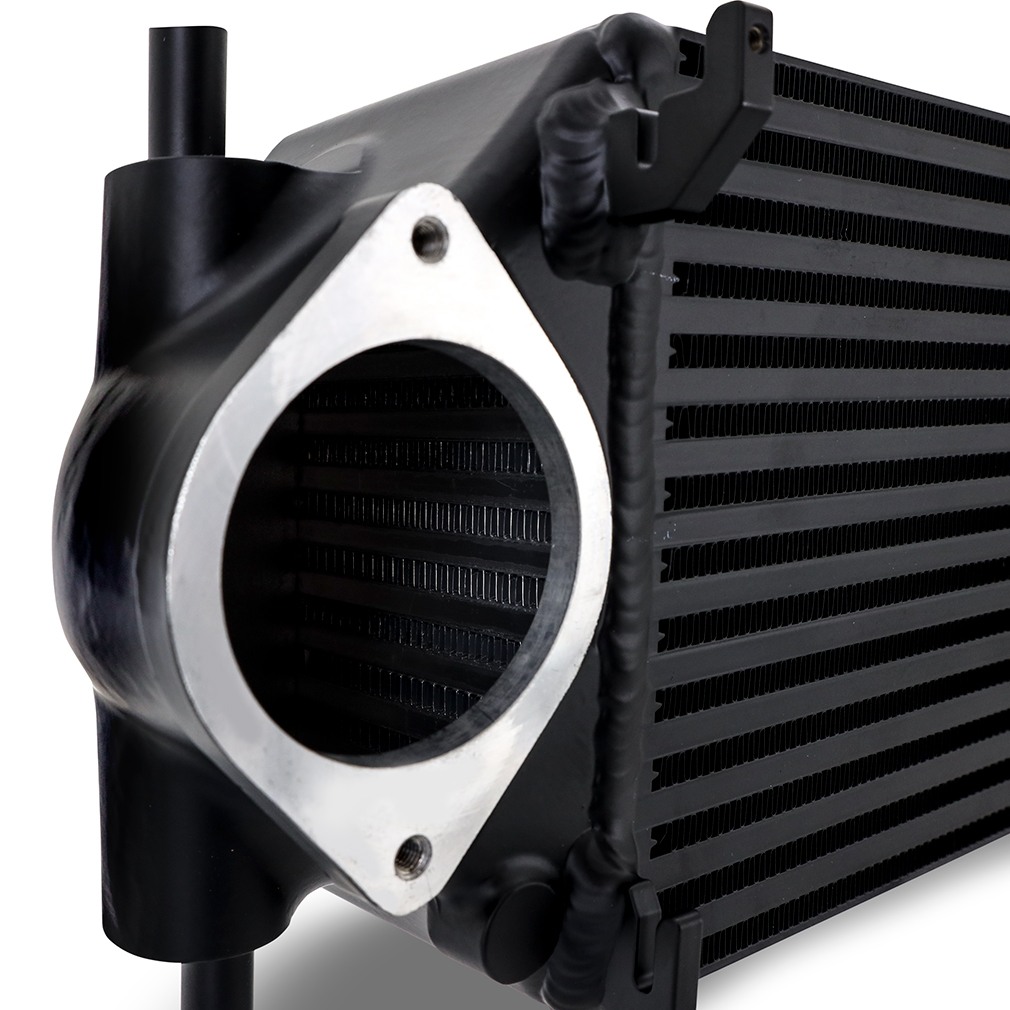

- CNC-machined 6061 aluminum inlet and outlet flanges
- Cast aluminum end tanks precision TIG-welded to the core for increased pressure tolerance
- Finished in black powdercoat
- Retains full functionality of adaptive cruise control and 360-degree cameras

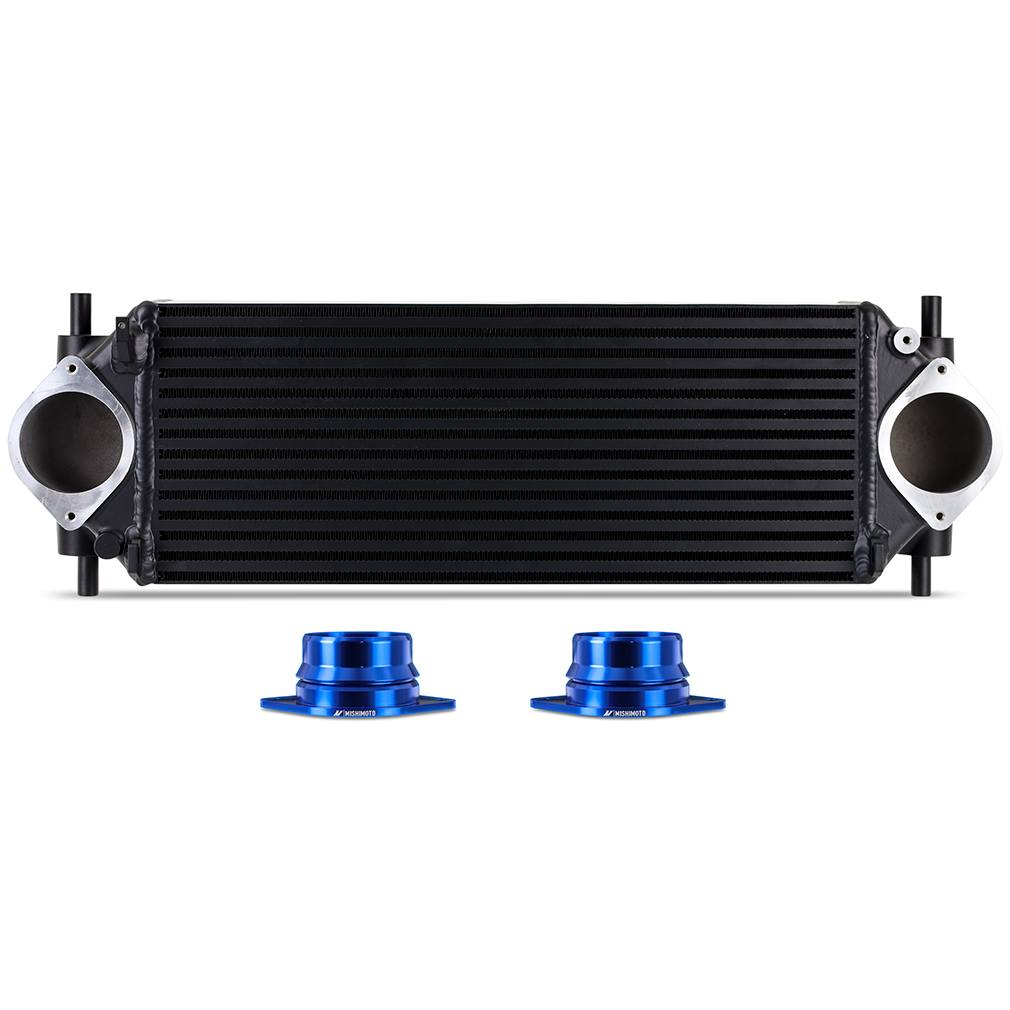

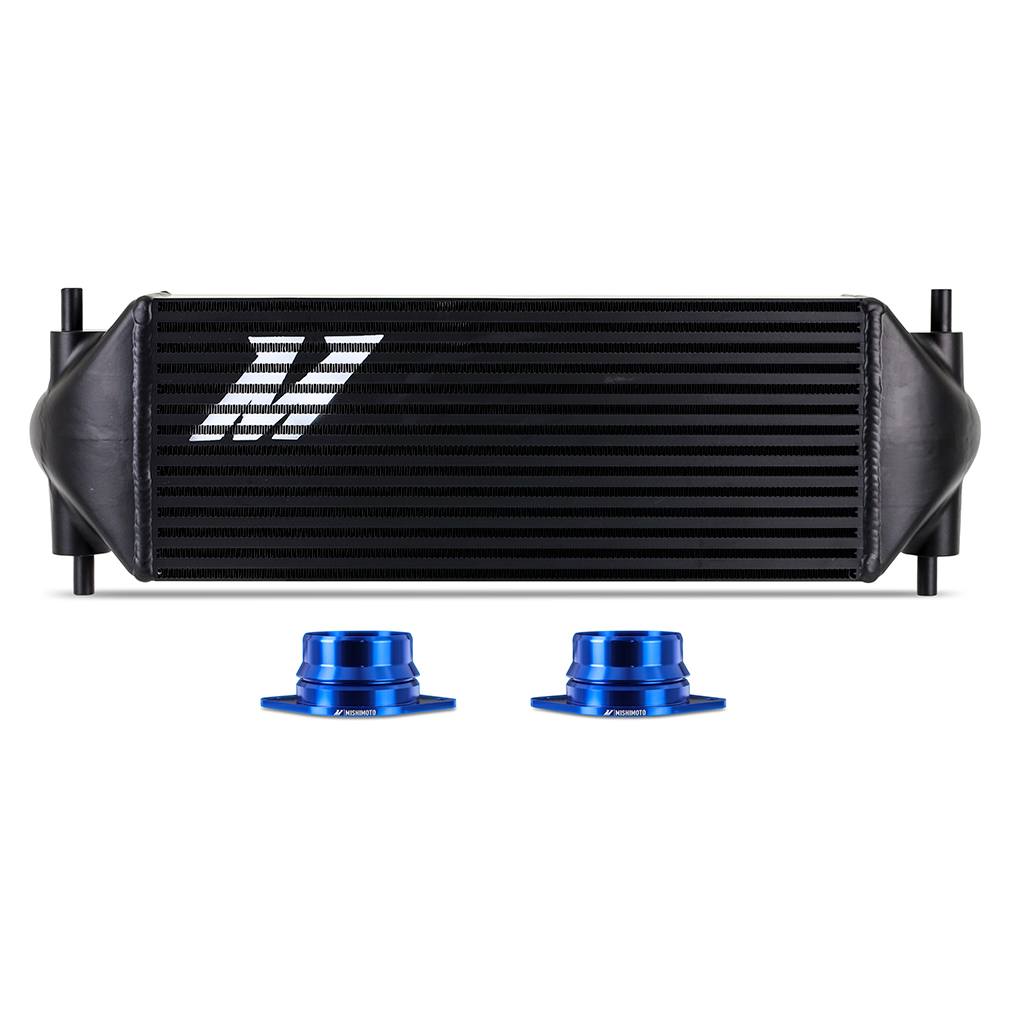

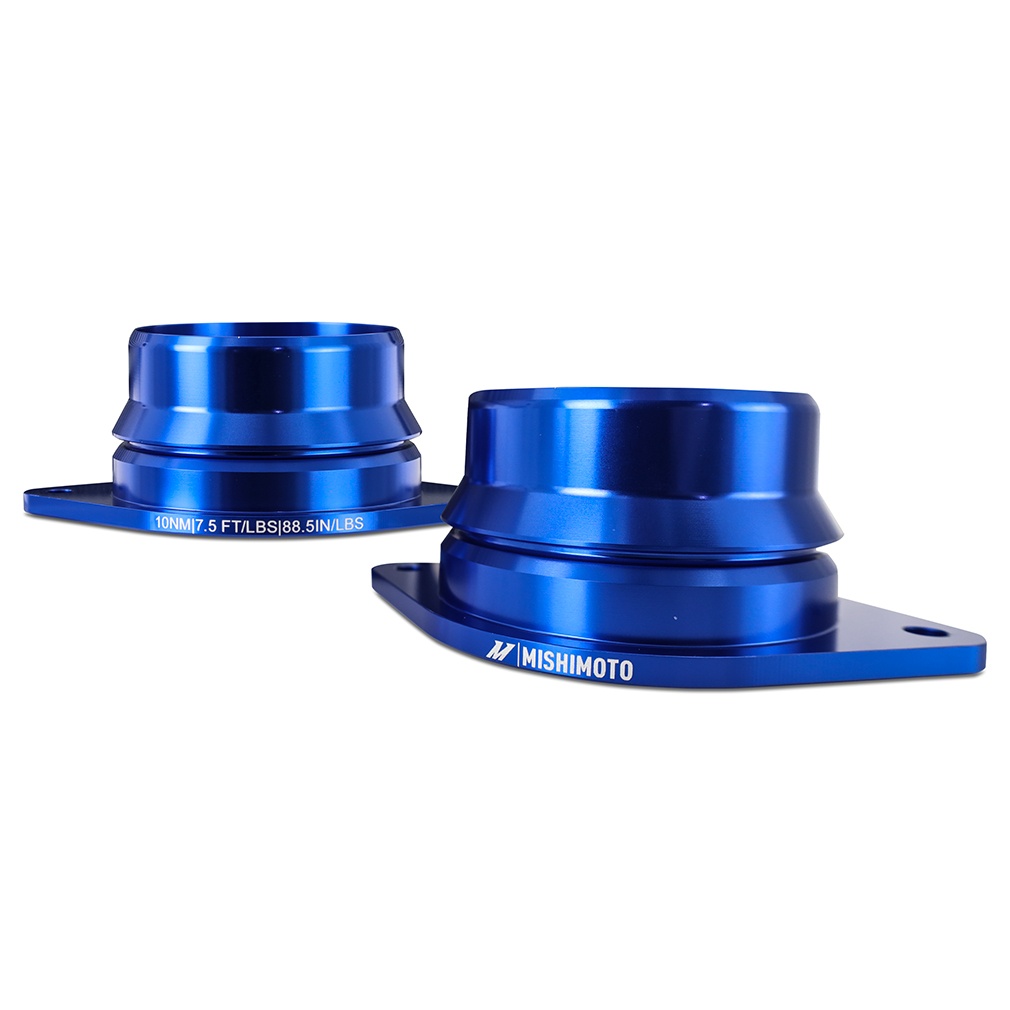

- Includes (1) Mishimoto Performance Intercooler, (2) intercooler pipe adapters, and mounting hardware
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Overall Length: 26.81 in
- Overall Width: 6.77 in
- Overall Height: 8.62 in
- Core Length: 19.49 in
- Core Height: 7.62 in
- Core Thickness: 4.72 in
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Black
- Inlet/Inlet Tank Material: Aluminum
- Inlet Outside Diameter: 2.48 in
- Outlet Outside Diameter: 2.48 in
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Includes: (1) Mishimoto Performance Intercooler, (2) Intercooler Pipe Adapters, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto Performance Intercooler MMINT-BR-21BK fit?
It fits the 2021-2026 Ford Bronco Badlands, Big Bend, and Outer Banks; the 2021-2023 Base; the 2021-2024 Black Diamond and Wildtrak; the 2022-2024 Everglades; the 2021 First Edition; the 2023-2026 Heritage Edition; and the 2023-2024 Heritage Limited Edition, all equipped with the 2.3L or 2.7L EcoBoost engine.
Does this intercooler fit the Bronco Raptor?
No, it does not fit the Raptor Bronco with the 3.0L EcoBoost engine.
What performance gains does the Mishimoto Performance Intercooler provide?
On the 2.3L EcoBoost, dyno testing showed gains of up to 5.7 whp and 5.3 lb-ft of torque along with a 21.2-degree reduction in outlet temperature and 7-percent less restriction than stock. On the 2.7L EcoBoost, gains reached up to 6.5 whp and 6.5 lb-ft of torque with a 15.8-degree reduction in outlet temperature.
What is the core construction of this intercooler?
It uses a 4.7-inch thick bar-and-plate aluminum core with a 77-percent increase in core volume and a 175-percent increase in fin surface area compared to the stock intercooler, along with CNC-machined 6061 aluminum flanges and cast aluminum end tanks that are precision TIG-welded to the core.
Will this intercooler interfere with adaptive cruise control or the 360-degree camera system?
No, the Mishimoto Performance Intercooler retains full functionality of adaptive cruise control and 360-degree cameras.
What is included with the Mishimoto Performance Intercooler?
It includes (1) Mishimoto Performance Intercooler, (2) intercooler pipe adapters, mounting hardware, and the Mishimoto Lifetime Warranty.
