Description

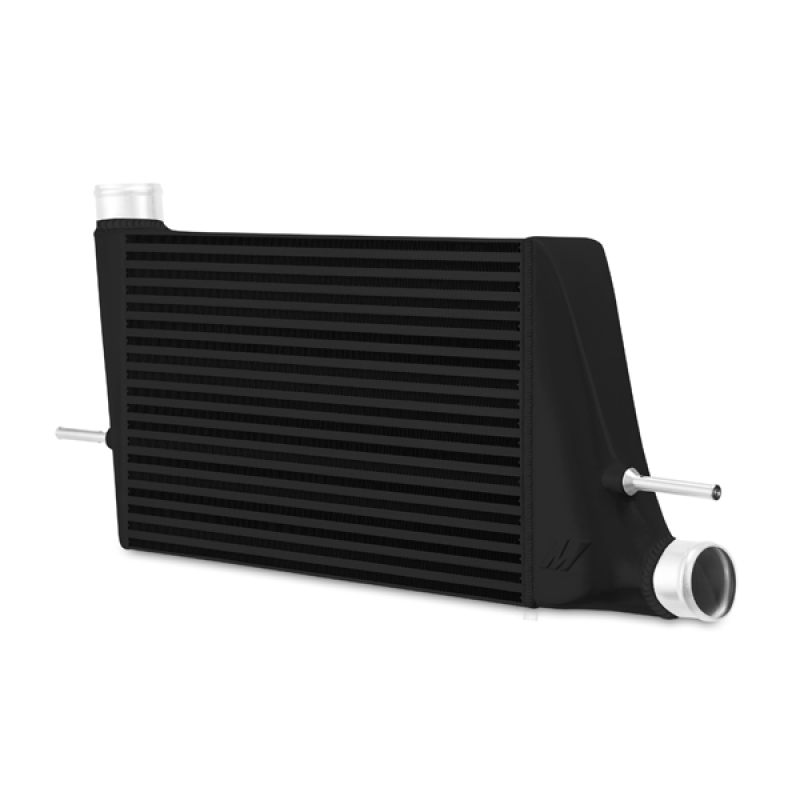

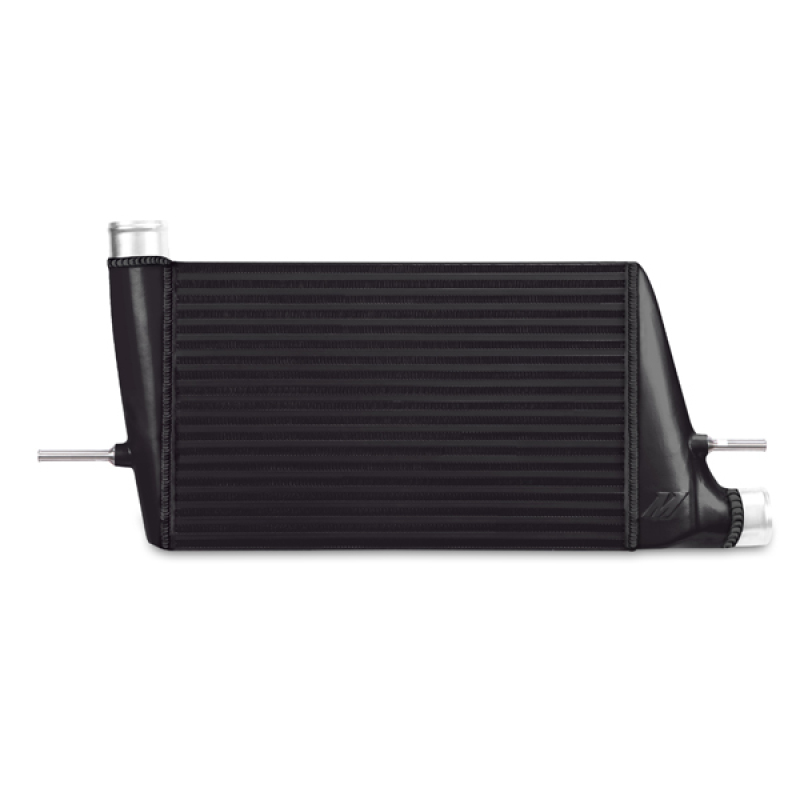

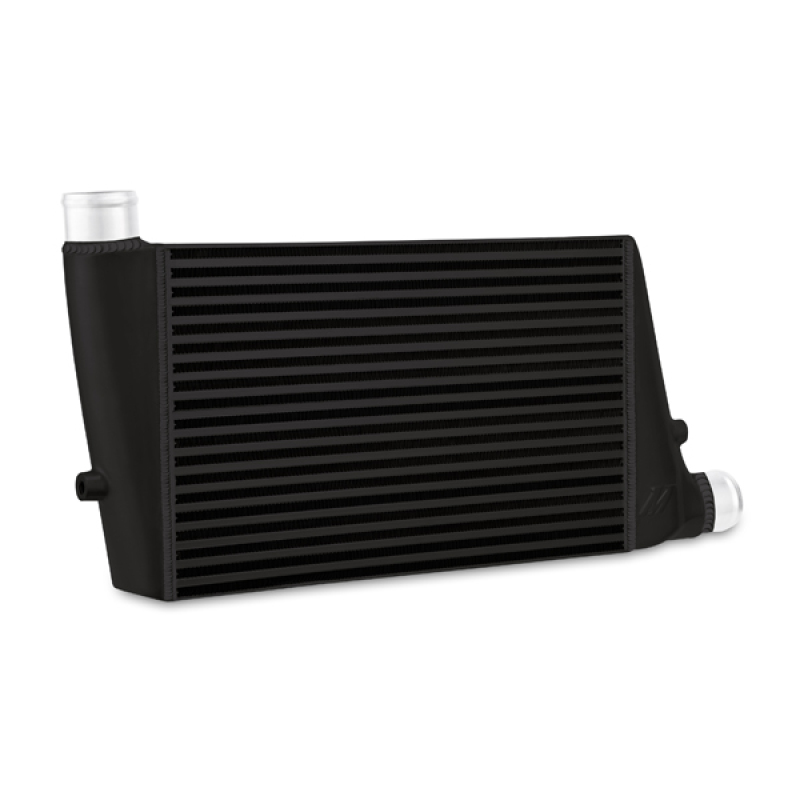

The Mishimoto MMINT-EVO-10XB is a direct bolt-on performance intercooler engineered specifically for the Mitsubishi Lancer Evolution X, built around a 3.5-inch thick bar-and-plate core and robust cast aluminum end tanks. Available in a powder-coated Sleek Silver or Stealth Black finish, this intercooler is dyno-proven to add 10 hp and 10 tq while keeping intake air temperatures in check under sustained boost.
Modified Evo X builds running high boost pressures are prone to elevated air intake temperatures (AITs) and heat soak, both of which sap power and consistency. This Mishimoto forced induction intercooler addresses that head-on: the bar-and-plate core and strategically designed fins promote substantial heat exchange while keeping pressure loss across the core to a minimum, so the induction system stays efficient whether you’re launching at the drag strip or hammering through a rally stage. With enough core volume to support vehicles up to 600 hp, this performance induction upgrade gives you room to grow as your Evo X build progresses, and it bolts in using the factory mounting locations with included CNC mounting pegs.
Vehicle Applications
This intercooler is a specific fit for the Mitsubishi Lancer Evolution X, engine code 4B11T, chassis code CZ4A. Coverage includes the 2014 Lancer Evolution, the 2015 Lancer Evolution Final Edition, the 2008-2015 Lancer Evolution GSR and MR, the 2010-2011 Lancer Evolution MR Touring, the 2009 Lancer Evolution RS, the 2010 Lancer Evolution SE, the 2009-2015 Lancer Ralliart, and the 2010-2011 Lancer Ralliart Sportback.
Features
- Direct bolt-on fit for the 2008-2015 Mitsubishi Lancer Evolution X
- Dyno-proven 10 whp and 10 tq bolt-on power increase
- 3.5-inch thick bar-and-plate core for optimal heat dissipation and low AITs
- Full cast aluminum end tanks for increased durability and smooth, uninterrupted airflow
- Strategically designed fins for minimal pressure loss
- Substantial core volume supports vehicles up to 600 whp
- Available with a powder-coated finish in Sleek Silver or Stealth Black
- Can be used with stock or aftermarket intercooler pipes; CNC mounting pegs must be installed by the customer
- Includes Mishimoto Intercooler, CNC mounting pegs, and Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-EVO-10XB
- Product Type: Forced Induction
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Black
- Grade Type: Performance
- Core Length: 19.5 in
- Core Height: 12 in
- Inlet Outside Diameter: 2.375 in
- Outlet Outside Diameter: 2.5 in
- Inlet/Outlet Fitting Gender: Male
- Overall Length: 28.3 in
- Overall Width: 4.5 in
- Overall Height: 13.7 in
- Weight: 23 lbs
- Engine Code: 4B11T
- Chassis Code: CZ4A
- CARB EO Number: D-759
- Universal or Specific Fit: Specific
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-EVO-10XB intercooler fit?
This intercooler is a specific fit for the Mitsubishi Lancer Evolution X, including the 2014 Lancer Evolution, 2015 Lancer Evolution Final Edition, 2008-2015 Lancer Evolution GSR and MR, 2010-2011 Lancer Evolution MR Touring, 2009 Lancer Evolution RS, 2010 Lancer Evolution SE, 2009-2015 Lancer Ralliart, and 2010-2011 Lancer Ralliart Sportback (engine code 4B11T, chassis code CZ4A).
How much power does this intercooler add?
Mishimoto’s testing shows a dyno-proven increase of 10 hp and 10 tq from this bolt-on intercooler.
What is the maximum horsepower this intercooler can support?
The substantial core volume of this intercooler will support modified vehicles up to 600 hp.
What core design does the Mishimoto Evo X intercooler use?
It uses an efficient 3.5-inch thick bar-and-plate aluminum core with a strategic fin design that promotes heat exchange while minimizing pressure loss.
What color finishes are available?
This intercooler is available with a powder-coated finish in either Sleek Silver or Stealth Black.
What is included with the intercooler and does it require additional installation steps?
The package includes the Mishimoto Intercooler, CNC mounting pegs, and the Mishimoto Lifetime Warranty. It can be used with stock or aftermarket intercooler pipes, and the CNC mounting pegs must be installed by the customer.
