Description

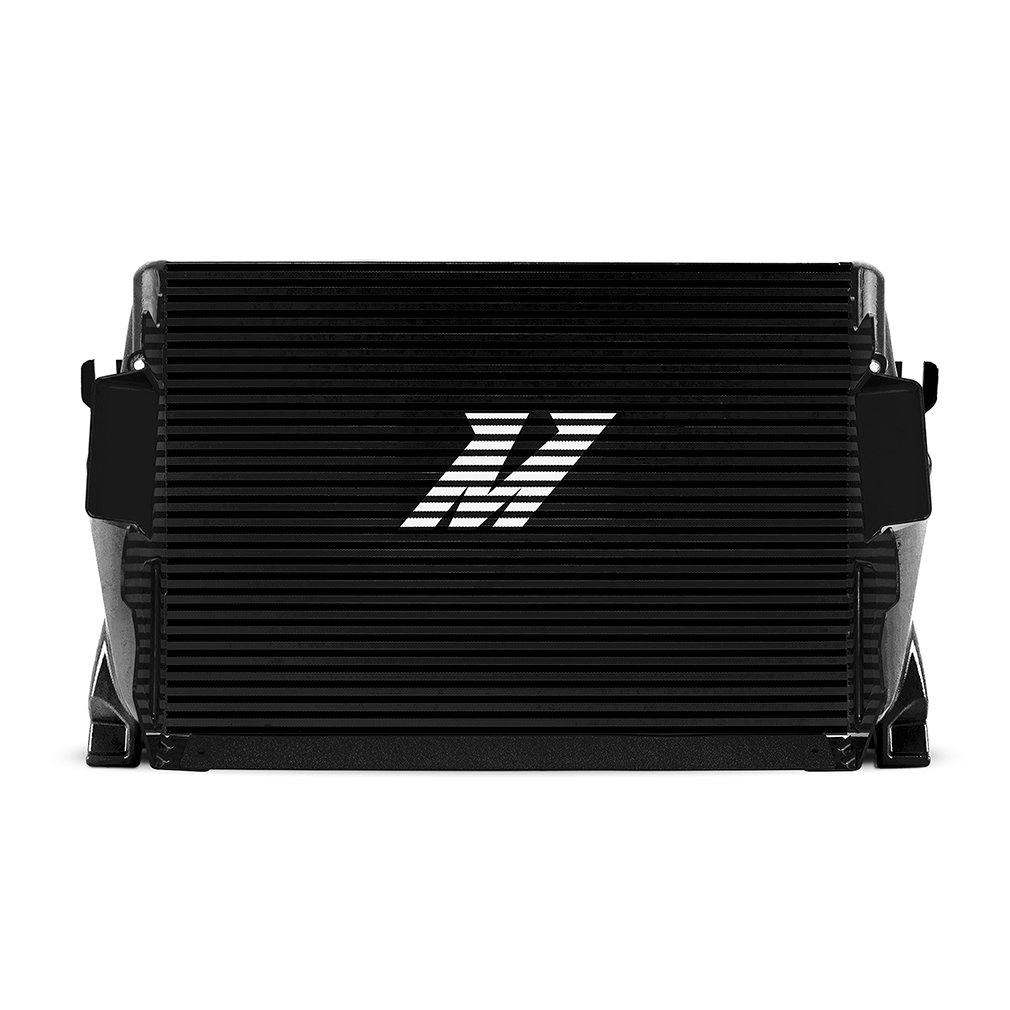

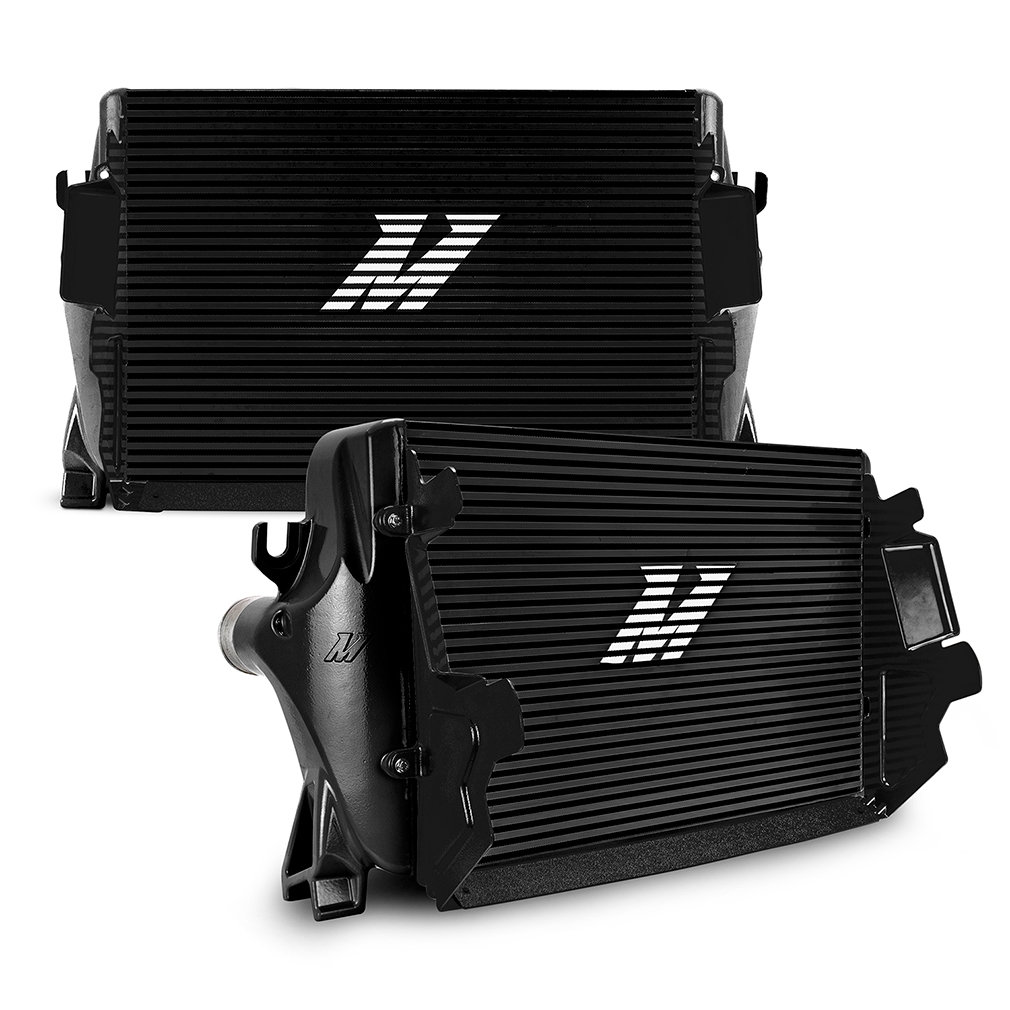

The Mishimoto Performance Intercooler, part number MMINT-RAM-19KBKWBK, is a purpose-built forced induction upgrade engineered specifically for the 2019-2024 Dodge Ram 2500 and Ram 3500 trucks running the 6.7L Cummins engine. Built around a dense bar-and-plate core with cast aluminum end tanks, this intercooler is designed to move more charged air, more efficiently, than the factory unit. Available in Sleek Silver or Stealth Black finishes, it’s a direct-fit replacement that keeps the factory look while dramatically increasing cooling capacity.
This forced induction component addresses the core weakness of any factory induction system: heat soak and restriction under sustained boost. Mishimoto engineered a core that is 63% larger than the stock unit while being 44.7% less restrictive, which the manufacturer states increases charged air density to 237% and has been demonstrated to reduce outlet temperatures by 20°F compared to stock. Internal air diverter plates inside each end tank guide charged air evenly across the core to reduce pressure loss, while internal fins are designed for maximum heat transfer with minimal pressure drop. The included silicone boots use Mishimoto’s DuraCore technology, offering resistance to heat, pressure, fuel, and oil for long-term reliability whether your truck is running stock power or a modified setup within its rated capacity.
Vehicle Applications
This intercooler is a specific-fit part engineered for the 2019-2024 Dodge Ram 2500 and 2019-2024 Dodge Ram 3500, both equipped with the 6.7L Cummins engine. It is not a universal-fit product, so installation is designed around the mounting points, ducting, and pipe routing of these particular Ram truck model years.
Features

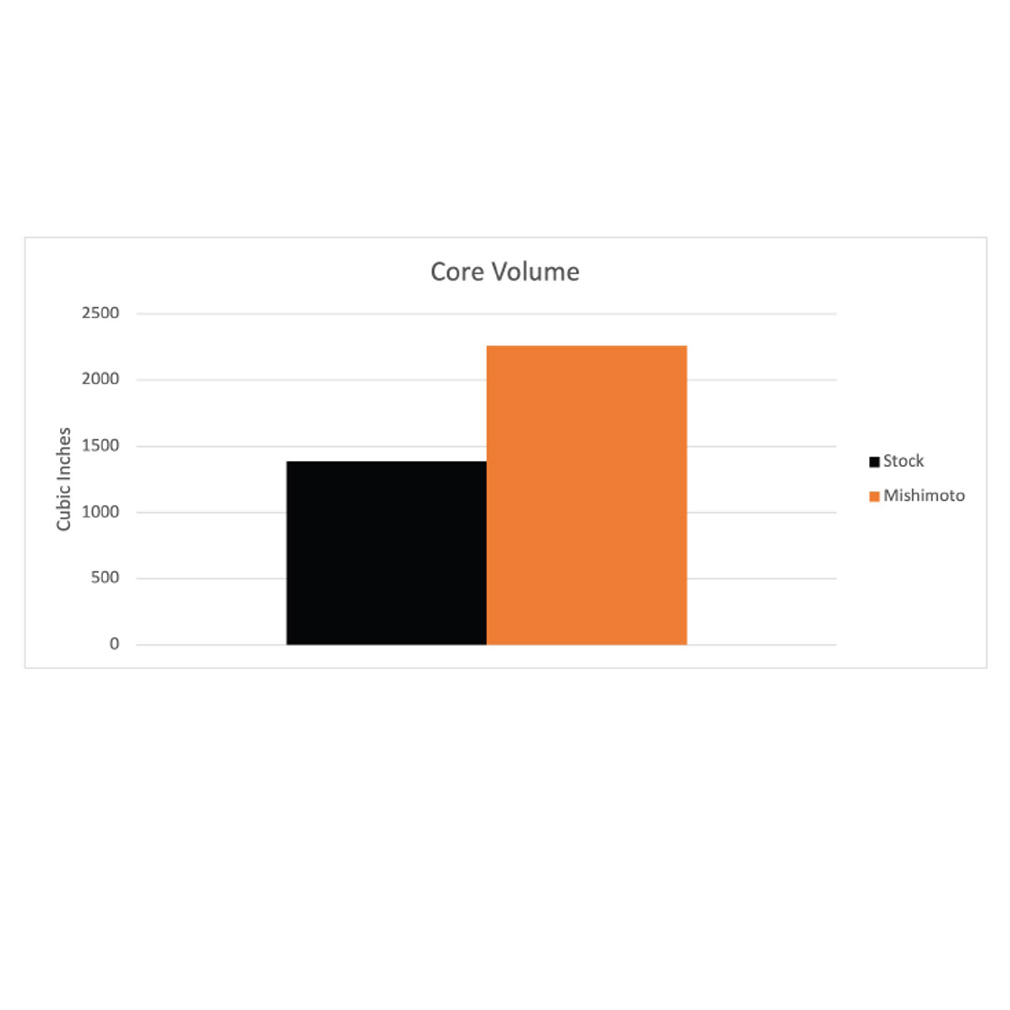

- 63% larger core than stock, 44.7% less restrictive than stock
- Demonstrated to reduce outlet temperatures by 20°F compared to stock
- Increases charged air density to 237%
- Robust bar-and-plate core construction supports higher boost pressure and resists damage from road debris or repeated heat cycles

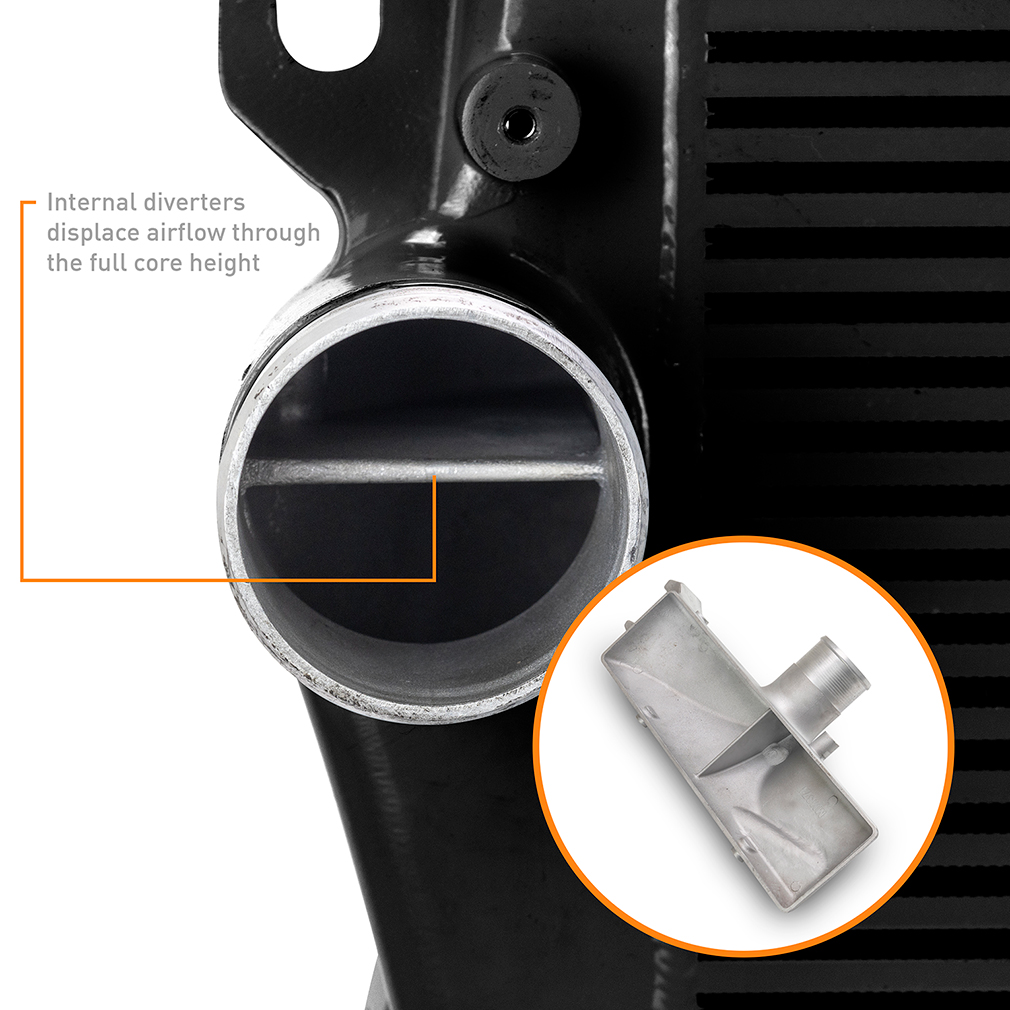

- Internal air diverter plates inside each end tank guide charged air evenly across the core and reduce pressure loss

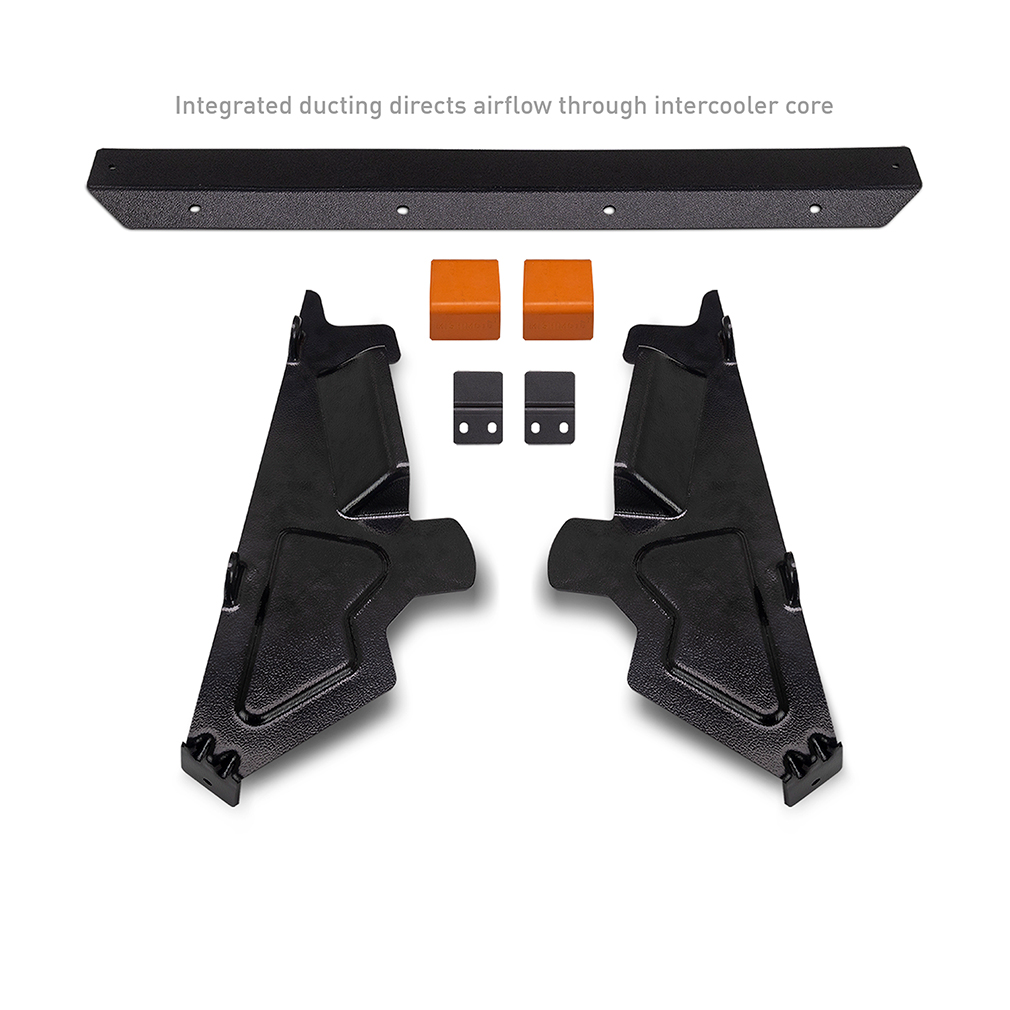

- Specially designed deflectors seal gaps between the core and bumper to maintain optimal airflow

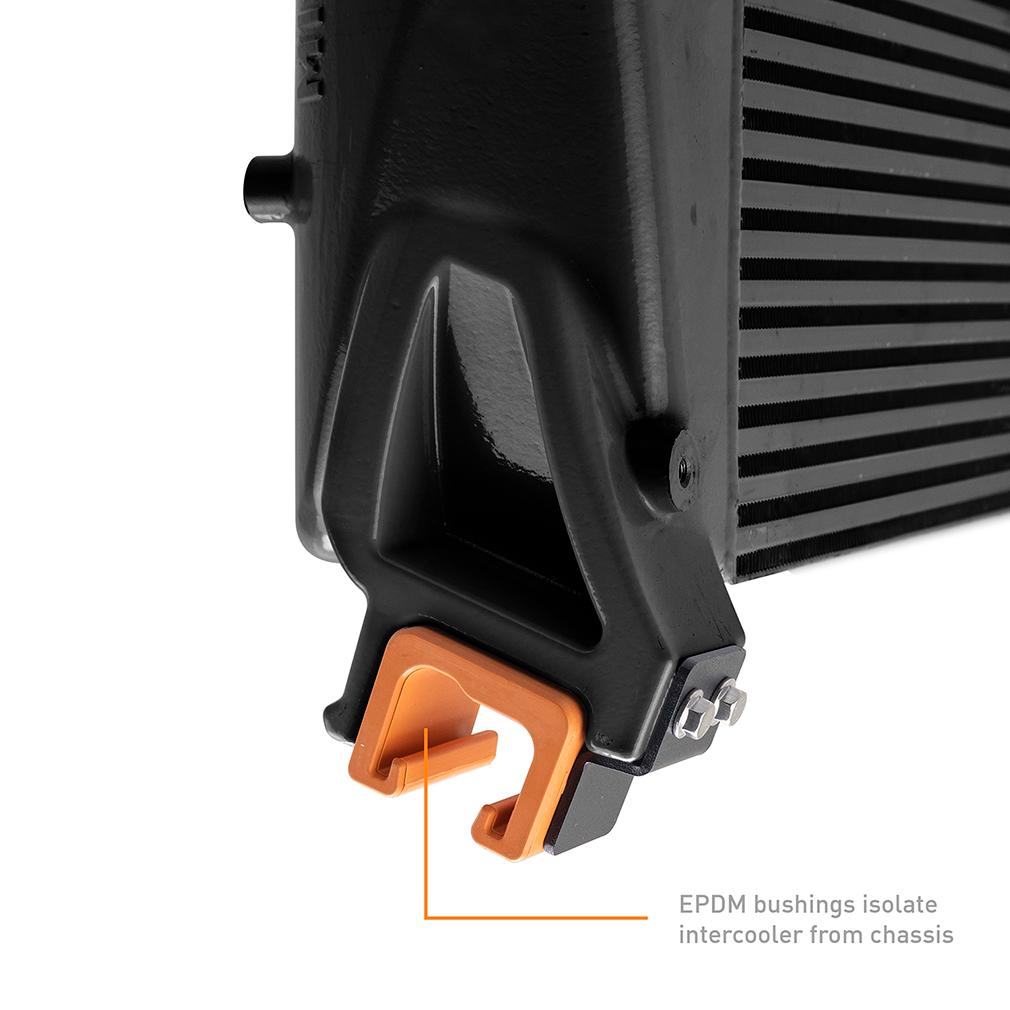

- Heavy-duty rubber isolators ensure secure fitment
- Utilizes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant-Tension T-bolt Clamps

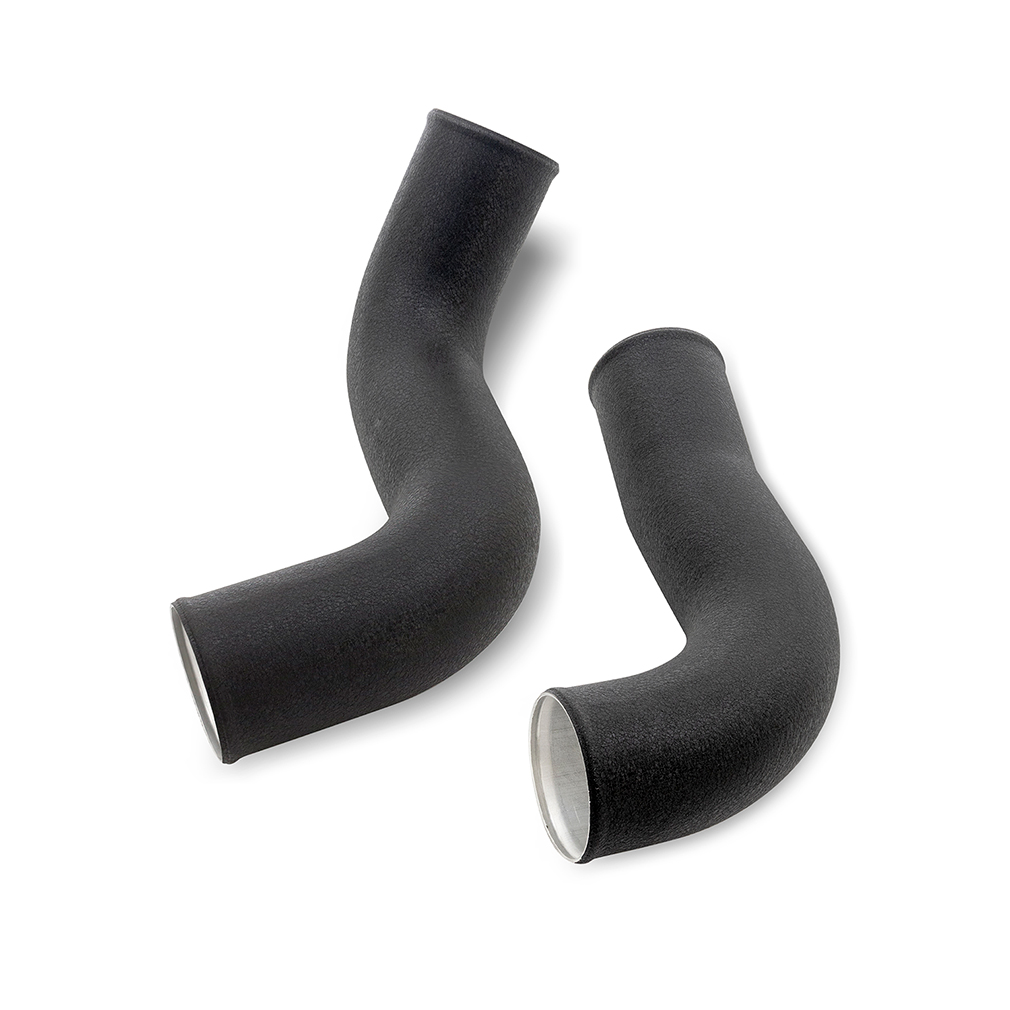

- Includes hot-side and cold-side powder-coated aluminum intercooler pipes
- Internal fins designed for maximum heat transfer with minimal pressure drop

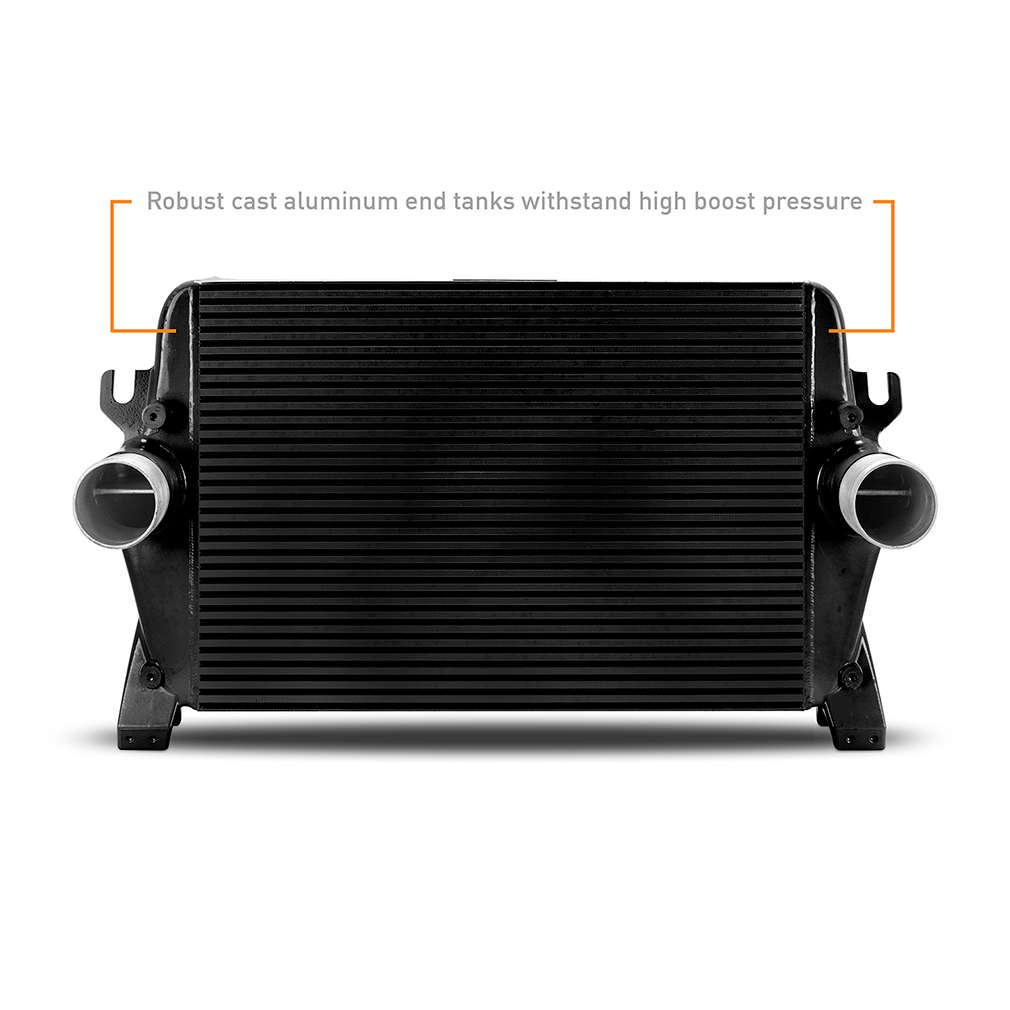

- Cast aluminum end tanks
- Available in Sleek Silver or Stealth Black
- Patent Pending design
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-RAM-19KBKWBK
- Product Type: Forced Induction / Intercooler
- Intercooler Type: Air-to-Air
- Core Construction: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Black
- Core Height: 17.03 in
- Core Length: 25 in

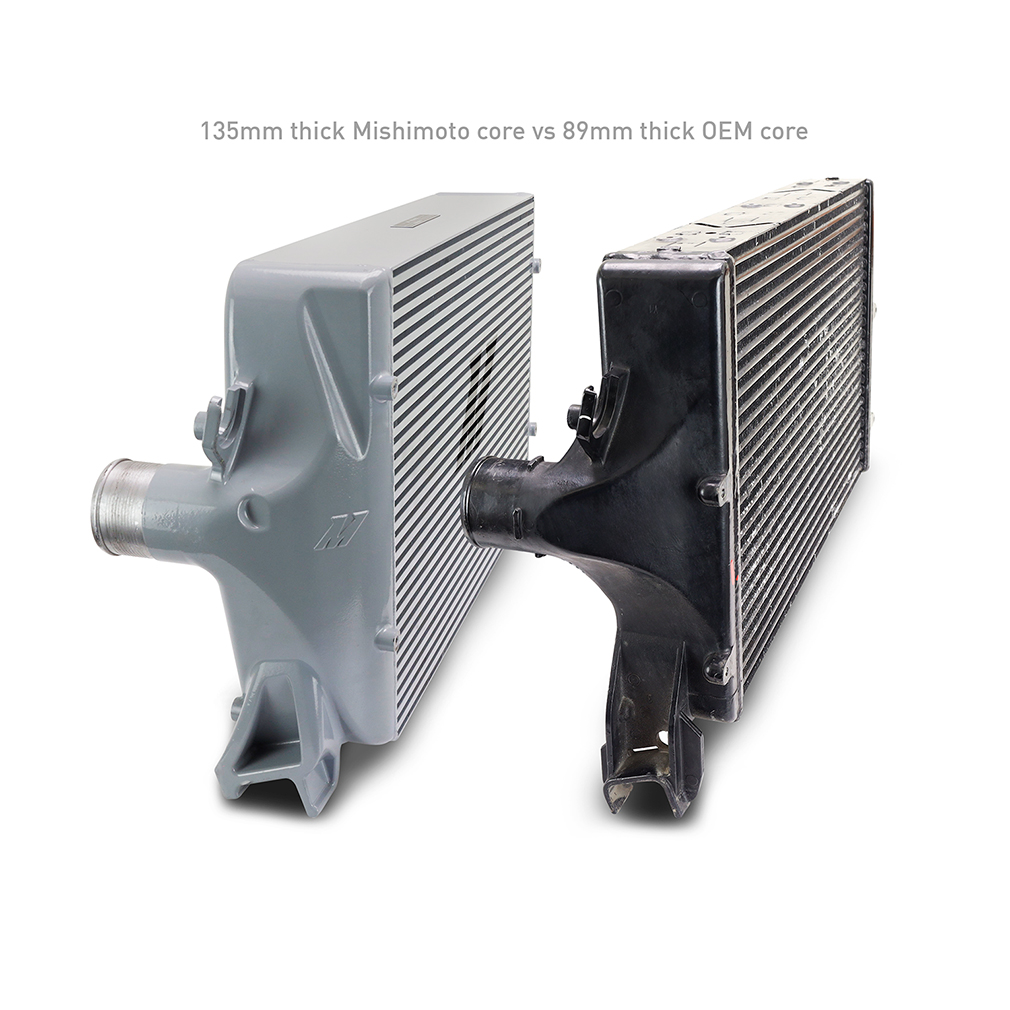

- Core Thickness: 5.31 in
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Pipe Material: Aluminum
- Pipe Finish: Powder Coated
- Pipe Color: Black
- Inlet Diameter: 3.03 in
- Outlet Diameter: 3.03 in
- Hot Side Pipe Inside Diameter: 3.03 in
- Cold Side Pipe Inside Diameter: 3.03 in
- Pipe Diameter: 3.5 in
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Maximum Boost Pressure: 100 PSI
- Maximum Horsepower: 734 HP
- Overall Width: 9.57 in
- Overall Height: 18.66 in
- Overall Length: 33 in
- Weight: 62 lbs
- Grade Type: Performance
- Fit Type: Specific

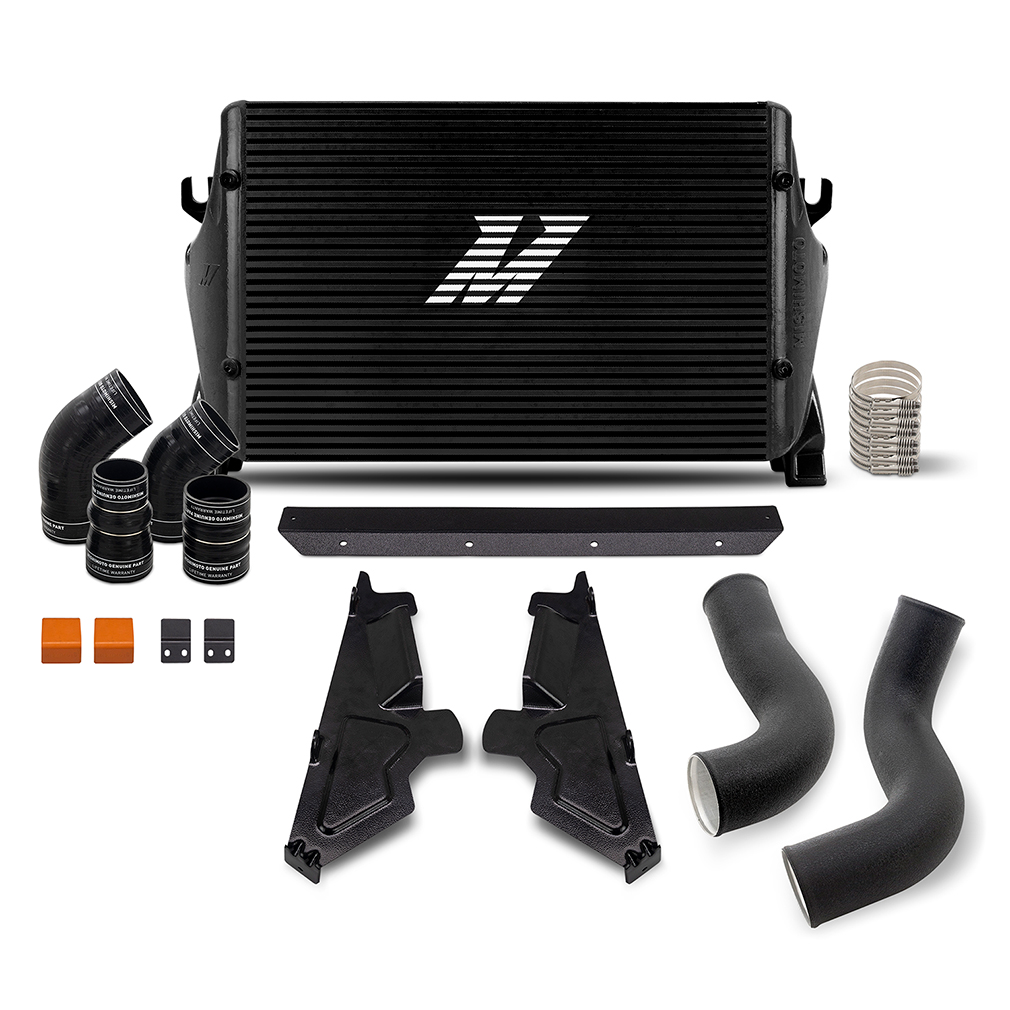

- Included Components: (1) Performance Intercooler, (3) Intercooler Ducts, (2) Rubber Isolators, (2) Mounting Brackets, (1) Hot-Side Intercooler Pipe, (1) Cold-Side Intercooler Pipe, (4) Couplers, (8) Clamps, (1) Hardware Kit, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which vehicles is the Mishimoto MMINT-RAM-19KBKWBK intercooler designed for?
This is a specific-fit intercooler engineered for the 2019-2024 Dodge Ram 2500 and 2019-2024 Dodge Ram 3500 equipped with the 6.7L Cummins engine.
How much larger is this core compared to the factory intercooler?
The core is 63% larger than the stock unit while being 44.7% less restrictive than stock.
What temperature reduction has Mishimoto demonstrated with this intercooler?
Mishimoto states the intercooler is demonstrated to reduce outlet temperatures by 20°F compared to stock.
What is the maximum boost pressure and horsepower rating for this intercooler?
This intercooler is rated for a maximum boost pressure of 100 PSI and a maximum horsepower of 734 HP.
What color options are available for this intercooler?
This intercooler is available in Sleek Silver or Stealth Black core finishes, with black pipes and black silicone couplers.
What is included with this Mishimoto intercooler kit?
The kit includes (1) Performance Intercooler, (3) Intercooler Ducts, (2) Rubber Isolators, (2) Mounting Brackets, (1) Hot-Side Intercooler Pipe, (1) Cold-Side Intercooler Pipe, (4) Couplers, (8) Clamps, (1) Hardware Kit, and the Mishimoto Lifetime Warranty.
