Description

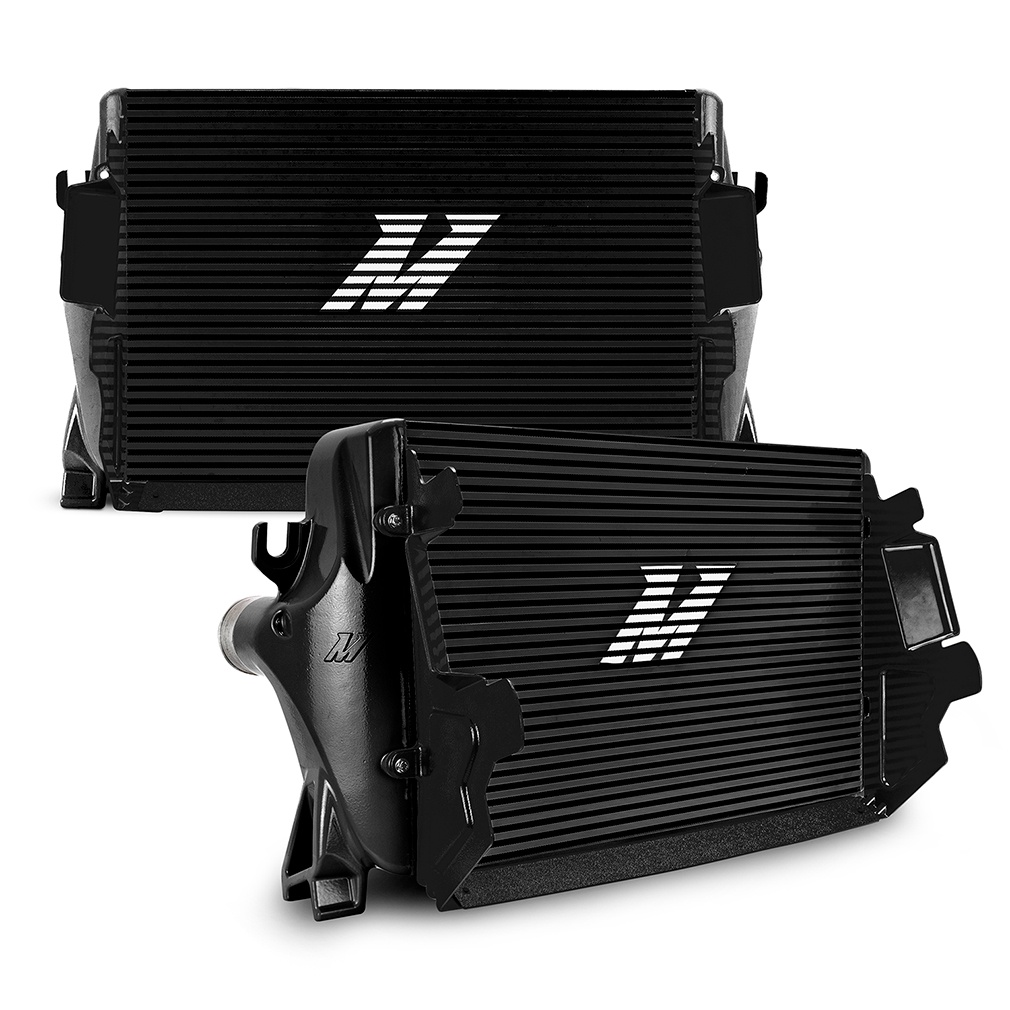

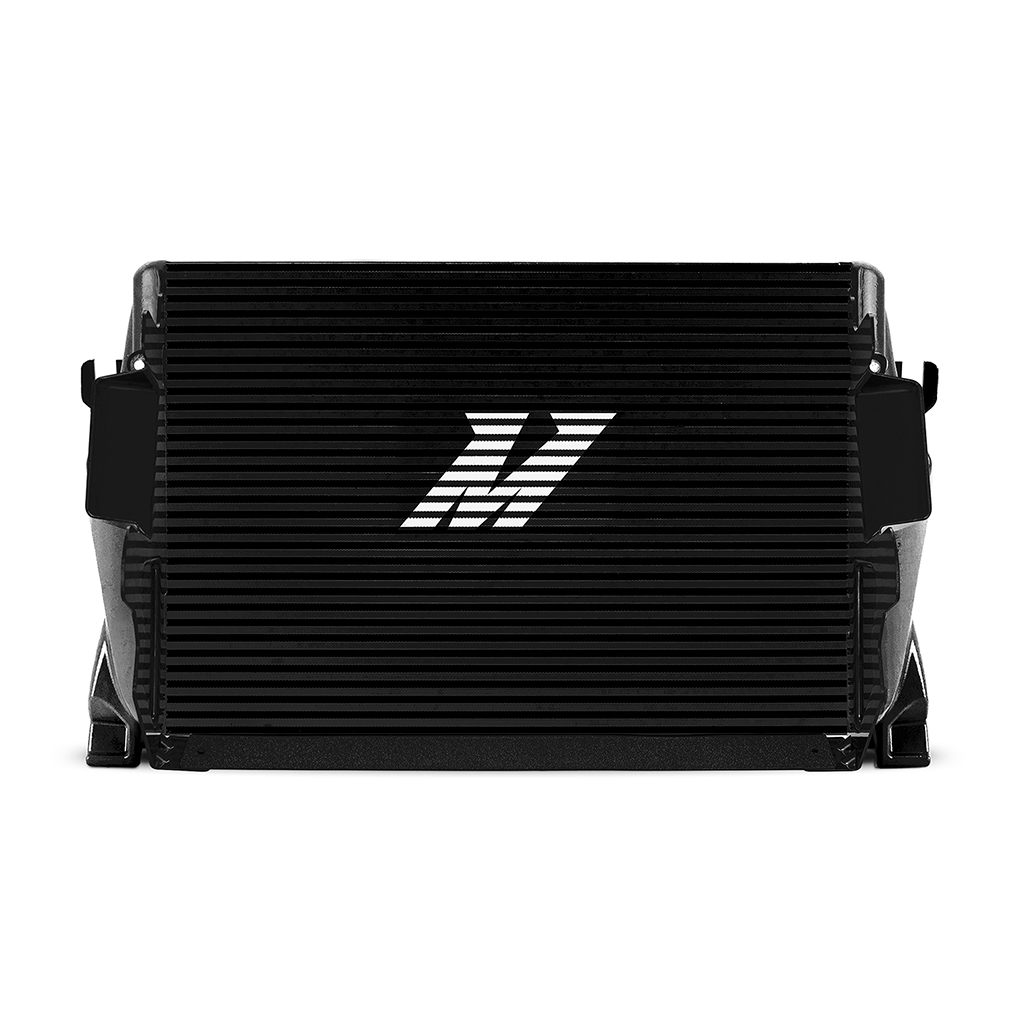

The Mishimoto MMINT-RAM-19KBKP is a performance intercooler purpose-built for 2019-2024 Ram 2500 and Ram 3500 trucks, offered in this listing with a black intercooler core and silver aluminum pipes. It pairs a dense bar-and-plate core with cast aluminum end tanks, giving owners a direct, application-specific upgrade over the factory forced induction cooling hardware.
Built around an air-to-air forced induction system that channels compressed air from the turbo to the intake, this Mishimoto intercooler increases core volume so it can move more air across a larger, denser surface than the stock unit. Internal air diverter plates inside each end tank guide charged air evenly across the core, while internal fins are designed for maximum heat transfer with minimal pressure drop. The result is a performance induction upgrade suited to both stock trucks and those running additional forced induction modifications, engineered with the durability drivers expect from daily-driven trucks.
Vehicle Applications
This intercooler is engineered specifically for 2019-2024 Ram 2500 and Ram 3500 trucks. It is a specific-fit part rather than a universal intercooler, designed to bolt into the factory intercooler location on these model years.
Features

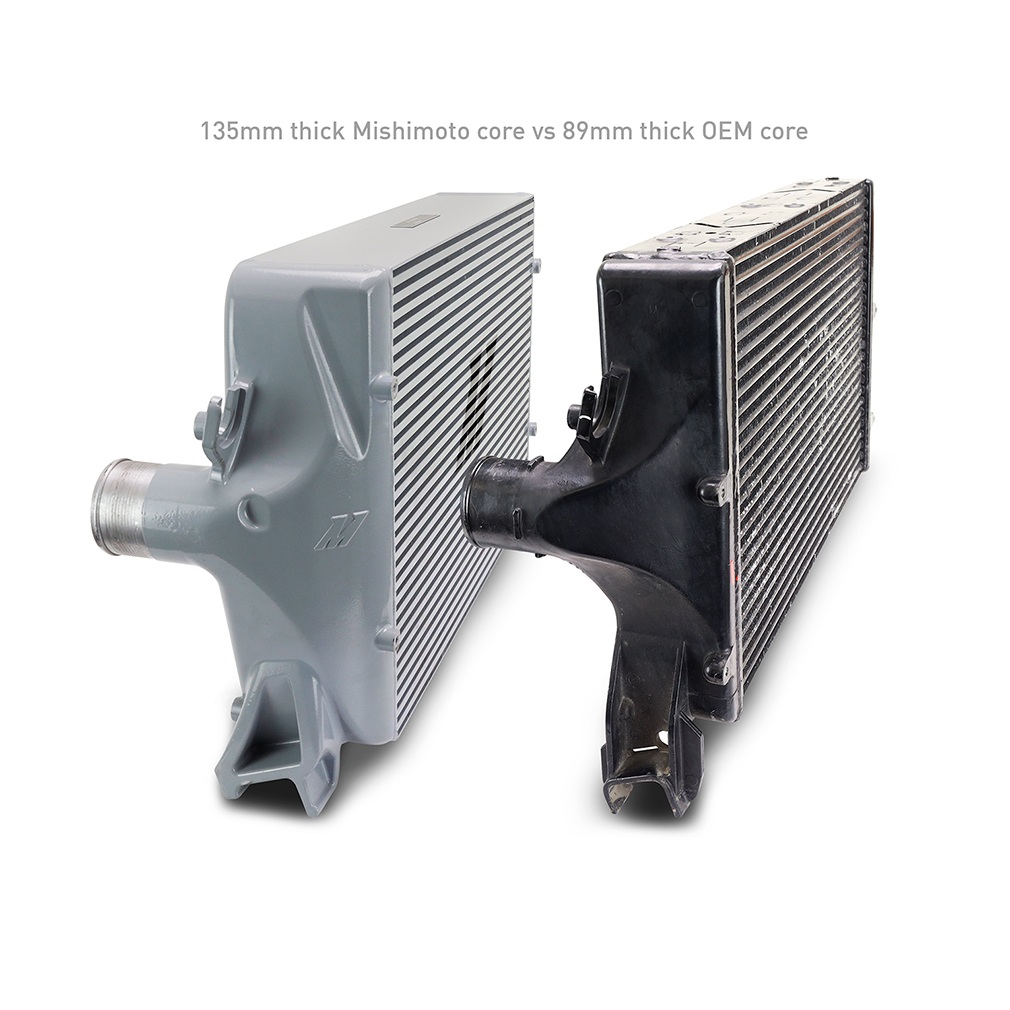

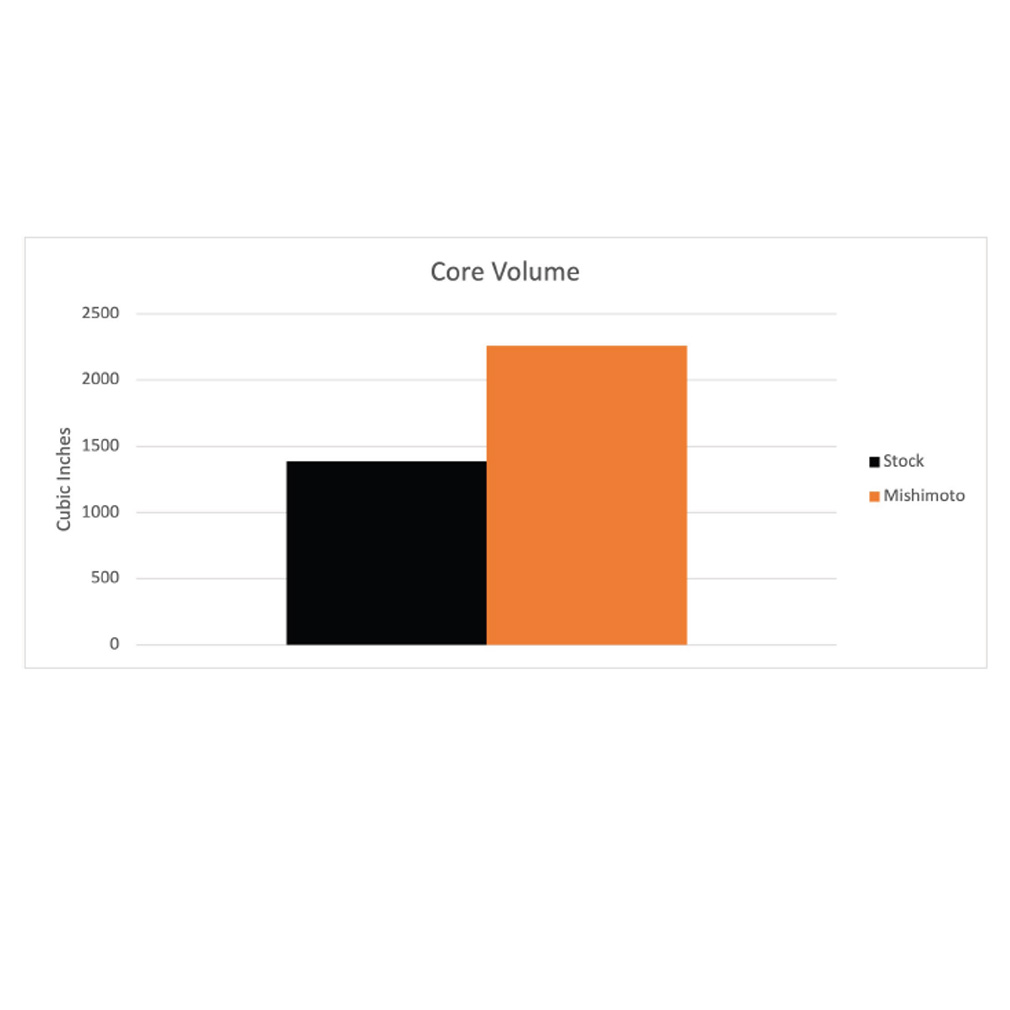

- 63% larger core than stock for increased cooling capacity
- 44.7% less restrictive than stock airflow path
- Increases charged air density to 237%
- Demonstrated to reduce outlet temperatures by 20°F compared to stock
- Robust bar-and-plate core construction resists damage from road debris and repeated heat cycles

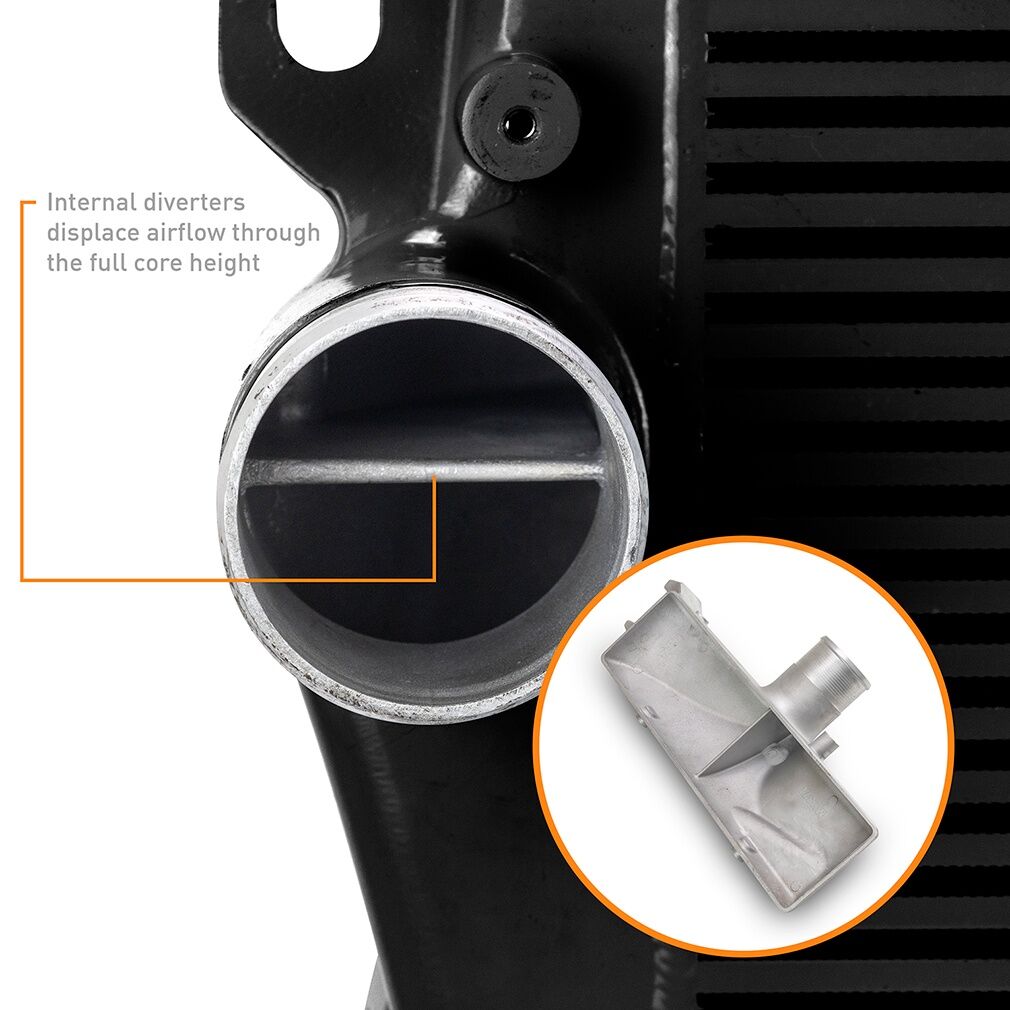

- Internal air diverter plates inside each end tank guide charged air evenly across the core

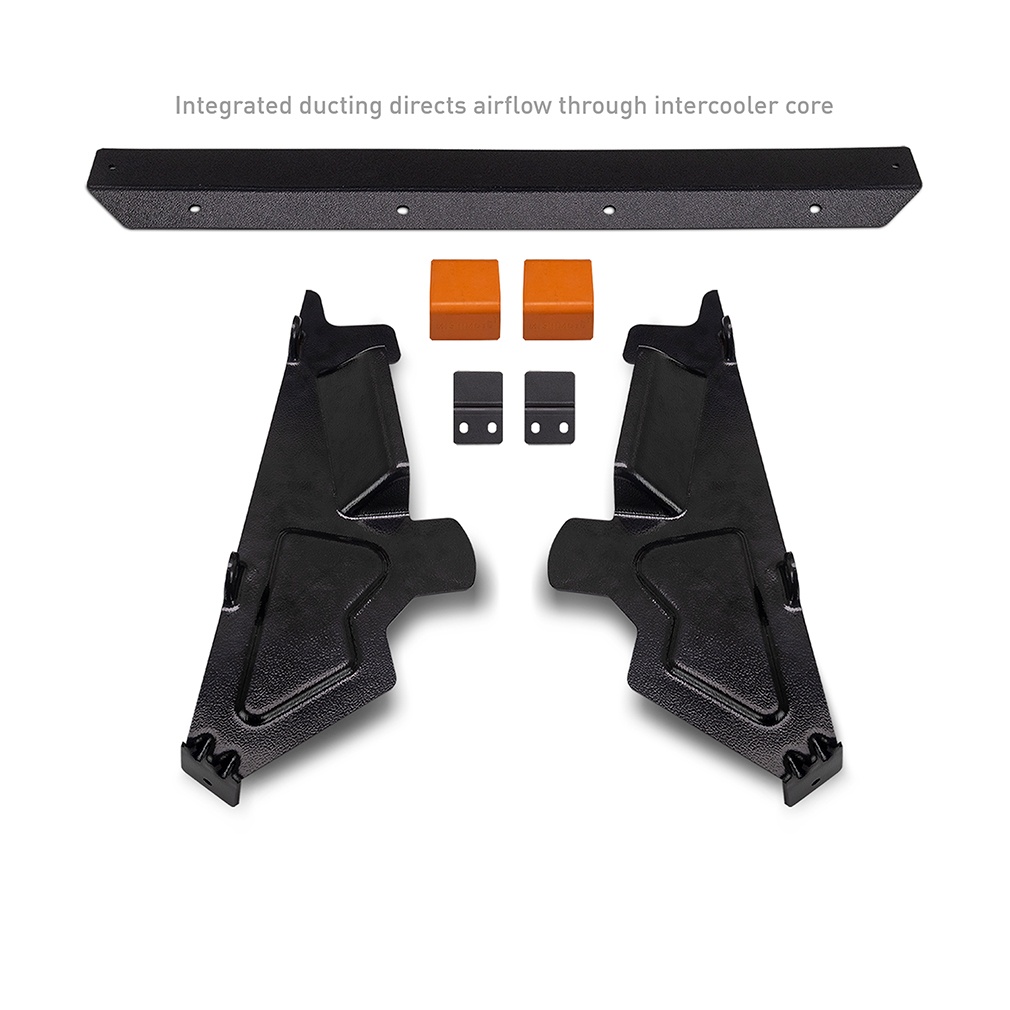

- Specially designed deflectors seal gaps between core and bumper to maintain optimal airflow

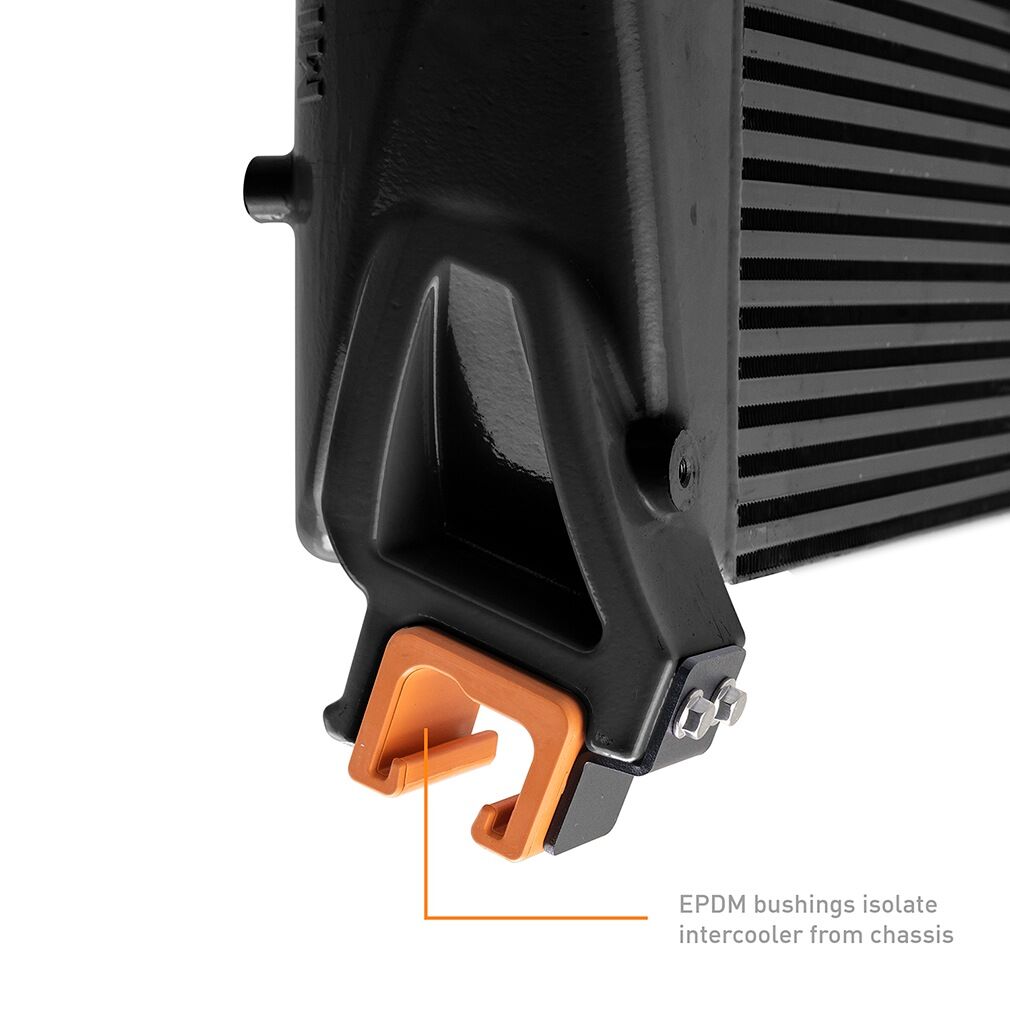

- Heavy-duty rubber isolators ensure secure fitment
- Includes Mishimoto Silicone Boots with DuraCore technology and Constant-Tension T-bolt Clamps

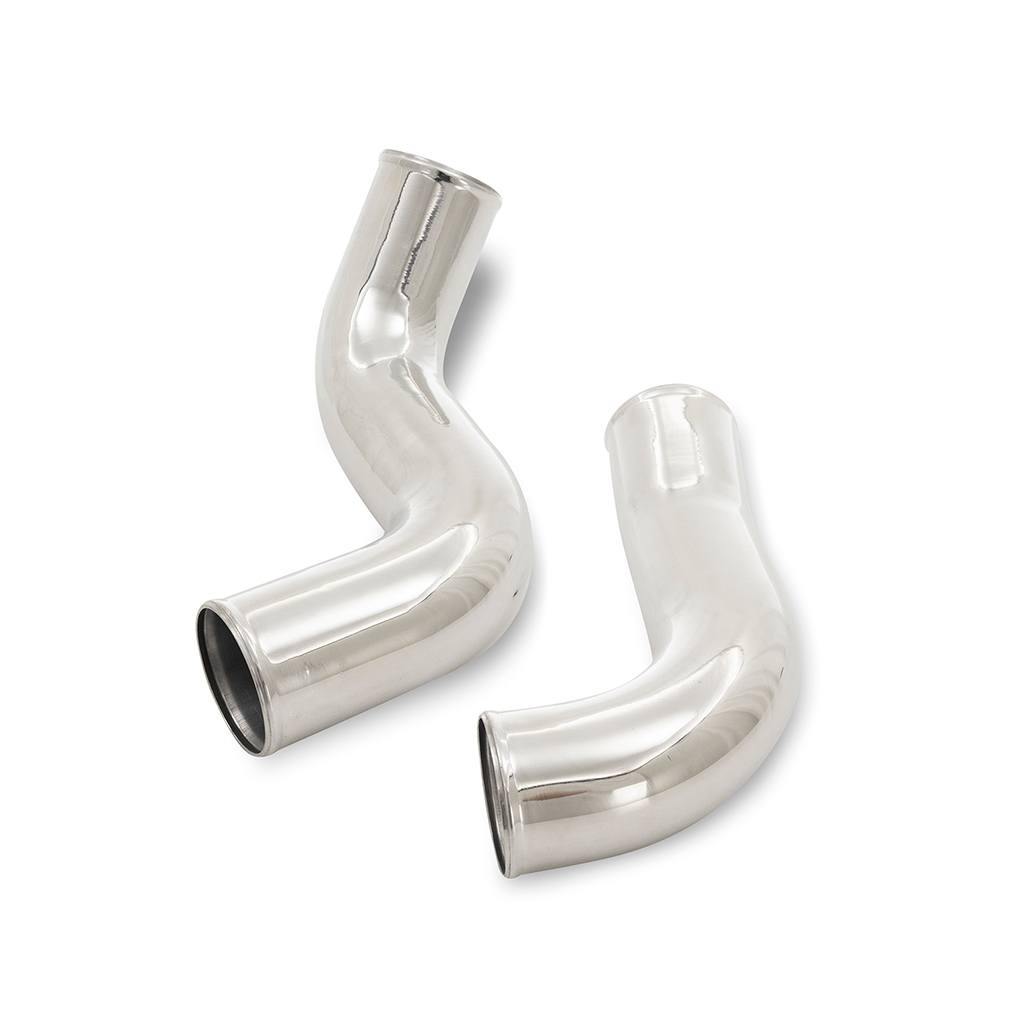

- Includes hot-side and cold-side powder-coated aluminum intercooler pipes
- Internal fins designed for maximum heat transfer with minimal pressure drop
- Available in Sleek Silver or Stealth Black intercooler options
- Patent Pending design
- Backed by the Mishimoto Lifetime Warranty

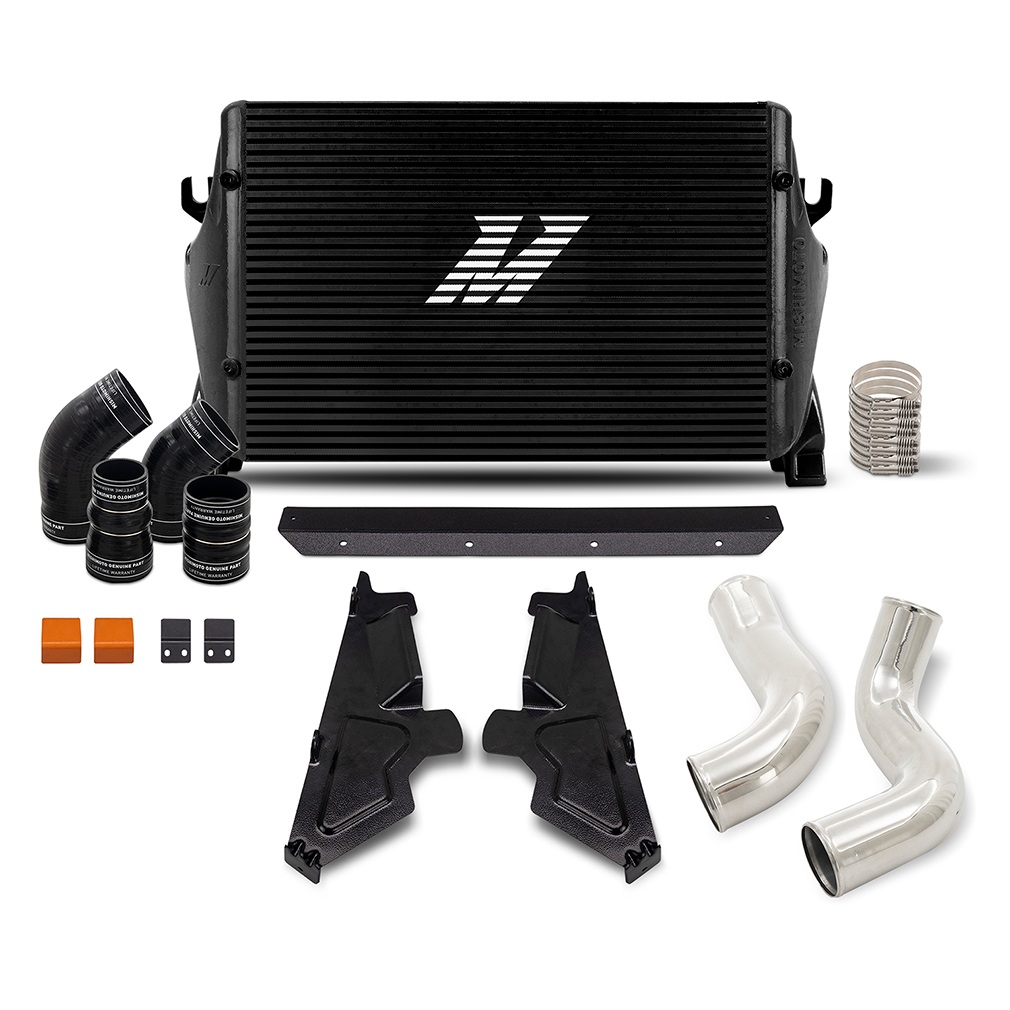

- Kit includes (1) performance intercooler, (3) intercooler ducts, (2) rubber isolators, (2) mounting brackets, (1) hot-side intercooler pipe, (1) cold-side intercooler pipe, (4) couplers, (8) clamps, and a hardware kit
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Height: 17.03 in
- Core Thickness: 5.31 in
- Core Length: 25 in
- End Tank Material: Aluminum

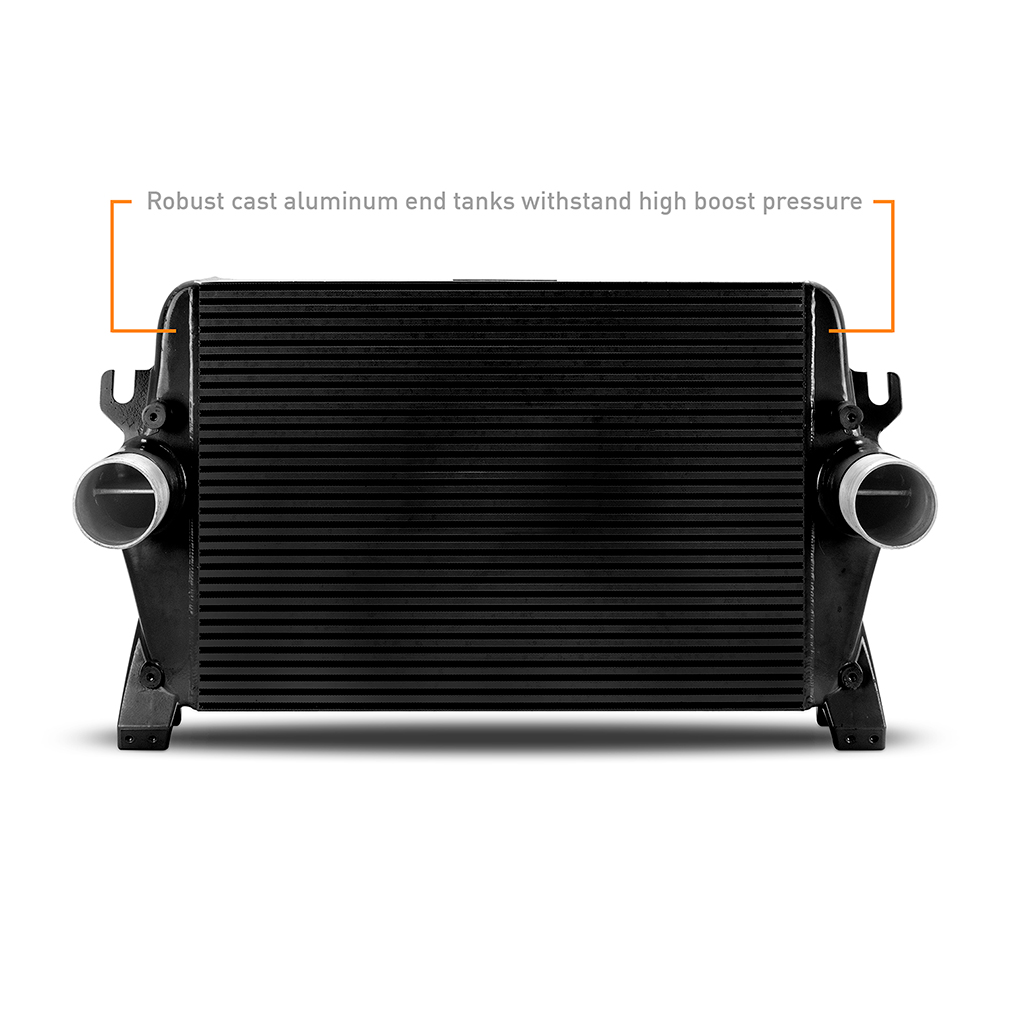

- End Tank Construction: Cast
- Intercooler Type: Air-to-Air
- Inlet Diameter: 3.03 in
- Outlet Diameter: 3.03 in
- Pipe Material: Aluminum
- Pipe Finish: Powder Coated
- Pipe Color: Silver
- Coupler Material: Silicone
- Coupler Color: Black
- Core Color: Black
- Hose Clamps Included: Yes
- Overall Width: 9.57 in
- Overall Height: 18.66 in
- Overall Length: 33 in
- Weight: 62 lbs
- Grade Type: Performance
- Fit Type: Specific
- Chassis Codes: DT
Frequently Asked Questions
What vehicles fit the Mishimoto MMINT-RAM-19KBKP intercooler?
It is designed specifically for 2019-2024 Ram 2500 and Ram 3500 trucks.
What core construction does this intercooler use?
It features a bar-and-plate aluminum core with cast aluminum end tanks.
What color options are available for this intercooler?
Mishimoto offers this intercooler in Sleek Silver or Stealth Black; this listing, MMINT-RAM-19KBKP, pairs a black intercooler core with silver pipes.
What is included with this intercooler kit?
The kit includes one performance intercooler, three intercooler ducts, two rubber isolators, two mounting brackets, one hot-side intercooler pipe, one cold-side intercooler pipe, four couplers, eight clamps, and a hardware kit.
Does this intercooler include a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
What technology do the included silicone boots use?
The silicone boots feature Mishimoto’s DuraCore technology for resistance to heat, pressure, fuel, and oil, and are secured with Constant-Tension T-bolt Clamps.
