Description

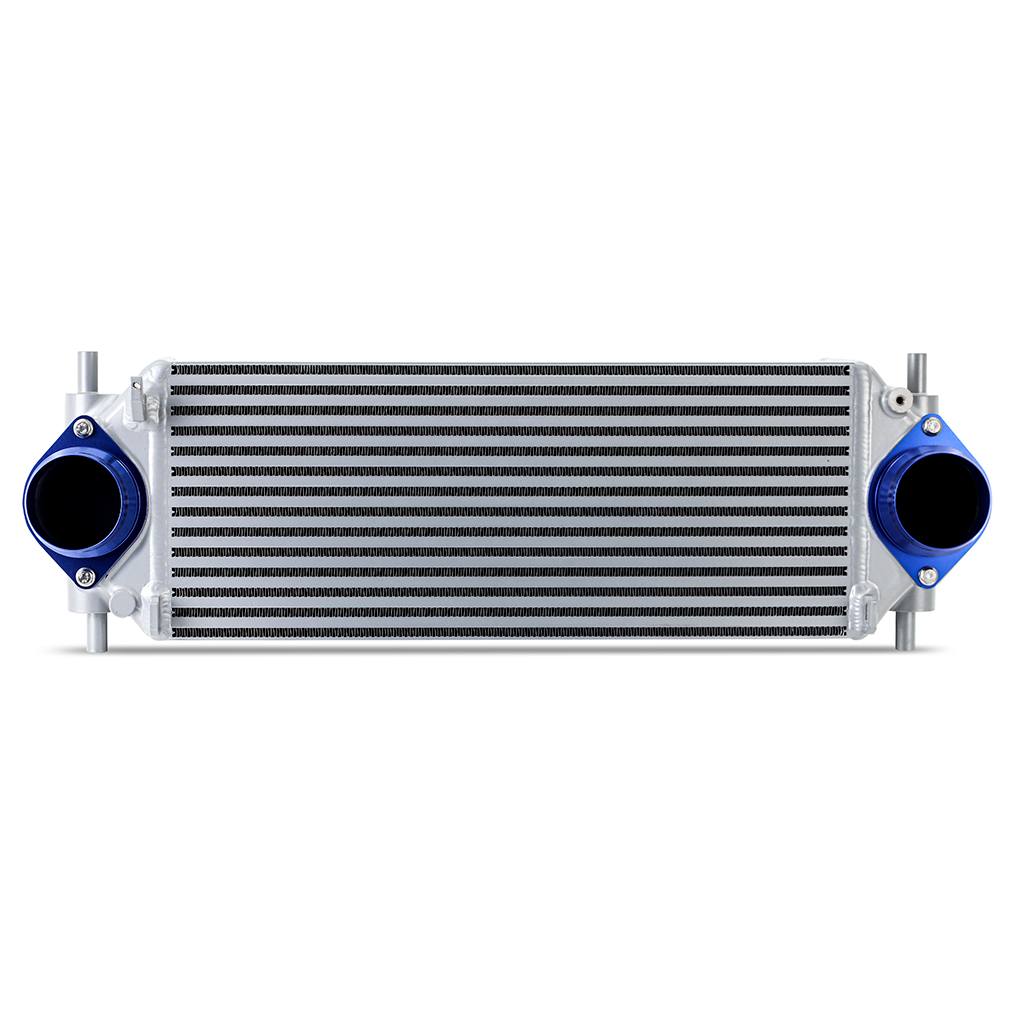

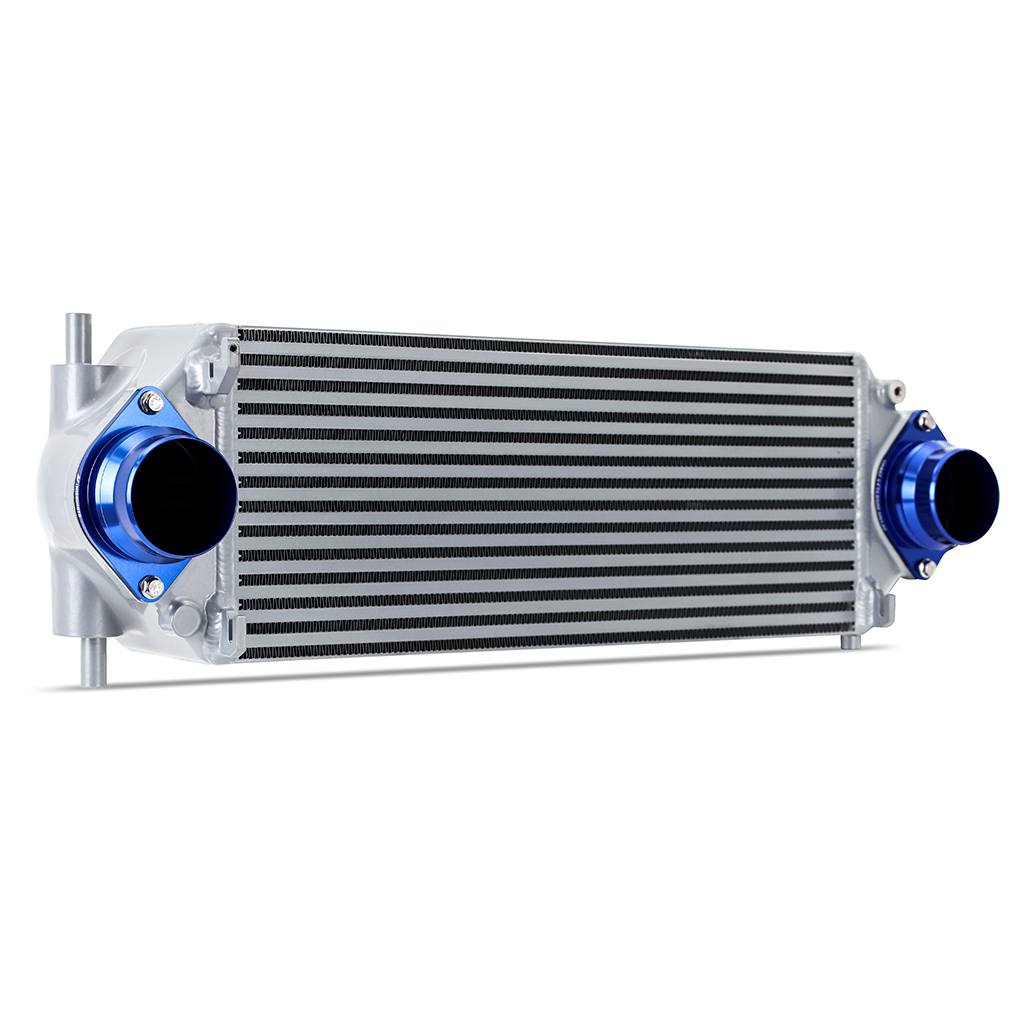

The Mishimoto Performance Intercooler (MMINT-BR-21SL) is a direct-fit, bar-and-plate intercooler engineered specifically for the 2021+ Ford Bronco equipped with the 2.3L or 2.7L EcoBoost engine. Built around a 4.7-inch thick core with CNC-machined 6061 aluminum flanges and precision TIG-welded cast aluminum end tanks, this forced induction upgrade is designed to outlast and outperform the factory tube-and-fin intercooler and its plastic end tanks.
As part of Mishimoto’s Forced Induction lineup, this intercooler upgrade delivers a 77-percent increase in core volume and a 175-percent increase in fin surface area over the stock unit, giving your Bronco’s induction system more capacity to shed heat under load. On the 2.3L EcoBoost, testing showed a 7-percent increase in flow and a 21.2-degree reduction in outlet temperature versus stock, while the 2.7L EcoBoost saw a 15.8-degree reduction in outlet temperature; dyno-proven gains reached 5.7 whp and 5.3 lb-ft of torque on the 2.3L and 6.5 whp and 6.5 lb-ft on the 2.7L. In trail simulation heat-soak testing, outlet temperatures stayed 20 degrees cooler than stock after six back-to-back dyno runs, proving this performance induction system holds up whether you’re crawling rocks or sitting in traffic. Despite the performance-focused core, the intercooler retains full functionality of adaptive cruise control and 360 cameras.
Vehicle Applications
This Mishimoto intercooler is a specific-fit forced induction component engineered for the 2021+ Ford Bronco lineup powered by the 2.3L I4 or 2.7L V6 EcoBoost engine. Coverage spans the Bronco Badlands, Big Bend, and Outer Banks (2021–2026), the Base (2021–2023), Black Diamond and Wildtrak (2021–2024), Heritage Edition (2023–2026), Heritage Limited Edition (2023–2024), Everglades (2022–2024), and First Edition (2021). It does not fit the Raptor Bronco with the 3.0L EcoBoost engine.
Features
- Bar-and-plate core for superior durability and performance
- 4.7-inch thick core for maximum heat transfer
- 77-percent increase in core volume and 175-percent increase in fin surface area over stock

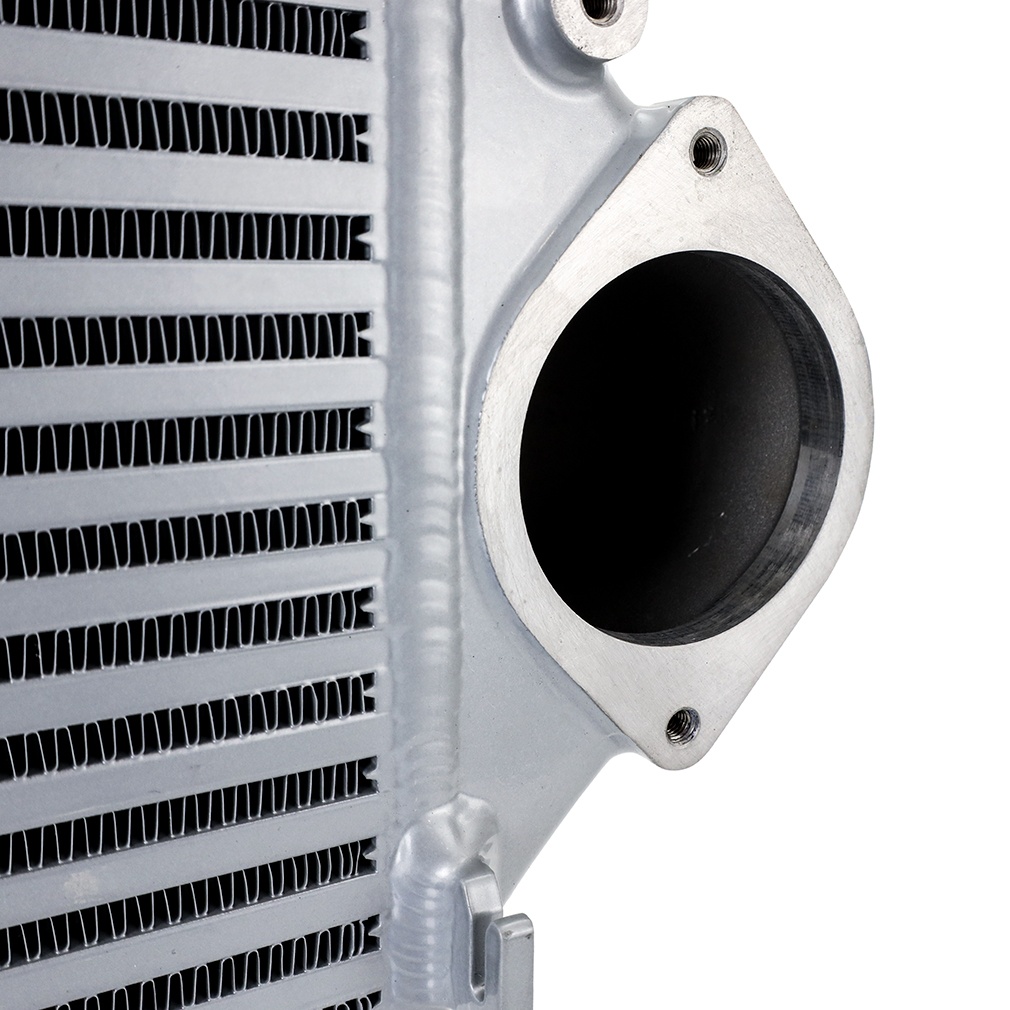

- CNC-machined 6061 aluminum inlet and outlet flanges
- Cast aluminum end tanks precision TIG welded to the core for increased pressure tolerance and reliability
- Optimized core design for maximum cooling efficiency with minimal pressure drop
- Retains full functionality of adaptive cruise control and 360 cameras
- Available in stealth black or sleek silver powdercoat

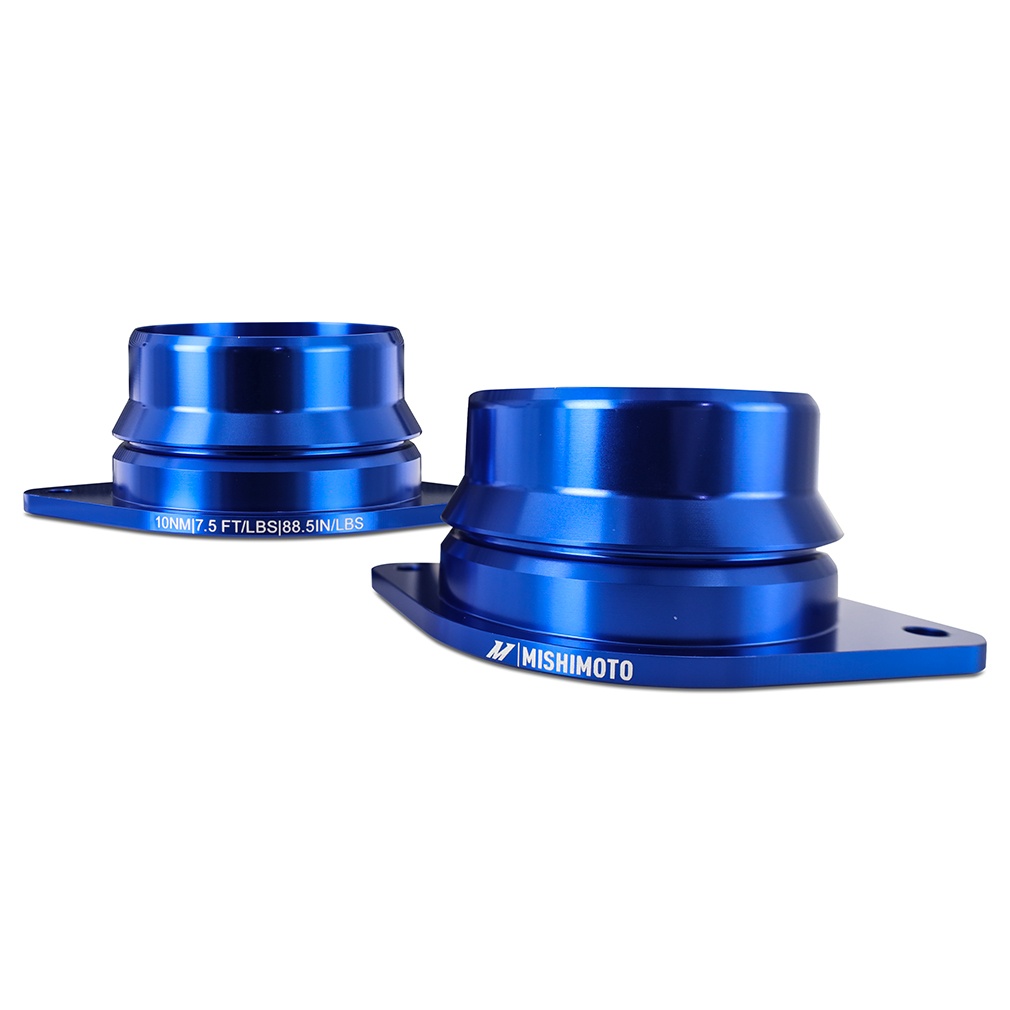

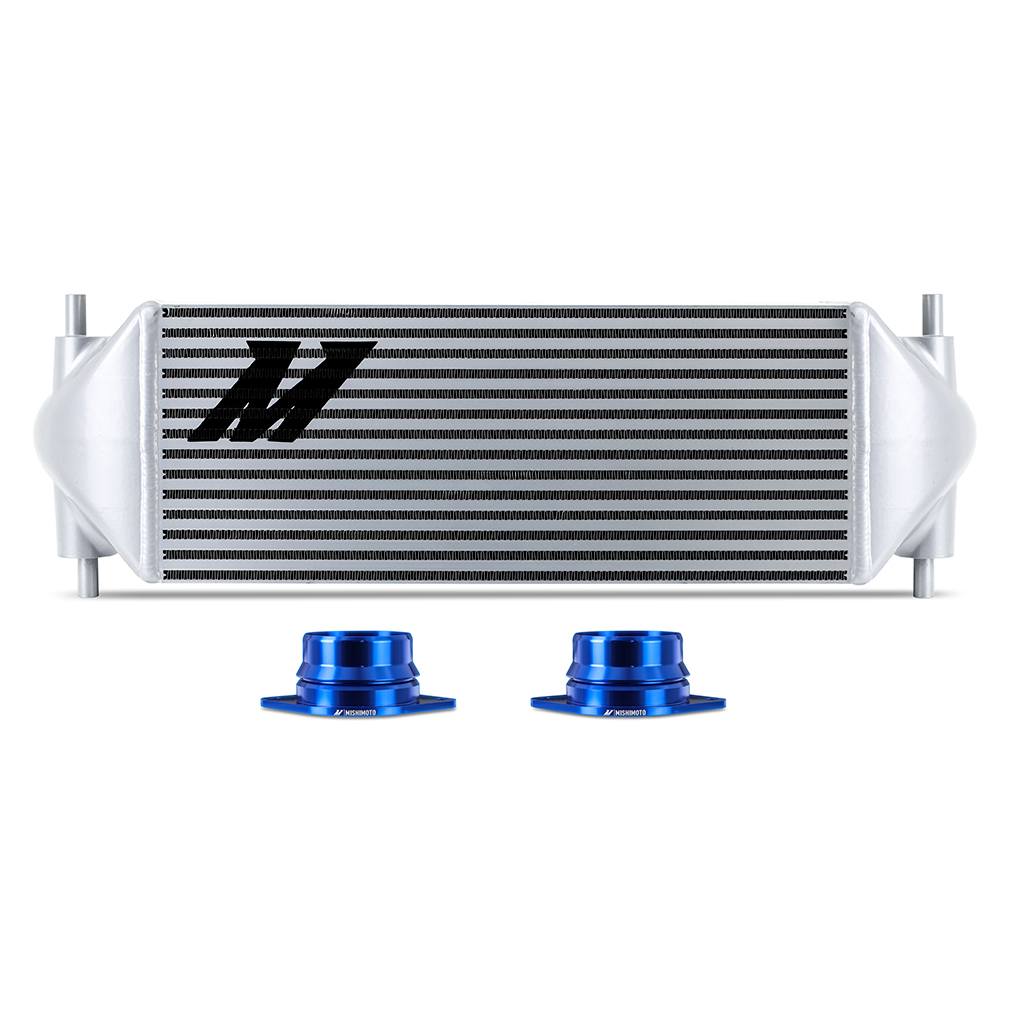

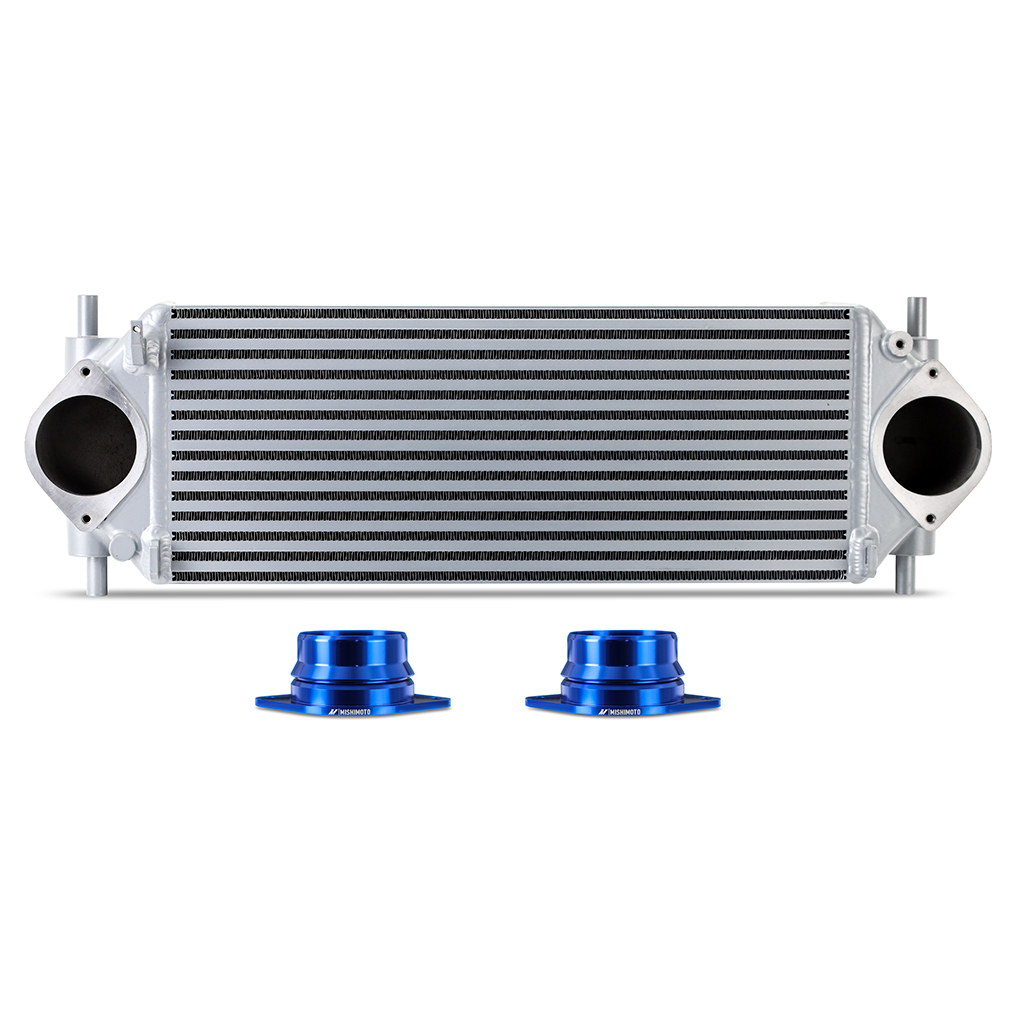

- Includes (1) Mishimoto Performance Intercooler, (2) intercooler pipe adapters, and mounting hardware

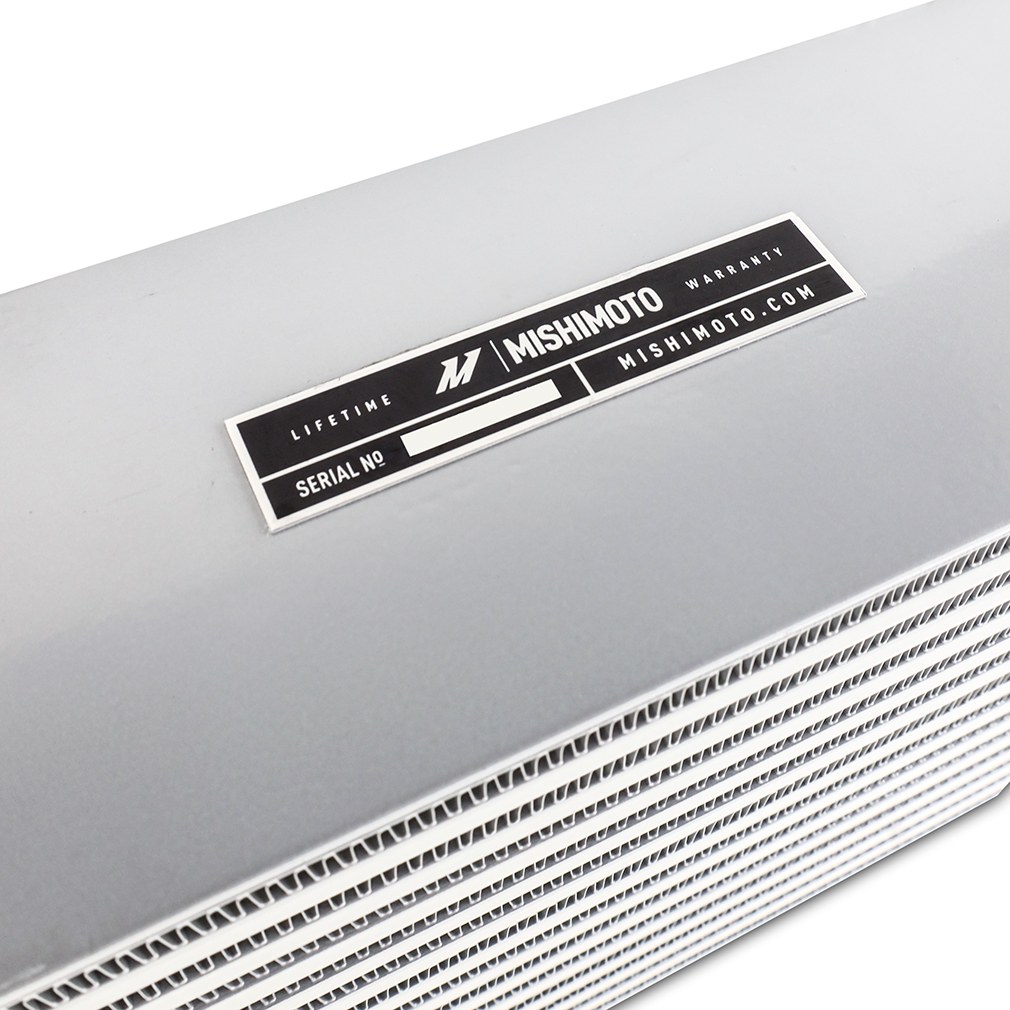

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Silver
- Core Length: 19.49 in
- Core Height: 7.62 in
- Core Thickness: 4.72 in
- Overall Length: 26.81 in
- Overall Width: 6.77 in
- Overall Height: 8.62 in
- Inlet Outside Diameter: 2.48 in
- Outlet Outside Diameter: 2.48 in
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Grade Type: Performance
- Universal or Specific Fit: Specific
Frequently Asked Questions
What vehicles does this Mishimoto intercooler fit?
It is a specific fit for the 2021+ Ford Bronco with the 2.3L or 2.7L EcoBoost engine, covering the Badlands, Big Bend, Outer Banks (2021–2026), Base (2021–2023), Black Diamond and Wildtrak (2021–2024), Heritage Edition (2023–2026), Heritage Limited Edition (2023–2024), Everglades (2022–2024), and First Edition (2021). It does not fit the Raptor Bronco with the 3.0L EcoBoost.
What kind of core does this intercooler use?
It uses a bar-and-plate aluminum core measuring 4.7 inches thick, with a 77-percent increase in core volume and a 175-percent increase in fin surface area compared to the factory intercooler.
Will this intercooler interfere with adaptive cruise control or the 360 camera system?
No, all functionality of adaptive cruise control and 360 cameras is retained.
What’s included with the Mishimoto Performance Intercooler?
The kit includes (1) Mishimoto Performance Intercooler, (2) intercooler pipe adapters, mounting hardware, and the Mishimoto Lifetime Warranty.
What performance gains were measured on the dyno?
On the 2.3L EcoBoost, dyno-proven gains reached 5.7 whp and 5.3 lb-ft of torque with a 21.2-degree reduction in outlet temperature; on the 2.7L EcoBoost, gains reached 6.5 whp and 6.5 lb-ft of torque with a 15.8-degree reduction in outlet temperature.
What warranty is included?
This intercooler is backed by the Mishimoto Lifetime Warranty.
