Description

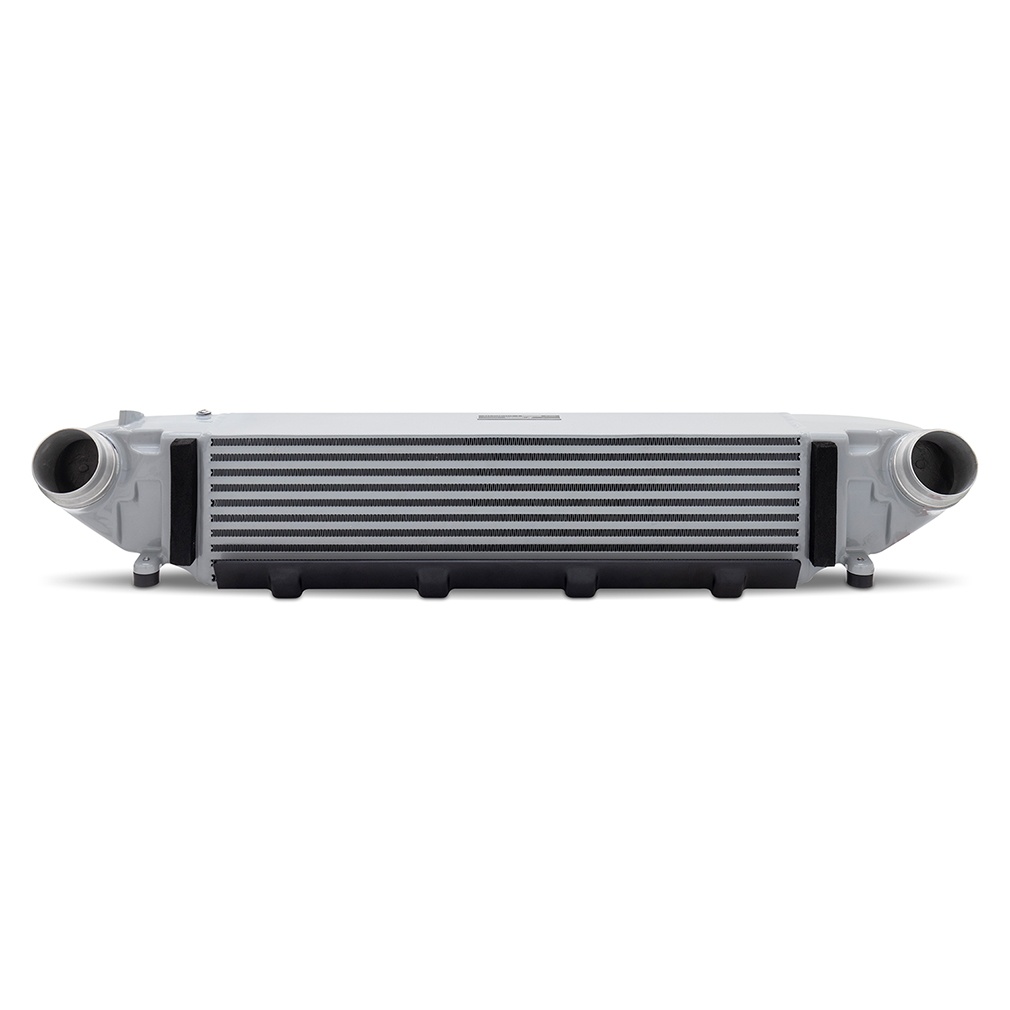

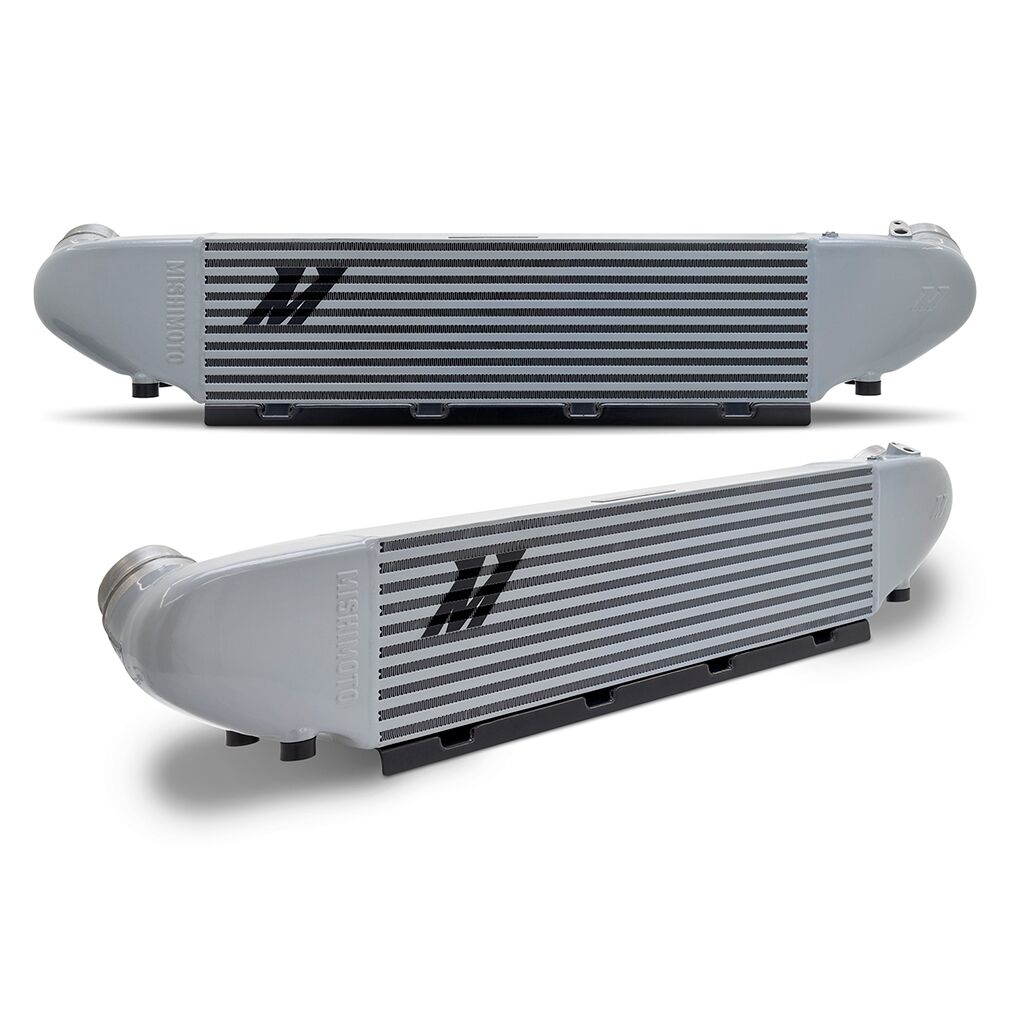

The Mishimoto Performance Intercooler (MMINT-MUS4-24SL) is a direct-fit forced induction upgrade purpose-built for the 2024+ Ford Mustang EcoBoost. Featuring a robust bar-and-plate core with cast aluminum end tanks finished in silver, this intercooler is engineered to fit the largest possible core into the stock location while remaining safe to run on the factory tune.
As a specialty forced induction component, this intercooler is designed to improve airflow and lower charge-air temperatures without sacrificing reliability. The core delivers a 60% increase in volume over the factory unit, while oversized 2.44-inch inlet and outlet diameters outflow the stock system for improved charge air movement through the induction system. A diverter plate built into the hot-side end tank promotes even airflow distribution across the core, helping this performance induction upgrade reduce charged-air temperatures at the outlet by up to 60 he 12 horsepower and 11 ft-lbs of torque on a stock tune. Built to support up to 526 horsepower and a maximum recommended boost pressure of 50 PSI, this Mishimoto forced induction system gives EcoBoost Mustang owners real headroom for future upgrades.
Vehicle Applications

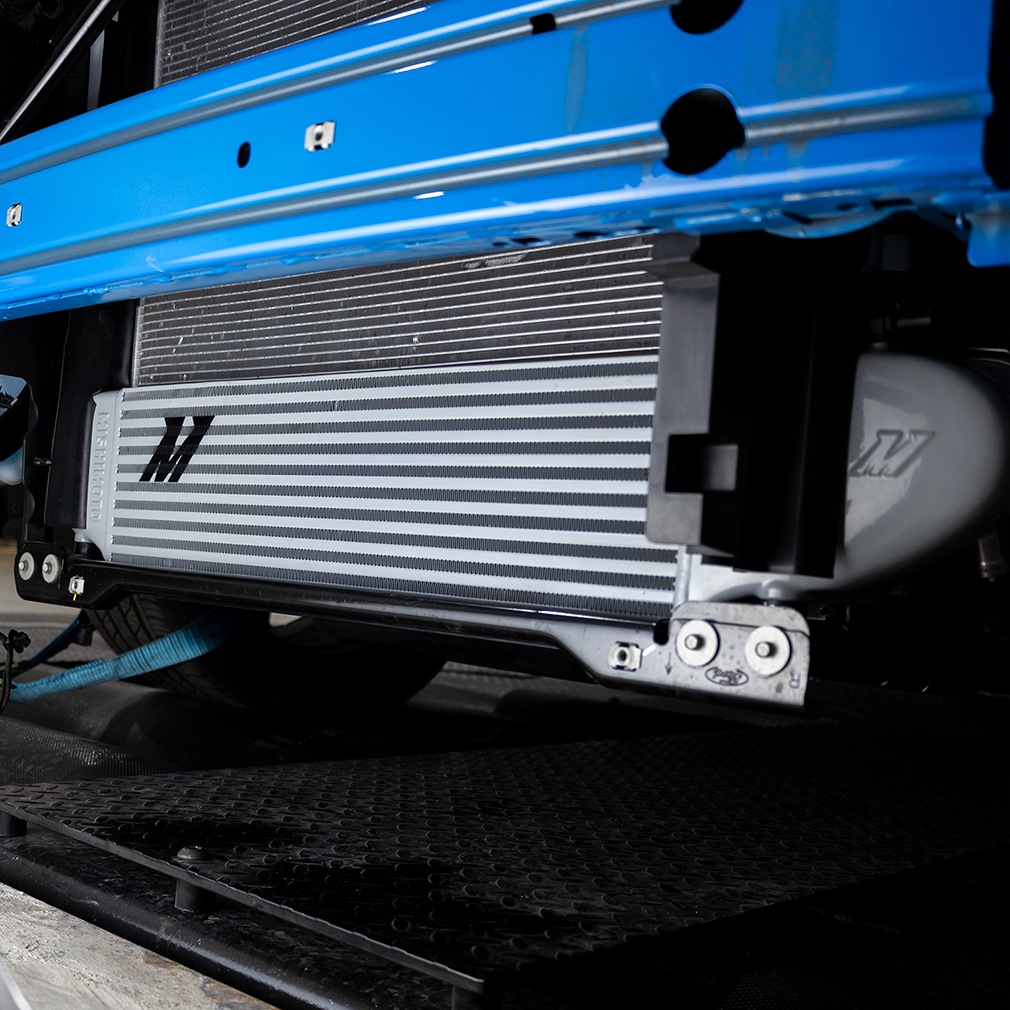

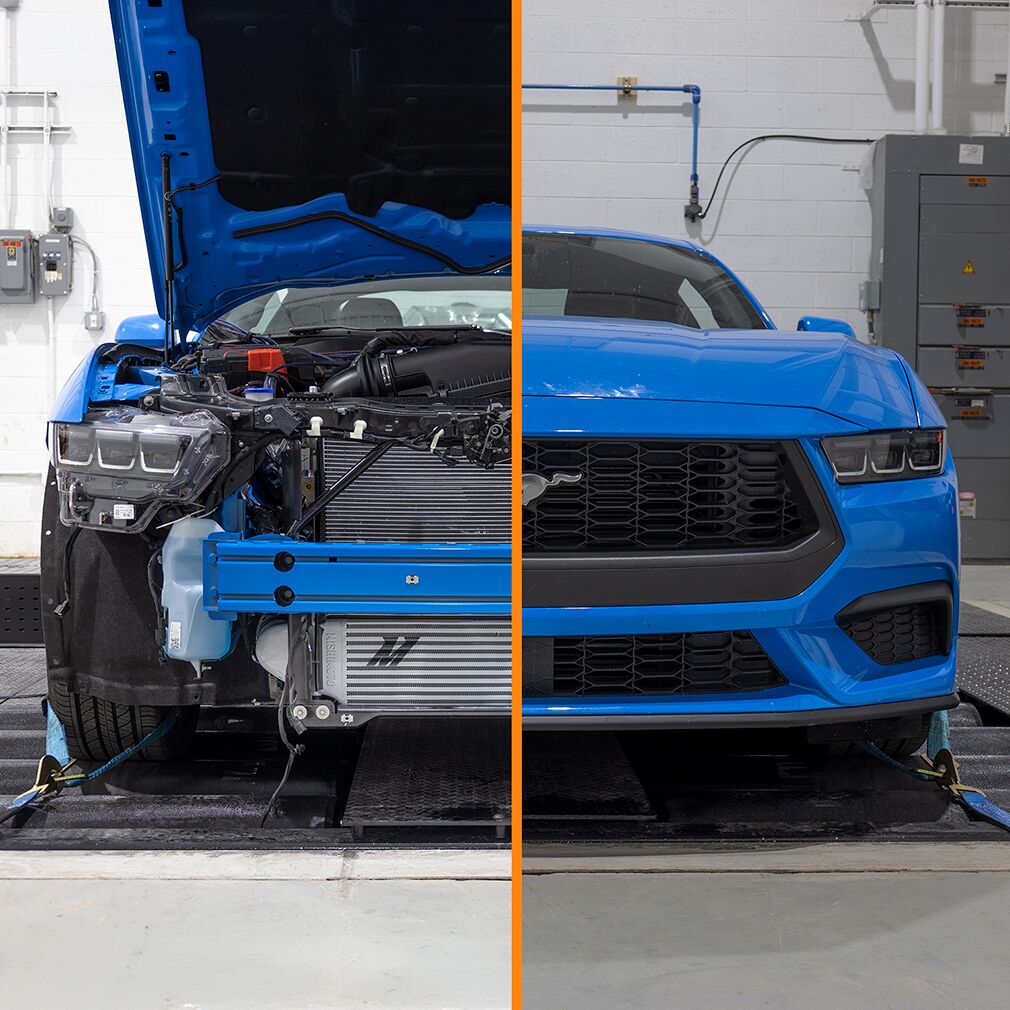

This intercooler is a specific-fit unit engineered for the Ford Mustang EcoBoost and Ford Mustang EcoBoost Premium, covering model years 2024 through 2026. It is designed around the S650 chassis and the 2.3L EcoBoost I4 engine, mounting directly to the subframe in the stock intercooler location with no cutting required. Installation remains fully compatible with stock ducting as well as both OEM and Mishimoto intercooler pipes.
Features
- Bar-and-plate core with cast aluminum end tanks, finished in silver
- 60% increase in core volume over the factory intercooler, maximizing the core that fits the stock location
- Oversized 2.44-inch inlet and outlet diameters for improved charge air movement
- Diverter plate in the hot-side end tank for even airflow distribution across the core

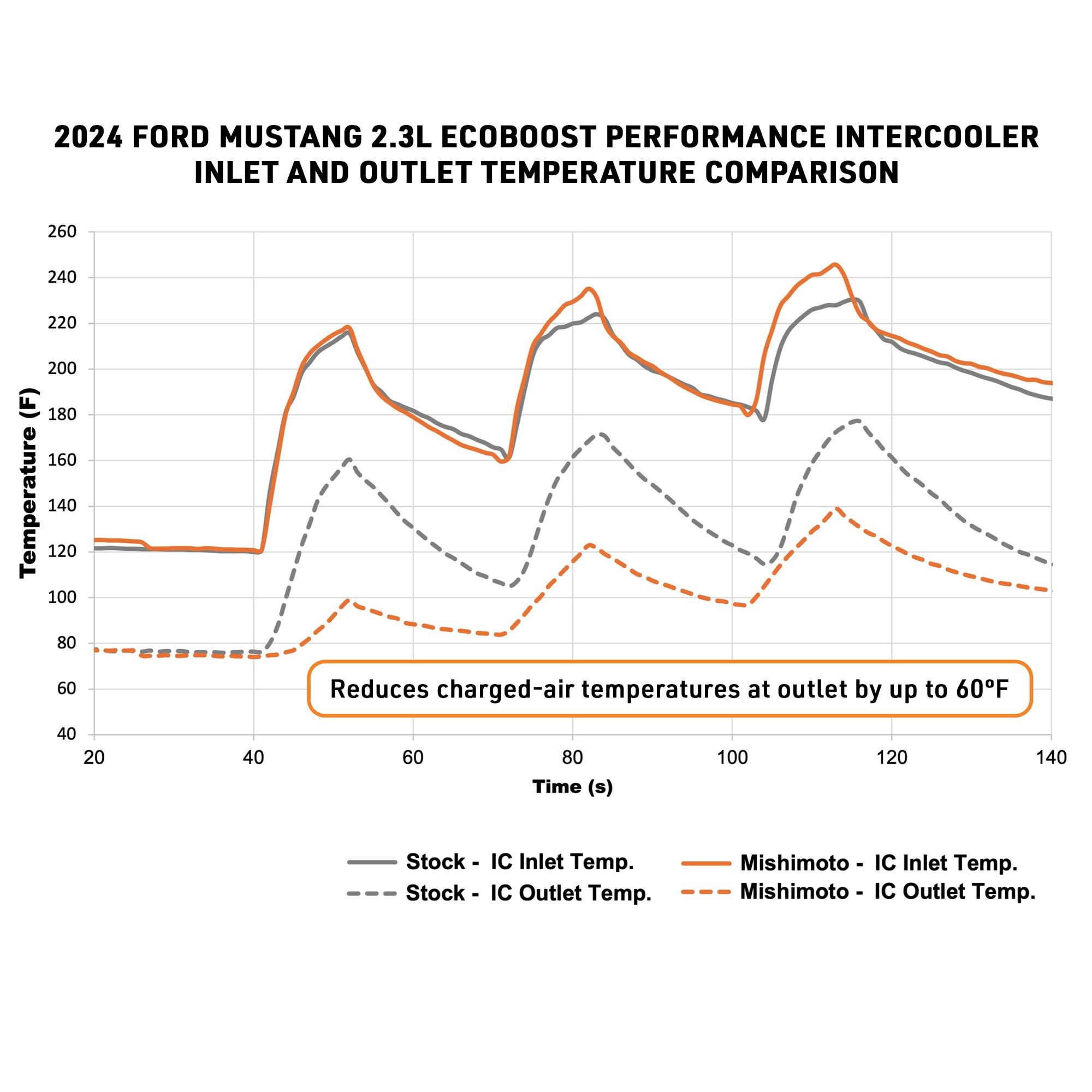

- Reduces charged-air temperatures at the outlet by up to 60°F

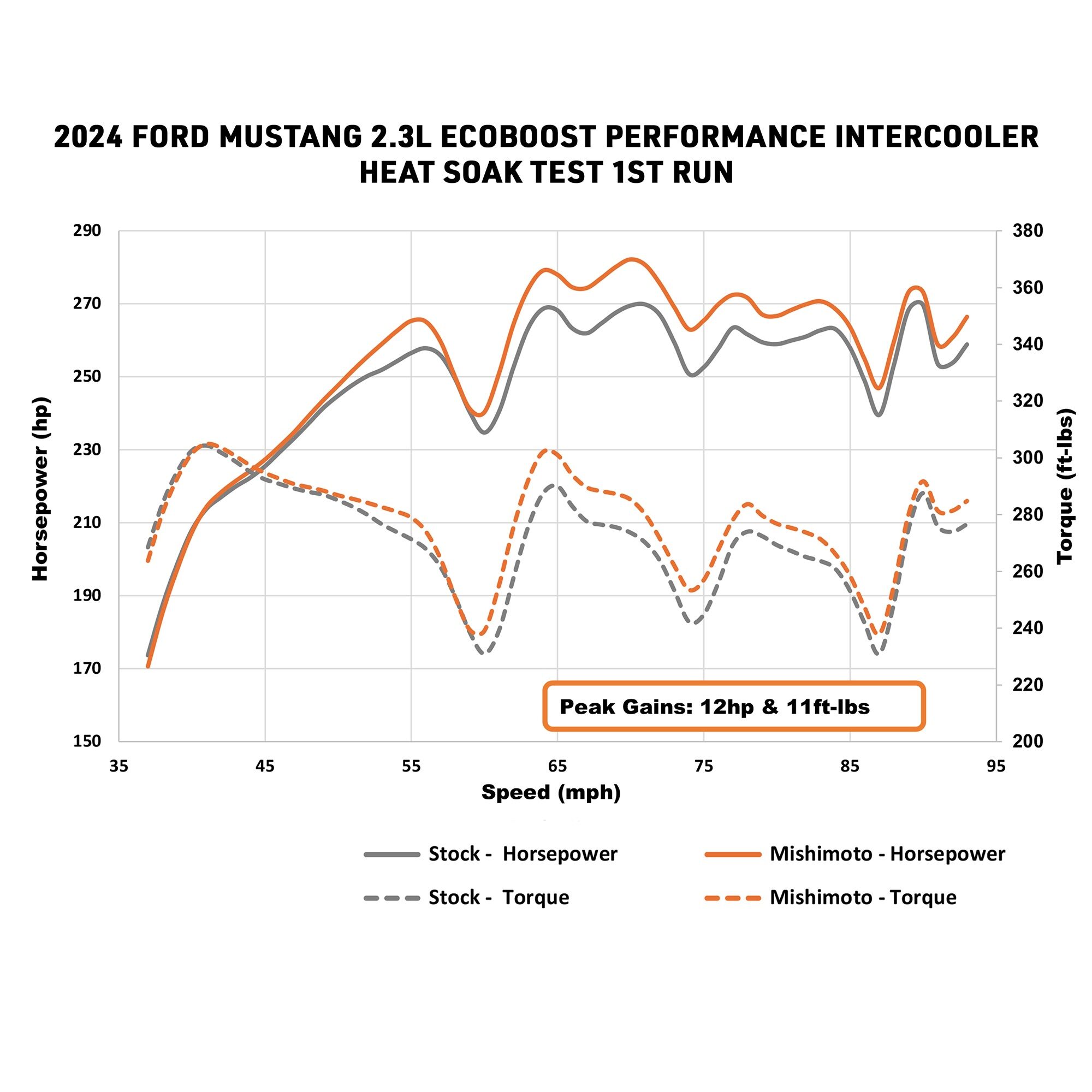

- Gains of up to 12 horsepower and 11 ft-lbs of torque on a stock tune, no tuning required
- Supports up to 526 horsepower and a maximum recommended boost pressure of 50 PSI

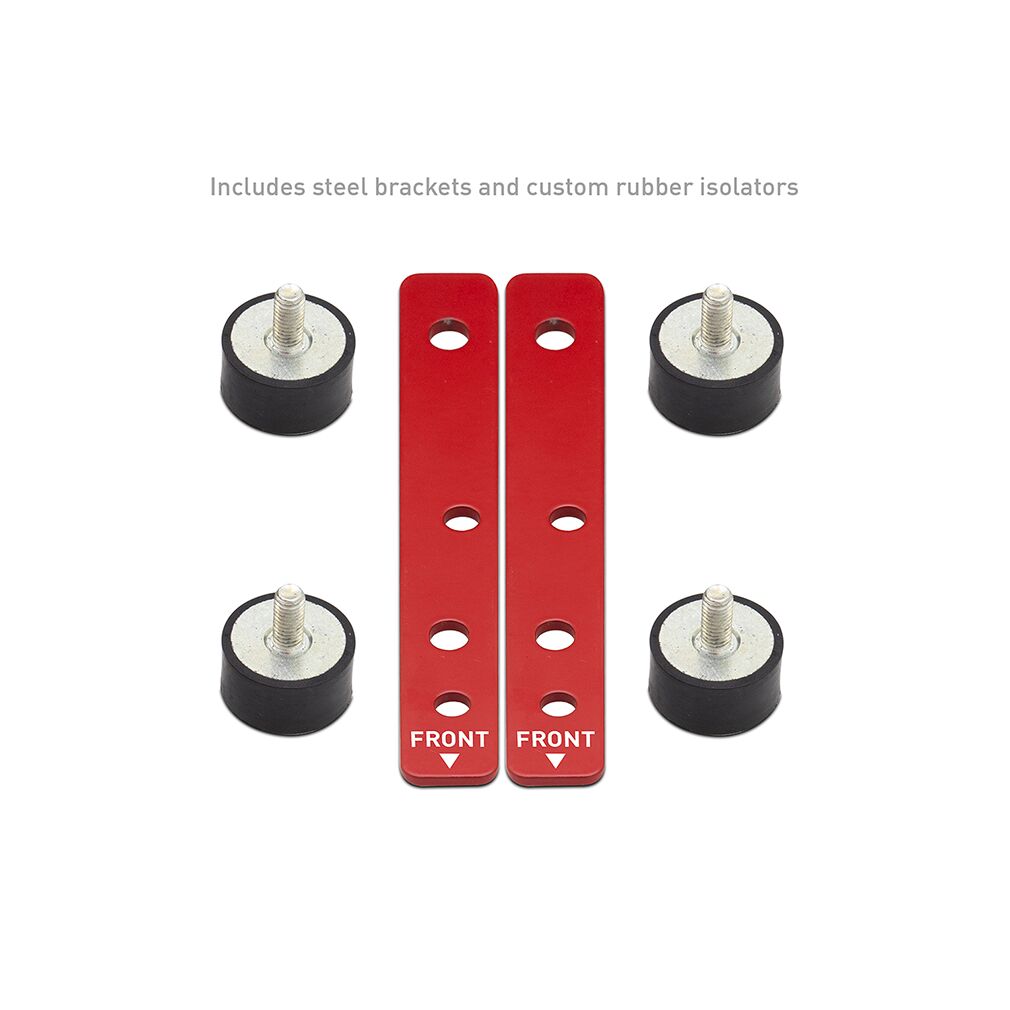

- Mounts directly to the subframe using four EPDM rubber sandwich mounts for vibration isolation

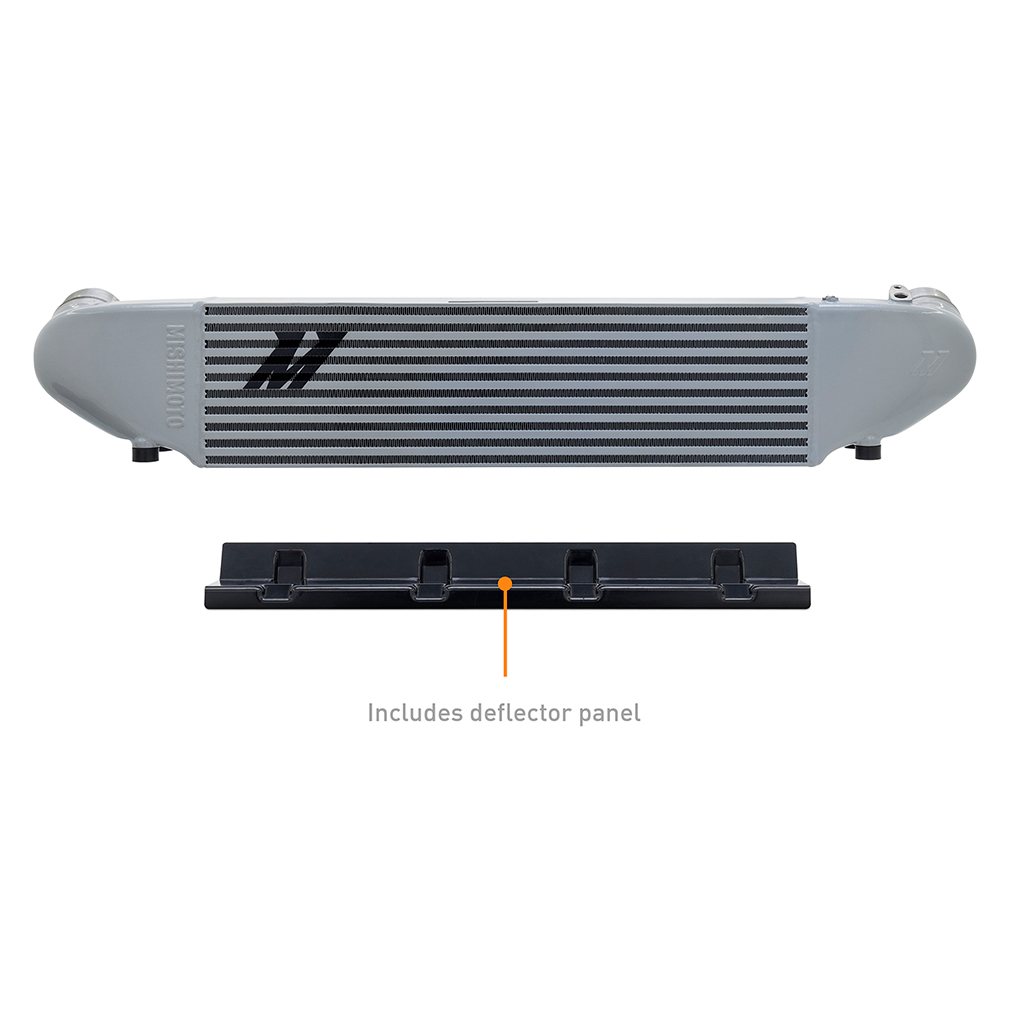

- Foam sealing strips and a custom vacuum-formed, ribbed bottom air deflector maximize airflow and reduce NVH

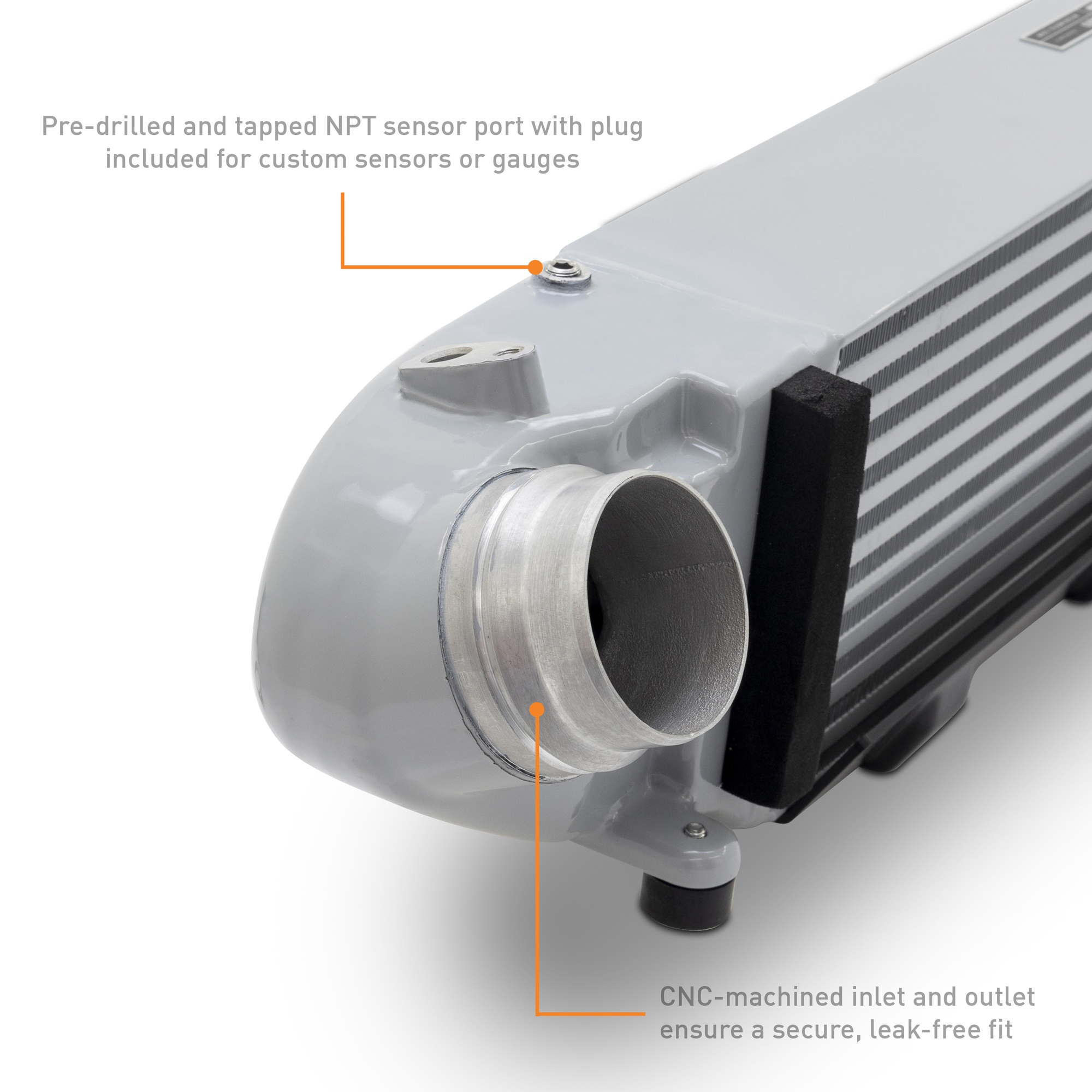

- Pre-drilled and tapped NPT sensor port for data logging or auxiliary sensors
- Fully compatible with stock ducting and OEM or Mishimoto intercooler pipes; no cutting required
- Includes all necessary hardware, a deflector panel kit, and a bracket kit
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-MUS4-24SL
- Product Type: Forced Induction
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Silver
- Overall Length: 35.7 in
- Overall Width: 5.3 in
- Overall Height: 6.5 in
- Core Length: 22.83 in
- Core Height: 6.08 in
- Core Thickness: 3.54 in
- Inlet Outside Diameter: 2.44 in
- Outlet Outside Diameter: 2.44 in
- Inlet/Outlet Fitting Gender: Male
- Weight: 12.3 lbs
- Maximum Recommended Horsepower: 526 hp
- Maximum Recommended Boost Pressure: 50 PSI
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Vehicle Applications: Ford Mustang EcoBoost 2024+
- Engine Codes: 2.3L EcoBoost I4
- Chassis Codes: S650

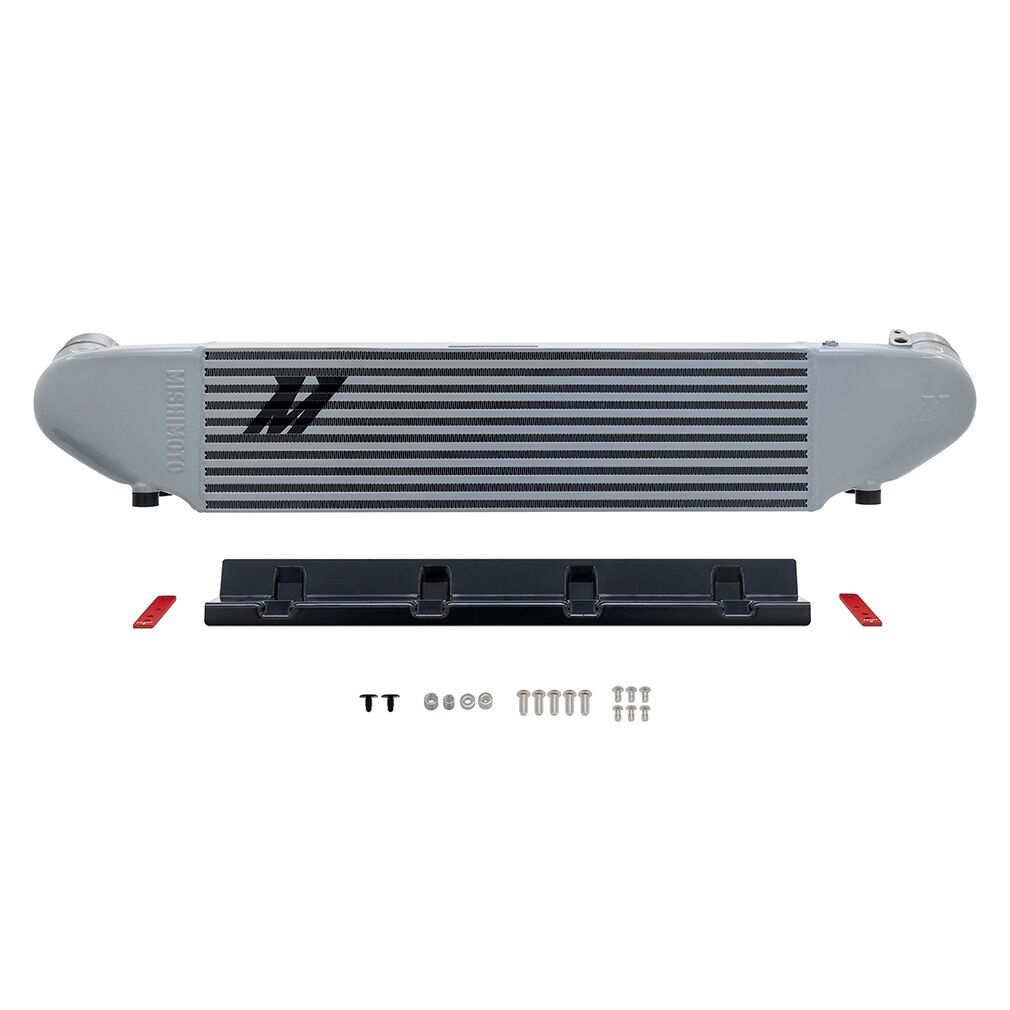

- Includes: (1) Mishimoto Performance Intercooler, (1) Deflector Panel Kit, (1) Bracket Kit, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles fit the Mishimoto Performance Intercooler MMINT-MUS4-24SL?
This intercooler is a specific fit for the 2024–2026 Ford Mustang EcoBoost and Ford Mustang EcoBoost Premium, built around the S650 chassis and 2.3L EcoBoost I4 engine.
How much of a power gain can I expect?
Mishimoto states gains of up to 12 horsepower and 11 ft-lbs of torque are achievable on a stock tune, with no tuning required.
Does this intercooler require cutting or modification for installation?
No, installation is fully compatible with stock ducting and both OEM and Mishimoto intercooler pipes, with no cutting required, and all necessary hardware is included.
What is the maximum horsepower and boost this intercooler supports?
It supports up to 526 horsepower and a maximum recommended boost pressure of 50 PSI.
What is included with the intercooler?
Each kit includes (1) Mishimoto Performance Intercooler, (1) Deflector Panel Kit, (1) Bracket Kit, and the Mishimoto Lifetime Warranty.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
