Description

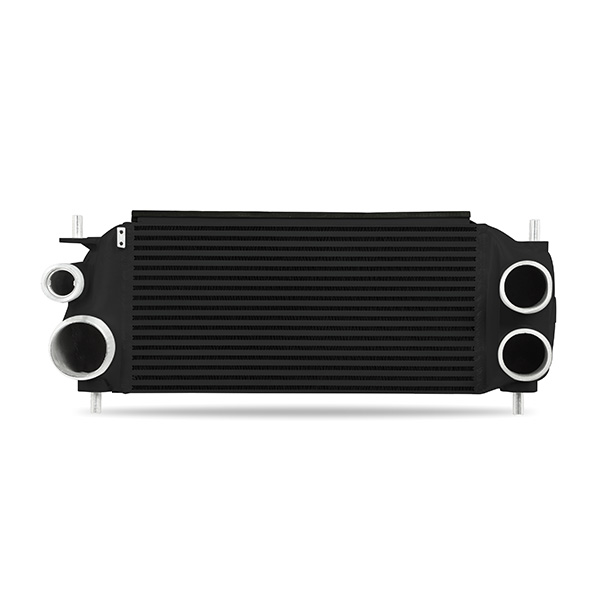

Mishimoto’s MMINT-F150-15BK is a direct-fit, bar-and-plate performance intercooler engineered specifically for the 2015+ Ford F-150 EcoBoost, finished with a Stealth Black core and built with all-aluminum, TIG-welded construction. This intercooler increases internal core volume by 77 percent and external fin surface area by 163 percent over the stock unit, and in Mishimoto’s testing it delivered an average 10°F (5.5°C) reduction in intake air temperature compared to stock numbers.
As a core piece of your EcoBoost’s forced induction system, this intercooler is responsible for pulling heat out of compressed intake air before it reaches the engine, since heat soak can rob a forced induction engine of the cool, dense air it needs to make consistent power. Mishimoto’s performance induction upgrade uses an internal fin design built for maximum heat transfer with minimal pressure drop, keeping the induction system flowing efficiently even after sustained boost. CNC-machined inlets and outlets are ridged for greater hose-clamp holding power, and the core is designed to fit with stock and Mishimoto 2.7L and 3.5L intercooler pipe kits as well as the factory intercooler fans, so there’s no need for extra fan modifications when installing this force induction upgrade.
Vehicle Applications
This intercooler is a direct fit for the Ford F-150 EcoBoost, covering XL, XLT, King Ranch, Lariat, and Platinum trims from 2015-2026, SSV models from 2016-2026, Limited from 2016-2023, Raptor from 2017-2026, Police Responder from 2018-2026, Tremor from 2021-2026, and STX from 2024-2026. It also fits the Ford Expedition, including Limited, Platinum, SSV, and XLT trims from 2018-2022, XL from 2018-2019 and 2022, King Ranch from 2020-2022, and Timberline in 2022, along with the extended-length Expedition Max in Limited, Platinum, SSV, and XLT trims from 2018-2022, King Ranch from 2020-2022, and XL from 2018-2019 and 2022.
Features
- Direct fit for the 2015+ Ford F-150 EcoBoost
- 10°F (5.5°C) reduction in intake air temperature versus stock
- 77-percent increase in internal core volume
- 163-percent increase in external fin surface area

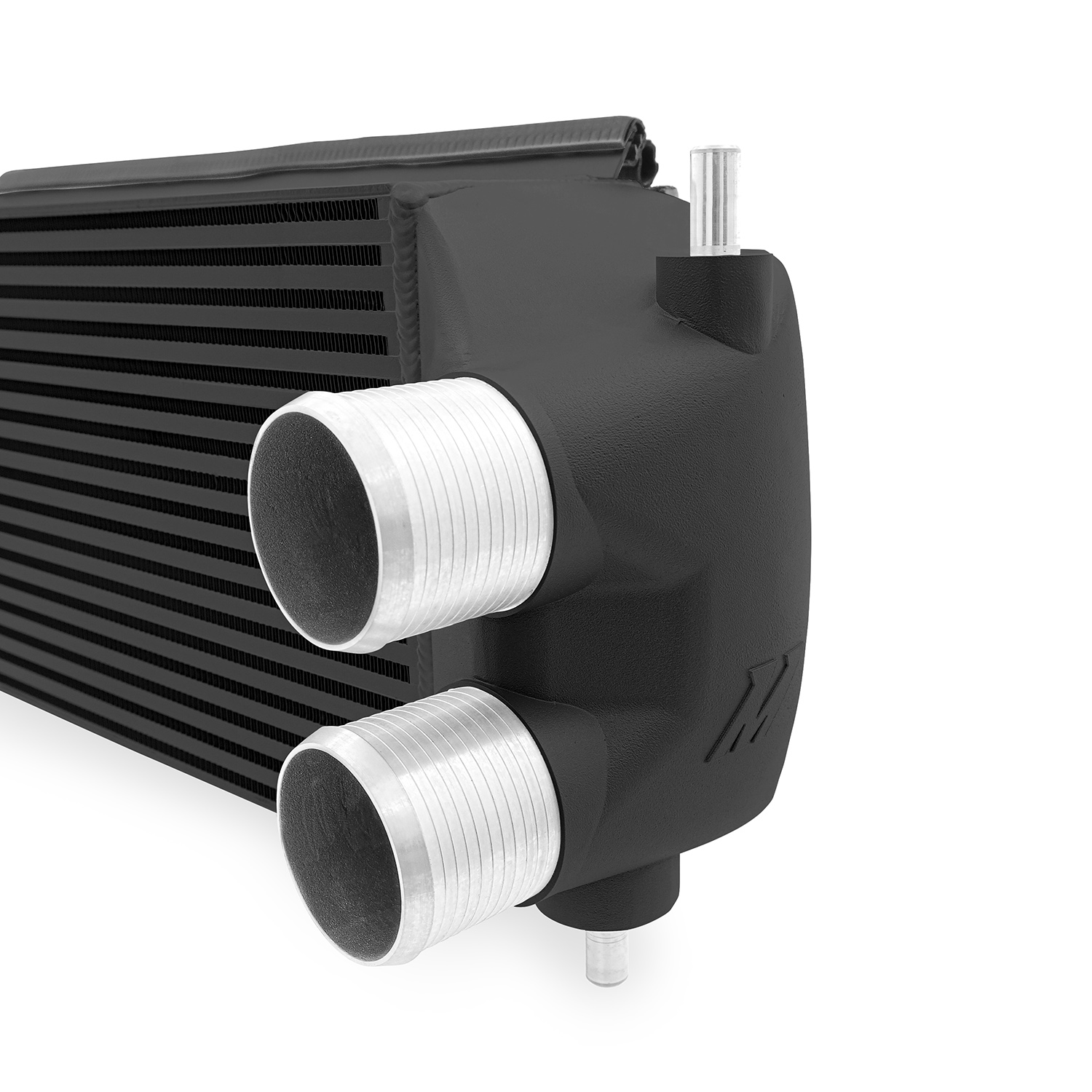

- CNC-machined inlets and outlets are ridged for greater holding power
- All-aluminum, TIG-welded construction
- Internal fin design for maximum heat transfer with minimal pressure drop
- Fits with stock and Mishimoto 2.7L and 3.5L intercooler pipe kits
- Fits with stock intercooler fans without modification
- Available in Sleek Silver or Stealth Black finishes (this listing is Stealth Black)
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Part Number: MMINT-F150-15BK
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Black
- Inlet Tank Material: Aluminum
- Overall Length: 29 in
- Overall Height: 9.5 in
- Core Height: 9.4 in
- Core Length: 19.6 in
- Core Thickness: 4.72 in
- Inlet Outside Diameter: 2.5 in
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Universal or Specific Fit: Specific
- Grade Type: Performance
- Maximum Recommended Boost Pressure: 50 PSI
- Engine Codes: 2.7L V6 EcoBoost, 3.5L V6 EcoBoost
- CARB EO Number: D-759-6
- Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim, (1) Bypass Valve Bracket, Mounting Hardware, Bypass Valve Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-F150-15BK intercooler fit?
It is a direct fit for the Ford F-150 EcoBoost (XL, XLT, King Ranch, Lariat, and Platinum 2015-2026, SSV 2016-2026, Limited 2016-2023, Raptor 2017-2026, Police Responder 2018-2026, Tremor 2021-2026, STX 2024-2026) and the Ford Expedition and Expedition Max in various trims from 2018-2022, plus King Ranch from 2020-2022 and Timberline in 2022.
How much cooler does this intercooler run compared to the stock F-150 EcoBoost intercooler?
Mishimoto’s testing showed an average temperature drop of 10°F (5.5°C) under stock numbers.
What is the core made of and how is it built?
It uses an all-aluminum, TIG-welded bar-and-plate core with an internal fin design for maximum heat transfer with minimal pressure drop, finished in a Black core color.
Will this intercooler work with my factory piping and fans?
Yes, it is designed to fit with stock and Mishimoto 2.7L and 3.5L intercooler pipe kits, as well as stock intercooler fans, without modification.
What is the maximum recommended boost pressure for this intercooler?
The maximum recommended boost pressure is 50 PSI.
What’s included in the box?
The kit includes (1) Mishimoto Intercooler with assembled rubber trim, (1) bypass valve bracket, mounting hardware, bypass valve hardware, and the Mishimoto Lifetime Warranty.
