Mishimoto Performance Intercooler Kit | 1994-2002 Dodge 5.9L Cummins

Description

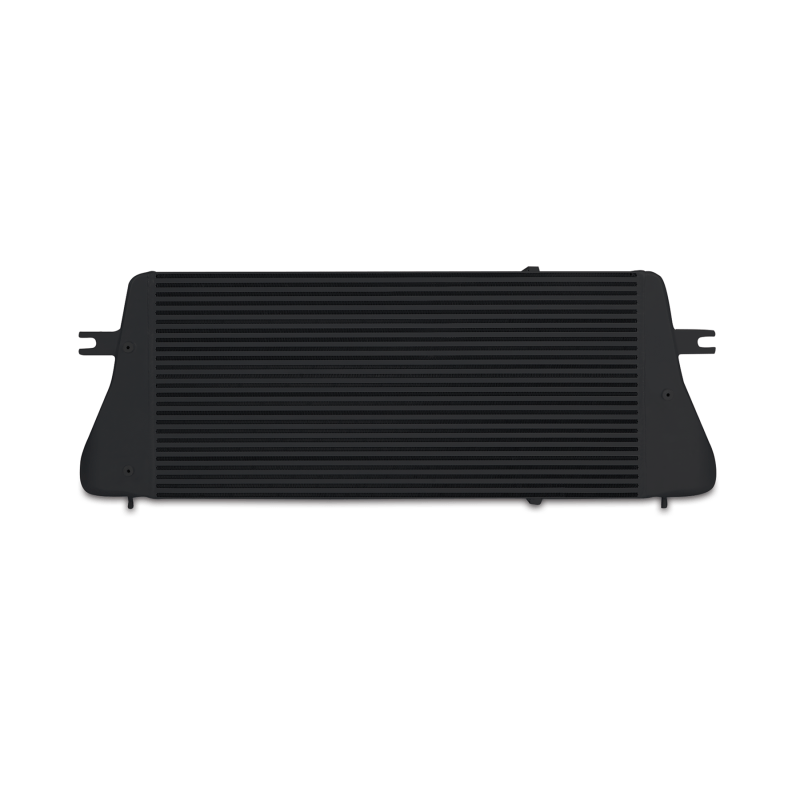

The Mishimoto MMINT-RAM-94KBK is a direct-fit performance intercooler kit engineered specifically for the 1994-2002 Dodge 5.9L Cummins, covering both 12-valve and 24-valve trucks. Built around a bar-and-plate core with cast aluminum end tanks, this kit delivers a 47-percent increase in core volume and is 50-percent thicker than the factory intercooler it replaces. Offered in Sleek Silver or Stealth Black, it is designed to drop intake air temperatures and support meaningful boost on stock or heavily modified 5.9L Cummins trucks.

As part of Mishimoto’s Forced Induction lineup, this intercooler kit strengthens your truck’s induction system by keeping intake air temperatures in check under boost. High intake and exhaust gas temperatures can reduce performance and potentially cause engine damage, so this force induction upgrade is engineered for improved airflow, lower intake temperatures, and improved EGTs. The efficient bar-and-plate core and an air diverter built into the hot-side end tank reduce turbulence and evenly distribute airflow across the core, helping this performance induction component reduce turbo stress and extend turbo life. Mishimoto states this intercooler reduces intake air temperatures by 25 percent, giving your induction system the cooling capacity to support substantial boost pressure whether your 5.9L Cummins is stock or highly modified.

Vehicle Applications

This intercooler kit is a specific fit for the 1994-2002 Dodge Ram 2500 and Ram 3500 equipped with the 5.9L Cummins engine, covering both 12-valve (1994-1998) and 24-valve (1998-2002) applications. Trim coverage includes the Ram 2500 Base (1994-2002), Custom (1995-2002), Laramie (1996-1997), Limited (1995-1998), Lujo (1995-1998), Runner (1995-1997), and SLT (1999-2002), along with the Ram 3500 Base (1994-2002), Custom (1995-2002), and SLT (1999).

Features

• Direct fit for 12v and 24v 1994-2002 Dodge 5.9L Cummins

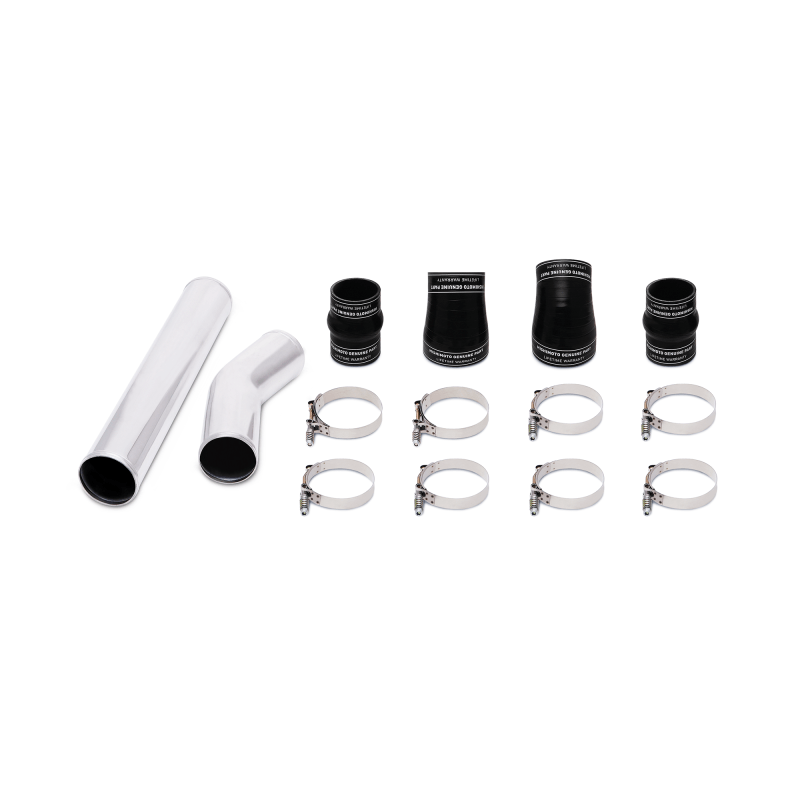

• Includes hot-side and cold-side intercooler pipes and boots
• All-aluminum cast end tanks paired with a bar-and-plate core
• 3-inch mandrel-bent polished aluminum piping
• Air diverter in the hot-side end tank reduces turbulence and evenly distributes airflow across the core
• Reduces turbo stress and extends turbo life
• Available in Sleek Silver and Stealth Black
• Reduces intake air temperatures by 25 percent
• Compatible with the Mishimoto Dodge 5.9L Cummins Performance Aluminum Radiator
• Includes Mishimoto Silicone Boots with DuraCore technology and Constant-Tension T-bolt Clamps
• Backed by the Mishimoto Lifetime Warranty

Specifications

• Core Material: Aluminum
• Core Construction: Bar-and-Plate
• End Tank Construction: Cast
• End Tank Material: Aluminum
• Core Height: 16.65 in
• Core Length: 35.91 in
• Inlet Diameter: 3.66 in
• Outlet Diameter: 3.66 in
• Hot Side Pipe Inside Diameter: 3.66 in
• Cold Side Pipe Inside Diameter: 3.66 in
• Overall Width: 10.9 in
• Overall Height: 17.5 in
• Overall Length: 47.2 in
• Pipe Material: Aluminum
• Pipe Color: Black
• Pipe Finish: Powder Coated
• Coupler Material: Silicone
• Coupler Color: Black
• Intercooler Type: Air-to-Air
• Grade Type: Performance
• Fit Type: Specific
• Hose Clamps Included: Yes
• Installation Note: Requires slight bending of truck body for installation

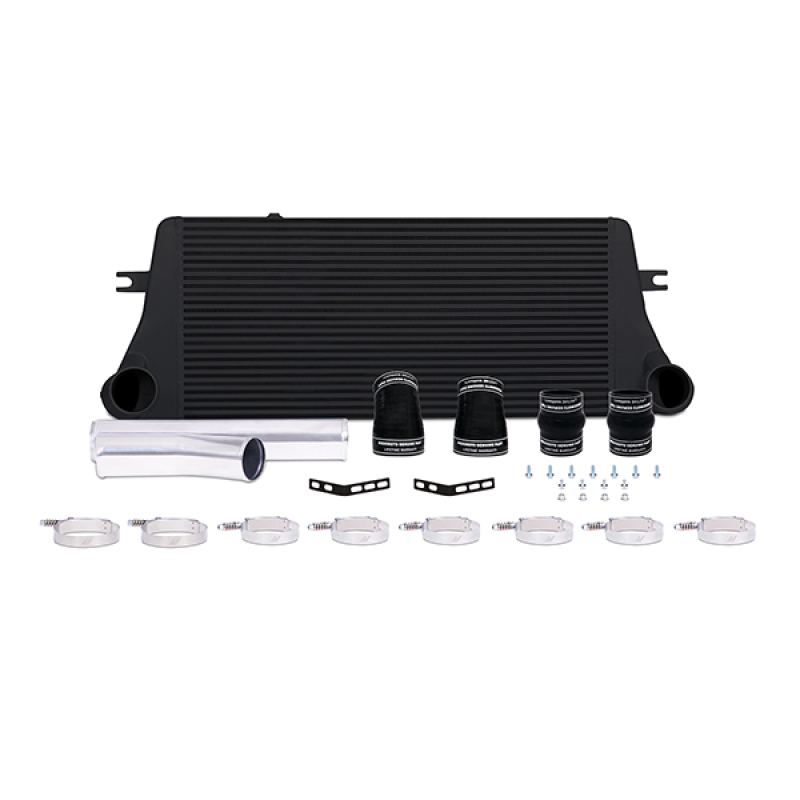

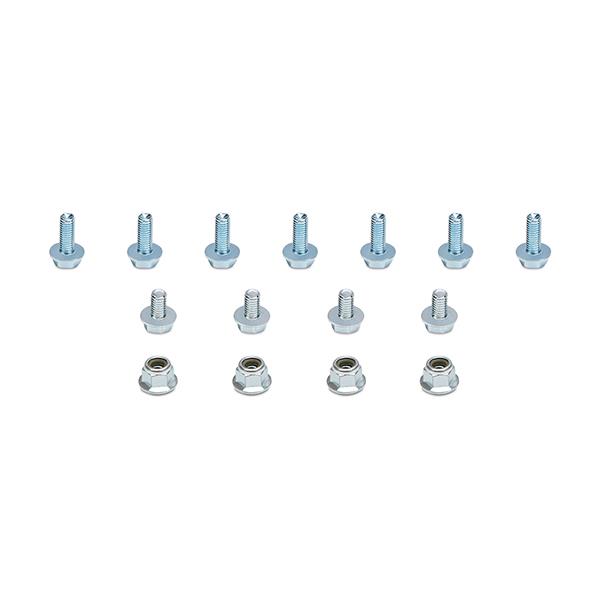

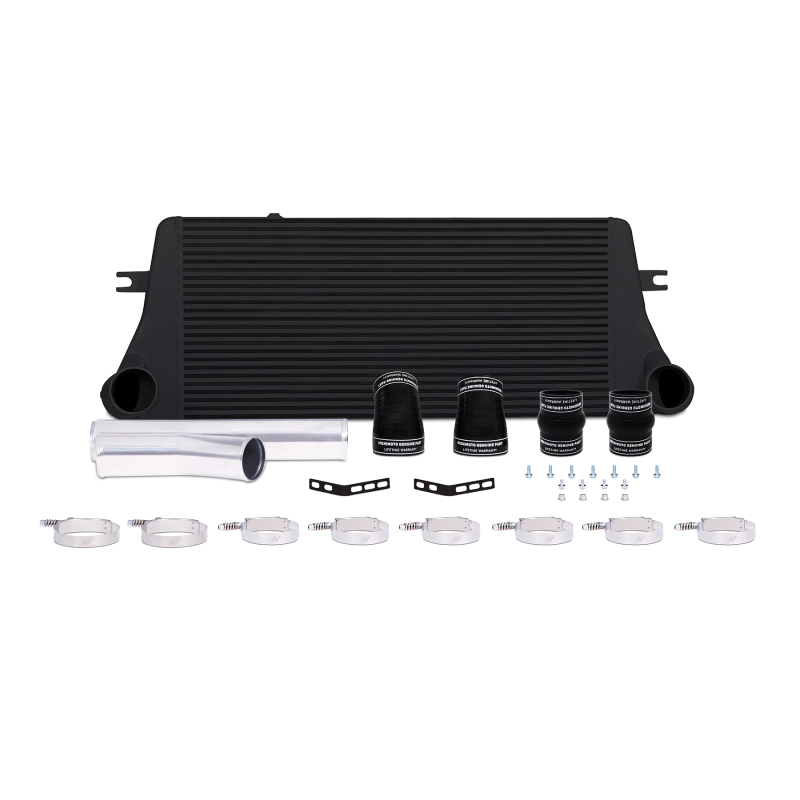

• Kit Includes: (1) Mishimoto Intercooler, (2) Aluminum Intercooler Pipes, (4) Silicone Boots with DuraCore Technology, (8) Constant-Tension T-Bolt Clamps, (2) Aluminum Mishimoto M Logo Badges, (2) AC Condenser Brackets, (7) M6 x 1.0 x 16 Bolts, (4) M6 x 1.0 x 10 Bolts & Washers, Mishimoto Lifetime Warranty
