Mishimoto Performance Intercooler Kit – 2011-2014 F-150 EcoBoost

Description

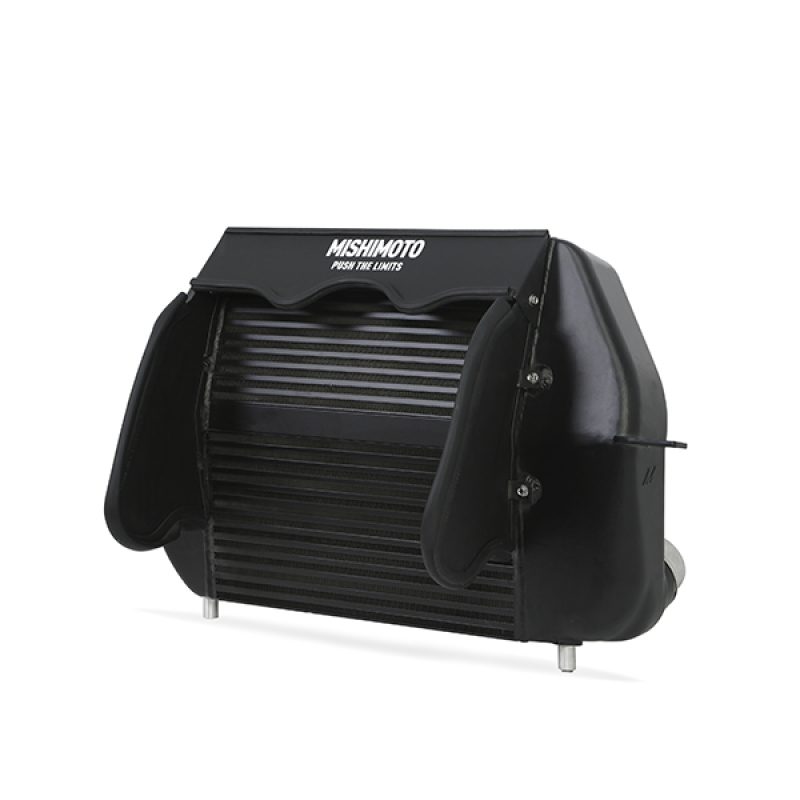

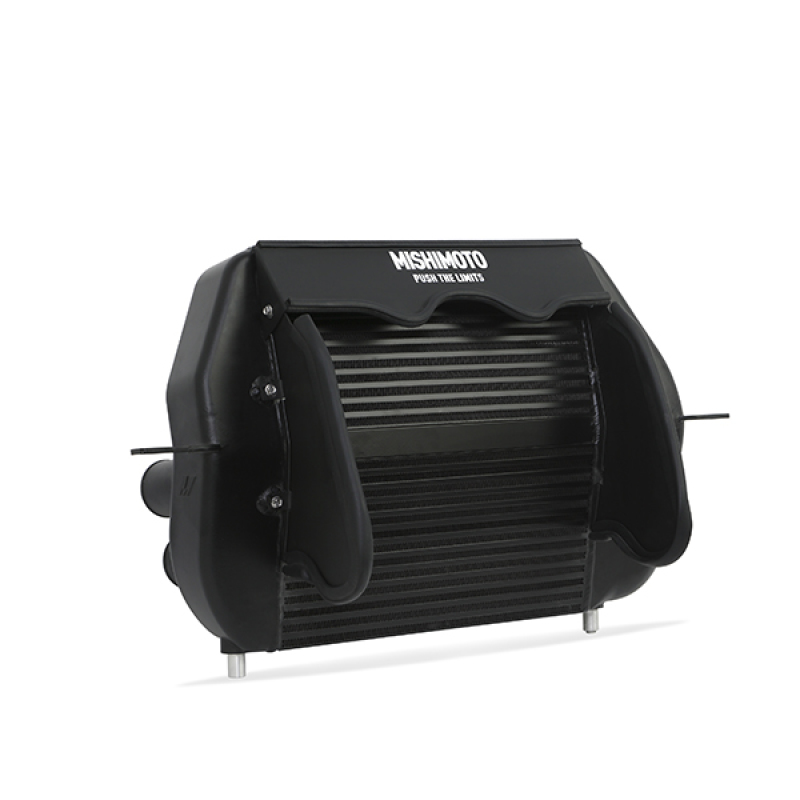

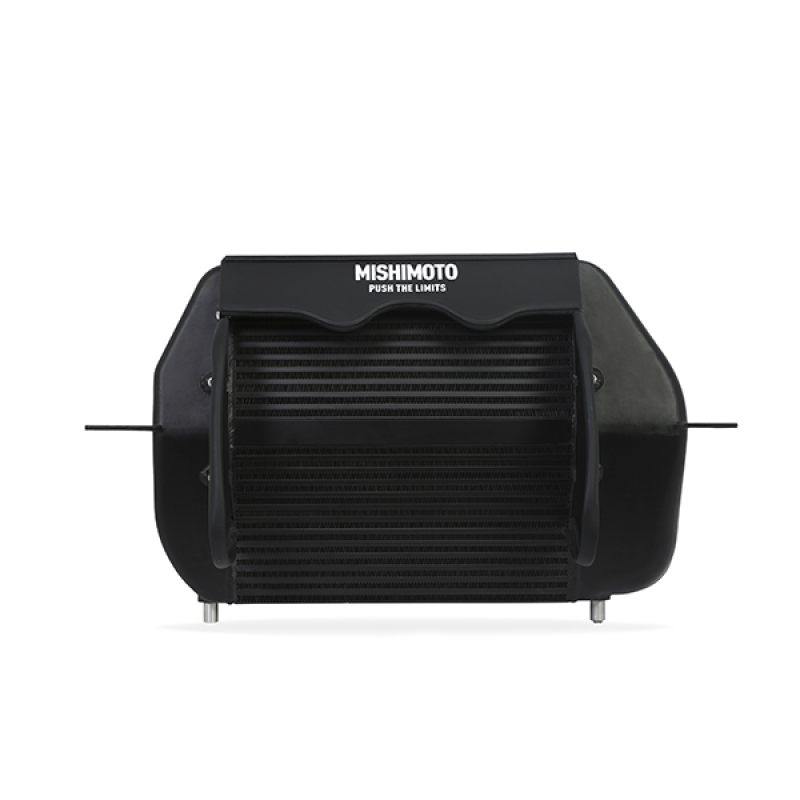

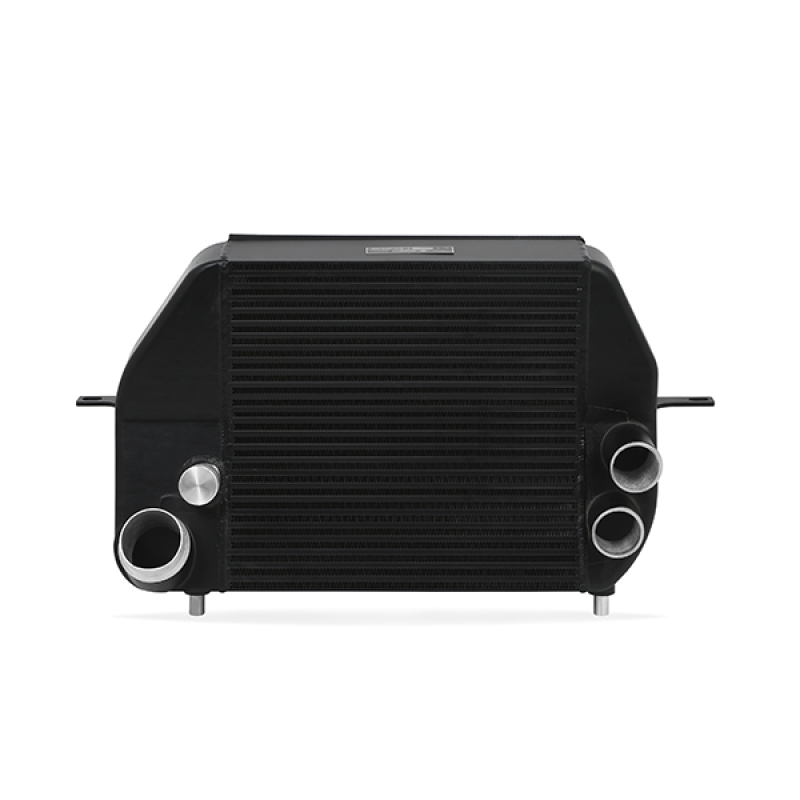

The Mishimoto MMINT-F150-11BK is a direct-fit, Stealth Black performance intercooler engineered specifically for the 2011-2014 Ford F-150 EcoBoost. Rather than settling for the factory intercooler’s small footprint tucked into the bottom of the spacious, oddly shaped cavity behind the front bumper, Mishimoto designed a uniquely angled core that fills that wasted space to deliver an 88-percent increase in core size over the stock unit.

This forced induction upgrade is built around an all-aluminum, TIG-welded bar-and-plate core that boosts internal core volume by 66 percent and external fin surface area by 40 percent, giving the induction system far more surface area to shed heat before charge air reaches the engine. Mishimoto backs this performance induction piece with real dyno testing: on a stock tune, it delivers a bolt-on gain of 11 whp and 13 tq, and with an aftermarket performance tune those numbers climb to 39 whp and 33 tq. Because the core stays in the stock intercooler location, airflow to the radiator and AC condenser isn’t blocked, and a set of included air diversion plates guides ambient air directly through the core for maximum efficiency. A 1/4-in NPT drain plug is built into the lower mount to manage the condensation the 2011-2014 F-150 is known for, and 2011-2012 trucks also get a CNC bypass bung. According to Mishimoto, this forced induction system drops intake air temperatures by 50°F (10°C) compared to the factory intercooler.

Vehicle Applications

This is a vehicle-specific, direct-fit intercooler built for 3.5L V6 EcoBoost engines. On the Ford side, it fits the 2011-2014 F-150 in XL, XLT, FX2, FX4, Lariat, King Ranch, and Platinum trims, plus the 2013-2014 F-150 Limited and the 2014 F-150 Tremor. Coverage extends to the 2015-2017 Ford Expedition, Expedition EL, and Expedition Max lineups: this includes the Expedition and Expedition EL in XL, XLT, King Ranch, Limited, and Platinum trims for 2015-2017, along with the Expedition and Expedition EL SSV for 2016-2017; the Expedition Max XL and Limited for 2015-2017; and the Expedition Max Platinum for 2016-2017. On the Lincoln side, it fits the 2015-2017 Navigator Reserve and Navigator L Reserve, the 2016-2017 Navigator Select and Navigator L Select, the 2015 Navigator L, and the 2015-2016 Navigator Base. This intercooler ships in a Sleek Silver or Stealth Black finish and installs using the stock intercooler pipes, Mishimoto performance pipes, or most aftermarket pipe kits.

Features

• Direct fit for the 2011-2014 Ford F-150 EcoBoost
• 50°F (10°C) reduction in intake air temperature versus the factory intercooler
• 88-percent increase in core size
• 66-percent increase in internal core volume and 40-percent increase in external fin surface area
• Includes air diversion plates to direct air through the intercooler core for maximum efficiency
• Stock location prevents airflow blockage to the radiator and AC condenser
• Includes CNC bypass bung for 2011-2012 models
• All-aluminum, TIG-welded bar-and-plate construction

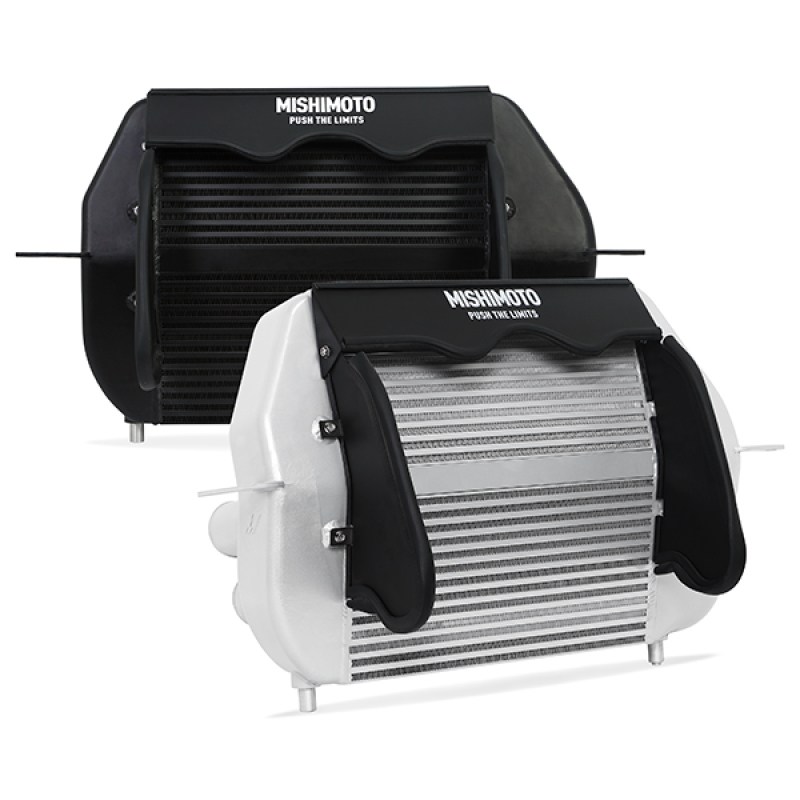

• Available in Sleek Silver or Stealth Black
• Fits stock, Mishimoto, and most aftermarket intercooler pipe kits
• 11 whp and 13 tq bolt-on power increase with stock tune
• 39 whp and 33 tq bolt-on power increase with aftermarket performance tune
• 1/4-in NPT drain plug built into the lower mount
• Backed by the Mishimoto Lifetime Warranty

Specifications

• Brand: Mishimoto
• Part Number: MMINT-F150-11BK
• Core Type: Bar-and-Plate
• Core Material: Aluminum
• Inlet Tank Material: Aluminum
• Core Color: Black
• Inlet Outside Diameter: 2.5 IN
• Inlet Fitting Gender: Male
• Outlet Fitting Gender: Male
• Overall Length: 27.6 IN
• Overall Width: 6.75 IN
• Overall Height: 19 IN
• Fit Type: Specific
• Grade Type: Performance
• Maximum Recommended Boost Pressure: 50 PSI
• CARB EO Number: D-759-6
• Includes: (1) Mishimoto Intercooler, (3) Air Diversion Panels with Assembled Rubber Trim, Mounting Hardware, (1) CNC Bypass Bung, Mishimoto Lifetime Warranty
