Description

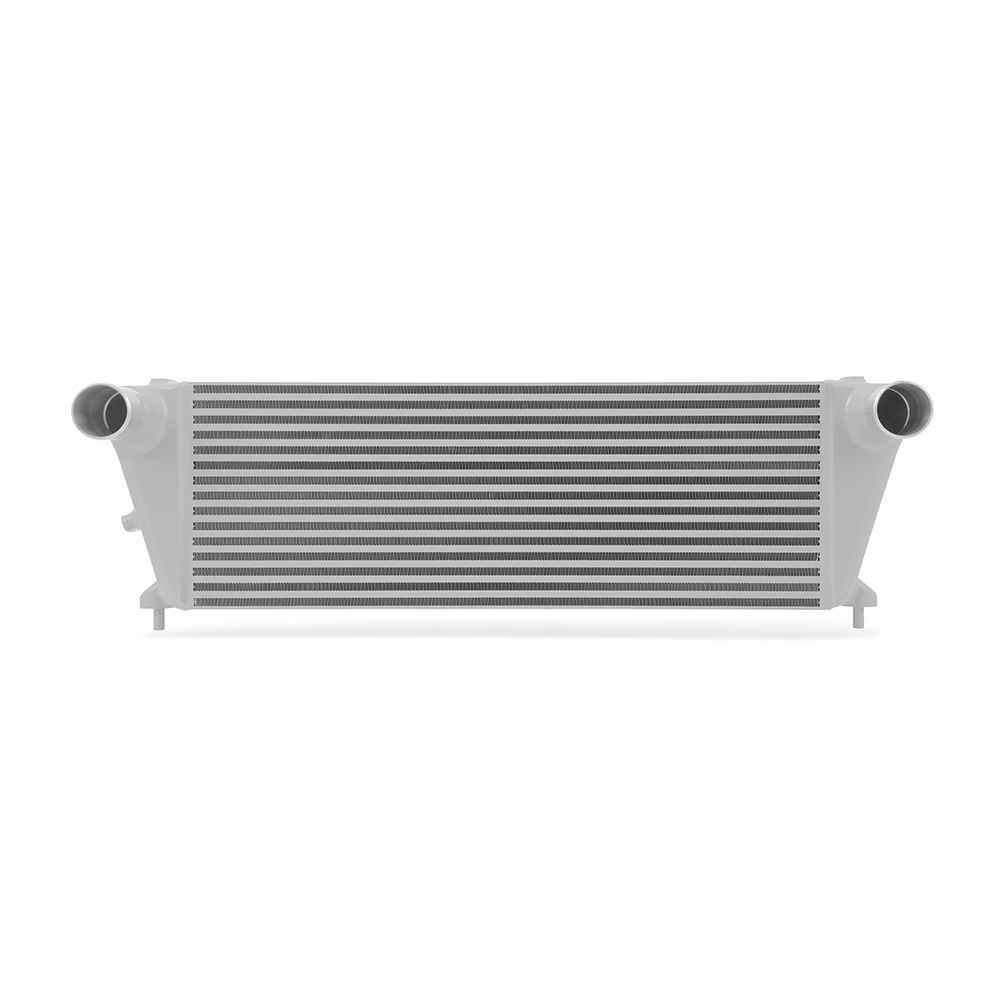

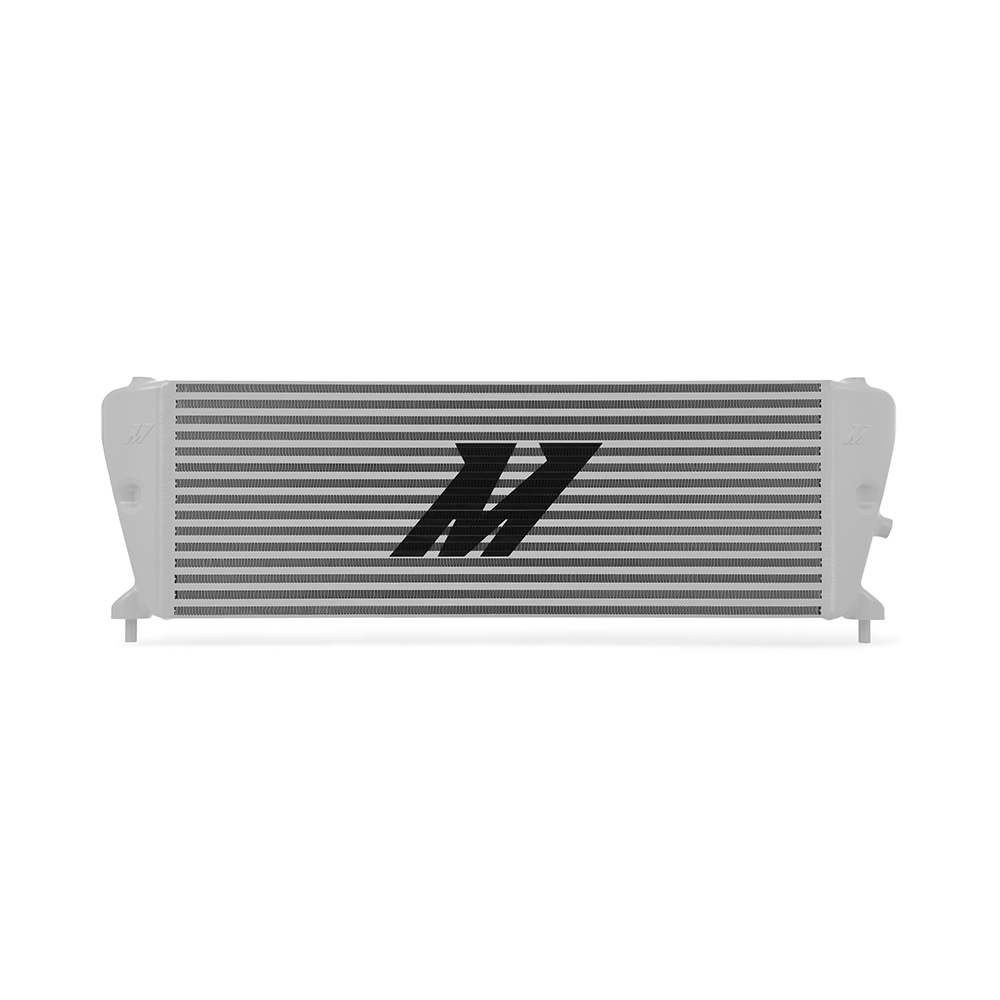

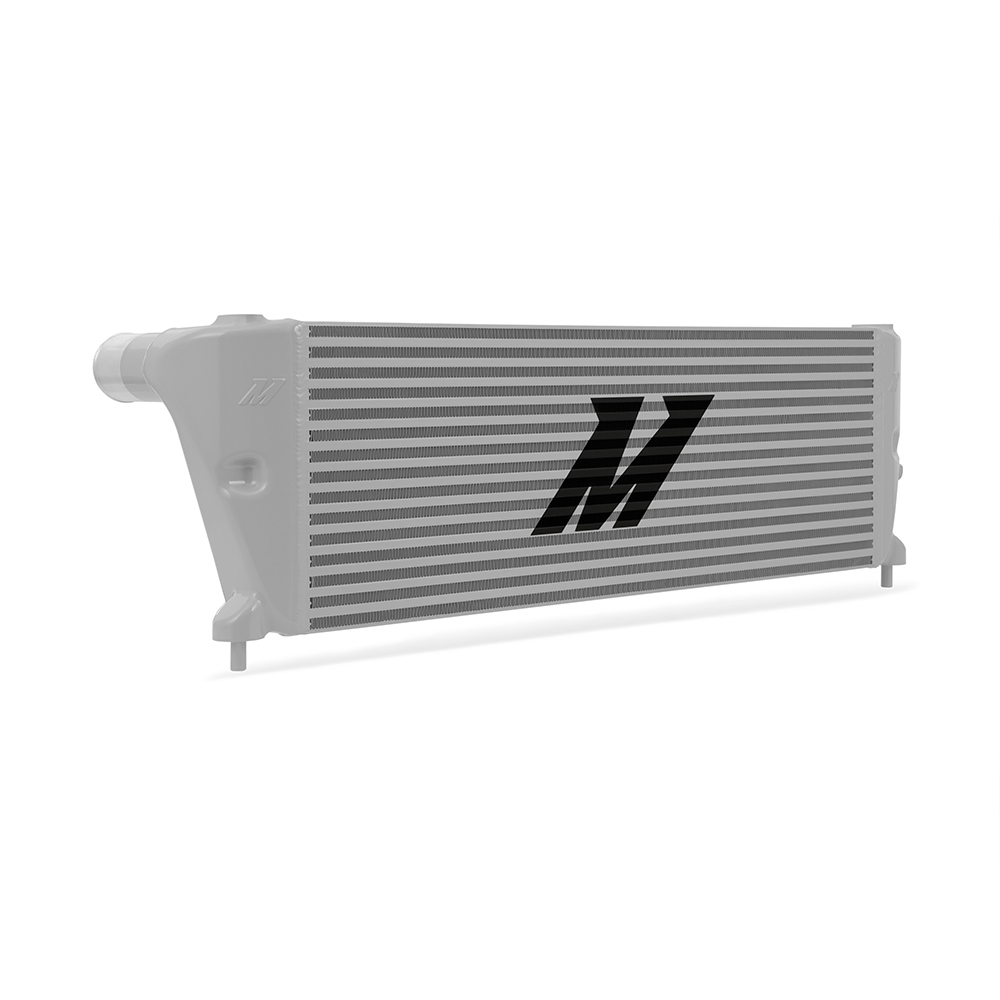

The Mishimoto MMINT-RGR-11KSLBK is a direct-fit forced induction upgrade built specifically for the 2011+ Ford Ranger 3.2L Diesel, combining a silver bar-and-plate intercooler core with black, mandrel-bent aluminum intercooler piping. This performance induction package replaces the factory setup with a core that delivers a 146% increase in core volume and a 159% increase in fin surface area over the stock intercooler, giving this small but capable diesel truck a cooling upgrade to match its performance potential.
As the heart of the truck’s forced induction system, the intercooler is responsible for cooling compressed air before it reaches the engine, and a more efficient core means more consistent charge temperatures under load. Mishimoto’s bar-and-plate core is precision TIG-welded to cast-aluminum end tanks for added durability and resistance to heat and pressure, while the mandrel-bent aluminum piping eliminates the harsh bends found in restrictive factory rubber and plastic hoses. Together, this induction upgrade is designed to outlast the factory components while supporting the demands of a more capable induction engine setup. This particular kit pairs the silver intercooler core with black powder-coated piping to suit a sleeker, stealthier engine bay look.
Vehicle Applications
This Mishimoto intercooler kit is a specific fit for the 2011 and newer Ford Ranger equipped with the 3.2L Duratorq Diesel engine, covering the XL, XLS, XLT, FX4, and Wildtrak trim levels. Note that trimming of the factory intercooler shrouding is required to fit this intercooler.
Features
- Direct-fit design for the 2011+ Ford Ranger 3.2L Diesel
- Durable bar-and-plate core construction for superior durability and performance
- 146% increase in core volume and 159% increase in fin surface area over the stock intercooler
- Cast-aluminum end tanks precision TIG-welded to the core for added heat and pressure resistance

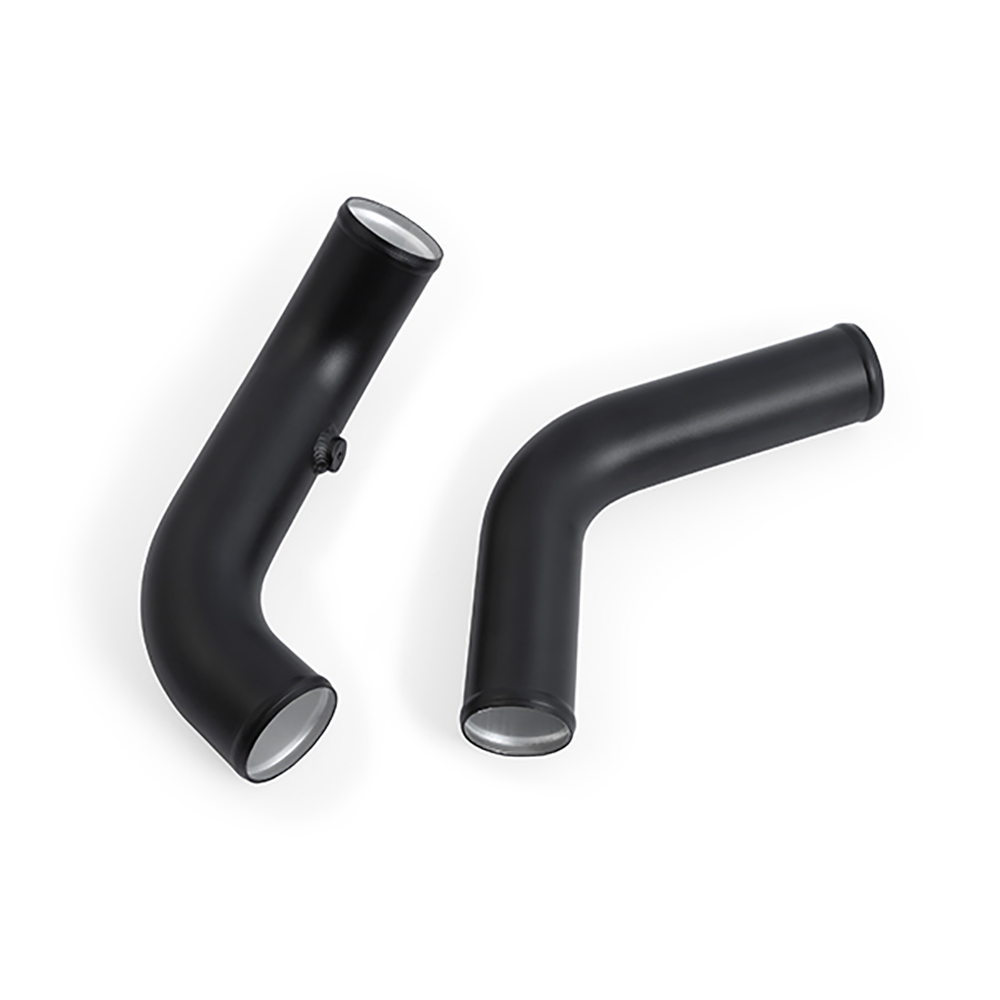

- Mandrel-bent aluminum intercooler piping to eliminate airflow-robbing bends
- Integrated bung that can be drilled and tapped for a boost sensor or water-meth injection
- Compatible with stock or Mishimoto performance intercooler pipes

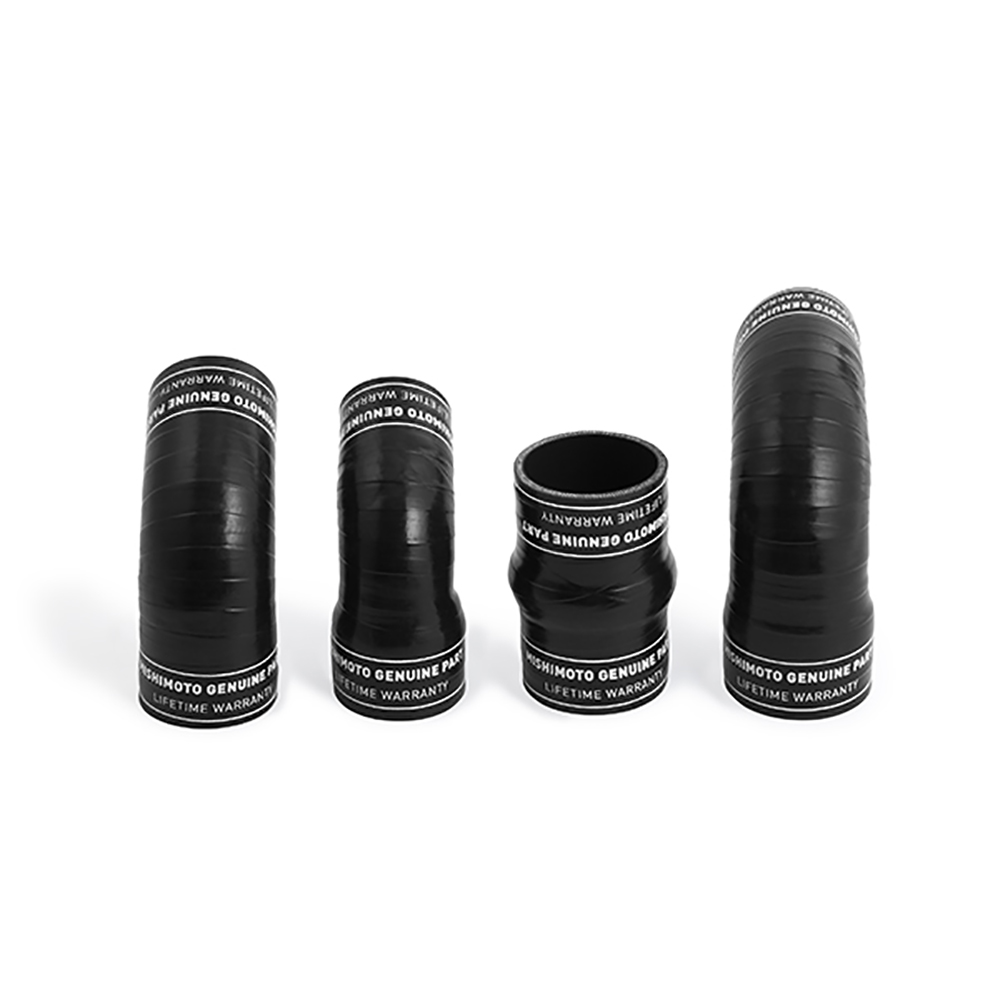

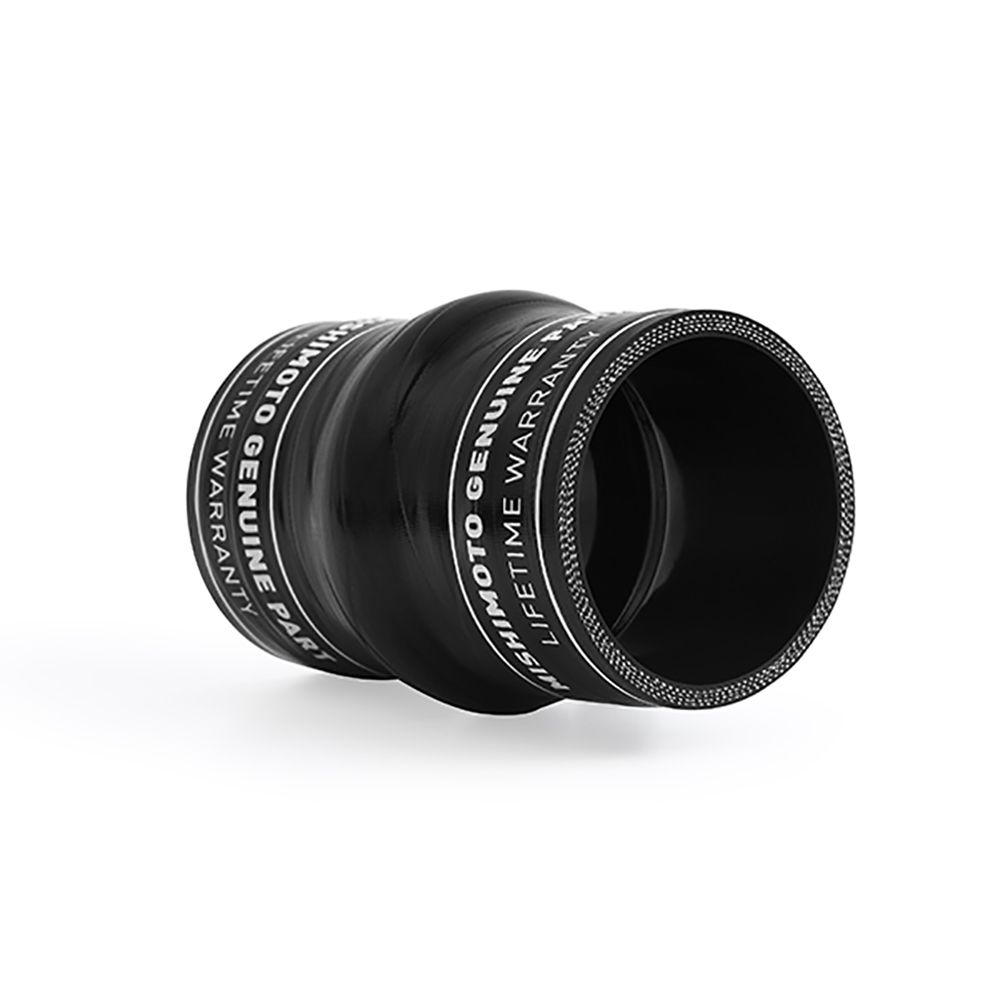

- Silicone couplers and constant-tension worm gear clamps included for a secure seal
- Includes mounting brackets and hardware for straightforward installation

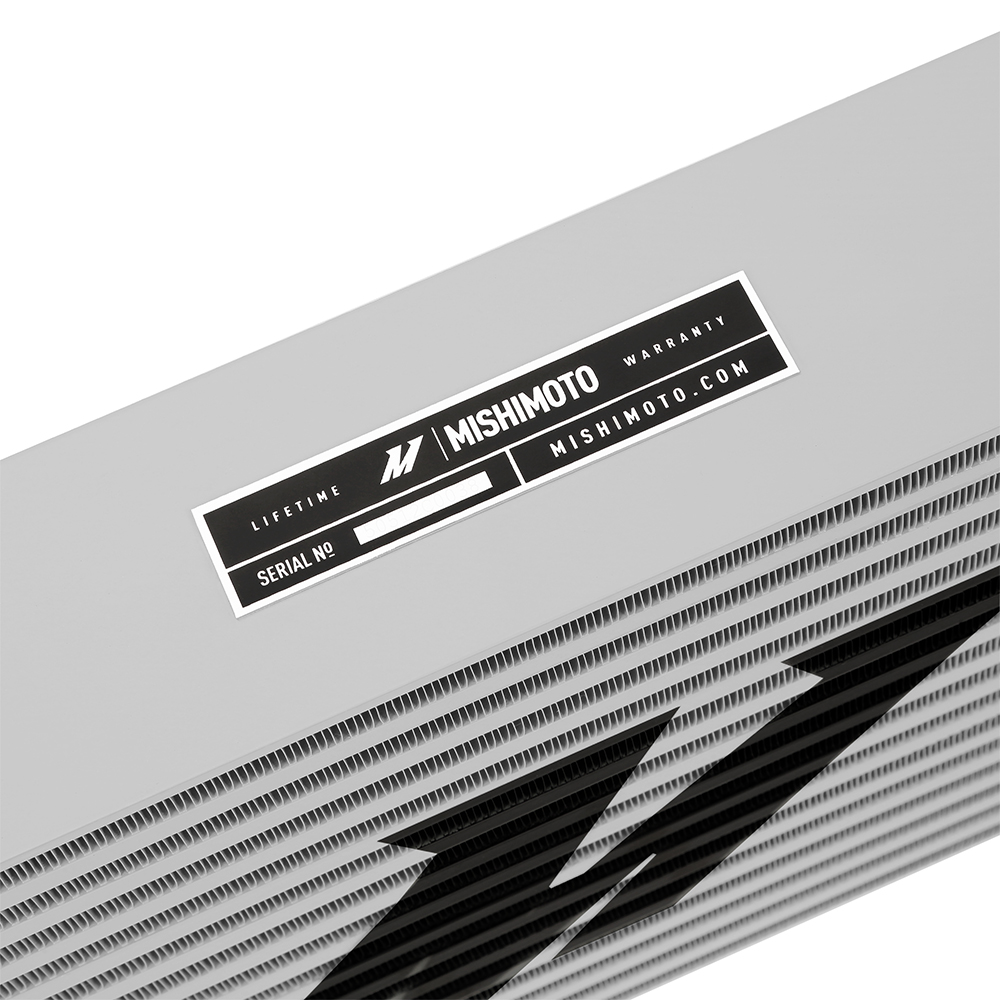

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Height: 9.84 in
- Core Length: 27.56 in
- Core Color: Silver
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Intercooler Type: Air-to-Air
- Inlet Diameter: 2.09 in
- Outlet Diameter: 2.09 in
- Hot Side Pipe Inside Diameter: 2.09 in
- Cold Side Pipe Inside Diameter: 2.09 in
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Fitment: Specific
- Engine Code: 3.2L Duratorq
Frequently Asked Questions
What does the Mishimoto MMINT-RGR-11KSLBK intercooler kit include?

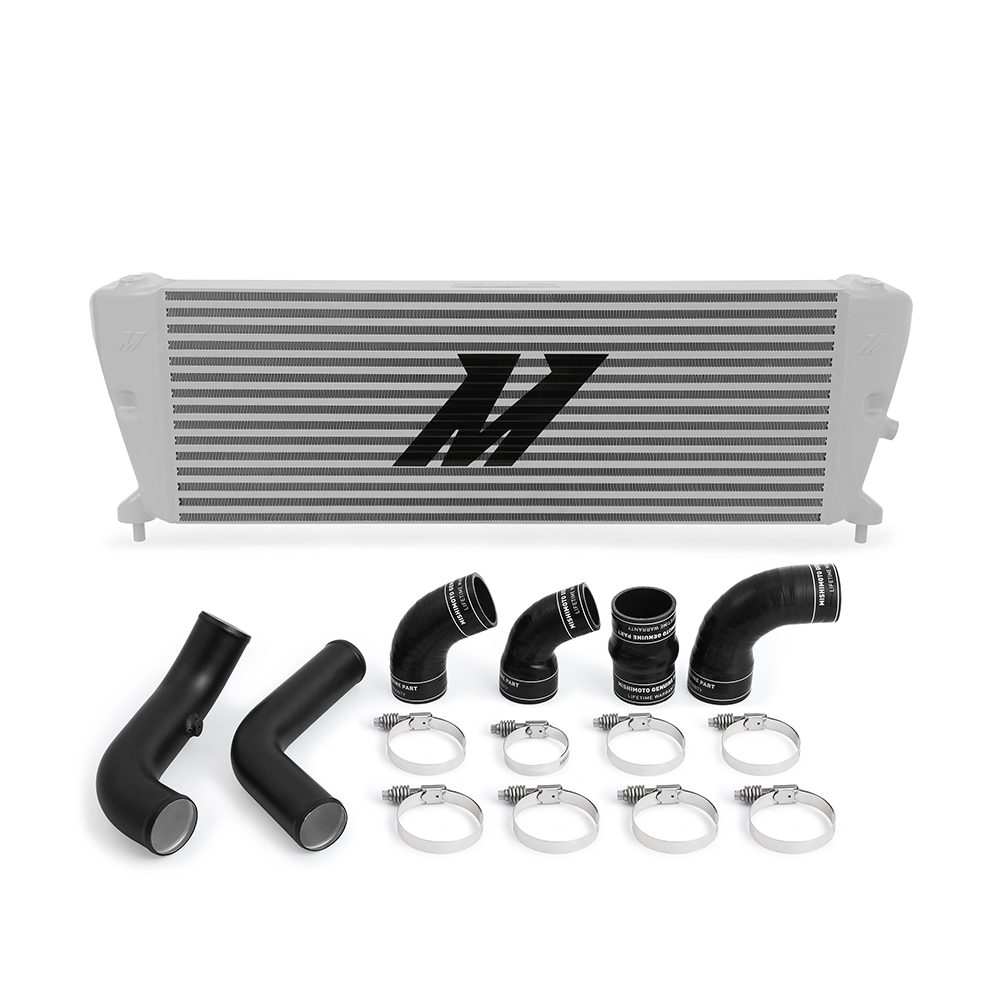

It includes one Mishimoto performance bar-and-plate intercooler, one hot-side intercooler pipe, one cold-side intercooler pipe, two DuraCore hot-side couplers, one DuraCore cold-side coupler, eight constant-tension worm gear clamps, four mounting brackets, mounting hardware, and the Mishimoto Lifetime Warranty.
Does installation require any trimming?
Yes, trimming of the intercooler shrouding is required to fit this intercooler.
What is the recommended torque for the hose clamps?
Mishimoto recommends 11 lb-ft (15NM) for all constant-tension worm gear clamps, which have an operating range of 11-14 lb-ft (15-20NM); do not exceed the maximum torque rating of 14 lb-ft (20NM).
Which vehicles is this intercooler compatible with?
This kit is a specific fit for the 2011+ Ford Ranger XL, XLS, XLT, FX4, and Wildtrak trims equipped with the 3.2L Duratorq Diesel engine.
Can this intercooler be used with the factory piping?
Yes, this intercooler fits with either stock intercooler pipes or Mishimoto performance intercooler pipes.
How much larger is this intercooler core than the stock unit?
The core delivers a 146% increase in core volume and a 159% increase in fin surface area compared to the stock intercooler.
