Description
The Mishimoto MMINT-RAM-13KSL is a complete performance intercooler kit engineered specifically for the 2013-2018 Dodge 6.7L Cummins, pairing a bar-and-plate intercooler with a full 3-inch mandrel-bent aluminum piping kit. Rather than a simple core swap, this package rebuilds the entire cold-side and hot-side path of your forced induction system to eliminate restrictive factory bends and move air with far less resistance. It’s offered with either a Sleek Silver or Stealth Black core finish, so you can match it to your build.

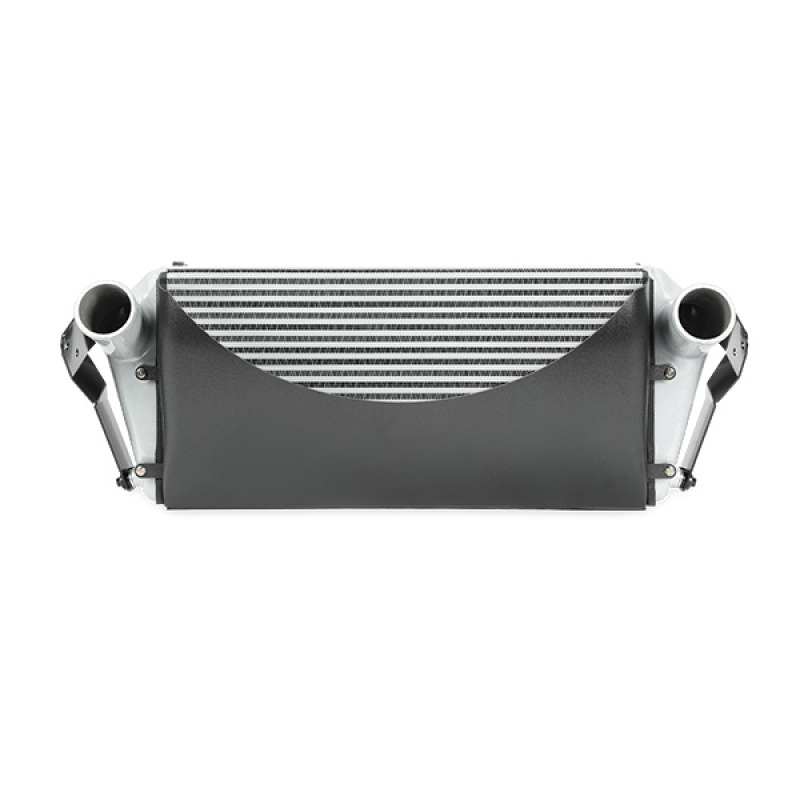

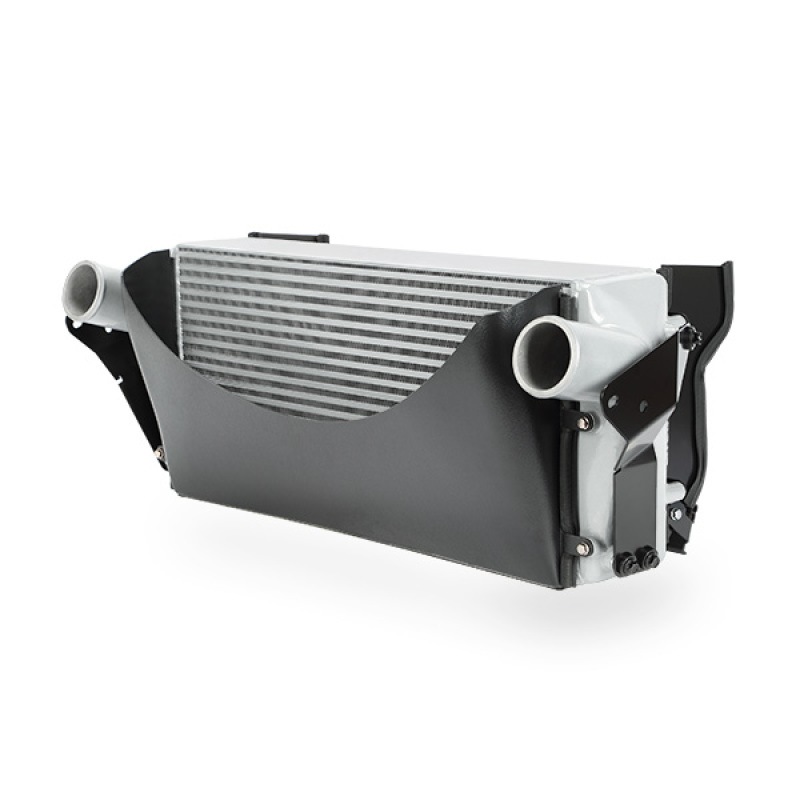

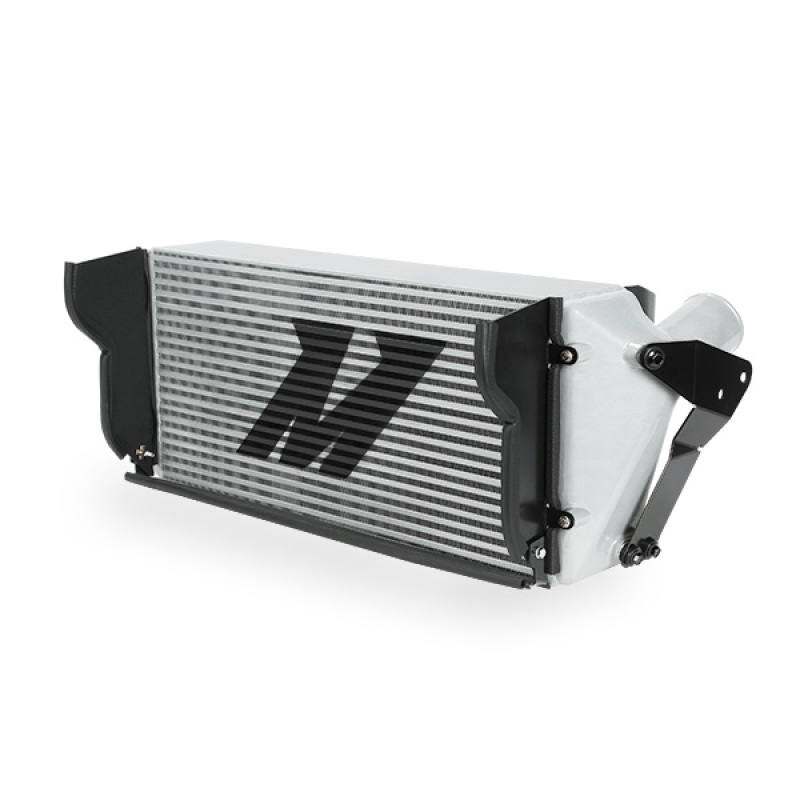

At the heart of this forced induction upgrade is a cast-aluminum end tank intercooler with a bar-and-plate core that delivers a 76.65-percent increase in external fin surface area and a 37.8-percent larger core than the factory unit, resulting in a proven 12.5-percent reduction in intake air temperatures. Internal fins are designed for maximum heat transfer with minimal pressure drop, while the end tanks are shaped for optimal airflow through the induction system. The included piping is mandrel-bent for smooth, unimpeded flow, and every joint is sealed with Mishimoto silicone boots featuring DuraCore technology, an inner layer built to resist heat, pressure, fuel, and oil far better than standard silicone, extending boot life and helping prevent leaks or blowouts. Mishimoto Constant-Tension T-Bolt Clamps hold everything together with accurate, consistent clamping force. Whether your Cummins is running stock power or has been built up, this performance induction upgrade is engineered to support your truck at any power level.
Vehicle Applications
This kit is a direct fit for 2013-2018 Ram 2500, 3500, 4500, and 5500 trucks equipped with the 6.7L Cummins, and it also fits the 2013 Ram 4000. Owners should note that vehicles with snowplow mounts installed may require trimming of the mounts to fit this intercooler.
Features
- Direct fit for the 2013-2018 6.7L Cummins (also fits 2013 Ram 4000)
- Includes hot-side and cold-side intercooler pipes and boots
- Lowers intake air temperatures by 12.5-percent
- 3-inch mandrel-bent polished aluminum piping

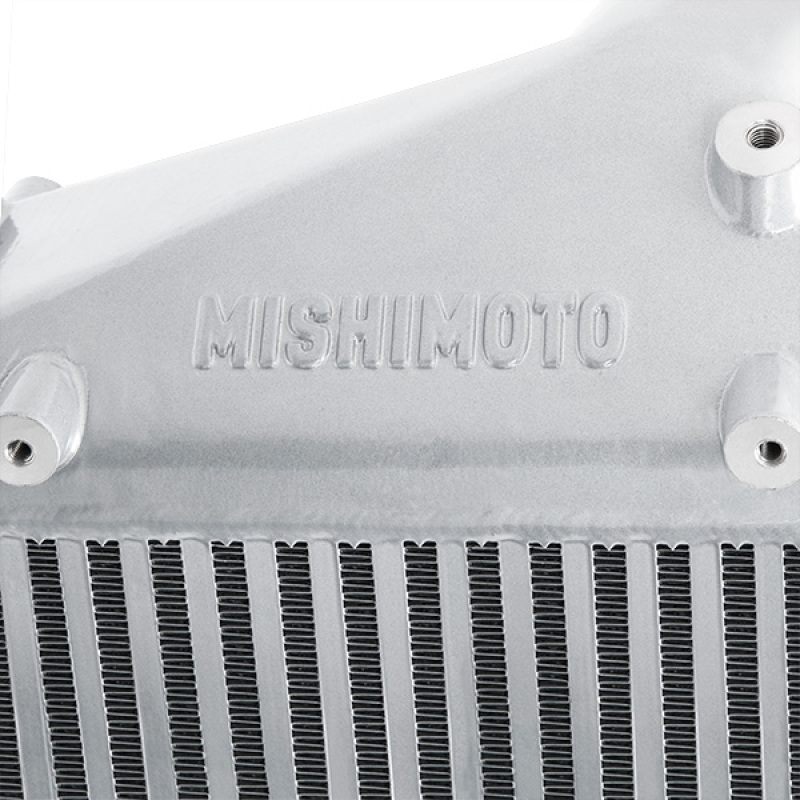

- Bar-and-plate core construction with cast aluminum end tanks
- 76.65-percent increase in external fin surface area
- 37.8-percent larger core volume than factory
- Includes new air ducts to divert air into the core and a new lower fan shroud section
- End tanks strategically designed for optimal airflow
- Internal fins designed for maximum heat transfer with minimal pressure drop
- Includes Mishimoto Silicone Boots with DuraCore technology and Constant-Tension T-Bolt Clamps
- Available with Sleek Silver or Stealth Black intercooler core
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Intercooler type: Air-to-Air
- Core construction: Bar-and-plate
- Core material: Aluminum
- Core height: 12.5 in
- Core length: 25.7 in
- End tank material: Aluminum (cast)
- Pipe material: Aluminum, silver, powder coated finish
- Coupler material: Silicone (black)
- Hose clamps included: Yes
- Overall width: 10 in
- Overall height: 12.5 in
- Overall length: 33 in
- Grade type: Performance

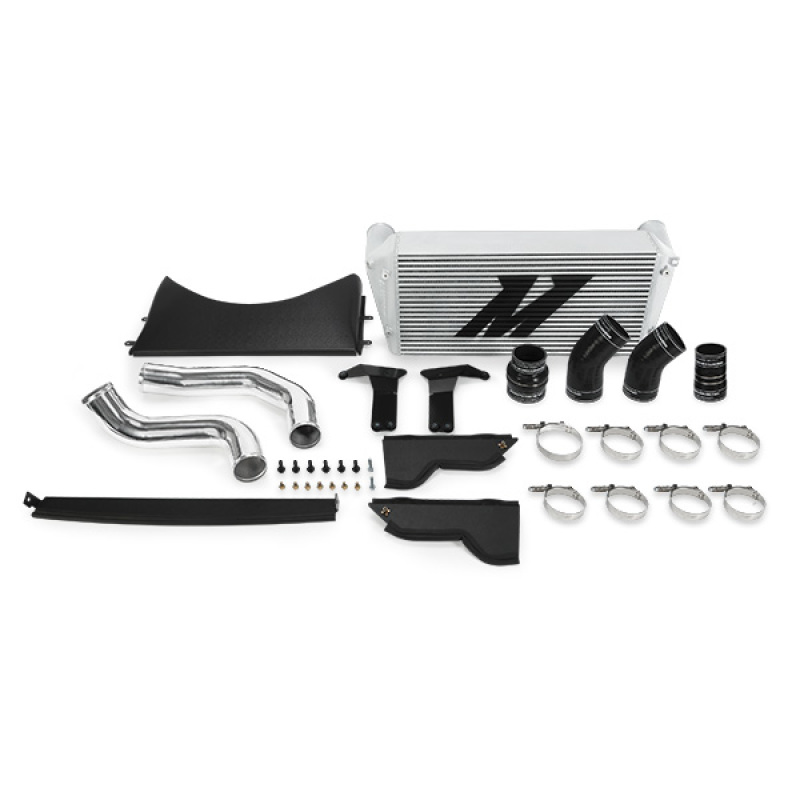

- Kit includes: 1 Mishimoto Intercooler, 3 Front Air Diversion Panels, 1 Replacement Lower Fan Shroud, 2 Mounting Brackets w/ Rubber Isolators, 2 Aluminum Pipes, 4 Silicone Boots with DuraCore Technology, 8 Constant-Tension T-Bolt Clamps
- Recommended T-bolt/constant-tension clamp torque: 27 in-lbs (3NM), operating range 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM)
- CARB EO Number: D-759-22
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-RAM-13KSL intercooler kit fit?
This kit is a direct fit for 2013-2018 Ram 2500, 3500, 4500, and 5500 trucks with the 6.7L Cummins, as well as the 2013 Ram 4000.
How much does this kit reduce intake air temperatures?
The Mishimoto intercooler in this kit is proven to reduce intake air temperatures by 12.5-percent thanks to a 76.65-percent increase in external fin surface area and a 37.8-percent larger core than the factory unit.
What color options are available for the intercooler core?
The Mishimoto 6.7L Cummins intercooler is offered with either a Sleek Silver or Stealth Black core.
What is included in the kit?
The kit includes 1 Mishimoto Intercooler, 3 Front Air Diversion Panels, 1 Replacement Lower Fan Shroud, 2 Mounting Brackets with Rubber Isolators, 2 Aluminum Pipes, 4 Silicone Boots with DuraCore Technology, and 8 Constant-Tension T-Bolt Clamps, backed by the Mishimoto Lifetime Warranty.
Are there any installation considerations for trucks with snowplow mounts?
Yes, vehicles with snowplow mounts installed may require trimming of the mounts to fit this intercooler.
What torque should be used on the T-bolt clamps?
Mishimoto recommends 27 in-lbs (3NM) for all T-bolt and constant-tension T-bolt clamps, which have an operating range of 18-35 in-lbs (2-4NM); the maximum torque rating of 35 in-lbs (4NM) should not be exceeded.
