Description

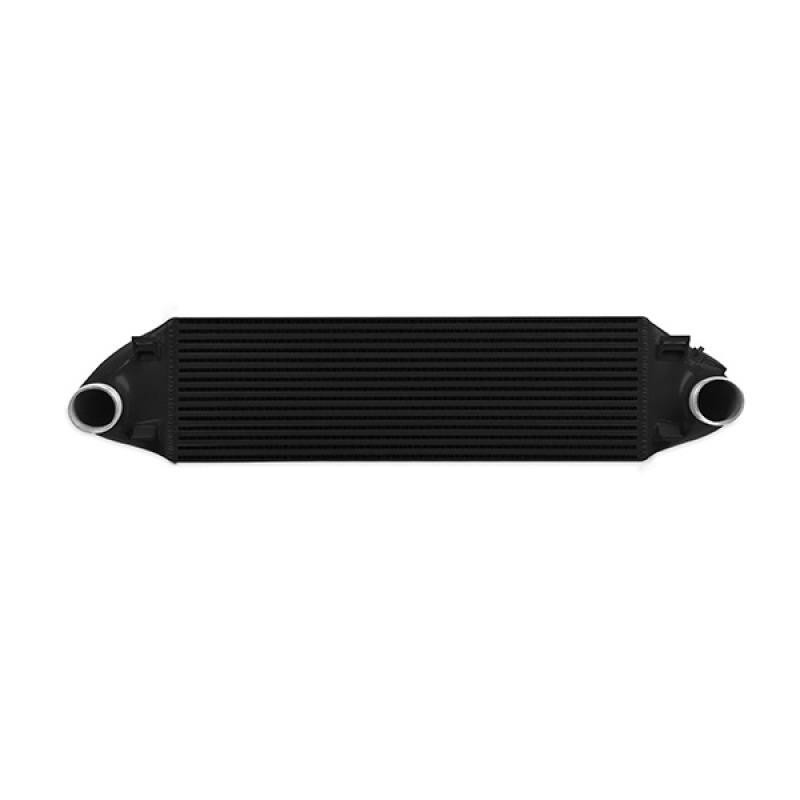

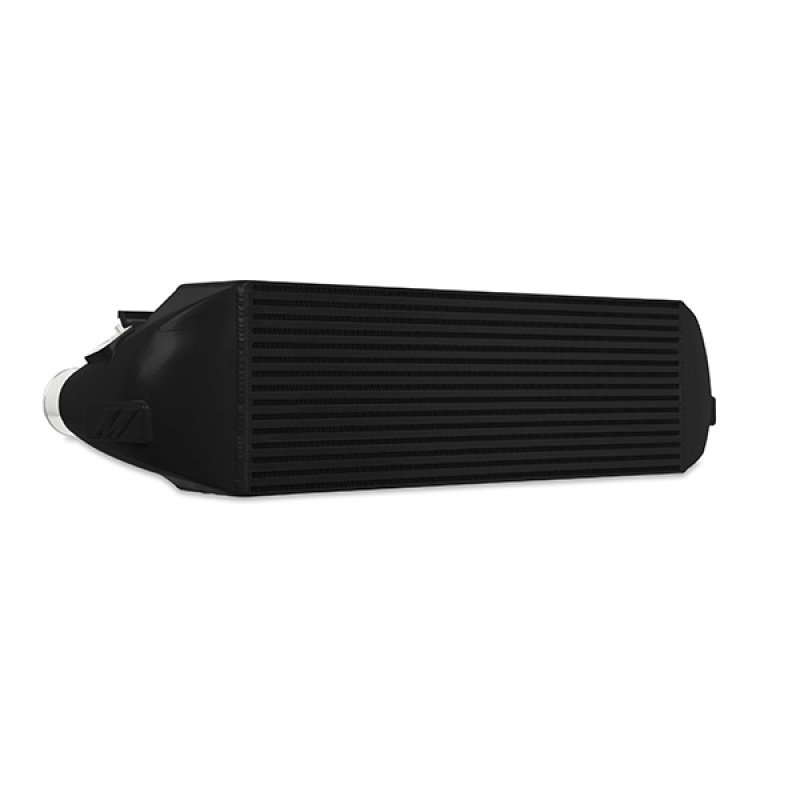

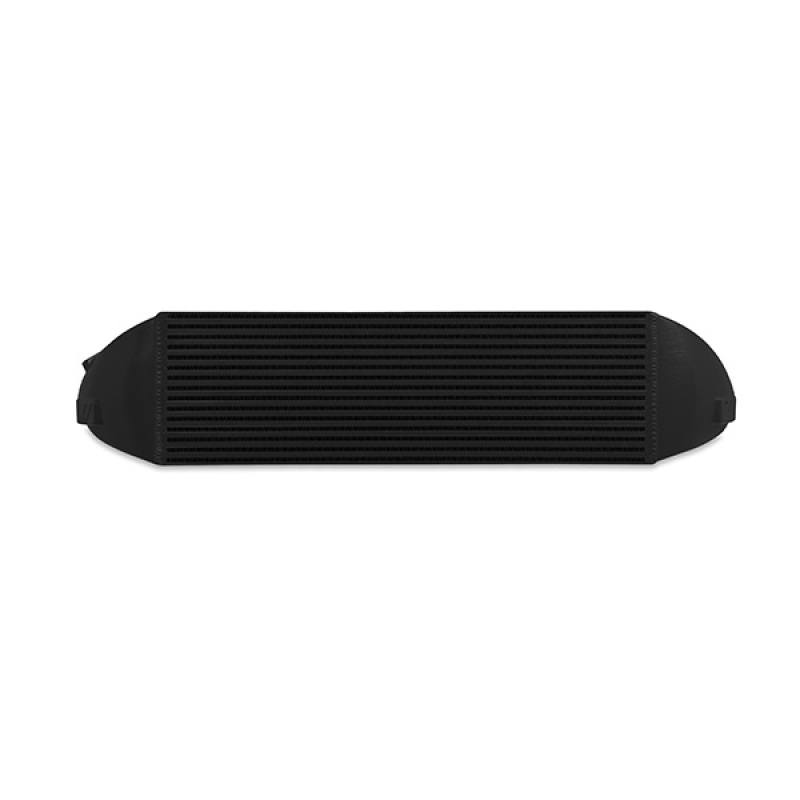

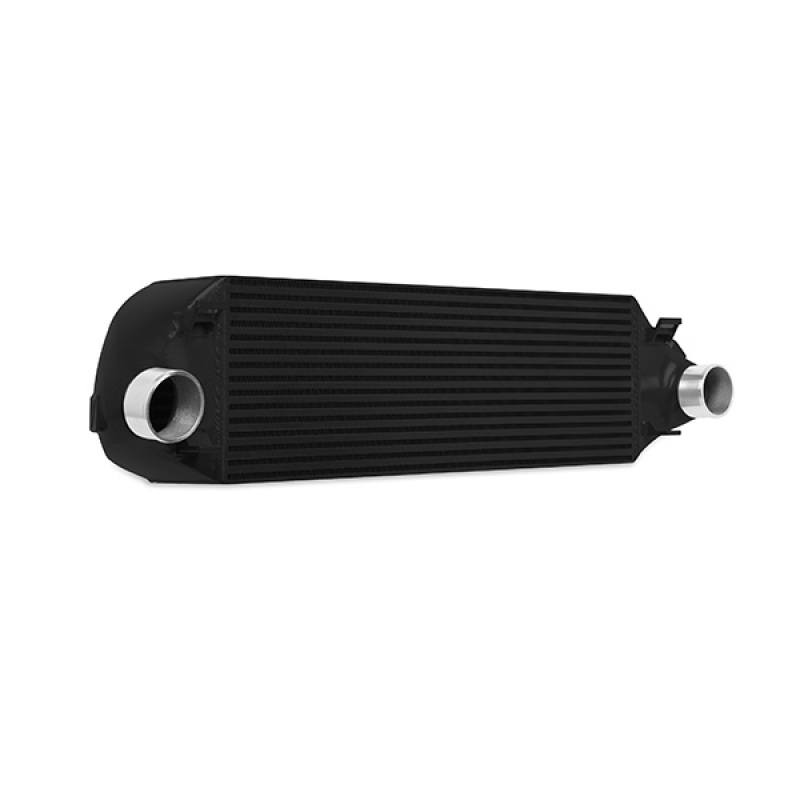

The Mishimoto Performance Intercooler Kit, part number MMINT-FOST-13KPBK, is a direct-fit forced induction upgrade built specifically for the 2013-2018 Ford Focus ST’s 2.0T EcoBoost engine. This version pairs a black bar-and-plate aluminum core with polished aluminum piping, replacing the factory hot-side pipe and eliminating the turbo muffler to open up the entire induction system for greater airflow.
Where the stock intercooler and piping left performance on the table, this Mishimoto forced induction system swaps degradation-prone rubber connections for wire-reinforced silicone couplers, delivering a longer-lasting, smoother-flowing hot-side and cold-side. The mandrel-bent hot-side pipe delivers a 14-percent increase in volume and 26-percent greater flow than the stock hot-side pipe, while the redesigned cold-side pipe adds a 10-percent increase in volume and a 40-percent increase in flow over the factory piece. The bar-and-plate core itself increases core size by 128-percent and fin surface area by 32-percent, opening up air channels so charged air passes through more freely, dissipates heat more effectively, and helps ward off heat soak under demanding driving. Combined with other Mishimoto Focus ST parts, this induction system upgrade is rated for 8 HP and 10 lb.-ft. of torque gains, with the kit itself carrying a maximum horsepower rating of 550 HP.
Vehicle Applications
This Mishimoto intercooler kit is a specific fit for the 2013-2018 Ford Focus ST, chassis code C346. Installation requires no modification to the front bumper and retains the stock fog lights, keeping the factory-fresh look while upgrading the forced induction hardware underneath.
Features
- Direct fit for the 2013-2018 Ford Focus ST
- Black bar-and-plate aluminum core with polished aluminum piping
- Mandrel-bent hot-side pipe delivers 14-percent more volume and 26-percent greater flow than stock
- Cold-side pipe delivers 10-percent more volume and 40-percent greater flow than stock, with an elliptical shape to accommodate a larger Mishimoto radiator
- Wire-reinforced silicone couplers replace degradation-prone rubber for a durable hot-side and cold-side connection

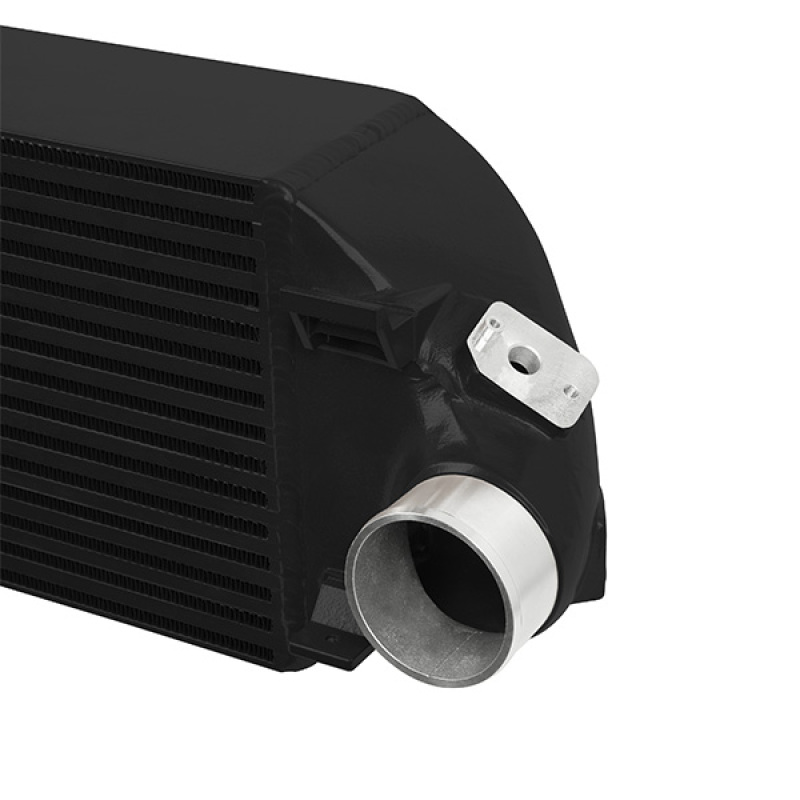

- CNC-machined ribbed inlet and outlet for secure coupler connections
- Provision for both US and Euro MAP sensor
- No modification to front bumper; retains stock fog lights
- Pipes available in polished or wrinkle black powder-coating

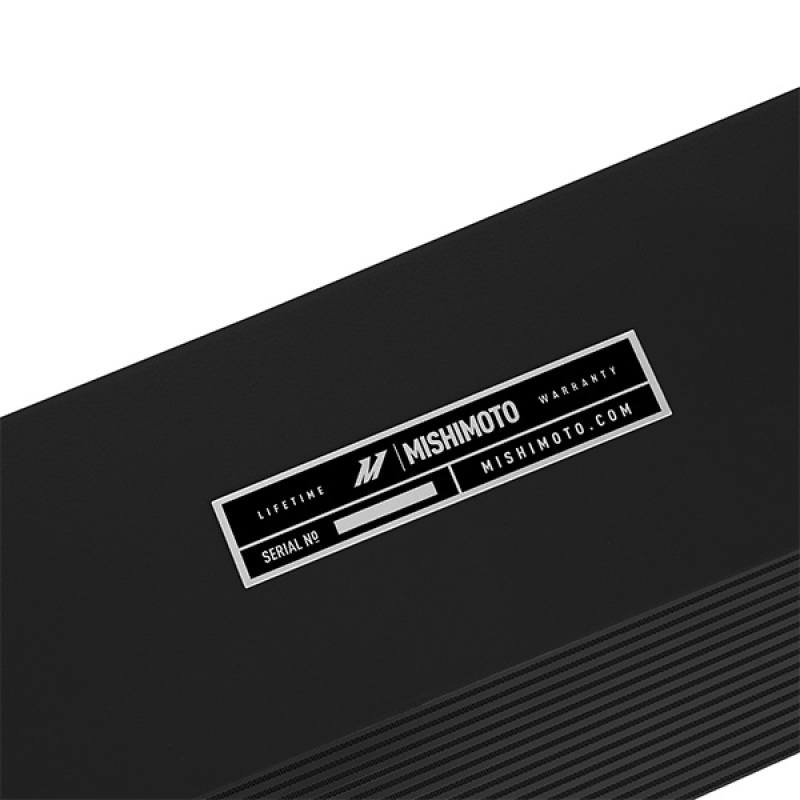

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Color: Black
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum (Cast construction)
- Pipe Material: Aluminum, Powder Coated Finish, Polished Color
- Inlet Diameter: 2.5 in / Outlet Diameter: 2.5 in
- Hot Side Pipe Inside Diameter: 2.5 in
- Cold Side Pipe Inside Diameter: 2.5 in
- Coupler Material: Silicone, Coupler Color: Black
- Hose Clamps Included: Yes
- Maximum Horsepower Rating: 550 HP
- Overall Width: 7.25 in
- Overall Height: 8.3 in
- Overall Length: 35.7 in
- Weight: 30 lbs
- Chassis Code: C346
- CARB EO Number: D-759-6

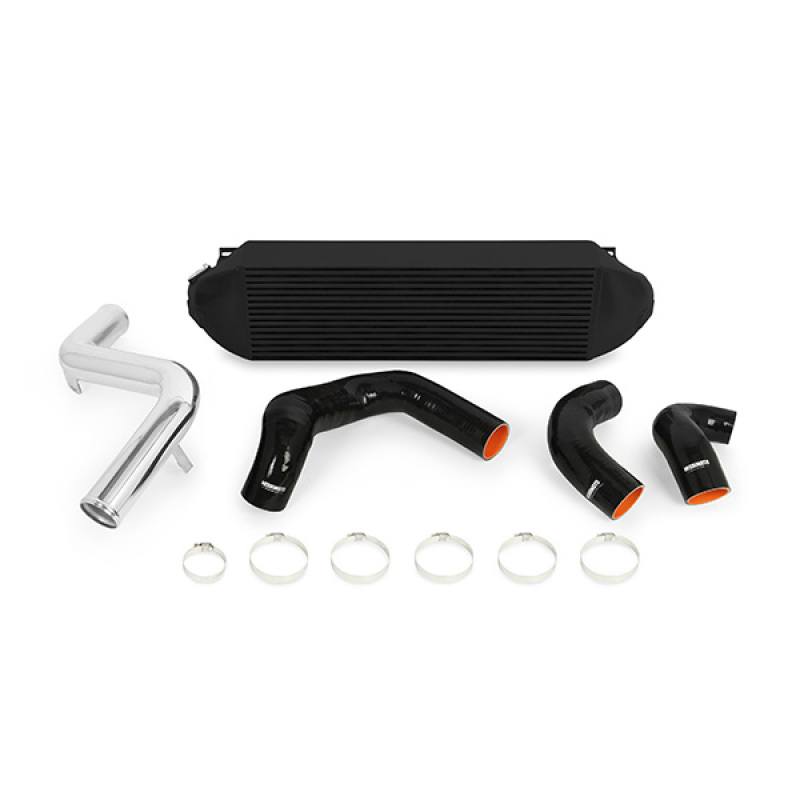

- Includes: (1) Mishimoto Intercooler, (1) Aluminum Intercooler Pipe, (2) Silicone couplers, (1) Silicone Pipe, (6) High torque Worm Gear clamps, Mishimoto Lifetime Warranty
- Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps; operating range 18-27 in-lbs (2-3NM); do not exceed 27 in-lbs (3NM)
- California Prop 65 Warning: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-FOST-13KPBK intercooler kit fit?
This kit is a specific fit for the 2013-2018 Ford Focus ST, chassis code C346.
What performance gains can I expect from this intercooler kit?
When combined with other Mishimoto Focus ST parts, this kit is rated for 8 HP and 10 lb.-ft. of torque gains, and it carries a maximum horsepower rating of 550 HP.
What are the core and piping made from, and what color/finish does this kit come in?
This version features a black bar-and-plate aluminum core with polished aluminum piping. Pipes are also available in wrinkle black powder-coating.
Does installing this intercooler kit require modifying the front bumper?
No. Installation requires no modification to the front bumper, and the stock fog lights are retained.
What is included with the Mishimoto Performance Intercooler Kit?
The kit includes (1) Mishimoto Intercooler, (1) Aluminum Intercooler Pipe, (2) Silicone couplers, (1) Silicone Pipe, (6) High torque Worm Gear clamps, and the Mishimoto Lifetime Warranty.
Is this intercooler kit covered under warranty?
Yes, it is covered under the Mishimoto Lifetime Warranty.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
