Mishimoto Performance Intercooler Kit – 2013-2018 Ford Focus ST

Description

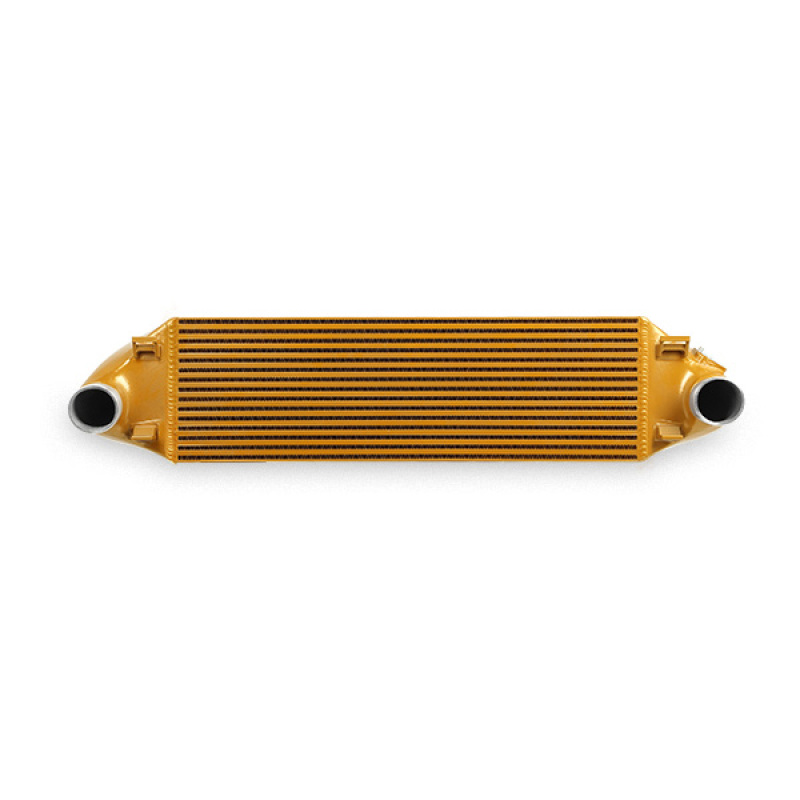

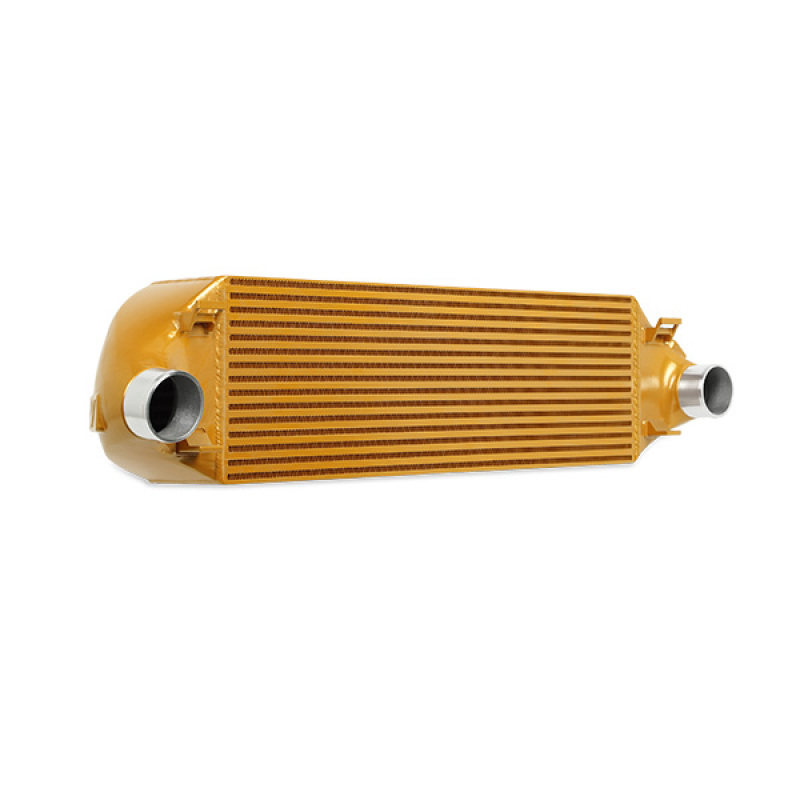

The Mishimoto Performance Intercooler Kit, part number MMINT-FOST-13KBGD, is a direct-fit upgrade for the 2013-2018 Ford Focus ST built around a gold bar-and-plate intercooler core paired with black powder-coated aluminum piping. Engineered to replace the factory hot-side pipe and its restrictive turbo muffler, this kit swaps in mandrel-bent aluminum piping for a 26-percent improvement in hot-side flow, while wire-reinforced silicone couplers replace degradation-prone rubber for a long-lasting seal.

As a purpose-built forced induction system component, this intercooler kit is designed to move more charged air with less restriction, which matters for anyone chasing consistent performance from their Focus ST’s induction system. Together, the redesigned hot-side and cold-side piping deliver a 21-percent increase in flow to and from the intercooler, while the bar-and-plate core construction opens up internal air channels so charged air passes through more freely than the stock core. The all-aluminum build also aids heat dissipation, helping ward off heat soak during demanding driving and delivering properly cooled air through the ST’s intake manifold. Mishimoto rates this performance induction upgrade for up to 550 HP, and it can add 8 HP and 10 lb.-ft. of torque to the power band when combined with other Mishimoto Focus ST parts.

Vehicle Applications

This intercooler kit is a specific fit for the 2013-2018 Ford Focus ST (chassis code C346). It installs without modification to the front bumper and retains the stock fog lights, and its cold-side pipe uses an elliptical shape to accommodate a larger Mishimoto radiator while providing provision for both US and Euro MAP sensors.

Features

• Bar-and-plate core construction increases core size by 128 percent and fin surface area by 32 percent versus stock
• Mandrel-bent aluminum hot-side piping with the turbo muffler removed for a 14-percent increase in volume and 26-percent greater flow than the stock hot-side pipe
• Redesigned cold-side pipe offers a 10-percent increase in volume and 40-percent increase in flow over the stock cold-side pipe
• Wire-reinforced black silicone couplers and pipe replace degradation-prone rubber

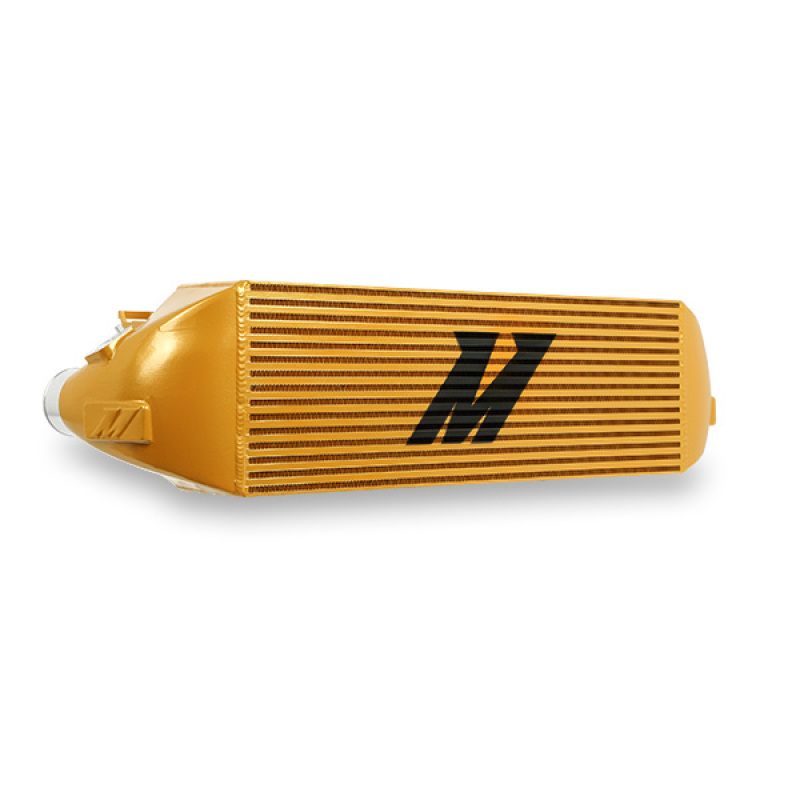

• CNC-machined ribbed inlet and outlet for secure coupler connections

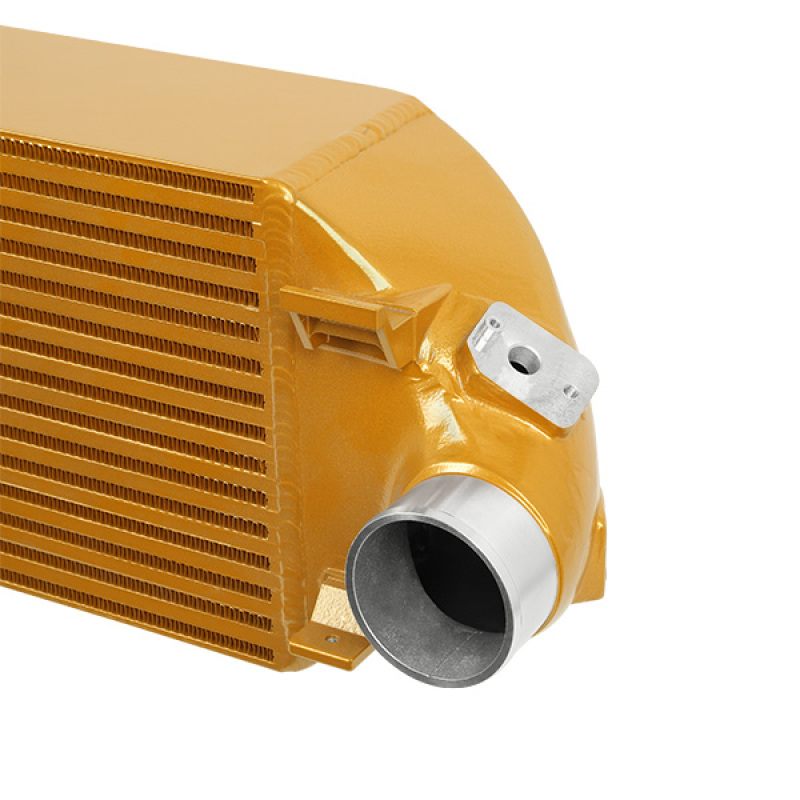

• Cast aluminum end tanks with a black powder-coated pipe finish and gold core finish
• No modification to the front bumper required; retains stock fog lights
• Includes (6) high-torque worm gear clamps for installation

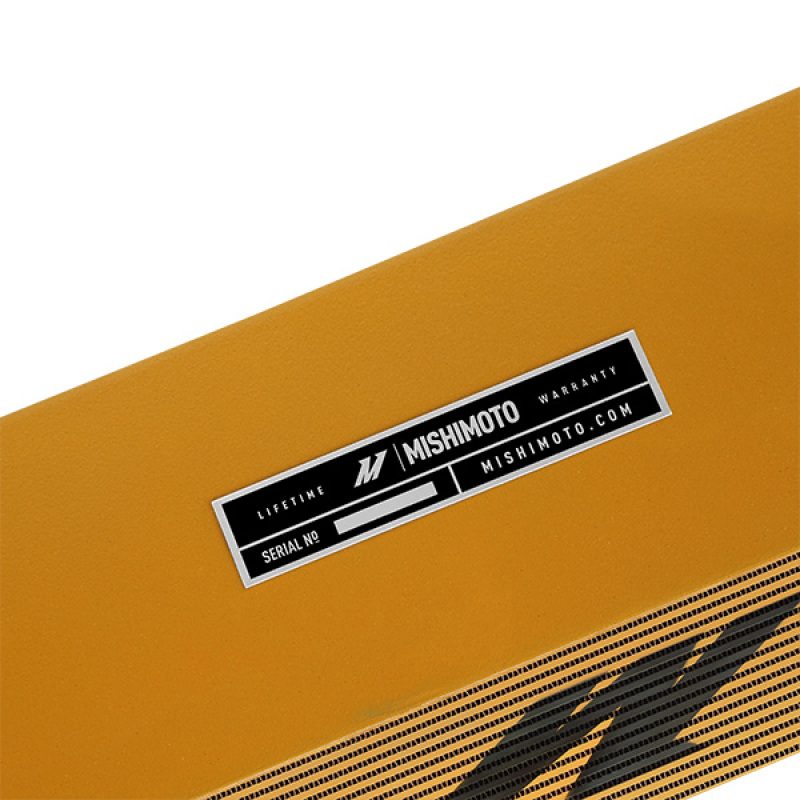

• Backed by the Mishimoto Lifetime Warranty

Specifications

• Core construction: Bar-and-plate, Aluminum, Gold finish
• Intercooler type: Air-to-air
• End tank: Cast aluminum
• Pipe material: Aluminum, black powder-coated finish
• Coupler material: Black silicone

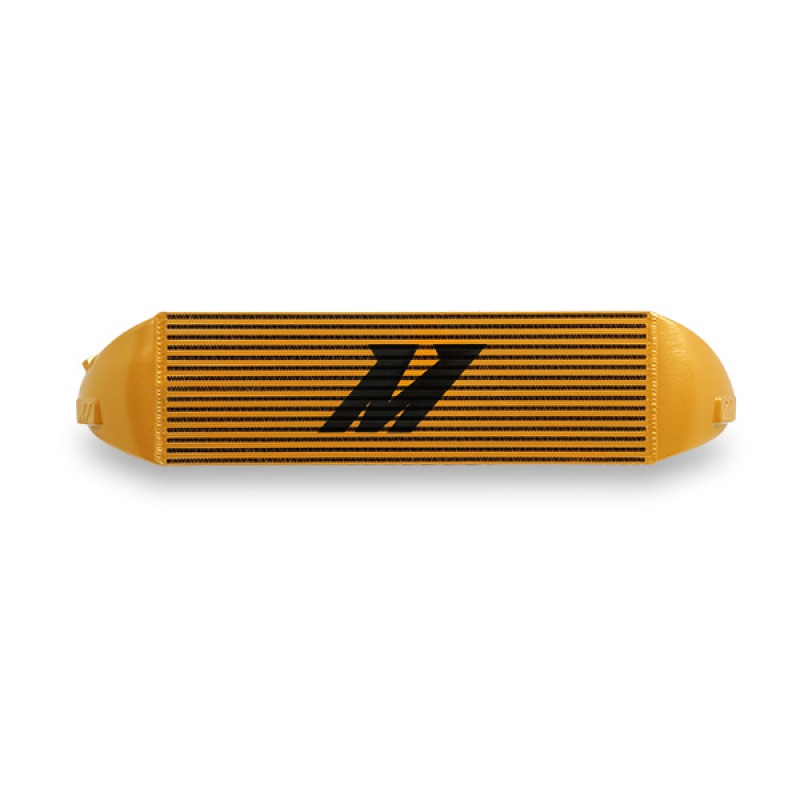

• Inlet/outlet diameter: 2.5 in
• Hot-side pipe inside diameter: 2.5 in
• Cold-side pipe inside diameter: 2.5 in
• Grade type: Performance; Universal or specific fit: Specific
• Hose clamps included: Yes
• Maximum horsepower rating: 550 HP
• Overall length: 35.7 in; overall height: 8.3 in; overall width: 7.25 in
• Weight: 30 lbs
• CARB EO Number: D-759-6
• Chassis code: C346
• Applications: Ford Focus ST, 2013-2018

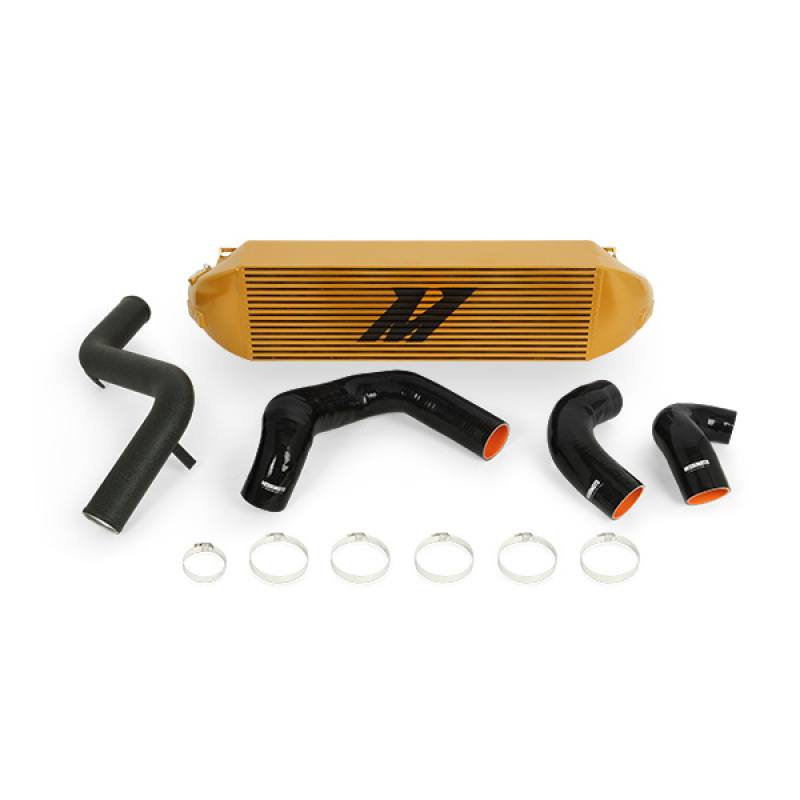

• Includes: (1) Mishimoto intercooler, (1) aluminum intercooler pipe, (2) silicone couplers, (1) silicone pipe, (6) high-torque worm gear clamps, Mishimoto Lifetime Warranty
• Installation note: 22 in-lbs (2.5NM) recommended torque for worm gear clamps, with an operating range of 18-27 in-lbs (2-3NM); do not exceed 27 in-lbs (3NM)
