Description

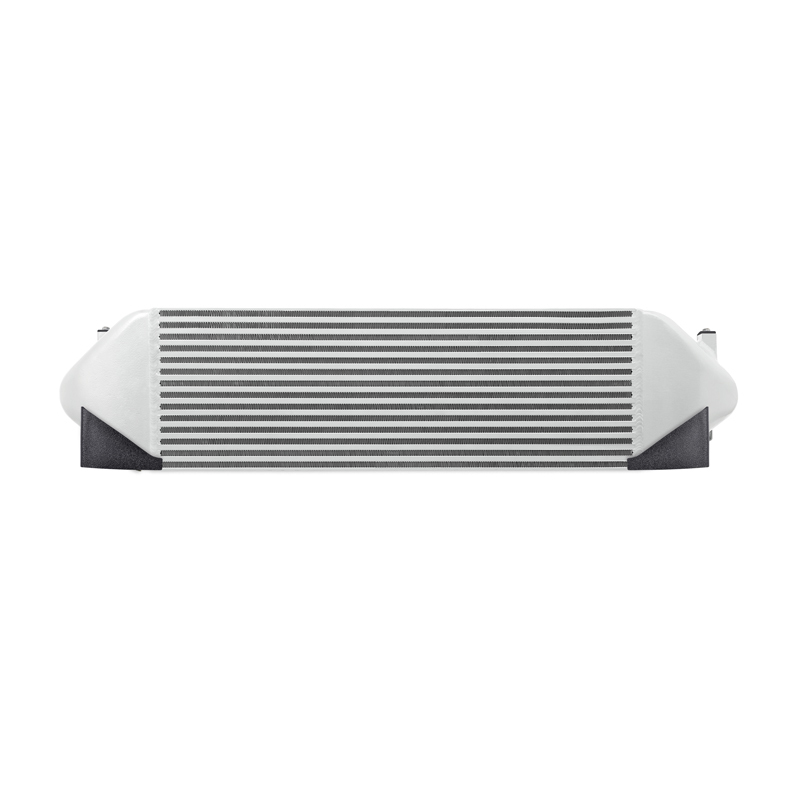

The Mishimoto Performance Intercooler Kit, part number MMINT-RS-16KSL, is a direct-fit forced induction upgrade engineered specifically for the 2016-2018 Ford Focus RS and its 2.3L EcoBoost GTDi I4. Built around a bar-and-plate aluminum core, this kit delivers a 36-percent increase in internal core volume and a 214-percent increase in external fin surface area over the factory piece, cutting air outlet temperatures by almost 40 percent while minimizing inlet/outlet pressure drop.
As a complete forced induction system, this kit pairs the upgraded intercooler core with a matched piping kit to keep the entire induction system flowing efficiently. The custom hot-side pipe increases internal volume by 40 percent over stock and is specifically shaped to route airflow over the stock PTU cooler, while the wire-reinforced silicone cold-side pipe increases diameter for improved charge flow and turbocharging system longevity. Together, this performance induction upgrade is rated to support up to 600 horsepower and adds a bolt-on gain of 7 whp and 8 wtq with a stock tune, making it a serious force induction improvement for track days, spirited street driving, or simply keeping heat soak in check.
Vehicle Applications
This Mishimoto intercooler kit is a specific, direct fit for the 2016-2018 Ford Focus RS, chassis code C346, equipped with the 2.3L EcoBoost GTDi I4 engine. No other vehicles, years, or trims are covered by this kit.
Features
- Direct-fit design for the 2016-2018 Ford Focus RS
- 80-percent increase in core size over the stock intercooler
- 36-percent increase in internal core volume and 214-percent increase in external fin surface area
- Reduces air outlet temperature by almost 40 percent while minimizing pressure drop across the core
- 46-percent and 45-percent less pressure drop than the stock cold-side and hot-side pipe, respectively
- 31-percent and 40-percent increase in internal volume compared to the stock cold-side and hot-side pipe, respectively

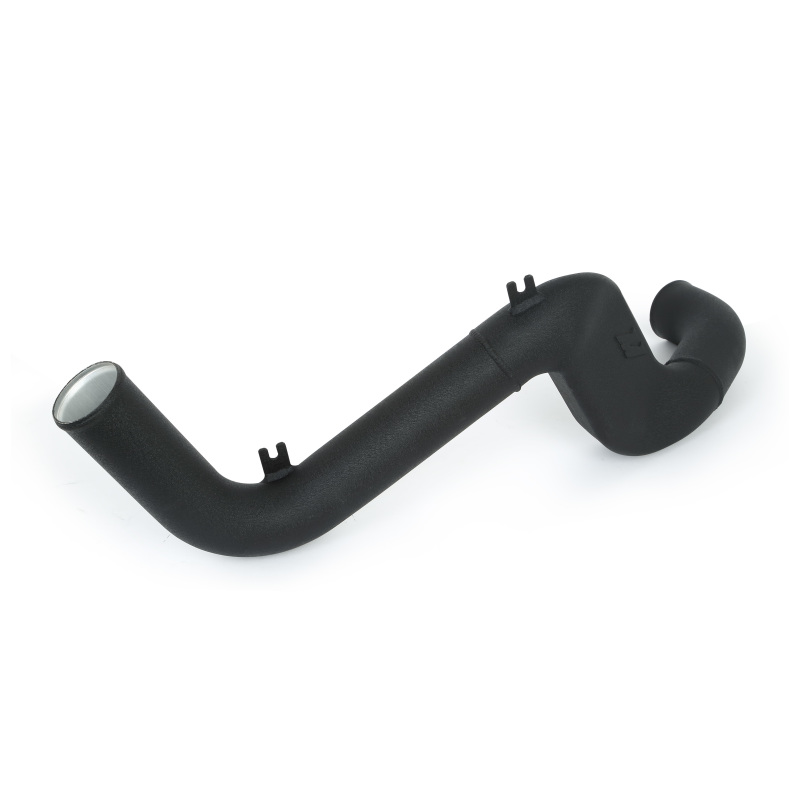

- Hot-side pipe specifically shaped to direct airflow over the stock PTU cooler without blocking cooling

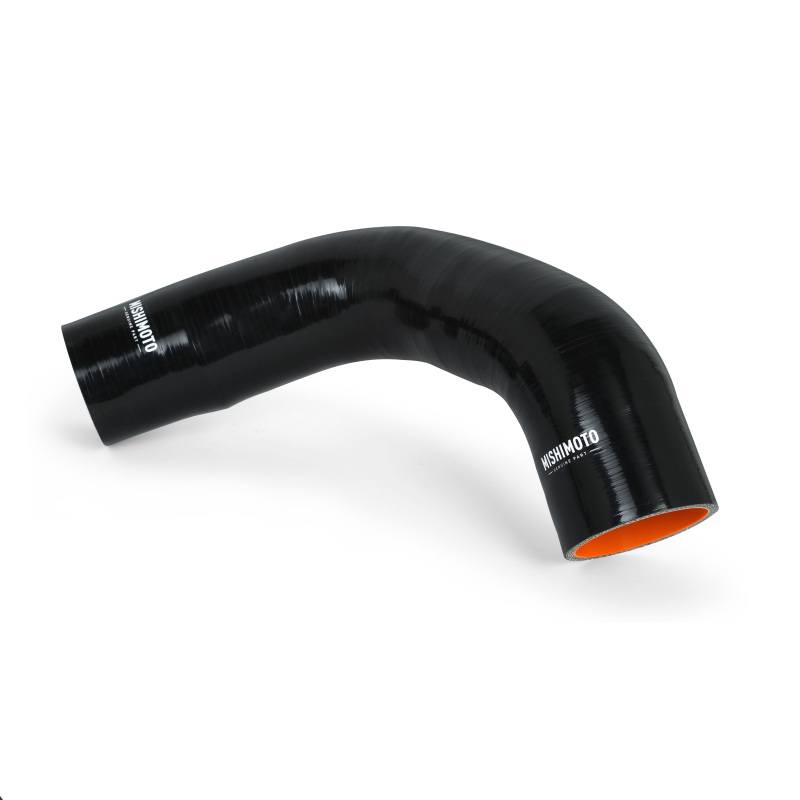

- Cold-side pipe features 5 layers of wire-reinforced silicone construction
- Delivers a 7 whp and 8 wtq bolt-on power increase with stock tune
- Available in Sleek Silver or Stealth Black

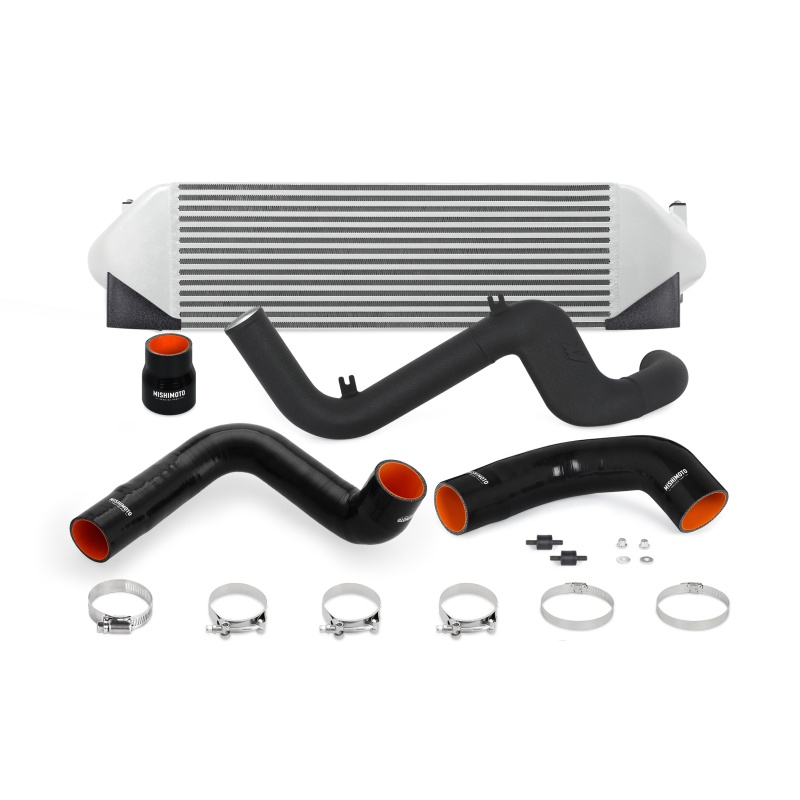

- Includes (1) Mishimoto intercooler, (1) left & right diversion plate, (1) hot-side intercooler pipe, (2) silicone couplers, (1) wire-reinforced silicone hose, (4) T-bolt clamps, (2) high-torque worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-RS-16KSL
- Product Type: Forced Induction
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Height: 8.3 in
- Core Length: 25.6 in
- Intercooler Type: Air-to-Air
- Inlet Diameter: 2.75 in
- Outlet Diameter: 2.75 in
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Pipe Material: Aluminum
- Pipe Color: Silver
- Pipe Finish: Powder Coated
- Hot Side Pipe Inside Diameter: 2.75 in
- Cold Side Pipe Inside Diameter: 2.75 in
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Maximum Horsepower: 600
- Grade Type: Performance
- Fit Type: Specific
- Engine Code: 2.3L EcoBoost GTDi I4
- Chassis Code: C346
- Weight: 33 lbs
Frequently Asked Questions
What vehicles fit the Mishimoto MMINT-RS-16KSL intercooler kit?
This kit is a direct fit for the 2016-2018 Ford Focus RS (chassis code C346) equipped with the 2.3L EcoBoost GTDi I4 engine.
What performance gains can I expect from this intercooler kit?
With a stock tune, the kit provides a bolt-on increase of 7 whp and 8 wtq, along with a reduction in air outlet temperature of almost 40 percent.
What colors are available for this intercooler?
The intercooler core is available in Sleek Silver or Stealth Black.
What is included in the Mishimoto Performance Intercooler Kit?
The kit includes one Mishimoto intercooler, left and right diversion plates, one hot-side intercooler pipe, two silicone couplers, one wire-reinforced silicone hose, four T-bolt clamps, two high-torque worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
What is the maximum horsepower rating for this intercooler?
The intercooler is rated for a maximum horsepower of 600.
What torque should be used for the T-bolt clamps during installation?
Mishimoto recommends 27 in-lbs (3NM) for all T-bolt and constant-tension T-bolt clamps, which have an operating range of 18-35 in-lbs (2-4NM); do not exceed the maximum torque rating of 35 in-lbs (4NM).
