Description
The Mishimoto Performance Intercooler Kit (MMINT-RS-16KBK) is a direct-fit, bar-and-plate, air-to-air intercooler engineered specifically for the 2016-2018 Ford Focus RS and its 2.3L EcoBoost GTDi I4. Built around an 80-percent larger core with a 36-percent increase in internal core volume and a 214-percent jump in external fin surface area, this forced induction upgrade is designed to cut air outlet temperature by almost 40 percent while minimizing the inlet/outlet pressure drop across the core.
As a forced induction component, this intercooler works alongside your Focus RS’s factory turbo system to keep charge air cooler and denser, whether you’re a track junkie or just enjoying some spirited driving. Paired with Mishimoto’s own performance intercooler piping kit, the entire induction system benefits: the hot-side pipe delivers a 40-percent increase in internal volume and 45-percent less pressure drop than the factory pipe, all while being shaped to keep airflow directed over the stock PTU cooler rather than blocking it. The 5-layer, wire-reinforced silicone cold-side pipe adds a 31-percent increase in internal volume and 46-percent less pressure drop than stock. Together, this forced induction system upgrade is rated to support up to 600 horsepower and has produced gains of 7 whp and 8 wtq on a stock tune.
Vehicle Applications
This kit is a specific fit for the 2016-2018 Ford Focus RS (chassis code C346) equipped with the 2.3L EcoBoost GTDi I4 engine. No other years, makes, or models are covered by this intercooler kit.
Features

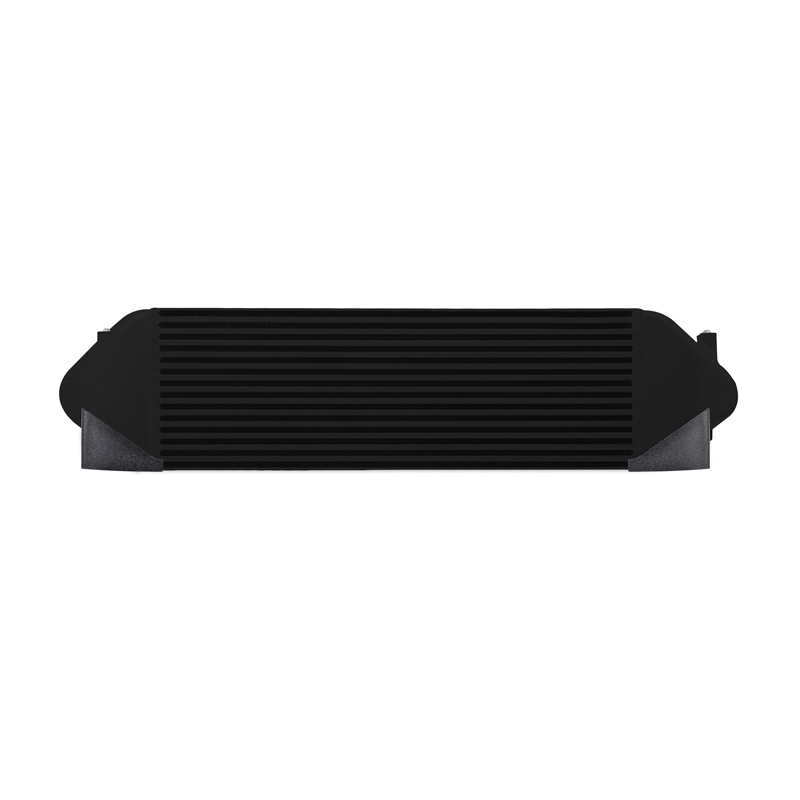

- Bar-and-plate aluminum core construction with cast aluminum end tanks
- 80-percent larger core with a 36-percent increase in internal volume and a 214-percent increase in external fin surface area
- Reduces air outlet temperature by almost 40 percent while minimizing pressure drop across the core

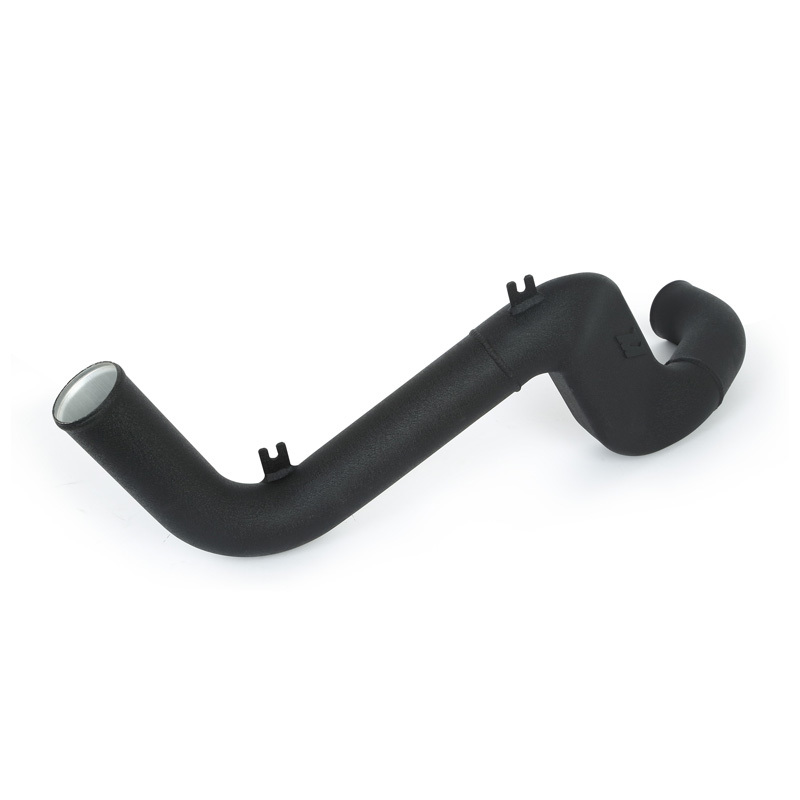

- Includes Mishimoto performance intercooler piping kit with a custom hot-side pipe shaped to maintain PTU cooling

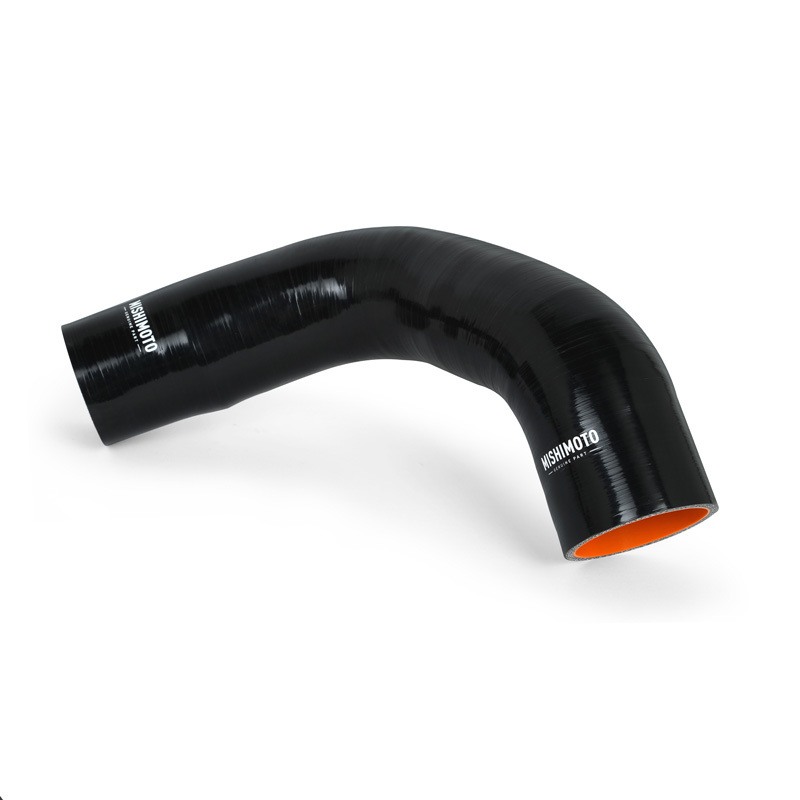

- Cold-side pipe built with 5 layers of wire-reinforced silicone for durability and improved airflow
- Aluminum piping with a powder-coated finish, core available in silver or Stealth Black
- Rated for a maximum recommended horsepower of 600
- Backed by the Mishimoto Lifetime Warranty

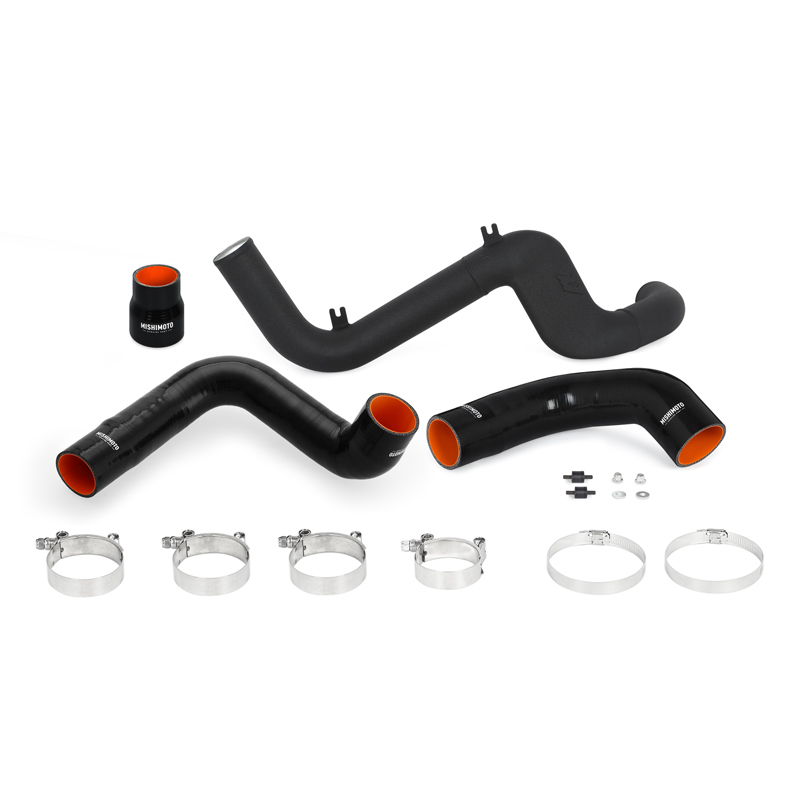

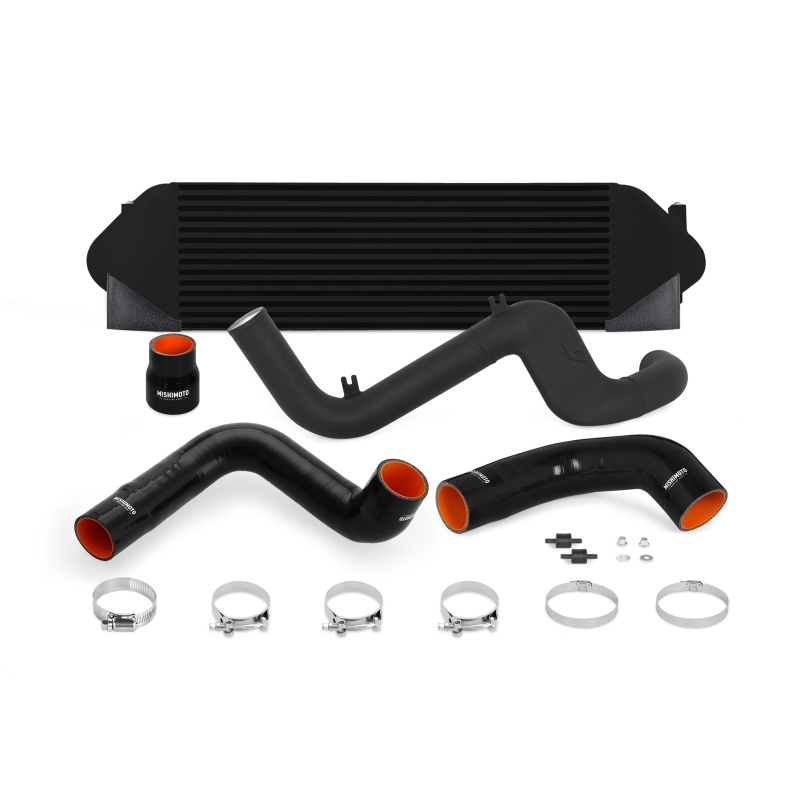

- Kit includes intercooler, left and right diversion plates, hot-side intercooler pipe, 2 silicone couplers, wire-reinforced silicone hose, 4 T-bolt clamps, 2 high-torque worm gear clamps, and mounting hardware
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Height: 8.3 in
- Core Length: 25.6 in
- Inlet Diameter: 2.75 in
- Outlet Diameter: 2.75 in
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum (Cast construction)
- Pipe Material: Aluminum, Powder Coated finish
- Pipe Color: Black
- Hot Side Pipe Inside Diameter: 2.75 in
- Cold Side Pipe Inside Diameter: 2.75 in
- Coupler Material: Silicone, Black
- Maximum Horsepower: 600
- Weight: 33 lbs
- Engine Codes: 2.3L EcoBoost GTDi I4
- Chassis Codes: C346
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-RS-16KBK intercooler kit fit?
It is a specific, direct fit for the 2016-2018 Ford Focus RS with the 2.3L EcoBoost GTDi I4 engine (chassis code C346).
What color options are available for this intercooler?
The intercooler core is available in silver or Stealth Black.
How much horsepower can this intercooler kit support?
The kit carries a maximum recommended horsepower rating of 600.
What performance gains can I expect from this kit?
Mishimoto reports gains of 7 whp and 8 wtq with a stock tune, achieved through reduced air outlet temperature and minimized pressure drop across the core.
What is included in the Mishimoto Performance Intercooler Kit?
The kit includes the Mishimoto intercooler, left and right diversion plates, a hot-side intercooler pipe, two silicone couplers, a wire-reinforced silicone hose, four T-bolt clamps, two high-torque worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
Does this intercooler kit come with a warranty?
Yes, it is covered under the Mishimoto Lifetime Warranty.
