Description

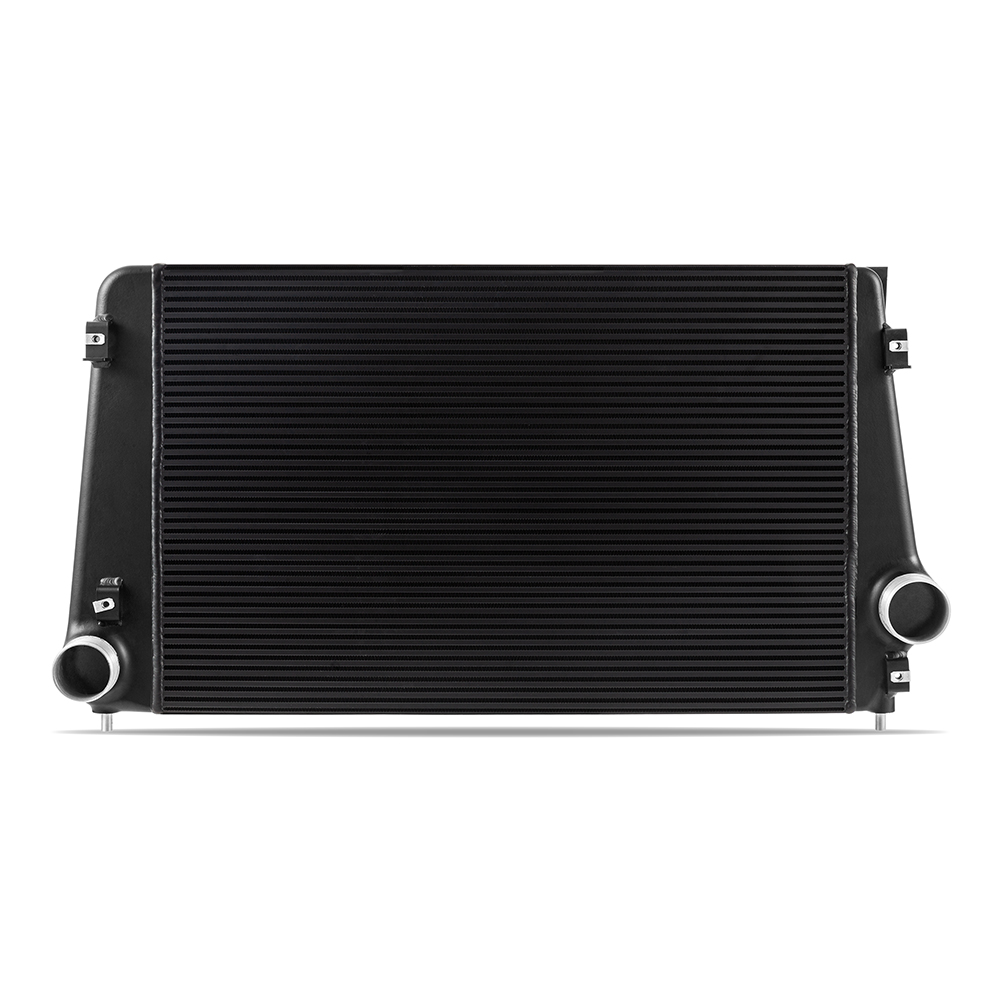

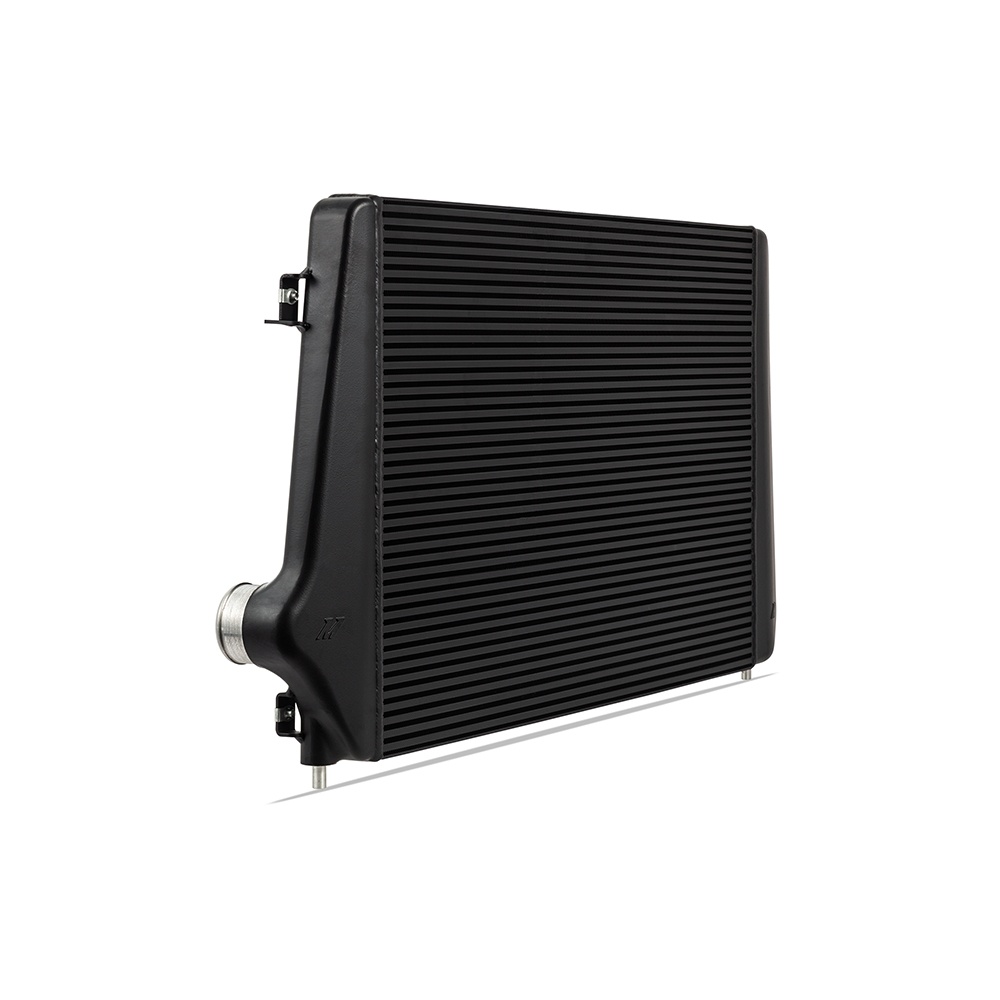

The Mishimoto MMINT-DMAX-17KBKBK is a purpose-built performance intercooler kit engineered specifically for the 2017-2019 Chevrolet and GMC 6.6L Duramax L5P. Built around a massive 68mm-thick bar-and-plate core with cast-aluminum end tanks, this forced induction upgrade replaces the factory intercooler system with a unit designed to handle higher heat and boost without cracking. Paired with 3.0in mandrel-bent aluminum piping, it’s a complete solution for anyone who has felt the limits of the stock L5P induction system.
Mishimoto engineered this intercooler and piping kit to reduce restriction throughout the entire forced induction pathway. The core itself is 70-percent thicker than the factory intercooler, and combined with larger inlets and outlets on the cast end tanks, overall system restriction is reduced by up to 64-percent compared to stock. The included hot-side and cold-side piping eliminates the factory restrictive resonator, improving flow by up to 55-percent, while Mishimoto’s DuraCore silicone boots and constant-tension T-bolt clamps keep every connection secure under boost. A CNC-machined quick-disconnect fitting with new O-ring and spring clip, bead-rolled pipe ends, and factory sensor/harness mounting points mean this induction system upgrade installs like it came from the factory, not like a universal forced induction kit.
Vehicle Applications
This kit is a direct, specific fit for the 2017-2019 Chevrolet Silverado 2500 HD and 3500 HD (WT, LT, LTZ, and High Country trims) as well as the 2017-2019 GMC Sierra 2500 HD and 3500 HD (Base, SLE, SLT, and Denali trims), all equipped with the 6.6L Duramax L5P diesel engine on the GMT K2 chassis. No other years, makes, or models are supported by this kit.
Features
- Direct fit for 2017-2019 Chevrolet/GMC 6.6L Duramax L5P trucks
- Includes performance intercooler, hot- and cold-side intercooler pipes, and DuraCore boots

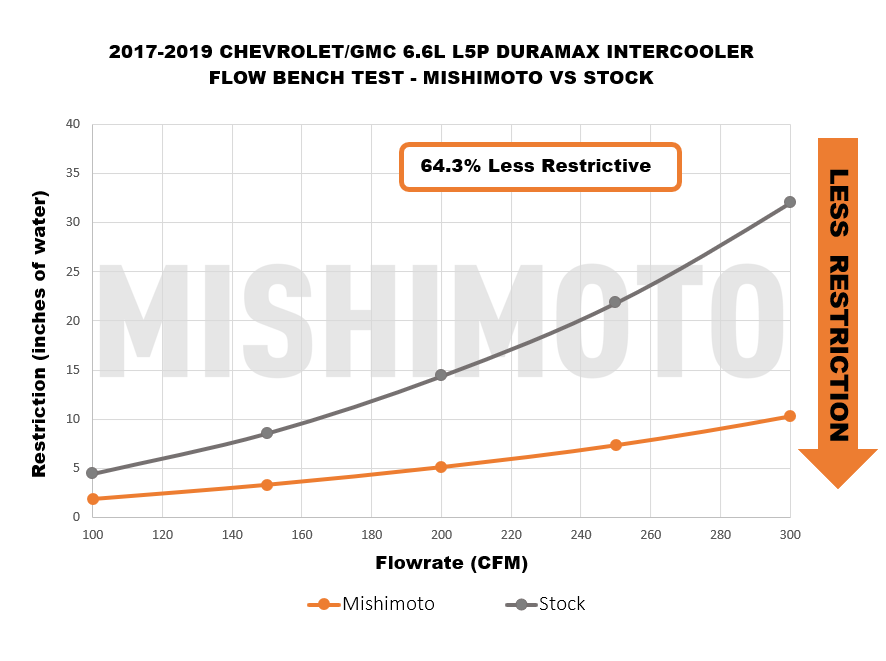

- Reduces restriction by up to 64-percent over the stock intercooler system
- 68mm-thick bar-and-plate core is 70-percent thicker than stock for maximum cooling

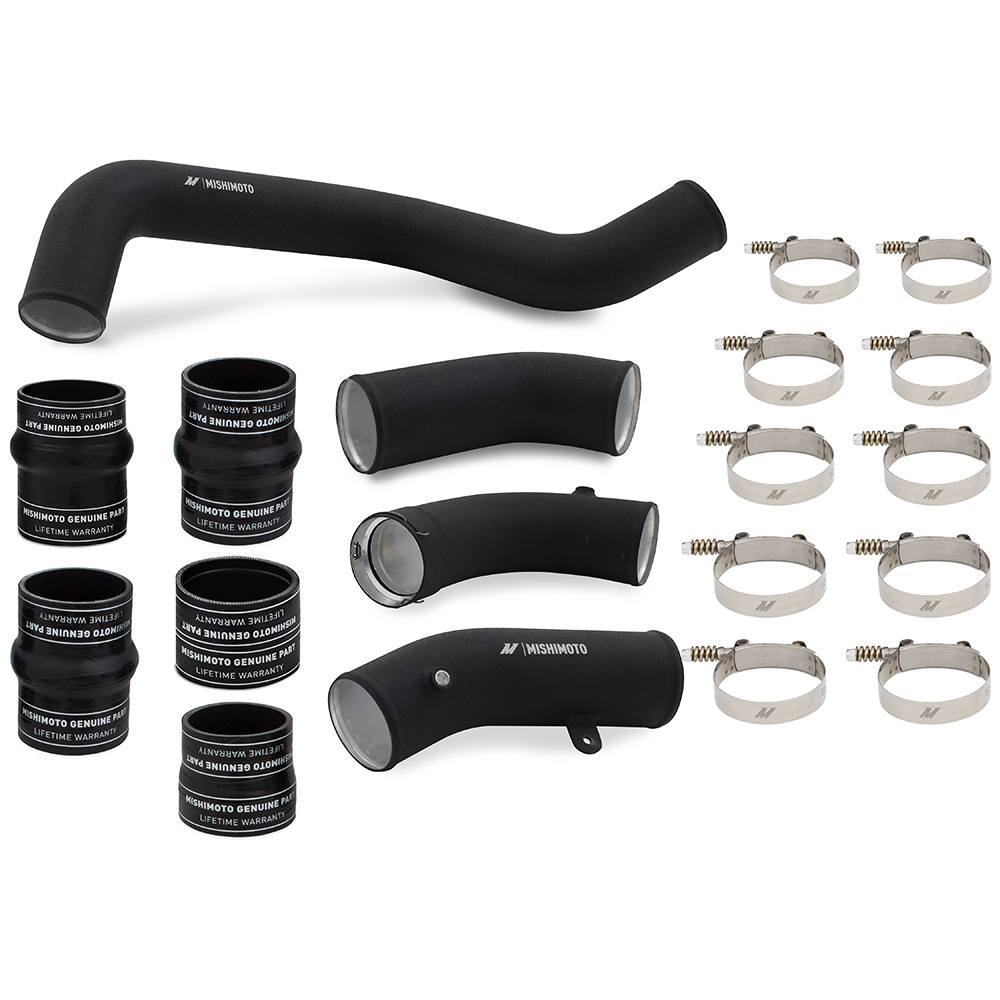

- 3.0in mandrel-bent aluminum pipes eliminate restrictive bends and the stock resonator

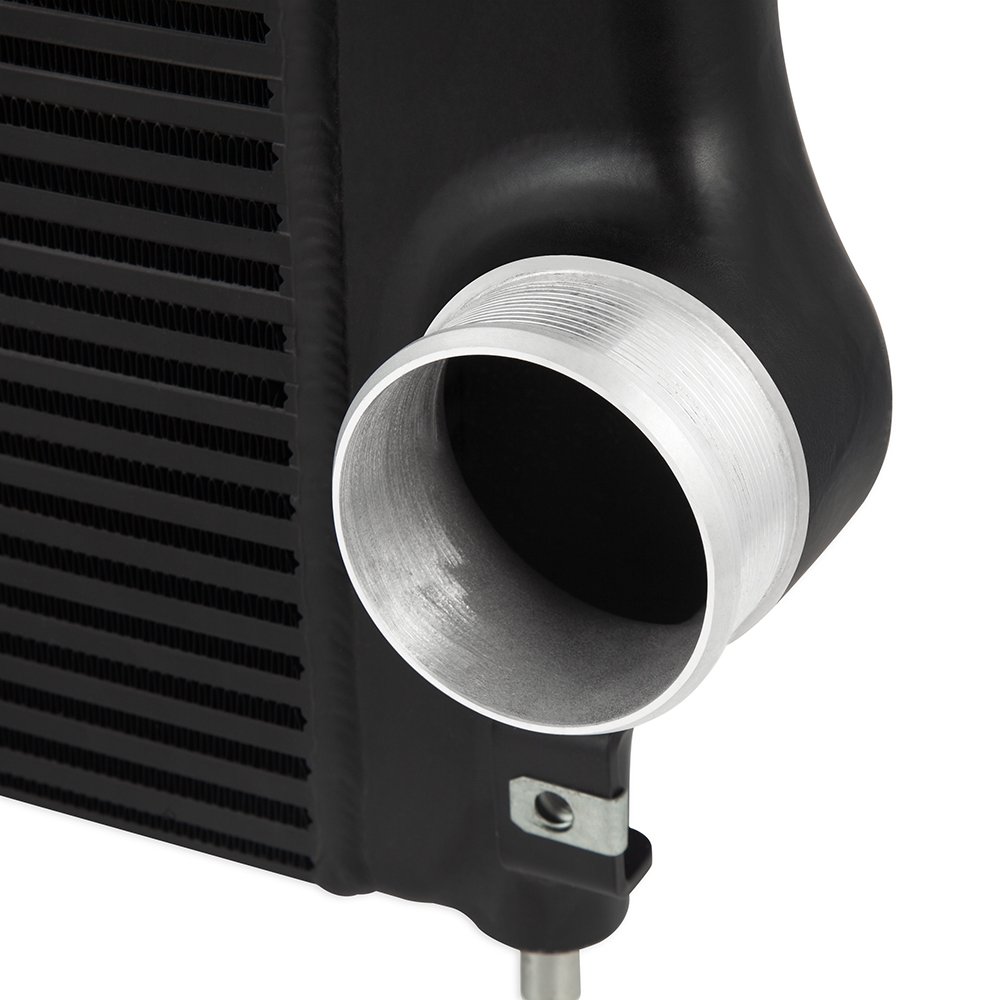

- Larger intercooler inlet and outlet reduce restriction for improved flow
- Pipes include three additional bungs that can be drilled and tapped for sensors or water/meth injection
- Robust cast-aluminum end tanks resist cracking under high heat and pressure
- Eliminates the failure-prone stock throttle valve connector
- Retains the temp sensor harness mount for safe, secure wire routing
- CNC-machined quick-disconnect fitting with new O-ring and spring clip for a precise, leak-free connection
- Includes Mishimoto silicone boots with DuraCore technology and Mishimoto constant-tension T-bolt clamps
- Available in a durable black powder-coated finish
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-DMAX-17KBKBK
- Product Type: Forced Induction
- Intercooler Type: Air-to-Air
- Core Construction: Bar-and-Plate
- Core Material: Aluminum
- Core Height: 11in
- Core Length: 20in
- Core Thickness: 2.67in
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Outlet Diameter: 3.25in
- Cold Side Pipe Inside Diameter: 3.25in
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Core Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Fit Type: Specific
- Overall Length: 45.8in
- Overall Width: 4.92in
- Overall Height: 23.85in
- Weight: 80 lbs
- Engine Codes: L5P
- Chassis Codes: GMT K2
- Applications: GMC Sierra 2500HD/3500HD V8 6.6L Diesel 2017-2019; Chevrolet Silverado 2500HD/3500HD V8 6.6L Diesel 2017-2019

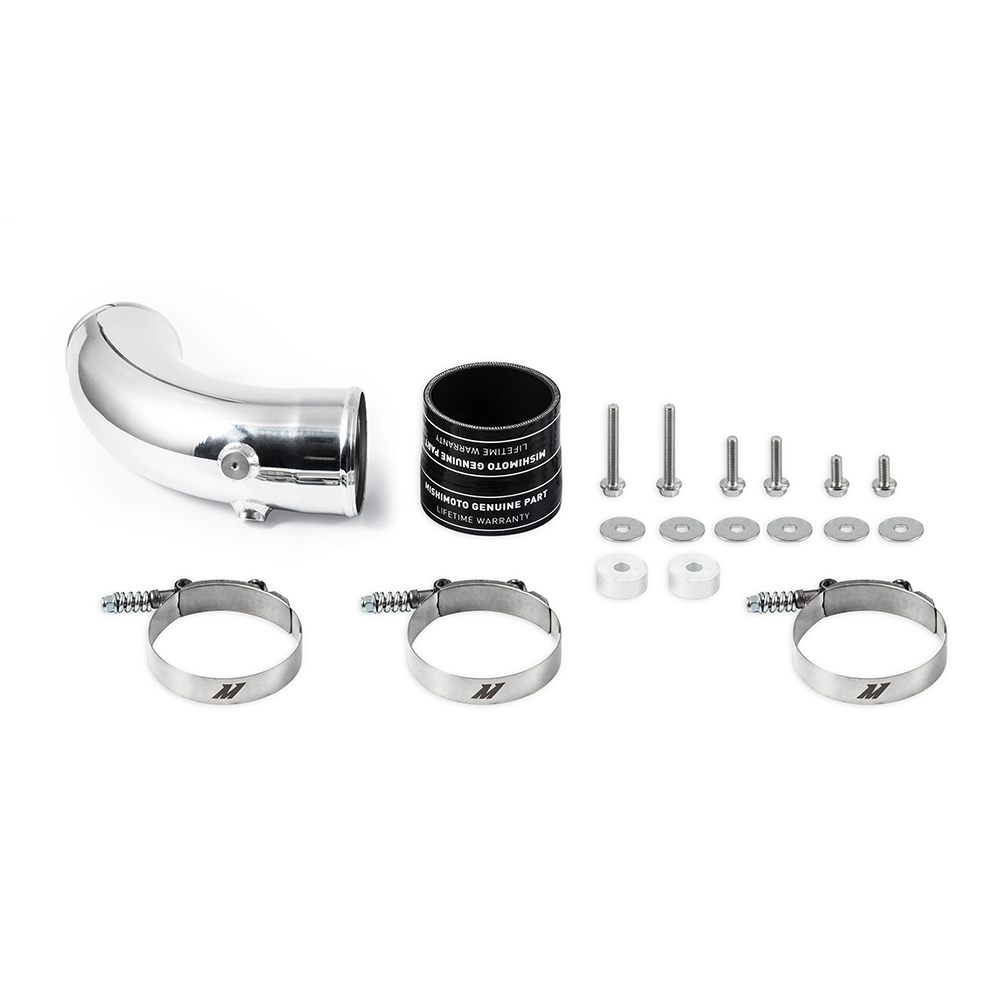

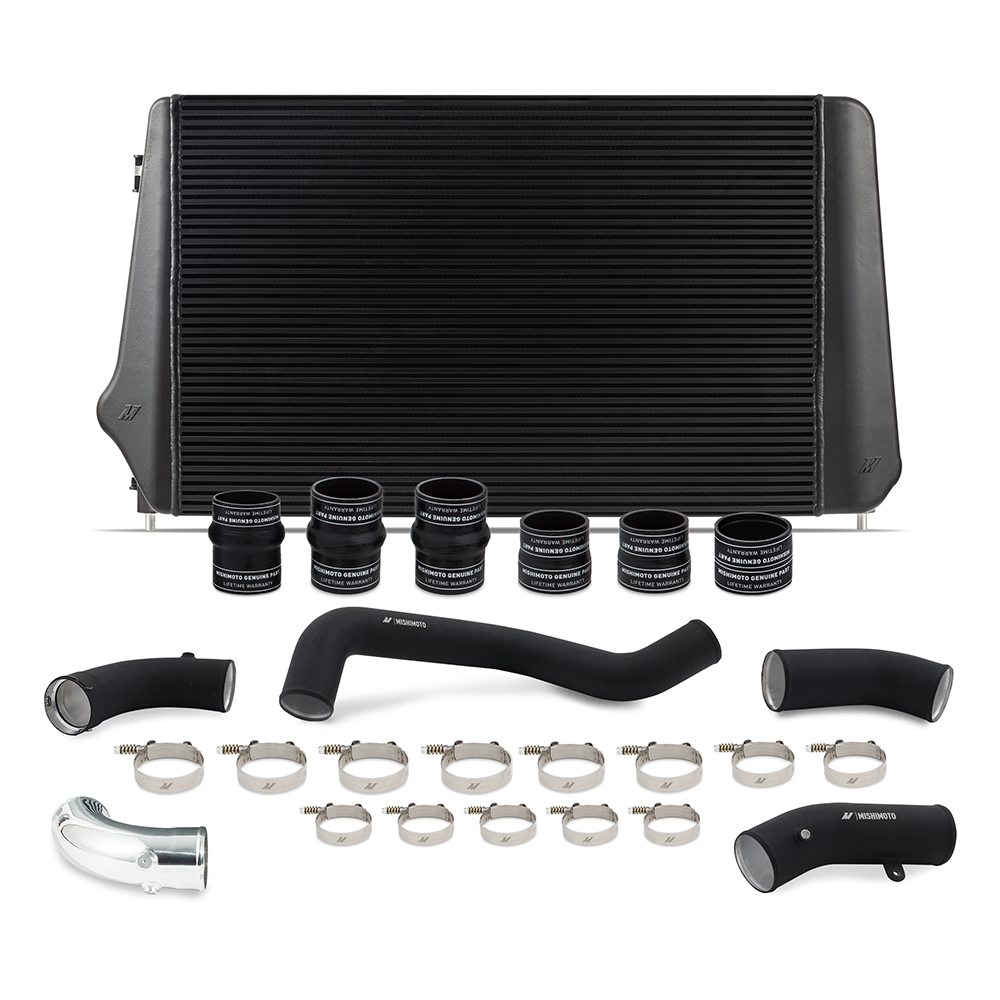

- Kit Includes: (1) Mishimoto Intercooler, (1) Cold-Side Intercooler Pipe Adapter, (2) Cold-Side Intercooler Pipe, (2) Hot-Side Intercooler Pipe, (3) Cold-Side Intercooler Boot, (3) Hot-Side Intercooler Boot, (13) Constant-Tension T-Bolt Clamp, (2) Intercooler Core Spacer, (2) M8 X 1.25 X 20mm Bolt, (2) M8 X 1.25 X 35mm Bolt, (2) M8 X 1.25 X 60mm Bolt, (6) M8 Washer, Mishimoto Lifetime Warranty
- Installation Note: Some trimming of the fan shroud may be required for installation. Recommended clamp torque is 27 in-lbs (3NM) for all T-bolt and constant-tension T-bolt clamps, with an operating range of 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM).
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-DMAX-17KBKBK intercooler kit fit?
This kit is a specific fit for the 2017-2019 Chevrolet Silverado 2500 HD and 3500 HD (WT, LT, LTZ, High Country) and 2017-2019 GMC Sierra 2500 HD and 3500 HD (Base, SLE, SLT, Denali) equipped with the 6.6L Duramax L5P engine on the GMT K2 chassis.
How much thicker is the Mishimoto core compared to the stock L5P intercooler?
The 68mm-thick bar-and-plate core is 70-percent thicker than the factory intercooler.
How much does this intercooler kit reduce restriction versus the stock system?
The larger core and end tanks reduce restriction by up to 64-percent compared to the stock intercooler, while the piping improves flow by up to 55-percent over stock.
What is included in the Mishimoto L5P intercooler kit?
The kit includes the Mishimoto intercooler, cold-side intercooler pipe adapter, cold- and hot-side intercooler pipes, cold- and hot-side intercooler boots, constant-tension T-bolt clamps, intercooler core spacers, mounting bolts and washers, and the Mishimoto Lifetime Warranty.
Is any modification required to install this intercooler kit?
Some trimming of the fan shroud may be required for installation.
What clamp torque is recommended for installation?
A torque of 27 in-lbs (3NM) is recommended for all T-bolt and constant-tension T-bolt clamps, with an operating range of 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM).
