Description
The Mishimoto Performance Intercooler Kit, part number MMINT-CAM4-16KP, is a forced induction upgrade engineered specifically for the LTG-powered 2016-2024 Chevrolet Camaro 2.0T and 2013-2019 Cadillac ATS 2.0T. At its core sits a bar-and-plate constructed aluminum intercooler with cast end tanks, delivering a 45-percent increase in internal core volume, a 239-percent gain in external fin surface area, and a 78-percent increase in overall core size compared to the factory unit. This is not a generic induction system piece — it is a specific-fit replacement built around the LTG chassis code Alpha platform.
As a dedicated forced induction component, this kit is designed to keep charged air as cool as possible before it reaches the engine, improving heat rejection and airflow over the stock intercooler. The included mandrel-bent aluminum piping, ranging from 2.25 to 2.75 inches in diameter, adds 30-percent greater internal volume and a 10-percent increase in flow versus the factory piping. Together, the upgraded core and induction piping are rated to add up to 11 additional horsepower and 9 ft-lbs of torque on an LTG-powered Camaro or ATS, giving enthusiasts a meaningful step up in performance induction hardware without sacrificing the factory quick-disconnect convenience.
Vehicle Applications
This Mishimoto intercooler kit is a specific fit for the LTG-equipped Chevrolet Camaro and Cadillac ATS. On the Camaro side, it covers the 2017-2023 Camaro LS and 2016-2023 Camaro LT. On the Cadillac side, coverage includes the 2013-2019 ATS Base, 2013-2019 ATS Luxury, 2018-2019 ATS Coupe, 2013-2017 ATS Performance, 2013-2016 ATS Premium, 2017 ATS Premium Performance, 2013-2014 ATS Premium Sport, and the 2018 ATS Sedan. All of these applications share the LTG engine and Alpha chassis code that this kit is engineered around.
Features
- Bar-and-plate aluminum core construction with cast aluminum end tanks and an internal air diverter for optimal airflow
- 45-percent increase in internal core volume and 239-percent increase in external fin surface area versus the stock intercooler
- 78-percent increase in overall core size
- Mandrel-bent aluminum piping in 2.25-2.75-inch diameters, adding 30-percent greater internal volume and 10-percent more flow than stock
- Pre-welded NPT port on the cold-side piping for easy installation of a boost gauge or meth-injection system
- Utilizes factory quick-disconnect fittings for straightforward installation
- Piping available in polished or wrinkle black finishes with black silicone couplers and included hose clamps

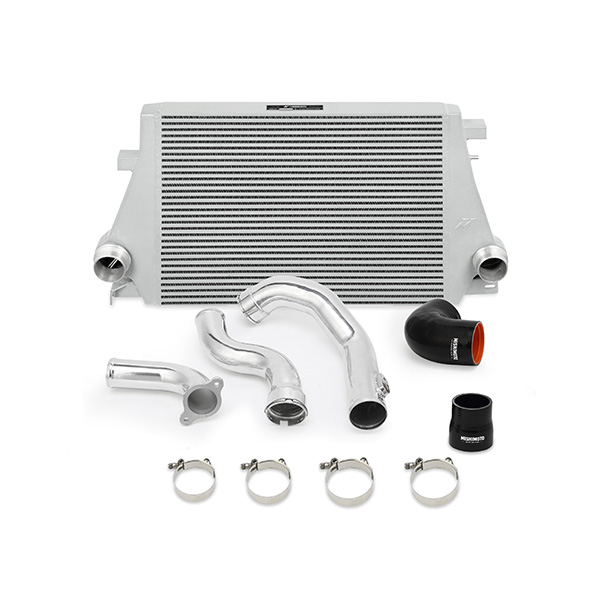

- Kit includes the aluminum intercooler, aluminum piping with CNC-machined quick-disconnects, a CNC-machined 2-bolt flange pipe, quick-disconnect spring clips, silicone couplers, T-bolt clamps, and tree clips
- Installation requires transferring the O-ring from the stock intercooler pipe into the correct orientation on the Mishimoto pipe; an installation video is available for reference
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-CAM4-16KP
- Product Type: Forced Induction
- Core Material: Aluminum
- Core Color: Silver
- Core Construction: Bar-and-Plate
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Inlet Diameter: 2.4 in
- Outlet Diameter: 2.4 in
- Hot Side Pipe Inside Diameter: 2.4 in
- Cold Side Pipe Inside Diameter: 2.4 in
- Pipe Material: Aluminum
- Pipe Finish: Powder Coated
- Pipe Color: Polished (option available)
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Engine Code: LTG
- Chassis Code: Alpha
- Maximum Horsepower / Maximum Recommended Horsepower: 450
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-CAM4-16KP intercooler kit fit?
It is a specific fit for the 2017-2023 Chevrolet Camaro LS, 2016-2023 Camaro LT, 2013-2019 Cadillac ATS Base, 2013-2019 ATS Luxury, 2018-2019 ATS Coupe, 2013-2017 ATS Performance, 2013-2016 ATS Premium, 2017 ATS Premium Performance, 2013-2014 ATS Premium Sport, and 2018 ATS Sedan, all sharing the LTG engine and Alpha chassis code.
What is the core construction of this intercooler?
It uses a bar-and-plate constructed aluminum core with cast aluminum end tanks featuring an internal air diverter.
How much power can this kit add?
The complete kit is rated to add up to 11 additional horsepower and 9 ft-lbs of torque on an LTG-powered Camaro or ATS.
What does the kit include?
It includes the aluminum intercooler, aluminum piping with CNC-machined quick-disconnects, a CNC-machined 2-bolt flange pipe, quick-disconnect spring clips, silicone couplers, T-bolt clamps, tree clips, and the Mishimoto Lifetime Warranty.
What piping color options are available?
The piping is available in polished or wrinkle black finishes.
What is the maximum recommended horsepower for this intercooler?
The maximum recommended horsepower is 450.
