Description

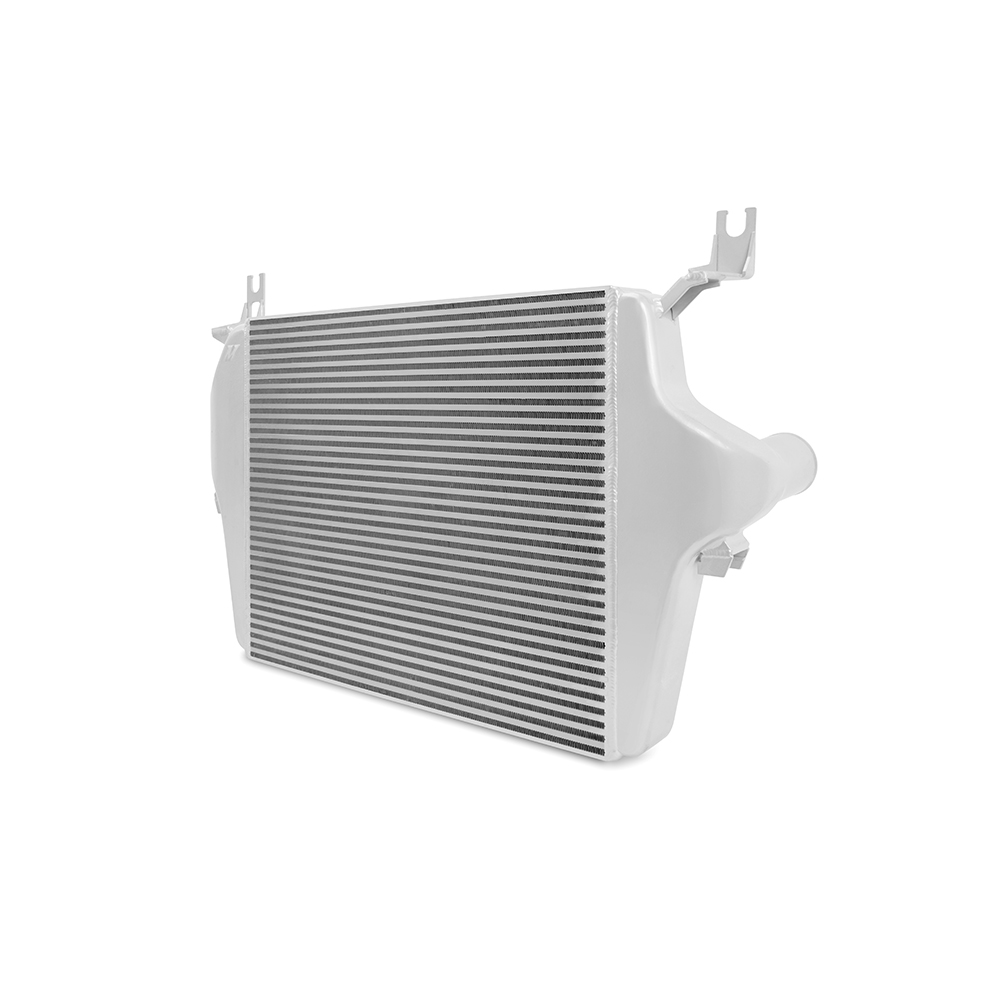

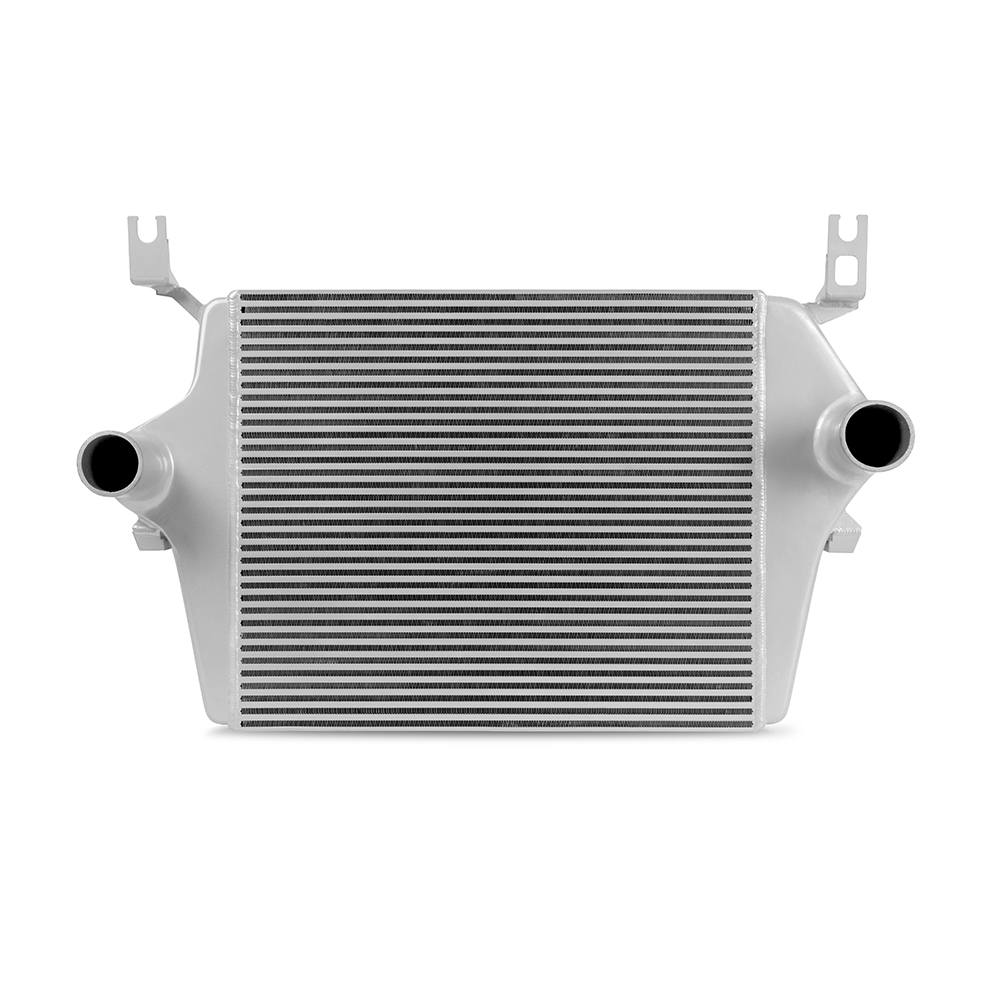

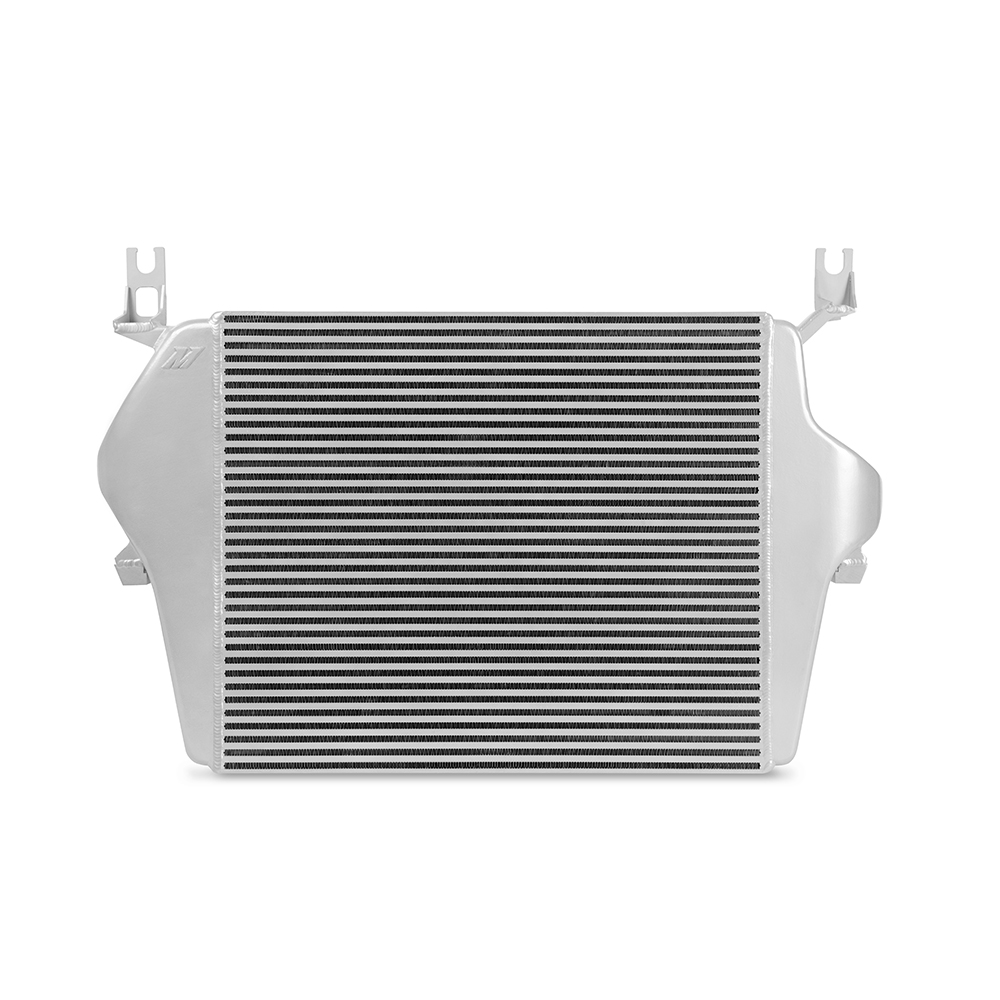

The Mishimoto Performance Intercooler Kit, part number MMINT-F2D-99KSLBK, upgrades the factory forced induction system on 1999-2003 Ford F-Series 7.3L Powerstroke trucks with a complete stock-replacement solution. This configuration pairs the proven 6.0L Powerstroke bar-and-plate intercooler core — now repurposed for 7.3L applications — with a Sleek Silver core, wrinkle-black powder-coated aluminum piping, and custom Mishimoto DuraCore silicone boots built specifically for the 7.3L conversion.
As a purpose-built forced induction upgrade, this kit lowers air charge temperatures and reduces EGTs to support reliable performance at any power level. The bar-and-plate core delivers a 32.5% increase in core volume over the stock 7.3L intercooler, with a 3.35-inch core that is 33% thicker than factory for a genuine gain in cooling capacity without adding unnecessary pressure drop. Strategically designed cast aluminum end tanks optimize airflow through the core, while the improved induction system reduces turbo stress and helps extend engine life by keeping intake air denser and cooler. Mishimoto’s DuraCore silicone boots resist heat, pressure, fuel, and oil better than standard silicone, guarding against leaks and blowouts, and the included constant-tension T-bolt clamps keep every connection secure through repeated heat cycles.
Vehicle Applications
This specific-fit intercooler kit is engineered for 1999-2003 Ford F-250 Super Duty (Lariat, XL, and XLT), 1999-2003 Ford F-350 Super Duty (Lariat, XL, and XLT, plus the 2003 King Ranch), 1999-2003 Ford F-450 Super Duty (Lariat, XL, and XLT, plus the 2003 Base), and Ford F-550 Super Duty Lariat, XL, and XLT from 1999-2003 along with the 2001-2003 F-550 Super Duty Base. It also fits the Ford Excursion, covering the 2000-2003 Limited and XLT along with the 2003 Eddie Bauer.
Features
- Reduces turbo stress and extends engine life
- Provides improved airflow and lowers intake air temperatures
- Utilizes the proven 6.0L Powerstroke bar-and-plate intercooler core, repurposed for 7.3L applications
- Includes hot-side and cold-side intercooler pipes with custom 7.3L-specific boots
- Custom mounting spacers and additional hardware included for secure installation
- 3.35-inch bar-and-plate core is 33% thicker than factory
- Available in Sleek Silver and Stealth Black cores

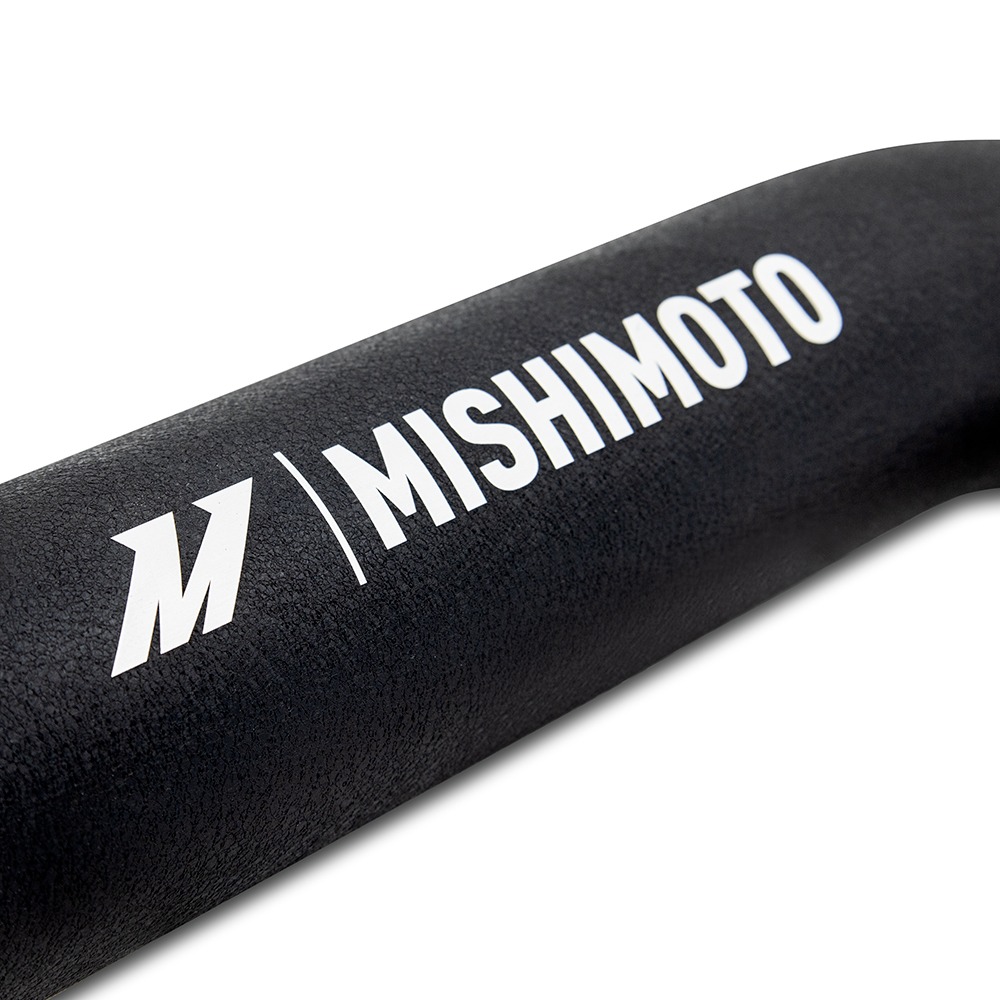

- 3-inch mandrel-bent aluminum pipes available in polished or wrinkle-black finish
- 32.5% increase in core volume over the stock 7.3L intercooler
- End tanks strategically designed for optimal airflow

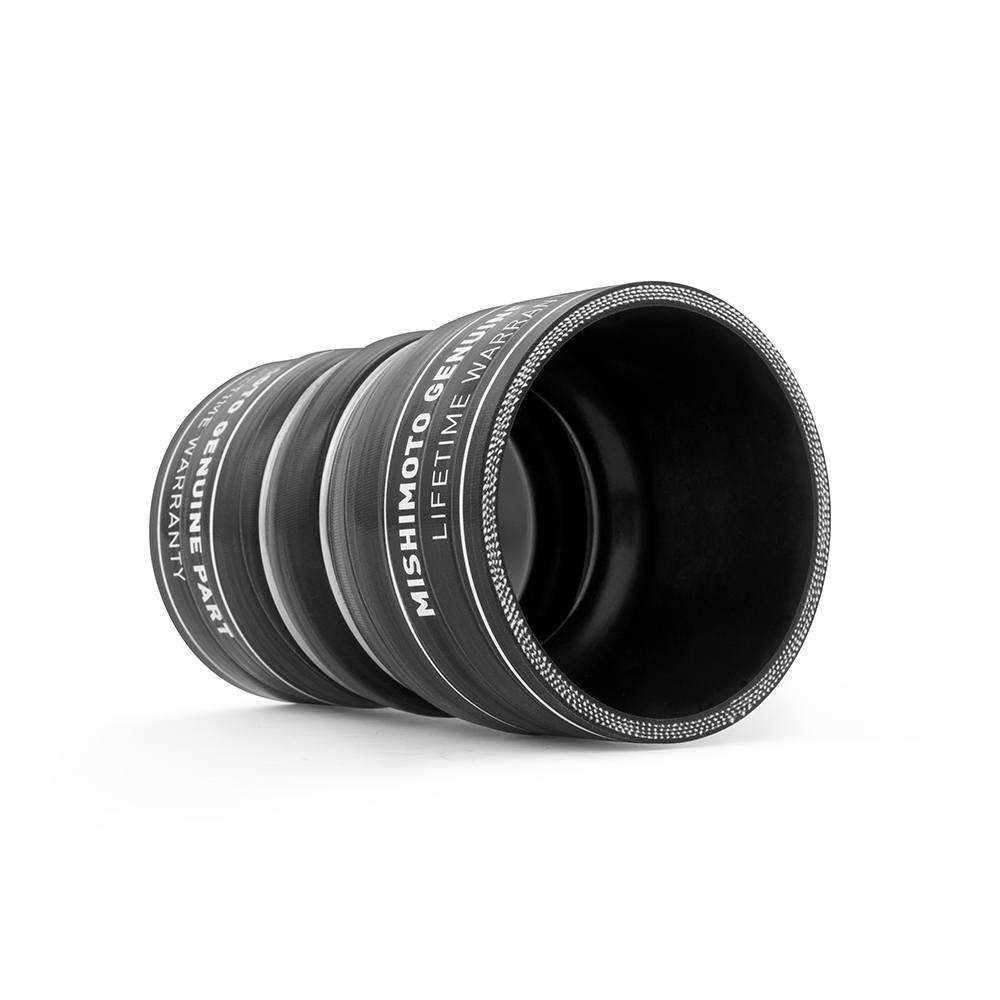

- Includes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant-Tension T-bolt Clamps
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Color: Silver
- End Tank Material: Aluminum (Cast construction)
- Intercooler Type: Air-to-Air
- Inlet Diameter / Hot Side Pipe Inside Diameter: 3.25 in
- Pipe Material: Aluminum
- Pipe Color/Finish: Black, Powder Coated (wrinkle-black)
- Coupler Material: Silicone (DuraCore technology)
- Coupler Color: Black
- Hose Clamps Included: Yes (Constant-Tension T-bolt Clamps)
- Grade Type: Performance
- Fit Type: Specific
- Overall Width: 7.5 in
- Overall Height: 25.2 in
- Overall Length: 38.5 in

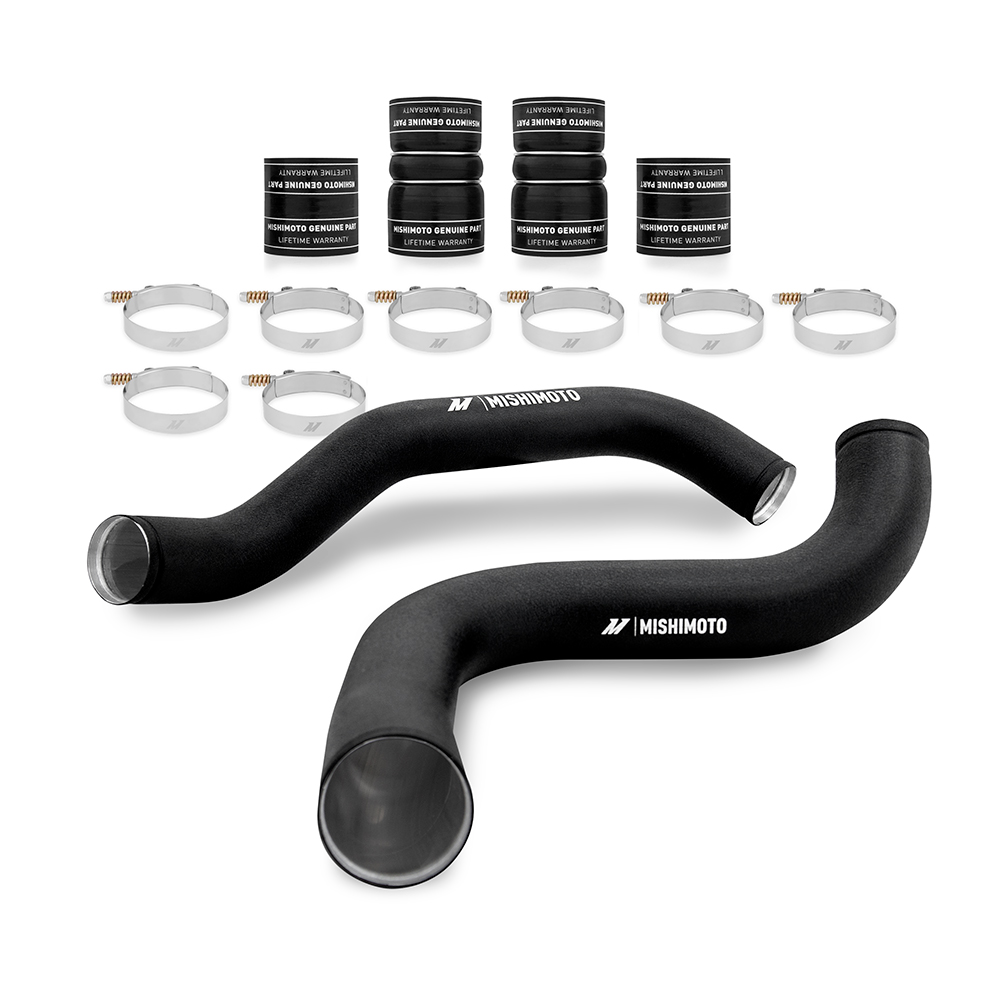

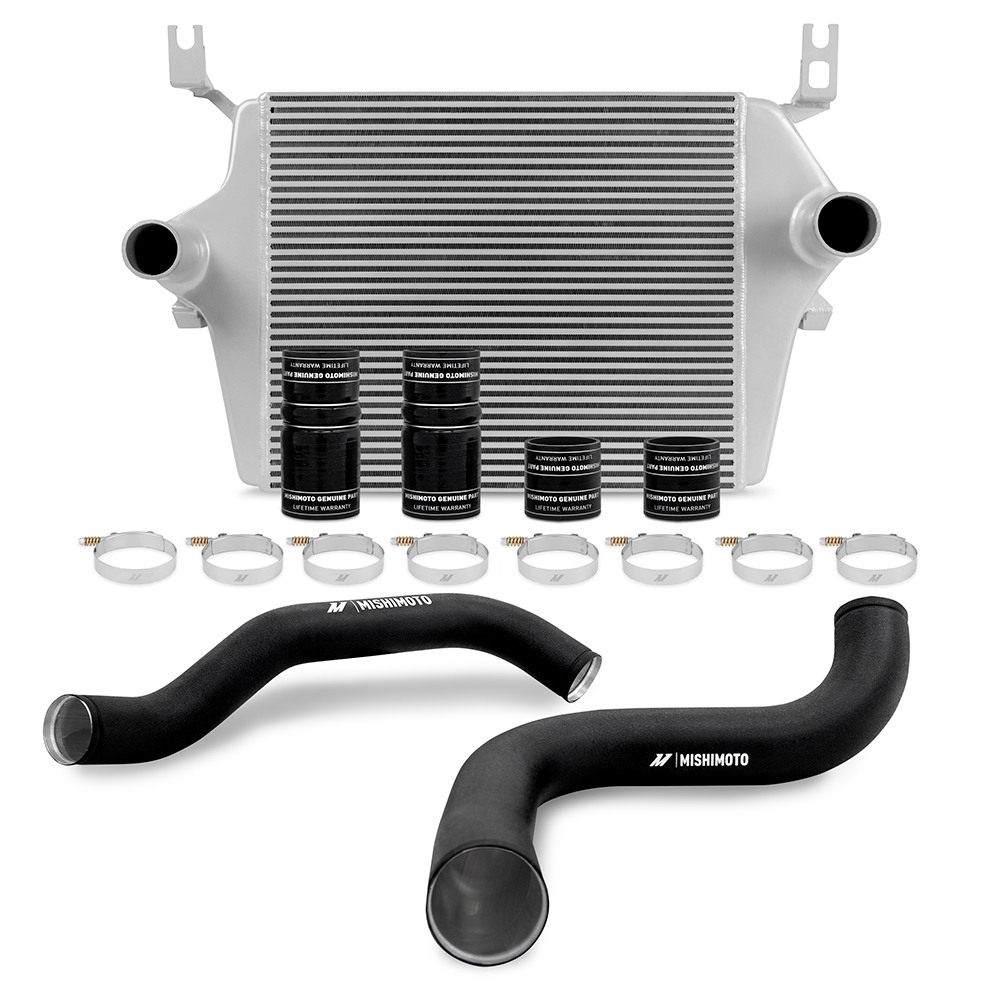

- Kit Includes: (1) Intercooler, (1) Intercooler Pipe Set, (4) Silicone Boots with DuraCore, (7) 3.5-in Constant-Tension T-bolt Clamps, (1) 3.75-in Constant-Tension T-bolt Clamp, Mishimoto Lifetime Warranty
- Installation Torque: 27 in-lbs (3NM) recommended for T-bolt and constant-tension T-bolt clamps (operating range 18-35 in-lbs / 2-4NM; do not exceed 35 in-lbs / 4NM)
Frequently Asked Questions
What vehicles does this Mishimoto intercooler kit fit?
It fits 1999-2003 Ford F-250, F-350, F-450, and F-550 Super Duty trucks (Lariat, XL, and XLT trims, plus the 2003 F-350 King Ranch and 2003 F-450 Base), 2001-2003 F-550 Base, and the 2000-2003 Ford Excursion Limited and XLT along with the 2003 Excursion Eddie Bauer.
What does the kit include?
The kit includes (1) intercooler, (1) intercooler pipe set, (4) silicone boots with DuraCore technology, (7) 3.5-inch constant-tension T-bolt clamps, (1) 3.75-inch constant-tension T-bolt clamp, and the Mishimoto Lifetime Warranty.
What core design does this intercooler use?
It uses an aluminum bar-and-plate core with cast aluminum end tanks in an air-to-air design, delivering a 32.5% increase in core volume over the stock 7.3L intercooler with a core that is 33% thicker than factory.
What color is this specific kit?
This configuration (MMINT-F2D-99KSLBK) features a Sleek Silver intercooler core paired with wrinkle-black powder-coated aluminum piping; the intercooler is also available in Stealth Black.
What torque should I use when installing the clamps?
Mishimoto recommends 27 in-lbs (3NM) for all T-bolt and constant-tension T-bolt clamps, which have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Is this intercooler kit covered by a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
