Description
The Mishimoto Performance Intercooler Kit (MMINT-FOST-13KPSL) is a direct-fit upgrade built specifically for the 2013-2018 Ford Focus ST’s 2.0T EcoBoost forced induction system, replacing the factory hot-side pipe and restrictive intercooler with a silver bar-and-plate core and polished, mandrel-bent aluminum piping. Ford’s own intercooling setup left performance on the table thanks to a narrow hot-side diameter and a turbo muffler, and this kit was engineered specifically to correct both.
By ditching the factory muffler and opening up the hot-side pipe diameter, this Mishimoto forced induction upgrade delivers a 26-percent greater flow through the hot side and a 14-percent increase in pipe volume, while the redesigned cold-side pipe adds a 40-percent flow increase and 10-percent more volume than stock. Wire-reinforced silicone couplers replace degradation-prone rubber for a long-lasting seal, and the bar-and-plate core construction increases core size by 128 percent and fin surface area by 32 percent versus the factory unit, improving heat dissipation and staving off heat soak so the induction system delivers properly cooled, denser air to the intake manifold. Combined with other Mishimoto Focus ST parts, this intercooler kit contributes 8 HP and 10 lb.-ft. of torque gains and carries a maximum horsepower rating of 550 HP, making it a serious step up for a forced induction turbo application without sacrificing daily drivability.
Vehicle Applications
This Mishimoto intercooler kit is a specific fit for the 2013-2018 Ford Focus ST (chassis code C346) and was designed to bolt in without any modification to the front bumper, retaining the stock fog lights for a clean, factory-look installation.
Features
- Direct fit for the 2013-2018 Ford Focus ST
- 4.3-in thick intercooler core design optimized for maximum flow with minimal pressure drop
- Bar-and-plate core construction increases core size by 128-percent and fin surface area by 32-percent over stock
- Mandrel-bent aluminum hot-side pipe delivers a 14-percent increase in volume and 26-percent greater flow than stock
- Redesigned cold-side pipe delivers a 10-percent increase in volume and 40-percent increase in flow over stock

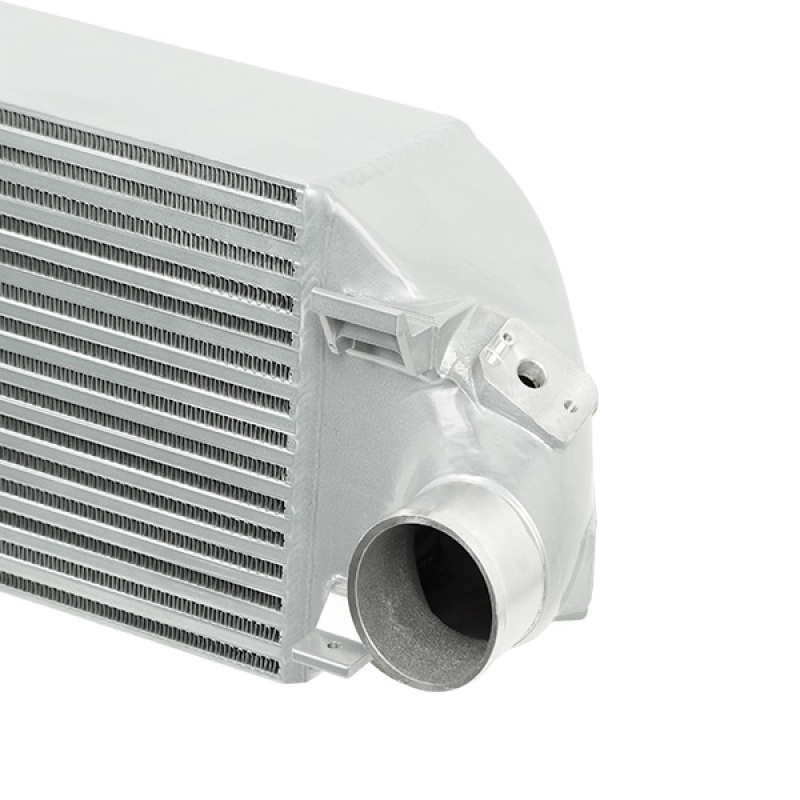

- Elliptical cold-side pipe shape accommodates a larger Mishimoto radiator
- CNC-machined ribbed inlet and outlet for secure coupler connections
- Wire-reinforced silicone couplers replace factory rubber for a long-lasting hot-side and cold-side connection
- Provision for both US and Euro MAP sensor
- No modification to front bumper required; retains stock fog lights
- Pipes available in polished or wrinkle black powder-coating
- Adds 8 HP and 10 lb.-ft. of torque when combined with other Mishimoto Focus ST parts; maximum horsepower rating of 550 HP

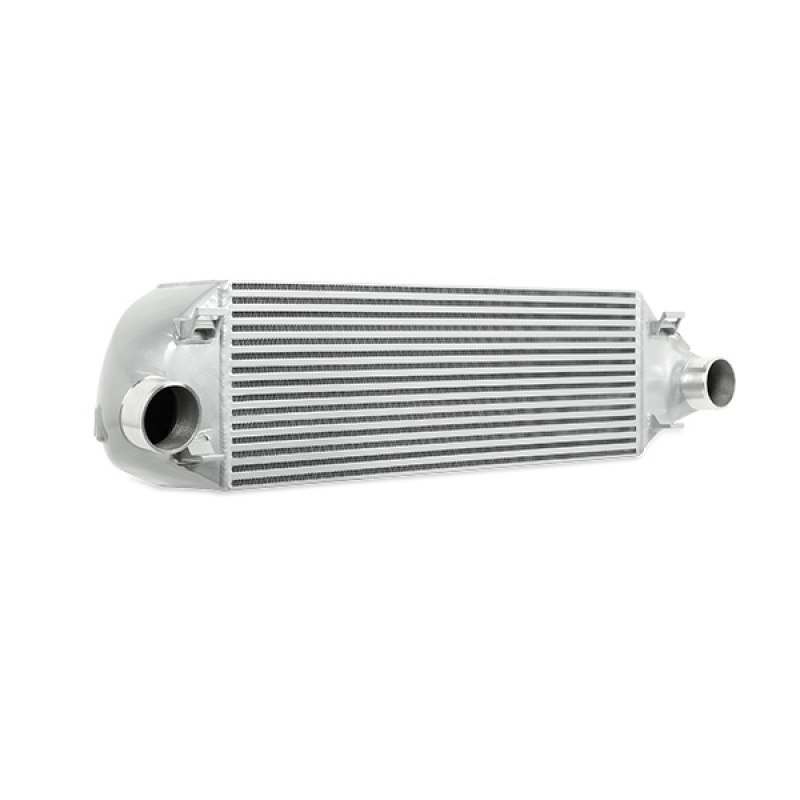

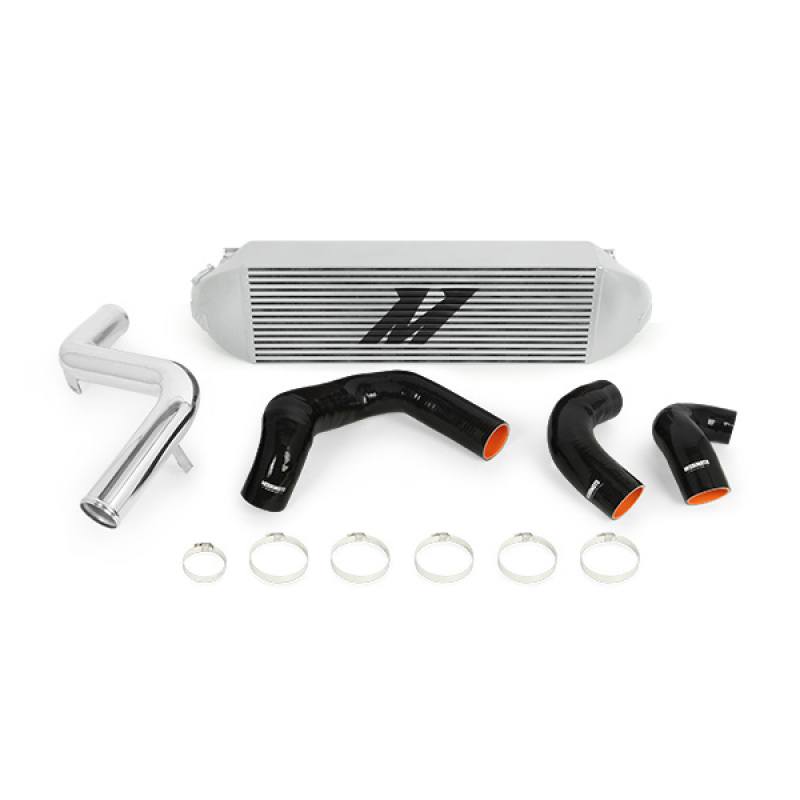

- Includes (1) Mishimoto intercooler, (1) aluminum intercooler pipe, (2) silicone couplers, (1) silicone pipe, and (6) high-torque worm gear clamps

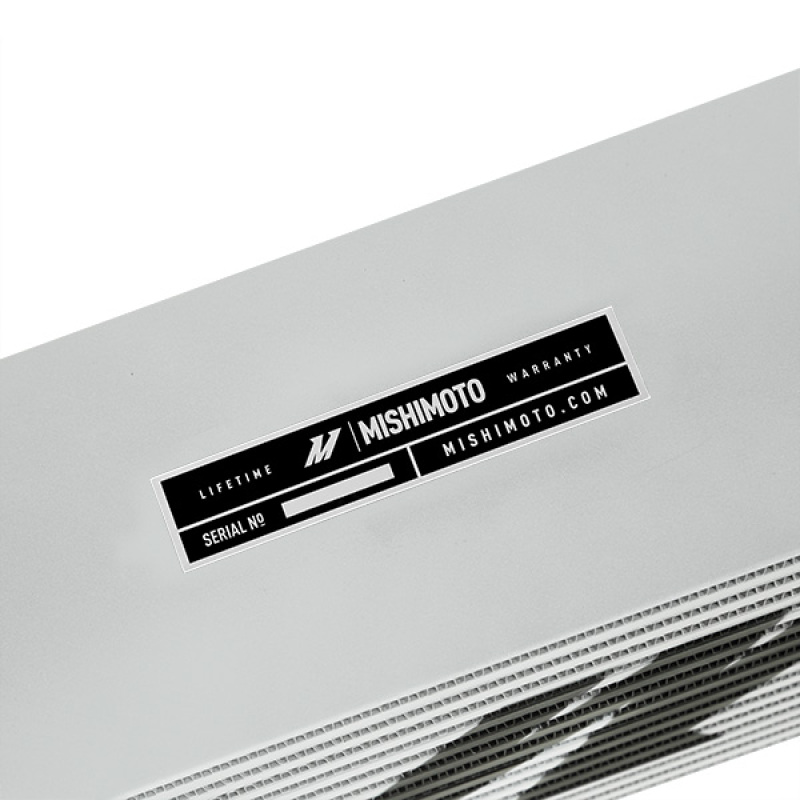

- Covered under the Mishimoto Lifetime Warranty
Specifications

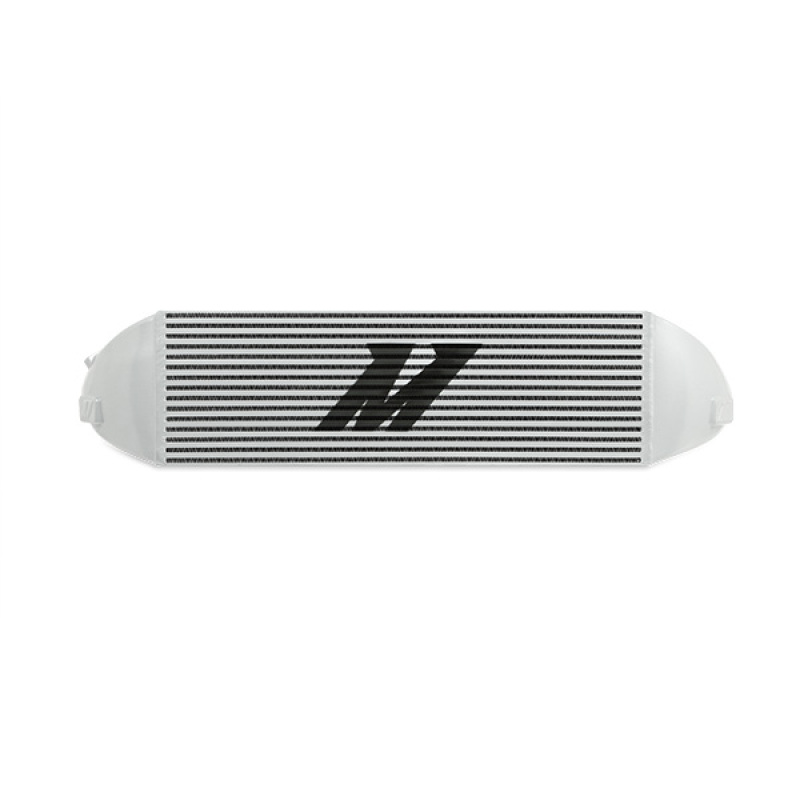

- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Color: Silver
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Pipe Material: Aluminum
- Pipe Color: Polished
- Pipe Finish: Powder Coated
- Inlet Diameter: 2.5 in
- Outlet Diameter: 2.5 in
- Hot Side Pipe Inside Diameter: 2.5 in
- Cold Side Pipe Inside Diameter: 2.5 in
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Maximum Horsepower: 550 HP
- Overall Width: 7.25 in
- Overall Height: 8.3 in
- Overall Length: 35.7 in
- Weight: 30 lbs
- CARB EO Number: D-759-6
- Chassis Codes: C346
- Applications: Ford Focus ST, 2013-2018
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-FOST-13KPSL intercooler kit fit?
This kit is a specific fit for the 2013-2018 Ford Focus ST (chassis code C346).
Does installing this intercooler kit require modifying the front bumper?
No. The kit requires no modification to the front bumper and retains the stock fog lights.
How much power does the Mishimoto Performance Intercooler Kit add?
When combined with other Mishimoto Focus ST parts, the kit contributes 8 HP and 10 lb.-ft. of torque, and it carries a maximum horsepower rating of 550 HP.
What is included in the kit?
The kit includes (1) Mishimoto intercooler, (1) aluminum intercooler pipe, (2) silicone couplers, (1) silicone pipe, and (6) high-torque worm gear clamps, along with the Mishimoto Lifetime Warranty.
What core and pipe construction does this intercooler use?
It uses a bar-and-plate aluminum core with cast aluminum end tanks and mandrel-bent aluminum piping, connected with wire-reinforced silicone couplers.
What clamp torque is recommended for installation?
A torque of 22 in-lbs (2.5NM) is recommended for all worm gear clamps, which have an operating range of 18-27 in-lbs (2-3NM); do not exceed the maximum rating of 27 in-lbs (3NM).
