Description

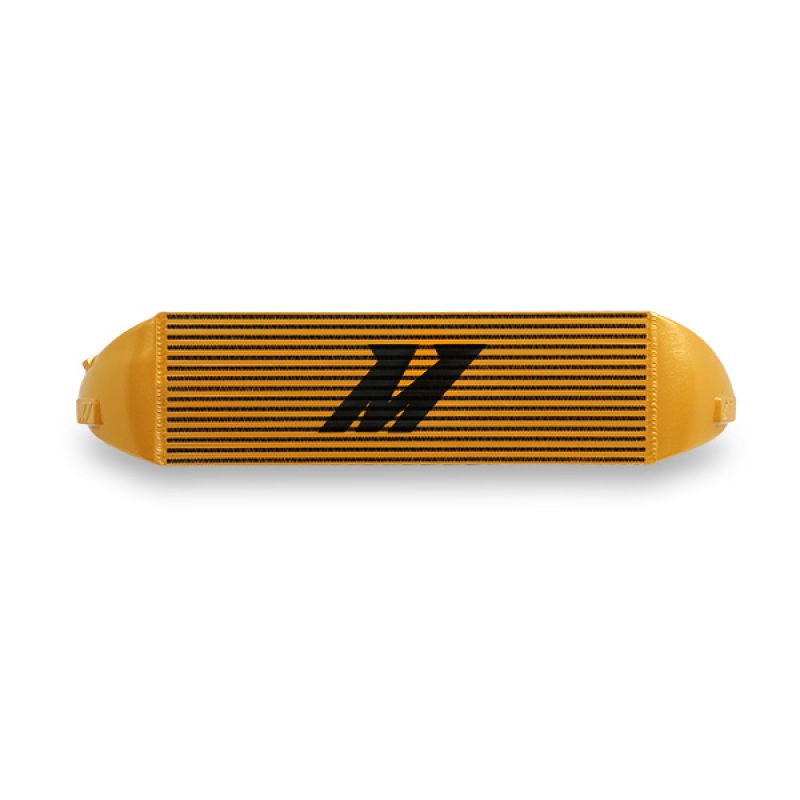

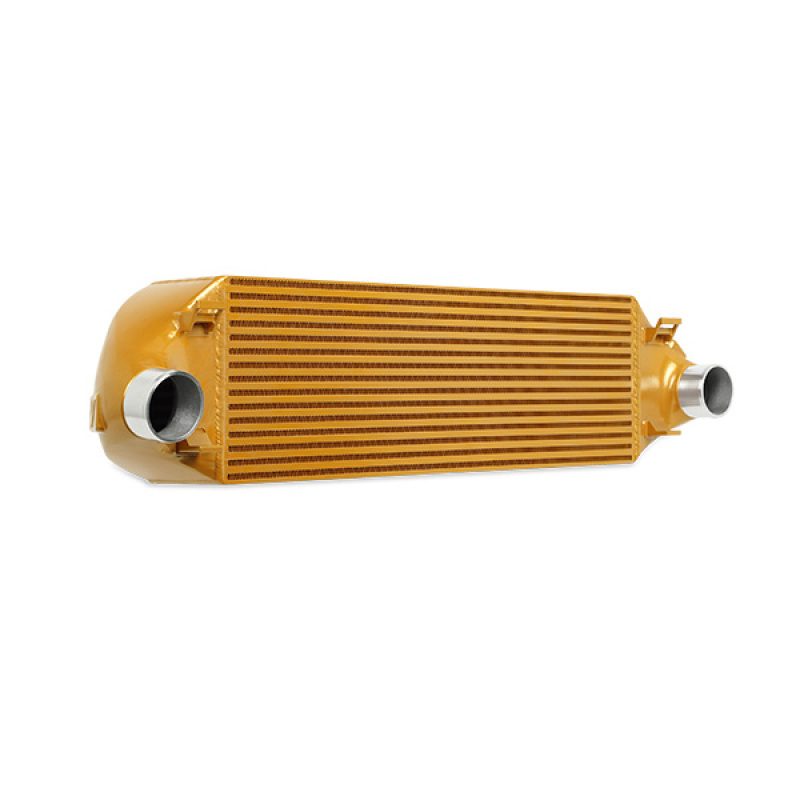

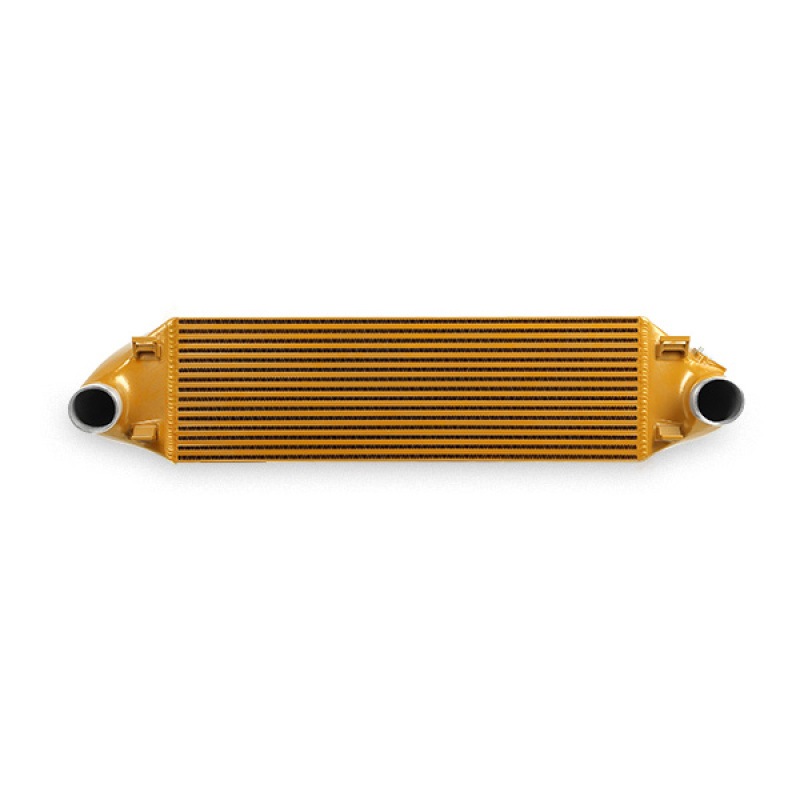

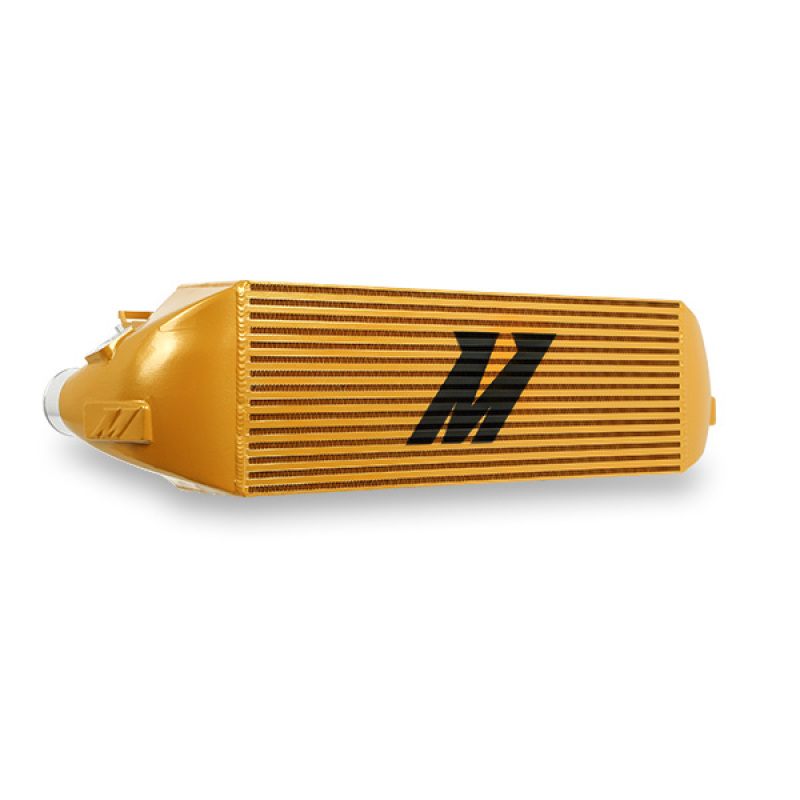

The Mishimoto Performance Intercooler Kit (MPN MMINT-FOST-13KPGD) is purpose-built for the 2013-2018 Ford Focus ST and its 2.0T EcoBoost engine, and this configuration pairs a gold bar-and-plate core with polished aluminum piping and black silicone couplers. Mishimoto engineered this forced induction upgrade to replace the factory intercooler system’s restrictive hot-side pipe and turbo muffler, delivering a 26-percent improvement in hot-side flow and a 21-percent increase in flow to and from the intercooler itself.
As a dedicated induction system upgrade, this kit tackles the Focus ST’s biggest intercooling weak points: an undersized, muffled hot-side pipe and degradation-prone rubber connections. Mishimoto’s mandrel-bent aluminum piping opens up the diameter for smoother forced induction flow, while wire-reinforced silicone replaces the factory rubber for a longer-lasting, leak-resistant seal on both the hot and cold sides. The bar-and-plate core construction opens additional air channels compared to the stock core, letting charged air move through more freely, while the all-aluminum build helps dissipate heat and stave off heat soak during demanding driving. The result is properly cooled, denser air reaching the ST’s intake manifold, along with up to 8 HP and 10 TQ when paired with other Mishimoto Focus ST components, and a maximum horsepower rating of 550HP for this performance induction kit.
Vehicle Applications
This Mishimoto intercooler kit is a specific, direct fit for the 2013-2018 Ford Focus ST (chassis code C346) — no other vehicles or model years are covered by this application.
Features
- Mandrel-bent aluminum hot-side pipe eliminates the factory turbo muffler and opens up the diameter for a 26-percent increase in flow
- Wire-reinforced silicone replaces degradation-prone factory rubber for a longer-lasting, smoother-flowing connection
- Bar-and-plate core construction opens additional air channels for improved charge-air flow versus the stock intercooler core

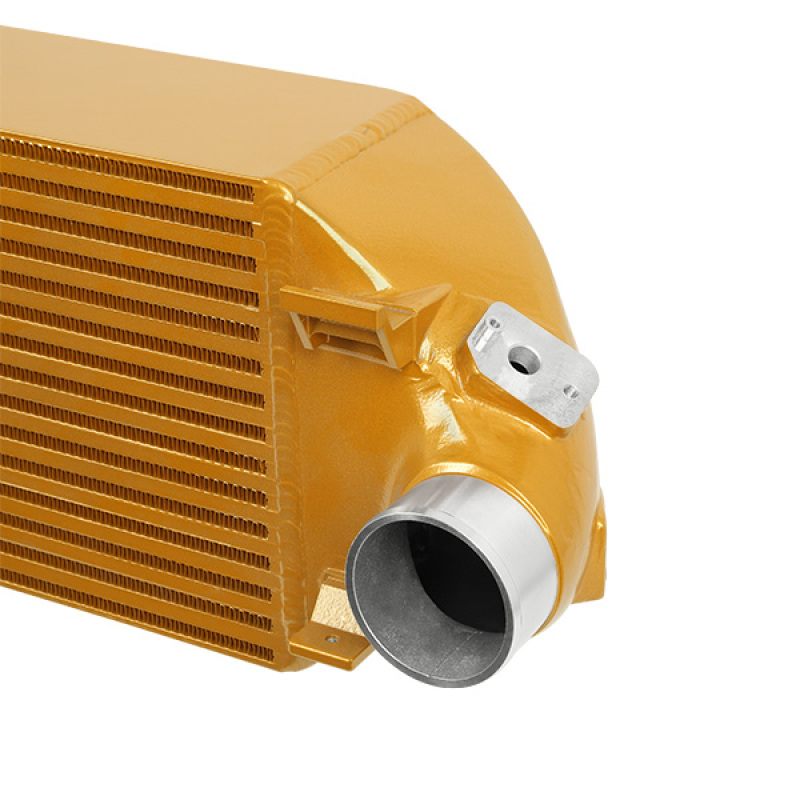

- All-aluminum core and cast end tank construction aid heat dissipation and help ward off heat soak
- CNC-machined ribbed inlet and outlet for secure coupler connections
- Elliptical-shaped cold-side pipe accommodates a larger Mishimoto radiator
- Provision for both US and Euro MAP sensor
- No modification to the front bumper required; retains stock fog lights
- Pipes available in polished or wrinkle black powder-coating; core offered in silver, black, or gold

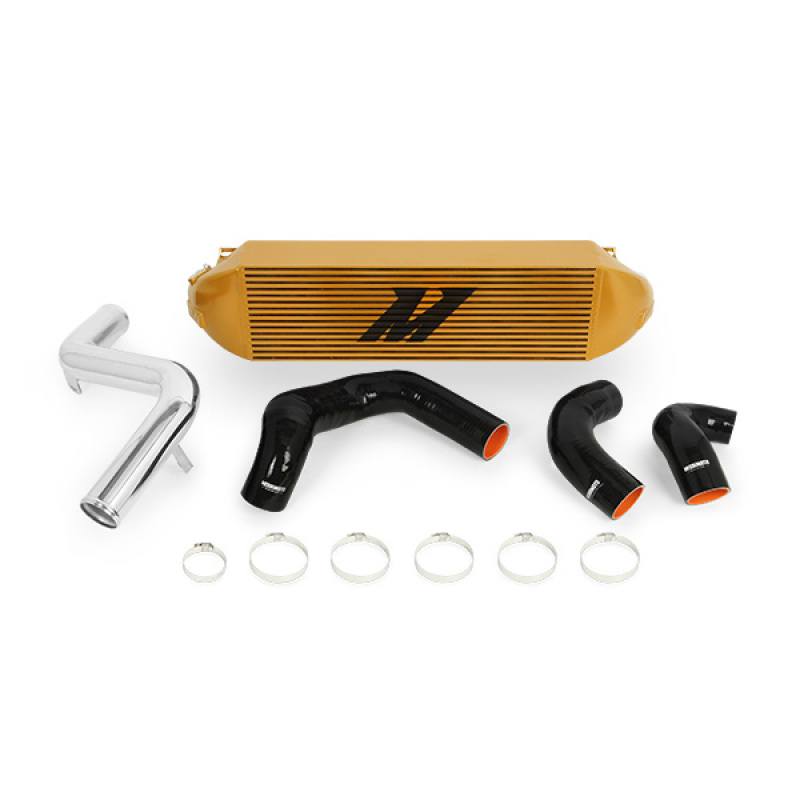

- Includes (1) Mishimoto intercooler, (1) aluminum intercooler pipe, (2) silicone couplers, (1) silicone pipe, and (6) high-torque worm gear clamps

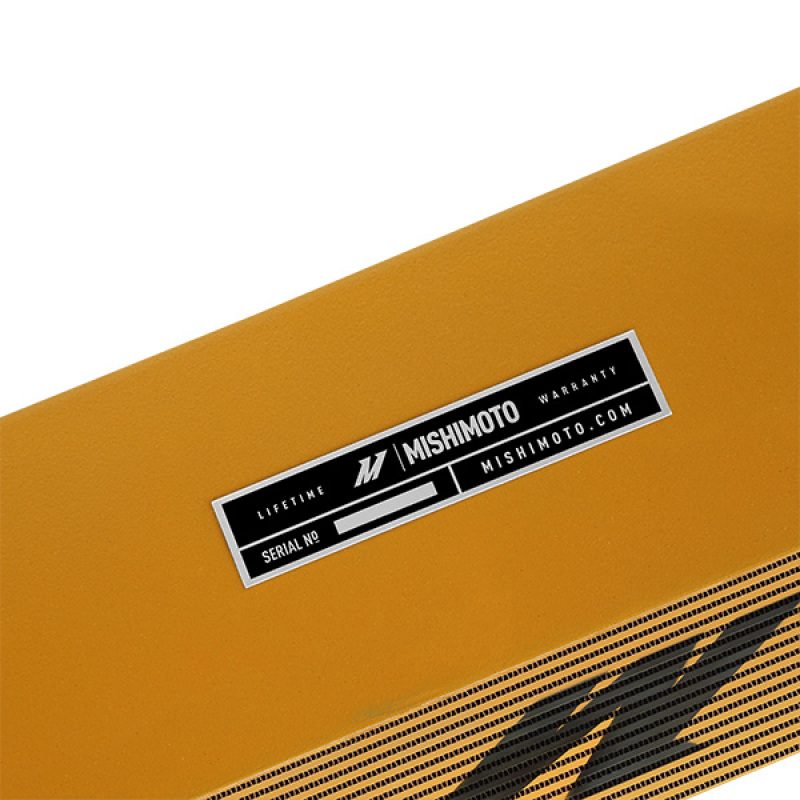

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Core Color (this kit): Gold
- Pipe Material: Aluminum
- Pipe Color: Polished
- Coupler Material: Silicone
- Coupler Color: Black
- Inlet Diameter: 2.5 in
- Outlet Diameter: 2.5 in
- Hot Side Pipe Inside Diameter: 2.5 in
- Cold Side Pipe Inside Diameter: 2.5 in
- Overall Length: 35.7 in
- Overall Width: 7.25 in
- Overall Height: 8.3 in
- Weight: 30 lbs
- Maximum Horsepower Rating: 550 HP
- CARB EO Number: D-759-6
- Chassis Code: C346
- Grade Type: Performance
- Fit Type: Specific
Frequently Asked Questions
What vehicles fit the Mishimoto MMINT-FOST-13KPGD intercooler kit?
This kit is a direct, specific fit for the 2013-2018 Ford Focus ST.
How much power does this intercooler kit add?
When combined with other Mishimoto Focus ST parts, it can add up to 8 HP and 10 lb.-ft. of torque.
What is the maximum horsepower rating for this kit?
The Mishimoto Focus ST Performance Intercooler Kit carries a maximum horsepower rating of 550HP.
What’s included in the box?
The kit includes one Mishimoto intercooler, one aluminum intercooler pipe, two silicone couplers, one silicone pipe, six high-torque worm gear clamps, and coverage under the Mishimoto Lifetime Warranty.
Does installation require modifying the front bumper?
No, the kit requires no modification to the front bumper and retains the stock fog lights.
What color options are available for this intercooler kit?
The core is available in silver, black, or gold, and the piping is offered in polished or wrinkle black powder-coating; this particular kit features a gold core with polished piping.
