Description
The Mishimoto Performance Intercooler Kit (MMINT-FOST-13KBSL) was engineered specifically to solve the restrictive intercooling setup on the 2013-2018 Ford Focus ST’s 2.0T EcoBoost engine. This kit replaces the factory hot-side pipe with mandrel-bent aluminum, deletes the turbo muffler, and opens up the piping diameter for a 26-percent improvement in hot-side flow, while a redesigned bar-and-plate core boosts overall intercooler efficiency.
As a purpose-built forced induction upgrade, this Mishimoto kit reworks every stage of the Focus ST’s induction system. The bar-and-plate core construction opens up internal air channels so charged air moves through more freely than the stock core allows, while the all-aluminum build helps dissipate heat and stave off heat soak during demanding driving. Wire-reinforced silicone couplers replace the factory’s degradation-prone rubber, smoothing flow through the cold-side pipe and sealing the hot-side connection for the long haul. Together, the reworked piping delivers a 21-percent increase in flow to and from the intercooler, making this one of the more thorough performance induction upgrades available for this platform, and when paired with other Mishimoto Focus ST parts it contributes 8 HP and 10 lb-ft of additional torque.
Vehicle Applications
This Mishimoto Performance Intercooler Kit is a direct, specific fit for the 2013-2018 Ford Focus ST (chassis code C346). No other vehicles, model years, or trims are covered by this kit.
Features
- Direct fit for the 2013-2018 Ford Focus ST
- 4.3-inch thick intercooler core design optimized for maximum flow
- Bar-and-plate core construction for maximum cooling efficiency with minimal pressure drop

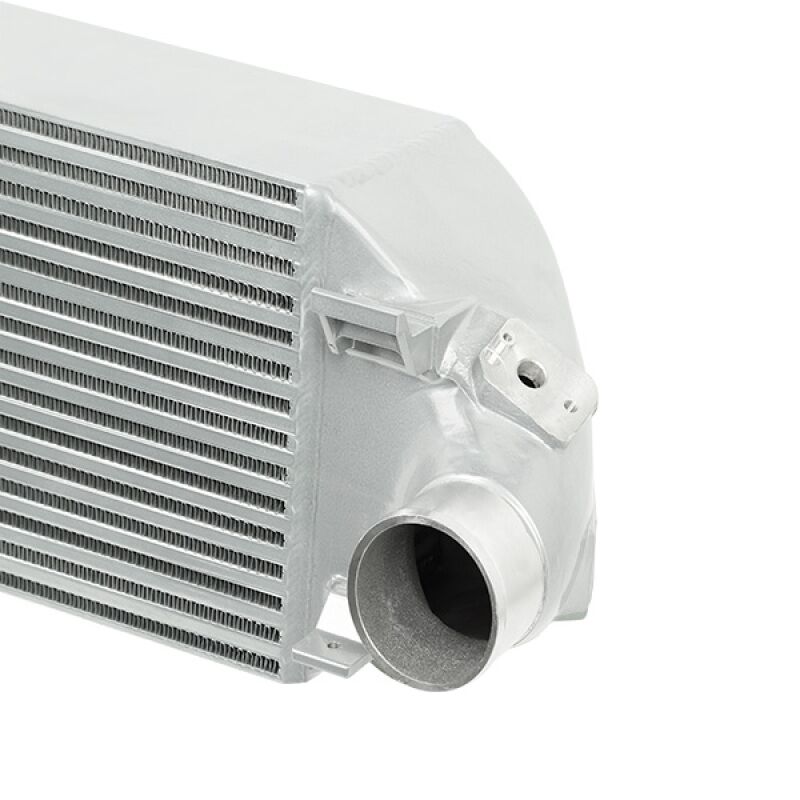

- CNC-machined ribbed inlet and outlet for secure coupler connections
- Increases core size by 128-percent and fin surface area by 32-percent over stock
- Mandrel-bent aluminum hot-side pipe with the turbo muffler deleted, yielding a 14-percent increase in volume and 26-percent greater flow than stock
- Cold-side pipe delivers a 10-percent increase in volume and 40-percent increase in flow over the stock cold-side pipe, with an elliptical shape to accommodate a larger Mishimoto radiator
- Wire-reinforced silicone couplers replace degradation-prone rubber for a long-lasting connection
- Provision for both US and Euro MAP sensor
- No modification to the front bumper required; retains stock fog lights
- Available with pipes in polished or wrinkle black powder-coating
- Adds 8 HP and 10 lb-ft of torque when combined with other Mishimoto Focus ST parts
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Color: Silver
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Inlet Diameter: 2.5 in
- Outlet Diameter: 2.5 in
- Hot-Side Pipe Inside Diameter: 2.5 in
- Cold-Side Pipe Inside Diameter: 2.5 in
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Fit Type: Specific
- Overall Width: 7.25 in
- Overall Height: 8.3 in
- Overall Length: 35.7 in
- Weight: 30 lbs
- Chassis Code: C346
- CARB EO Number: D-759-6
- Maximum Horsepower Rating: 550 HP

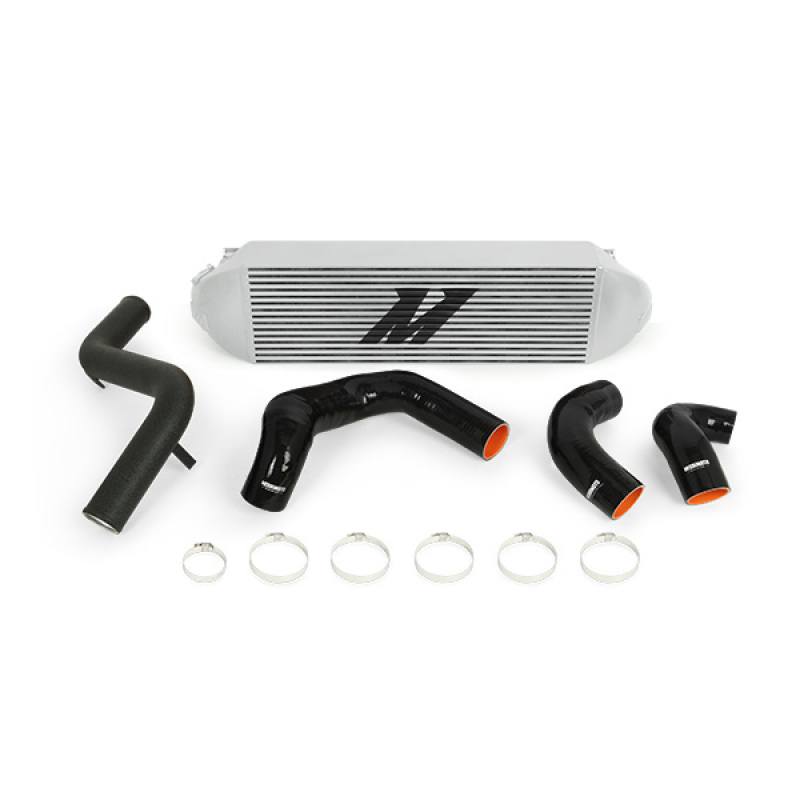

- Kit Includes: (1) Mishimoto Intercooler, (1) Aluminum Intercooler Pipe, (2) Silicone couplers, (1) Silicone Pipe, (6) High-torque Worm Gear clamps, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-FOST-13KBSL Intercooler Kit fit?
This kit is a direct fit for the 2013-2018 Ford Focus ST.
How much power does this intercooler kit add?
When combined with other Mishimoto Focus ST parts, this kit contributes 8 HP and 10 lb-ft of torque, and the intercooler carries a maximum horsepower rating of 550 HP.
What color options are available?
The intercooler kit is available in silver, black, or gold cores, with piping available in wrinkle black or polished finishes.
What is included in the kit?
The kit includes one Mishimoto intercooler, one aluminum intercooler pipe, two silicone couplers, one silicone pipe, six high-torque worm gear clamps, and coverage under the Mishimoto Lifetime Warranty.
Does installation require modifying the front bumper?
No modification to the front bumper is required, and the kit retains the stock fog lights.
What warranty comes with this intercooler kit?
This kit is backed by the Mishimoto Lifetime Warranty.
