Description

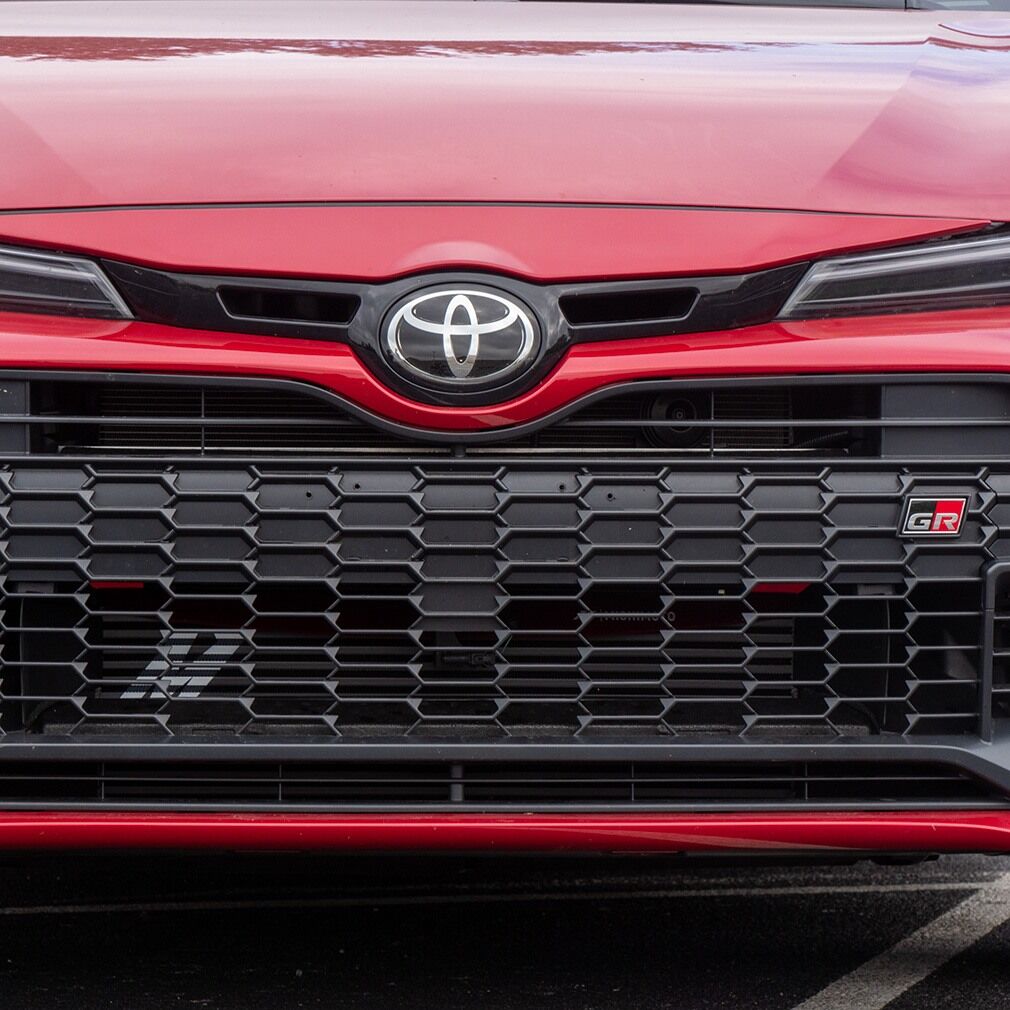

The Mishimoto Performance Intercooler Kit (MMINT-GRC-23KBKRD) is a direct-fit, complete bolt-on upgrade built specifically for the 2023+ Toyota GR Corolla, pairing a massive 4″ thick bar-and-plate core with cast-aluminum end tanks, red aluminum piping, and a cast throttle body elbow connection for drastically improved airflow and throttle response. With a 52% increase in core volume over the factory unit, this kit is engineered to keep intake temperatures in check when the factory forced induction system is working its hardest.
As part of Mishimoto’s Forced Induction lineup, this performance induction upgrade replaces the stock intercooler, hot- and cold-side piping, silicone couplers, and clamps in one complete package. The bar-and-plate core, robust cast-aluminum end tanks, and CNC-machined inlet/outlet connections work together to deliver smooth, unrestricted airflow through the induction system, while an anodized aluminum air duct channels airflow precisely through the intercooler’s external fins to maximize cooling efficiency. Wire-reinforced 5-layer silicone couplers with heat-resistant fibers and high-torque worm-gear clamps round out a forced induction cooling solution built for spirited driving and track days, all finished in a durable powder-coated black core with red piping.
Vehicle Applications
This intercooler kit is a specific fit for the 2023–2025 Toyota GR Corolla, covering vehicles equipped with the G16E-GTS 1.6L L3 engine and GZEA14 chassis code. It is not designed to fit the 8-speed GR-DAT automatic transmission, so shoppers should confirm their GR Corolla’s transmission type before ordering.
Features
- Direct-fit for the 2023+ Toyota GR Corolla
- Cast throttle body elbow connection for drastically improved airflow and throttle response

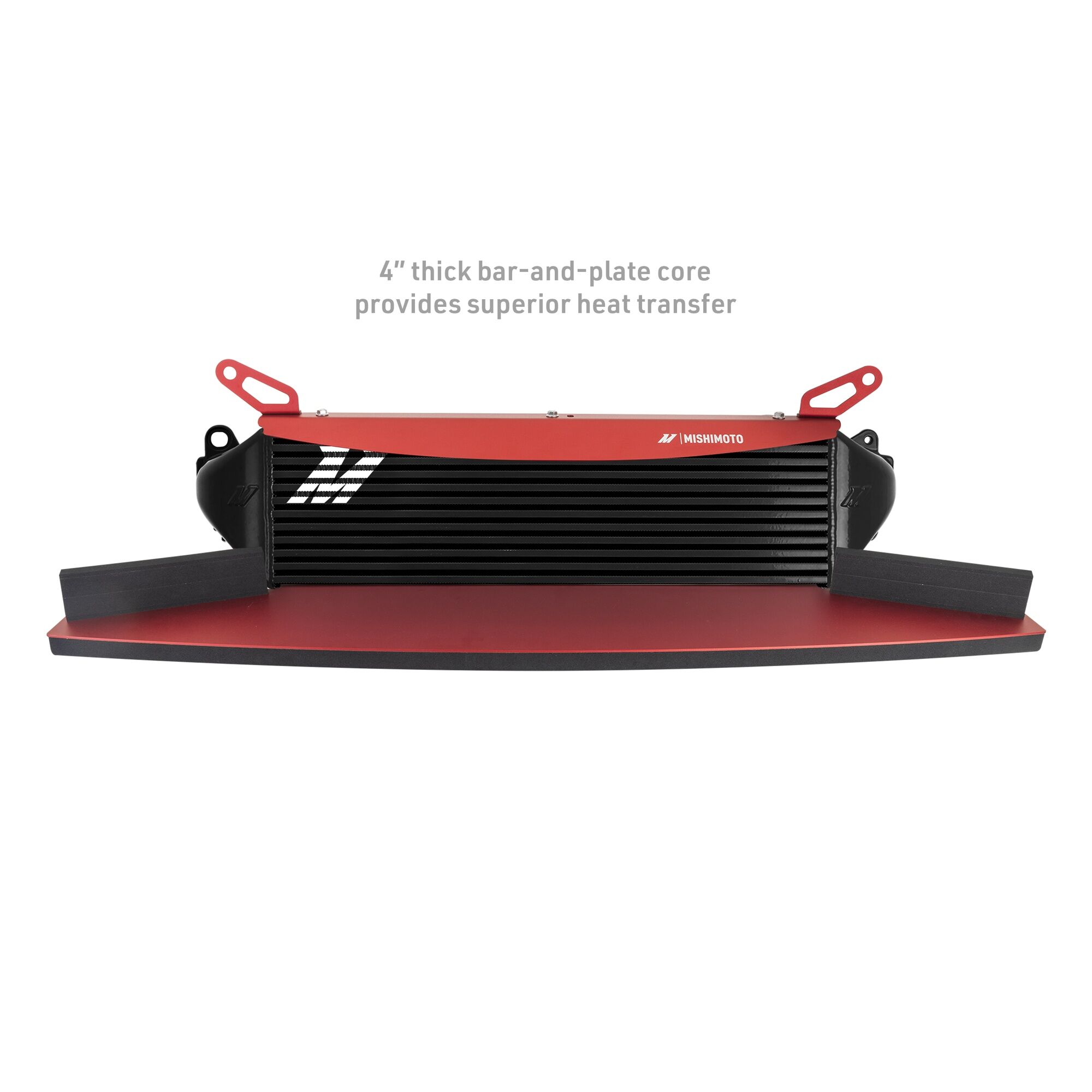

- Durable 4″ thick bar-and-plate core provides superior heat transfer
- 52% increase in core volume compared to stock

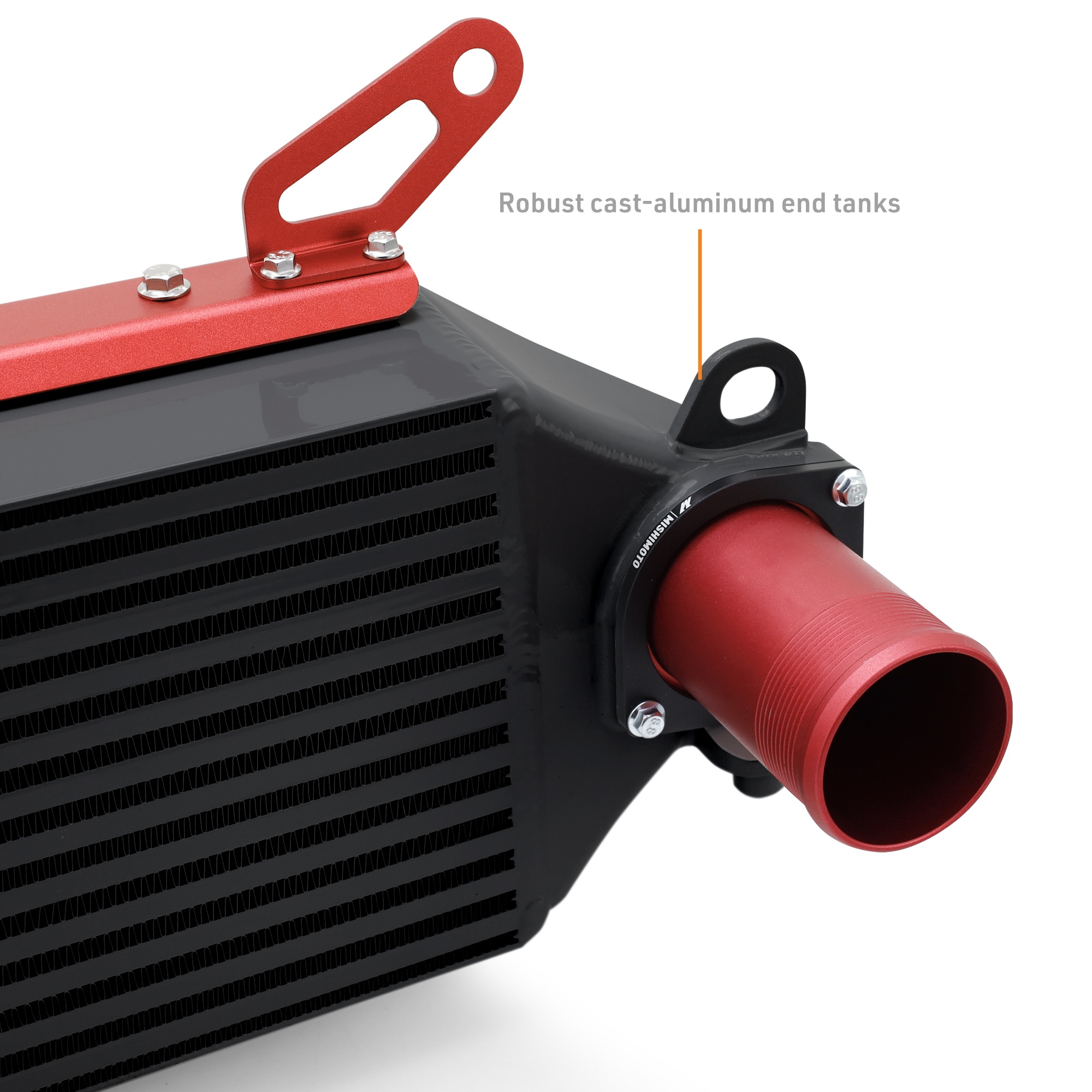

- Robust cast-aluminum end tanks for dependable performance

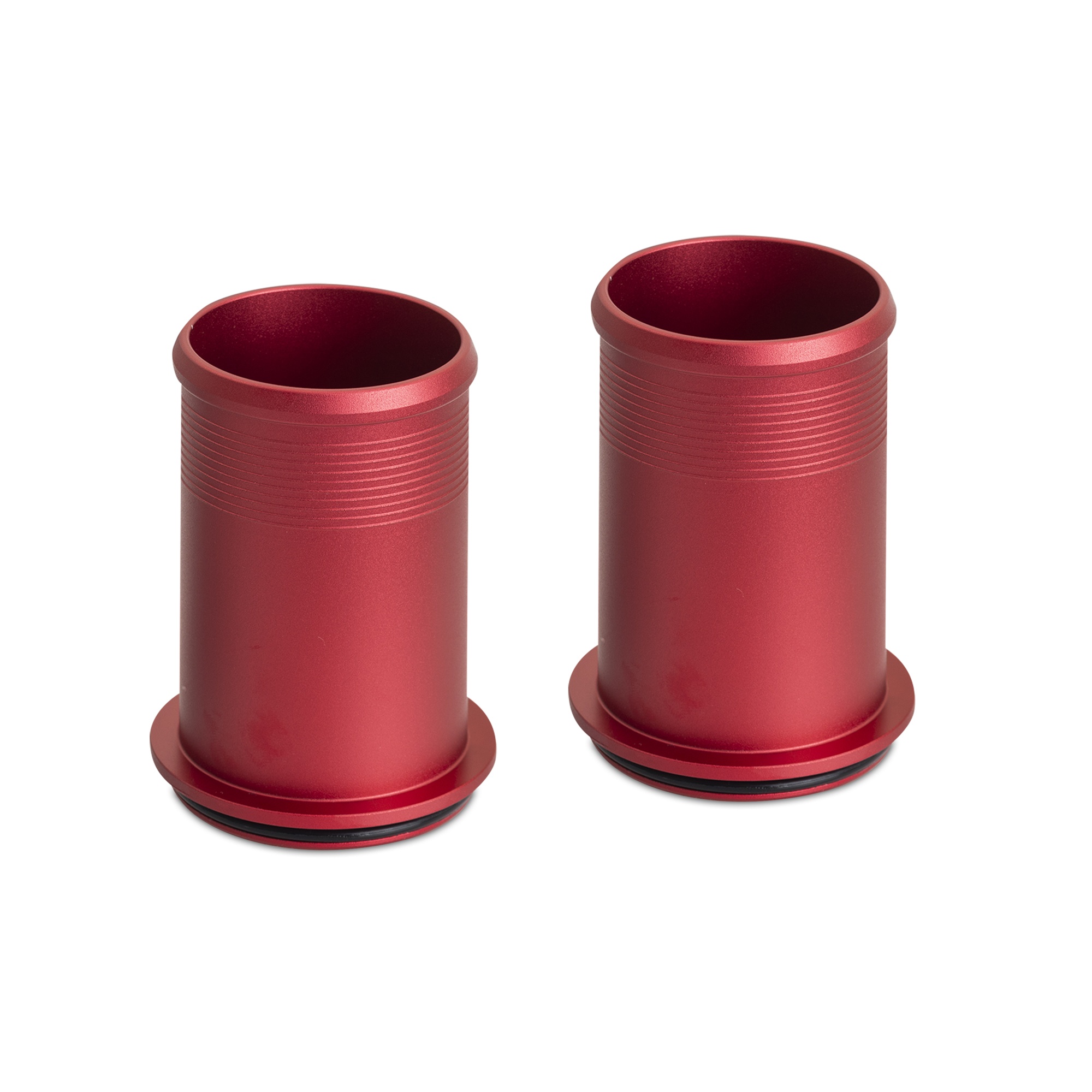

- CNC-machined inlet/outlet for smooth airflow entry into the intercooler
- Durable powder-coated finish
- Anodized aluminum ducting ensures optimal airflow through external fins, improving overall cooling efficiency
- Wire-reinforced 5-layer silicone couplers with heat-resistant fibers
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Color: Black
- Core Height: 6.93 in
- Core Length: 24.8 in
- Core Thickness: 3.94 in
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Inlet Diameter: 2.28 in
- Outlet Diameter: 2.28 in
- Pipe Material: Aluminum
- Pipe Color: Red
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Overall Width: 7.67 in
- Overall Height: 8.19 in
- Overall Length: 32.85 in
- Weight: 25 lbs
- Maximum Boost Pressure: 50 PSI
- Maximum Recommended Horsepower: 650 HP
- Grade Type: Performance
- Engine Codes: G16E-GTS
- Chassis Codes: GZEA14
- CARB EO Number: D-759-27

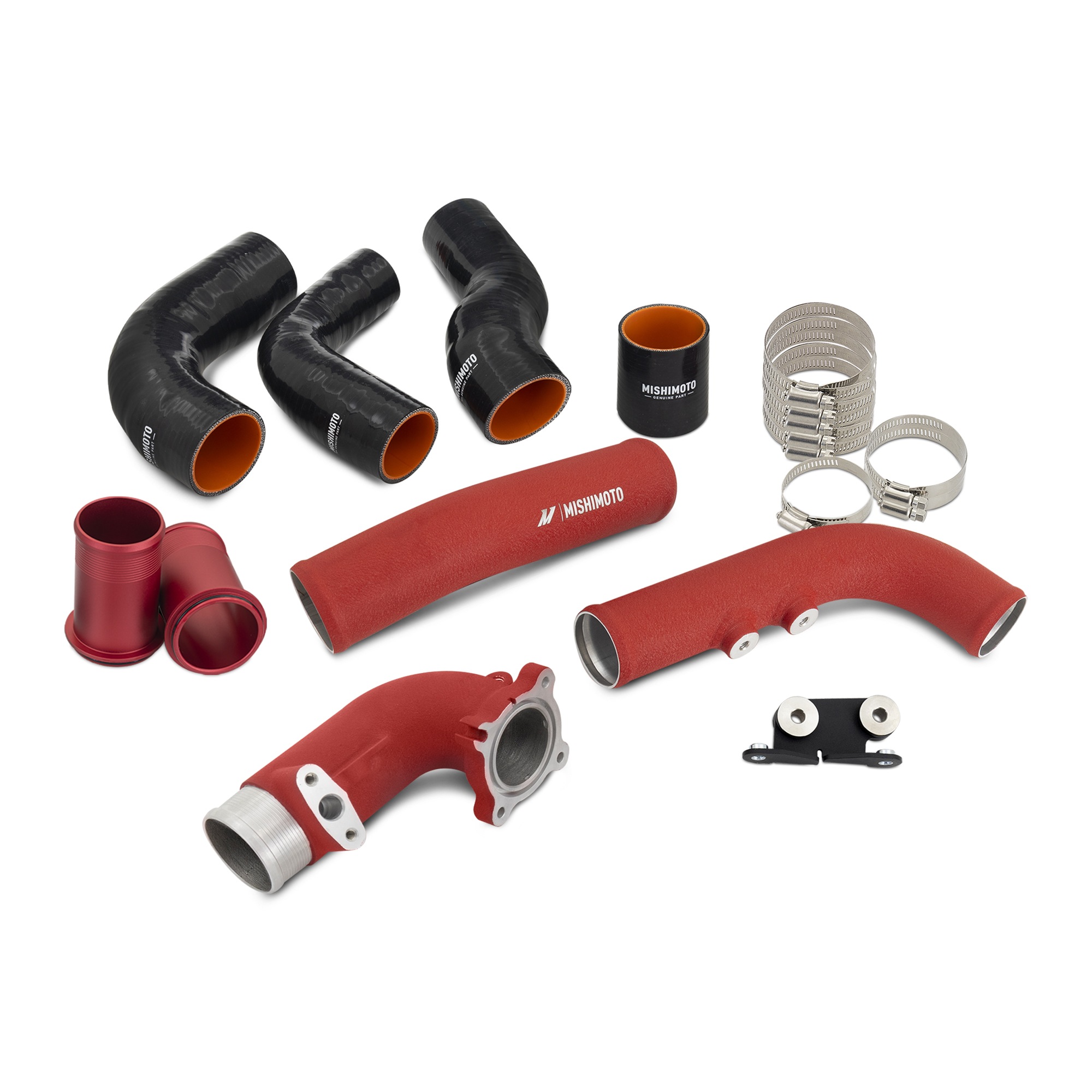

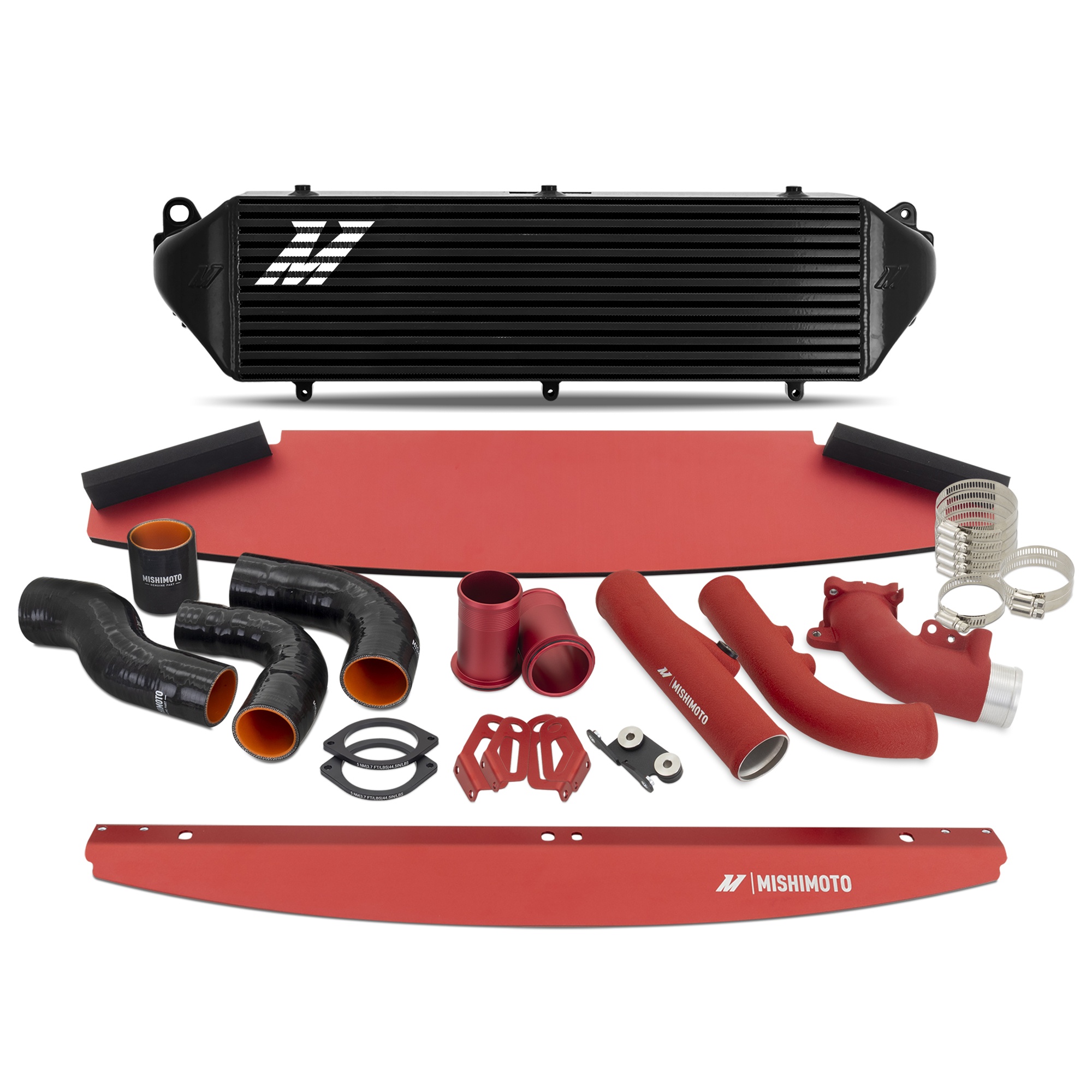

- Kit Includes: (1) Intercooler, (1) Intercooler Adapter Set, (1) Intercooler Adapter Retainer Set, (1) Intercooler Ducting Set, (1) Intercooler Piping and Coupler Kit, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-GRC-23KBKRD intercooler kit fit?
This kit is a specific fit for the 2023–2025 Toyota GR Corolla equipped with the G16E-GTS 1.6L L3 engine and GZEA14 chassis code.
Will this intercooler kit fit a GR Corolla with an automatic transmission?
No. According to Mishimoto, this kit is not designed to fit the 8-speed GR-DAT automatic transmission.
How much larger is the core compared to the stock intercooler?
The kit’s bar-and-plate core provides a 52% increase in core volume compared to the stock unit.
What is included in the Mishimoto Performance Intercooler Kit?
The kit includes (1) Intercooler, (1) Intercooler Adapter Set, (1) Intercooler Adapter Retainer Set, (1) Intercooler Ducting Set, (1) Intercooler Piping and Coupler Kit, plus the Mishimoto Lifetime Warranty.
What are the maximum boost and horsepower ratings for this intercooler?
The intercooler is rated for a maximum boost pressure of 50 PSI and a maximum recommended horsepower of 650 HP.
What materials are used in the construction of this intercooler kit?
The core, end tanks, and piping are aluminum, with cast-aluminum end tanks, CNC-machined inlet/outlet connections, a powder-coated finish, and silicone couplers.
