Description

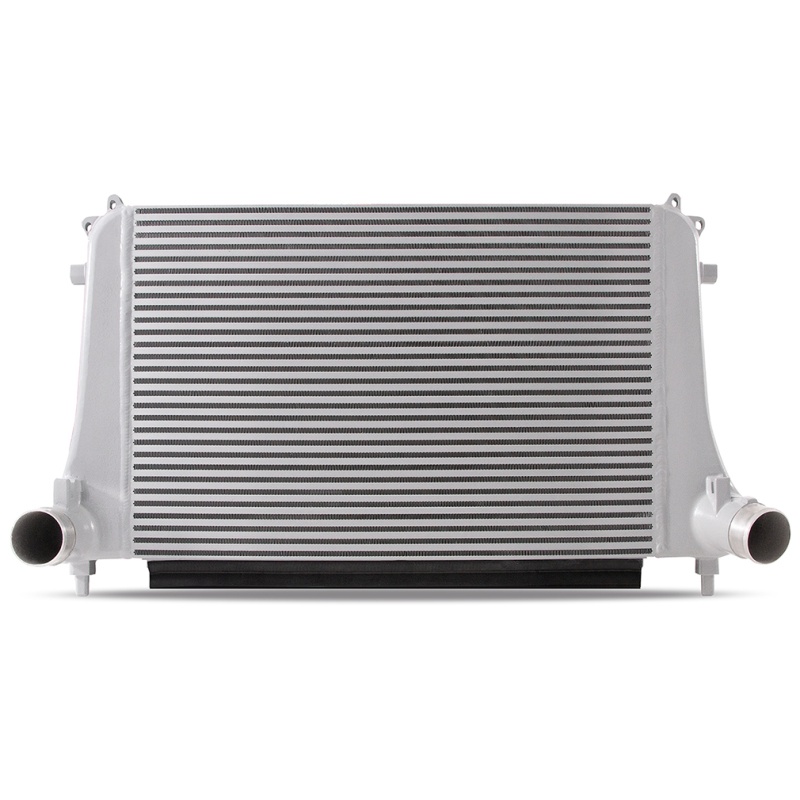

The Mishimoto Performance Intercooler Kit (MMINT-MK8-22KWBK) is a direct-fit, TIG-welded aluminum intercooler and piping upgrade purpose-built for the 2022+ Volkswagen GTI MK8’s factory forced induction system. Engineered around an 89% larger core volume and a 162% increase in external fin surface area versus the stock unit, this kit delivers a documented 23°F drop in intercooler outlet temperature, giving the EA888 evo4-equipped MQB platform a real boost in cooling capacity for its turbocharged induction system.
Every component of this Mishimoto forced induction upgrade is designed to work together: the bar-and-plate core, cast aluminum end tanks with internal diverters, mandrel-bent aluminum piping, and 5-layer silicone couplers form a complete induction system replacement that helps reduce heat soak and sustain cooler charge-air temperatures. Because the core and pipework are engineered specifically for this application rather than adapted from a universal kit, installation stays a direct bolt-in affair, and the included CNC-machined adjustable mounting brackets help you dial in precise fitment. Backed by Mishimoto’s Lifetime Warranty, this performance induction upgrade is built to be a lasting part of your car’s forced induction system rather than a short-lived bolt-on.
Vehicle Applications
This intercooler kit is a specific-fit part covering the 2022–2024 Volkswagen GTI, the 2022–2025 Audi A3 and Audi A3 Quattro, and the 2019–2023 Audi TT Quattro. It is engineered around the EA888 evo4 engine on the MQB chassis. Per Mishimoto’s tech specs, this kit is designed to fit manual transmission vehicles only and will not fit DSG/automatic-equipped cars.
Features
- Direct fit for the 2022+ Volkswagen GTI MK8 (MT only)
- 89% increase in core volume over stock
- 162% increase in external fin surface area
- Drops intercooler outlet temperature by 23°F
- All-aluminum, TIG-welded construction

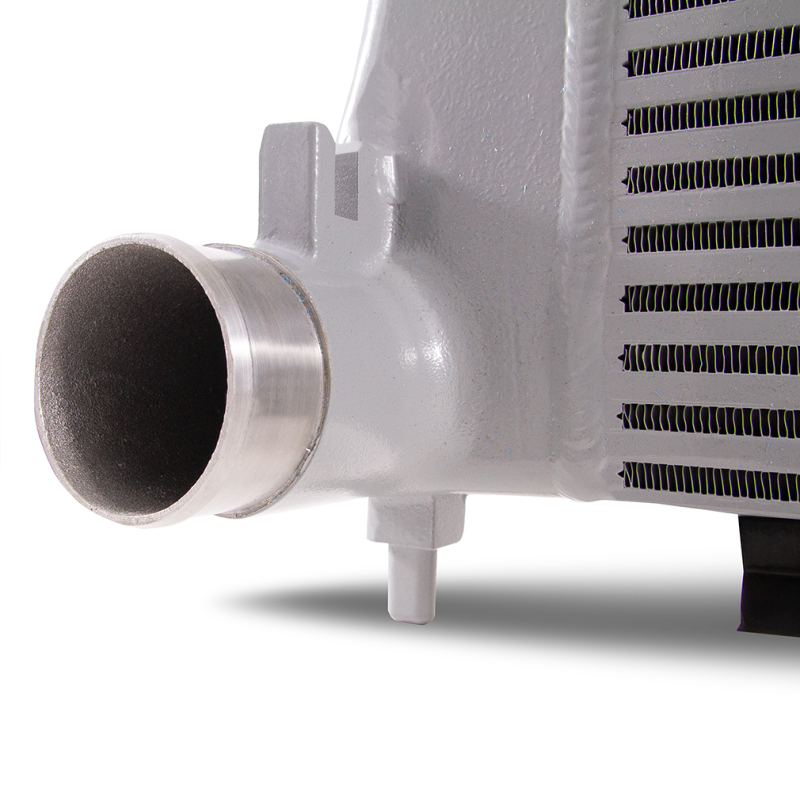

- Cast end tanks with internal diverters for optimal airflow through the core

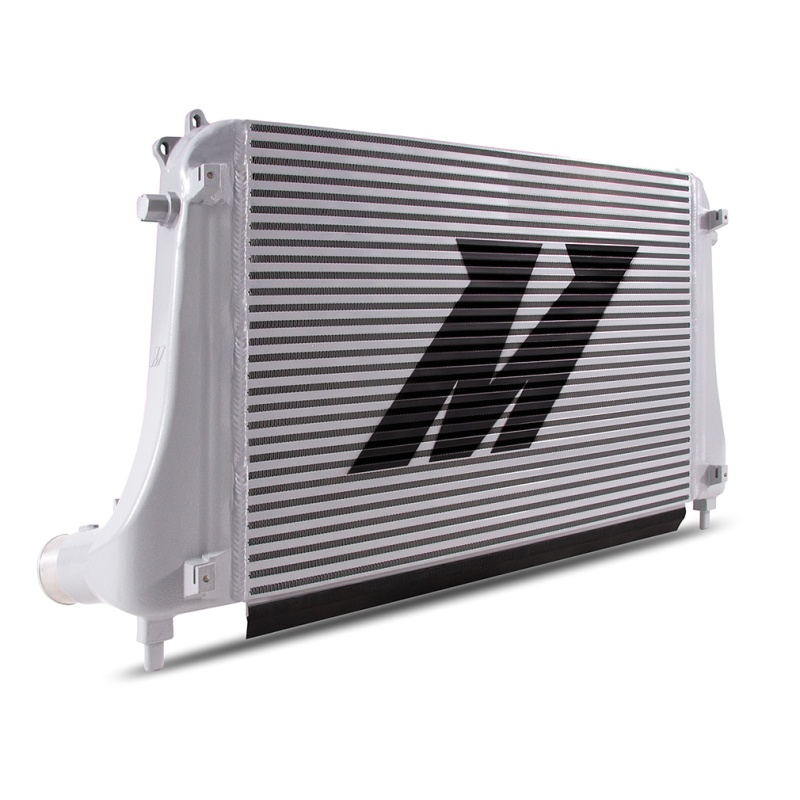

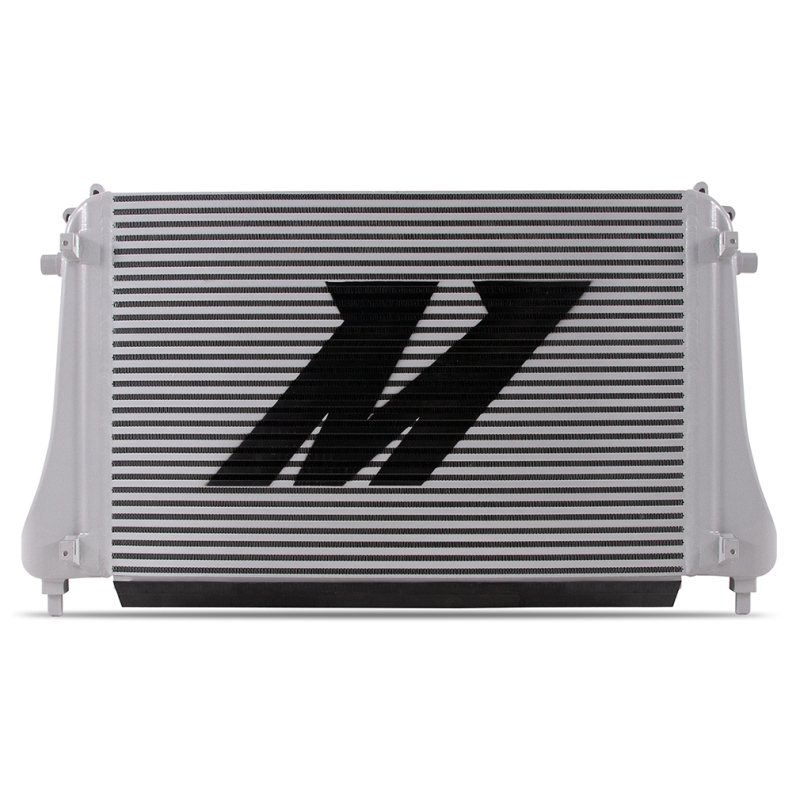

- Rugged bar-and-plate core construction

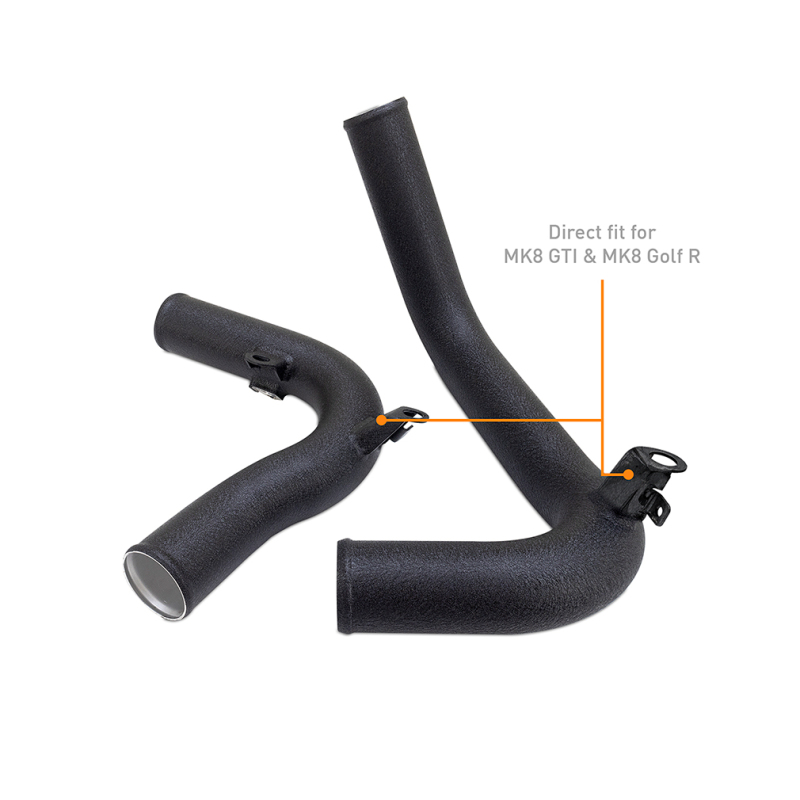

- Kit includes mandrel-bent aluminum pipes and durable 5-layer silicone couplers

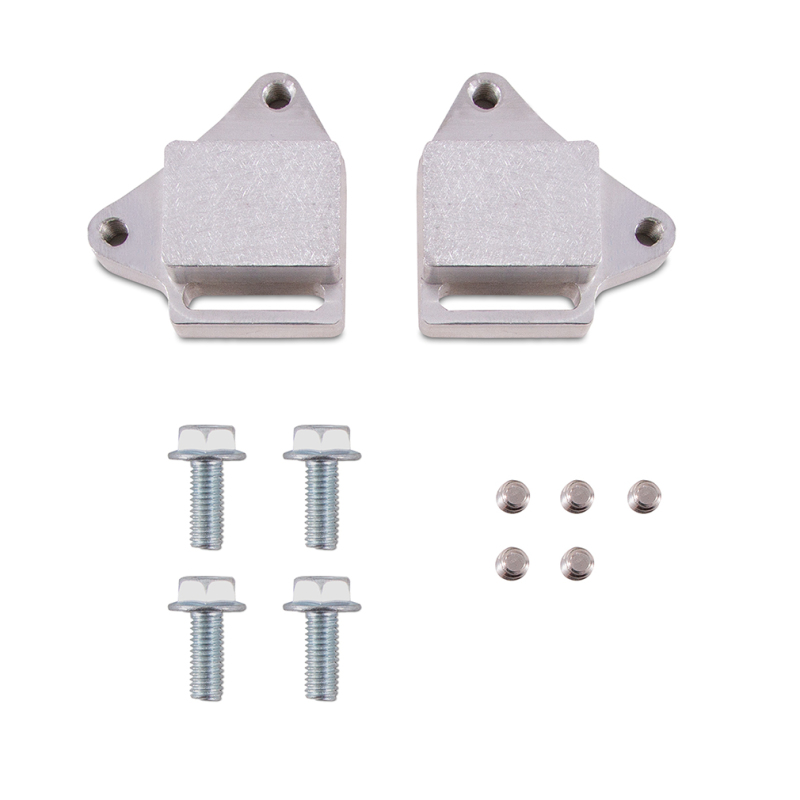

- Includes CNC-machined adjustable mounting brackets for precise installation
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Height: 15.96 in
- Core Length: 24.41 in
- Core Thickness: 2.24 in
- Core Color: Black
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Inlet Diameter: 2.22 in
- Outlet Diameter: 2.22 in
- Hot Side Pipe Inside Diameter: 2.22 in
- Cold Side Pipe Inside Diameter: 2.22 in
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Pipe Diameter: 2.5 in
- Centerline Radius: 3.98
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Chassis Code: MQB
- Engine Code: EA888 evo4
- Finish Option: Wrinkle Black
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-MK8-22KWBK intercooler kit fit?
It’s a specific-fit kit for the 2022–2024 Volkswagen GTI, the 2022–2025 Audi A3 and Audi A3 Quattro, and the 2019–2023 Audi TT Quattro.
Will this kit fit a DSG automatic GTI?
No. Per Mishimoto’s tech specs, this kit is designed to fit manual transmission vehicles only and will not fit DSG/automatic vehicles.
How much cooler does the Mishimoto intercooler run compared to stock?
Mishimoto states this intercooler delivers a 23°F drop in outlet temperature compared to the factory unit, along with an 89% increase in core volume and a 162% increase in external fin surface area.
What is included in the kit?

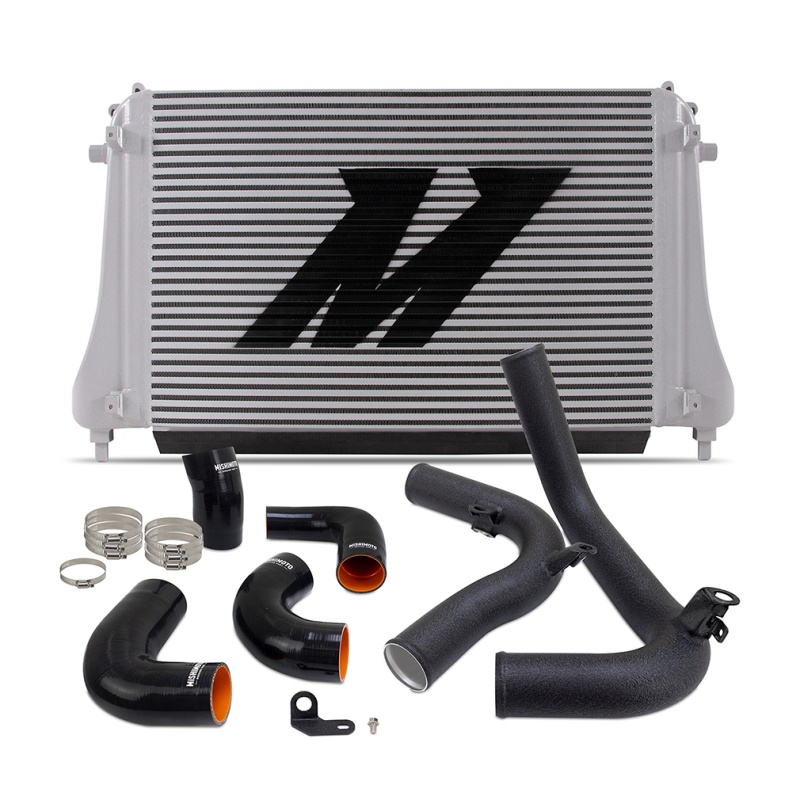

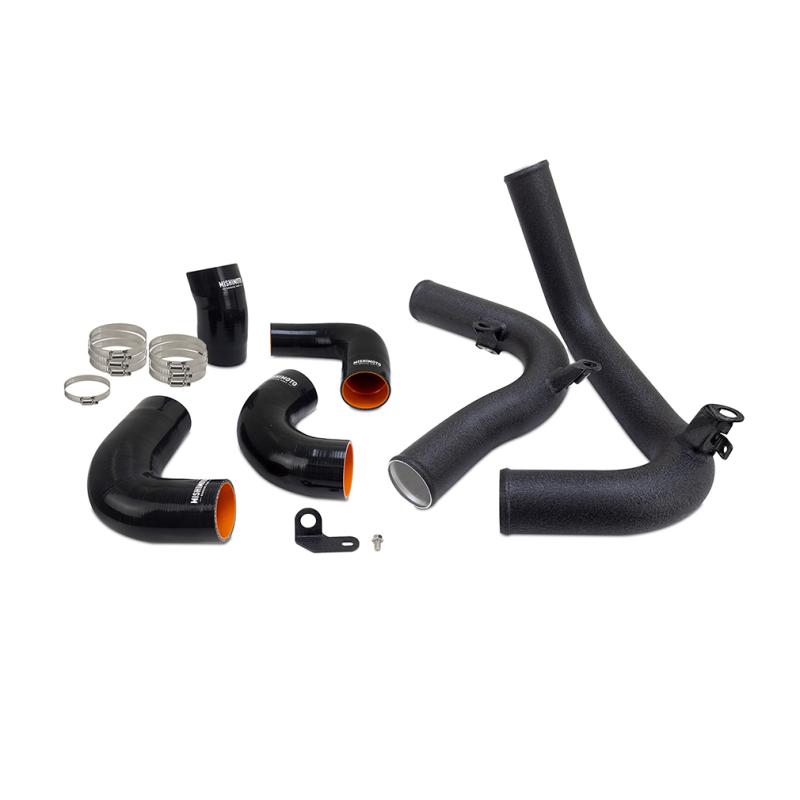

The kit includes the Mishimoto intercooler core, mandrel-bent aluminum pipes, 5-layer silicone couplers, hose clamps, and CNC-machined adjustable mounting brackets.
What warranty does Mishimoto offer on this intercooler kit?
This intercooler kit is backed by Mishimoto’s Lifetime Warranty.
What core and end tank construction does this intercooler use?
It features a bar-and-plate aluminum core with cast aluminum end tanks that include internal diverters to optimize airflow.
