Description
The Mishimoto Performance Intercooler and Intercooler Pipe & Boot Kit bundle (MPN: MMINT-BR23-21KBSL) is purpose-built for the 2.3L EcoBoost-powered Ford Bronco, pairing a bar-and-plate intercooler with a full pipe-and-boot kit to upgrade the factory forced induction system in one package. Where the stock tube-and-fin intercooler relies on plastic end tanks, this Mishimoto unit uses TIG-welded cast aluminum end tanks and CNC-machined 6061 aluminum flanges for a more durable induction system built for daily driving and off-road use alike.
As a dedicated forced induction upgrade, this intercooler and pipe kit combination is engineered to lower charge-air temperatures and reduce restriction compared to the factory setup, delivering a cooler, denser air charge to the engine. Mishimoto’s testing recorded a 21.2°F reduction in outlet temperature, a 7% increase in flow over stock, and dyno-verified gains of 5.68 hp and 5.32 lb-ft of torque. In trail-simulation heat-soak testing, after six back-to-back dyno runs the intercooler still produced outlet temperatures 20°F cooler than the stock intercooler, showing the benefit holds up under sustained load whether you’re crawling trails or sitting in traffic. Because it’s a specific-fit forced induction system, the bundle retains full functionality of adaptive cruise control and 360-degree camera systems, so you gain performance induction without giving up factory driver-assist features.
Vehicle Applications
This Mishimoto intercooler and pipe kit bundle is a specific-fit upgrade engineered for the 2.3L EcoBoost Ford Bronco lineup. It fits the 2021-2024 Bronco Badlands, Big Bend, Black Diamond, and Outer Banks trims, the 2021-2023 Bronco Base, the 2022-2024 Bronco Everglades, and the 2023-2024 Bronco Heritage Edition.
Features
- Direct fit for 2021-2024 Ford Bronco 2.3L EcoBoost models
- 21.2°F reduction in outlet temperature over the stock intercooler
- Dyno-proven gains of 5.68 hp and 5.32 lb-ft of torque
- 4.7-inch thick intercooler core for maximum flow
- 175% increase in fin surface area and 77% increase in core volume versus stock
- 7% less restrictive than the factory intercooler

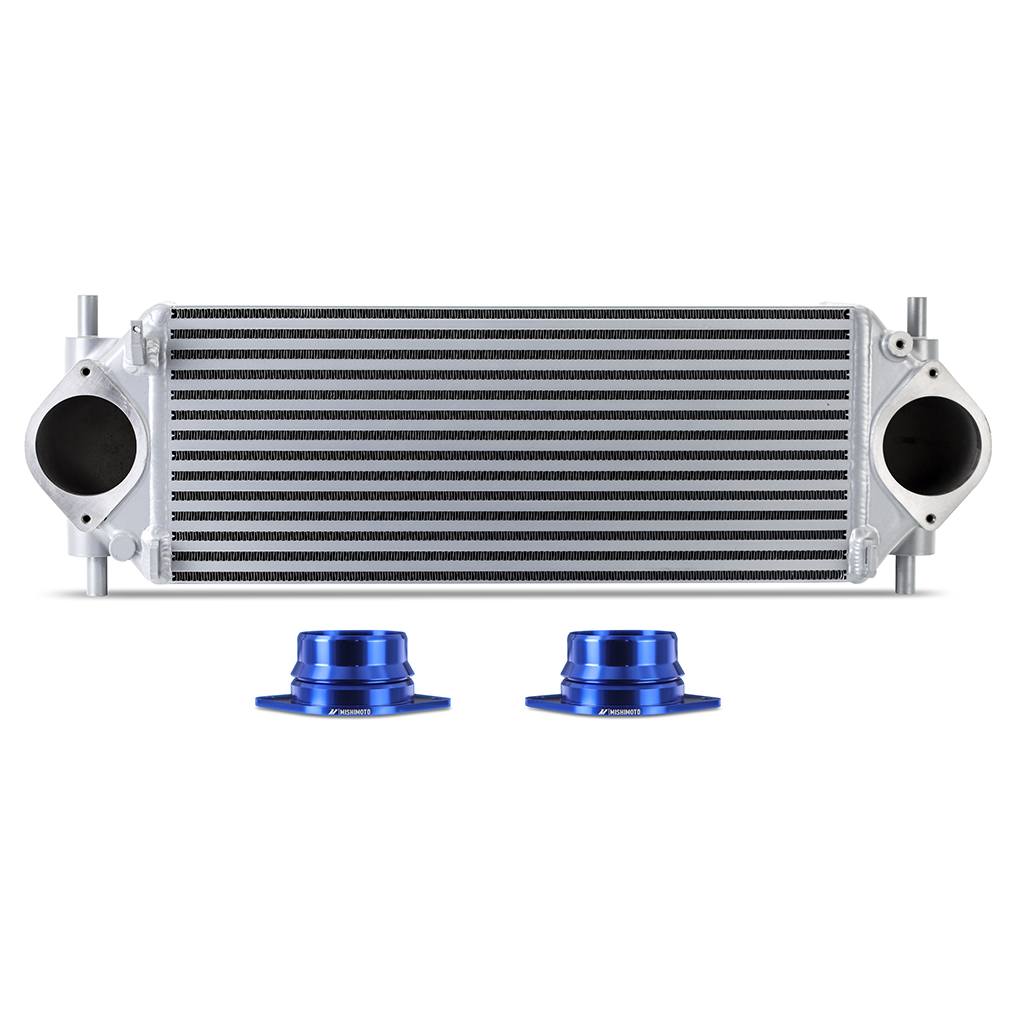

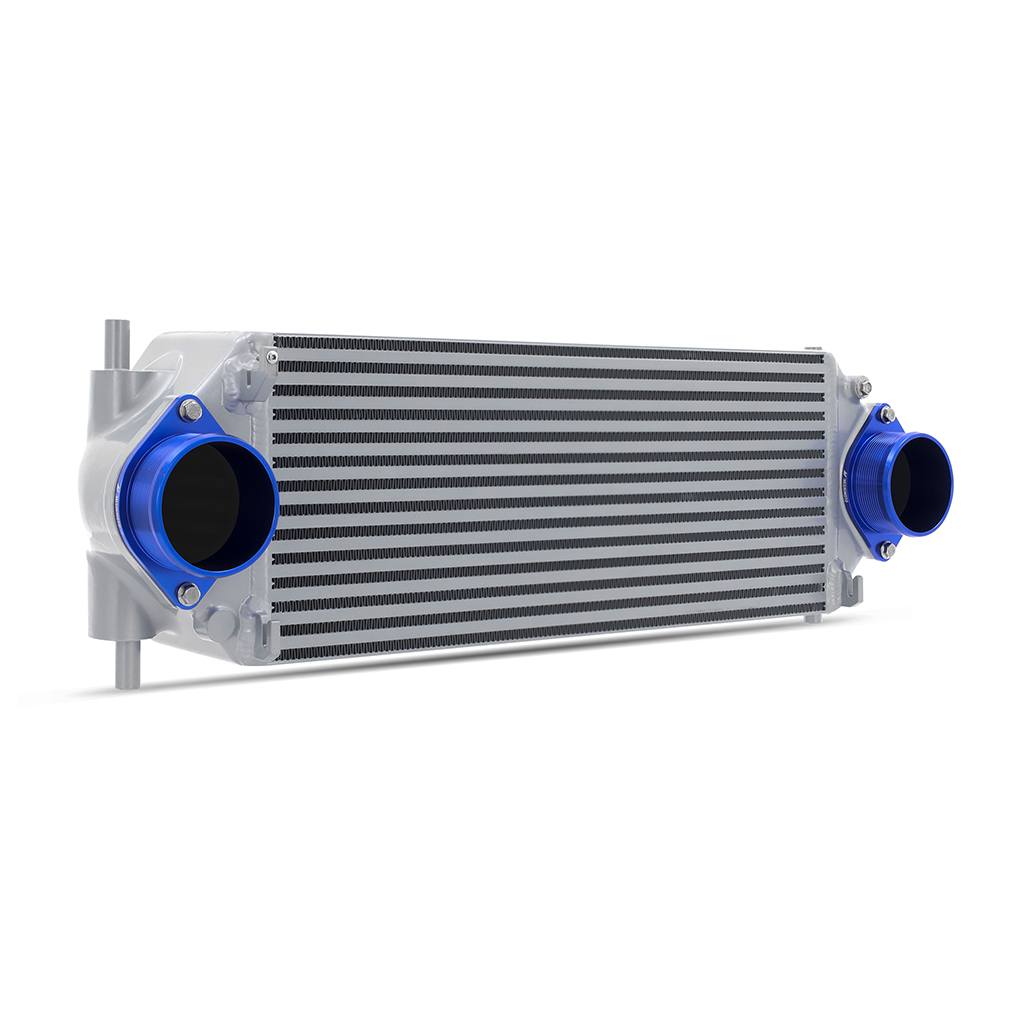

- All-aluminum, TIG-welded construction with a bar-and-plate core
- CNC-machined 6061 aluminum inlet and outlet flanges
- Cast aluminum end tanks for added durability over factory plastic tanks

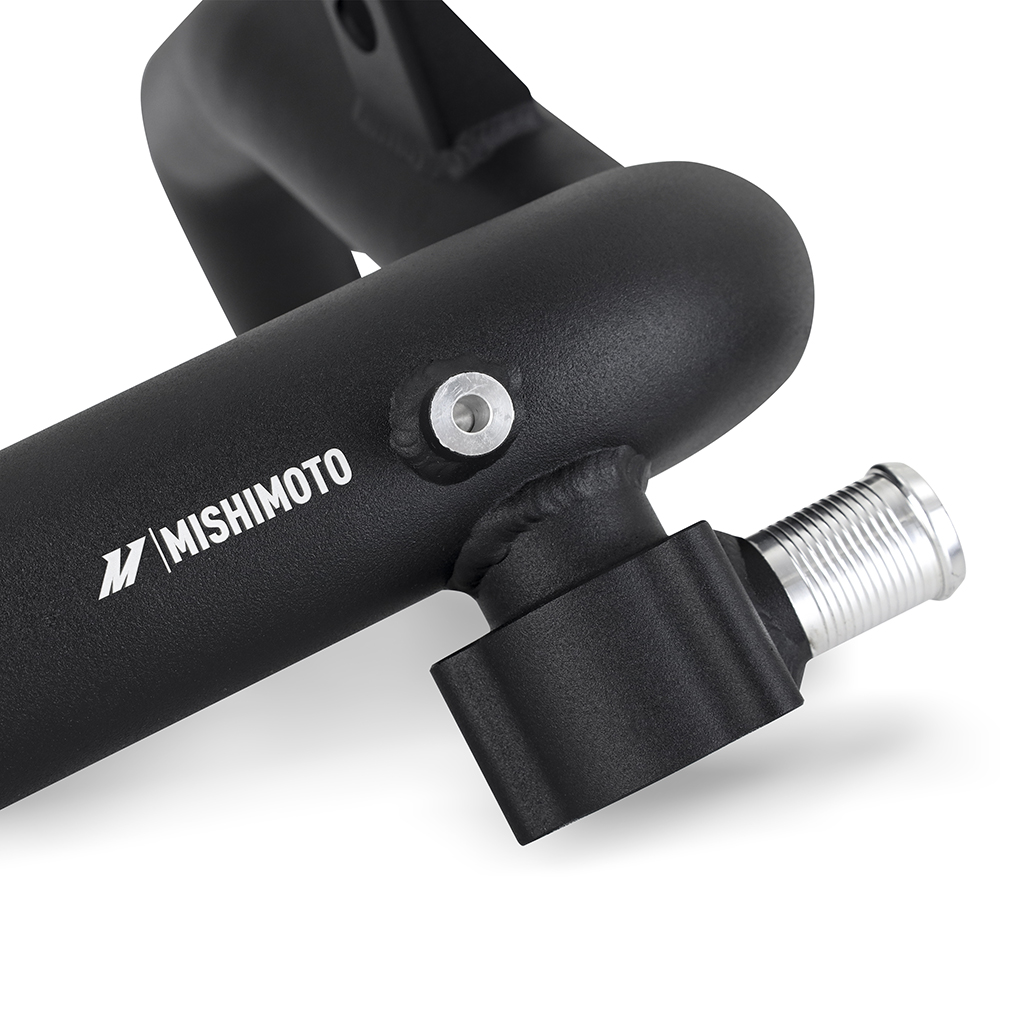

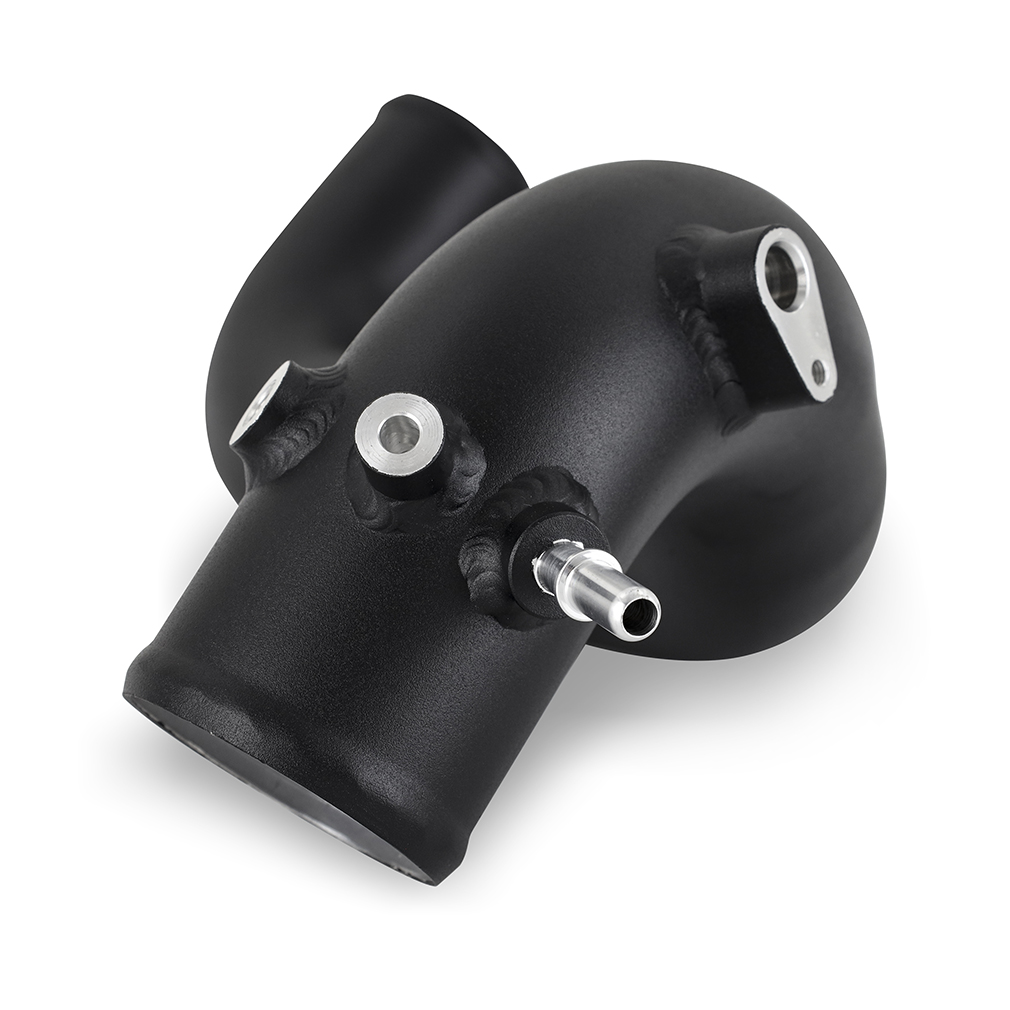

- Black powder-coated aluminum intercooler pipes with black silicone couplers
- Retains full functionality of adaptive cruise control and 360-degree cameras
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-BR23-21KBSL
- Product Type: Forced Induction
- Intercooler Type: Air-to-Air
- Core Construction: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Silver
- Core Thickness: 4.7 inches
- End Tank Construction: Cast
- End Tank Material: Aluminum
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated

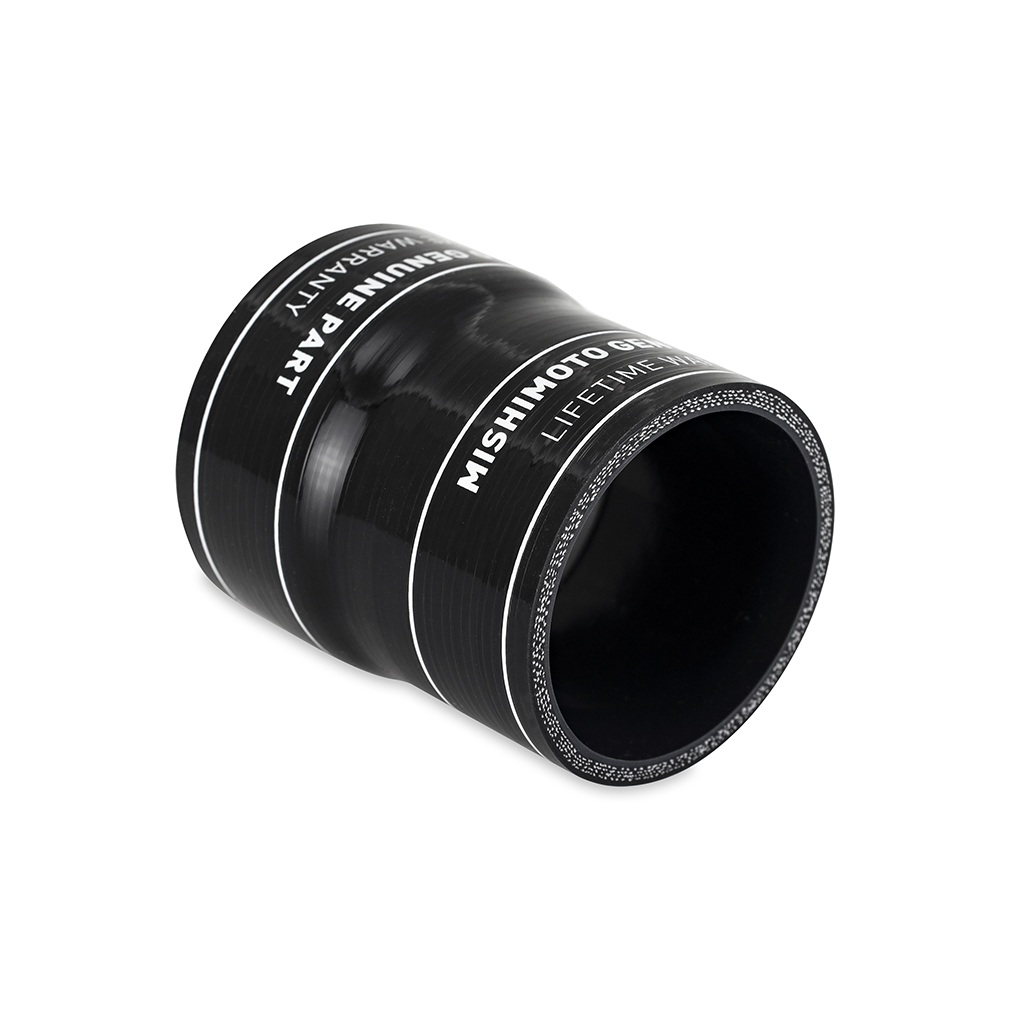

- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Universal or Specific Fit: Specific

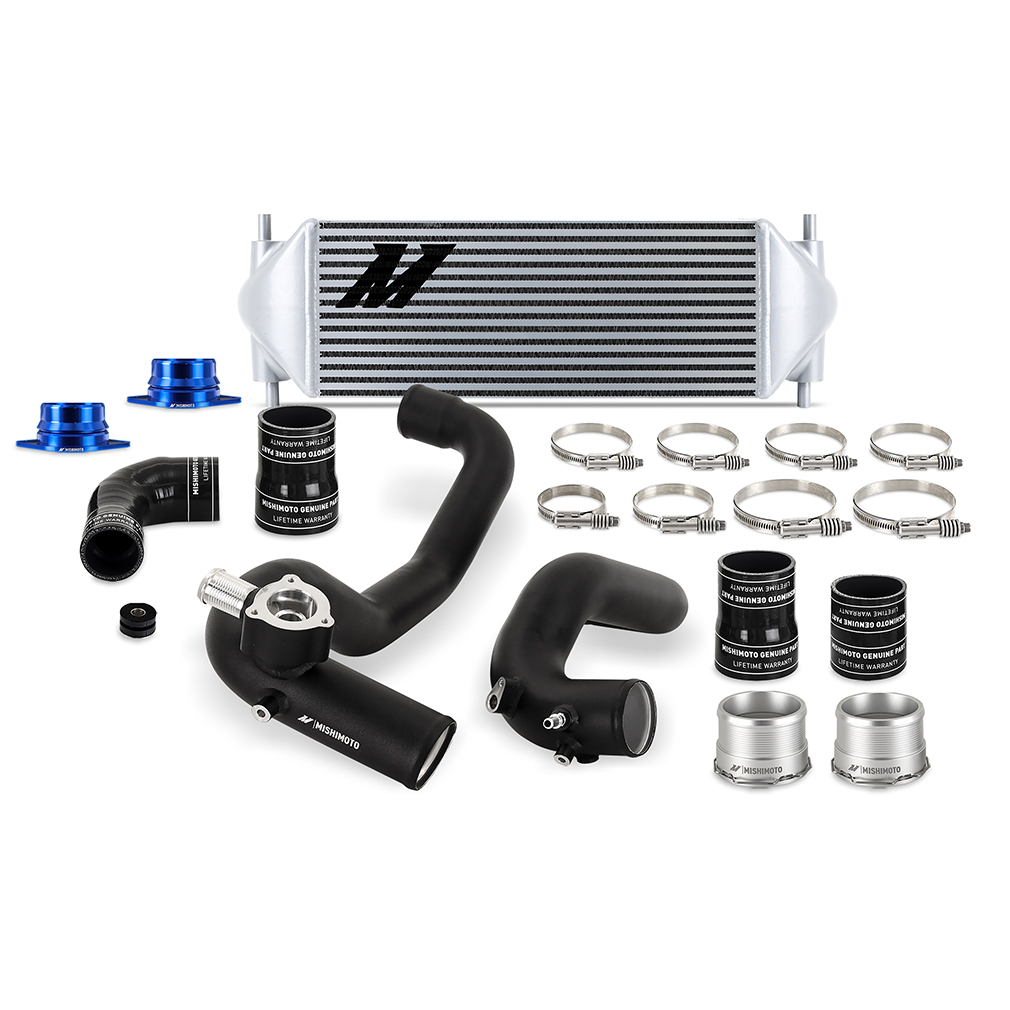

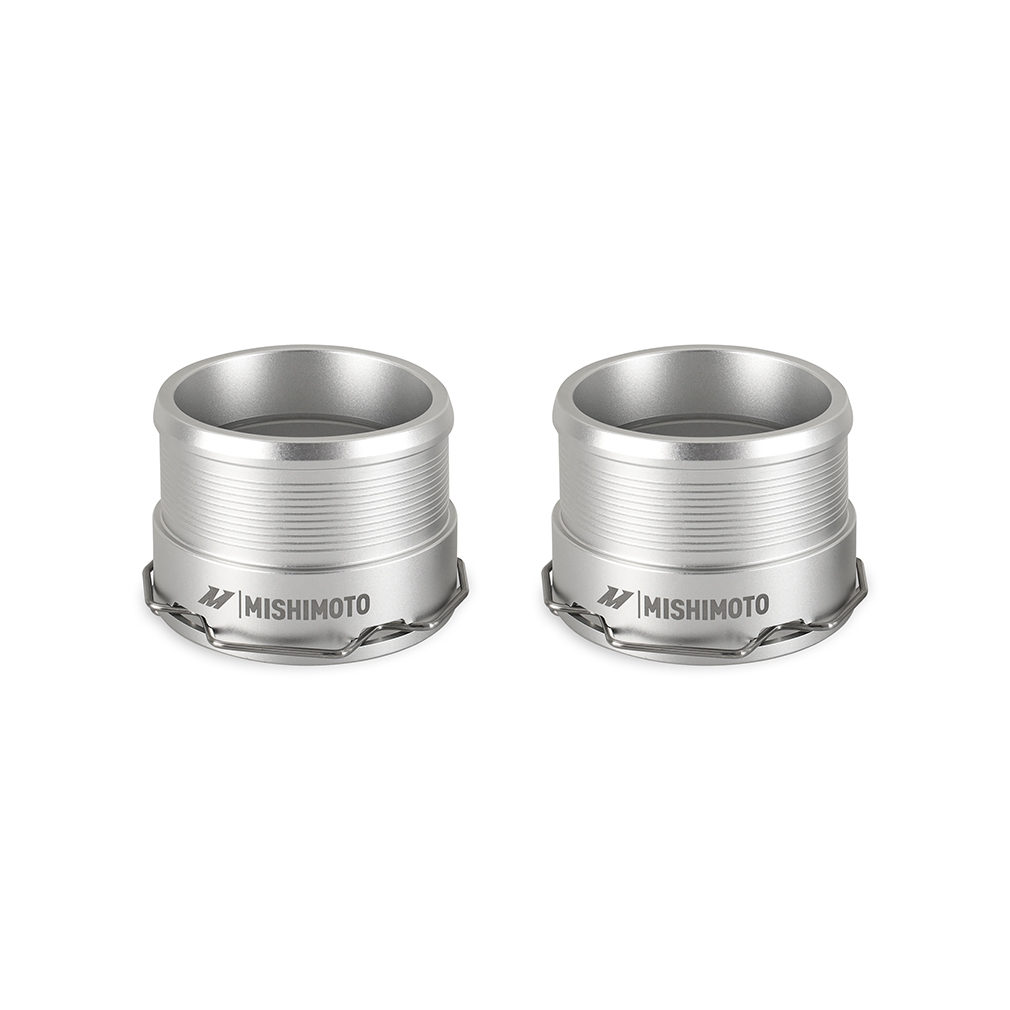

- Kit Includes: (1) Mishimoto Intercooler, (2) Mishimoto Intercooler Pipes, (2) Intercooler Pipe Adapters, (4) Silicone Boots, (8) Constant-Tension Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-BR23-21KBSL bundle fit?
It’s a specific fit for the 2.3L EcoBoost Ford Bronco, covering 2021-2024 Badlands, Big Bend, Black Diamond, and Outer Banks, 2021-2023 Base, 2022-2024 Everglades, and 2023-2024 Heritage Edition trims.
How much cooler does this intercooler run compared to stock?
Testing showed a 21.2°F reduction in outlet temperature over the stock intercooler, and after six back-to-back dyno runs in heat-soak testing it still ran 20°F cooler than stock.
What performance gains does the kit provide?
Dyno testing recorded gains of 5.68 hp and 5.32 lb-ft of torque along with a 7% increase in flow over the stock intercooler.
What does the kit include?
The bundle includes one Mishimoto intercooler, two Mishimoto intercooler pipes, two intercooler pipe adapters, four silicone boots, eight constant-tension worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
Will this intercooler kit affect my Bronco’s driver-assist features?
No, the bundle retains full functionality of adaptive cruise control and 360-degree camera systems.
What is the intercooler core made from and how is it constructed?
The core is an aluminum bar-and-plate design measuring 4.7 inches thick, with CNC-machined 6061 aluminum flanges and TIG-welded cast aluminum end tanks.
⚠ WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
