Description
The Mishimoto Performance Intercooler and Intercooler Pipe & Boot Kit, MPN MMINT-BR27-21KBBK, is a direct-fit forced induction upgrade built specifically for the 2021+ Ford Bronco 2.7L EcoBoost. This bundle pairs a 4.7-inch thick bar-and-plate intercooler core with durable cast-and-mandrel-bent aluminum piping, replacing the factory plastic-tanked tube-and-fin intercooler and weak factory pipes in one complete package finished in black intercooler and black pipes.
As a forced induction system upgrade, this kit is engineered to move more air, run cooler, and hold up better than the stock setup. The larger core delivers a 77-percent increase in core volume and a 175-percent increase in fin surface area, while the intercooler itself is 7-percent less restrictive than stock and the companion pipes are up to 34.2-percent less restrictive. Together, this performance induction hardware reduced outlet temperatures by 21.2 degrees and increased flow by 7-percent over stock in Mishimoto’s own testing, translating into dyno-proven gains of 13.6 HP and 16.7 lb-ft of torque. In trail simulation heat-soak testing, outlet temperatures stayed 20 degrees cooler than stock even after six back-to-back dyno runs, so the benefits of this induction system carry over from daily driving to sustained off-road use, all while retaining full functionality of adaptive cruise control and 360-degree cameras.
Vehicle Applications
This kit is a specific fit for the 2021+ Ford Bronco V6 2.7L Twin Turbo (2.7L EcoBoost, chassis code U725). Coverage spans the Bronco Badlands and Outer Banks trims from 2021 through 2026, the Base trim from 2021 through 2023, the Big Bend, Black Diamond, and Wildtrak trims from 2021 through 2024, the First Edition for 2021, the Heritage Limited Edition from 2023 through 2024, the Heritage Edition from 2024 through 2026, and the Stroppe Edition from 2025 through 2026.
Features
- Direct fit for 2021+ Ford Bronco 2.7L EcoBoost
- Dyno-proven gains of up to 13.6 HP and 16.7 lb-ft torque
- 21.2-degree reduction in outlet temperature over the stock intercooler
- 77-percent increase in core volume and 175-percent increase in fin surface area
- Intercooler is 7-percent less restrictive; intercooler pipes are up to 34.2-percent less restrictive than stock

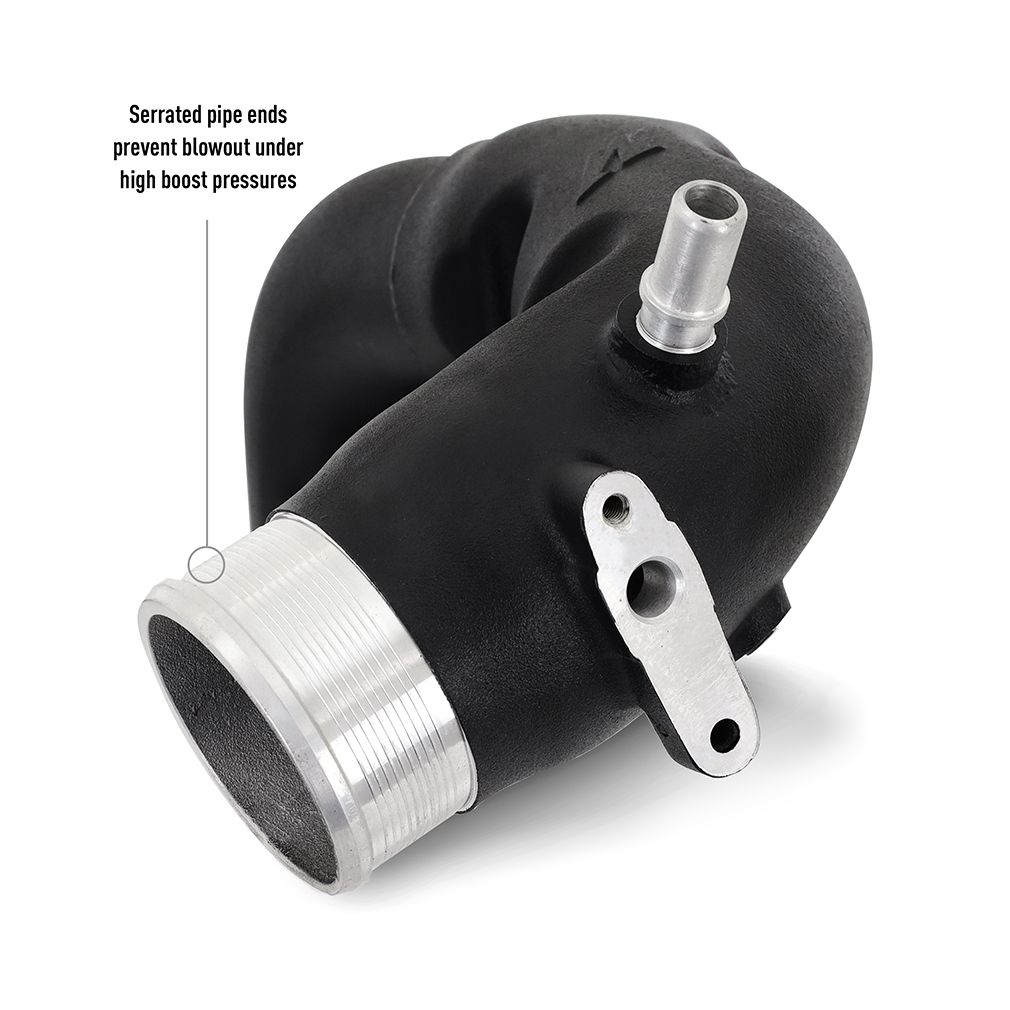

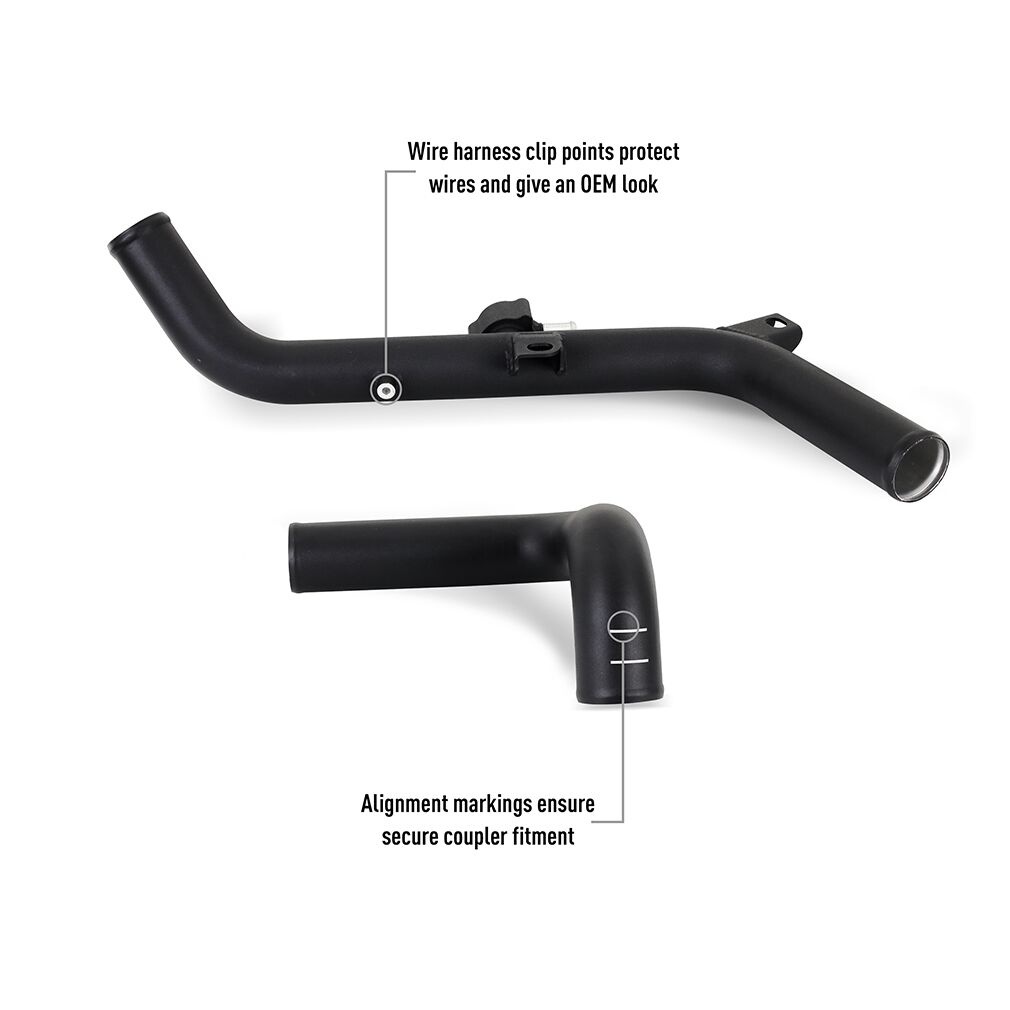

- Replaces weak factory plastic intercooler pipes with durable cast and mandrel-bent aluminum

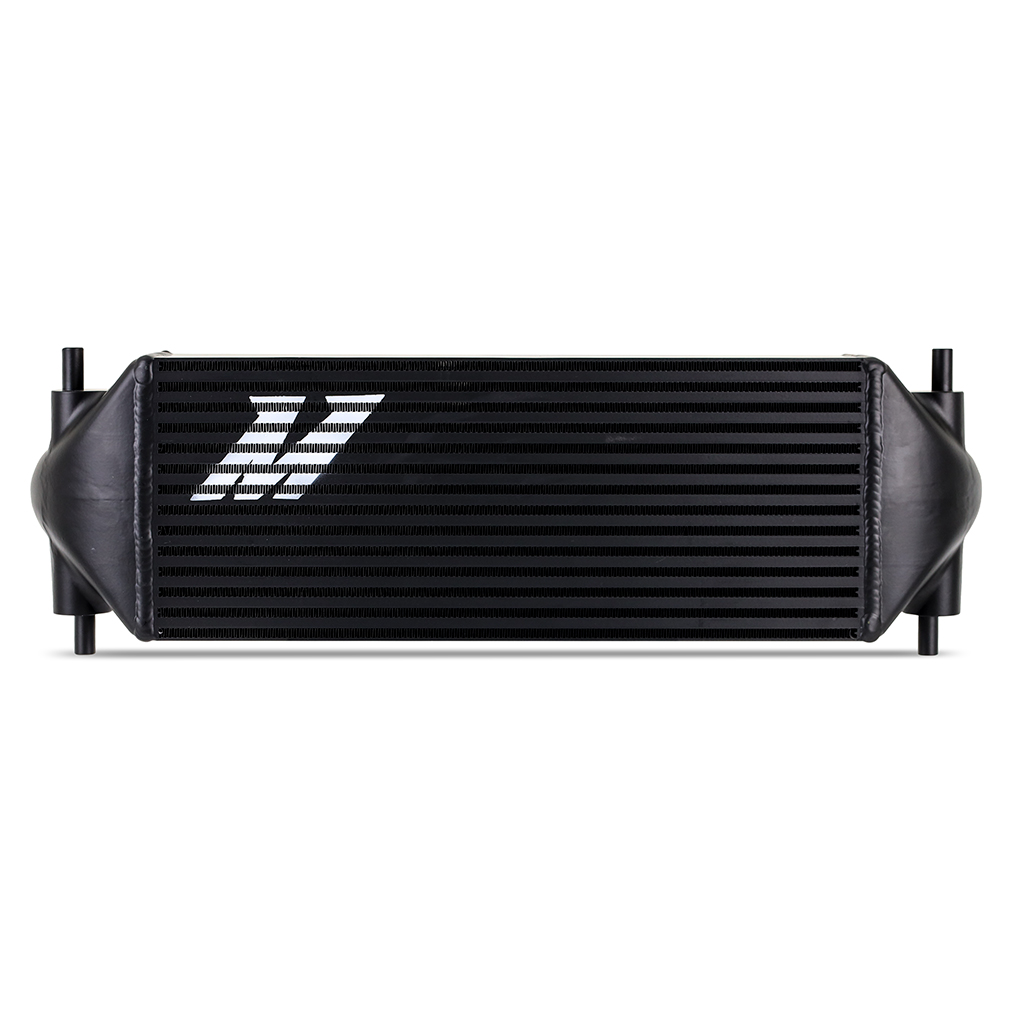

- 4.7-inch thick bar-and-plate core for durability and performance

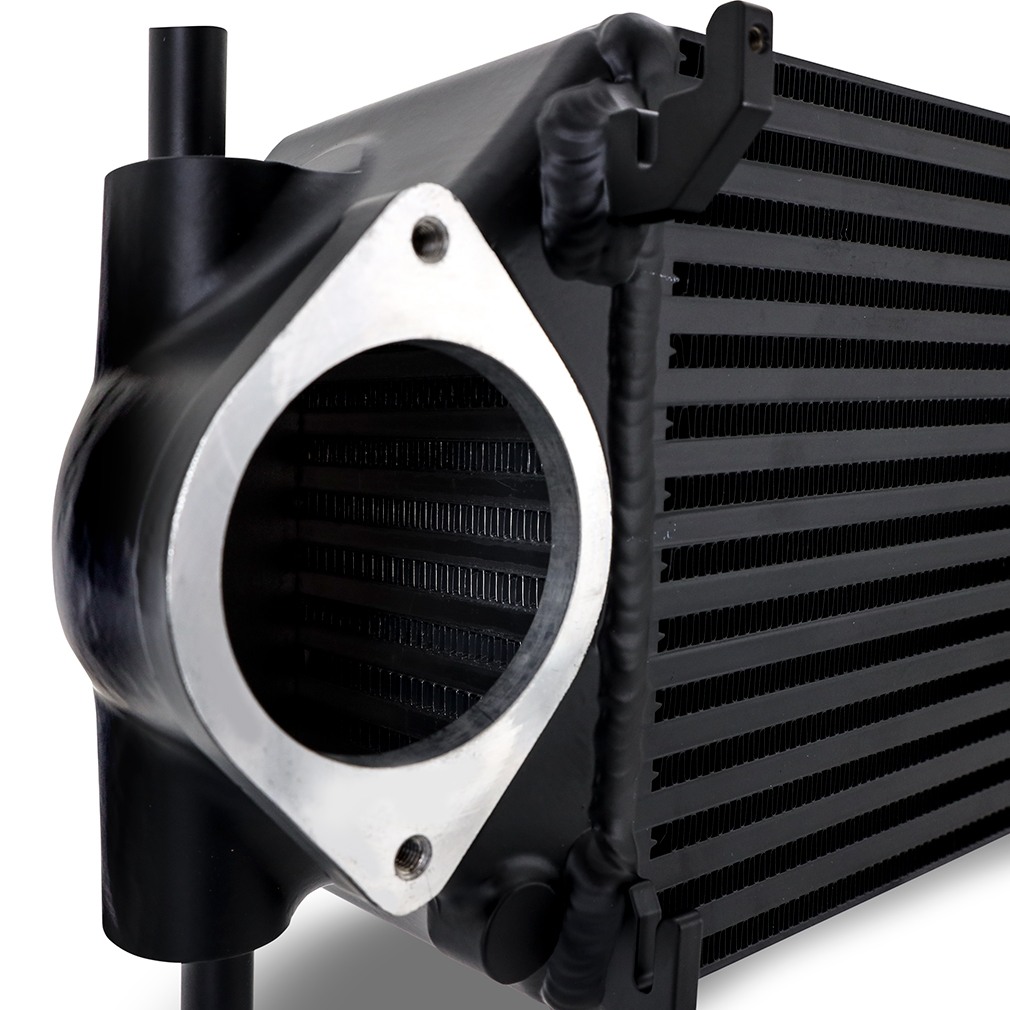

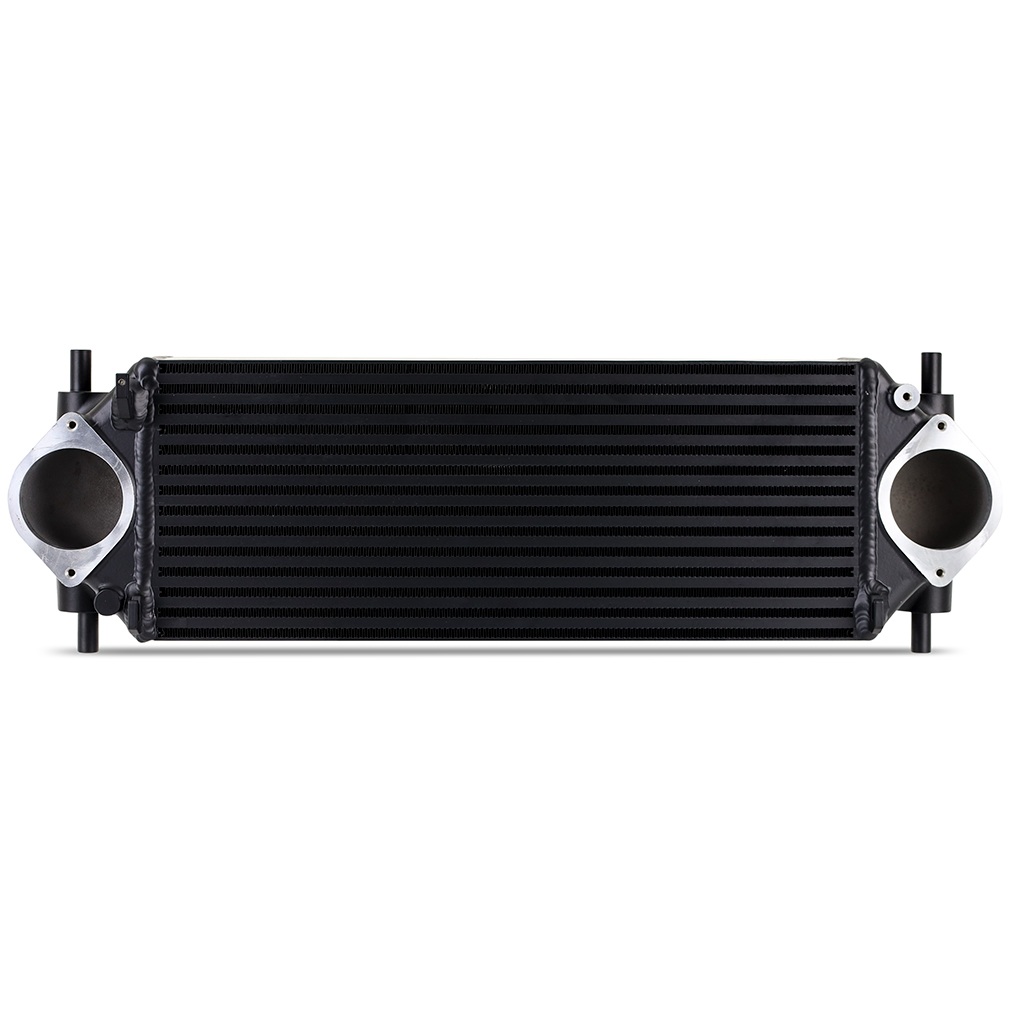

- Cast-aluminum end tanks for increased pressure tolerance and reliability
- 1/8-NPT port on the cold-side pipe for methanol injection or additional sensors
- Includes Mishimoto Silicone Boots with DuraCore technology for resistance to heat, pressure, fuel, and oil
- This version features a black intercooler paired with black pipes
- Patent No. US D1,042,547 S

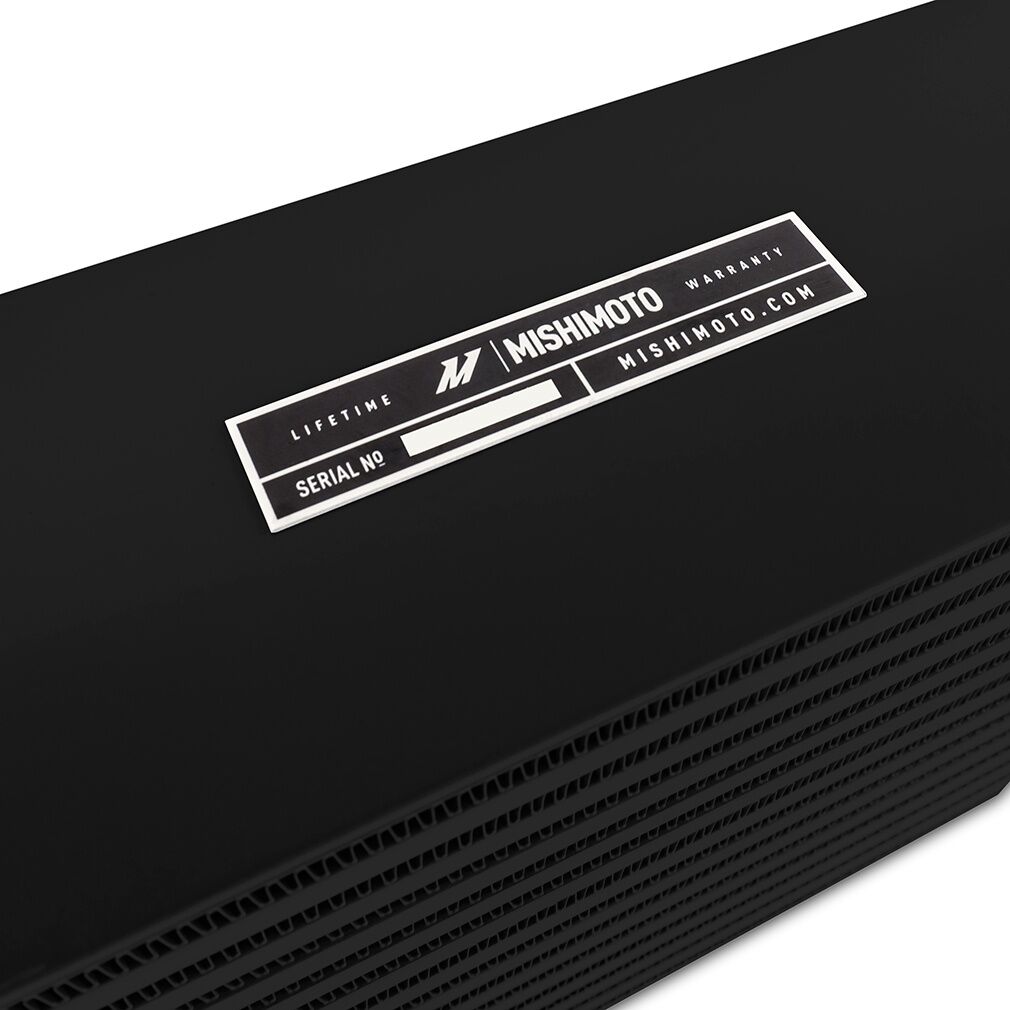

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Height: 7.6 in
- Core Length: 19.5 in
- Core Thickness: 4.75 in
- Core Color: Black
- Intercooler Type: Air-to-Air
- Inlet Diameter: 2.75 in
- Outlet Diameter: 2.75 in
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Hot Side Pipe Inside Diameter: 2.75 in
- Cold Side Pipe Inside Diameter: 2.75 in
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Weight: 42 lbs
- Engine Codes: 2.7L EcoBoost
- Chassis Codes: U725
- Applications: 2021+ Ford Bronco V6 2.7L Twin Turbo
- Grade Type: Performance
- Fit Type: Specific

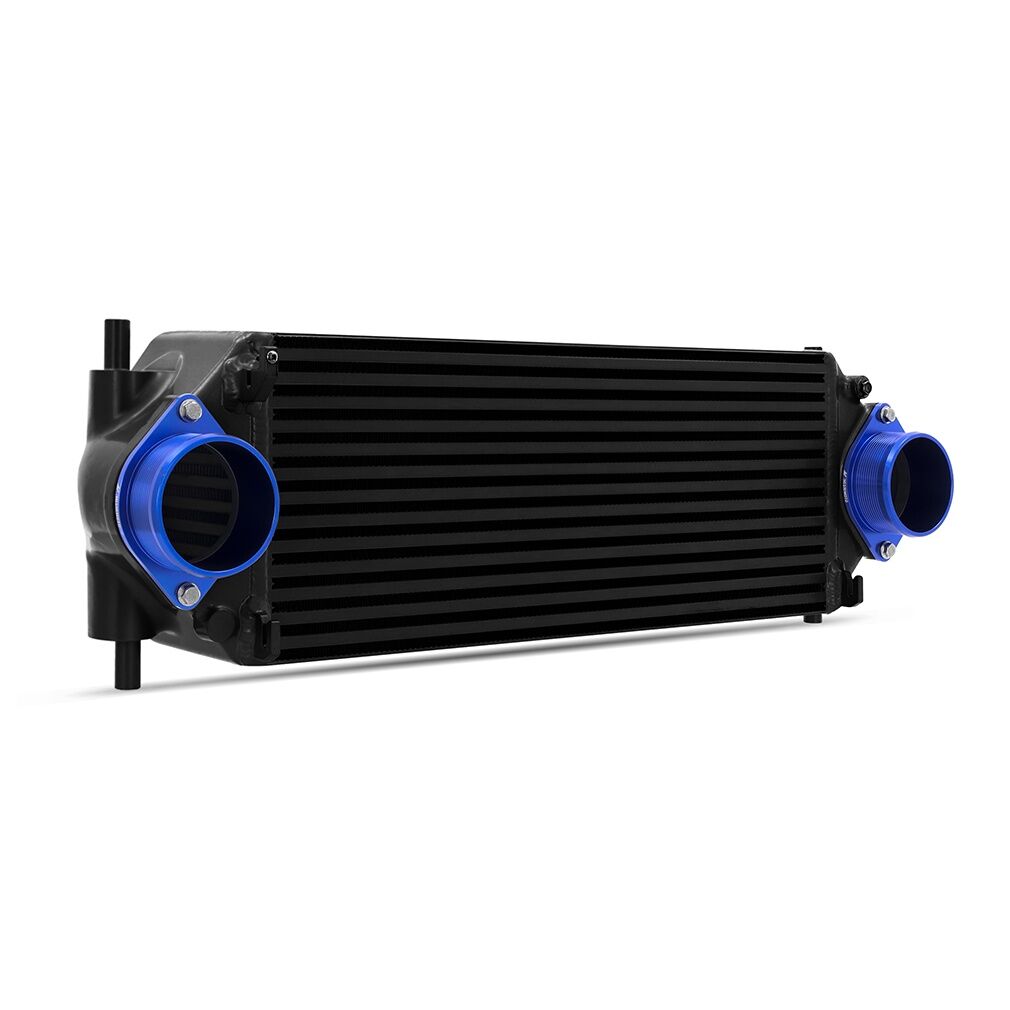

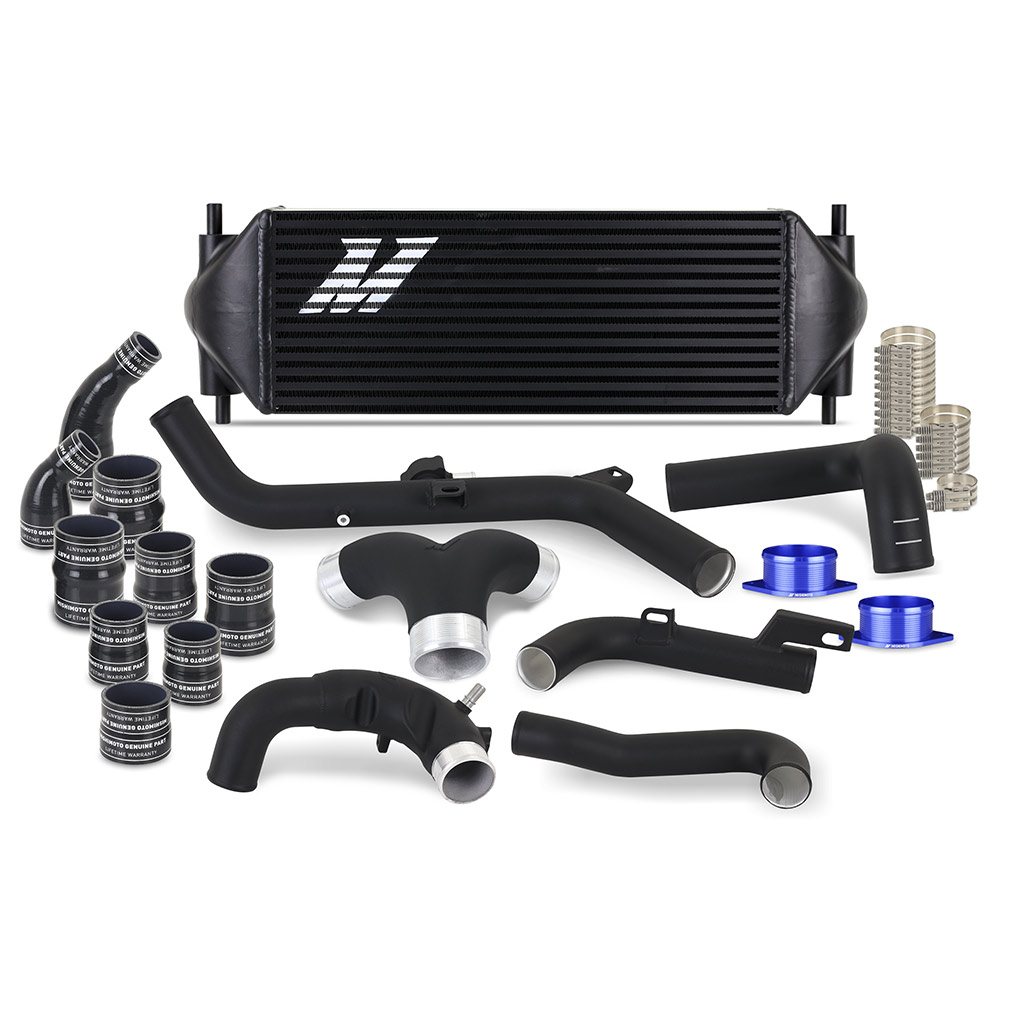

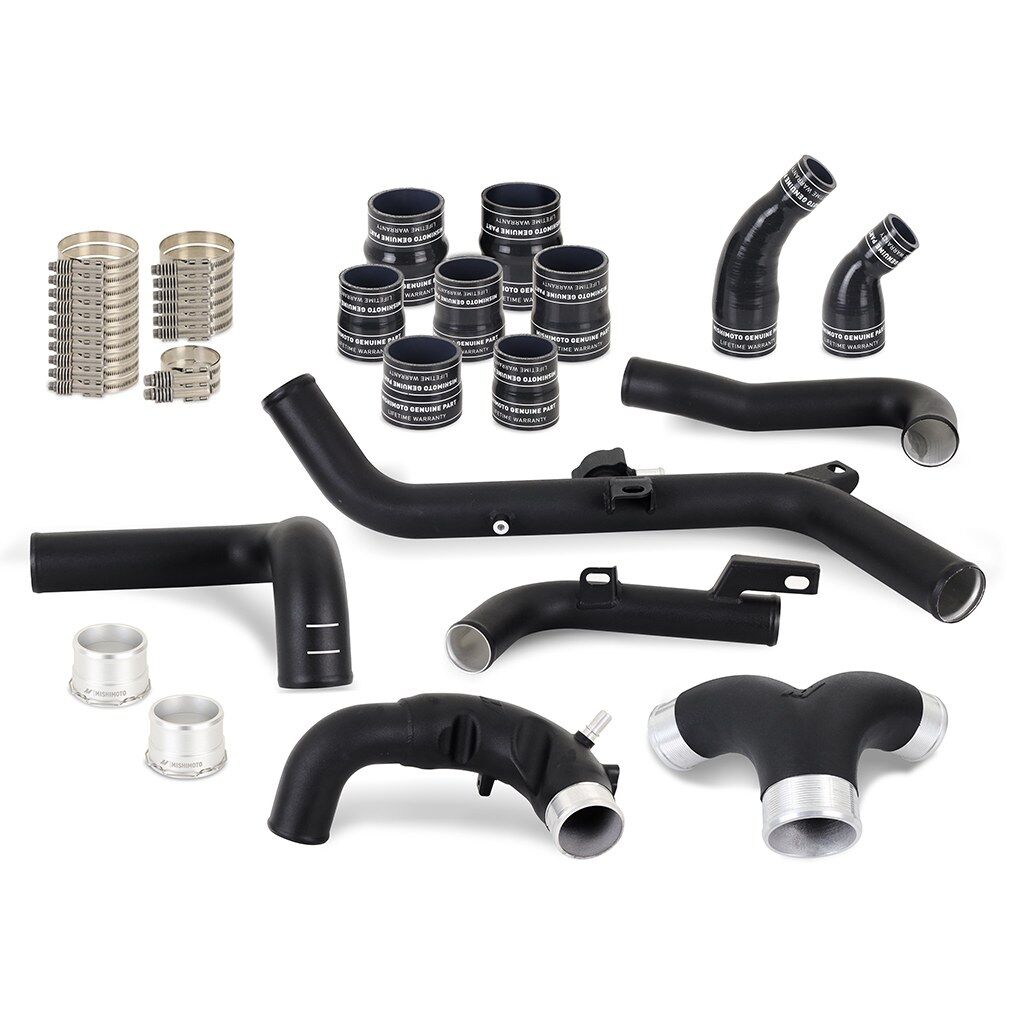

- Kit Includes: (1) Mishimoto Performance Intercooler, (9) Silicone Couplers, (18) Stainless-Steel Worm Gear Clamps, (4) Hot Side Intercooler Pipes, (2) Cold-Side Intercooler Pipes, (2) CNC-Machined Intercooler Inlets, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-BR27-21KBBK intercooler kit fit?
It is a specific fit for the 2021+ Ford Bronco V6 2.7L Twin Turbo (2.7L EcoBoost, chassis code U725), covering the Badlands and Outer Banks trims (2021–2026), Base (2021–2023), Big Bend, Black Diamond, and Wildtrak (2021–2024), First Edition (2021), Heritage Limited Edition (2023–2024), Heritage Edition (2024–2026), and Stroppe Edition (2025–2026).
How much power does this Mishimoto intercooler and pipe kit add?
In Mishimoto’s testing, the kit produced dyno-proven gains of up to 13.6 HP and 16.7 lb-ft of torque, along with a 21.2-degree reduction in outlet temperature and a 7-percent increase in flow over the stock intercooler.
Will installing this kit affect adaptive cruise control or the 360-degree camera system?
No, full functionality of adaptive cruise control and 360-degree cameras is retained after installation.
What is included in the Mishimoto Performance Intercooler and Pipe & Boot Kit?
The kit includes (1) Mishimoto Performance Intercooler, (9) Silicone Couplers, (18) Stainless-Steel Worm Gear Clamps, (4) Hot Side Intercooler Pipes, (2) Cold-Side Intercooler Pipes, (2) CNC-Machined Intercooler Inlets, mounting hardware, and the Mishimoto Lifetime Warranty.
What color options does this specific kit come in?
This version, MMINT-BR27-21KBBK, features a black intercooler paired with black pipes.
Is there a port for methanol injection or additional sensors?
Yes, there is a 1/8-NPT port on the cold-side pipe for methanol injection or additional sensors.
