Description
The Mishimoto MMINT-F150-11KPBK is a direct-fit performance intercooler and pipe kit purpose-built for the 2011-2014 Ford F-150 EcoBoost (3.5L V6 EcoBoost, chassis code P415). Rather than simply enlarging the factory core, Mishimoto engineered a uniquely angled intercooler that fills the wasted space in the spacious, unconventionally shaped cavity behind the front bumper, turning unused room into real cooling capacity.

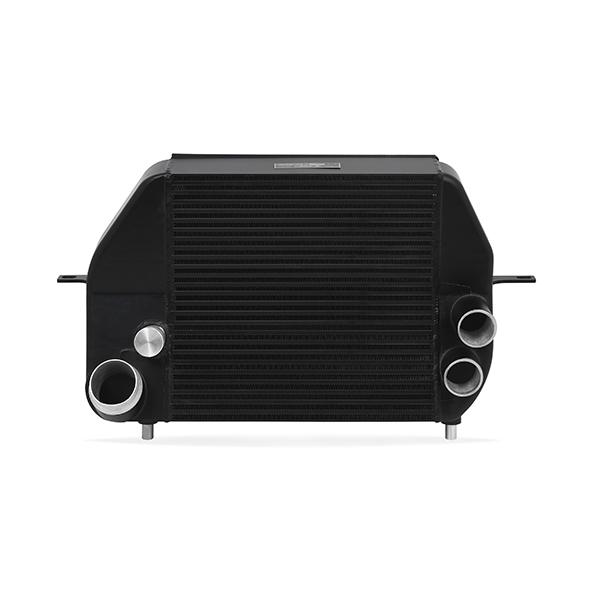

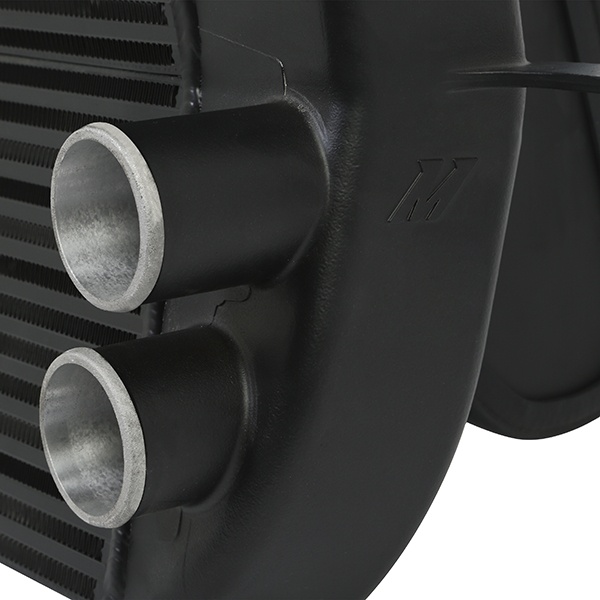

This forced induction upgrade is built around a bar-and-plate aluminum core with cast aluminum end tanks in an air-to-air intercooler design, giving this induction system an 88-percent increase in core size, a 66-percent increase in internal core volume, and a 40-percent increase in external fin surface area over the stock intercooler. Mishimoto states the core delivers a 50°F (28°C) reduction in charge air temperature compared to the factory part. The kit pairs the core with Mishimoto’s 2011-2014 F-150 EcoBoost intercooler pipes, which use 2.5-in aluminum hot-side and 3-3.5-in aluminum cold-side piping to replace the restrictive stock plastic pipes, joined by Mishimoto Silicone Boots featuring DuraCore technology for added resistance to heat, pressure, fuel, and oil. On the dyno, these pipes alone were shown to add up to 15 more horsepower and 21 ft-lbs more torque, making this a performance induction package for anyone chasing more consistent charge air control.
Vehicle Applications
This kit is a direct-fit for the 2011-2014 Ford F-150 EcoBoost, covering the FX2, FX4, King Ranch, Lariat, Platinum, XL, and XLT trims for 2011-2014, the F-150 Limited for 2013-2014, and the F-150 Tremor for 2014. Fitment also extends to the 2015-2017 Ford Expedition King Ranch, Limited, Platinum, XL, and XLT, the 2016-2017 Expedition SSV, and the extended-length Expedition EL King Ranch, Limited, Platinum, XL, and XLT for 2015-2017 along with the Expedition EL SSV for 2016-2017. Coverage also includes the Expedition Max Limited and Max XL for 2015-2017 and the Expedition Max Platinum for 2016-2017. On the Lincoln side, this kit fits the 2015-2016 Navigator Base, the 2015 Navigator L, the 2015-2017 Navigator L Reserve and Navigator Reserve, and the 2016-2017 Navigator L Select and Navigator Select.
Features
- Direct-fit application engineered specifically for the 2011-2014 Ford F-150 EcoBoost cavity behind the front bumper
- 50°F (28°C) reduction in intake air temperature versus the factory intercooler
- 88-percent increase in core size, 66-percent increase in internal core volume, and 40-percent increase in external fin surface area

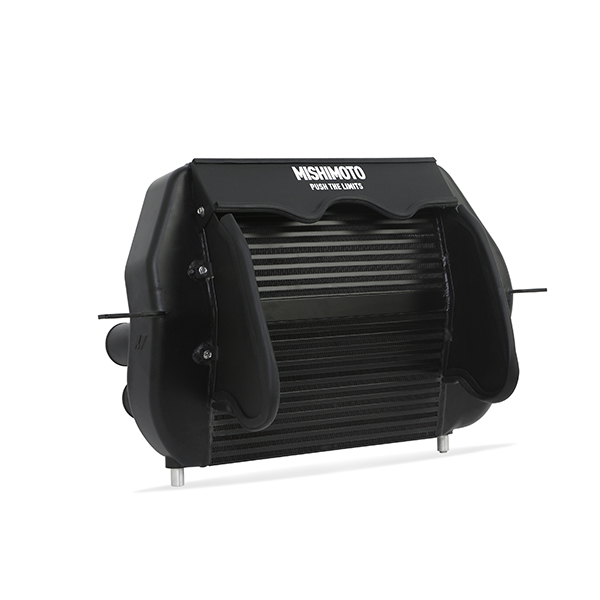

- Includes air diversion plates to direct airflow through the intercooler core for maximum efficiency
- Features a CNC Bypass Plug for 2011-2012 models
- 1/4-in NPT drain plug incorporated into the lower mount
- 2.5-in aluminum hot-side and 3-3.5-in aluminum cold-side intercooler pipes replace the stock plastic pipes
- Mishimoto Silicone Boots with DuraCore technology provide superior resistance to heat, pressure, fuel, and oil
- Pipes offer 10-percent greater flow than stock with a 41-percent increase in internal volume on the hot side and 34-percent increase on the cold side
- CNC quick-disconnect flange for durability, precise fitment, and easier installation
- Intercooler available in Sleek Silver or Stealth Black; pipes available in polished or wrinkle black powder-coated finish
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-F150-11KPBK
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Color: Black
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Intercooler Type: Air-to-Air
- Inlet Diameter: 2.5 in
- Pipe Material: Aluminum
- Pipe Finish: Powder Coated
- Pipe Color: Polished
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Maximum Boost Pressure: 50 PSI
- Maximum Recommended Boost Pressure: 50 PSI
- Overall Width: 6.75 in
- Overall Height: 19 in
- Overall Length: 27.6 in
- Engine Code: 3.5L V6 EcoBoost
- Chassis Code: P415
- CARB EO Number: D-759-6
- Grade Type: Performance
- Universal or Specific Fit: Specific

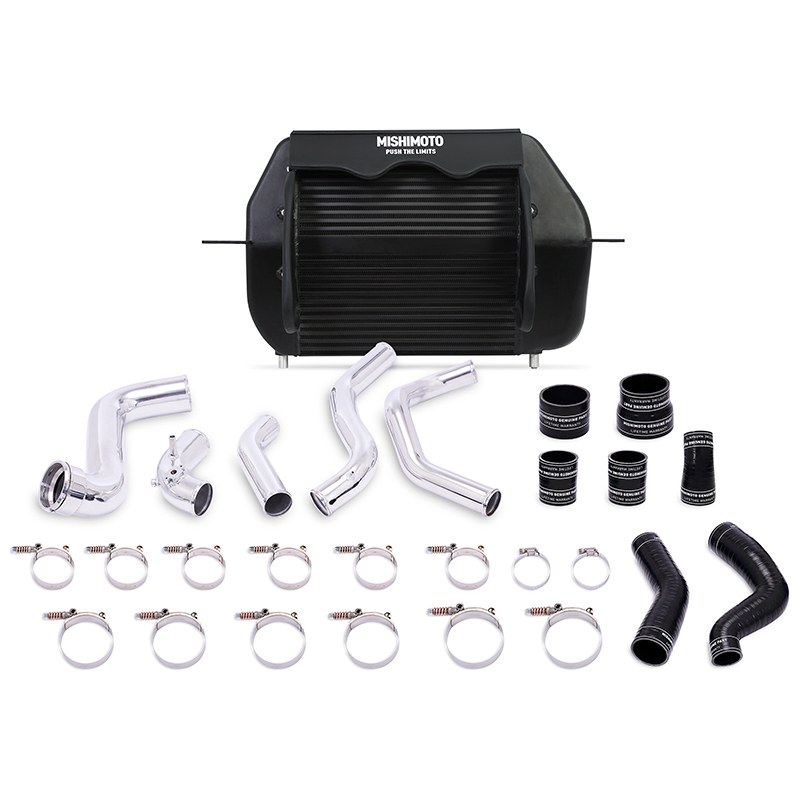

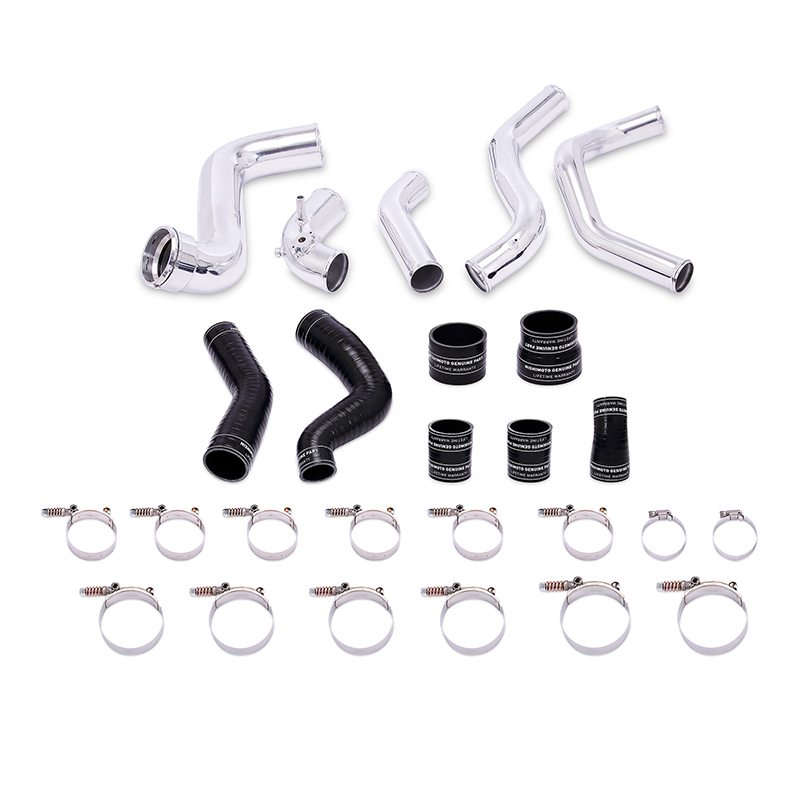

- Includes: (1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange, (1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing, (3) Aluminum Intercooler Pipes, (7) Silicone Boots w/ DuraCore Technology, (2) High-Torque Worm Gear Clamps, (12) Constant-Tension T-Bolt Clamps, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-F150-11KPBK intercooler and pipe kit fit?
This kit is a direct-fit for the 2011-2014 Ford F-150 EcoBoost (FX2, FX4, King Ranch, Lariat, Platinum, XL, XLT for 2011-2014, Limited for 2013-2014, and Tremor for 2014). It also fits the 2015-2017 Ford Expedition and Expedition EL (King Ranch, Limited, Platinum, XL, XLT, with SSV for 2016-2017), the Expedition Max Limited and Max XL for 2015-2017 and Max Platinum for 2016-2017, and the Lincoln Navigator lineup: Navigator Base (2015-2016), Navigator L (2015), Navigator L Reserve and Navigator Reserve (2015-2017), and Navigator L Select and Navigator Select (2016-2017).
How much does this intercooler lower intake air temperatures?
Mishimoto states this intercooler provides a 50°F (28°C) reduction in intake air temperature compared to the factory intercooler.
How much larger is the core compared to the factory intercooler?
The Mishimoto core delivers an 88-percent increase in core size, a 66-percent increase in internal core volume, and a 40-percent increase in external fin surface area versus the factory part.
Do the included pipes add any horsepower or torque?
Mishimoto’s intercooler pipes included in this kit have been dyno proven to provide up to 15 more horsepower and 21 ft-lbs more torque.
What is included in this kit?
The kit includes (1) aluminum intercooler pipe with CNC quick-disconnect flange, (1) aluminum intercooler pipe with CNC IAT sensor housing, (3) aluminum intercooler pipes, (7) silicone boots with DuraCore technology, (2) high-torque worm gear clamps, (12) constant-tension T-bolt clamps, and the Mishimoto Lifetime Warranty.
What color and finish options are available?
The intercooler is available in Sleek Silver or Stealth Black, and the pipes are available in polished or wrinkle black powder-coated finish.
