Description
The Mishimoto Performance Intercooler Piping Kit (MMICP-FOST-13KP) is purpose-built for the 2013-2018 Ford Focus ST, replacing the restrictive factory piping between the turbo and intercooler with a polished aluminum hot-side pipe and a reinforced silicone cold-side pipe. Mishimoto engineered this forced induction piping kit specifically to address the bends, narrow diameters, and degradation-prone materials found in the stock FOST setup, freeing up the flow of charged air through the entire induction system.
At the heart of this forced induction upgrade is a redesigned hot-side pipe that eliminates the turbo muffler and reduces the number of bends found on the factory piping, giving air a more direct path from the turbo to the intercooler. The mandrel-bent aluminum pipe has an inner diameter increased to 2.5 inches, delivering a 14-percent increase in volume and up to a 26-percent greater flow over the stock hot-side equipment. On the cold side, the degradation-prone factory rubber has been replaced with a 5-layer silicone pipe reinforced with heat-resistant fibers and a steel wire core to hold its shape under load, contributing a 10-percent increase in volume over the stock cold-side pipe. Sturdy silicone couplers replace the factory rubber connections for a solid seal between piping and intercooler, and together the kit produces a 21-percent increase in flow over stock piping. When paired with the full Mishimoto Performance Intercooler and Mishimoto Performance intake, Focus ST owners can see an additional 8hp and 10ft/lb of torque on top of intake and intercooler gains over the stock tune.
Vehicle Applications
This Mishimoto intercooler piping kit is a direct fit for the 2013-2018 Ford Focus ST. The cold-side pipe’s elliptical shape was also designed to accommodate the increased size of the Mishimoto Performance Radiator, making it a natural companion to other Mishimoto Focus ST forced induction components.
Features
- Direct fit for the 2013-2018 Ford Focus ST
- Mandrel-bent, polished aluminum hot-side piping with 2.5-inch inner diameter
- Turbo muffler removed and bends reduced for a more direct hot-side airflow path
- Cold-side pipe built from 5 layers of silicone with heat-resistant fibers and steel wire reinforcement
- Elliptical cold-side pipe shape accommodates the larger Mishimoto Performance Radiator
- Sturdy silicone couplers replace factory rubber connections
- 14-percent increase in volume over the stock hot-side pipe and 10-percent increase in volume over the stock cold-side pipe
- 21-percent increase in flow over stock piping
- 8hp and 10ft/lb of torque gains when combined with other Mishimoto Focus ST parts
- Available in polished or wrinkle black finishes

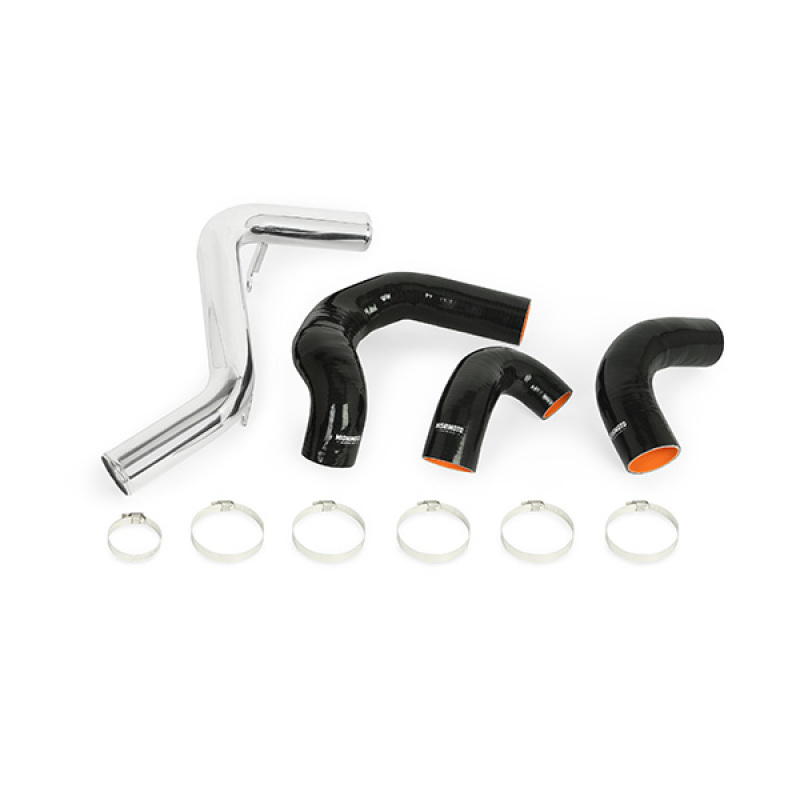

- Includes (1) Aluminum Intercooler Pipe, (1) Silicone Pipe, (2) Silicone Couplers, and (6) High-Torque Worm Gear Clamps
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-FOST-13KP
- Product Type: Forced Induction
- Finish: Polished
- Pipe Material: Aluminum
- Pipe Color: Polished
- Coupler Material: Silicone
- Coupler Color: Black
- Pipe Bend Type: Mandrel
- Clamp Type: Worm Gear
- Clamps Included: Yes
- Vehicle Application: Ford Focus ST, 2013-2018
- Installation Note: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps; operating range is 18-35 in-lbs (2-4NM); do not exceed the maximum torque rating of 35 in-lbs (4NM)
Frequently Asked Questions
What vehicles does the Mishimoto MMICP-FOST-13KP piping kit fit?
This Mishimoto Performance Intercooler Piping Kit is a direct fit for the 2013-2018 Ford Focus ST.
What is included in this Mishimoto intercooler piping kit?
The kit includes (1) Aluminum Intercooler Pipe, (1) Silicone Pipe, (2) Silicone Couplers, and (6) High-Torque Worm Gear Clamps, and is backed by the Mishimoto Lifetime Warranty.
How much of a flow increase does this piping kit provide?
The kit delivers a 14-percent increase in volume over the stock hot-side pipe, a 10-percent increase in volume over the stock cold-side pipe, and a 21-percent increase in flow over stock piping.
What material is the hot-side pipe made from?
The hot-side pipe is mandrel-bent, polished aluminum with an increased inner diameter of 2.5 inches.
Does this piping kit contribute to horsepower and torque gains?
When combined with other Mishimoto Focus ST parts, this piping kit contributes to an additional 8hp and 10ft/lb of torque on top of intake and intercooler gains over the stock tune.
What torque should be used when installing the clamps?
Mishimoto recommends 27 in-lbs (3NM) for all T-bolt and constant-tension T-bolt clamps, with an operating range of 18-35 in-lbs (2-4NM), and a maximum torque rating of 35 in-lbs (4NM).
