Description
The Mishimoto Performance Intercooler Power Pack (MMB-F80-PPCYMB) is a complete forced induction upgrade built specifically for the S55-powered BMW F8X M3, M4, and M2 Competition. This kit replaces BMW’s factory air-to-water intercooling system — along with its failure-prone plastic charge pipes — with a bar-and-plate intercooler core, an all-aluminum heat exchanger, and cast-midsection aluminum charge pipes engineered to squeeze past the intake without cracking or splitting under boost.
Mishimoto built this Power Pack to correct the known weak points in BMW’s original forced induction system rather than simply replicate it. Dyno testing recorded average power gains of 11 whp and 8 wtq, with peak gains of up to 31 whp and 10 wtq on a stage 1 tuned vehicle, alongside a 12°F drop in intake air temperature and a 10°F reduction in global intercooler coolant temperature. Intercooler core volume is increased by 29 percent with 16 percent improved flow, while the heat exchanger sees a 180 percent increase in fin surface area and a 60 percent increase in core volume — giving this induction system more capacity to manage heat under sustained boost. The charge pipe kit’s full aluminum construction, cast mid-section, and matte black silicone couplers round out a forced induction upgrade designed for durability, secure connections, and a factory-like fit in the M3/M4 engine bay.
Vehicle Applications
This Mishimoto Performance Intercooler Power Pack is a specific fit for the S55-powered BMW F8X chassis, covering the 2015-2018 BMW M3, the 2015-2020 BMW M4, the 2016 BMW M4 GTS, the 2018-2020 BMW M4 CS, and the 2019-2020 BMW M2 Competition, corresponding to chassis codes F80, F82, F83, and F87.
Features
- Direct fit for the BMW F8X M3, M4, and M2 Competition
- Includes S55 Performance Intercooler, Heat Exchanger, and Charge Pipe Kit
- Available in a choice of 7 BMW-specific color-matching options, including Yas Marina Blue Metallic, or classic black
- Delivers a 12°F drop in intake air temperature and a 10°F reduction in global intercooler coolant temperature
- Dyno-proven average power gains of 11 whp and 8 wtq, with peak gains up to 31 whp and 10 wtq on a stage 1 tuned vehicle

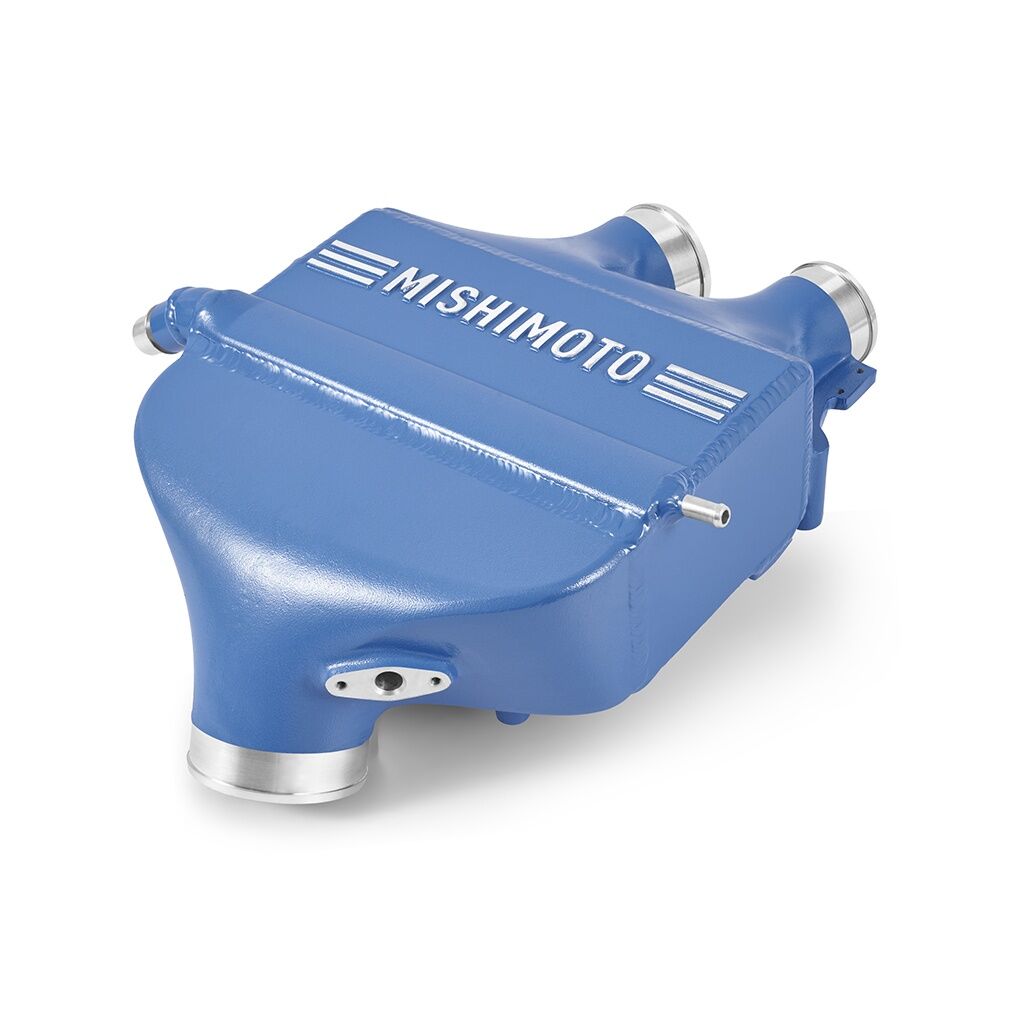

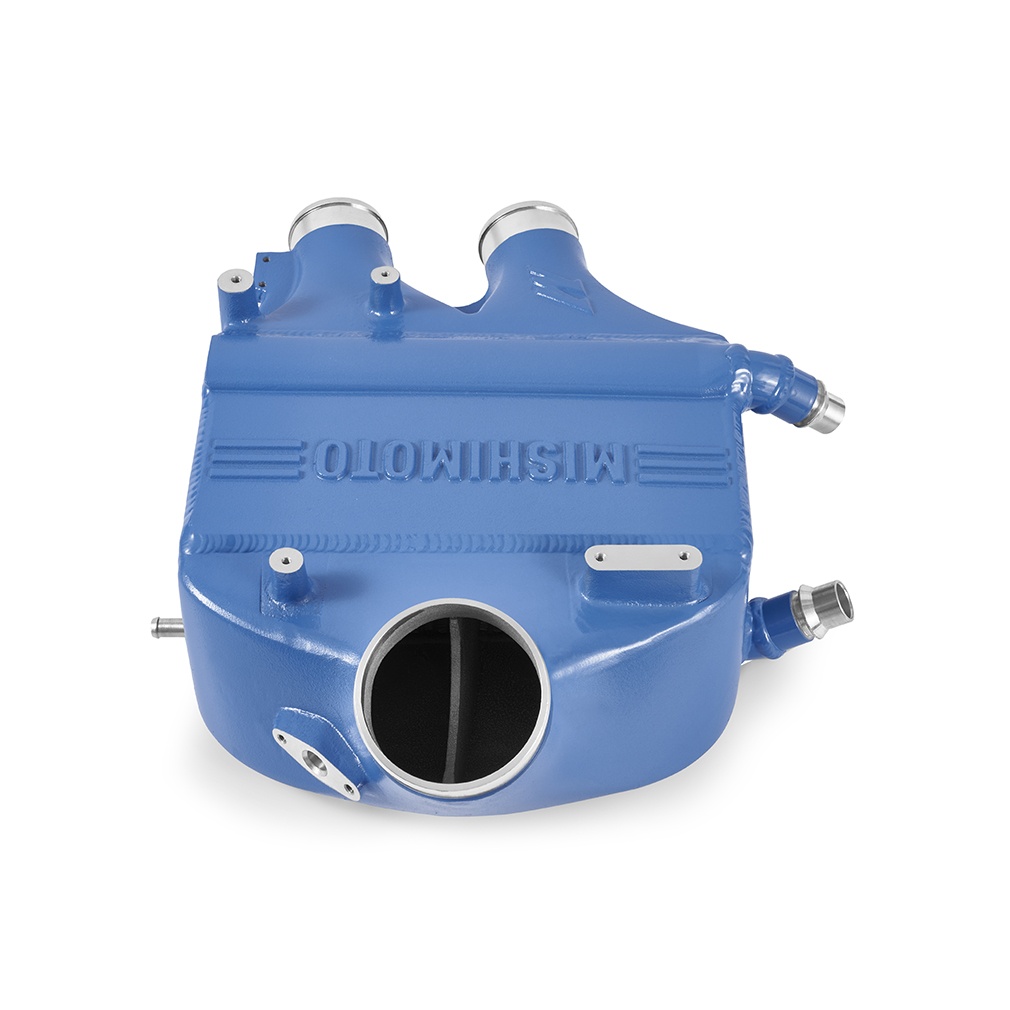

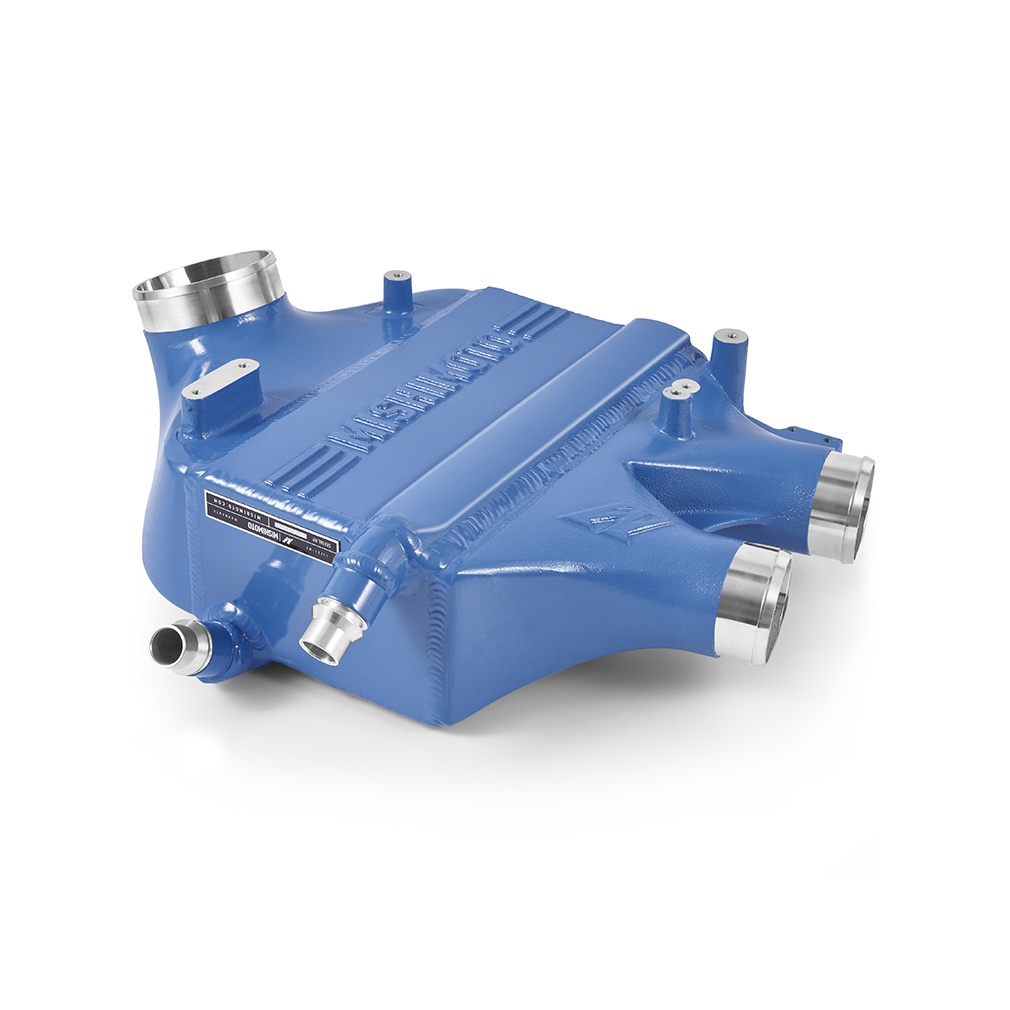

- Intercooler features a bar-and-plate, single-pass coolant passage design with cast aluminum end tanks
- Intercooler core volume increased by 29 percent with 16 percent improved flow
- Heat exchanger uses all-aluminum construction with a 180 percent increase in fin surface area and a 60 percent increase in core volume
- Heat exchanger includes an optional stone guard for added protection against road debris
- Heat exchanger utilizes variable fin pitch for improved flow to the DCT cooler
- Charge pipe kit features full aluminum construction with a cast mid-section for durability and fitment
- Charge pipes include matte black silicone couplers for a sleek, secure connection
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Intercooler Type: Air-to-Water
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Core Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Fit Type: Specific
- Engine Code: S55
- Chassis Codes: F80, F82, F83, F87

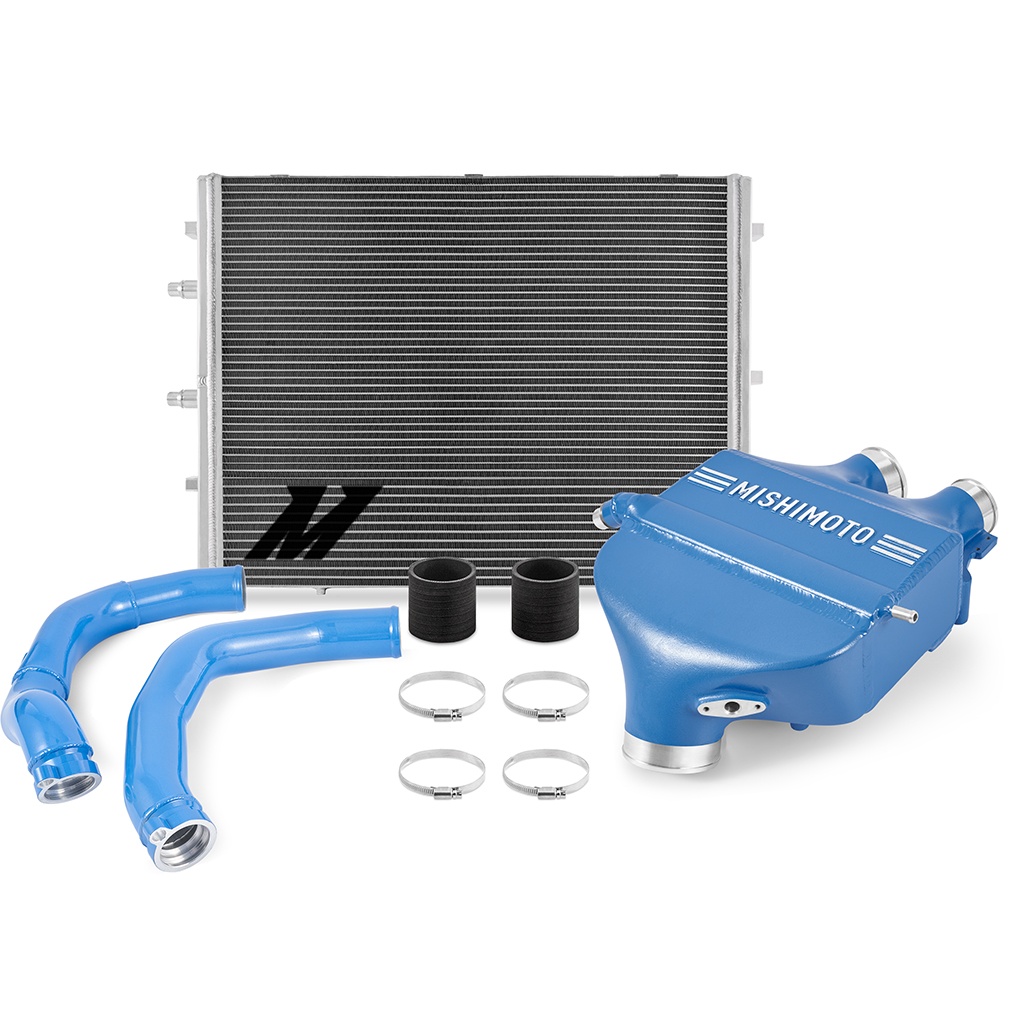

- Includes: Performance Air-to-Water Intercooler, Performance Heat Exchanger, Heat Exchanger Stone Guard, (2) Charge Pipes, (2) Silicone Couplers, (4) Worm Gear Clamps, CARB EO Sticker, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMB-F80-PPCYMB Performance Intercooler Power Pack fit?
It is a specific fit for the 2015-2018 BMW M3, 2015-2020 BMW M4, 2016 BMW M4 GTS, 2018-2020 BMW M4 CS, and 2019-2020 BMW M2 Competition, all built on the F80/F82/F83/F87 chassis with the S55 engine.
What is included in the kit?
The kit includes a Performance Air-to-Water Intercooler, Performance Heat Exchanger, Heat Exchanger Stone Guard, two charge pipes, two silicone couplers, four worm gear clamps, a CARB EO sticker, mounting hardware, and the Mishimoto Lifetime Warranty.
What performance gains can I expect?
Dyno testing showed average gains of 11 whp and 8 wtq, with peak gains up to 31 whp and 10 wtq on a stage 1 tuned vehicle.
Does this kit reduce temperatures?
Yes, it delivers a 12°F drop in intake air temperature and a 10°F reduction in global intercooler coolant temperature.
What color options are available?
The Power Pack is available in a choice of 7 BMW-specific color-matching options, including Yas Marina Blue Metallic, or classic black.
What warranty does this kit carry?
It is backed by the Mishimoto Lifetime Warranty.
