Description

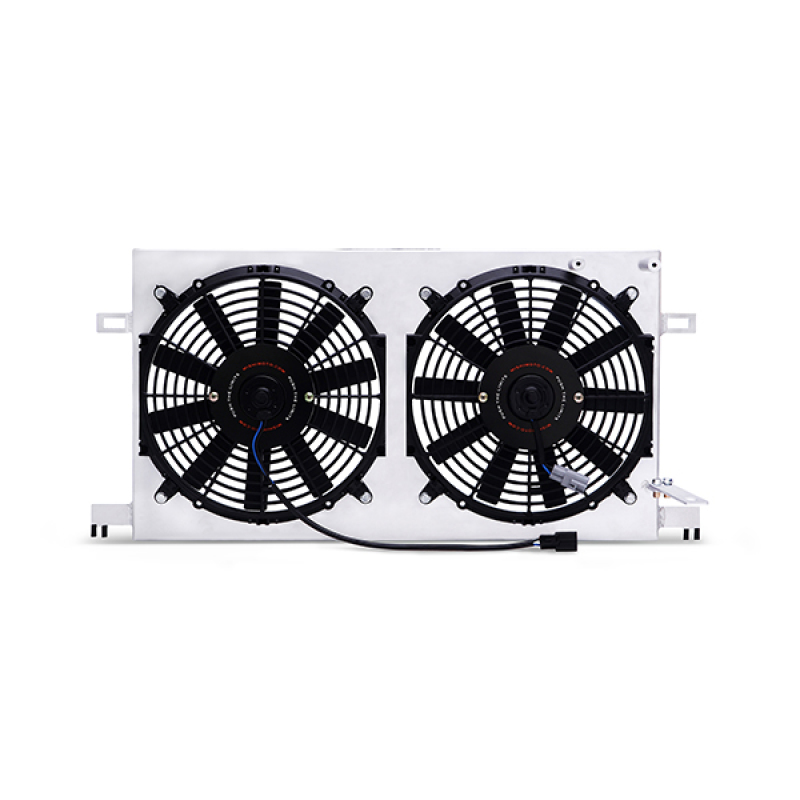

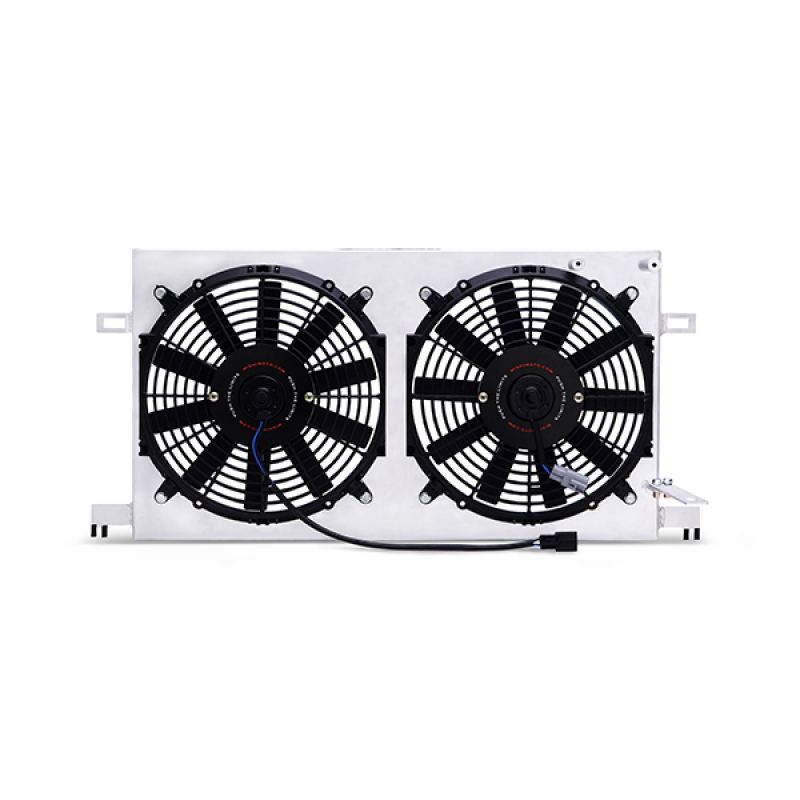

The Mishimoto Plug-N-Play Aluminum Fan Shroud Kit (MMFS-BRZ-13P) is a brushed aluminum shroud preassembled with two 12-inch high-flow electric fans, prewired with stock-style connectors so it drops into the engine bay of your BRZ, FR-S, or 86 exactly like the factory shroud setup. There’s no splicing, soldering, or crimming required, and every fastener needed for installation is included along with the Mishimoto Lifetime Warranty.
Built for owners who want reliable Cooling performance without sacrificing engine bay real estate, this Mishimoto fan shroud kit bolts directly to your stock radiator or a Mishimoto Subaru BRZ / Scion FR-S Performance Aluminum Radiator, and it’s designed to work with the stock coolant overflow tank as well. Each of the two 12-in fans moves over 1150 CFM of airflow to help keep hot engine temperatures under control, while the shroud’s slim 3.5-in maximum depth frees up extra clearance for a larger header, turbo kit, or supercharger. Since the fans arrive attached to the shroud in the stock orientation and use OEM-style plugs, installation follows the same bolt-in process as the original equipment shroud.
Vehicle Applications
This Mishimoto fan shroud kit is built for the Scion FR-S Base from 2013–2016 and the Subaru BRZ lineup spanning 2013–2020, including Base, Limited, Premium (2013–2019), Sport-tech, Sport-tech RS (2018–2020), TS (2018 and 2020), and special editions such as the Aozora Edition (2015), Series.Blue (2015), Series.HyperBlue (2016), Series.Yellow (2017), and Series.Gray (2019). It also fits the Toyota 86, covering the Base and GT trims from 2017–2020, the Special Edition (2017), the TRD Special Edition (2019), and the Hakone Edition (2020). Reference chassis codes ZC6 and ZN6, along with engine codes FA20 and 4U-GSE, apply to this fitment.
Features
- Direct plug-n-play fitment for the covered Subaru BRZ, Scion FR-S, and Toyota 86 model years
- Two 12-in Mishimoto slim electric fans, each rated over 1150 CFM of airflow

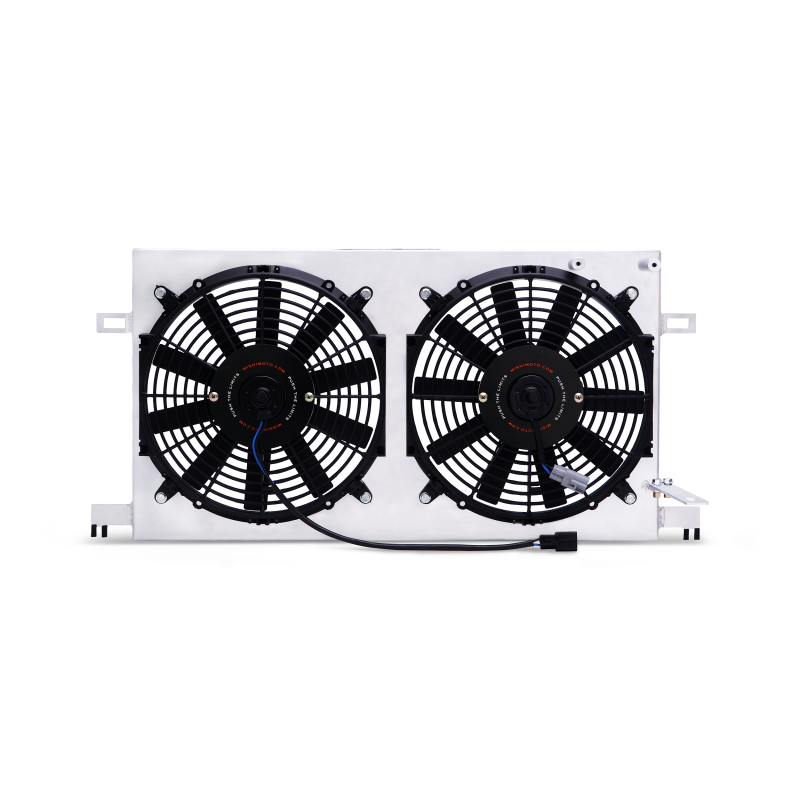

- Fans are prewired with stock-style connectors for a splice-free, solder-free install
- Compatible with both the stock radiator and Mishimoto Subaru BRZ / Scion FR-S Performance Aluminum Radiators

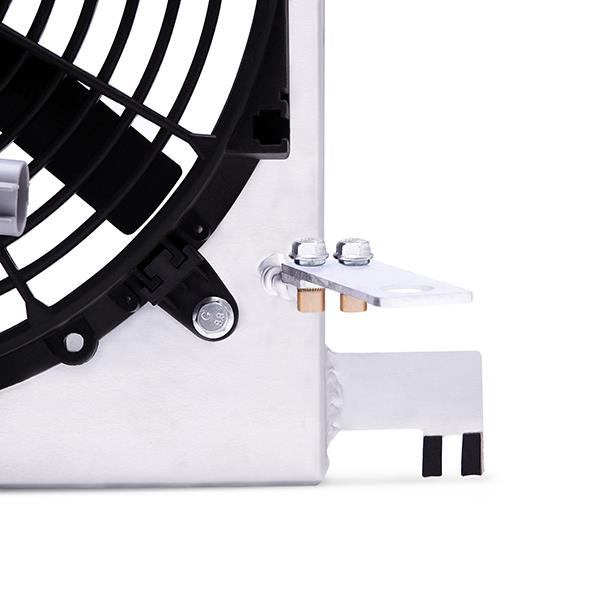

- Works with the stock coolant overflow tank, including a dedicated mounting bracket and posts

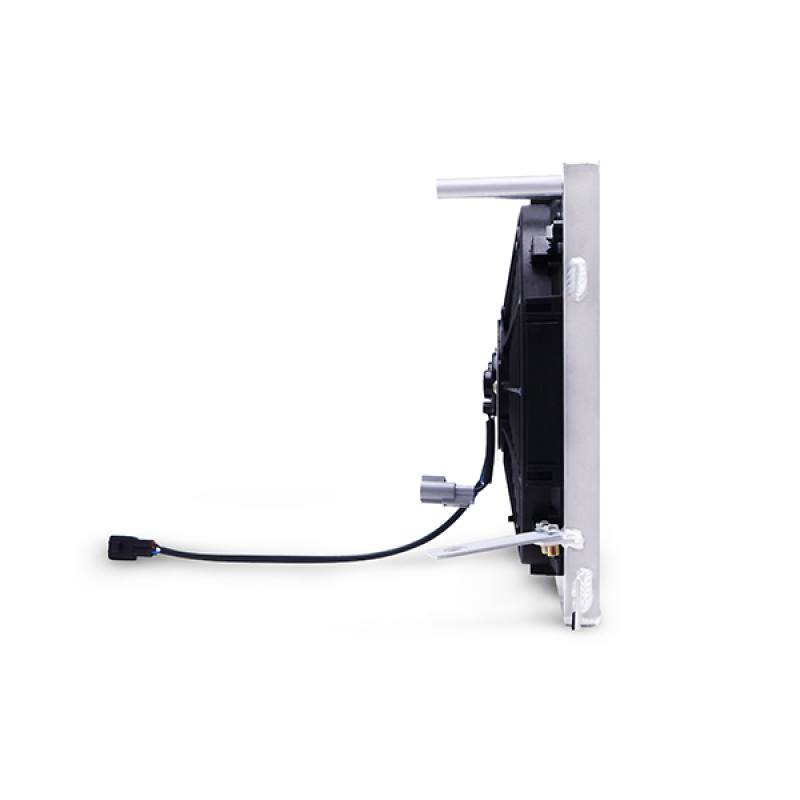

- Slim profile with a maximum shroud depth of just 3.5 in for added engine bay clearance
- Brushed aluminum shroud construction with a polished finish
- Includes all mounting hardware and (2) OEM-style fan plugs

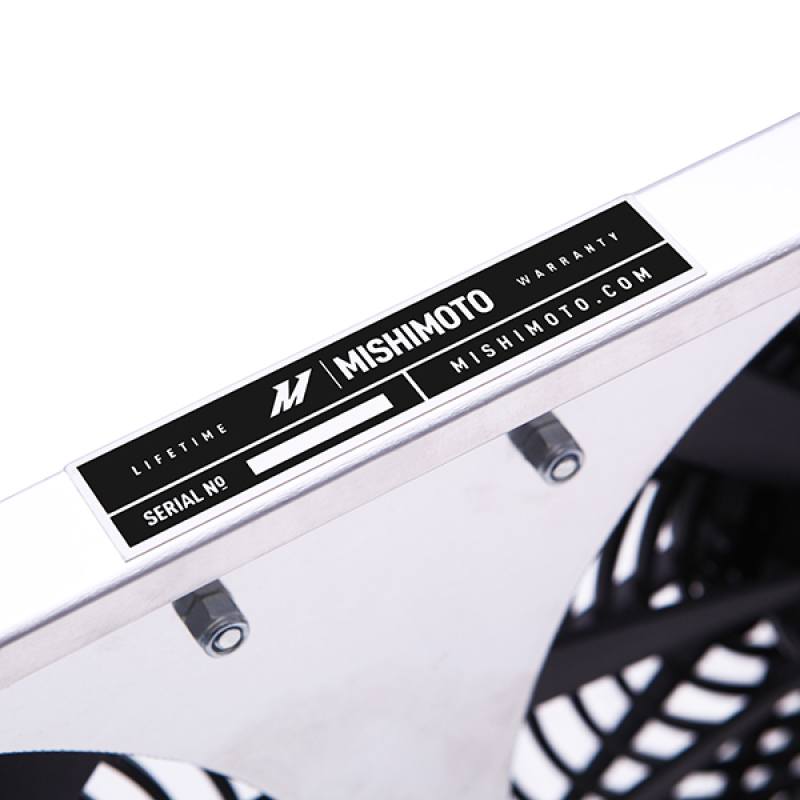

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFS-BRZ-13P
- Shroud Material: Aluminum
- Shroud Color: Silver
- Finish: Polished
- Fan Quantity: 2
- Fan Diameter: 12 in (each fan)
- Blade Quantity: 10 per fan
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Airflow Rate: 1150 CFM per fan
- Electrical or Mechanical: Electrical
- Hardwired or Plug-In: Plug-In
- Depth: 3.5 in
- Width: 3.5 in
- Height: 14.2 in
- Length: 29.7 in
- Weight: 7.5 lbs
- Mounting Hardware Included: Yes
- Engine Codes: FA20, 4U-GSE
- Chassis Codes: ZC6, ZN6
- Kit Includes: (1) Aluminum Fan Shroud, (2) 12-inch Mishimoto Slim Electric Fans, (2) OEM-style fan plugs, (3) Overflow tank mounting bracket & posts, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which vehicles does the Mishimoto MMFS-BRZ-13P fan shroud kit fit?
It fits the 2013–2016 Scion FR-S Base; the 2013–2020 Subaru BRZ across Base, Limited, Premium (2013–2019), Sport-tech, Sport-tech RS (2018–2020), and TS (2018, 2020), plus special editions like the Aozora Edition (2015), Series.Blue (2015), Series.HyperBlue (2016), Series.Yellow (2017), and Series.Gray (2019); and the 2017–2020 Toyota 86 Base, GT, Special Edition (2017), TRD Special Edition (2019), and Hakone Edition (2020).
Will this fan shroud work with my stock radiator?
Yes, this fan shroud is compatible with the stock radiator as well as Mishimoto Subaru BRZ / Scion FR-S Performance Aluminum Radiators.
Does installation require any wiring, splicing, or soldering?
No. The fans are prewired with stock-style connectors, so this plug-n-play kit requires zero splicing, soldering, or crimping and bolts into place like the stock fan shroud setup.
How much airflow do the fans provide?
Each of the two 12-in fans provides over 1150 CFM of airflow.
Is the stock coolant overflow tank still usable with this kit?
Yes, this fan shroud kit works with the stock coolant overflow tank and includes a mounting bracket and posts for it.
What is included in the Mishimoto MMFS-BRZ-13P kit?
The kit includes (1) Aluminum Fan Shroud, (2) 12-inch Mishimoto Slim Electric Fans, (2) OEM-style fan plugs, (3) Overflow tank mounting bracket & posts, all mounting hardware, and the Mishimoto Lifetime Warranty.
