Description

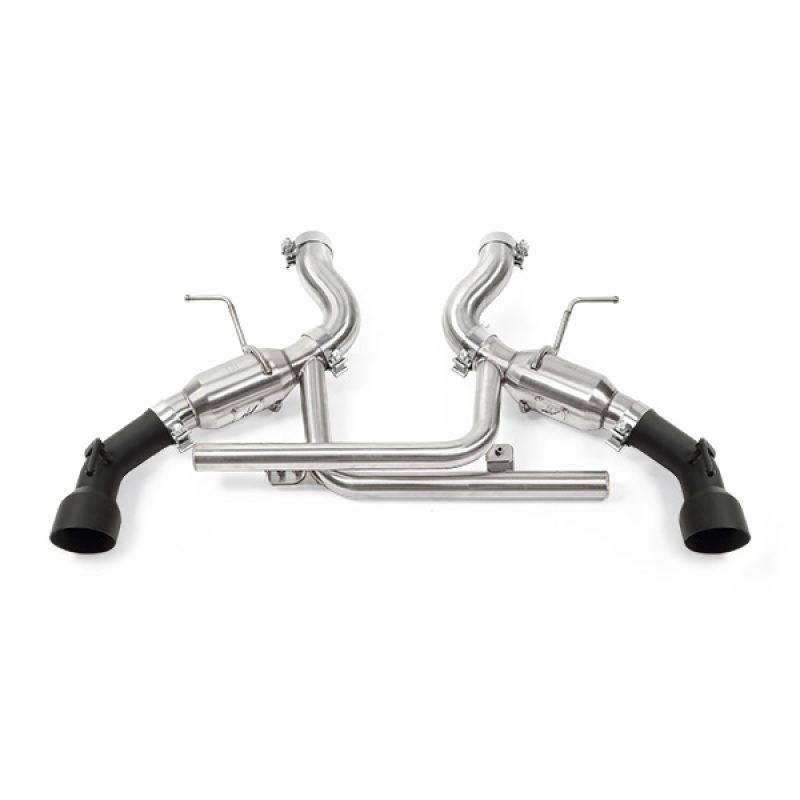

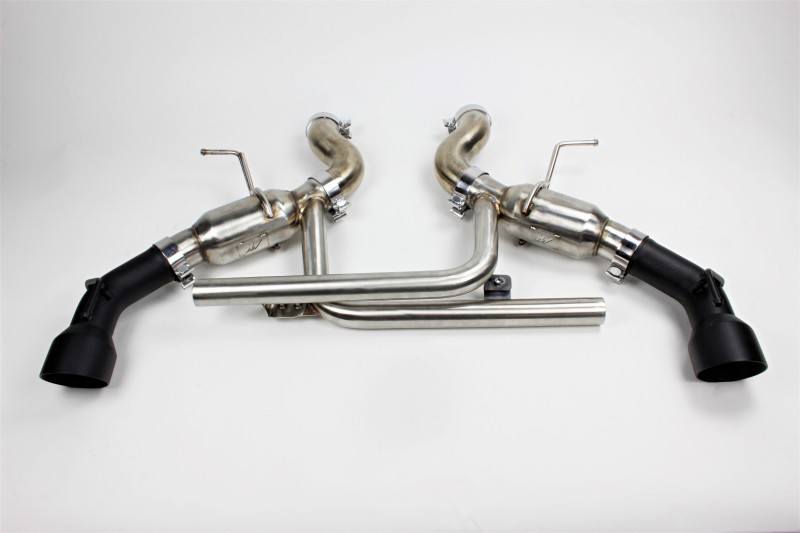

The Mishimoto Pro Axleback Performance Exhaust, part number MMEXH-CAM8-16ADTPBK, is a dual-tip, black-tip axleback system engineered specifically to replace the factory suitcase muffler on the LT1-powered Chevrolet Camaro SS. In place of that single restrictive muffler, Mishimoto installs two high-flowing mufflers so the Camaro’s exhaust note gets its punch back without the added weight of the stock unit.

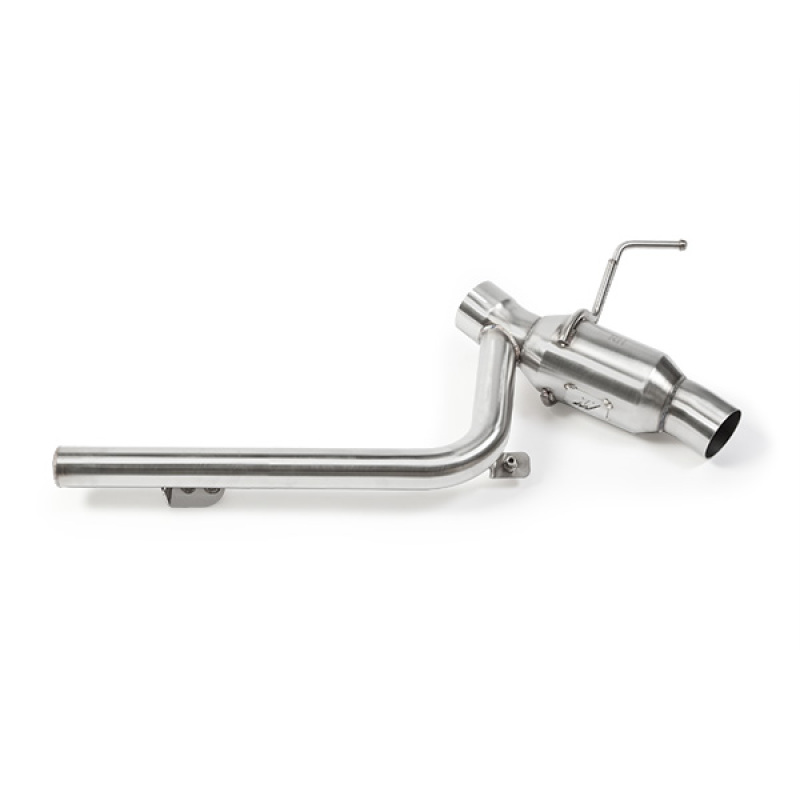

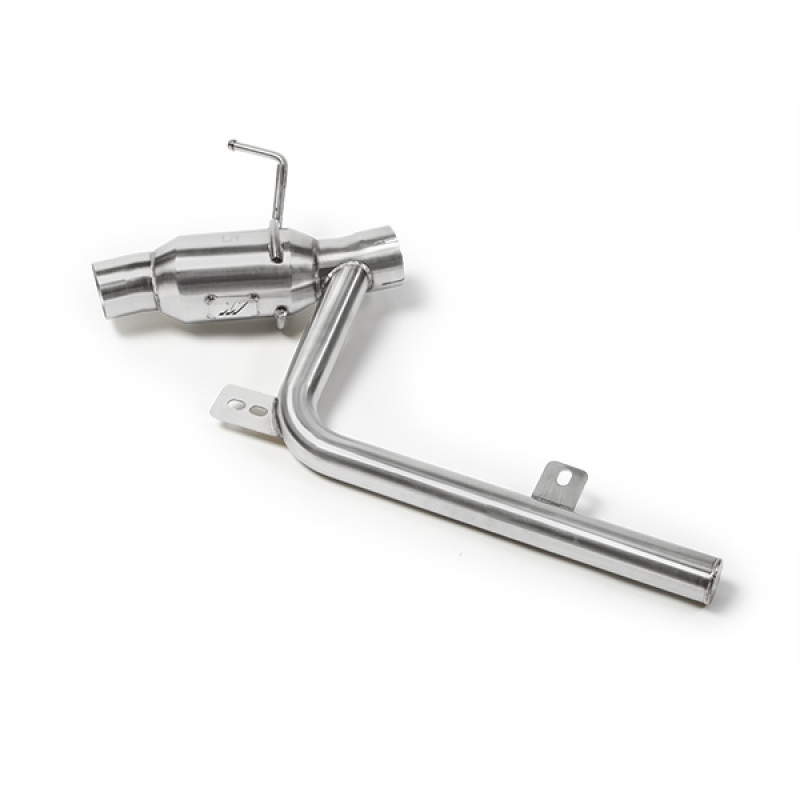

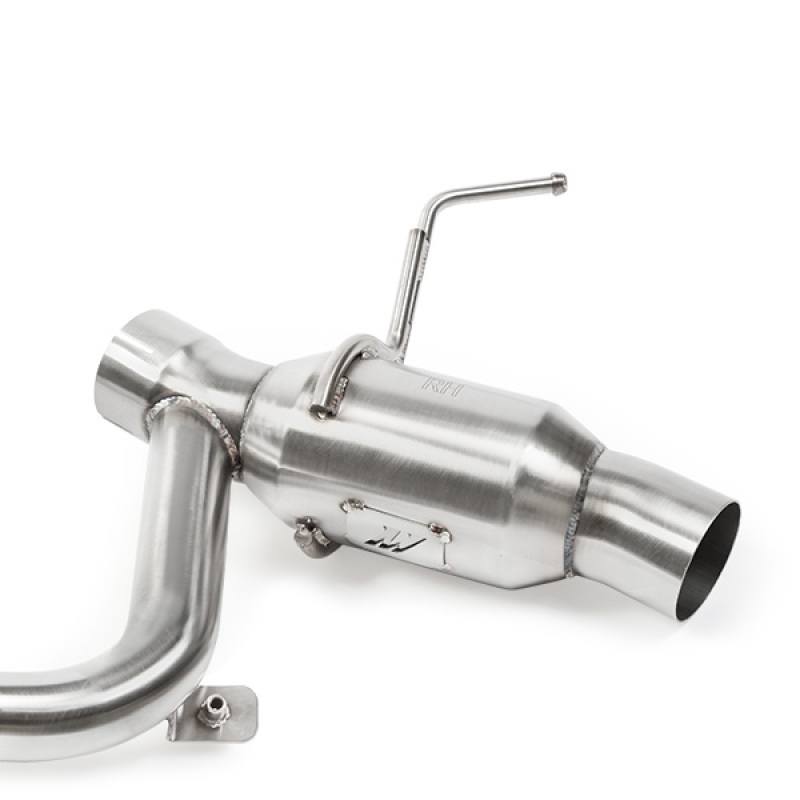

Built around two mandrel-bent, TIG-welded 304 stainless steel mufflers fitted with Helmholtz resonators, this Mishimoto axleback system is designed to deliver an aggressive exhaust tone during both acceleration and deceleration while managing the drone that can plague highway cruising. The system maintains a 3-inch overall diameter to help keep exhaust velocity where it needs to be, and it finishes off with dual 4.5-inch double-wall exhaust tips, available here in a matte black round finish with an angle cut, connected via slip-fit joints and secured with flat-band clamps. Every Mishimoto Pro Axleback kit is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This Mishimoto Pro Axleback Performance Exhaust is a cut-and-clamp design built specifically for the 2016-2020 Chevrolet Camaro SS equipped with the LT1 engine, on the Alpha chassis. Because it’s a cut-and-clamp system, installation requires cutting the stock exhaust piping, and the included cutting template and instruction card walk you through correctly measuring, marking, and cutting the factory pipes before clamping the new components into place.
Features
- Cut-and-clamp design specifically engineered for the 2016-2020 Chevrolet Camaro SS (LT1, Alpha chassis)
- Aggressive exhaust tone during both acceleration and deceleration
- Small-diameter mufflers with drone-reducing Helmholtz resonators that don’t compromise maximum sound
- 3-inch overall diameter helps maintain proper exhaust velocity
- Full 304 stainless steel mandrel-bent construction, TIG-welded throughout

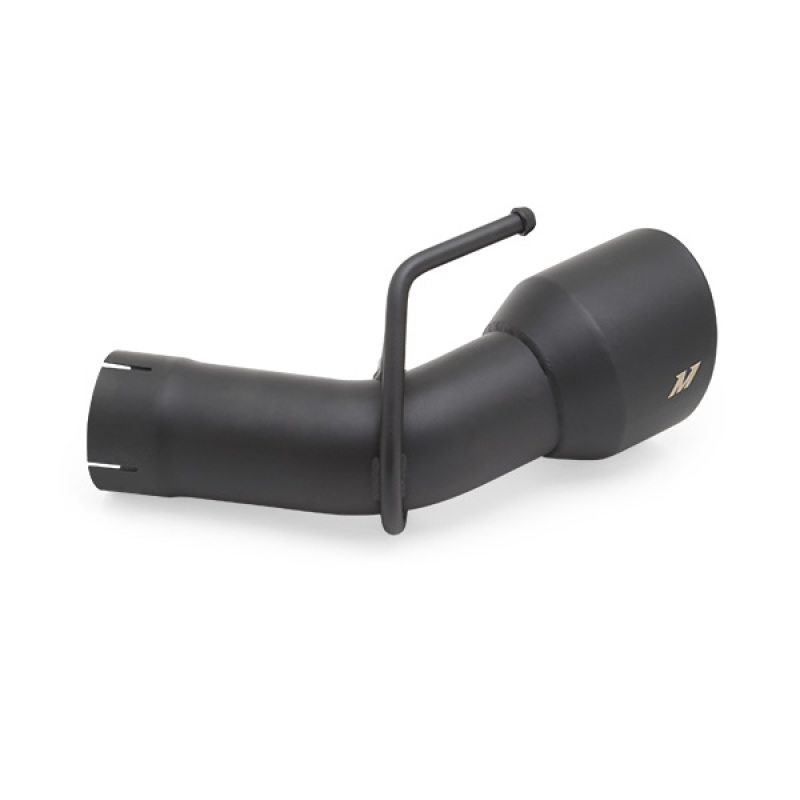

- Dual 4.5-inch double-wall exhaust tips in a black finish with an angle cut
- Slip-fit tip connection secured with flat-band exhaust clamps
- Includes hangers and clamps for a complete axleback installation
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMEXH-CAM8-16ADTPBK
- Grade Type: Performance
- Pipe Material: 304 Stainless Steel
- Pipe Diameter: 3-inch
- Muffler Quantity: 2
- Muffler Finish: Polished
- Exhaust Tip Quantity: 2
- Exhaust Tip Diameter: 4.5 inches
- Exhaust Tip Material: 304 Stainless Steel
- Exhaust Tip Finish: Matte
- Exhaust Tip Color: Black
- Exhaust Tip Shape: Round
- Exhaust Tip Cut: Angle
- Exhaust Tip Wall: Double-Wall
- Exhaust Tip Connection: Slip-Fit
- Clamping Type: Flat Band
- Clamps Included: Yes
- Hangers Included: Yes
- Exit Style: Rear
- Engine Code: LT1
- Chassis Code: Alpha

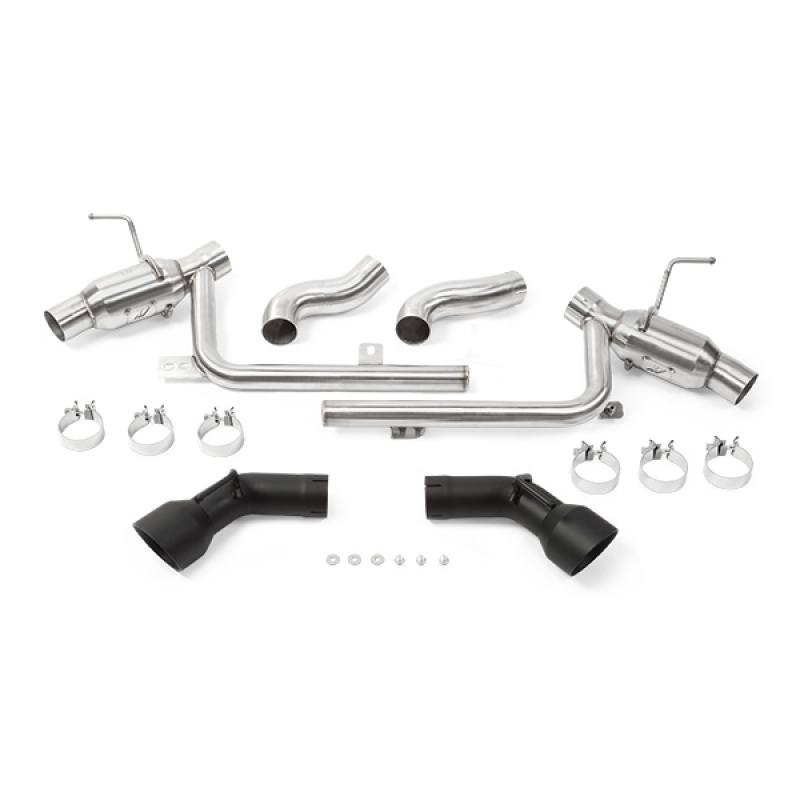

- Kit Includes: (2) Stainless Steel Front Pipes, (2) Stainless Steel Mufflers w/ Helmholtz Resonators, (2) 4.5-inch Double Wall Exhaust Tips, (6) 3-inch Exhaust Band Clamps, (1) Cutting Template w/ instruction card, (3) Bolts, (3) Washers, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does this Mishimoto Pro Axleback exhaust fit?
This Mishimoto Pro Axleback Performance Exhaust (MMEXH-CAM8-16ADTPBK) is a cut-and-clamp system designed specifically for the 2016-2020 Chevrolet Camaro SS equipped with the LT1 engine on the Alpha chassis.
What material is the Mishimoto Pro Axleback exhaust made from?
The system uses full 304 stainless steel mandrel-bent, TIG-welded construction for both the pipes and mufflers.
Does installation require cutting the factory exhaust?
Yes. Cutting of the stock exhaust system is required to install this product. The included install guide provides instructions for correctly measuring, marking, and cutting the stock exhaust pipes, and a cutting template with instruction card is included in the kit.
What size and finish are the exhaust tips?
This kit includes dual 4.5-inch double-wall exhaust tips that are round in shape with an angle cut, finished in matte black, and connected via a slip-fit design.
Does the Mishimoto Pro Axleback exhaust reduce highway drone?
Yes. The mufflers are equipped with Helmholtz resonators, which are designed to reduce highway drone while still delivering an aggressive exhaust tone during acceleration and deceleration.
What is included in the box with this exhaust kit?
The kit includes (2) stainless steel front pipes, (2) stainless steel mufflers with Helmholtz resonators, (2) 4.5-inch double-wall exhaust tips, (6) 3-inch exhaust band clamps, (1) cutting template with instruction card, (3) bolts, (3) washers, and the Mishimoto Lifetime Warranty.
