Description

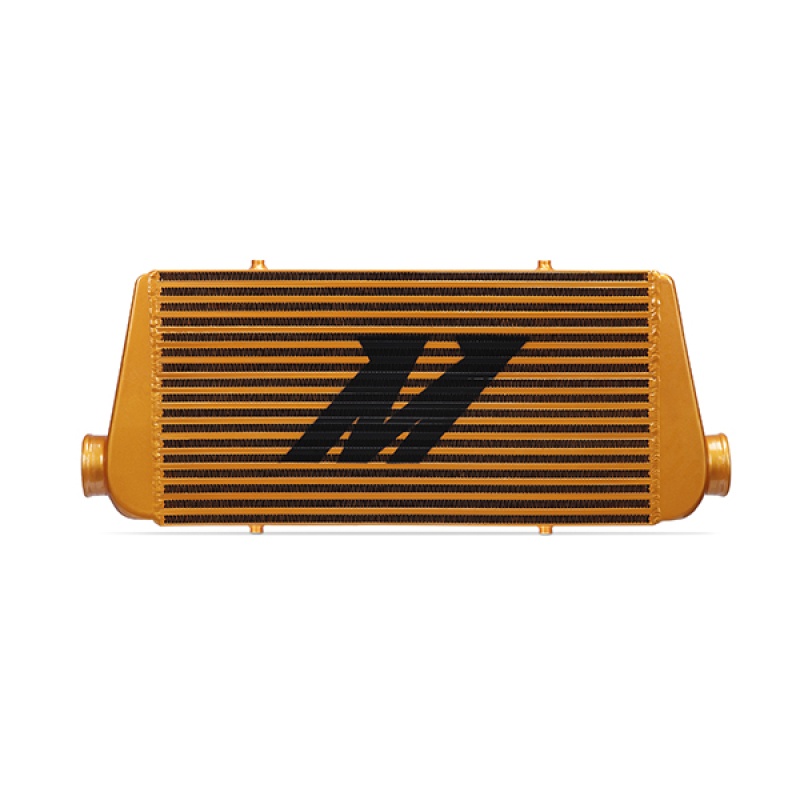

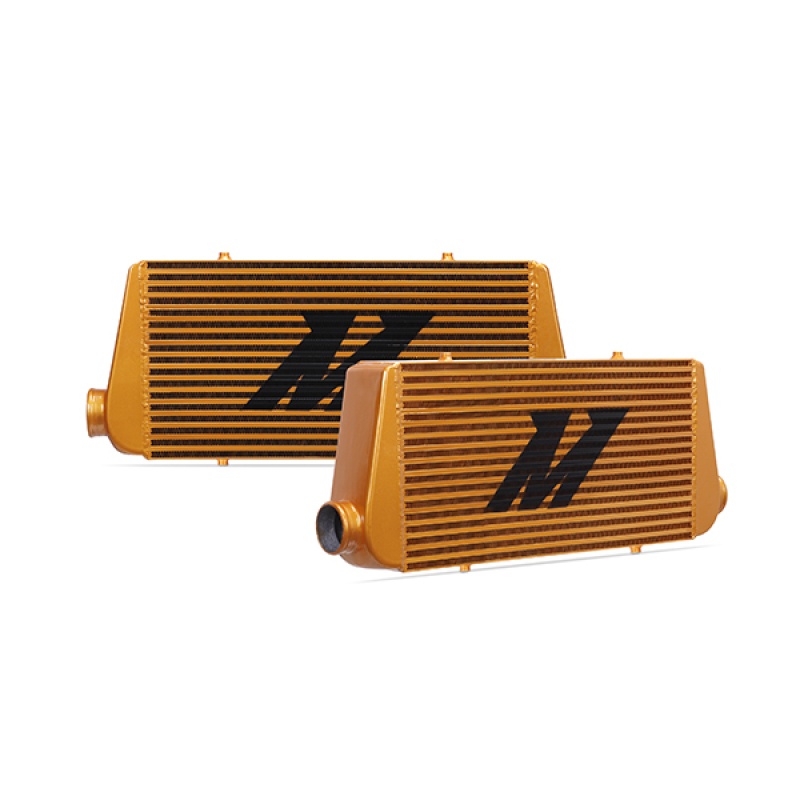

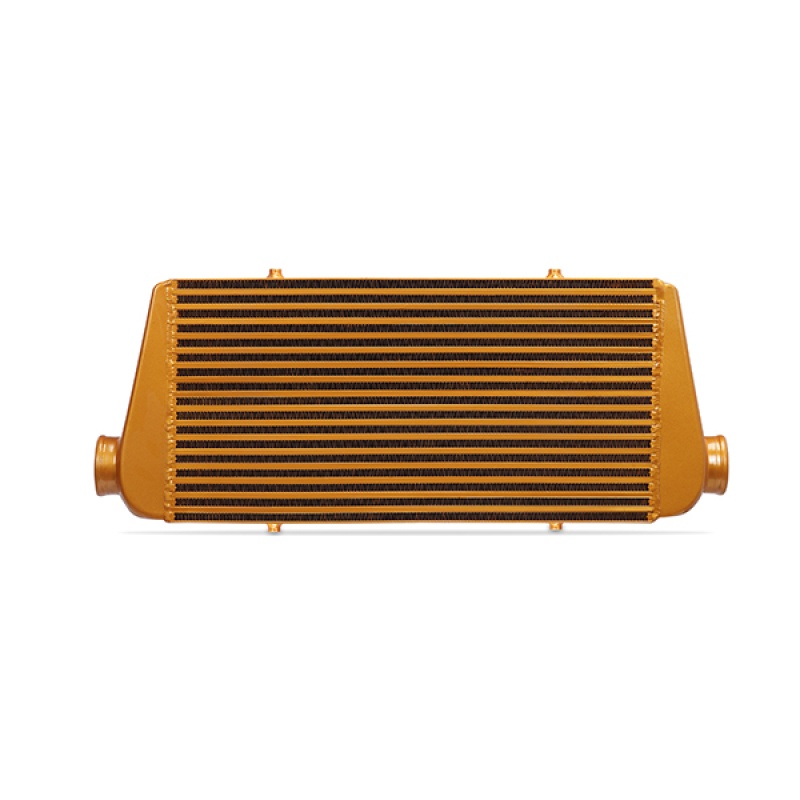

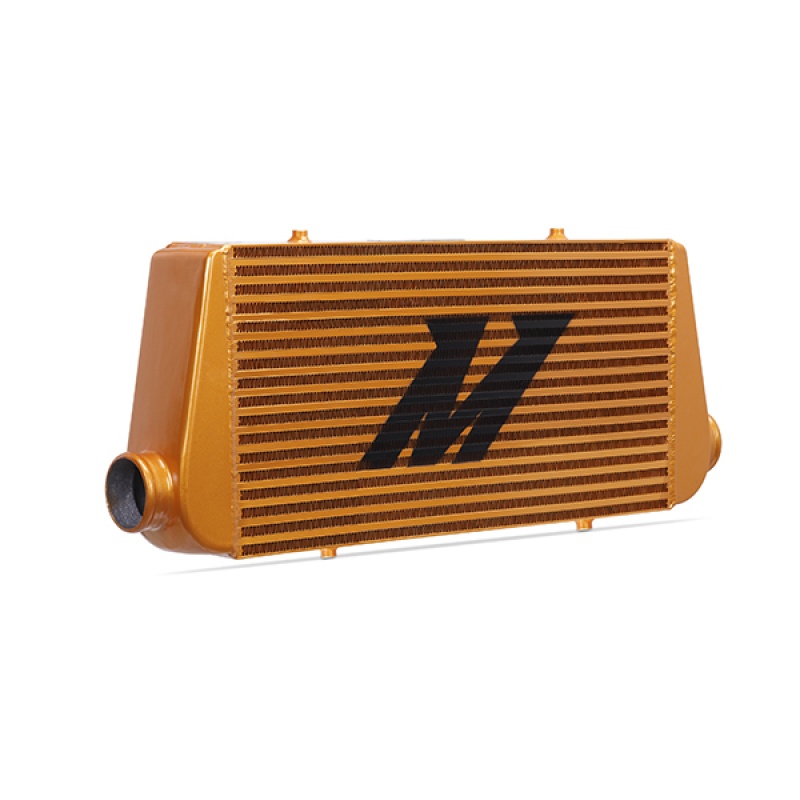

The Mishimoto R-Line intercooler (MMINT-URG) is a gold-finished, bar-and-plate front-mount intercooler engineered from 6061 aircraft-quality aluminum and precision TIG-welded for durability under boost. Rated to support up to 1000 maximum recommended horsepower and 32 PSI of maximum recommended boost pressure, this Specific-fit, Performance-grade unit is built for turbocharged and supercharged forced induction applications that demand serious cooling capacity. True to Mishimoto’s understated styling, the Mishimoto logo appears on only one side of the core.
Efficient cooling is central to any forced induction system — as boost pressure climbs, so does intake air temperature, and unmanaged heat soak can rob an engine of the power gains a turbo or supercharger is meant to deliver. The R-Line’s durable bar-and-plate core is designed to provide superior heat transfer, helping reduce induction air temperatures for more consistent output. It pairs with robust, one-piece cast aluminum end tanks built to withstand high boost pressures, and both the inlet and outlet use male fitting connections. Whether you’re upgrading a stock core or building out a dedicated forced induction turbo setup, this intercooler is intended as a long-term component of your induction system, backed by the Mishimoto Lifetime Warranty rather than a short-term bolt-on.
Vehicle Applications
The Mishimoto R-Line intercooler MMINT-URG is manufactured to Specific-fit specifications for turbocharged and supercharged vehicles running forced induction setups. Mishimoto engineers this bar-and-plate core to handle up to 1000 horsepower and 32 PSI of boost, making it suited to demanding forced induction turbo builds where a high-capacity, application-specific intercooler is required.
Features
- 6061 aircraft-quality aluminum construction, precision TIG-welded for durability
- Durable bar-and-plate core designed to provide superior heat transfer while reducing induction air temperatures
- Robust, one-piece cast aluminum end tanks built to withstand high boost pressures
- Aluminum inlet tank material with male inlet and outlet fittings

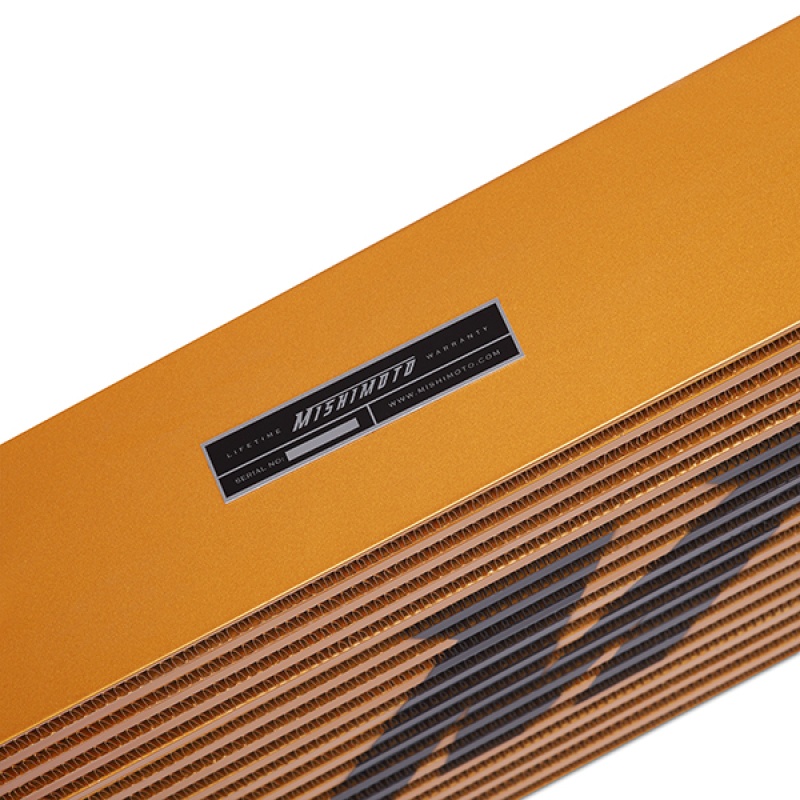

- Gold core finish, with the Mishimoto logo featured on only one side
- Specific-fit, Performance-grade design rated up to 1000 maximum recommended horsepower and 32 PSI maximum recommended boost pressure
- Backed by the Mishimoto Lifetime Warranty
- Includes (1) Mishimoto intercooler
Specifications
- Brand: Mishimoto
- Part Number: MMINT-URG
- Product Type: Forced Induction
- Type / Core Type: Bar-and-Plate
- Core Material: Aluminum (6061 aircraft-quality aluminum)
- Inlet Tank Material: Aluminum
- Core Color: Gold
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Overall Length: 31 in
- Overall Height: 12 in
- Core Height: 12 in
- Core Length: 24 in
- Maximum Recommended Horsepower: 1000
- Maximum Recommended Boost Pressure: 32 PSI
- Includes: (1) Mishimoto Intercooler
- Warranty: Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the maximum recommended horsepower for the Mishimoto R-Line intercooler MMINT-URG?
Mishimoto rates the R-Line intercooler MMINT-URG for a maximum recommended horsepower of 1000 HP.
What is the maximum recommended boost pressure?
This intercooler is rated for a maximum recommended boost pressure of 32 PSI.
What material is the MMINT-URG intercooler made from?
It is constructed from 6061 aircraft-quality aluminum, with an aluminum core and aluminum inlet tank material.
Does the Mishimoto logo appear on both sides of the intercooler?
No, only one side of the R-Line intercooler features the Mishimoto logo.
What warranty comes with the MMINT-URG intercooler?
The Mishimoto R-Line intercooler MMINT-URG is backed by the Mishimoto Lifetime Warranty.
What core type does the MMINT-URG use?
It uses a bar-and-plate core type, which Mishimoto designs to provide superior heat transfer.
