Description

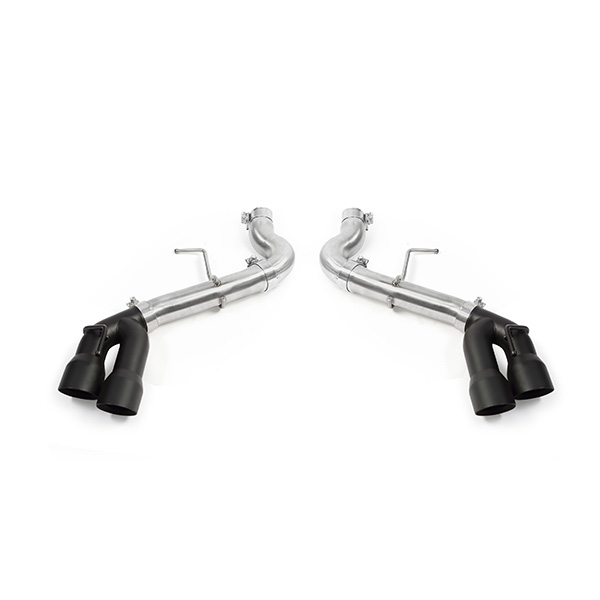

The Mishimoto Race Axleback Performance Exhaust (MMEXH-CAM4-16AQTRBK) is an axleback system engineered for the 6th-generation Chevrolet Camaro, swapping GM’s factory suitcase-style muffler for 3-inch diameter, mandrel-bent 304 stainless steel piping and four matte black double-wall exhaust tips arranged in a quad-tip layout. Mishimoto built this kit to shed weight and unleash the turbocharged, sporty exhaust note the LTG and LGX-powered Camaro deserves, while filling out the rear valence cutouts with a genuine quad-tip look.
This Mishimoto axleback exhaust deletes the rear muffler entirely, using dedicated muffler delete pipes to maximize exhaust tone for spirited street driving or track days, and the full 304 stainless steel, TIG-welded construction is roughly 8 lbs lighter than the factory Camaro exhaust system. Under acceleration and deceleration, the setup produces an aggressive racing exhaust tone complemented by a louder turbo spool while boosting, giving the Camaro the muscle-car soundtrack that the stock system muted. The quad 4-inch double-wall tips feature an angled cut, Round shape, slip-fit connection, and matte black finish, and the kit is secured with flat band clamps for a clean, hanger-supported fit. Backed by the Mishimoto Lifetime Warranty, this Performance grade exhaust is designed to install in under an hour using the included cutting template and instruction card.
Vehicle Applications
This Mishimoto Race Axleback Performance Exhaust is built to fit the Chevrolet Camaro LT from 2016 through 2023 and the Chevrolet Camaro LS from 2017 through 2023. Because the kit uses a cut-and-clamp design, installation requires cutting the factory exhaust pipes according to the included measuring, marking, and cutting instructions. Fitting the quad exhaust tips also requires the GM quad-tip rear bumper valence (GM part #23404791), which is not included with this exhaust kit.
Features
- Full 304 stainless steel, mandrel-bent construction that is TIG-welded for durability

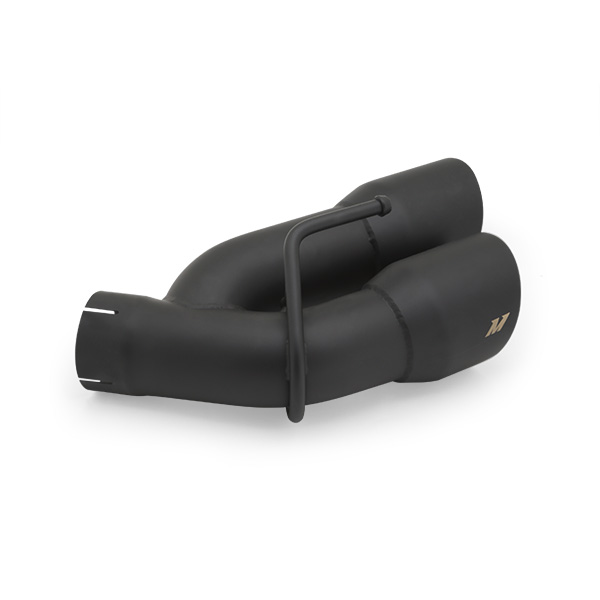

- Converts the Camaro’s factory dual-tip exhaust to a quad-tip layout with four 4-inch double-wall tips in a matte black finish

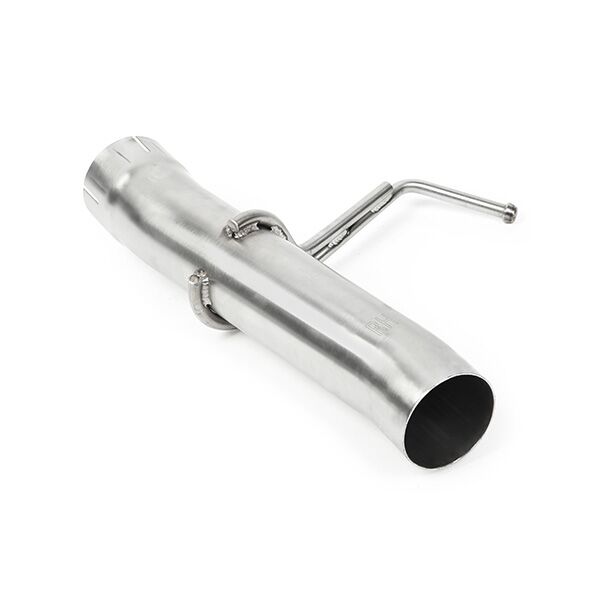

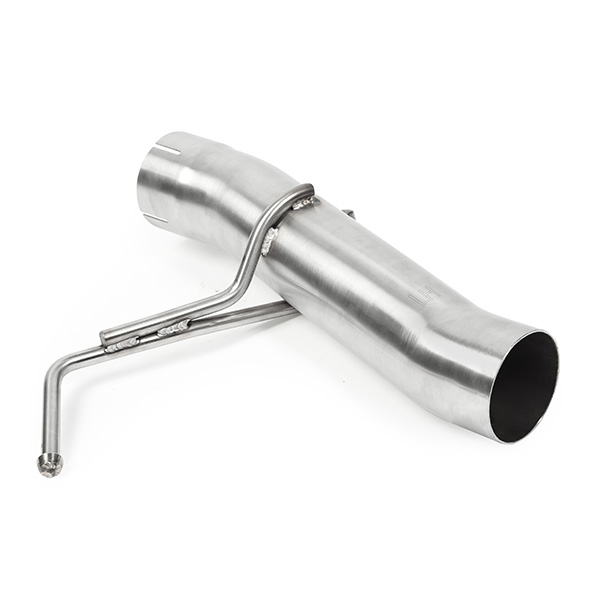

- Rear muffler delete piping maximizes exhaust tone for street or track use
- Approximately 8 lbs lighter than the stock Camaro exhaust system
- 3-inch diameter piping with slip-fit, angled-cut, Round-shape exhaust tips
- Secured with 3-inch flat band clamps; hangers included
- Includes a cutting template and instruction card; installs in under 1 hour
- Requires purchase of the GM quad-tip rear bumper valence, GM part #23404791 (not included)
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Pipe Material: 304 Stainless Steel
- Main Piping Diameter: 3-inch
- Exhaust Tip Diameter: 4-inch
- Exhaust Tip Quantity: 4
- Exhaust Tip Wall: Double-Wall
- Exhaust Tip Connection: Slip-Fit
- Exhaust Tip Cut: Angle
- Exhaust Tip Shape: Round
- Exhaust Tip Color: Black
- Exhaust Tip Finish: Matte
- Exhaust Tip Material: 304 Stainless Steel
- Clamping Type: Flat Band
- Clamps Included: Yes
- Hangers Included: Yes
- Exit Style: Rear
- Grade Type: Performance

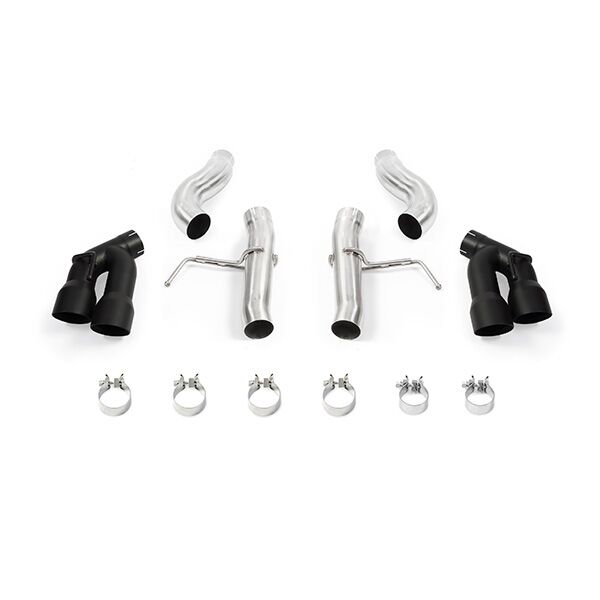

- Kit Includes: (2) Stainless Steel Front Pipes, (2) Stainless Steel Muffler Delete Pipes, (4) 4-inch Double Wall Exhaust Tips, (6) 3-inch Exhaust Band Clamps, (1) Cutting Template w/ Instruction Card, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which Camaro models does this exhaust fit?
This Mishimoto axleback exhaust fits the Chevrolet Camaro LT from 2016-2023 and the Chevrolet Camaro LS from 2017-2023.
Is cutting required to install this exhaust?
Yes, cutting of the stock exhaust system is required. The included install guide provides instructions for correctly measuring, marking, and cutting the stock exhaust pipes.
Do I need any additional parts to use the quad exhaust tips?
Yes, this exhaust requires purchase of the GM quad-tip rear bumper valence, GM part #23404791, to accommodate the additional exhaust tips.
What is included in the kit?
The kit includes (2) stainless steel front pipes, (2) stainless steel muffler delete pipes, (4) 4-inch double wall exhaust tips, (6) 3-inch exhaust band clamps, and a cutting template with instruction card.
How much lighter is this exhaust than stock?
The Mishimoto Race Axleback Performance Exhaust is approximately 8 lbs lighter than the factory Camaro exhaust system.
What warranty comes with this exhaust?
This exhaust is backed by the Mishimoto Lifetime Warranty.
