Description

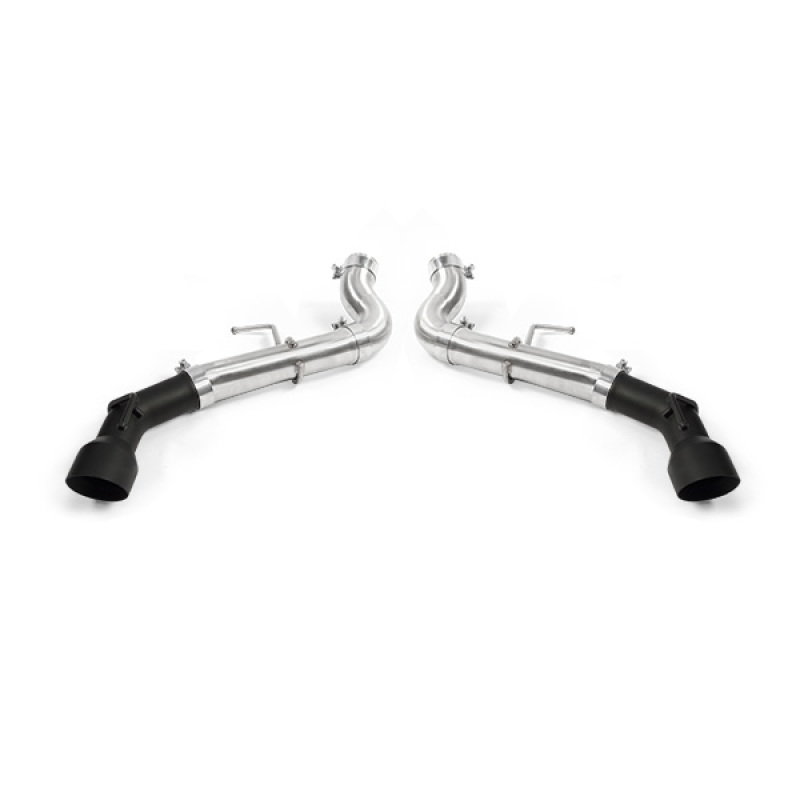

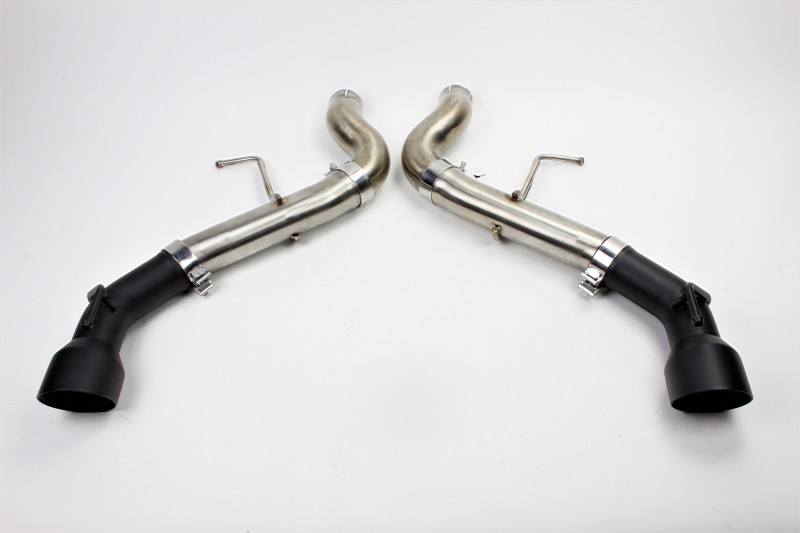

The Mishimoto Race Axleback Performance Exhaust (MMEXH-CAM8-16ADTRBK) is a dual-tip axleback system engineered for the LT1-powered 2016-2020 Chevrolet Camaro SS. By eliminating the factory suitcase muffler entirely, this Mishimoto system lets the LT1 6.2L V8 breathe out its raw, unfiltered exhaust note while trimming weight from the rear of the car.
Built from full 304 stainless steel with mandrel-bent piping and TIG-welded joints, the Mishimoto Race Axleback is designed to deliver an extremely aggressive racing exhaust tone under both acceleration and deceleration. The rear muffler delete maximizes exhaust tone for track use, while removing the heavy stock suitcase muffler sheds 8 lbs of weight compared to the factory setup. Dual 4.5-inch double wall exhaust tips finish the look, and shoppers can choose between a polished finish or matte black tip color to match their Camaro’s styling. Every Mishimoto Race Axleback system is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This Mishimoto Race Axleback Performance Exhaust is built for the 2016-2020 Chevrolet Camaro SS equipped with the LT1 engine on the Alpha chassis. It is a direct fit for that specific engine and chassis combination within the listed model years.
Features
- Extremely aggressive racing exhaust tone under acceleration and deceleration
- Rear muffler delete maximizes exhaust tone for the track
- 8 lbs lighter than the stock exhaust system
- Full 304 stainless steel mandrel-bent construction
- TIG-welded for durable, precise construction

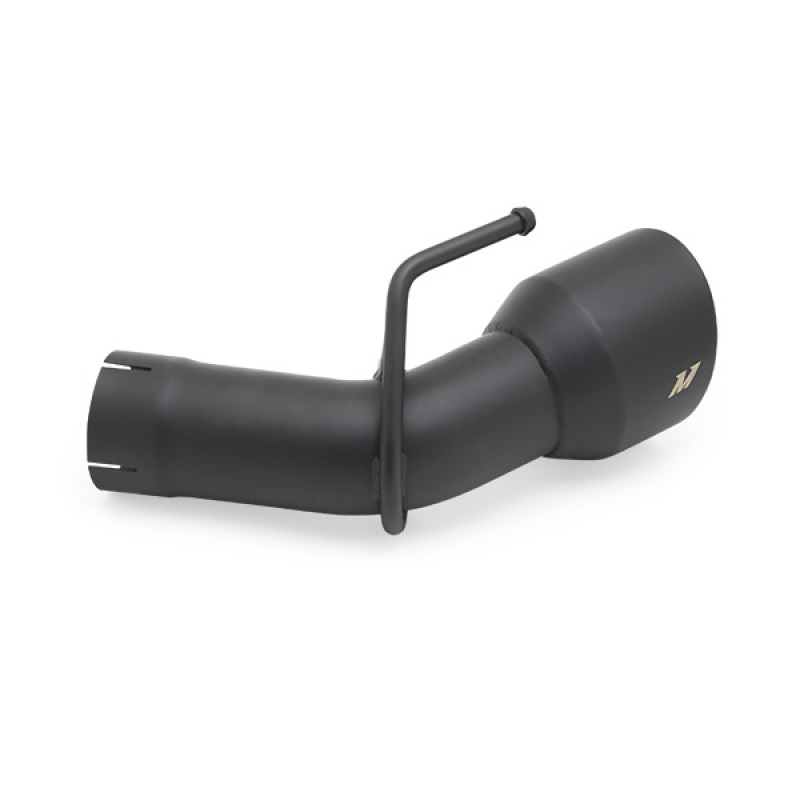

- Dual 4.5-inch double wall tips available in polished or matte black finish
- Slip-fit exhaust tip connection with flat band clamping
- Covered by the Mishimoto Lifetime Warranty
Specifications
- Pipe material: 304 stainless steel
- Main piping diameter: 3-inch
- Exhaust tip diameter: 4.5 inches
- Exhaust tip material: 304 stainless steel
- Exhaust tip wall: double-wall
- Exhaust tip cut: angle
- Exhaust tip shape: round
- Exhaust tip connection: slip-fit
- Clamping type: flat band
- Clamps included: yes
- Hangers included: yes
- Exit style: rear
- Grade type: performance
- Engine code: LT1
- Chassis code: Alpha
- Weight: 23 lbs

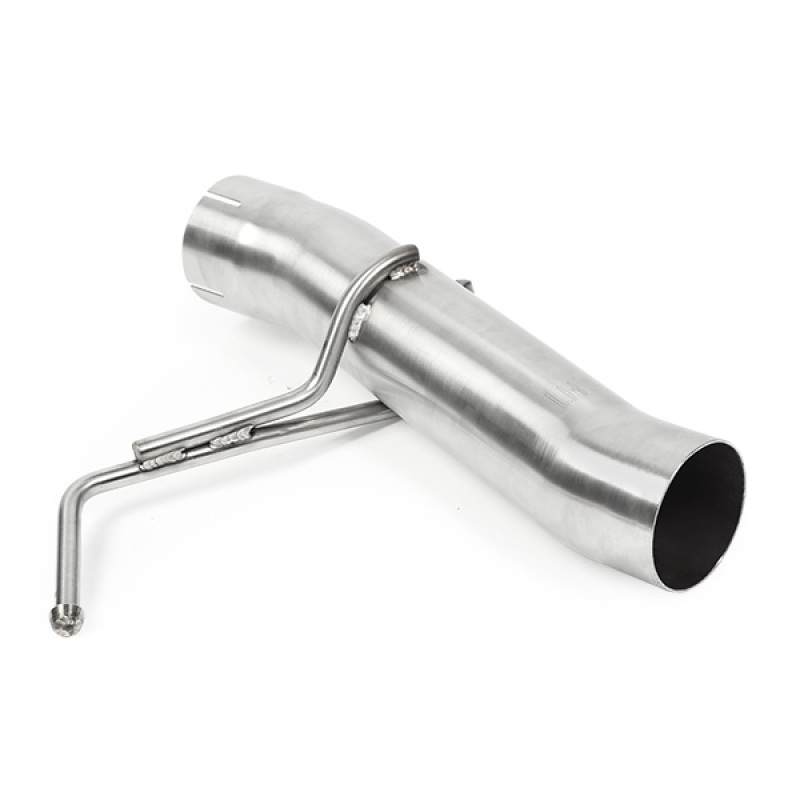

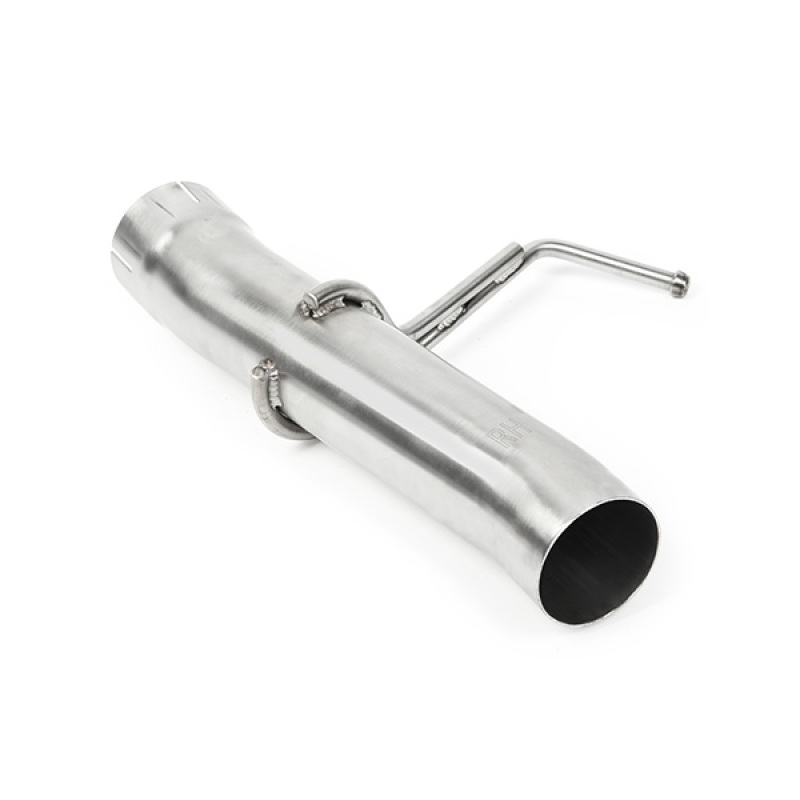

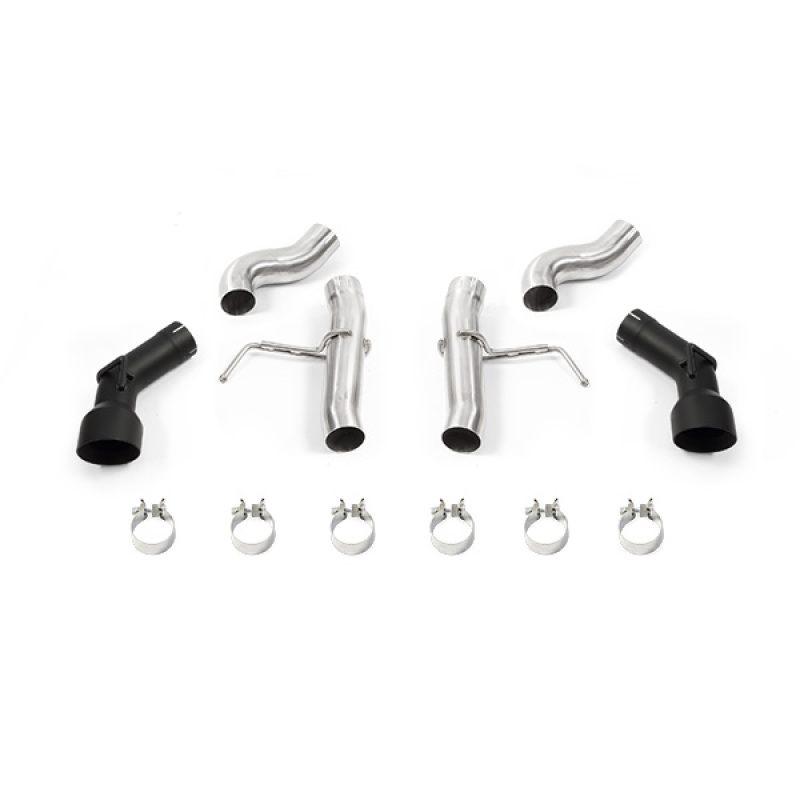

- Includes: (2) stainless steel front pipes, (2) stainless steel muffler delete pipes, (2) 4.5-inch double wall exhaust tips, (6) 3-inch exhaust band clamps, (1) cutting template with instruction card, Mishimoto Lifetime Warranty
Frequently Asked Questions
Does installing the Mishimoto Race Axleback exhaust require cutting the stock exhaust?
Yes, cutting of your stock exhaust system is required to install this product. The included install guide provides instructions for correctly measuring, marking, and cutting the stock exhaust pipes.
Which vehicles does this Mishimoto Race Axleback exhaust fit?
This system fits the 2016-2020 Chevrolet Camaro SS equipped with the LT1 engine on the Alpha chassis.
What finish options are available for the exhaust tips?
The dual 4.5-inch double wall exhaust tips are available in a polished finish or a matte black finish.
What material is the Mishimoto Race Axleback exhaust made from?
It is constructed of full 304 stainless steel with mandrel-bent piping that is TIG-welded.
How much weight does this exhaust save compared to stock?
The Mishimoto Race Axleback system is 8 lbs lighter than the stock exhaust system.
What is included with the Mishimoto Race Axleback exhaust kit?
The kit includes (2) stainless steel front pipes, (2) stainless steel muffler delete pipes, (2) 4.5-inch double wall exhaust tips, (6) 3-inch exhaust band clamps, (1) cutting template with instruction card, and the Mishimoto Lifetime Warranty.
