Description

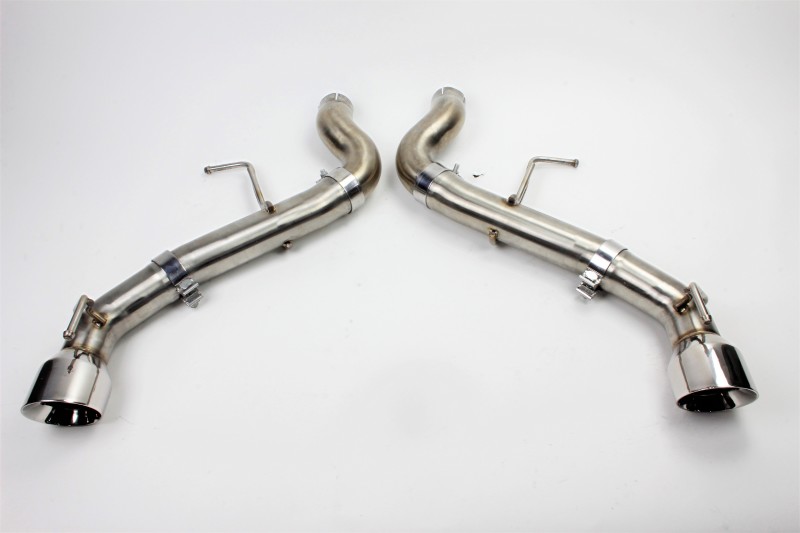

The Mishimoto Race Axleback Performance Exhaust, part number MMEXH-CAM8-16ADTRP, is a rear muffler-delete axleback system built specifically for the LT1-powered 2016-2020 Chevrolet Camaro SS. By eliminating the factory suitcase muffler entirely, this Mishimoto axleback lets the 6.2L LT1 breathe with its raw, unfiltered exhaust note, finished off with a pair of polished dual 4.5-inch double wall tips.
Beyond the aggressive racing tone under both acceleration and deceleration, this Mishimoto system trims 8 lbs of weight from your Camaro compared to the stock exhaust. Every front pipe and muffler delete pipe is mandrel-bent from full 304 stainless steel and TIG-welded together, giving the system durability that’s backed by the Mishimoto Lifetime Warranty. Whether you’re chasing a louder soundtrack for the street or maximizing exhaust tone for track days, the Mishimoto Race Axleback delivers a purposeful upgrade in both sound and styling for the Camaro SS platform.
Vehicle Applications
This Mishimoto Race Axleback Performance Exhaust is a cut-and-clamp design engineered specifically for the 2016-2020 Chevrolet Camaro SS equipped with the LT1 engine on the Alpha chassis. It is not a universal-fit product; it is purpose-built for this exact generation of Camaro SS.
Features
- Cut-and-clamp design specific to the 2016-2020 Chevrolet Camaro SS (LT1 engine, Alpha chassis)
- Aggressive racing exhaust tone under both acceleration and deceleration
- Rear muffler delete maximizes exhaust tone for track use
- 8 lbs lighter than the stock exhaust system

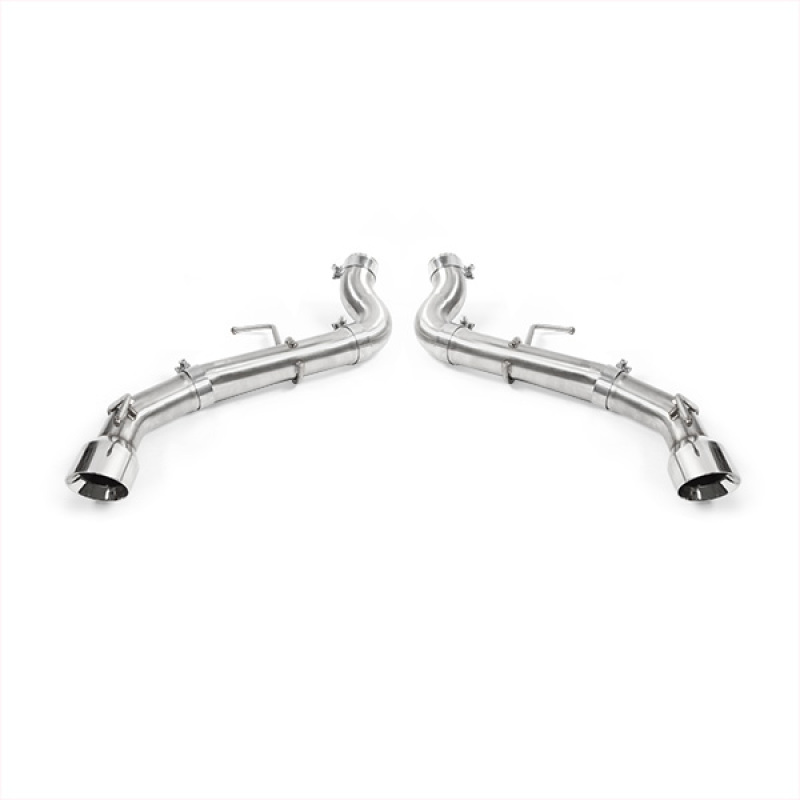

- Full 304 stainless steel mandrel-bent construction, TIG-welded throughout

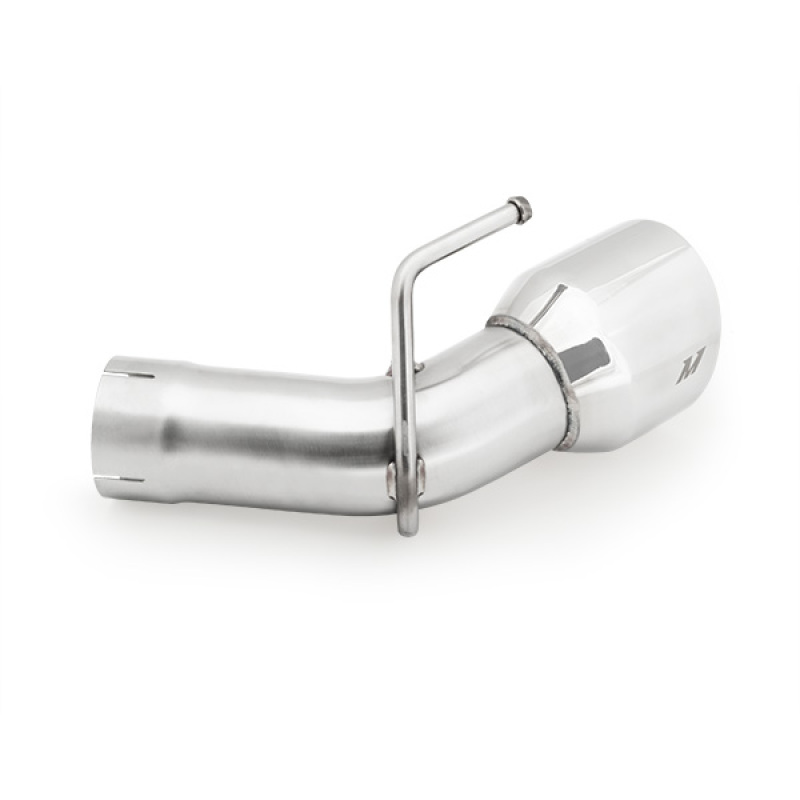

- Dual 4.5-inch double wall polished exhaust tips
- Slip-fit tip connection with flat band clamping for secure, adjustable installation
- Backed by the Mishimoto Lifetime Warranty
- Note: cutting of the stock exhaust system is required; an install guide with a cutting template and instructions for measuring, marking, and cutting the stock pipes is included
Specifications
- Brand: Mishimoto
- Part Number: MMEXH-CAM8-16ADTRP
- Grade Type: Performance
- Pipe Material: 304 Stainless Steel
- Main/Pipe Diameter: 3-inch
- Exit Style: Rear
- Exhaust Tip Quantity: Dual
- Exhaust Tip Diameter: 4.5 in
- Exhaust Tip Material: 304 Stainless Steel
- Exhaust Tip Wall: Double-Wall
- Exhaust Tip Cut: Angle
- Exhaust Tip Shape: Round
- Exhaust Tip Finish/Color: Polished
- Exhaust Tip Connection: Slip-Fit
- Clamping Type: Flat Band
- Clamps Included: Yes
- Hangers Included: Yes
- Engine Code: LT1
- Chassis Code: Alpha
- Weight: 23 lbs

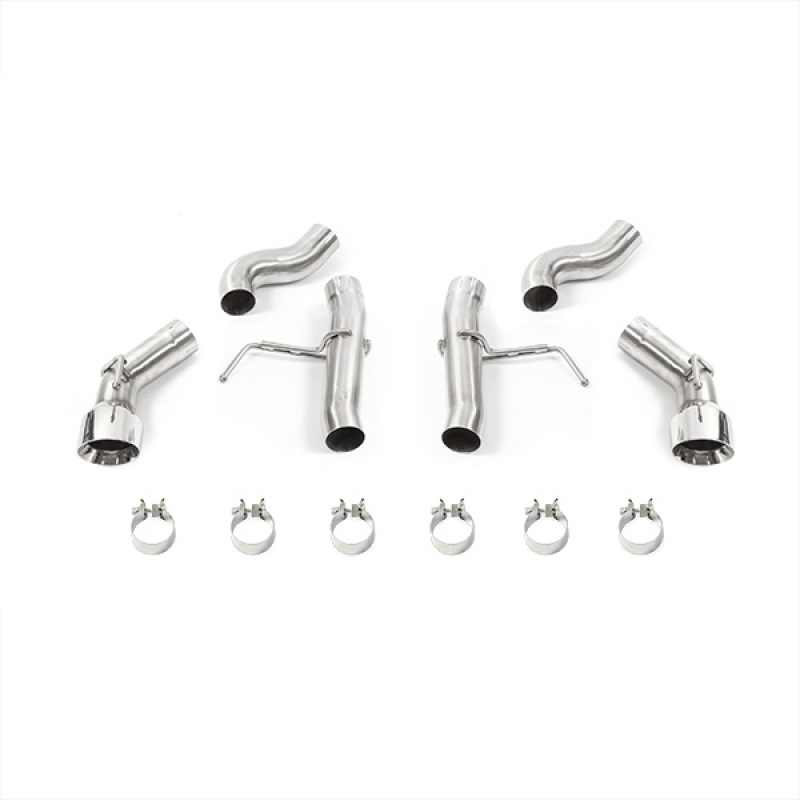

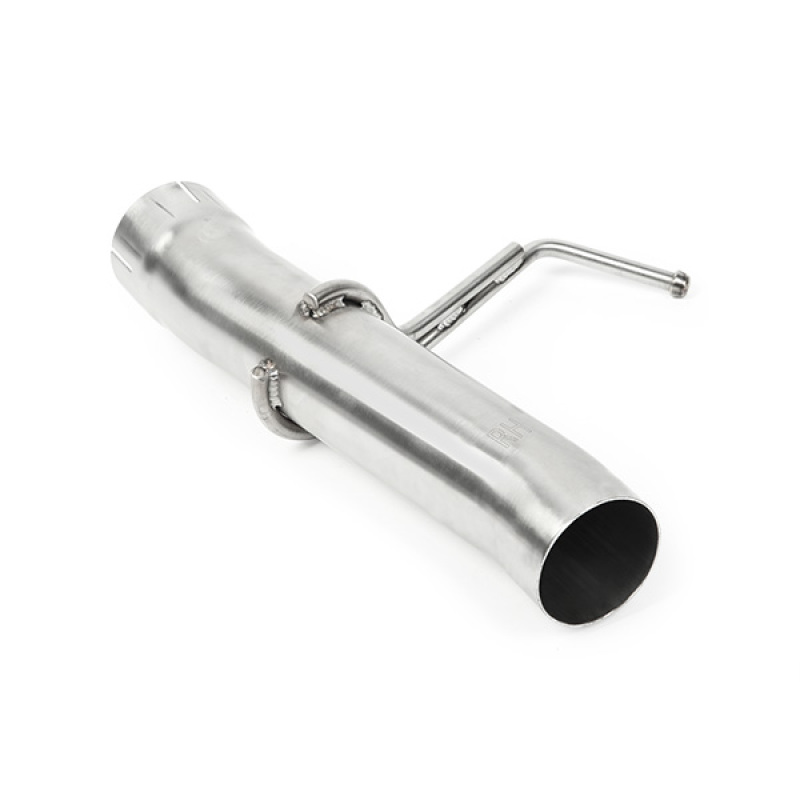

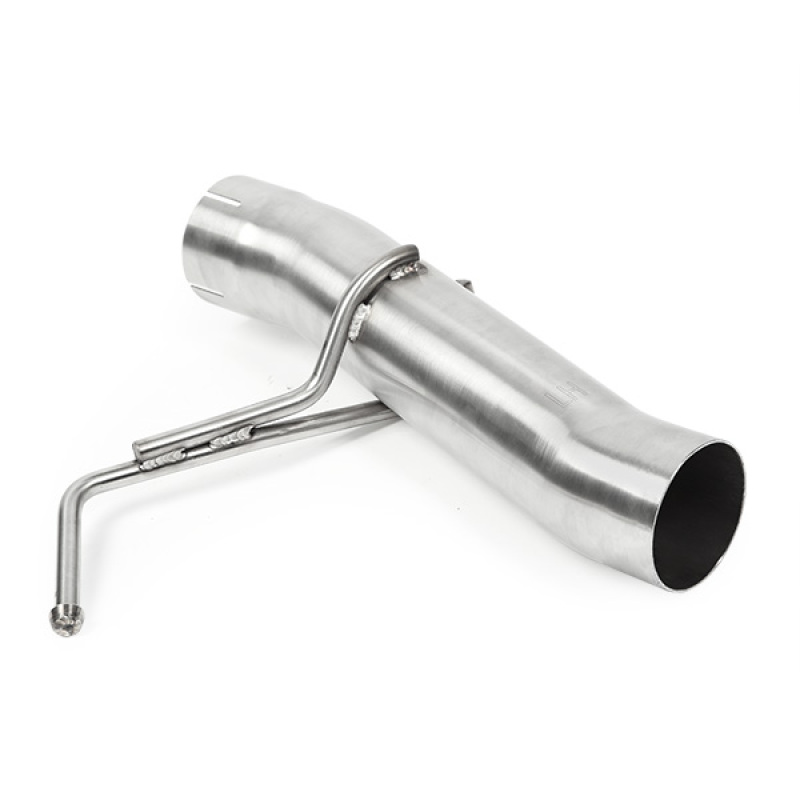

- Includes: (2) Stainless Steel Front Pipes, (2) Stainless Steel Muffler Delete Pipes, (2) 4.5-inch Double Wall Exhaust Tips, (6) 3-inch Exhaust Band Clamps, (1) Cutting Template w/ Instruction Card, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles fit the Mishimoto MMEXH-CAM8-16ADTRP axleback exhaust?
This axleback exhaust is a cut-and-clamp design specific to the 2016-2020 Chevrolet Camaro SS equipped with the LT1 engine on the Alpha chassis.
Does this exhaust require cutting the factory system?
Yes, cutting of the stock exhaust system is required for installation. The kit includes an install guide with a cutting template and instructions for correctly measuring, marking, and cutting the stock exhaust pipes.
What is included in the Mishimoto Race Axleback kit?
The kit includes two stainless steel front pipes, two stainless steel muffler delete pipes, two 4.5-inch double wall exhaust tips, six 3-inch exhaust band clamps, a cutting template with instruction card, and the Mishimoto Lifetime Warranty.
What material is the Mishimoto Race Axleback exhaust made from?
The system uses full 304 stainless steel mandrel-bent piping that is TIG-welded, including the 304 stainless steel exhaust tips.
How much weight does this exhaust save compared to stock?
The Mishimoto Race Axleback system is 8 lbs lighter than the stock Camaro SS exhaust.
What tip finish is offered on this exhaust?
The dual 4.5-inch double wall tips are offered in polished or matte black; this listing is the polished tip version.
