Description

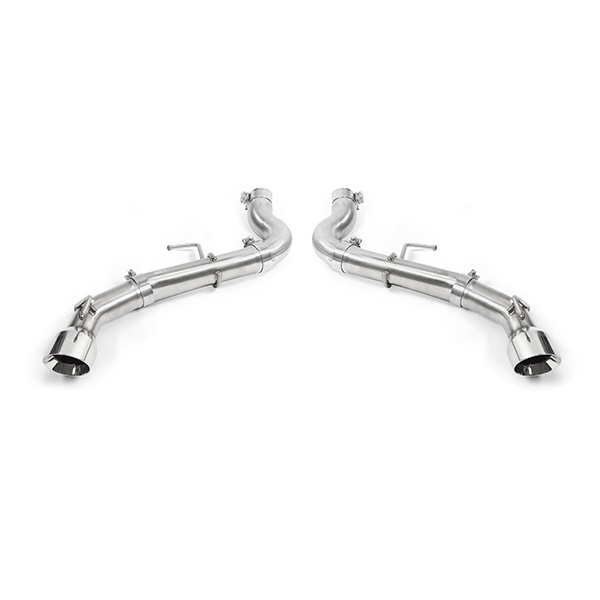

The Mishimoto Race Axleback Performance Exhaust (MMEXH-CAM4-16ADTRP) is a dual-tip, muffler-delete axleback system engineered specifically for the sixth-generation Camaro’s 2.0T engine, replacing GM’s factory suitcase-style muffler setup with mandrel-bent, 3-inch diameter, 304 stainless steel piping. Finished with dual 4.5-inch double-wall polished tips, this Mishimoto axleback trades a quiet factory tone for an aggressive racing exhaust note and louder turbo spool under boost.
Beyond the sound, this Mishimoto exhaust is built to lighten the load: the rear muffler delete design cuts roughly 8 pounds compared to the stock exhaust, while the full 304 stainless steel construction is TIG-welded for durability. The dual 4.5-inch double-wall tips use a slip-fit connection and an angle cut for a finished look at the rear valence, and the whole system is backed by the Mishimoto Lifetime Warranty. Whether you’re chasing a track-ready exhaust tone or simply want to shed weight and add attitude to your Camaro, this axleback delivers a purpose-built upgrade over GM’s factory suitcase muffler.
Vehicle Applications
This Mishimoto Race Axleback Performance Exhaust is designed as a cut-and-clamp system for the 2016–2023 Chevrolet Camaro LT and the 2017–2023 Chevrolet Camaro LS, both built on the Alpha chassis and equipped with the LTG engine code. Because installation requires cutting the factory exhaust piping, Mishimoto includes a cutting template and instruction card to guide correct measuring, marking, and cutting on these specific Camaro trims and model years.
Features
- Cut and clamp design engineered for the applicable Camaro LT and LS models
- Aggressive racing exhaust tone under acceleration and deceleration, with louder turbo spool while boosting
- Rear muffler delete maximizes exhaust tone
- 8 lbs lighter than the stock exhaust system
- Full 304 stainless steel mandrel-bent construction
- TIG-welded for a finished, durable build
- Dual 4.5-inch double-wall polished tips with an angle cut
- Slip-fit exhaust tip connection with flat band clamping
- Clamps and hangers included
- Installs in under 1 hour
- Covered by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMEXH-CAM4-16ADTRP
- Finish: Polished
- Grade Type: Performance
- Pipe Material: 304 Stainless Steel
- Main/Pipe Diameter: 3-inch
- Exhaust Tip Diameter: 4.5 in
- Exhaust Tip Material: 304 Stainless Steel
- Exhaust Tip Finish/Color: Polished
- Exhaust Tip Shape: Round
- Exhaust Tip Wall: Double-Wall
- Exhaust Tip Cut: Angle
- Exhaust Tip Connection: Slip-Fit
- Clamping Type: Flat Band
- Clamps Included: Yes
- Hangers Included: Yes
- Exit Style: Rear
- Chassis Code: Alpha
- Engine Code: LTG

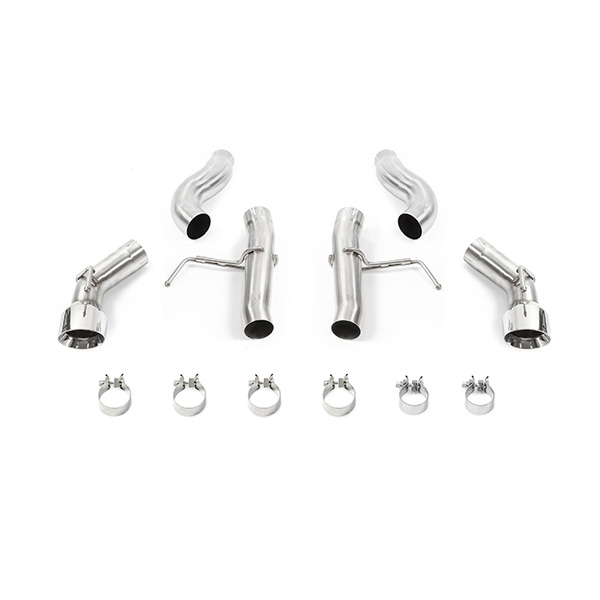

- Includes: (2) Stainless Steel Front Pipes, (2) Stainless Steel Muffler Delete Pipes, (2) 4.5-inch Double Wall Exhaust Tips, (6) 3-inch Exhaust Band Clamps, (1) Cutting Template w/ Instruction Card, Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the part number for this Mishimoto exhaust?
The part number is MMEXH-CAM4-16ADTRP.
Which vehicles does this Mishimoto Race Axleback Exhaust fit?
It fits the 2016–2023 Chevrolet Camaro LT and the 2017–2023 Chevrolet Camaro LS, both on the Alpha chassis with the LTG engine code.
What material is the exhaust made from?
The system uses full 304 stainless steel construction, including the front pipes, muffler delete pipes, and the dual 4.5-inch double-wall exhaust tips.
Does installation require cutting the factory exhaust?
Yes, cutting of the stock exhaust system is required. A cutting template and instruction card are included to correctly measure, mark, and cut the stock pipes.
What finish do the exhaust tips have?
This kit features dual 4.5-inch double-wall polished exhaust tips with an angle cut and slip-fit connection.
What is included in the box?
The kit includes (2) Stainless Steel Front Pipes, (2) Stainless Steel Muffler Delete Pipes, (2) 4.5-inch Double Wall Exhaust Tips, (6) 3-inch Exhaust Band Clamps, (1) Cutting Template w/ Instruction Card, and the Mishimoto Lifetime Warranty.
