Description
The Mishimoto Race Axleback Performance Exhaust (MMEXH-CAM4-16ADTRBk) replaces the factory suitcase-style muffler system on the 2.0T- and V6-powered Camaro with a dual-tip, muffler-delete axleback built from 3-inch, 304 stainless steel piping that sheds 8 pounds off the rear of the car while cranking up the exhaust note.
Rather than settle for GM’s stock exhaust drone, Mishimoto engineered this performance exhaust to deliver an aggressive racing tone under acceleration and deceleration, complete with a louder turbo spool while boosting. The rear muffler delete design maximizes exhaust tone for spirited street driving or track days, all while the mandrel-bent, TIG-welded 304 stainless steel construction is built to hold up over time. Dual 4.5-inch double wall tips fill out the rear valence cutouts and are available in a polished or matte black finish, giving Camaro owners a way to dial in both sound and looks in one axleback package.
Vehicle Applications
This Mishimoto axleback exhaust is designed to fit the 2016-2023 Chevrolet Camaro LT and the 2017-2023 Chevrolet Camaro LS, covering the 2.0T-powered cars equipped with the LTG engine code and Alpha chassis. Installation requires cutting the factory exhaust piping, and the kit’s included cutting template and instruction card walk you through correctly measuring, marking, and cutting the stock pipes before clamping this system into place.
Features
- Aggressive racing exhaust tone under acceleration and deceleration, with a louder turbo spool while boosting
- Rear muffler delete design maximizes exhaust tone for the track
- 8 lbs lighter than the stock exhaust system
- Full 304 stainless steel mandrel-bent construction, TIG-welded
- Dual 4.5-inch double wall exhaust tips available in polished or matte black finish
- Slip-fit exhaust tip connection with flat band clamping
- Installs in under 1 hour
- Covered by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMEXH-CAM4-16ADTRBK
- Main Pipe Material: 304 Stainless Steel
- Pipe Diameter: 3-inch
- Exhaust Tip Quantity: 2
- Exhaust Tip Diameter: 4.5 inches
- Exhaust Tip Material: 304 Stainless Steel
- Exhaust Tip Wall: Double-Wall
- Exhaust Tip Cut: Angle
- Exhaust Tip Shape: Round
- Exhaust Tip Finish: Matte (Black option) or Polished
- Exhaust Tip Connection: Slip-Fit
- Clamping Type: Flat Band
- Clamps Included: Yes
- Hangers Included: Yes
- Exit Style: Rear
- Grade Type: Performance
- Engine Code: LTG
- Chassis Code: Alpha

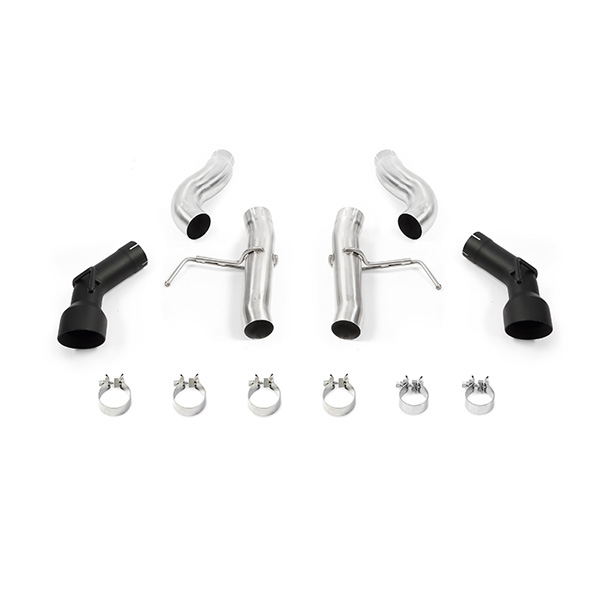

- Kit Includes: (2) Stainless Steel Front Pipes, (2) Stainless Steel Muffler Delete Pipes, (2) 4.5-inch Double Wall Exhaust Tips, (6) 3-inch Exhaust Band Clamps, (1) Cutting Template w/ Instruction Card, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which Camaro models does this Mishimoto axleback exhaust fit?
It’s designed for the 2016-2023 Chevrolet Camaro LT and the 2017-2023 Chevrolet Camaro LS.
Does installing this exhaust require cutting the factory pipes?
Yes, cutting the stock exhaust system is required. The included install guide provides instructions for correctly measuring, marking, and cutting the stock exhaust pipes.
What finish options are available for the exhaust tips?
The dual 4.5-inch double wall exhaust tips are available in a polished or matte black finish.
How much lighter is this exhaust compared to the stock system?
This Mishimoto axleback exhaust is 8 lbs lighter than the stock exhaust system.
What is included in the Mishimoto Race Axleback Exhaust kit?
The kit includes (2) stainless steel front pipes, (2) stainless steel muffler delete pipes, (2) 4.5-inch double wall exhaust tips, (6) 3-inch exhaust band clamps, and (1) cutting template with instruction card.
What warranty comes with this exhaust system?
This exhaust is covered under the Mishimoto Lifetime Warranty.
