Description

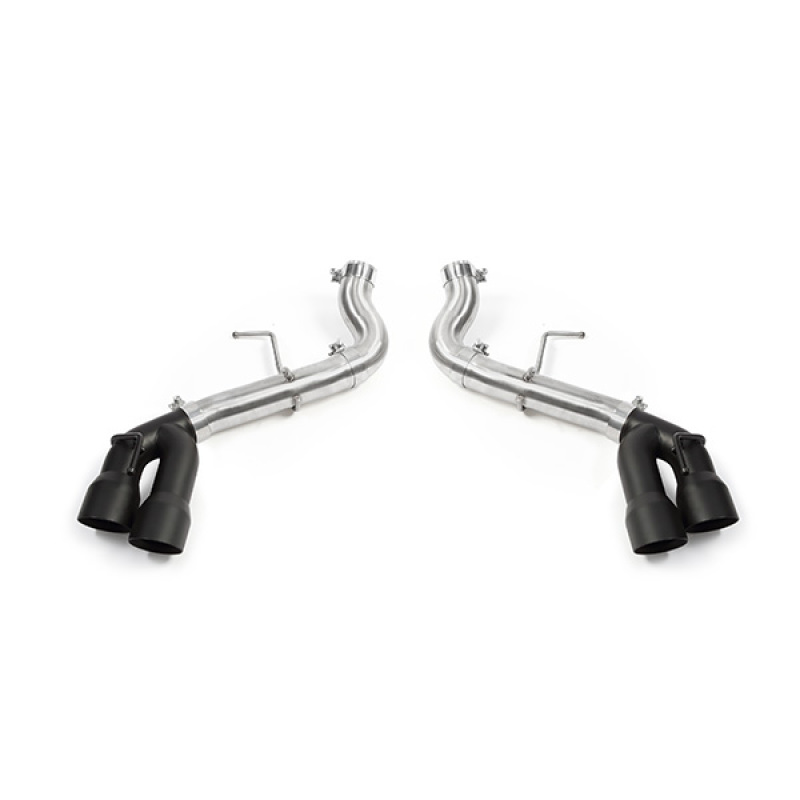

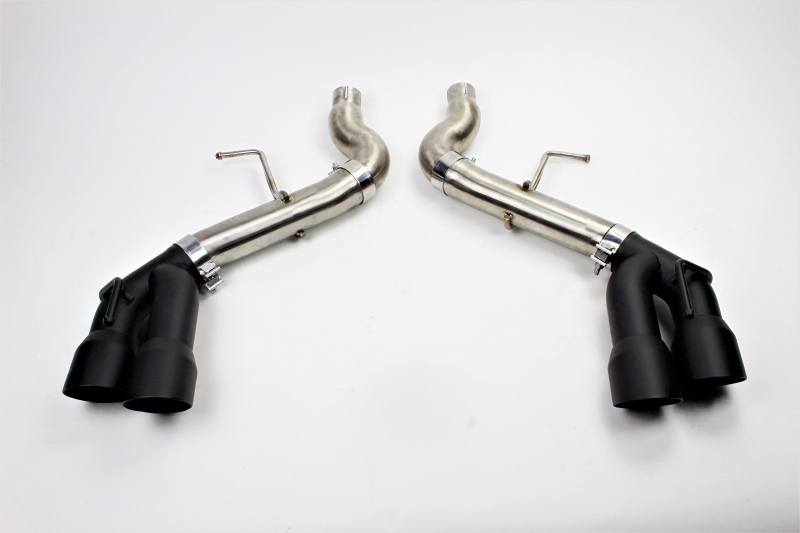

The Mishimoto Race Axleback Performance Exhaust (MMEXH-CAM8-16AQTRBK) is a purpose-built, cut-and-clamp axleback system engineered specifically for the LT1-powered Chevrolet Camaro SS. This particular version ships with the black finish quad exhaust tips, converting your Camaro’s factory dual-tip layout into an aggressive four-tip rear exit while doing away with the heavy factory suitcase muffler entirely.
Built from full 304 stainless steel and TIG-welded for durability, the Mishimoto Race Axleback lets Chevy’s 6.2L LT1 V8 breathe with a raw, unadulterated exhaust note that the stock system’s suitcase muffler otherwise stifles. Beyond the dramatic increase in volume and racing exhaust tone under both acceleration and deceleration, this rear muffler delete design also trims 8 lbs of weight compared to the stock exhaust, sharpening the car’s overall balance. The system is backed by the Mishimoto Lifetime Warranty for added peace of mind.
Vehicle Applications
This Mishimoto Race Axleback exhaust is designed as a cut-and-clamp fitment specifically for the 2016-2020 Chevrolet Camaro SS, built around the LT1 engine code and Alpha chassis. Because the system requires cutting the factory exhaust pipes, the included install guide provides instructions for correctly measuring, marking, and cutting the stock piping. Note that running the quad-tip configuration also requires the GM quad-tip rear bumper valence (GM part #23404791) to properly accommodate the additional exhaust tips.
Features
- Cut and clamp design specifically for the 2016-2020 Chevrolet Camaro SS
- Converts stock dual-tip exhaust to a quad-tip style
- Extremely aggressive racing exhaust tone under both acceleration and deceleration
- Rear muffler delete maximizes exhaust tone for the track
- 8 lbs lighter than the stock exhaust system
- Full 304 stainless steel mandrel-bent construction
- TIG-welded for durability

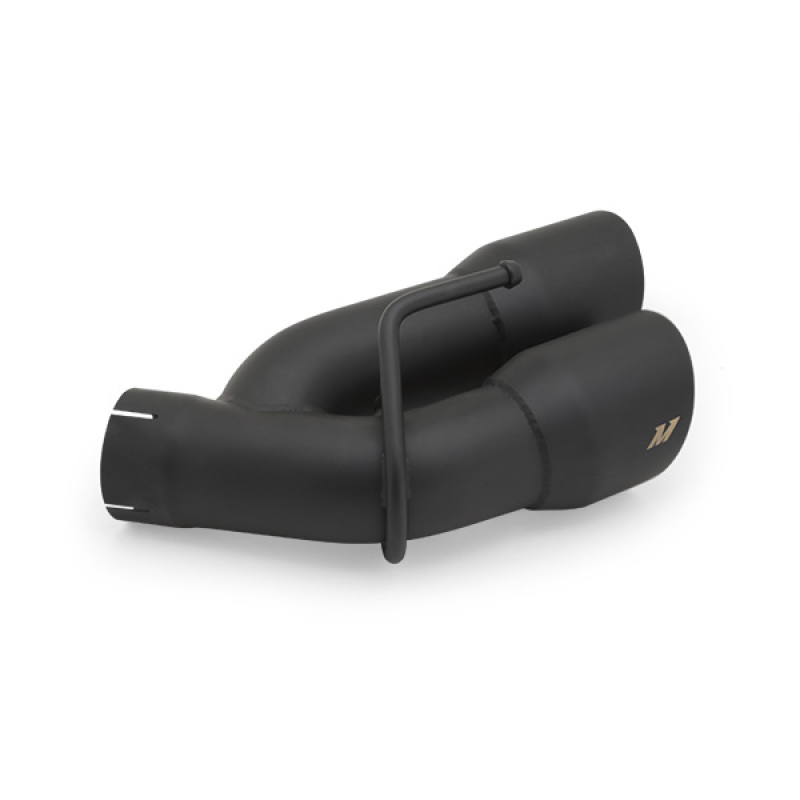

- Quad 4-inch double wall tips finished in black
- Round tip shape with an angle cut and slip-fit connection
- Installs in under 1 hour
- Clamps and hangers included
- Covered by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMEXH-CAM8-16AQTRBK
- Pipe Material: 304 Stainless Steel
- Pipe Diameter: 3-inch
- Grade Type: Performance
- Exhaust Tip Material: 304 Stainless Steel
- Exhaust Tip Diameter: 4-inch
- Exhaust Tip Shape: Round
- Exhaust Tip Wall: Double-Wall
- Exhaust Tip Cut: Angle
- Exhaust Tip Connection: Slip-Fit
- Exhaust Tip Color: Black
- Exit Style: Rear
- Clamping Type: Flat Band
- Clamps Included: Yes
- Hangers Included: Yes
- Chassis Code: Alpha
- Engine Code: LT1
- Weight: 23 lbs

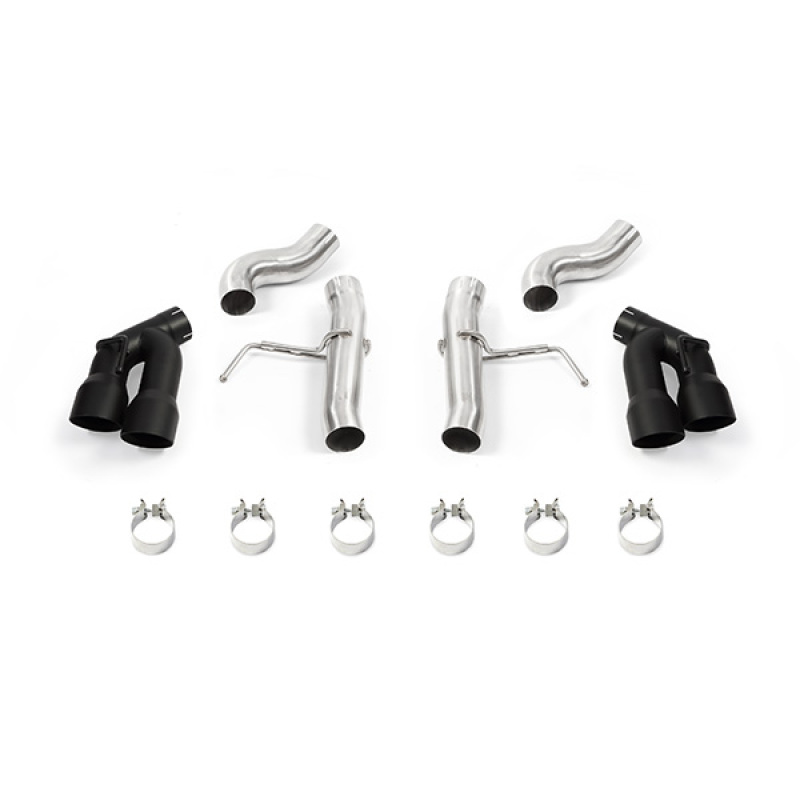

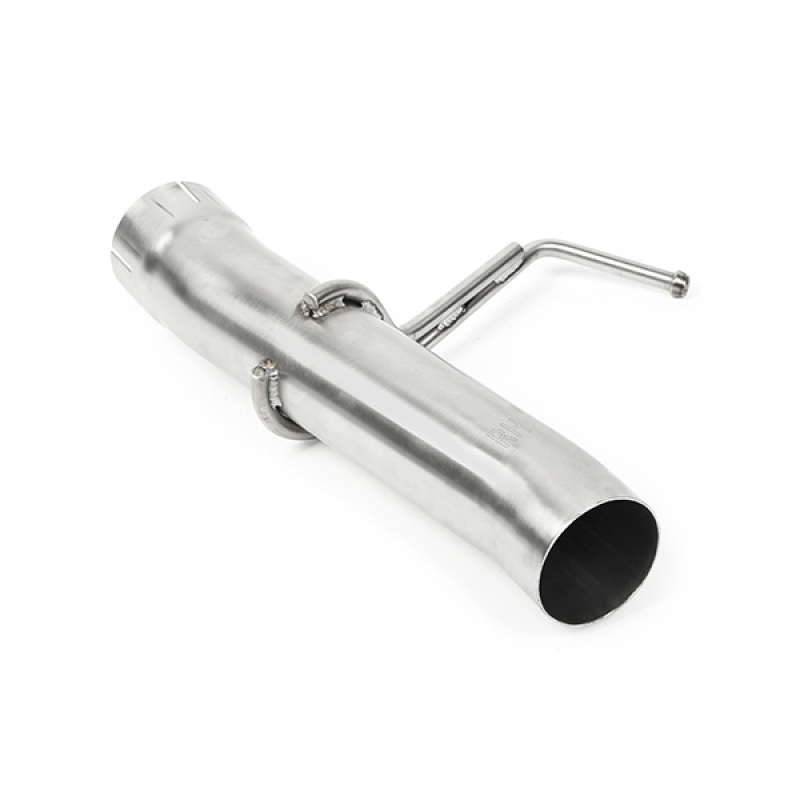

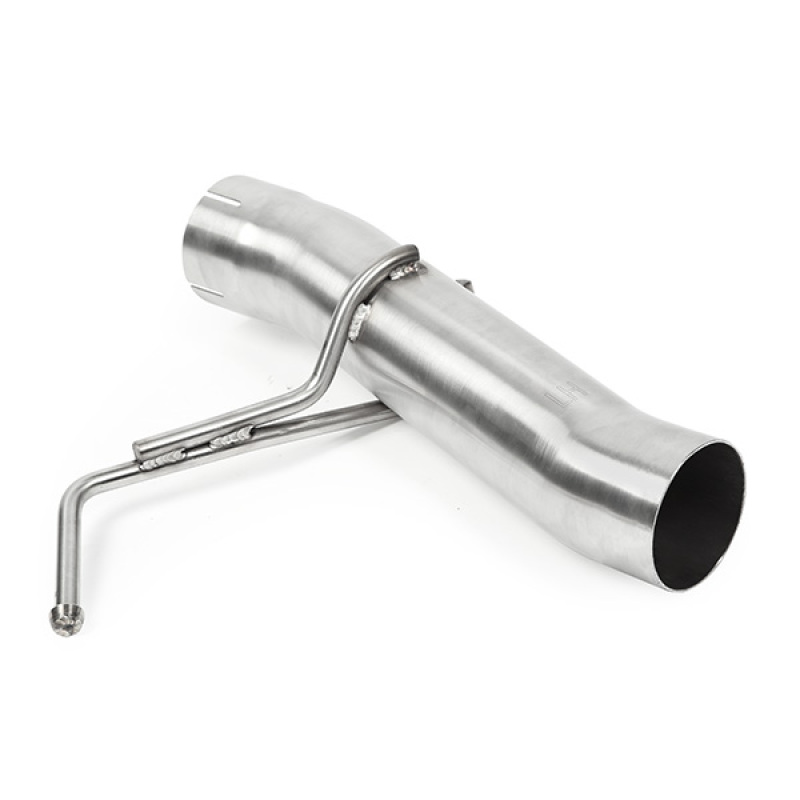

- Includes: (2) Stainless Steel Front Pipes, (2) Stainless Steel Muffler Delete Pipes, (4) 4-inch Double Wall Exhaust Tips, (6) 3-inch Exhaust Band Clamps, (1) Cutting Template w/ Instruction Card, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which vehicles does this Mishimoto exhaust fit?
This Mishimoto Race Axleback Performance Exhaust (MMEXH-CAM8-16AQTRBK) is built for the 2016-2020 Chevrolet Camaro SS with the LT1 engine and Alpha chassis.
Does installation require cutting the factory exhaust?
Yes, cutting of the stock exhaust system is required to install this product. The included install guide provides instructions for correctly measuring, marking, and cutting the stock exhaust pipes.
Do I need any additional parts to run the quad exhaust tips?
Yes, this exhaust requires the GM quad-tip rear bumper valence to accommodate the additional exhaust tips, GM part #23404791.
What is included in the box?
The kit includes (2) stainless steel front pipes, (2) stainless steel muffler delete pipes, (4) 4-inch double wall exhaust tips, (6) 3-inch exhaust band clamps, and a cutting template with instruction card, along with the Mishimoto Lifetime Warranty.
What color are the exhaust tips on this version?
This version features round, double-wall, 4-inch exhaust tips finished in black with an angle cut and slip-fit connection.
How much lighter is this exhaust compared to stock?
The Mishimoto Race Axleback exhaust is 8 lbs lighter than the stock exhaust system due to the removal of the factory suitcase muffler.
