Description

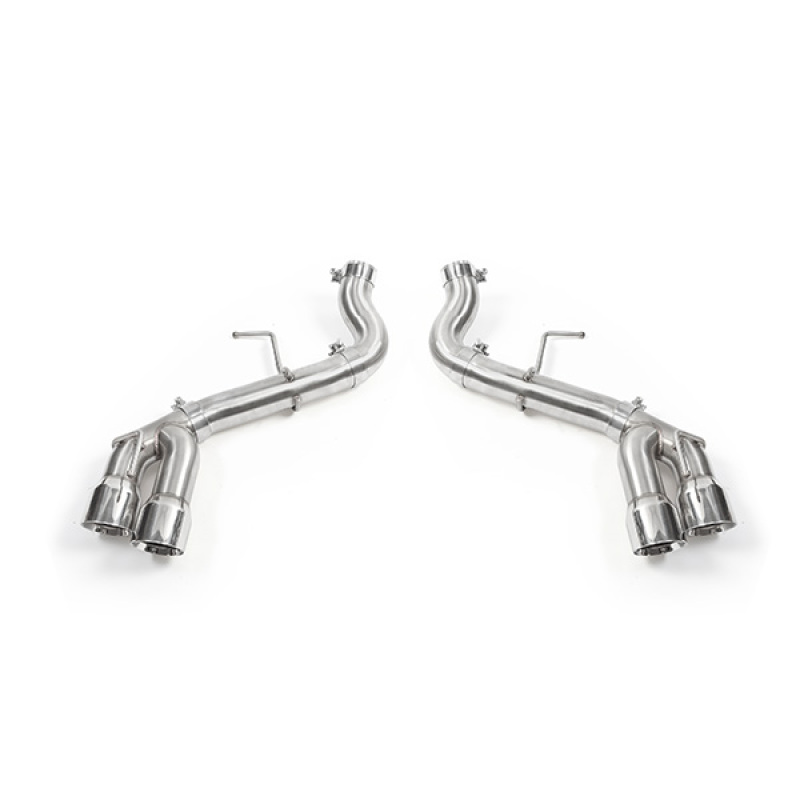

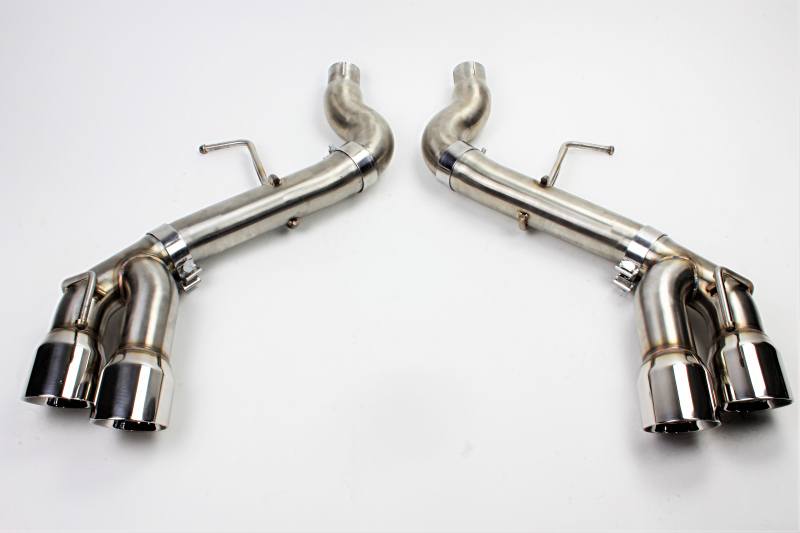

The Mishimoto Race Axleback Performance Exhaust (MMEXH-CAM8-16AQTRP) is a quad-tip, muffler-delete axleback system built specifically for the LT1-powered 2016-2020 Chevrolet Camaro SS. Machined from 304 stainless steel and TIG-welded into a mandrel-bent design, it does away with the factory suitcase muffler entirely so the 6.2L V8 can be heard in its rawest form, all while shedding 8 lbs from the rear of the car.
Where the factory axleback keeps volume in check with a heavy suitcase muffler, the Mishimoto Race Axleback system trades that restriction for an extremely aggressive exhaust tone under both acceleration and deceleration, converting the stock dual-tip setup into a bolder quad-tip layout. The result is a lighter, louder Camaro SS built with track use in mind, dressed up with 4-inch double wall exhaust tips available in your choice of polished or matte black finish. Backed by full 304 stainless steel construction and the Mishimoto Lifetime Warranty, this axleback is designed to handle the demands of spirited driving without losing its finish or fit.
Vehicle Applications
This Mishimoto Race Axleback Performance Exhaust is engineered as a cut-and-clamp fitment for the 2016-2020 Chevrolet Camaro SS equipped with the LT1 6.2L V8 (Alpha chassis). Because the system requires cutting of the stock exhaust piping, the included cutting template and instruction card walk installers through correctly measuring, marking, and cutting the factory pipes. Note that fitting the additional quad exhaust tips also requires the GM quad-tip rear bumper valence, GM part #23404791, which is not included with this exhaust.
Features
- Cut-and-clamp design engineered for the LT1-powered 2016-2020 Chevrolet Camaro SS
- Converts the stock dual-tip exhaust to a quad-tip style
- Extremely aggressive racing exhaust tone under acceleration and deceleration
- Rear muffler delete maximizes exhaust tone for the track
- 8 lbs lighter than the stock exhaust system
- Full 304 stainless steel mandrel-bent construction
- TIG-welded for durable, precise seams

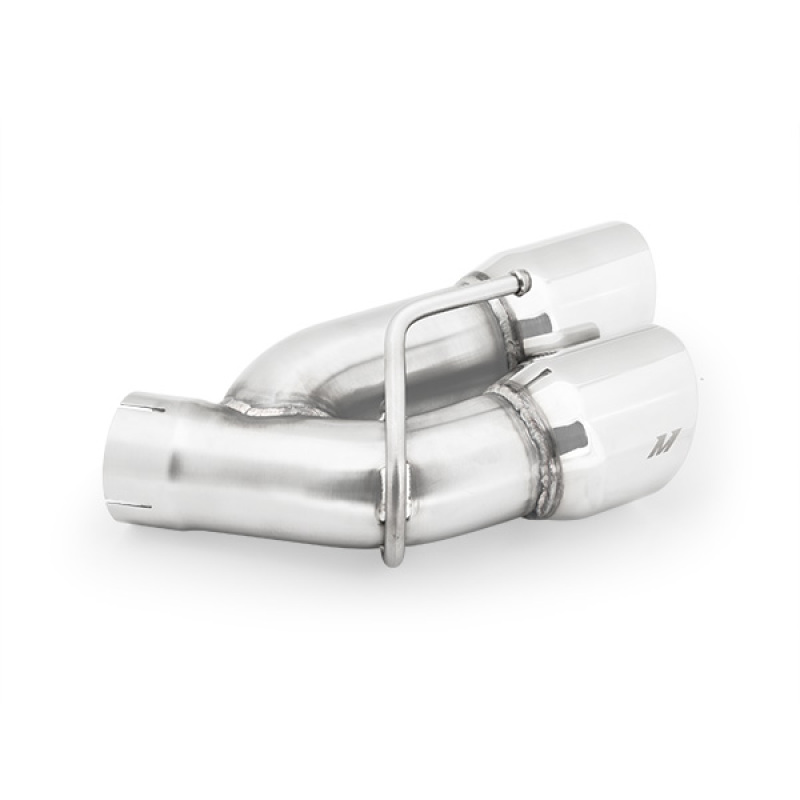

- Quad 4-inch double wall exhaust tips available in polished or matte black
- Installs in under 1 hour
- Covered by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMEXH-CAM8-16AQTRP
- Main Piping Diameter: 3-inch
- Pipe Material: 304 Stainless Steel
- Grade Type: Performance
- Exhaust Tip Quantity: 4
- Exhaust Tip Material: 304 Stainless Steel
- Exhaust Tip Finish: Polished (matte black also available)
- Exhaust Tip Shape: Round
- Exhaust Tip Cut: Angle
- Exhaust Tip Wall: Double-Wall
- Exhaust Tip Connection: Slip-Fit
- Clamping Type: Flat Band
- Clamps Included: Yes
- Hangers Included: Yes
- Exit Style: Rear
- Chassis Code: Alpha
- Engine Code: LT1
- Weight: 23 lbs

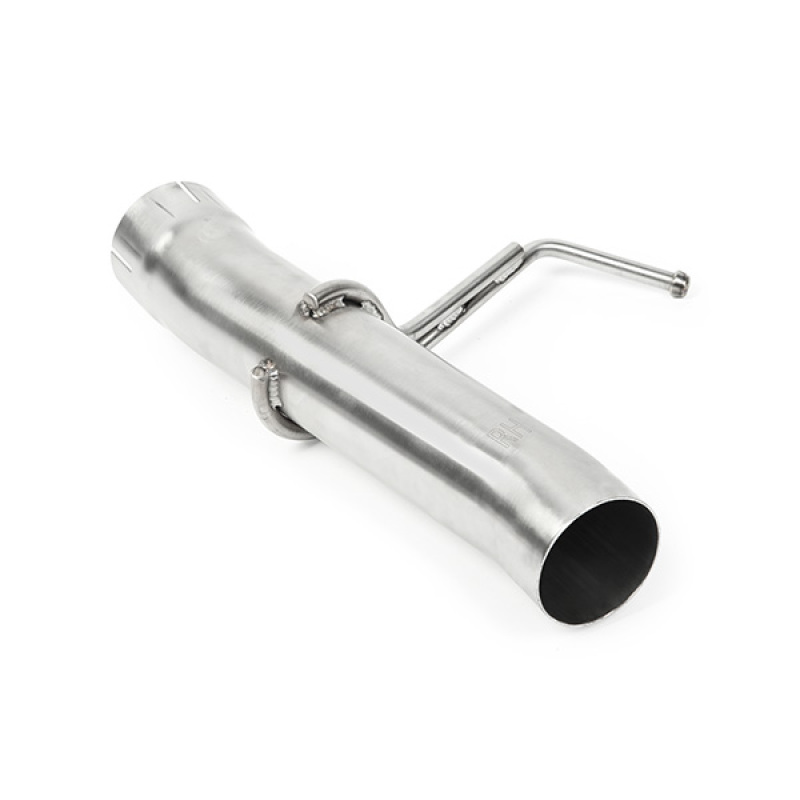

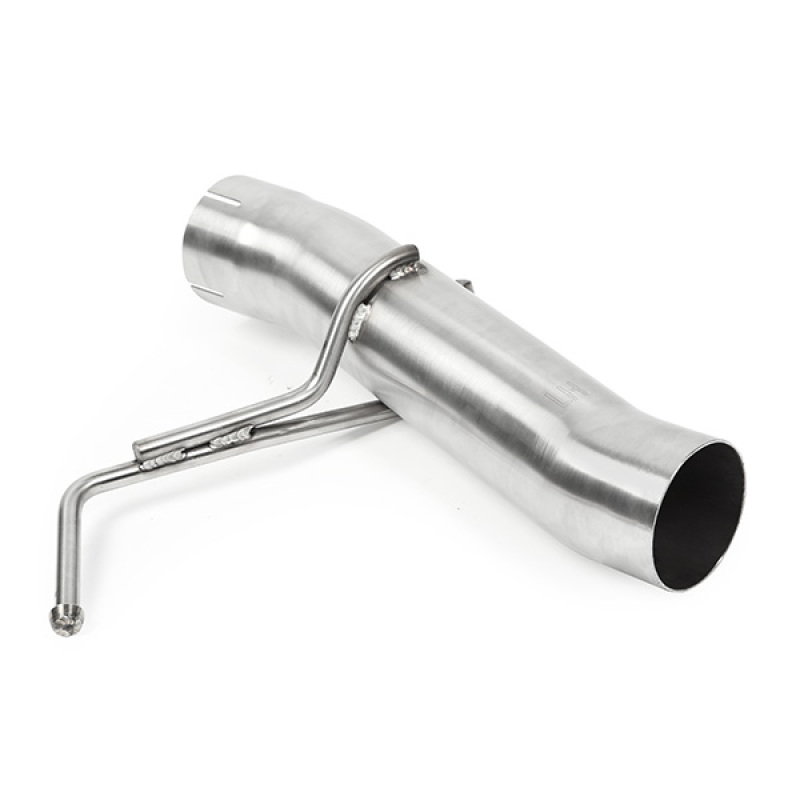

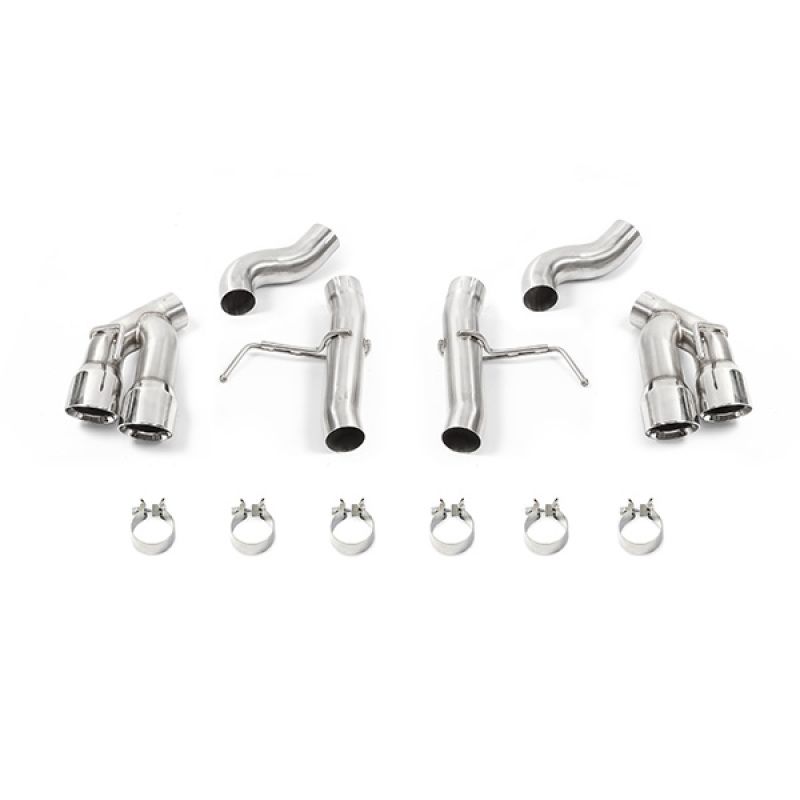

- Includes: (2) Stainless Steel Front Pipes, (2) Stainless Steel Muffler Delete Pipes, (4) 4-inch Double Wall Exhaust Tips, (6) 3-inch Exhaust Band Clamps, (1) Cutting Template w/ Instruction Card, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does this Mishimoto Race Axleback Exhaust fit?
This Mishimoto Race Axleback Performance Exhaust (MMEXH-CAM8-16AQTRP) fits the 2016-2020 Chevrolet Camaro SS equipped with the LT1 6.2L V8.
What does the Mishimoto Race Axleback Exhaust kit include?
The kit includes (2) stainless steel front pipes, (2) stainless steel muffler delete pipes, (4) 4-inch double wall exhaust tips, (6) 3-inch exhaust band clamps, a cutting template with instruction card, and coverage under the Mishimoto Lifetime Warranty.
Does installing this exhaust require cutting the stock pipes?
Yes, cutting of the stock exhaust system is required to install this product. The included install guide provides instructions for correctly measuring, marking, and cutting the stock exhaust pipes.
Do I need any additional parts to run the quad-tip setup?
Yes, this exhaust requires the GM quad-tip rear bumper valence (GM part #23404791) to accommodate the additional exhaust tips; it is not included.
How much weight does this exhaust save compared to stock?
The Mishimoto Race Axleback system is 8 lbs lighter than the stock exhaust system.
What material and finish options are available?
The system is constructed of full 304 stainless steel with TIG-welded, mandrel-bent piping, and the 4-inch double wall exhaust tips are available in polished or matte black.
