Description
The Mishimoto Race Intercooler Kit (MMINT-GEN4-10RG) was engineered and tested on the most powerful 2.0T Genesis in the world, delivering a direct-fit forced induction upgrade for the 2010-2012 Hyundai Genesis Coupe 2.0T. This kit works seamlessly with all OEM equipment and every other Mishimoto Genesis Coupe product, giving 2.0T owners a proven way to significantly reduce intake temperatures and improve overall cooling efficiency without touching the factory crash bar.

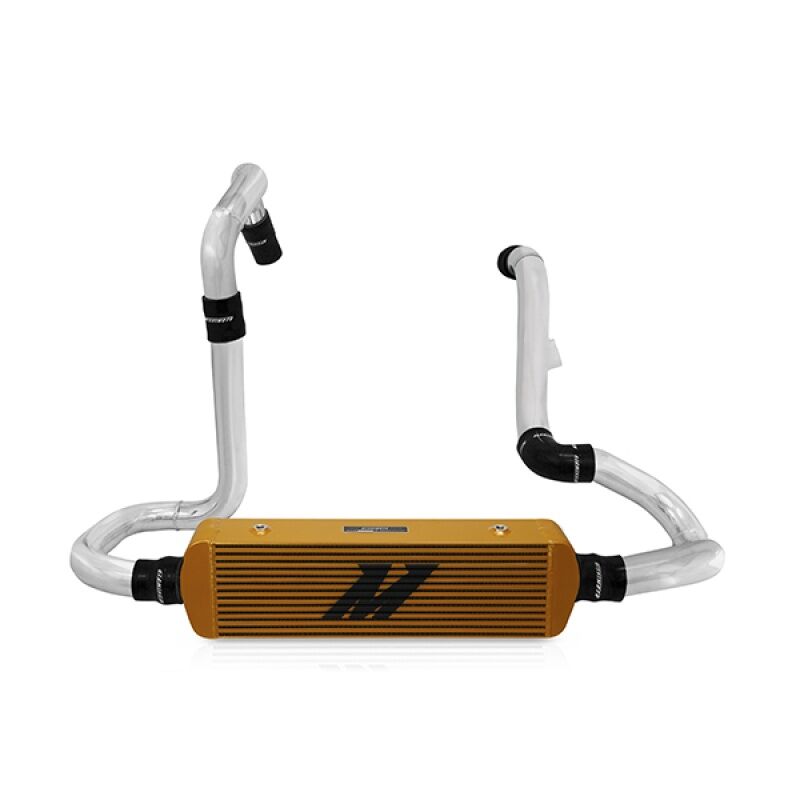

Built around a 6061 aluminum core with bar-and-plate construction and smooth cast end tanks, this intercooler and piping kit is designed to maximize airflow through the entire forced induction system while minimizing pressure loss. The 3.75-in thick core is paired with a full complement of lightweight, mandrel-bent aluminum charge pipes, silicone couplers, and t-bolt clamps, replacing restrictive factory piping with a performance induction pathway that supports vehicles up to 500HP. Whether you’re chasing more boost or simply want a more efficient induction system, this Mishimoto kit is built to keep charge air cool and your forced induction setup performing consistently, backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This Mishimoto Race Intercooler Kit is a specific-fit unit for the 2010-2012 Hyundai Genesis Coupe 2.0T, covering the 2.0T, 2.0T GT, 2.0T Premium, and 2.0T R-Spec trims across all three model years, as well as the 2010 Genesis Coupe 2.0T Track. It is intended for manual transmission vehicles and does not fit with the factory air dam or the front factory splash shield installed.
Features
- Direct fit for 2010-2012 Hyundai Genesis Coupe 2.0T
- 3.75-in thick bar-and-plate core with strategic core composition for optimal cooling and minimal pressure loss
- Smooth cast end tanks allow the best possible airflow in and out of the intercooler
- Lightweight, mandrel-bent aluminum pipes eliminate restrictive bends in the stock piping
- No modifications to the front bumper or removal of the crash bar are necessary
- Includes all necessary couplers, brackets, and accessories
- Intercooler available in Sleek Silver, Stealth Black, or Bold Gold
- Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum (6061)
- Core Construction: Bar-and-Plate
- Core Height: 7.2 in
- Core Length: 22 in
- Core Thickness: 3.15 in
- Overall Width: 3.75 in
- Overall Height: 7.5 in
- Overall Length: 29.5 in
- Inlet Diameter: 2.5 in
- Outlet Diameter: 2.5 in
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum, Cast Construction
- Pipe Material: Aluminum, Powder Coated Finish
- Coupler Material: Silicone, Black
- Hose Clamps Included: Yes (T-Bolt)
- Maximum Boost Pressure: 40 PSI
- Weight: 18.7 lbs
- CARB EO Number: D-759
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-GEN4-10RG intercooler kit fit?
It is a specific fit for the 2010-2012 Hyundai Genesis Coupe 2.0T, including the 2.0T, 2.0T GT, 2.0T Premium, and 2.0T R-Spec trims, as well as the 2010 Genesis Coupe 2.0T Track.
Does this kit require crash bar or bumper modifications?
No, the kit does not require any crash bar modifications, and no changes to the front bumper are necessary.
What is the maximum horsepower this intercooler can support?
Mishimoto states the kit offers a massive increase in volume and flow with the ability to support vehicles up to 500HP.
Will this fit an automatic transmission Genesis Coupe?
This item is for manual transmission vehicles and does not fit with the factory air dam or front factory splash shield.
What colors is the intercooler core available in?
The intercooler is available in Sleek Silver, Stealth Black, or Bold Gold.
What is included in the kit?
The kit includes (1) Mishimoto intercooler, (4) aluminum pipes, and the Mishimoto Lifetime Warranty.
