Description

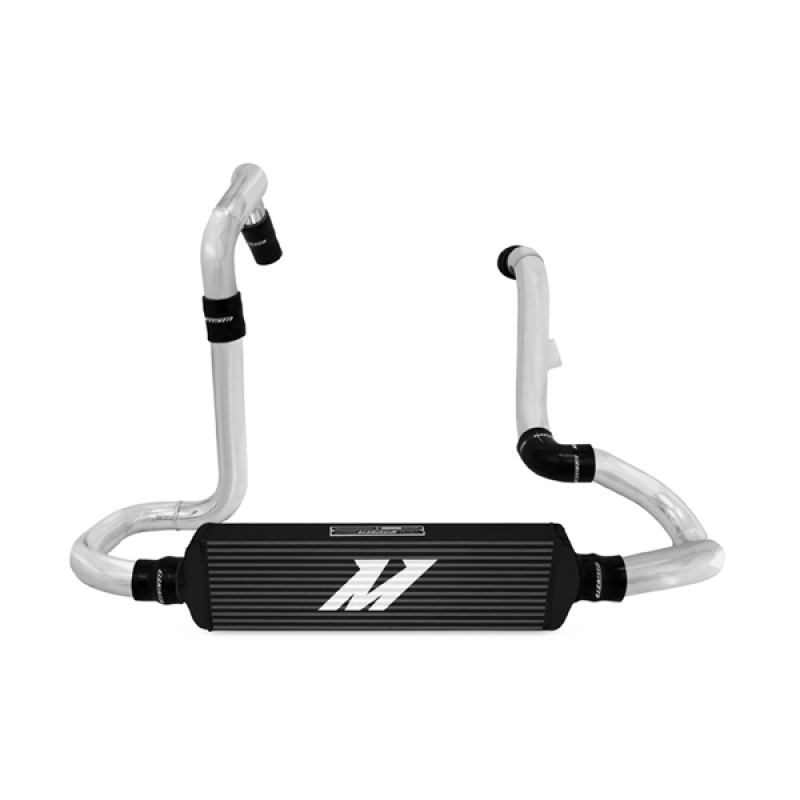

The Mishimoto MMINT-GEN4-10RBK Race Intercooler Kit is a direct-fit, application-specific intercooler and piping system engineered exclusively for the 2010-2012 Hyundai Genesis Coupe 2.0T. Tested on one of the most powerful 2.0T Genesis Coupes in the world, this kit is built to significantly reduce intake temperatures and improve overall cooling efficiency without requiring any crash bar modifications. It works seamlessly with all OEM equipment as well as other Mishimoto Genesis Coupe products.
As a forced induction upgrade, this Mishimoto intercooler kit replaces the restrictive factory core and piping with a larger-volume, higher-flow induction system rated to support vehicles up to 500HP. The bar-and-plate core construction and cast aluminum end tanks form a performance induction system engineered to maximize airflow in and out of the intercooler, while the included lightweight, mandrel-bent aluminum pipes eliminate the tight bends found in the stock piping. Whether you’re refining a forced induction system for track use or simply want more consistent cooling under boost, this kit pairs real core volume with genuine flow capacity and is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This intercooler kit is a specific fit for the 2010-2012 Hyundai Genesis Coupe 2.0T, covering the 2.0T GT, 2.0T Premium, and 2.0T R-Spec trims across the full 2010-2012 range, as well as the 2010 2.0T Track trim. This item is intended for manual transmission vehicles and does not fit with the factory air dam or the front factory splash shield.
Features
- Direct fit for 2010-2012 Hyundai Genesis Coupe 2.0T
- 3.75-in thick bar-and-plate core designed for optimal cooling with minimal pressure loss
- Cast aluminum end tanks for smooth airflow in and out of the intercooler

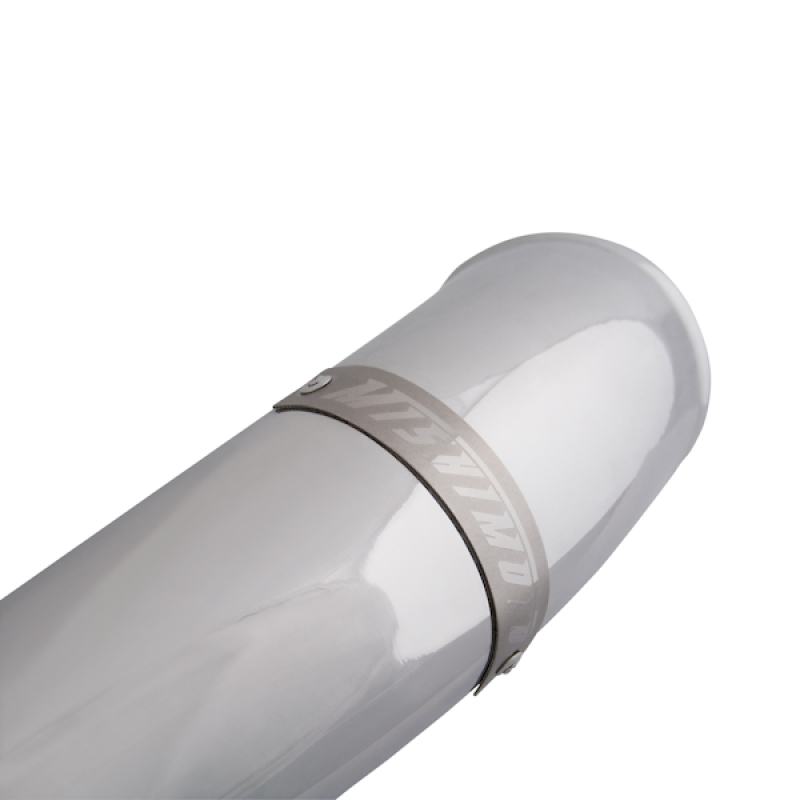

- Lightweight, mandrel-bent aluminum pipes that eliminate restrictive factory bends
- No modifications to the front bumper or removal of the crash bar necessary
- Includes all necessary silicone couplers, t-bolt clamps, brackets, and accessories
- Rated to support vehicles up to 500HP with a maximum boost pressure of 40 PSI
- CARB EO Number: D-759
- Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Height: 7.2 in
- Core Thickness: 3.15 in
- Core Length: 22 in
- Overall Width: 3.75 in
- Overall Height: 7.5 in
- Overall Length: 29.5 in
- Inlet Diameter: 2.5 in
- Outlet Diameter: 2.5 in
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum, Cast Construction
- Pipe Material: Aluminum, Powder Coated Finish, Black
- Coupler Material: Silicone, Black
- Hose Clamps Included: Yes
- Maximum Boost Pressure: 40 PSI
- Weight: 18.7 lbs
- Grade Type: Performance
- Fit Type: Specific
- CARB EO Number: D-759
Frequently Asked Questions
What vehicles does this Mishimoto intercooler kit fit?
It is a direct, specific fit for the 2010-2012 Hyundai Genesis Coupe 2.0T, including the 2.0T GT, 2.0T Premium, and 2.0T R-Spec trims for 2010-2012, and the 2.0T Track trim for 2010.
What is included in the kit?

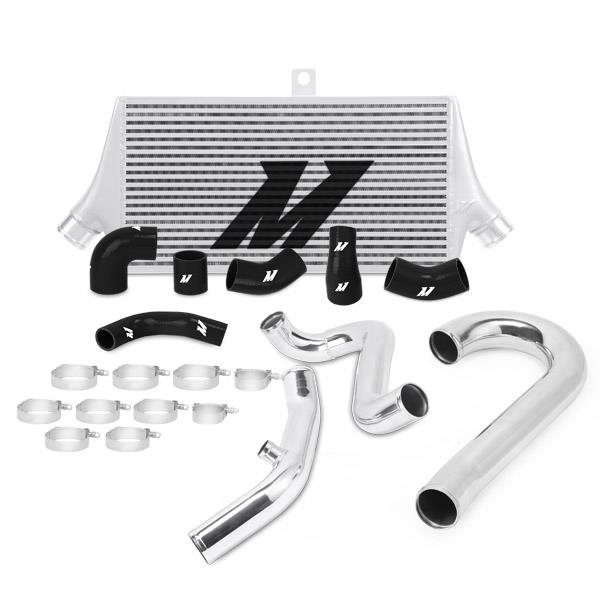

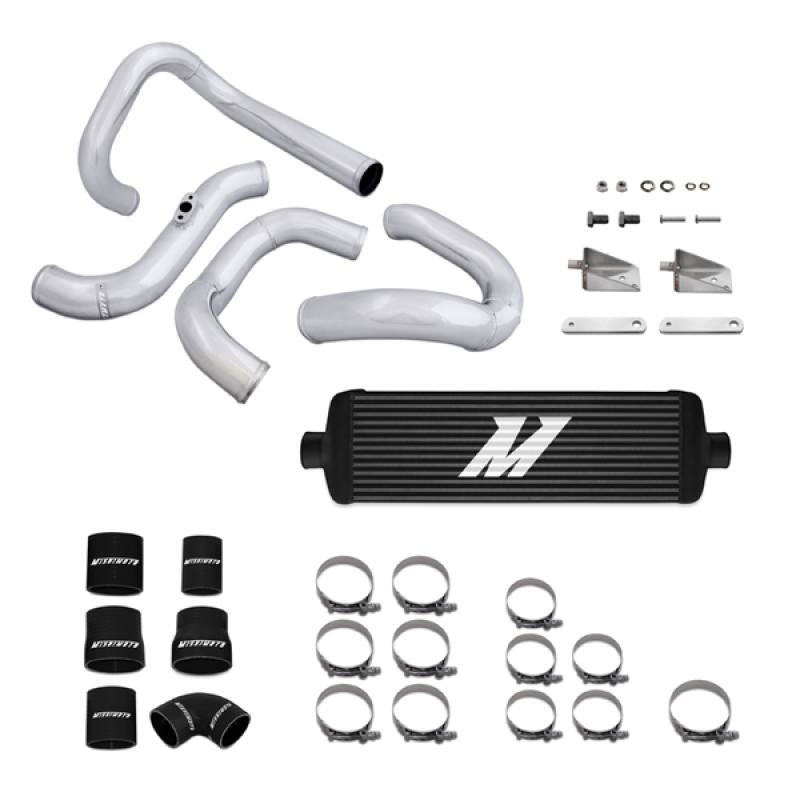

The kit includes one Mishimoto J Line intercooler, four aluminum pipes, silicone couplers, t-bolt clamps, and the Mishimoto Lifetime Warranty.
Does this intercooler require crash bar modifications?
No, the kit does not require any crash bar modifications, yet still offers a significant increase in intercooler volume and flow.
What horsepower and boost levels does this intercooler support?
The kit is designed to support vehicles up to 500HP with a maximum boost pressure of 40 PSI.
Is this kit compatible with automatic transmission Genesis Coupes?
This item is for manual transmission vehicles only, and it does not fit with the factory air dam or front factory splash shield.
What is the core construction and thickness of this intercooler?
The intercooler features a bar-and-plate core construction with cast end tanks, a core thickness of 3.15 inches, and an overall width of 3.75 inches.
