Description

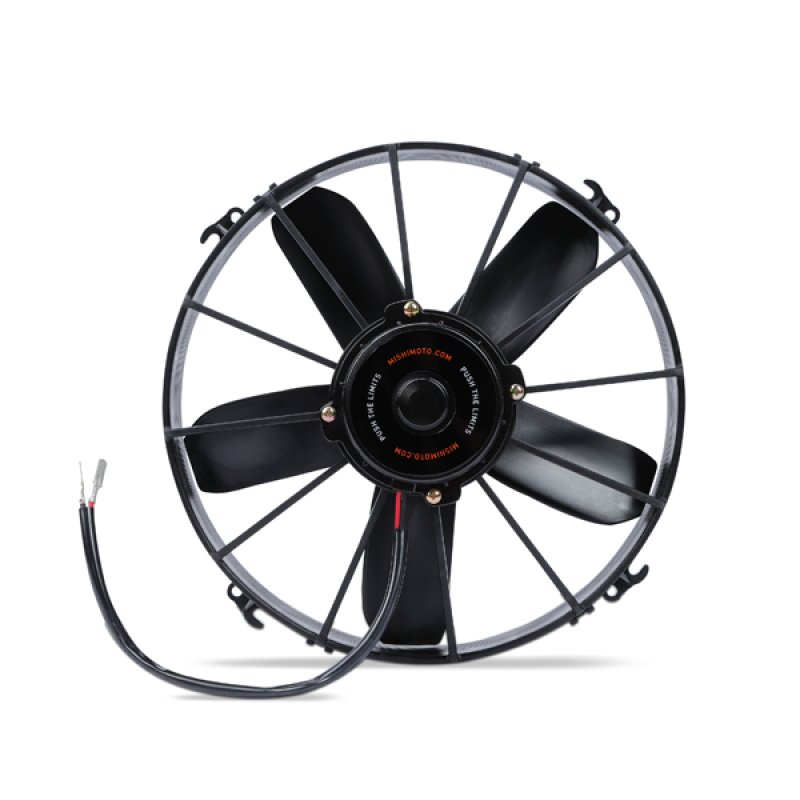

The Mishimoto Race Line 10in Electric Fan, MMFAN-10HD, is built for heavy-duty applications where a Slim Line fan just won’t cut it. This robust 10-inch fan is still thin enough to fit between the engine and radiator in most applications while pushing 1600 CFM of airflow to cool the largest and most powerful of engines.
Designed as part of Mishimoto’s Race Line performance cooling fan lineup, this Performance-grade unit combines a compact footprint with genuinely high-flow output. Its housing diameter of 11-in and overall thickness of 3.85-in are engineered to provide sufficient clearance in the engine bay, so builders can add serious airflow without sacrificing space between the radiator and the engine. Straight, black plastic fan blades pull air through the core, an included ABS shroud helps direct that airflow for optimal operation, and the 12-volt electric motor is ready to run once wired in. For a clean, universal installation, Mishimoto recommends pairing this fan with the Mishimoto Electric Fan Mounting Kit.
Vehicle Applications
The Mishimoto Race Line 10in Electric Fan is a universal-fit cooling fan rather than a vehicle-specific part, and Mishimoto offers this Race Line fan in many sizes to suit different engine bay layouts. Because it is thin enough to fit between the engine and radiator in most applications, it can be adapted to a wide range of builds using the separately available Mishimoto Electric Fan Mounting Kit for secure, universal installation.
Features
- Delivers a maximum of 1600 CFM of airflow for heavy-duty cooling demands

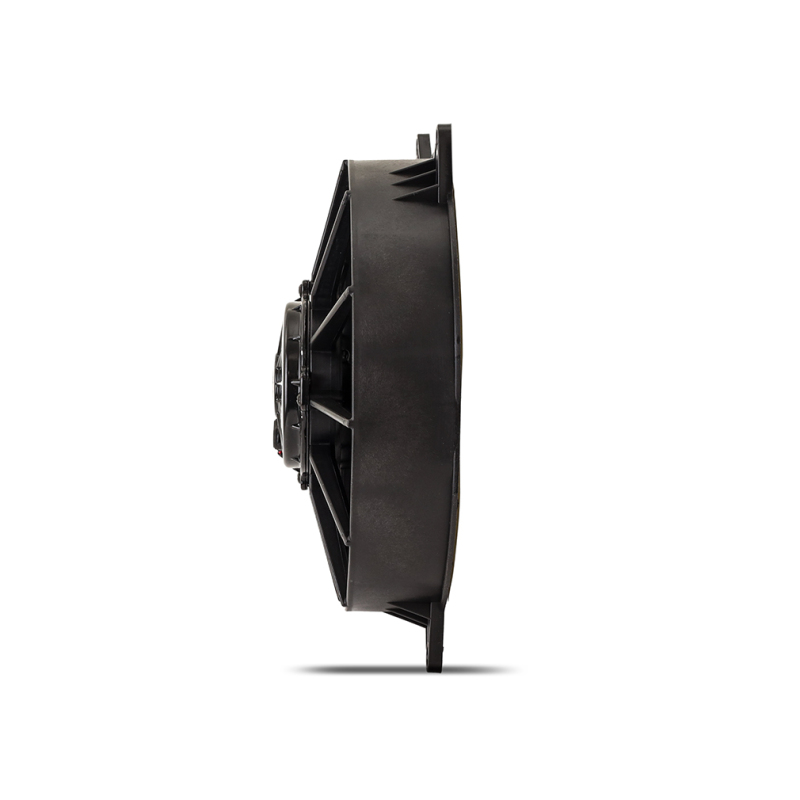

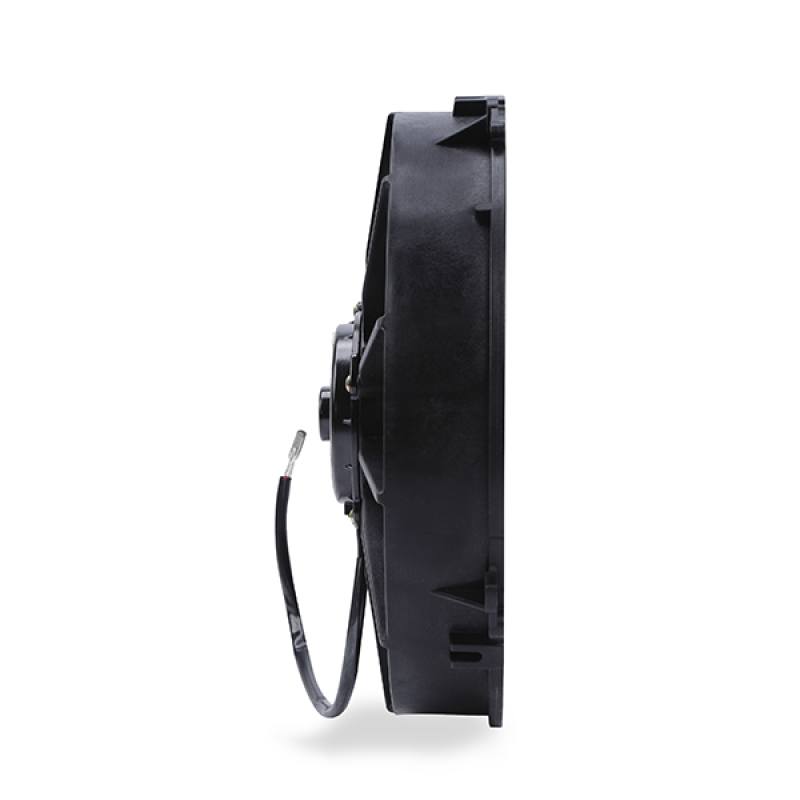

- Compact housing diameter of 11-in and overall thickness of 3.85-in for tight engine bay clearance
- 10-inch outside diameter fan with a hub depth of 3.85 inches
- Straight, black plastic fan blades rated for Performance-grade use
- Pull-direction airflow to draw air through the radiator core
- Includes an ABS plastic shroud; Mishimoto recommends using a fan shroud for optimal operation

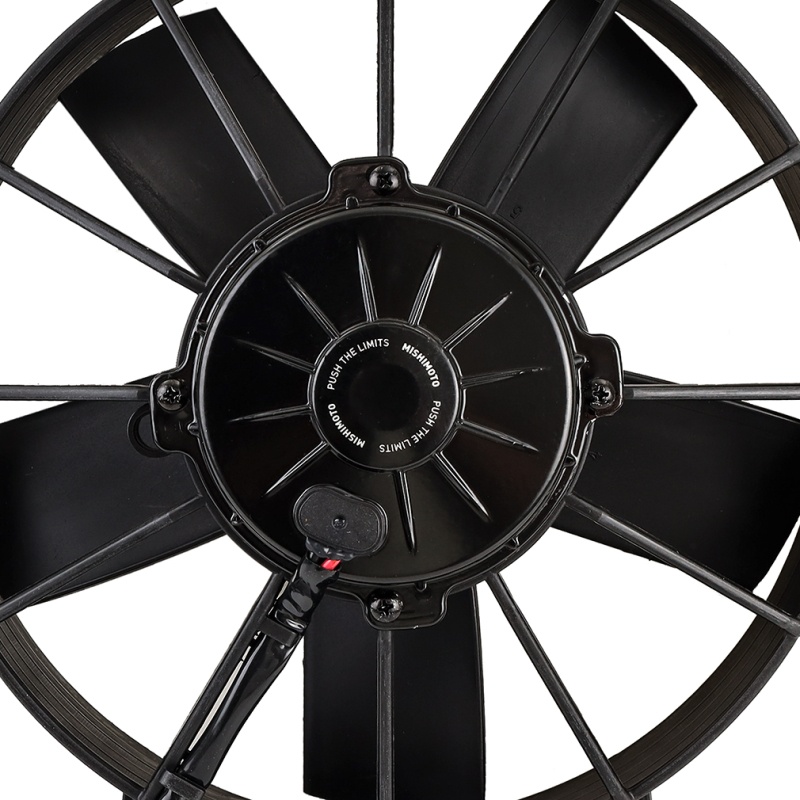

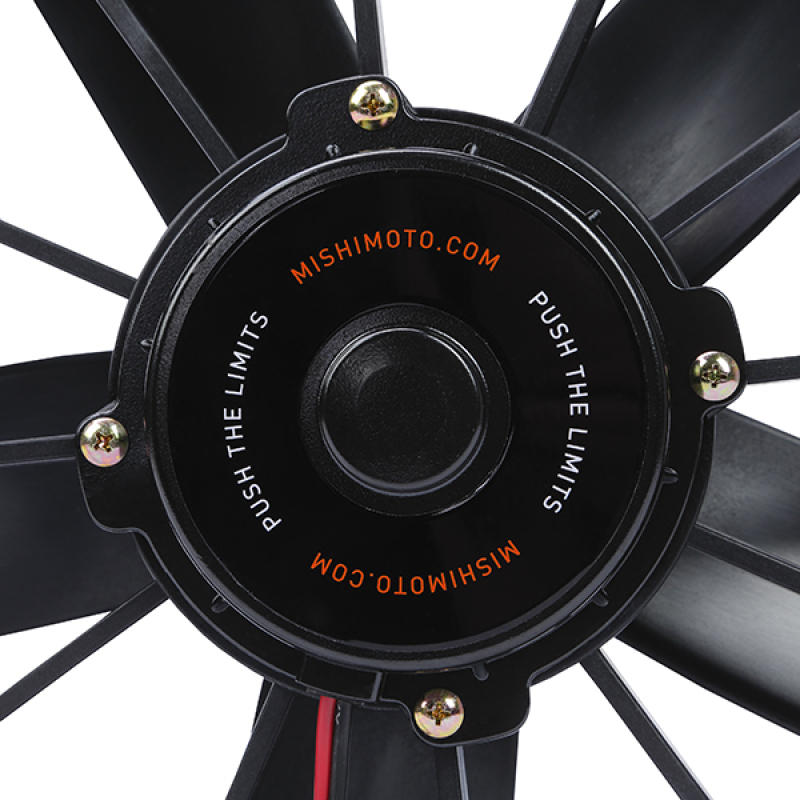

- 12-volt electric motor included with a maximum RPM of 3000
- 13-amp amperage rating with a 10-amp running amp draw
- Female snap-plug terminal wiring connection
- Mounting bracket included; mounting hardware and wiring harness sold separately
- Non-reversible fan design; blade included
- Pairs with the Mishimoto Electric Fan Mounting Kit for universal installation
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFAN-10HD
- Product Type: Cooling
- Outside Diameter: 10 in
- Hub Depth: 3.85 in
- Maximum CFM: 1600
- Maximum RPM: 3000
- Voltage: 12V
- Amperage Rating: 13
- Amp Draw (Running): 10
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Reversible: No
- Airflow Direction: Pull
- Wiring Connection: Female Snap-Plug Terminal
- Shroud Included: Yes (ABS plastic)
- Mounting Bracket Included: Yes
- Mounting Hardware Included: No
- Wiring Harness Included: No
- Motor Included: Yes (Electrical)
- Control Module Included: No
- Fan Clutch Mounted: No
- Grade Type: Performance

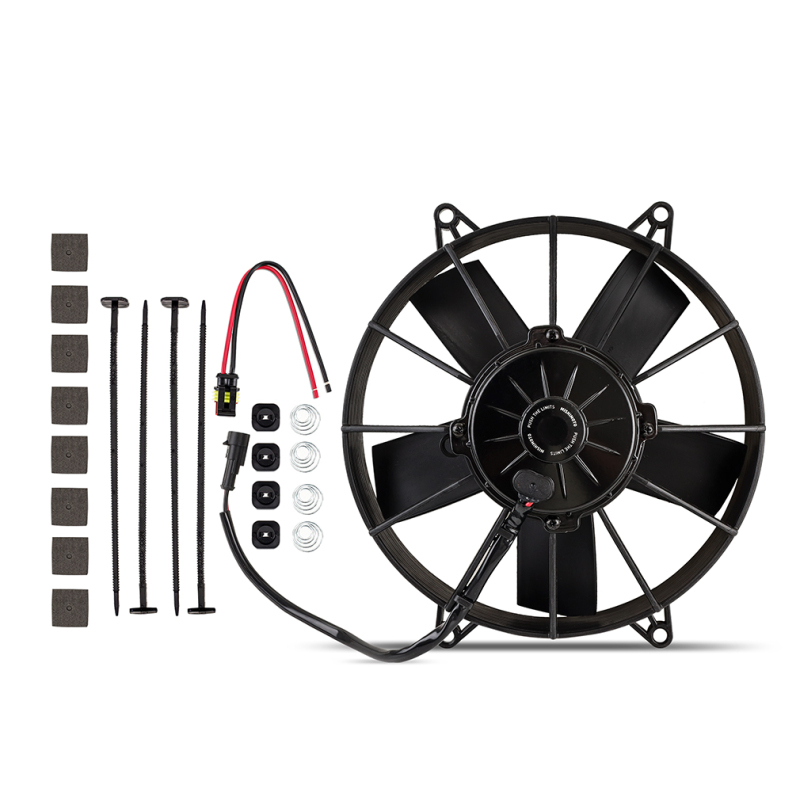

- Includes: (1) Mishimoto Fan; Mounting Kit with (4) Heavy-Duty Plastic Fasteners, (8) Adhesive Foam Protective Pads, (4) Dampening Springs, (4) Fastener End Connectors; Mishimoto Lifetime Warranty
Frequently Asked Questions
How much airflow does the Mishimoto Race Line 10in Electric Fan produce?
The Mishimoto Race Line 10in Electric Fan (MMFAN-10HD) provides a maximum of 1600 CFM of airflow.
What is the maximum RPM of this fan?
This fan has a maximum RPM of 3000.
Does the MMFAN-10HD include a shroud?
Yes, it includes an ABS (Acrylonitrile Butadiene Styrene) plastic shroud, and Mishimoto recommends using a fan shroud for optimal operation.
Is mounting hardware included with this fan?
A mounting bracket is included, but mounting hardware and a wiring harness are not included. Mishimoto recommends its Electric Fan Mounting Kit for universal installation.
What voltage does the Mishimoto Race Line 10in fan run on?
It operates on 12 volts and has an amperage rating of 13 amps, with a running amp draw of 10 amps.
Is the Mishimoto Race Line 10in fan reversible?
No, this fan is not reversible; it has a fixed pull airflow direction with straight, black plastic blades.
