Description

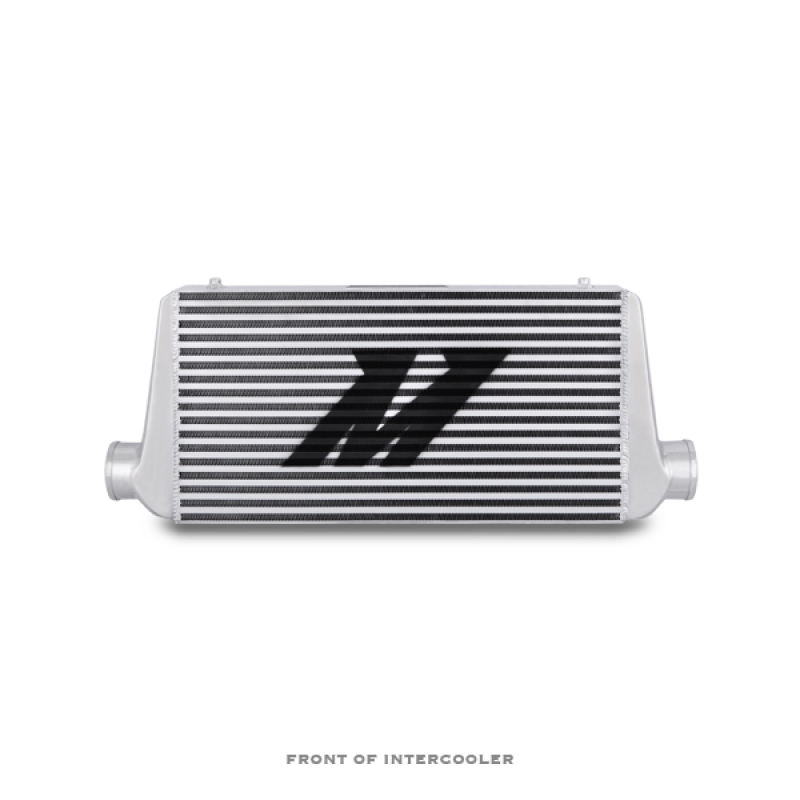

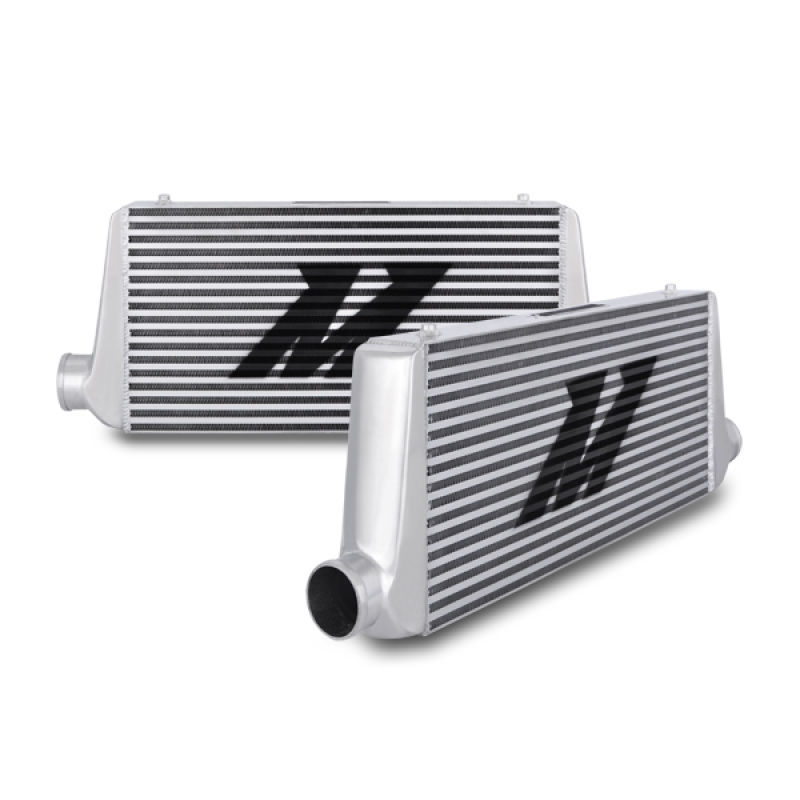

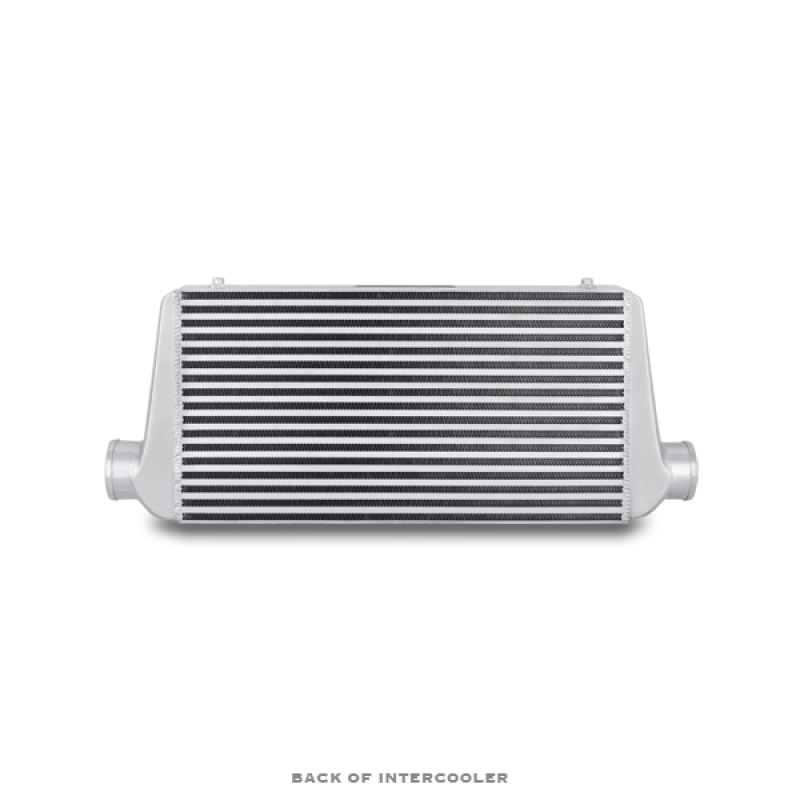

The Mishimoto S-Line Intercooler (MMINT-US) is a front-mount, bar-and-plate intercooler engineered from 6061 aircraft-quality aluminum to handle the demands of supercharged and turbocharged engines. Precision TIG-welded for strength, this performance induction cooler is rated to support up to 800 horsepower and 32 PSI of boost, giving serious cooling capacity to high-output forced induction setups. Every S-Line intercooler carries the Mishimoto logo on just one side, keeping the cooling core clean and understated.
Reducing intake air temperature is one of the most effective ways to unlock the potential of any forced induction system, and the MMINT-US is built specifically for that job. By pulling heat out of compressed intake air before it reaches the engine, this intercooler helps stabilize induction air temperatures and support safe, consistent horsepower gains on turbo and supercharged applications. The one-piece cast aluminum end tanks are built to withstand the high boost pressures generated by modern induction systems, while the bar-and-plate core construction maximizes surface area for superior heat transfer. Whether you’re upgrading an existing forced induction turbo setup or building a dedicated performance induction system, the S-Line intercooler is designed to keep pace with increased airflow and boost demands.
Vehicle Applications
The Mishimoto S-Line Intercooler MMINT-US is classified as a specific-fit forced induction upgrade and includes four M8 x 1.25 threaded universal mounting points to simplify installation in a front-mount location. Because of this universal-style mounting hardware, the core is designed to accommodate front-mount installations on turbocharged and supercharged vehicle builds that call for a bar-and-plate core of this size and configuration. Confirm core dimensions and mounting geometry against your specific vehicle before installation.
Features
- Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs

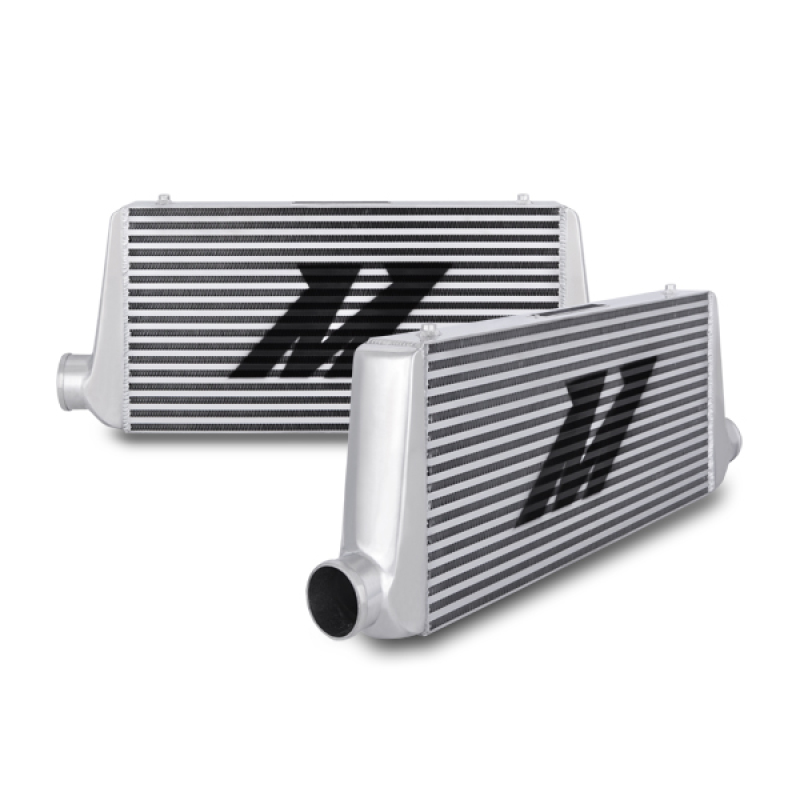

- Robust, one-piece cast aluminum end tanks withstand high boost pressures
- Large 3-in thick core and 3-in inlets provide optimal flow and volume for high horsepower vehicles
- Four M8 x 1.25 threaded universal mounting points for a universal fit
- Constructed from durable 6061-aluminum

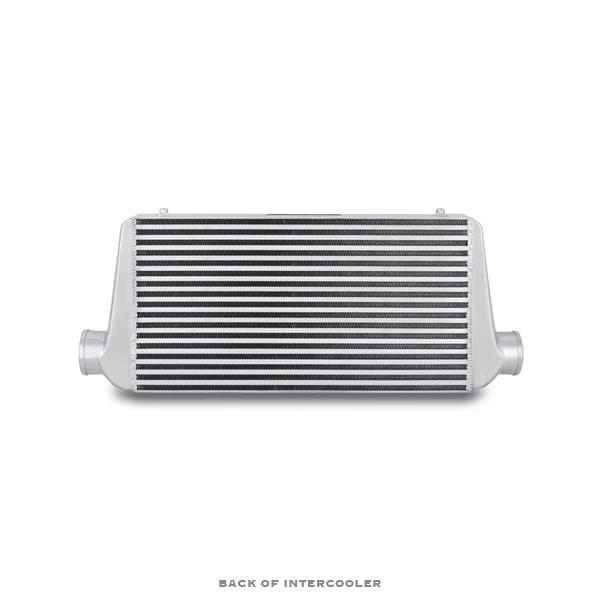

- Precision TIG-welded joints won’t crack under pressure

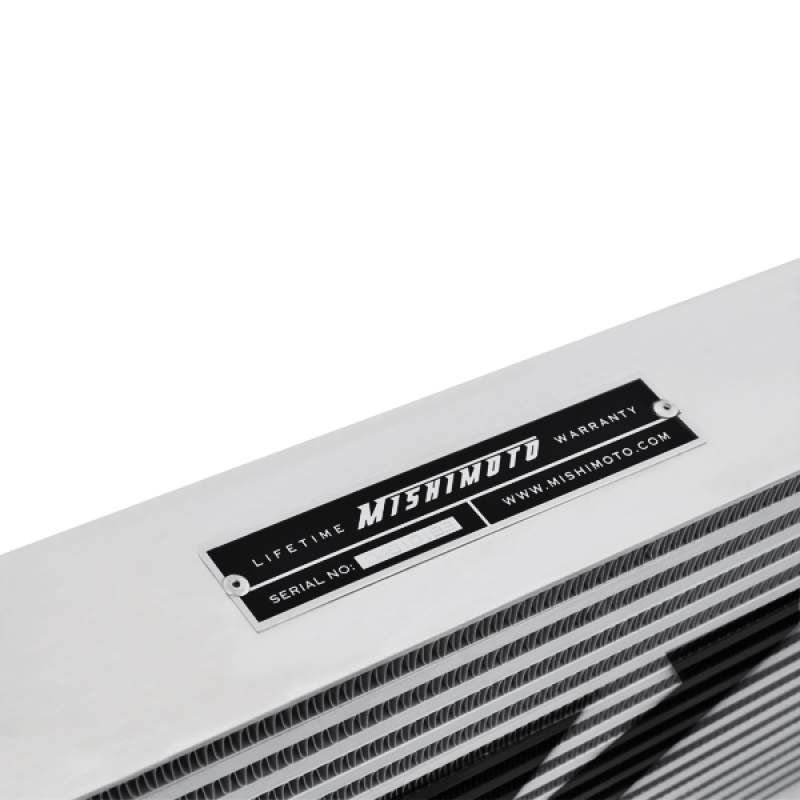

- Backed by the Mishimoto Lifetime Warranty
- Only one side features the Mishimoto logo
Specifications
- Brand: Mishimoto
- Part Number: MMINT-US
- Product Type: Forced Induction
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Silver
- Overall Length: 31 in
- Overall Height: 12 in
- Core Height: 12 in

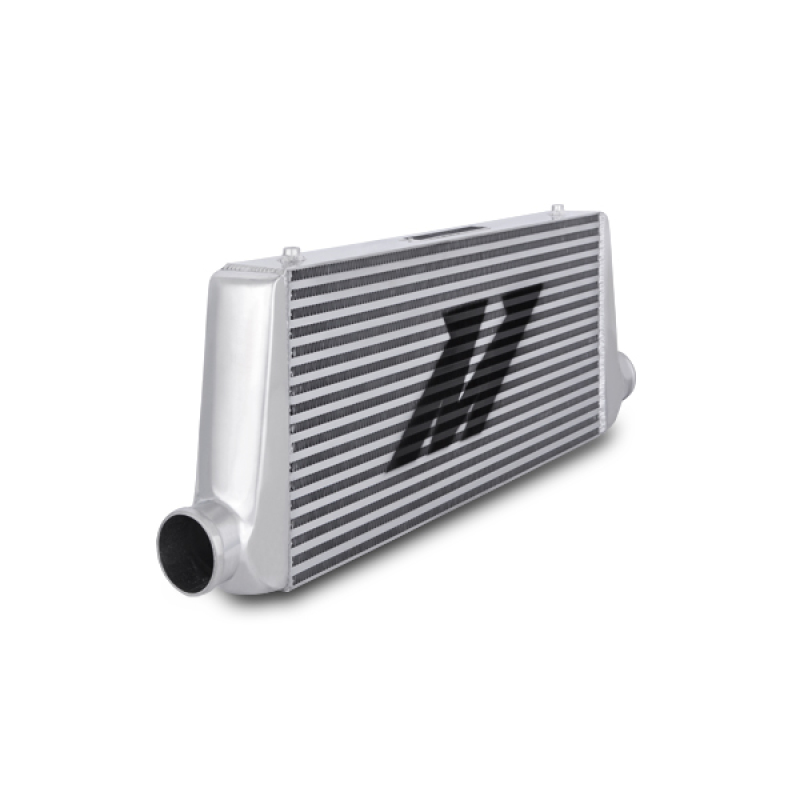

- Core Length: 23 in
- Grade Type: Performance
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Fit Type: Specific
- Maximum Recommended Horsepower: 800 HP
- Maximum Recommended Boost Pressure: 32 PSI
- Includes: (1) Mishimoto Intercooler with Mishimoto Lifetime Warranty
Frequently Asked Questions
What material is the Mishimoto S-Line Intercooler made from?
It’s constructed from 6061 aircraft-quality aluminum, including one-piece cast aluminum end tanks and an aluminum core.
What is the maximum recommended horsepower for the MMINT-US intercooler?
Mishimoto recommends this intercooler for applications up to 800 horsepower and 32 PSI of maximum boost pressure.
How is the Mishimoto S-Line Intercooler mounted?
It includes four M8 x 1.25 threaded universal mounting points for installation.
Does the intercooler have the Mishimoto logo on both sides?
No, only one side of the S-Line intercooler features the Mishimoto logo.
What core design does the MMINT-US use?
It uses a bar-and-plate core design, which provides superior heat transfer while effectively reducing induction air temperatures.
What warranty comes with this intercooler?
The Mishimoto S-Line Intercooler is backed by the Mishimoto Lifetime Warranty.
⚠ WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
