Description
The Mishimoto MMHOSE-CAM8-16ANCBK Silicone Ancillary Hose Kit is a Fabrication category product built to replace the degradation-prone factory rubber hoses in the Sixth-Gen Camaro’s cooling system. This Mishimoto kit swaps in hoses constructed from five layers of silicone embedded with heat-resistant fibers, giving the cooling circuit a more durable connection between the expansion tank, heater core, and engine.
Beyond material upgrades, this Mishimoto ancillary hose kit is engineered to improve heat and pressure tolerance compared to the aging factory hoses it replaces. The expansion tank hose retains a built-in check ball valve just like the original equipment hose, while the lower heater core hose comes with heat wrap already installed to shield it from excessive heat generated near the exhaust manifold. Because the kit is a direct-fit replacement, installation does not require modifying the vehicle’s existing connections, and the included worm gear clamps make securing every port straightforward. Offered in black or blue, the kit also lets owners add a bit of color to the engine bay while addressing a real reliability concern.
Vehicle Applications
This Mishimoto silicone ancillary hose kit is a specific fit for the Chevrolet Camaro SS from 2016 through 2024, the Chevrolet Camaro LT1 from 2020 through 2024, the Chevrolet Camaro ZL1 from 2017 through 2024, and the 2022 Chevrolet Camaro SS RedLine.
Features
- Direct-fit replacement for the applicable Sixth-Gen Camaro models listed above

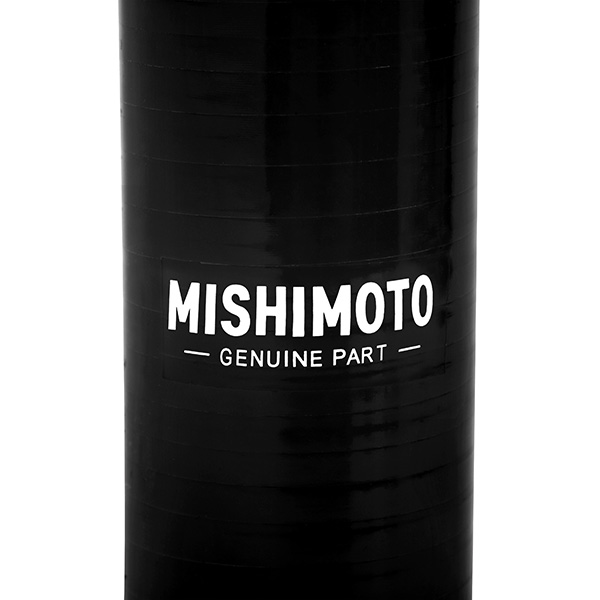

- Constructed from five layers of silicone with heat-resistant embedded fibers
- Improves heat and pressure tolerance over the factory rubber hoses

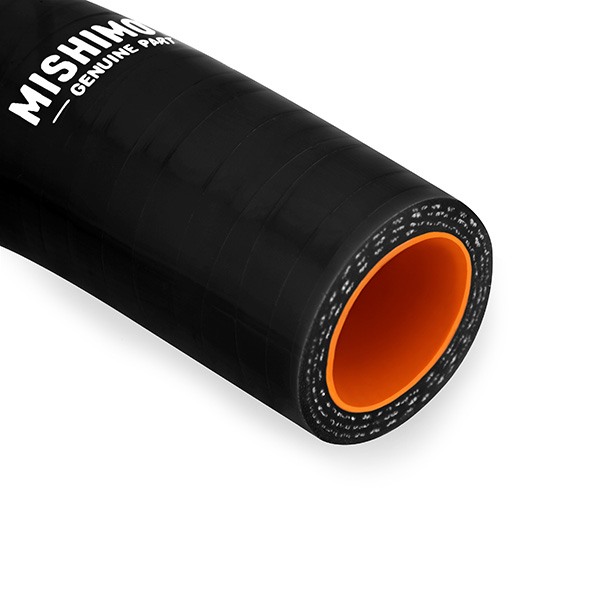

- Kit includes an upper heater core hose, a lower heater core hose, and an expansion tank hose
- Expansion tank hose retains a built-in check ball valve, just like the stock hose

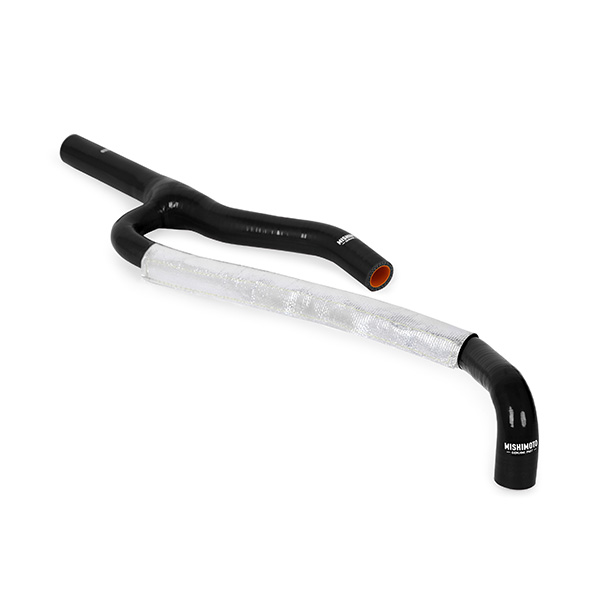

- Lower heater core hose has heat wrap installed to protect it from excessive heat near the exhaust manifold
- Includes eight worm gear clamps for secure, easy-to-install connections at every port
- Available in black or blue
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMHOSE-CAM8-16ANCBK
- Product Type: Fabrication
- Hose Material: Silicone
- Interior Material: Silicone
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Hose Color: Black (also available in Blue)
- Clamps Included: Yes

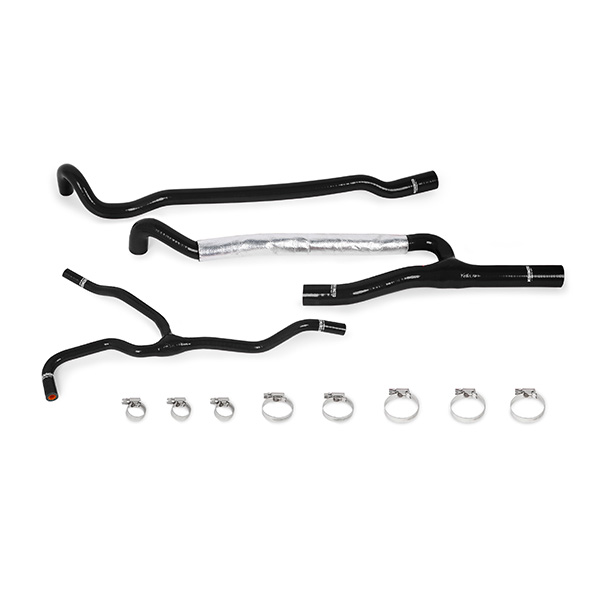

- Purchase Includes: (1) Upper Heater Core Hose, (1) Lower Heater Core Hose, (1) Expansion Tank Hose, (8) Worm Gear Clamps
- Installation Torque Specs: 22 in-lbs (2.5NM) recommended for all worm-gear clamps; clamps have an operating range of 18-27 in-lbs (2-3NM); do not exceed 27 in-lbs (3NM)
Frequently Asked Questions
What does the Mishimoto Silicone Ancillary Hose Kit include?
The kit includes one upper heater core hose, one lower heater core hose, one expansion tank hose, and eight worm gear clamps.
What material are the hoses made from?
The hoses are constructed from five layers of silicone embedded with heat-resistant fibers.
Which vehicles does this hose kit fit?
This kit is a specific fit for the 2016-2024 Chevrolet Camaro SS, 2020-2024 Chevrolet Camaro LT1, 2017-2024 Chevrolet Camaro ZL1, and the 2022 Chevrolet Camaro SS RedLine.
Is this a direct-fit replacement for the factory hoses?
Yes, it is a direct-fit replacement, so it can be installed without modifying the vehicle’s existing connections.
What color options are available?
The hose kit is available in black or blue.
What is the recommended installation torque for the included clamps?
The recommended installation torque is 22 in-lbs (2.5NM) for all worm-gear clamps, which have an operating range of 18-27 in-lbs (2-3NM); do not exceed 27 in-lbs (3NM).
