Description

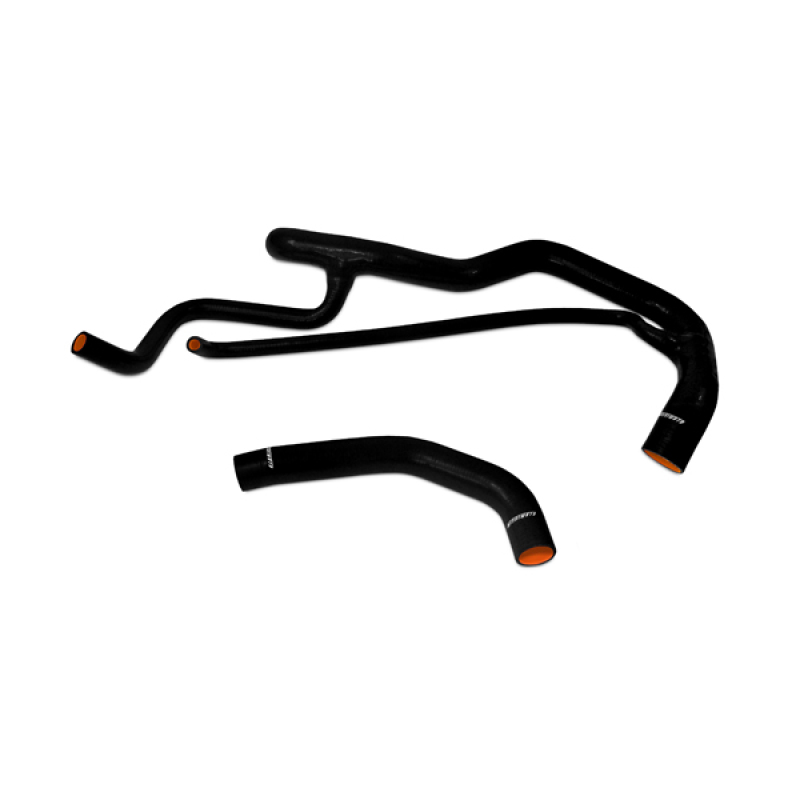

The Mishimoto MMHOSE-CHV-01DBK is a silicone coolant hose kit engineered specifically for the 2001-2005 6.6L Duramax, built to replace aging factory rubber hoses with a four-ply silicone construction rated to withstand up to 330°F. Finished in black and backed by the Mishimoto Lifetime Warranty, this kit is designed to bolt in with flawless factory fitment while raising the ceiling on heat and pressure tolerance under the hood.
A cooling system is only as strong as its weakest link, and factory rubber hoses are often the first component to crack, swell, or fail under sustained heat. This Mishimoto cooling hose kit replaces those factory hoses with a performance-grade silicone hose built from four layers of heat-resistant fibers bonded to high-grade silicone, giving the Duramax cooling system added durability and increased pressure tolerance. Because it is engineered as a direct, specific-fit replacement rather than a universal hose, installation keeps factory routing intact, and the kit ships with the stainless steel T-bolt clamps needed to complete the job.
Vehicle Applications
This Mishimoto silicone coolant hose kit is a specific fit for the 2001-2005 Chevrolet Silverado 2500 HD and 3500 (Base, LS, and LT trims across those model years, with the WT trim covered for 2003-2005 on the 2500 HD and 2004 on the 3500), as well as the 2001-2005 GMC Sierra 2500 HD and 3500 (SL trim in 2001-2002, SLE and SLT trims throughout 2001-2005, Base trim from 2002-2005, and WT trim from 2003-2005 on the 2500 HD and 2004-2005 on the 3500). It also fits the 2003-2004 Chevrolet C4500/C5500 Kodiak and GMC C4500/C5500 Topkick medium-duty trucks in the C4C042, C4E042, C4U042, C4V042, C5C042, C5E042, C5U042, and C5V042 configurations.
Features
- Constructed from four layers of heat-resistant fibers bonded to high-grade silicone
- Maximum temperature rating of 330°F
- Performance-grade silicone hose engineered for increased pressure tolerance
- Designed for OEM-style, flawless factory fitment
- Includes stainless steel T-bolt clamps for straightforward installation
- Backed by the Mishimoto Lifetime Warranty
- This kit is finished in black (also offered in blue or red)
Specifications
- Brand: Mishimoto
- Part Number: MMHOSE-CHV-01DBK
- Hose Material: Silicone
- Grade Type: Performance
- Hose Color: Black
- Maximum Temperature Rating: 330°F
- Clamps Included: Yes
- Universal or Specific Fit: Specific
- Kit Includes: (2) Silicone Hoses, (3) 2.25-inch Stainless Steel T-Bolt Clamps, (1) 2.5-inch Stainless Steel T-Bolt Clamp, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMHOSE-CHV-01DBK coolant hose kit fit?
This kit is a specific fit for the 2001-2005 Chevrolet Silverado 2500 HD and 3500, the 2001-2005 GMC Sierra 2500 HD and 3500, and the 2003-2004 Chevrolet C4500/C5500 Kodiak and GMC C4500/C5500 Topkick trucks (C4C042, C4E042, C4U042, C4V042, C5C042, C5E042, C5U042, C5V042), all equipped with the 6.6L Duramax.
What is the Mishimoto silicone coolant hose kit made from?
It is constructed from four layers of heat-resistant fibers combined with high-grade silicone for increased durability and pressure tolerance.
What is the maximum temperature rating of this hose kit?
The kit carries a maximum temperature rating of 330°F.
Does the kit include installation clamps?
Yes. Clamps are included: (3) 2.25-inch stainless steel T-bolt clamps and (1) 2.5-inch stainless steel T-bolt clamp.
What color is this hose kit?
This kit is finished in black. Mishimoto also offers this hose kit in blue or red.
Is this a universal hose or a vehicle-specific fit?
This is a specific-fit hose kit engineered to retain factory fitment on the applicable 2001-2005 6.6L Duramax vehicles, not a universal hose.
