Description

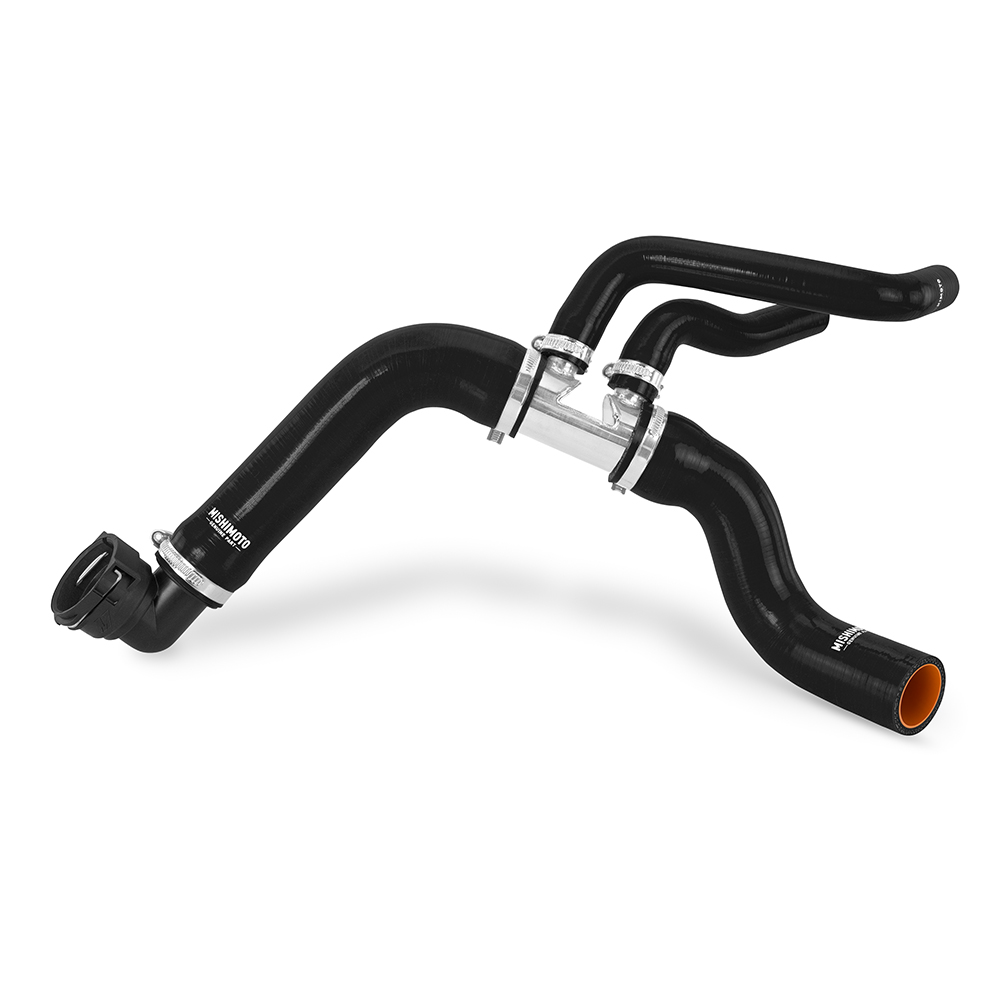

The Mishimoto MMHOSE-F50-15BK is a black silicone radiator hose kit engineered specifically for the 2015-2017 Ford F-150 5.0L V8. Built to replace aging, degrading factory rubber hoses before they fail, this kit pairs a five-layer silicone upper hose with a lower hose that swaps the leak-prone factory plastic connector for durable stainless steel. A pre-installed quick disconnect on the lower hose keeps installation straightforward and helps you get your cooling system sealed up fast.
As rubber cooling components age, they harden and crack, and a failed radiator hose can leave you stranded with a puddle of coolant on the driveway. Mishimoto addresses that weak point in the Ford F-150’s cooling system with a performance-grade silicone hose kit that’s constructed from five layers of silicone embedded with heat-resistant fibers for improved heat and pressure tolerance compared to the factory rubber pieces. This is a specific-fit kit, engineered to match the F-150 5.0L V8’s routing and connectors rather than a universal design, so it drops in as a direct factory-style replacement while upgrading the parts most likely to fail over time.
Vehicle Applications
This Mishimoto silicone radiator hose kit is a direct fit for the 2015-2017 Ford F-150 equipped with the 5.0L V8, covering the XL, XLT, Lariat, King Ranch, and Platinum trims across all three model years (2015-2017), the Limited and SSV trims for 2016-2017, and the 2017 Raptor.
Features
- Direct-fit for 2015-2017 Ford F-150 5.0L V8

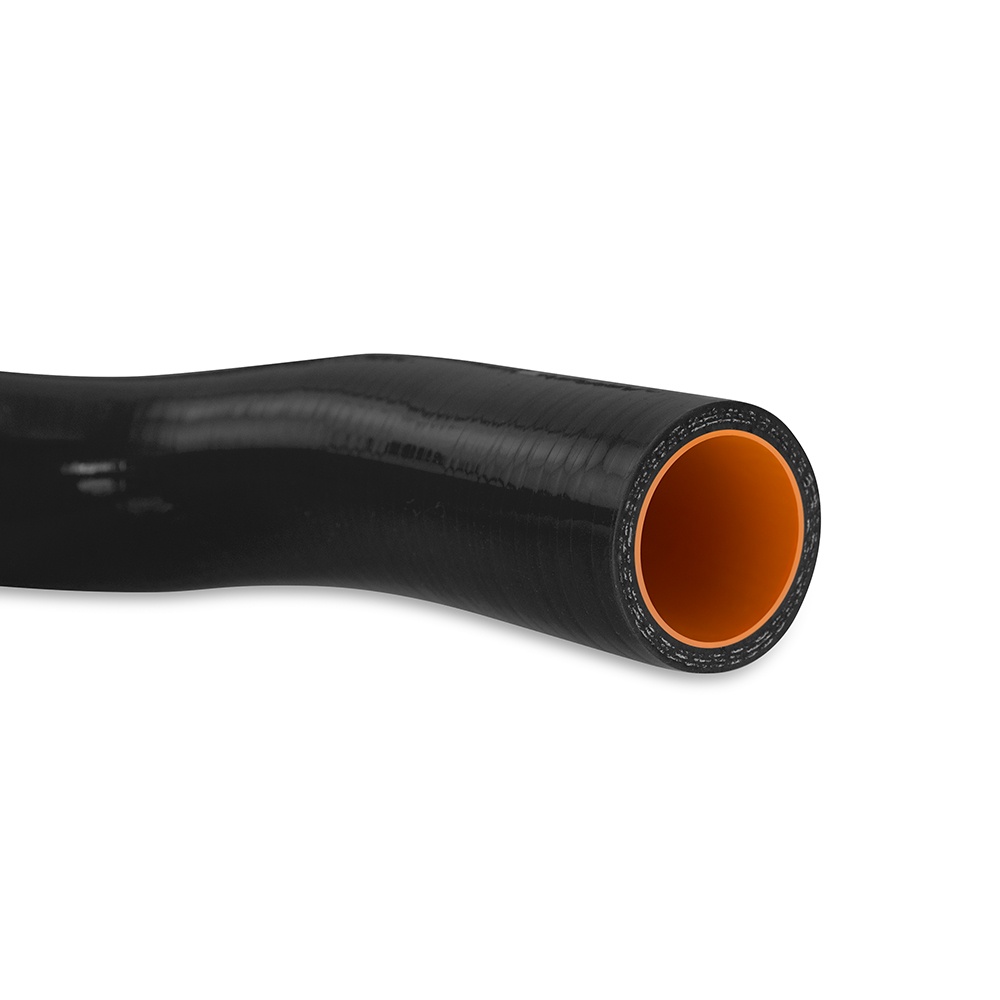

- Constructed from five layers of silicone with heat-resistant embedded fibers
- Improves heat and pressure tolerance

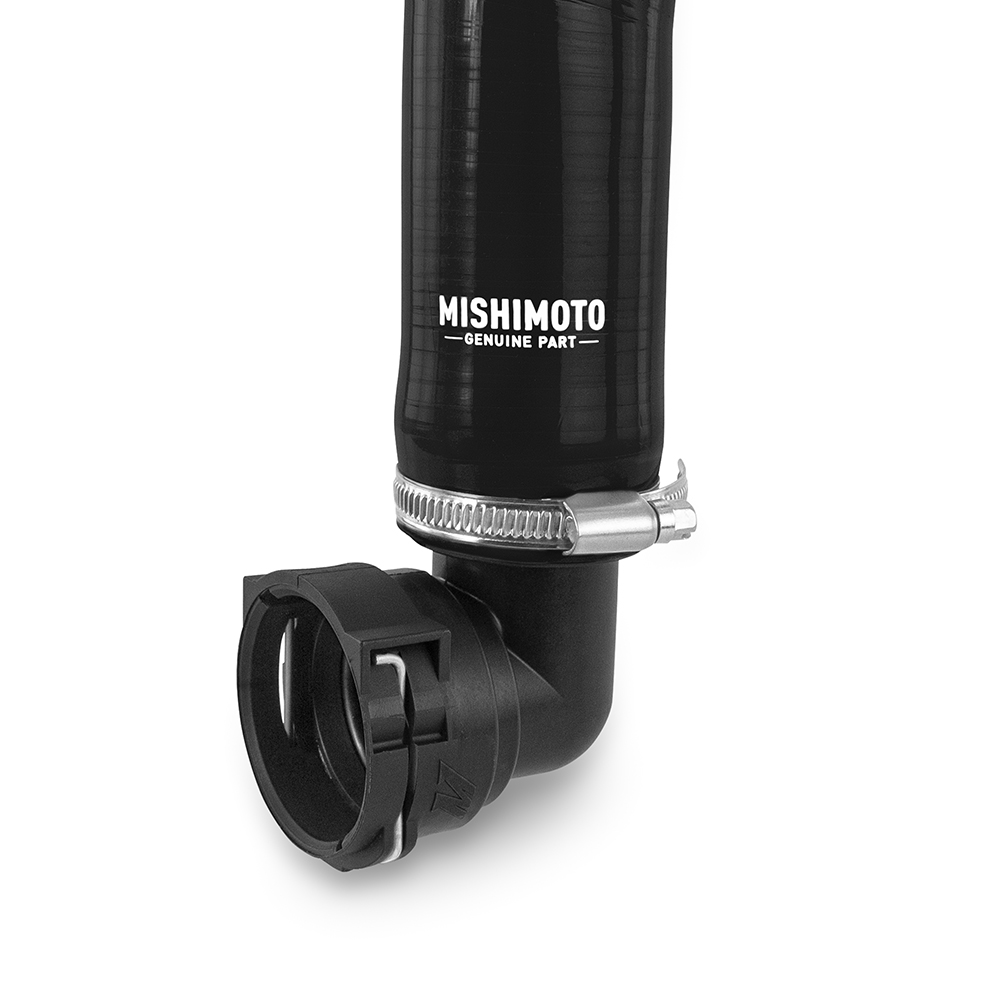

- Replaces the factory plastic connector on the lower hose with a stainless steel connector for greater resistance to heat and pressure
- Pre-installed quick disconnect on the lower hose for easier installation
- Includes both upper and lower radiator hoses
- Includes high-quality worm-gear clamps for ease of installation
- Available in black, blue, or red
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMHOSE-F50-15BK
- Product Type: Cooling
- Hose Material: Silicone
- Grade Type: Performance
- Hose Color: Black
- Hose Quantity: 2 (upper and lower)
- Clamps Included: Yes
- Universal or Specific Fit: Specific

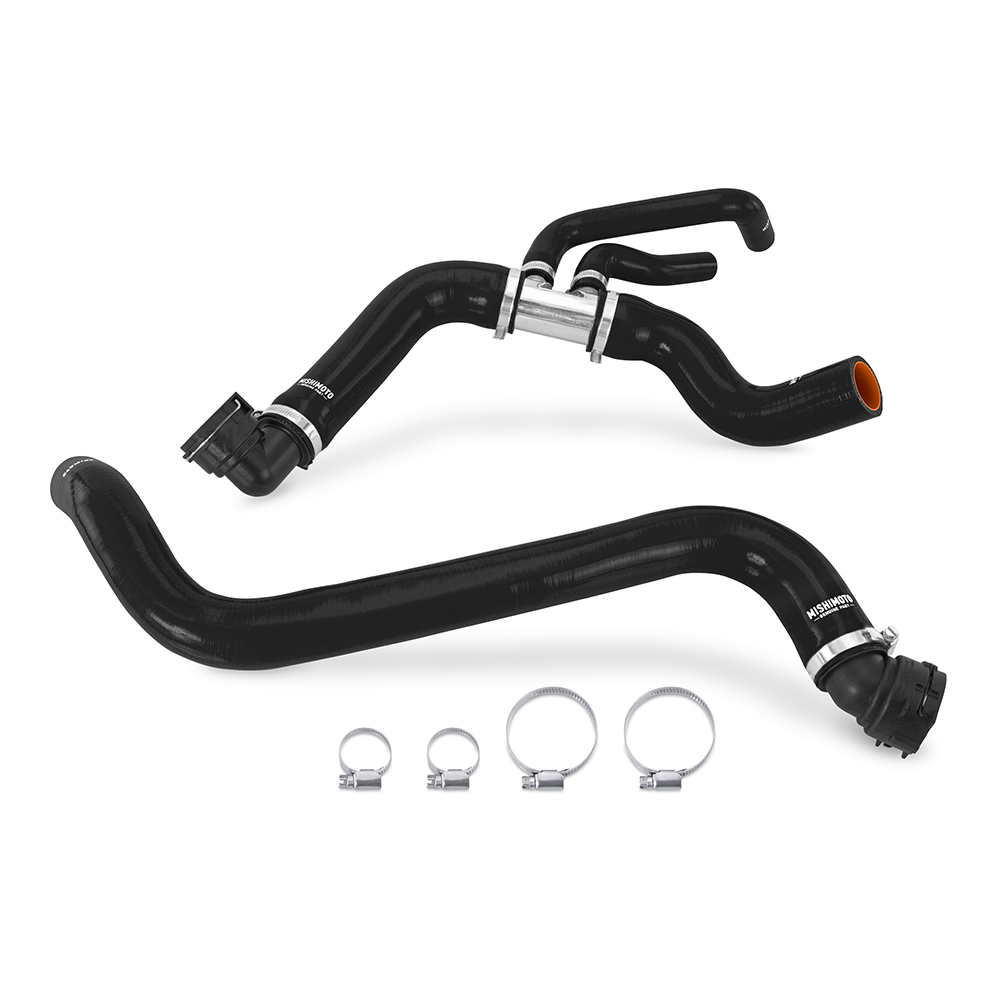

- Kit Includes: (1) Upper Radiator Hose w/ Quick-Disconnect, (1) Lower Radiator Hose w/ Stainless Steel Connector and Quick-Disconnect, (4) Worm Gear Clamps, Mishimoto Lifetime Warranty
- Clamp Torque: 22 in-lbs (2.5NM) recommended for all worm-gear clamps; operating range of 18-27 in-lbs (2-3NM); do not exceed the maximum torque rating of 27 in-lbs (3NM)
Frequently Asked Questions
What vehicles does the Mishimoto MMHOSE-F50-15BK radiator hose kit fit?
It is a direct fit for the 2015-2017 Ford F-150 5.0L V8, covering the XL, XLT, Lariat, King Ranch, and Platinum trims for 2015-2017, the Limited and SSV trims for 2016-2017, and the 2017 Raptor.
What is included in this hose kit?
The kit includes one upper radiator hose with a quick-disconnect, one lower radiator hose with a stainless steel connector and quick-disconnect, four worm gear clamps, and the Mishimoto Lifetime Warranty.
What material are the hoses made from?
The hoses are constructed from five layers of silicone with heat-resistant embedded fibers, offering improved heat and pressure tolerance compared to factory rubber hoses.
Does this kit replace the factory plastic connector?
Yes, the lower hose replaces the leak-prone factory plastic connector with a durable stainless steel connector for greater resistance to heat and pressure.
What color options are available for this hose kit?
This hose kit is available in black, blue, or red.
How much torque should be used on the included worm-gear clamps?
A torque of 22 in-lbs (2.5NM) is recommended for all worm-gear clamps, with an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
