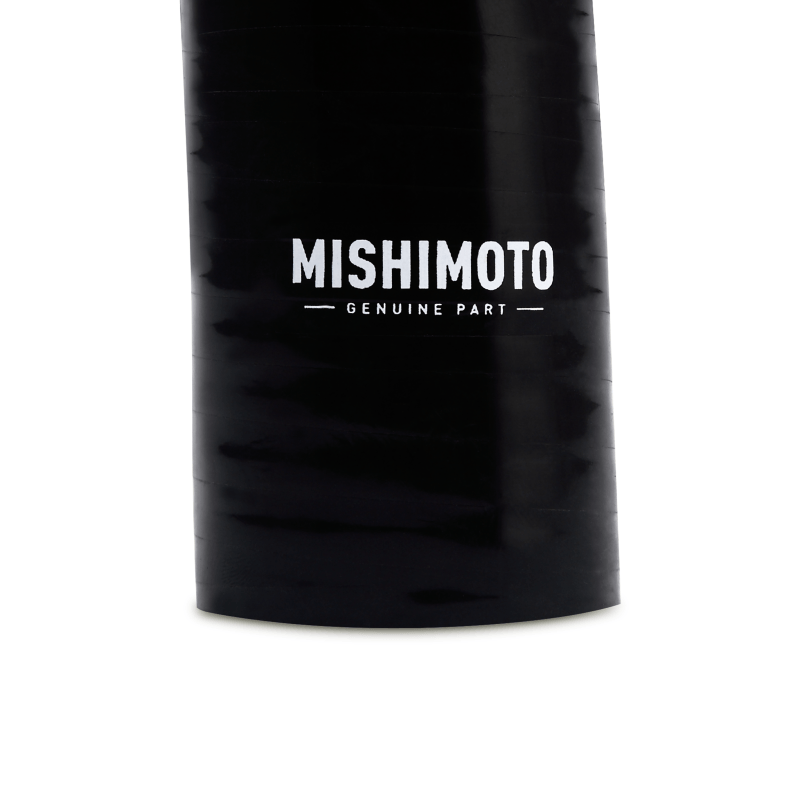

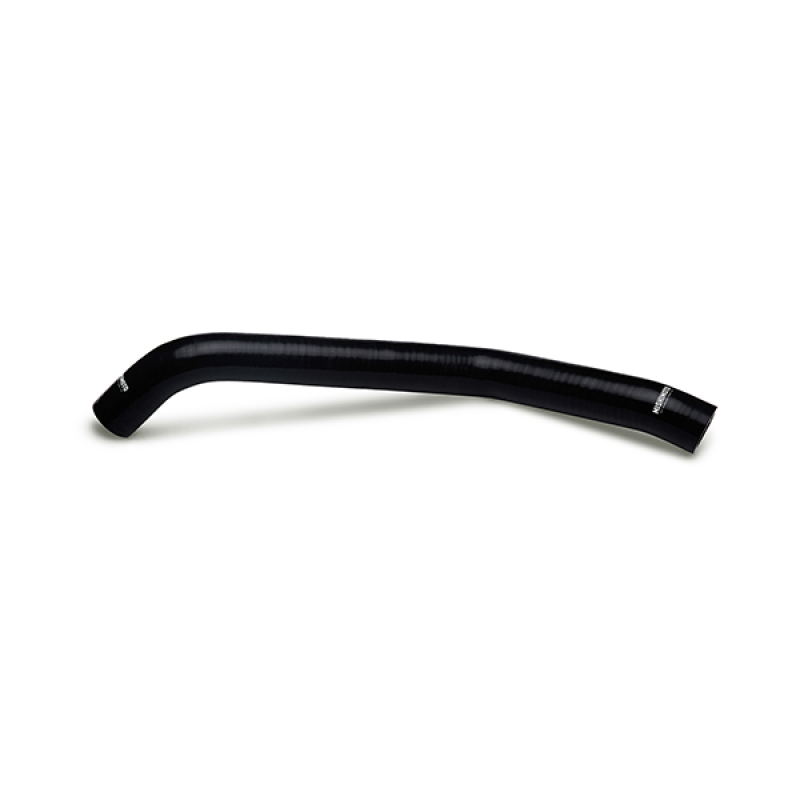

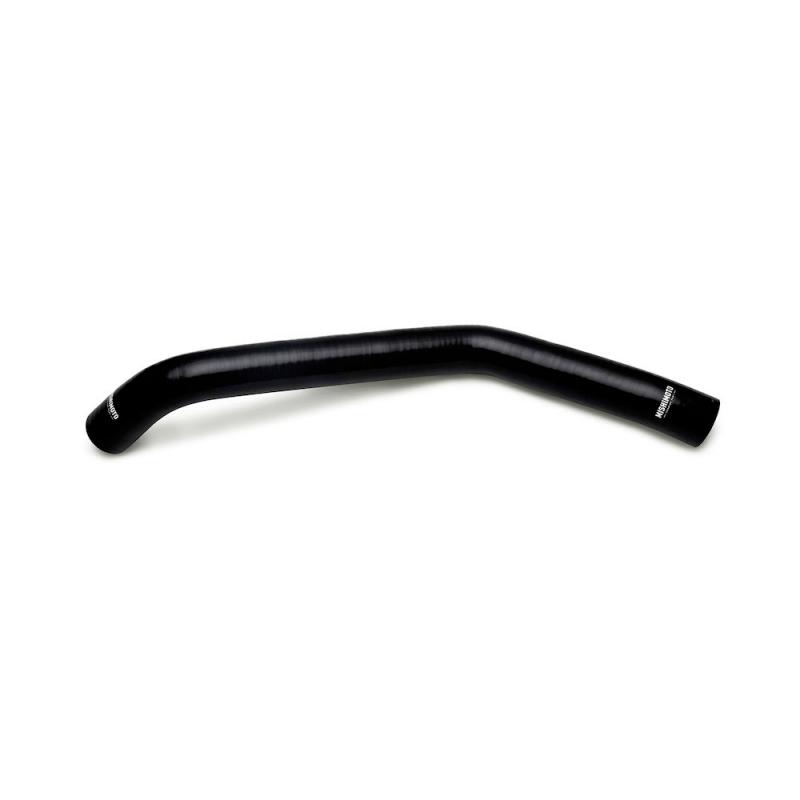

The Mishimoto MMHOSE-GM-5U Silicone Upper Radiator Hose replaces the aging rubber upper radiator hose on the 1968-1972 Chevrolet Chevelle with a five-layer silicone construction designed to outlast the factory part. Finished in black and backed by the Mishimoto Lifetime Warranty, this Classic Line cooling component ships with two worm-gear clamps so installation stays straightforward.
Rubber hoses are prone to cracking, softening, and collapsing over time, and Mishimoto built this silicone hose to address exactly that. Each hose in Mishimoto’s Cooling lineup is layered from five plies of silicone with heat-resistant embedded fibers, giving it improved heat and pressure tolerance compared to the OEM rubber hose it replaces. It is a specific-fit, performance-grade hose engineered for the exact routing of the applications below, and the included worm-gear clamps mean you don’t need to source separate hardware to complete the swap. Whether the Chevelle sees regular cruise nights or occasional show duty, this silicone upper radiator hose is built to keep coolant flowing reliably.
Vehicle Applications
This hose is engineered as a specific fit for a range of GM platforms centered on the classic Chevelle. It covers the Chevrolet Chevelle across the 300 in 1968, the 300 Deluxe from 1968-1969, the Concours and Nomad from 1968-1972, the Concours Estate and Greenbrier from 1969-1972, the Base trim from 1970-1972, and the Malibu and SS trims from 1971-1972. The same part also fits the Chevrolet El Camino Base from 1968-1972 and again from 1975-1977, along with the El Camino Classic and SS trims from 1975-1977 and the El Camino Conquista in 1977. Additional coverage includes the 1971-1972 Chevrolet Bel Air, Biscayne, Brookwood, Caprice, and Impala, plus the 1971-1972 GMC Sprint. It fits the Chevrolet Blazer in 1969-1970 and 1973-1974 and the GMC Jimmy in 1970 and 1973-1974, as well as the Chevrolet Camaro Base in 1967-1968 and 1976-1979 and the Chevrolet Nova Base in 1969 and 1979. Rounding out the list are the Chevrolet G20 Van Base for 1971 and the 1979 Pontiac Phoenix in Base, LJ, and SJ trims.
Features

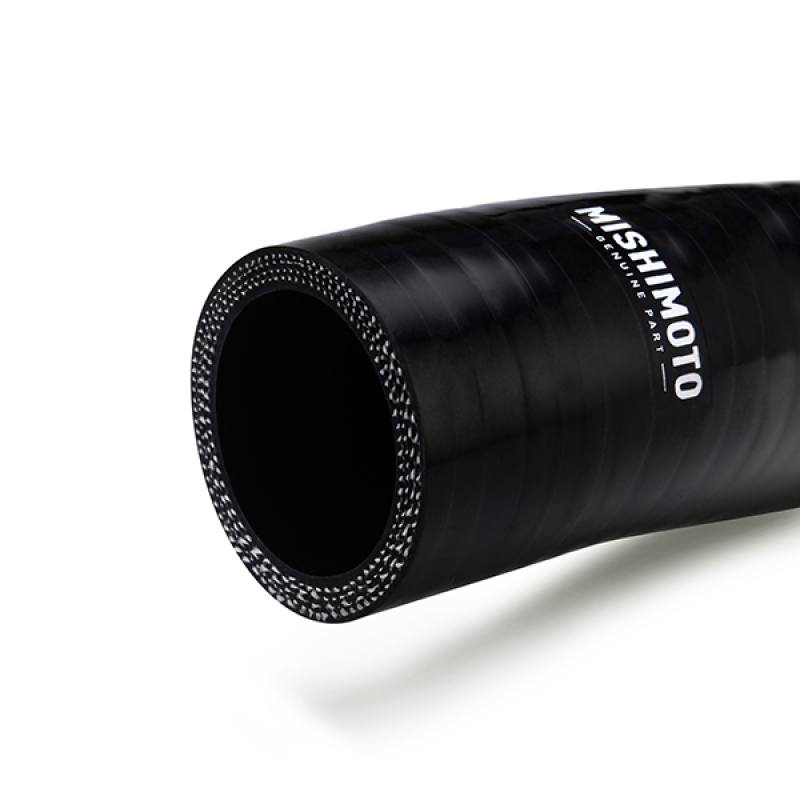

- Constructed from five layers of silicone with heat-resistant embedded fibers
- Improves heat and pressure tolerance versus a factory rubber hose
- Includes two worm-gear clamps for ease of installation
- Available in black
- Specific-fit, performance-grade silicone hose for the listed applications
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMHOSE-GM-5U
- Product Type: Cooling
- Hose Material: Silicone
- Hose Color: Black
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Clamps Included: Yes
- Maximum Temperature Rating: 330°F
- Purchase Includes: (1) Silicone Hose, (2) Worm-Gear Clamps, Mishimoto Lifetime Warranty
- Recommended worm-gear clamp torque: 22 in-lbs (2.5 NM); operating range 18-27 in-lbs (2-3 NM); do not exceed 27 in-lbs (3 NM)
Frequently Asked Questions
What is the Mishimoto MMHOSE-GM-5U hose made of?
It is constructed from five layers of silicone with heat-resistant embedded fibers, which improves heat and pressure tolerance compared to a stock rubber hose.
Does this hose come with clamps?
Yes, the hose includes two worm-gear clamps for ease of installation.
What color is this radiator hose available in?
This silicone upper radiator hose is available in black.
What is the maximum temperature rating of this hose?
The hose has a maximum temperature rating of 330°F.
Which vehicles does the Mishimoto MMHOSE-GM-5U fit?
It is a specific fit for the Chevrolet Chevelle (1968-1972 across multiple trims), Chevrolet El Camino (1968-1972 and 1975-1977 across multiple trims), Chevrolet Bel Air, Biscayne, Brookwood, Caprice, and Impala (1971-1972), GMC Sprint (1971-1972), Chevrolet Blazer (1969-1970, 1973-1974), GMC Jimmy (1970, 1973-1974), Chevrolet Camaro Base (1967-1968, 1976-1979), Chevrolet Nova Base (1969, 1979), Chevrolet G20 Van Base (1971), and Pontiac Phoenix (1979, Base/LJ/SJ trims).
Does this hose include a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
