Description

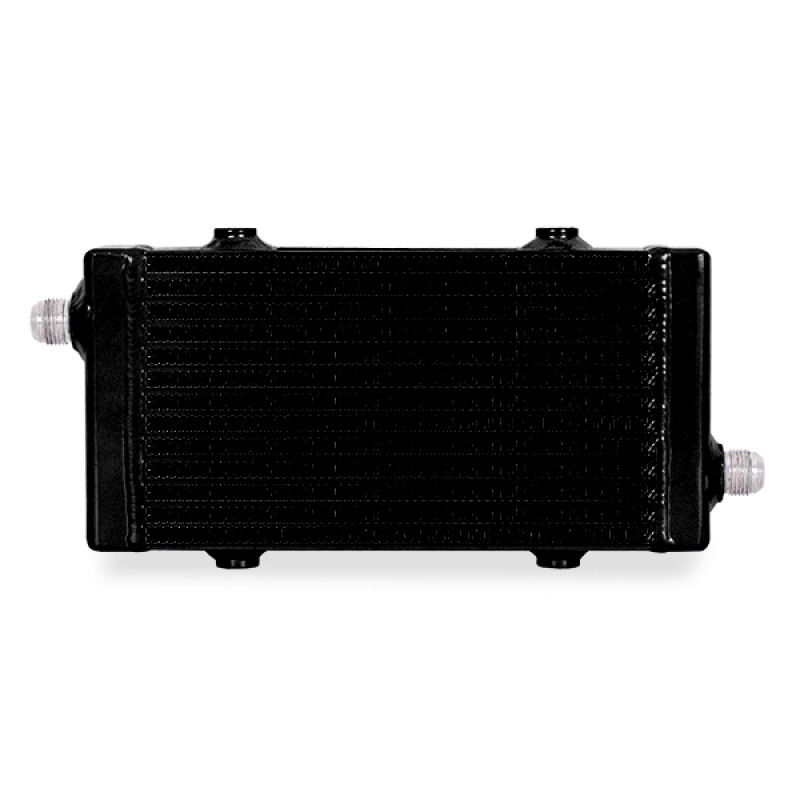

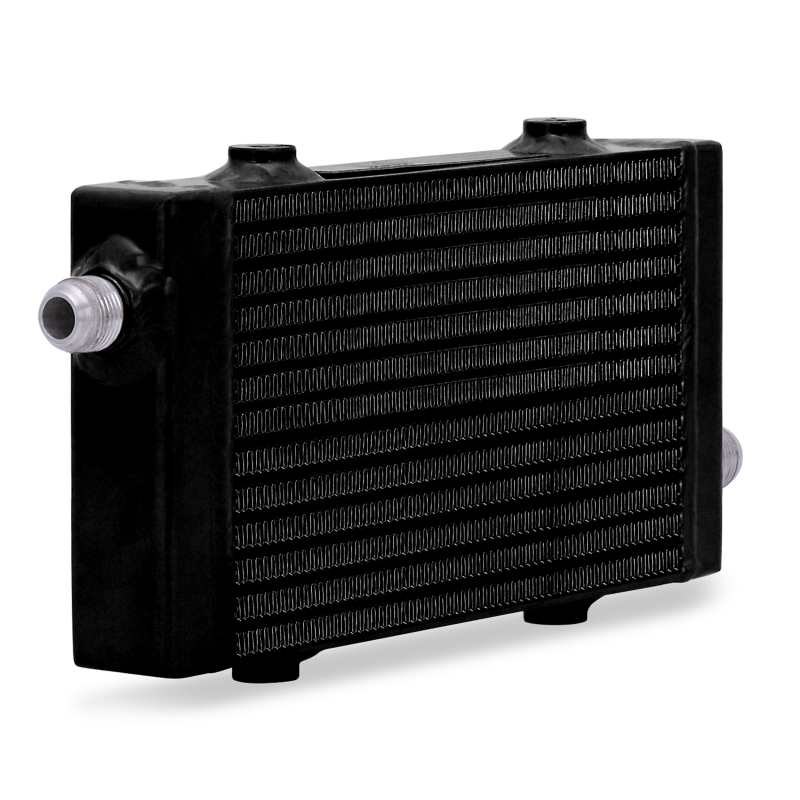

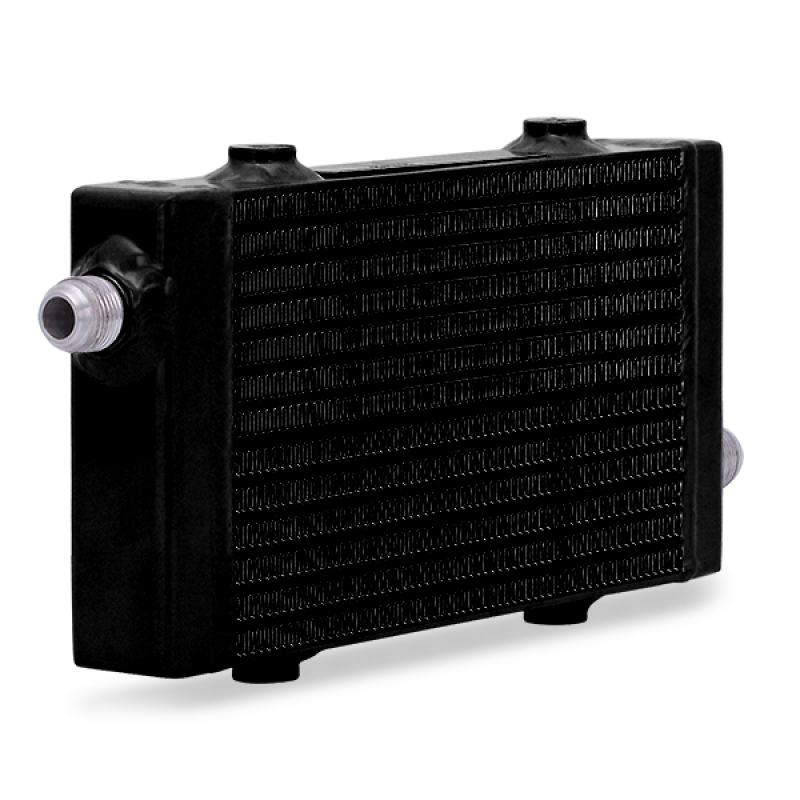

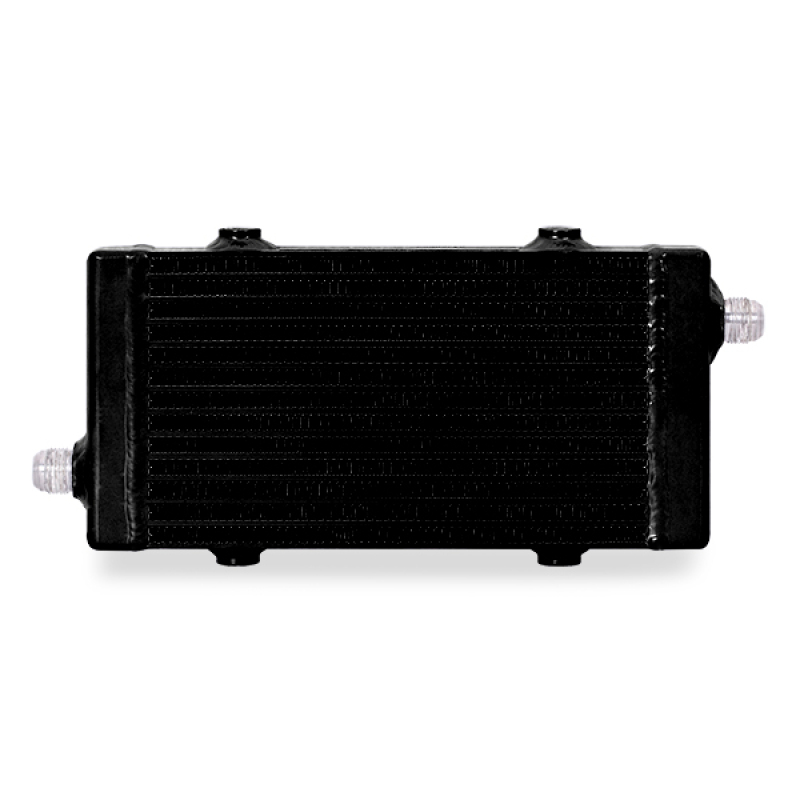

The Mishimoto MMOC-SP-SBK is a small, single-pass race oil cooler finished in stealth black, built for builders who need serious oil temperature control without the bulk of a larger core. Oil enters one side of the core and exits the other in a true single-pass path, and this stealth black version skips the Mishimoto “M” logo that appears on the silver option, keeping the look clean for tight, discreet installations.
Track driving pushes oil past the point where it can hold its viscosity, and once that happens the thick, slippery film that protects high-wear components inside the block starts to break down. This Mishimoto oil cooler is engineered to pull that heat out of the system so oil keeps doing its job lap after lap. As a compact Mishimoto cooler with a bar-and-plate core, it’s built for custom applications rather than a single factory fitment, giving fabricators and racers a dependable Mishimoto race oil cooler that drops into tight engine bays where space is at a premium.
Vehicle Applications
This is a universal, custom-application oil cooler rather than a cooler engineered for one specific factory chassis. Its compact core dimensions and welded mounting bungs make it a practical choice for custom oil cooling setups in project cars, race builds, and any installation where a small-footprint Mishimoto cooler needs to fit into a limited space.
Features
- Durable bar-and-plate cooler design built for use in custom applications
- M8x1.25 welded bungs for attaching mounting brackets
- -10AN male AN flare fittings for attaching oil lines
- 100-percent aluminum construction with CNC end tanks
- Reduces oil temperatures with minimal pressure loss
- Increased oil system capacity for added cooling capability

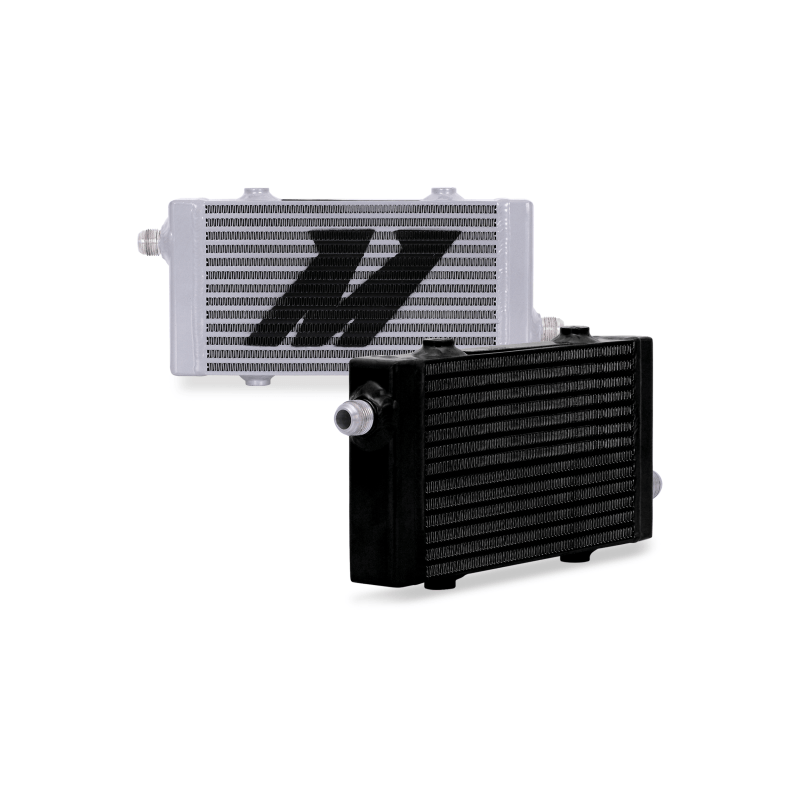

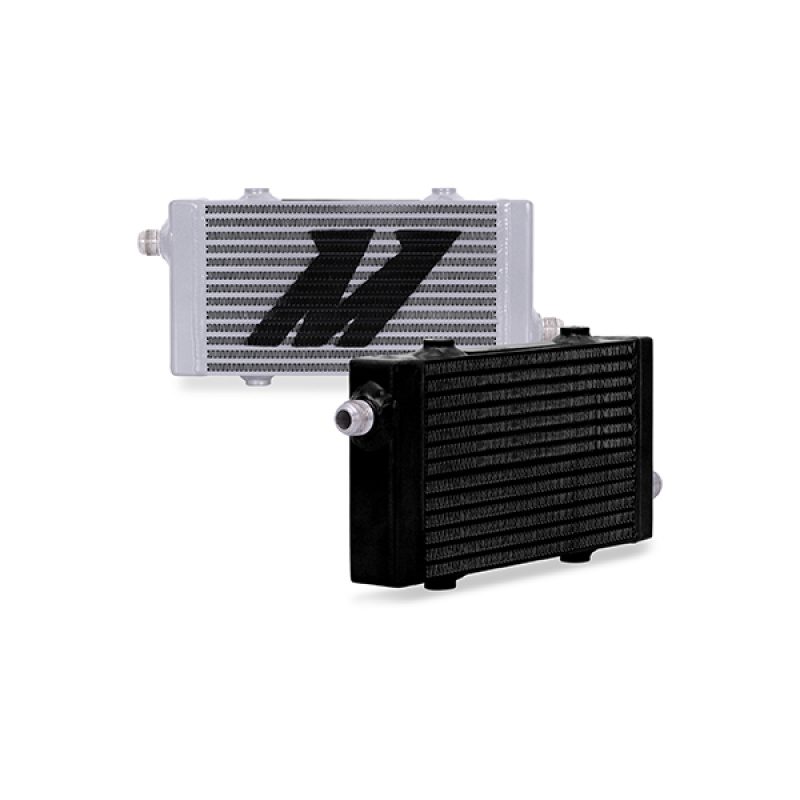

- Available in Sleek Silver or Stealth Black; the black finish omits the Mishimoto “M” logo found on the silver version
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Color/Finish: Black, Anodized
- Core Type: Bar-and-Plate
- Grade Type: Performance
- Core Height: 5.51 in
- Core Thickness: 1.57 in
- Overall Width: 1.57 in
- Overall Height: 6.3 in
- Overall Length: 13.5 in
- Base Height: 6.3 in
- Inlet Fitting Type/Gender: AN Flare, Male (-10AN)
- Outlet Fitting Type/Gender: AN Flare, Male (-10AN)
- Inlet Outside Diameter: 0.625 in
- Outlet Outside Diameter: 0.625 in
- Cooler Fluid Capacity: 0.5 QT
- Includes: (1) Oil Cooler with Mishimoto Lifetime Warranty
Frequently Asked Questions
What does “single pass” mean on this Mishimoto oil cooler?
Oil enters one side of the core and exits the other side, following a single-pass path through the cooler.
Does the stealth black version have the Mishimoto logo?
No, only the silver version has the Mishimoto “M” logo on one side; the stealth black option does not have a logo.
What fittings does this oil cooler use?
It uses -10AN male AN flare fittings on both the inlet and outlet, each with a 0.625 in outside diameter.
What is the fluid capacity of this cooler?
The cooler holds 0.5 QT of fluid.
What’s included in the box?
You receive (1) Oil Cooler, backed by the Mishimoto Lifetime Warranty.
Will this fit my specific vehicle?
This is a universal, custom-application oil cooler rather than one engineered for a specific factory chassis, so it’s intended for custom oil cooling installs.
